Acme – FLANDINA 22 IP

12x10W | LED | Bar | RGBWA | Strobe bar 108 x3 W cw | Pixel control | IP66

Log in of registreer om uw korting te zien.
Of vraag vrijblijvend een offerte aan.

Demo? Bezoek onze showroom of maak een afspraak voor een demo op locatie.

Wij zijn er voor de professional. Totaal leverancier stage & entertainment

Deskundig advies op maat. Wij denken graag met je mee.

Gespecialiseerd in projectie. Voor elke project een oplossing.

[vc_row][vc_column][vc_column_text]Functional Overview

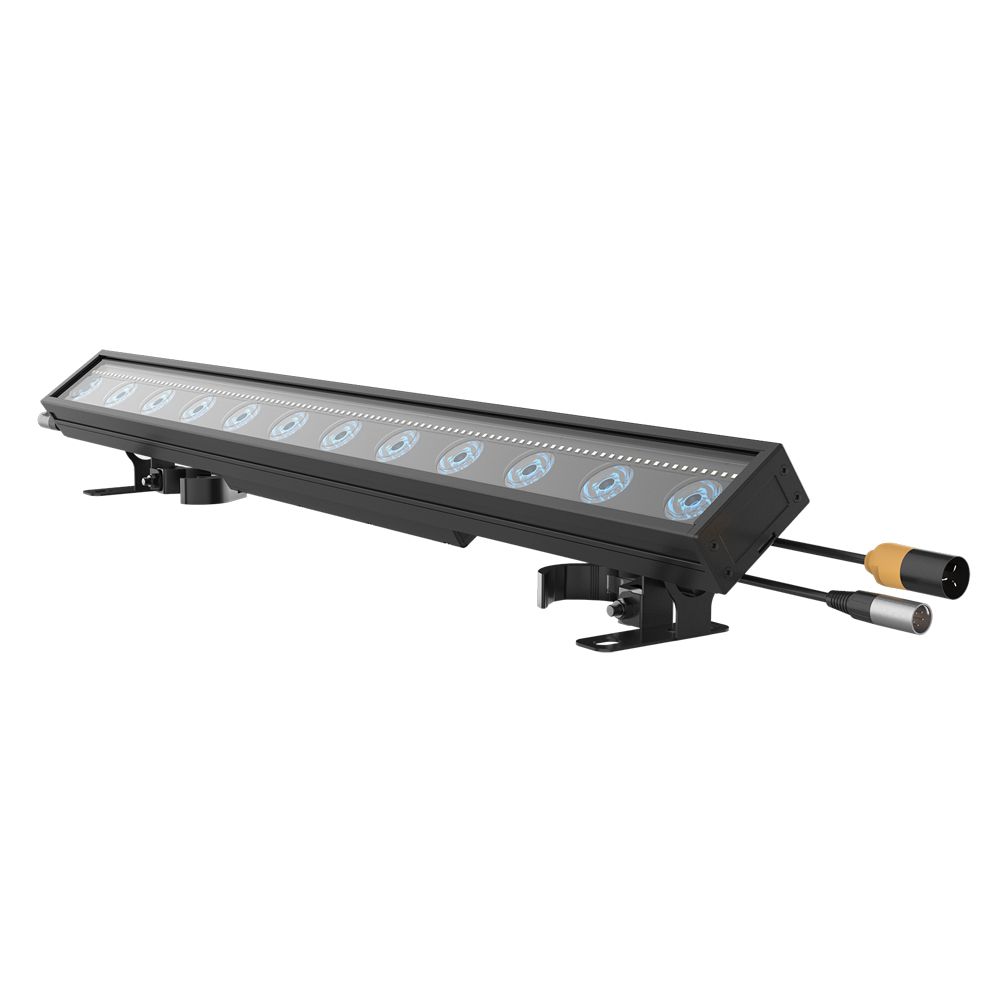

ACME’s brand new IP66 rate LED Pixel Bar — FLANDINA 22 IP,a new member of the FLANDINA family, combining 12x10W RGBWA LEDs with pixel control and 108x 3W Cold white LEDs. It features an advanced optical design that ensures high-quality color mixing and smooth output, offering a wide range of color options for indoor or outdoor use.

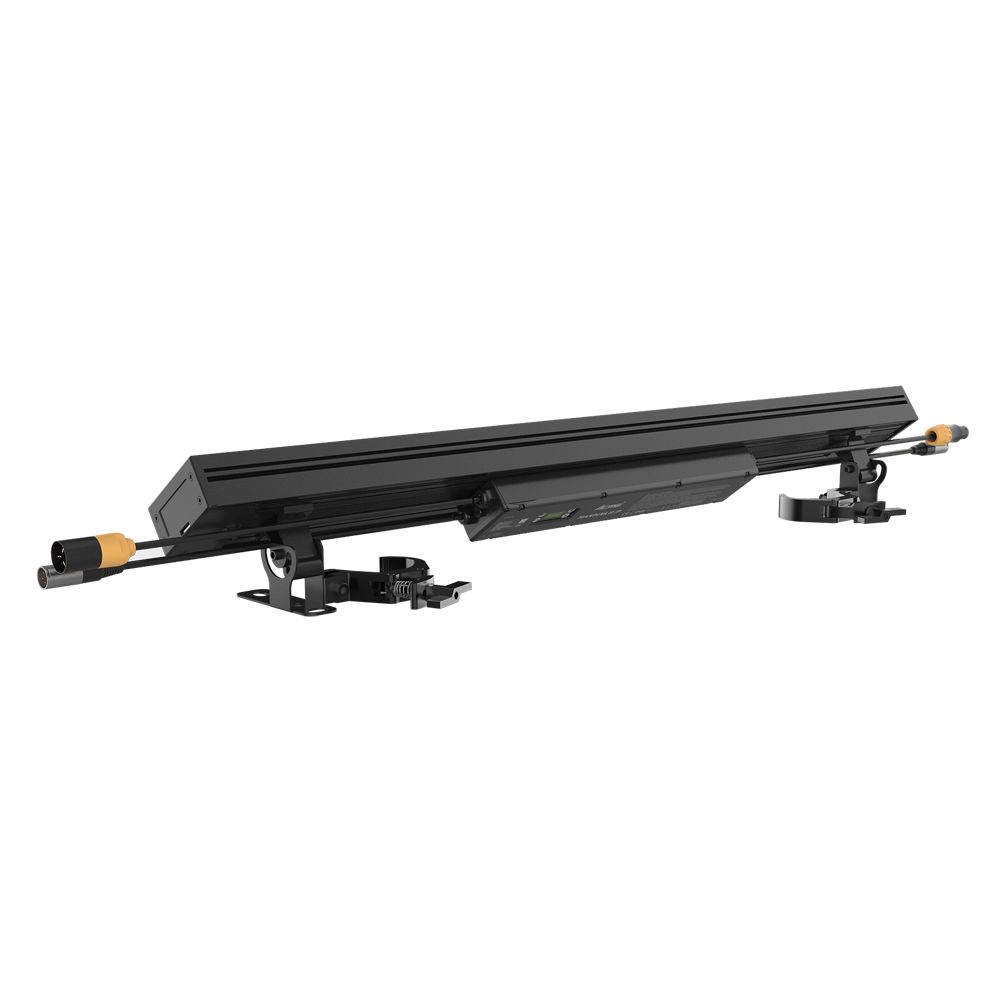

Dual mounting bracket design, the adjustable angle reaches 180° in both directions. Integrated fold down clamps for fast and easy installation.

FLANDINA 22 IP, is a perfects gear for touring, festival stage or installation.



Features

  • Light Sources:
    • 12x10W RGBWA LED
    • 108x3W CW LED
  • 12 pcs LED pixel control
  • Outstanding strobe effect with variable speed
  • 0~100% smooth dimming
  • Dual mounting bracket design, the adjustable angle reaches 180° in both directions. Integrated fold down clamps for fast and easy installation.
  • Flicker free management

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width=”1/2″][vc_column_text]Model

  • BAR 22 IP

Light Source

  • Light Sources:
    • 12x10W RGBWA LED
    • 108x3W CW LED

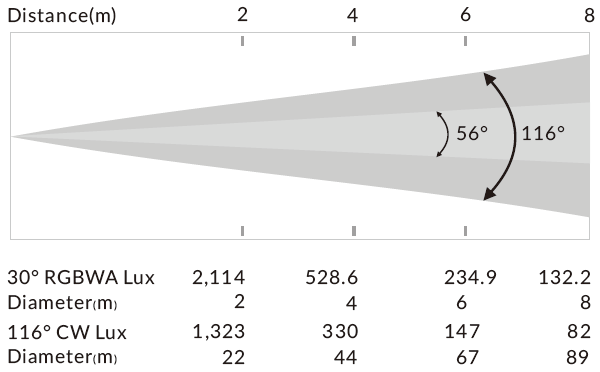

  • Beam Angle:
    • RGBWA Angle: 30°
    • CW Angle: 116°
  • Field Angle:
    • RGBWA Angle: 56°
    • CW Angle: 160°

Optical System

  • Advanced optical design and high-efficient lenses to ensure the tight beam angle

Control and Program

  • 4-buttons touch panel
  • Display: OLED display
  • Control Mode: DMX512, RDM
  • DMX Protocol modes: 7
  • Control channels: 74/72/14/10/8/7/6
  • Upgrade the firmware via DMX link

Electrical and Connectors

  • Power supply with electronic auto-ranging
  • Input voltage range: 100-240V~ 50/60Hz
  • Power consumption: 365 W
  • Power In/Out: Waterproof Power Connector in/out
  • Data in/out: Waterproof 3-pin or 5-pin XLR

Fixture Specification

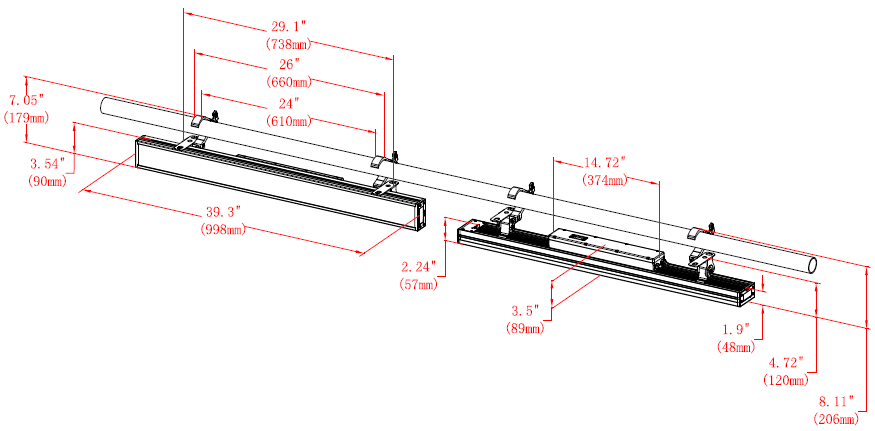

  • Fixture Dimension:
    • Depth: 998 mm (39.3″)
    • Width: 92 mm (3.6″)
    • Height: 185 mm (7.3″)
    • Weight: 6.8 kg (15 lbs)
  • Carton Dimension:
    • Depth: 1,085 mm (42.7″)
    • Width: 245 mm (9.7″)
    • Height: 175 mm (6.9″)

[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_column_text]Work Environment

  • Maximum ambient temperature: 40°C
  • Minimum operating temperature: -20°C
  • Maximum surface temperature: 65°C
  • Protection Rating: IP66

Installation

  • Horizontally or vertically mounting are available

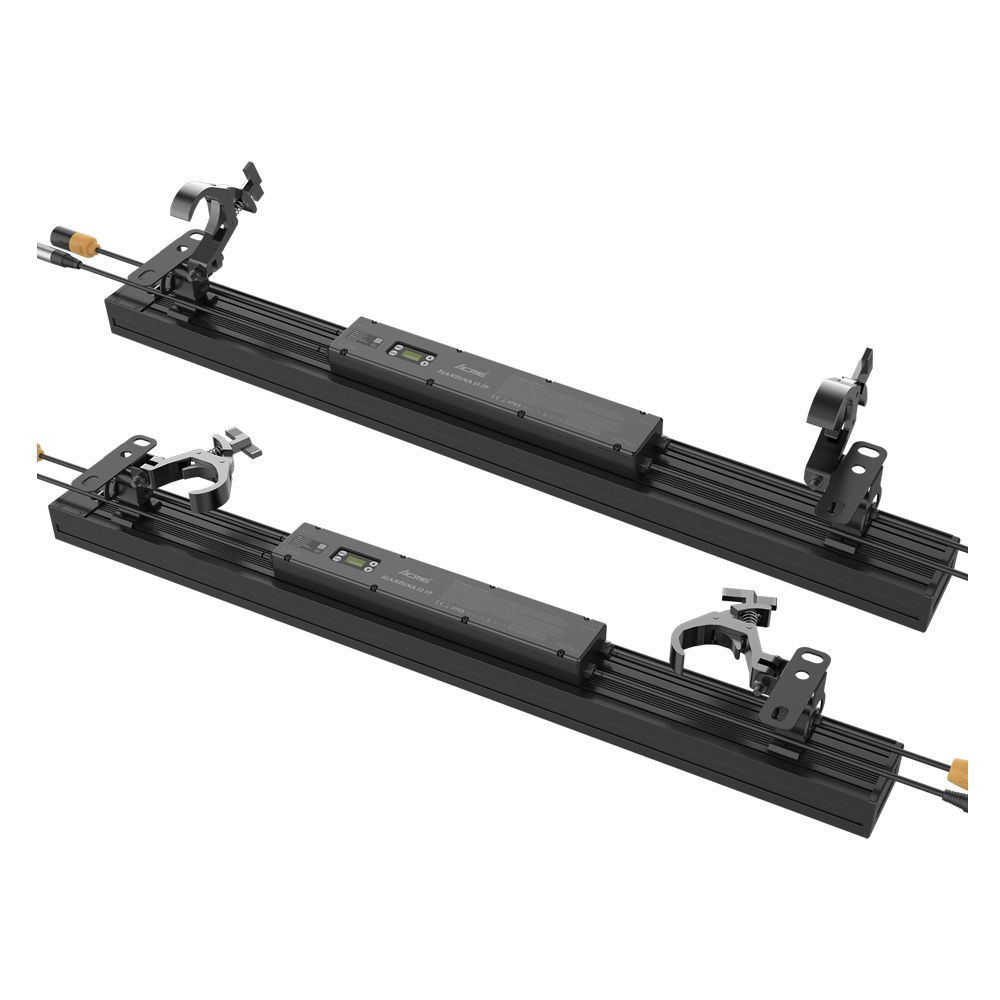

  • 2 x Fixed foldable clamps for 50mm truss
  • Operating position is universal

Included Items

  • Digital User Manual
  • 2 x Fixed foldable clamps for 50mm truss
  • Power Cable

Optional Accessories (with item code)

  • Single Line: 5-pin XLR single line
  • Safety cable: 2060000200(SW-02)
  • Signal Line: 3-pin or 5-pin IP signal line

[/vc_column_text][/vc_column][/vc_row]
