Functional Overview
FLANDINA 18 is an LED strip lamp suitable for bar, ballroom, nightclub etc. With 18pcs high-efficiency 8W RGBW LED light sources, excellent color mixing system, adjustable speed of electronic stroboscopic effect, makes the stage lighting effect is much more better; There are double mounting bracket at the base, the adjustable angle of the lamp can reaches 180 degrees in both direction, makes the installation unlimited to truss structure, improves work efficiency and reduces installation time.

Features
Light source: 18 x 8W RGBW LED
Beam angle: 14.5°
Field angle:26.4°
Efficient LED lens,uniform color mixing,which makes the light effect better
0~100% smooth dimming
Adjustable electronic strobe effect
Suitable for fixed installation or mobile performance

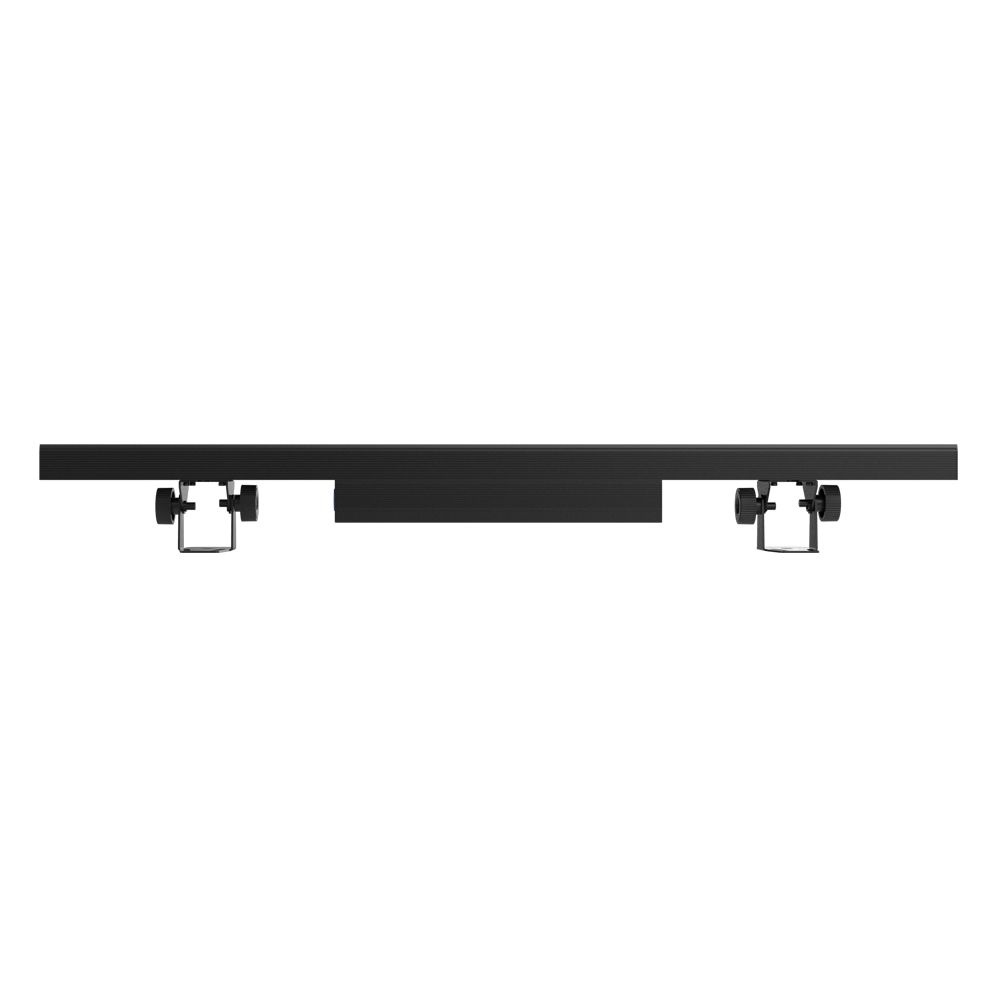

There are double mounting bracket at the base, the adjustable angle of the lamp can reaches 180 degrees in both direction

Technical & Specification
Model
BAR 18

Light source
Light source: 18 x 8W RGBW LED
LED life expectancy: 20000 hours

Optical system

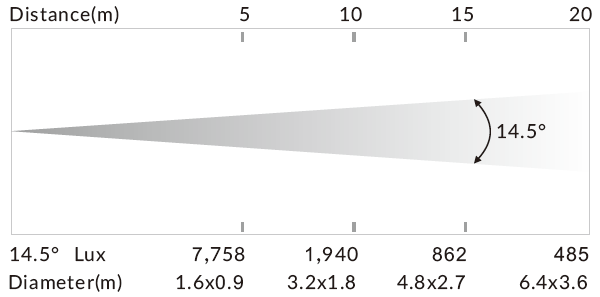

Beam Angle: 14.5°
Field angle:26.4°
RGBW colour mixing

Control and Program
4-buttons
Display: OLED display
Protocols: DMX512, RDM
DMX Protocol modes: 5
Control channels: 16,11,10,8,4
Upgrade the firmware via DMX link
Section control: 3 sections of 6 LED’s

Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240 V, 50/60 Hz
Power consumption: 128 W

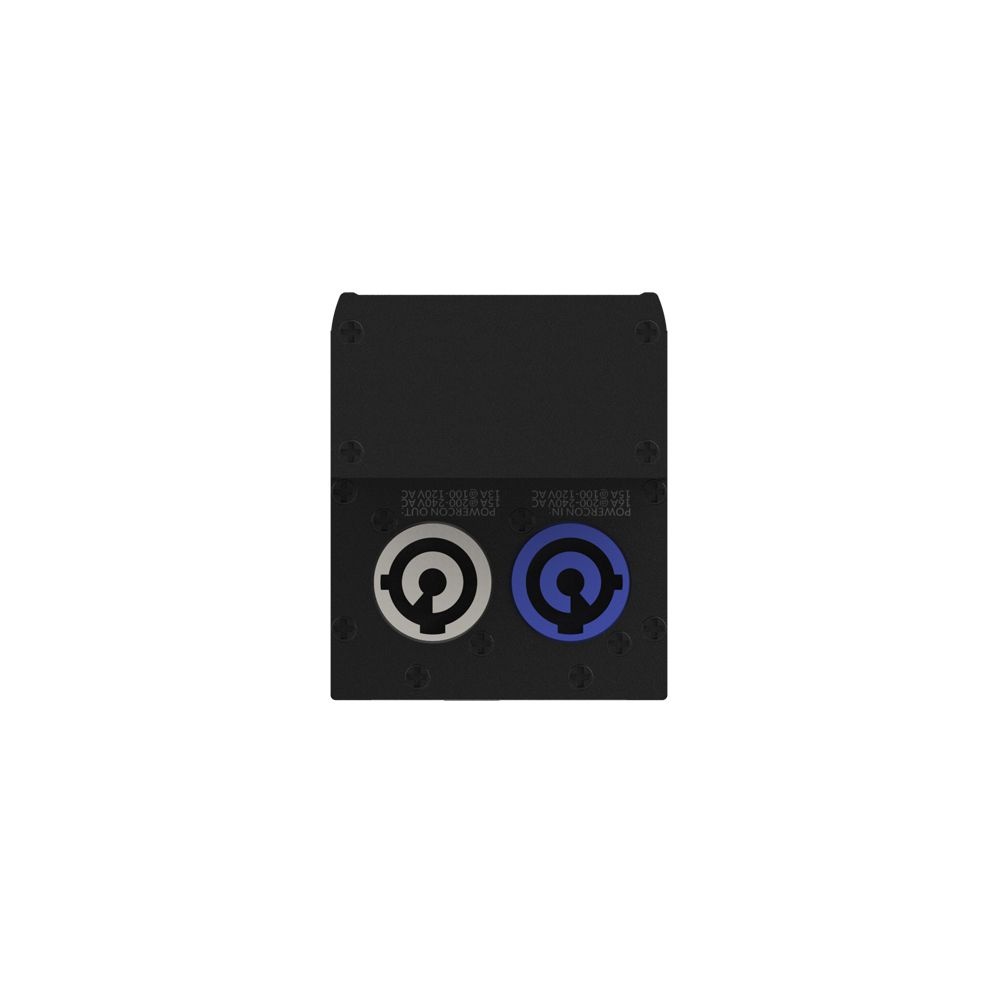

Power in/out: Power Connector input/output

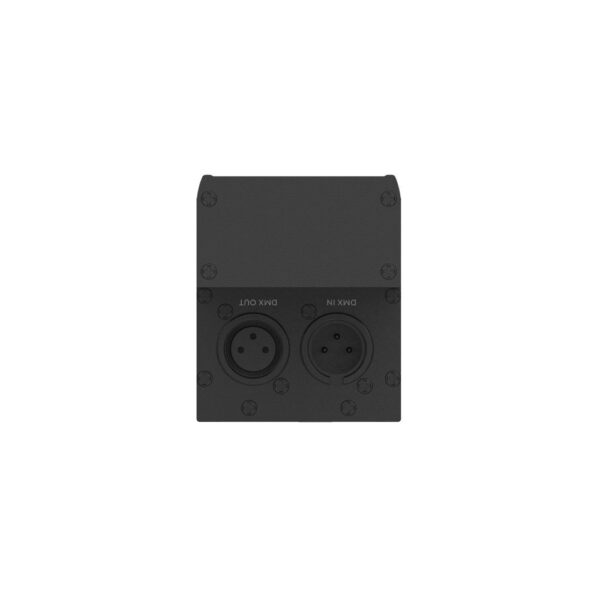

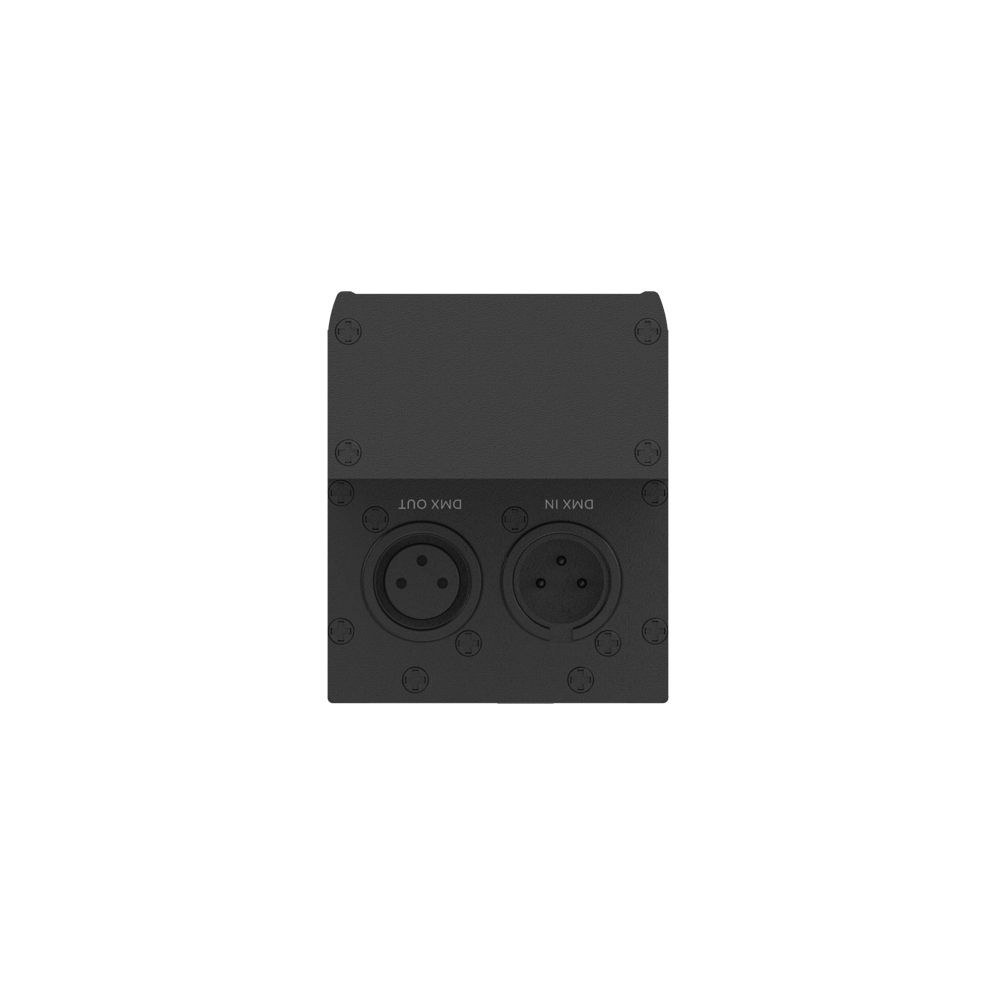

Data in/out: 3-pin XLR

Fixture Specification
Height: 106 mm (4.3″)
Width: 102 mm (4.0″)
Depth: 998 mm (39.3″)
Weight: 3.5 kg (7.7 lbs)

Work environment
Maximum ambient temperature: 45°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Protection rating: IP20

Installation
Horizontally or vertically mounting are available
Operating position is universal
Safety cable attachment point

Included items
User Manual
Power Cable

Optional Accessories (with item code)

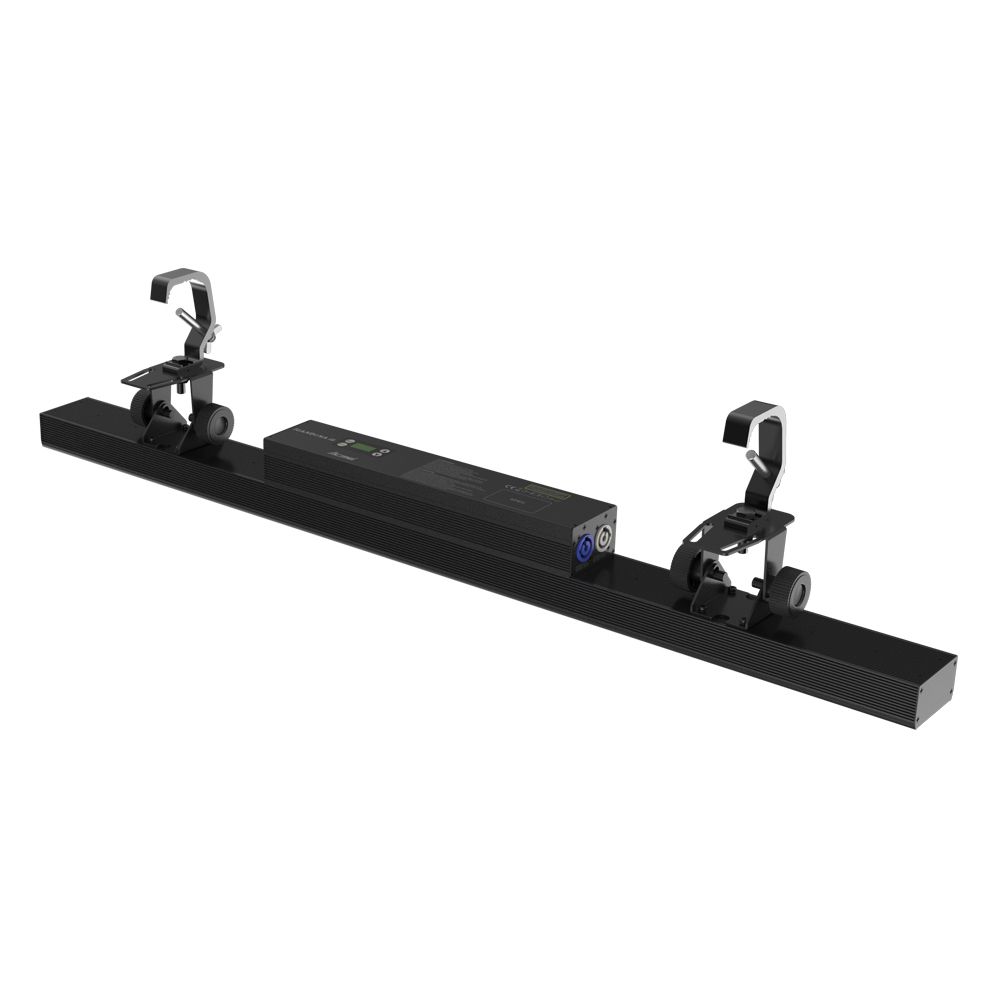

Clamp: 2060001627 (A011)
Signal Line: 3-pin signal line
Safety cable: 2060001628 (A017)

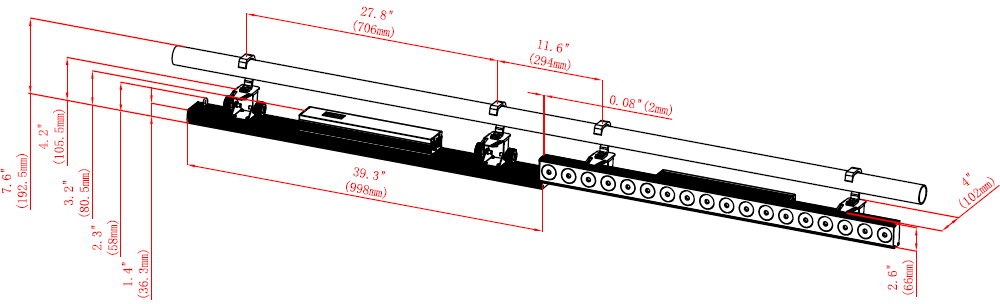

Afmetingen

afmetingen
