Functional Overview

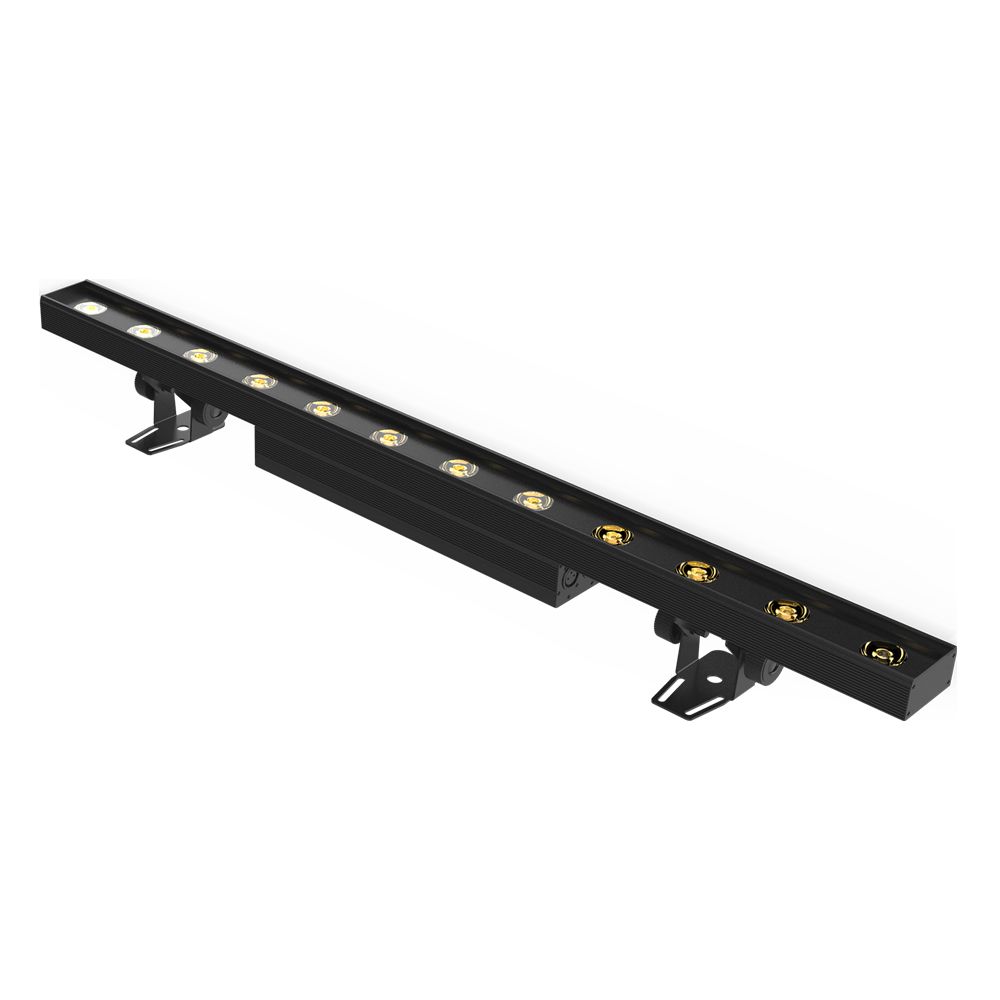

FLANDINA 12 is adopt 12pcs 3W ww LED light sources, 12 pcs LED pixel control. With high efficiency LED lens, 2700k golden yellow light, beam angle up to 4 °, 0~100% smooth dimming, outstanding strobe effect with variable speed.There are double mounting bracket at the base, the adjustable angle of the lamp can reaches 180 degrees in both direction, makes the installation unlimited to truss structure, improves work efficiency and reduces installation time. FLANDINA 12 is suitable for wedding, clubs, ball rooms and other entainment appliciants.
Features
Light Source: 12 x 3W warm white LED
High efficiency LED lens, 2700k golden yellow light, beam angle up to 4 °
12 pcs LED pixel control
Outstanding mixing color effect
Outstanding strobe effect with variable speed
0~100% smooth dimming
Double mounting brackets design and the adjustable angle reaches 180 degrees in both direction
Flicker free management
Technical & Specification
Model
BAR 12
Light source
Light Source: 12 x 3W warm white LED
LED life expectancy: 20000 hours
Optical system
Beam Angle: 4°
Outstanding strobe effect with variable speed
Control and Program
4-buttons touch panel
Display: OLED display
Control Mode: DMX512, RDM
DMX Protocol modes: 3
Control channels: 16,14
Upgrade the firmware via DMX link
Dimmer: 16 bit
Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240 V, 50 Hz
Power consumption: 53 W
Power In/Out: Power Connector in/out
Data in/out: 3-pin IP XLR

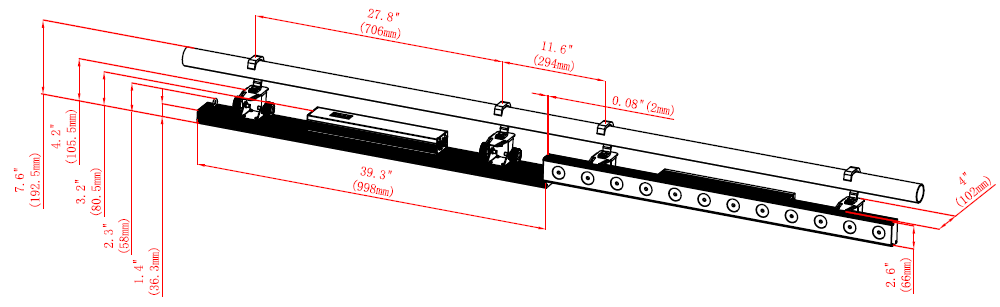

Fixture Specification
Height: 106mm (4.2″)
Width: 998 mm (39.3″)
Depth: 102 mm (4.0″)
Weight:3.3.3kg (7.3 lbs)
Work environment
Maximum ambient temperature: 45°C
Maximum surface temperature: 75°C
Minimum operating temperature: -10°C
Protection Rating: IP20
Installation
Horizontally or vertically mounting are available
Operating position is universal
Safety cable attachment point
Included items
User Manual
Power Cable
Optional Accessories (with item code)
Clamp：2060001627 (A011)
Safety cable : 2060001628 (A017)
Signal Line：3-pin signal line
