Functional Overview

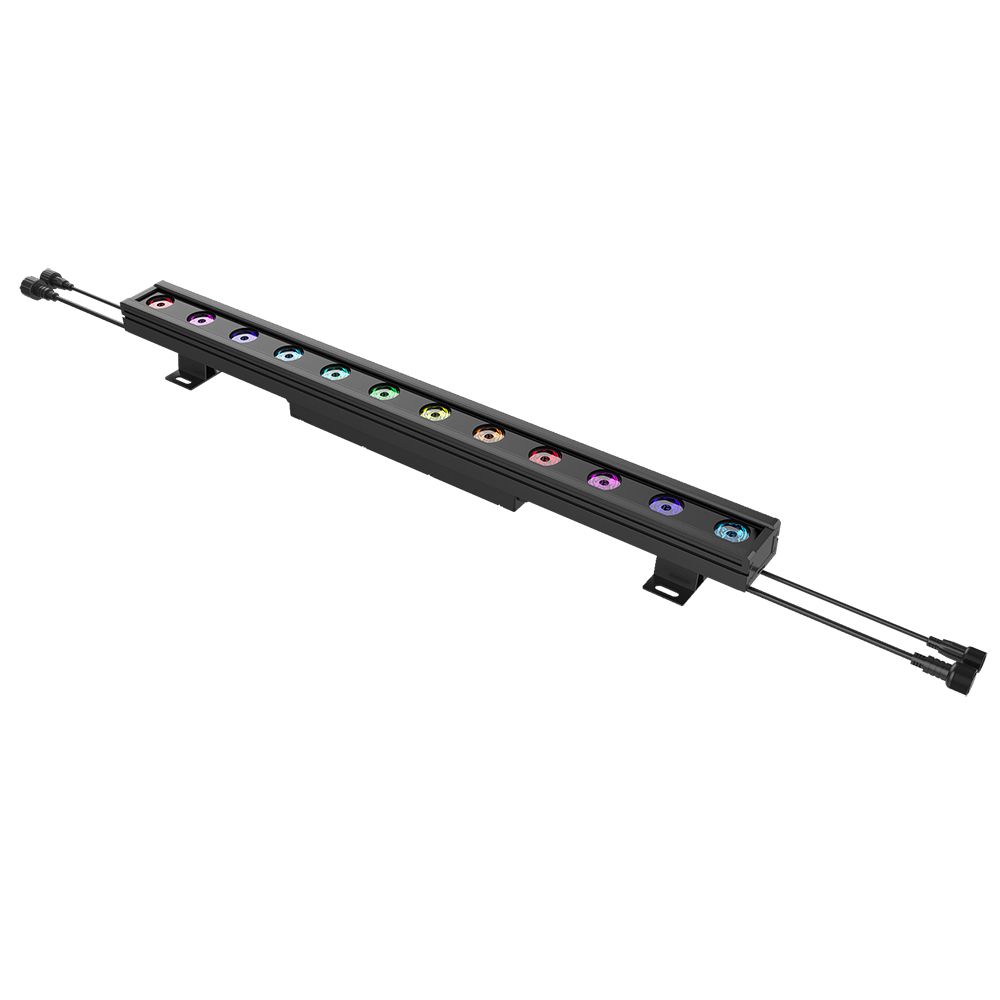

FLANDINA 12 IP is an outdoor LED bar light with Pixel control, featuring 12pcs 15W quad-color RGBW LEDs, It is 1 meter bar with light weight design.

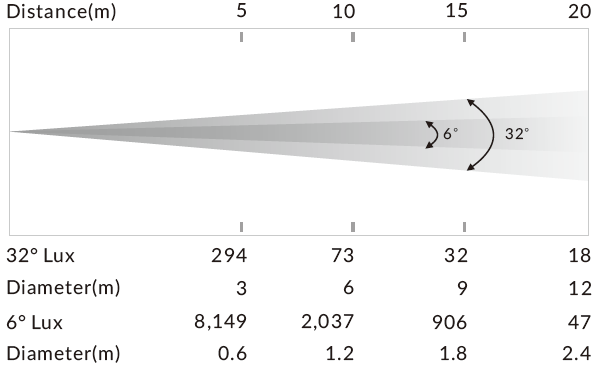

The equidistant layout from each LED ensures uniform output. LED lens with two angles could meet different stage need. A narrow beam angle at 6°, delivers sharp beam and strong light output. When choose the lens at 32°, FLANDINA 12 IP is able to cover a larger area with superior color mixing and spread wash.

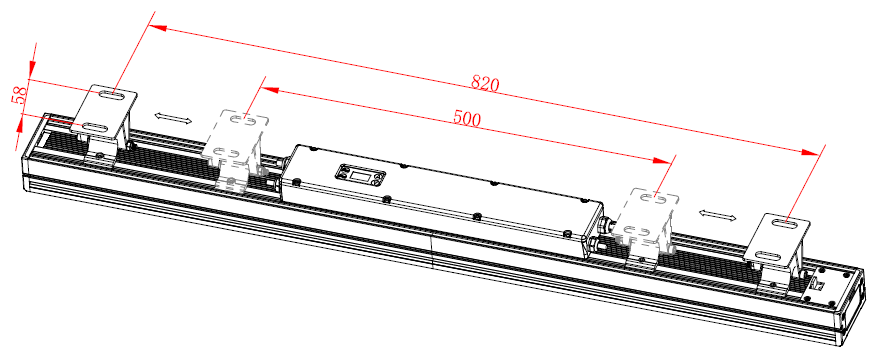

FLANDINA 12 IP makes installation faster and easier, thanks to the dual mounting bracket design, with adjustable angle up to 180° in both directions.

IP66 Protection rate, the exterior bar fixture, is suitable for indoor and outdoor applications.

Features

• Light Source: 12x15W RGBW LED
• 12 pcs LED pixel control
• Outstanding strobe effect with variable speed
• 0~100% smooth dimming
• Dual mounting bracket design and the adjustable angle reaches 180 degrees in both direction
• Flicker free management

Model

• BAR 12 IP

Light Source

• Light Source: 12x15W RGBW LED
• LED life expectancy: 20,000 hours
• Order Lens Options: D6, D32

Optical System

• Advanced optical design and high-efficient lenses to ensure the tight beam angle

Control and Program

• 4-buttons touch panel
• Display: OLED display
• Control Mode: DMX512, RDM
• DMX Protocol modes: 7
• Control channels: 50/48/12/8/6/5/4
• Upgrade the firmware via DMX link

Electrical and Connectors

• Power supply with electronic auto-ranging
• Input voltage range: 100-240V~ 50/60Hz
• Power consumption: 135 W
• Power In/Out: Waterproof Power Connector in/out
• Data in/out: Waterproof Power Connector in/out

Fixture Specification

• Fixture Dimensions:
  • Depth: 1,000 mm (39.3″)
  • Width: 82 mm (3.3″)
  • Height: 108 mm (4.2″)
  • Weight: 7 kg (15 lbs)
• Carton Dimensions:
  • Depth: 1,070 mm (42.1”)
  • Width: 150 mm (5.9″)
  • Height: 190 mm (7.5″)
  • Weight: 7.5 kg (17 lbs) (include carton，one-pack per carton)

Work Environment

• Maximum ambient temperature: 40°C
• Minimum operating temperature: -10°C
• Maximum surface temperature: 65°C
• Protection Rating: IP66

Installation

• Available For Horizontal or vertical mounting
• Operating position is universal

Included items

• Digital User Manual
• Power Cable

Optional Accessories (with item code)

• Signal Line: 3-pin or 5-pin XLR signal line

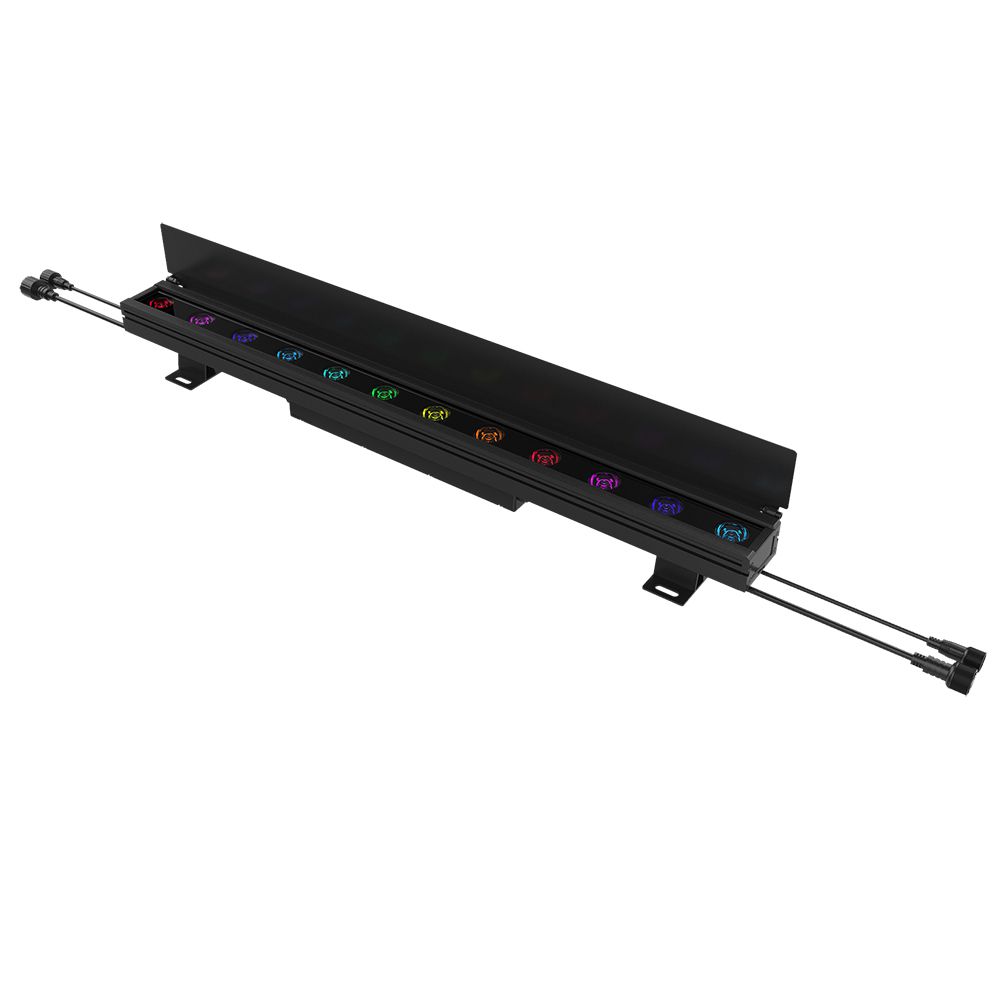

• Barn door: 63582538
• Signal Line: 3-pin or 5-pin IP signal line
• Safety cable: 2060000100
