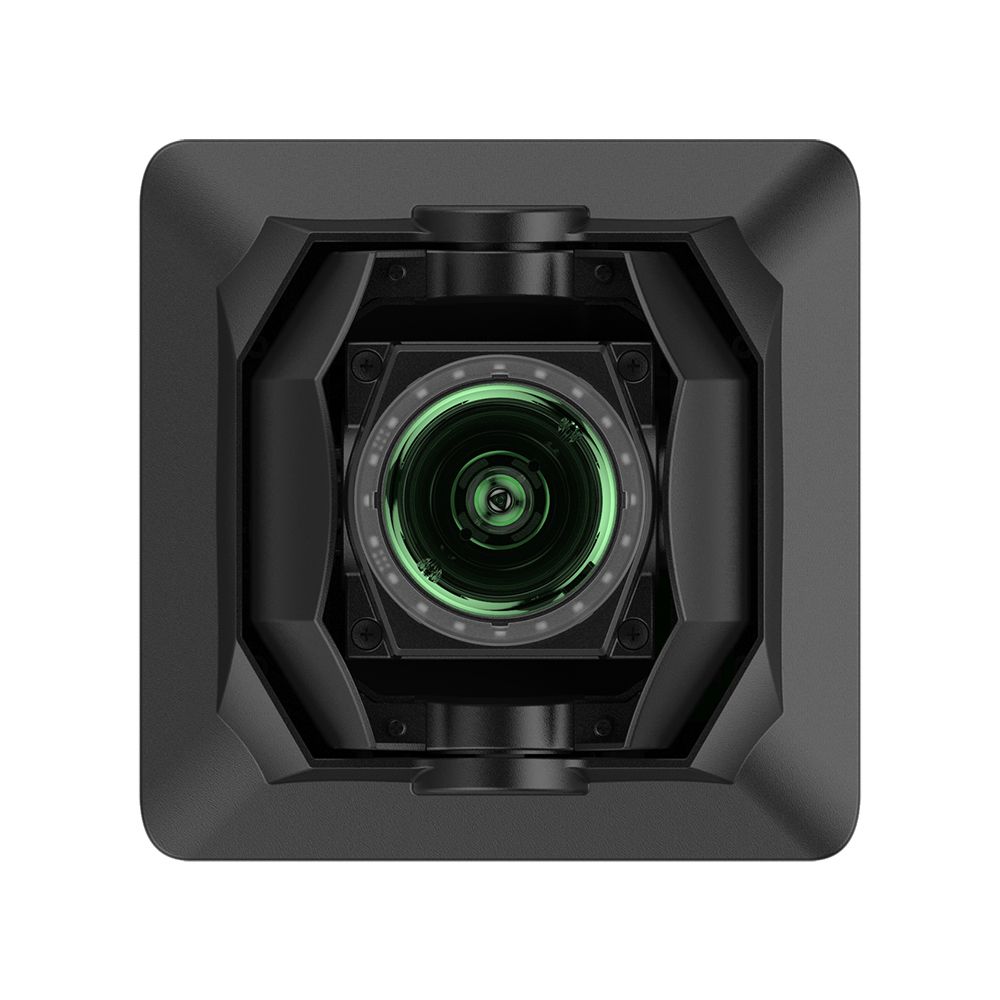

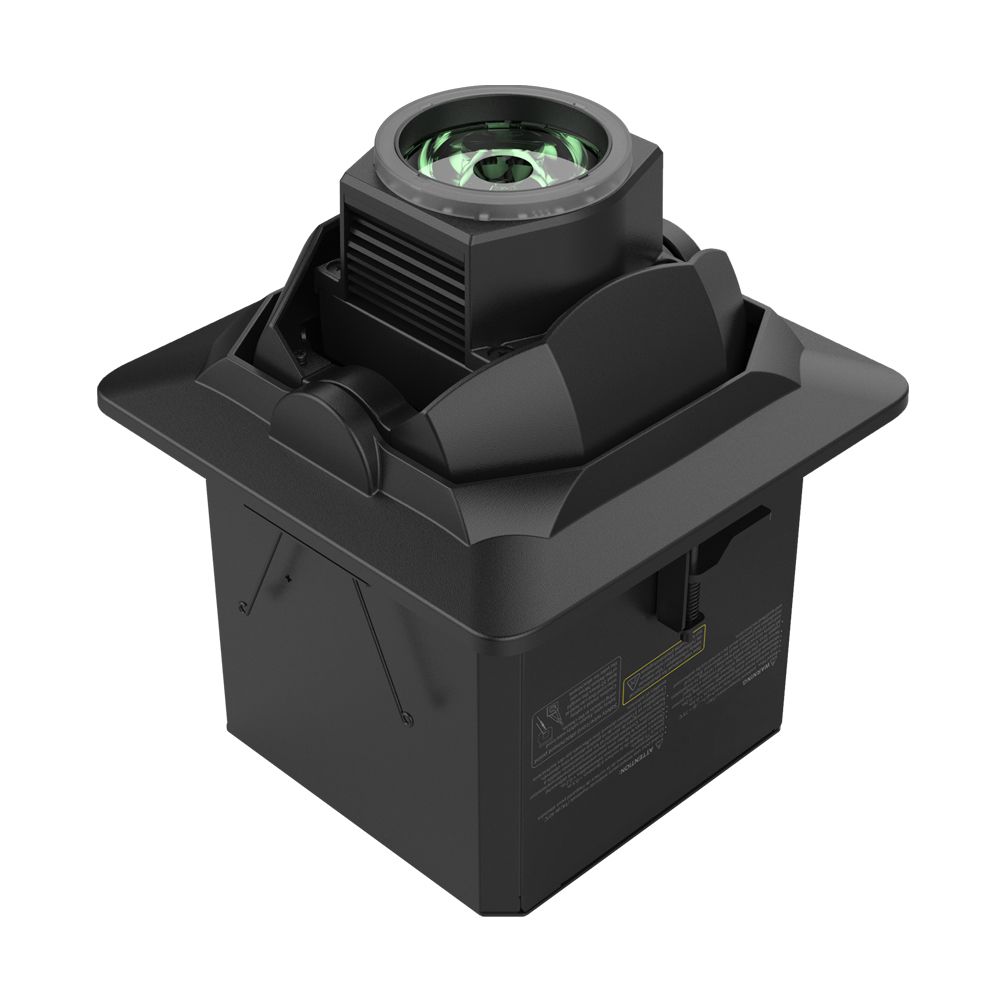

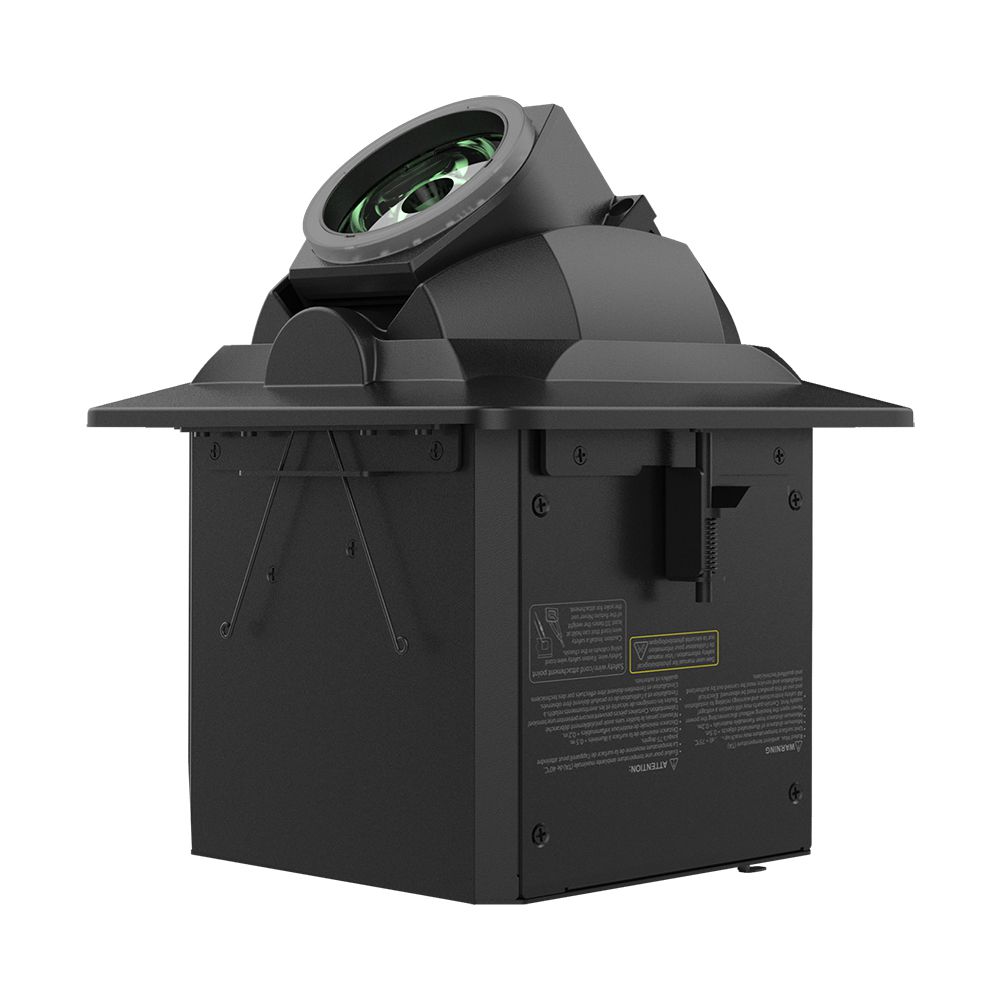

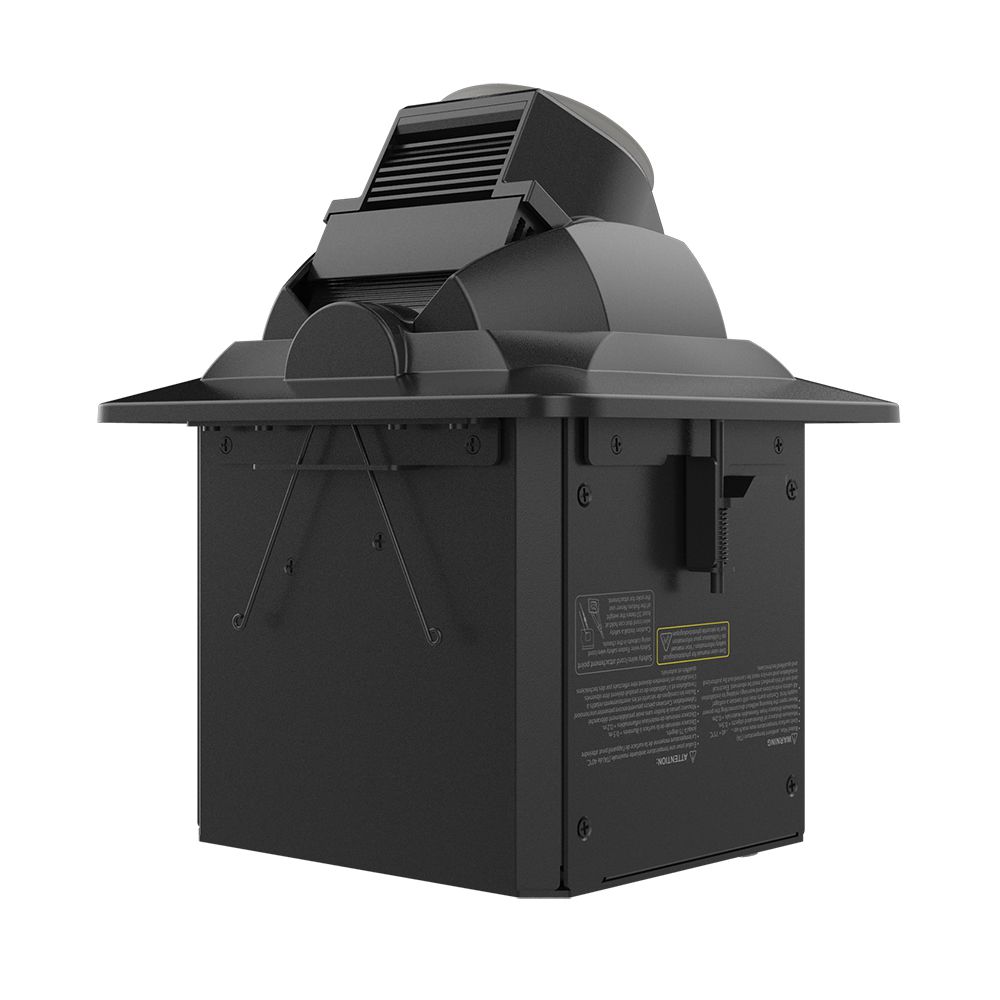

Acme – EYES CC

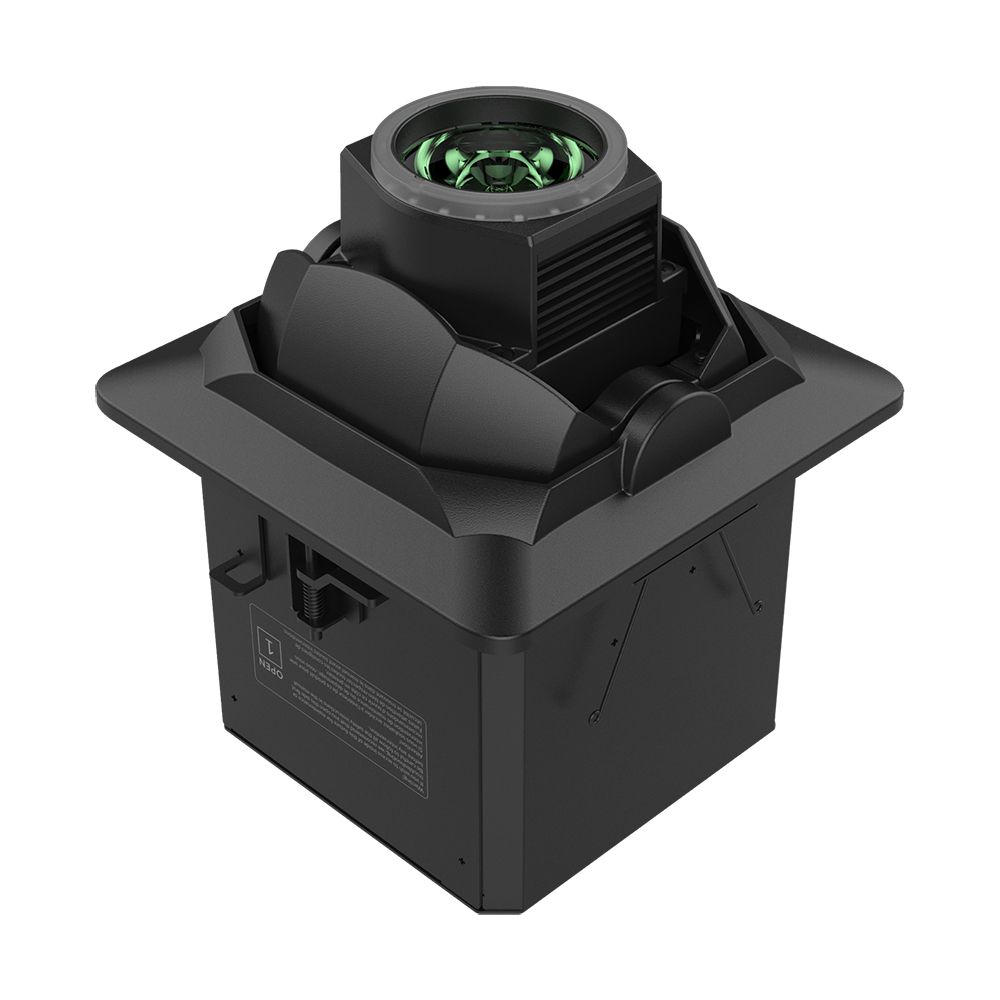

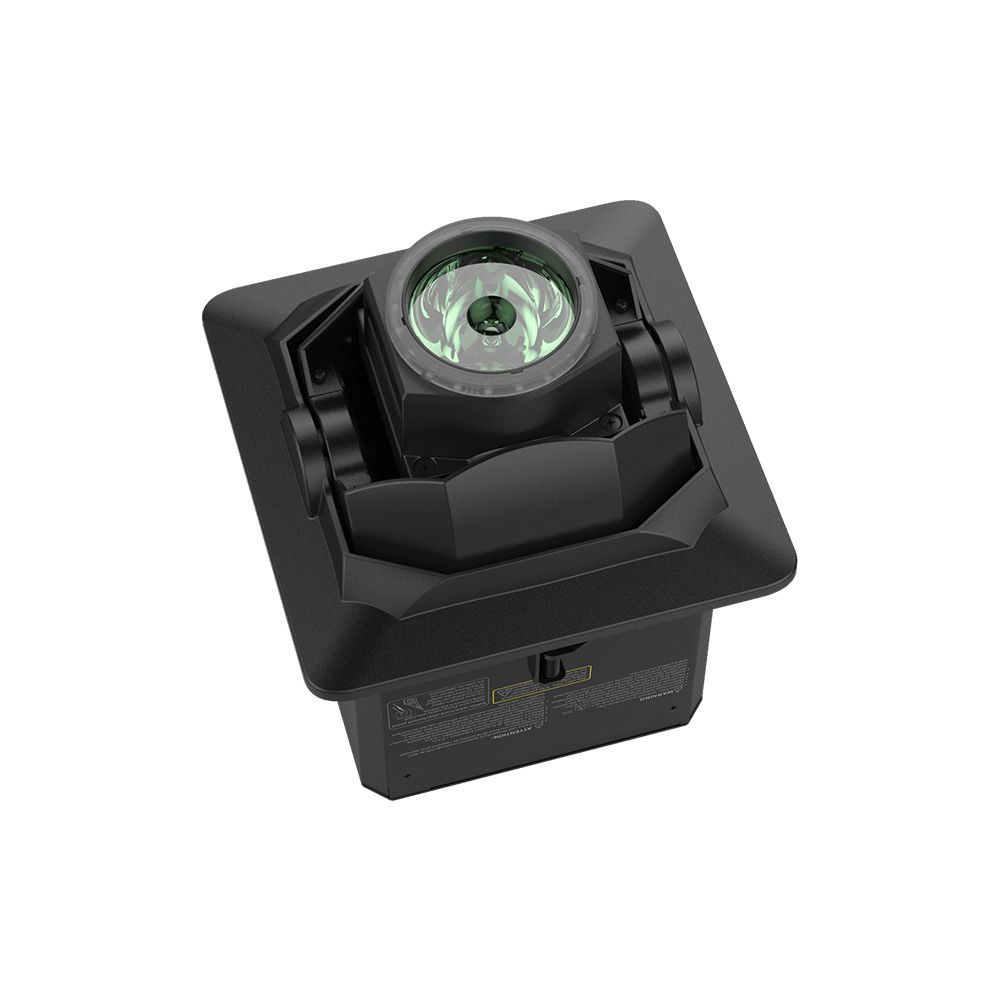

EYES CC is an effect light suitable for small performance venues such as bars, clubs, weddings, TV stations, and theaters.The design of the lamp is compact and light, and the shape is flexible and changeable; with a circular LED lamp ring, which integrates point-by-point control, circle control, strobe, dimming, surface light and other functions, and a unique ultra-short-distance XY-axis structure design, which can pass the XY-axis The rotation angle can achieve the dynamic effects of drawing, 3D space, uniform RGBW color mixing system and rainbow effect, which provide lighting designers with unlimited creative fun. It can also be built into the ceiling. It is suitable for various entertainment venues such as bars, KTVs, hotels, banquet halls, etc.

Features
Light source:
1x 40W RGBW white LED
20 x 0.5W ring LED
Zoom range: 5°/23°
Effects: With ring led, it can pixel control, circle control, strobe, dimming, surface lighting and other functions
Uniform RGBW color mixing system and rainbow effect
Compact design, small size and light weight
Smooth dimming from 0~100%
Multi-speed strobe effect
Can be quickly spliced horizontally and vertically

Technical & Specification
Model
BEAM 50C RGBW

Light source
1x 40W RGBW white LED
20 x 0.5W ring LED
LED life expectancy: 20000 hours

Optical system and Effects

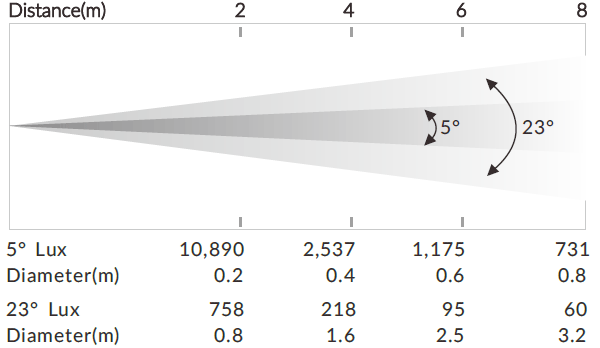

Zoom range: 5°/23°
Effects: With ring LED, can control point by point, circle control, stroboscopic, dimming, surface light and other effects
High resolution dimmer 0–100%

Control and Program
4-buttons touch panel
Display: OLED display with battery backup
Protocols: DMX512,RDM, Master/Slave
DMX Protocol modes: 2
Control channels: 14 / 29

PAN & TILT
Pan movement: 77°
Tilt movement: 77°
Automatic Pan/Tilt position correction

Electrical and Connectors
Input voltage range: 100–240 V~ 50/60 Hz
Power consumption: 60 W

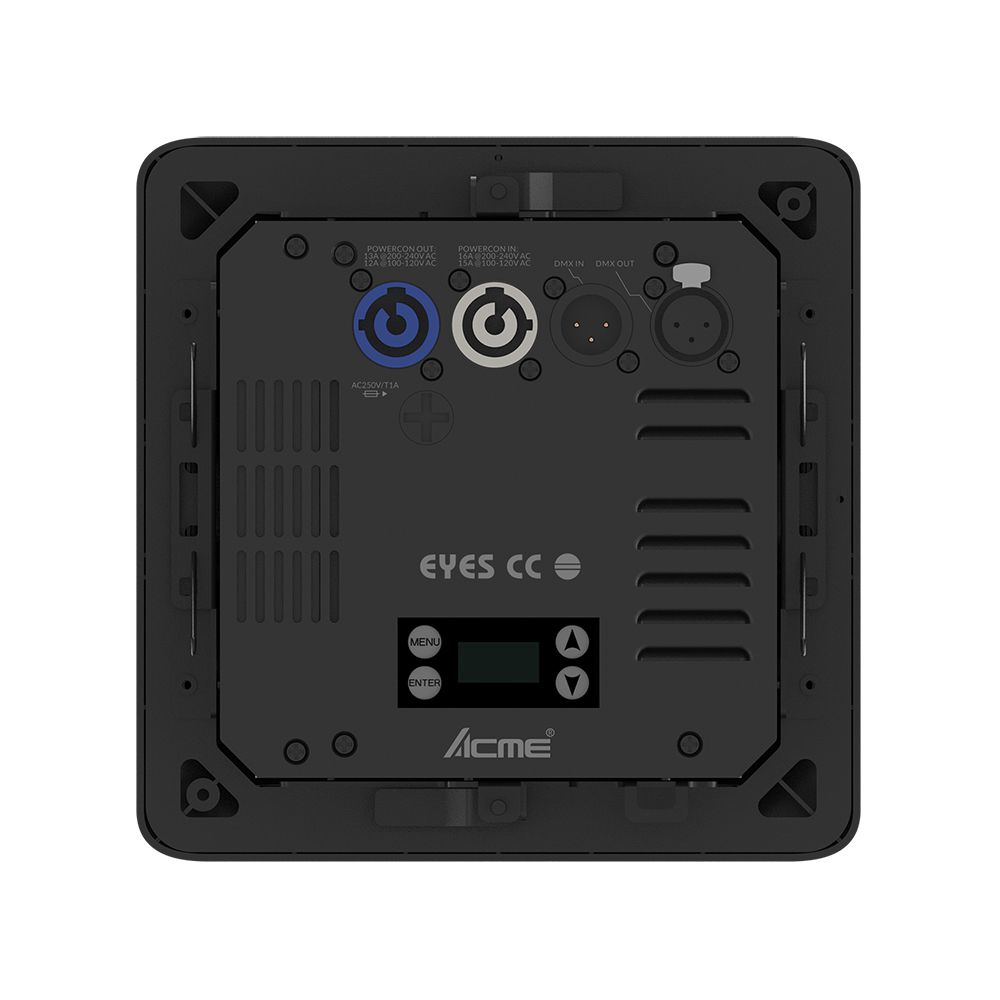

Power in/out: PowerCon input/output
Data in/out: 3-pin & 5-pin XLR

Fixture Specification

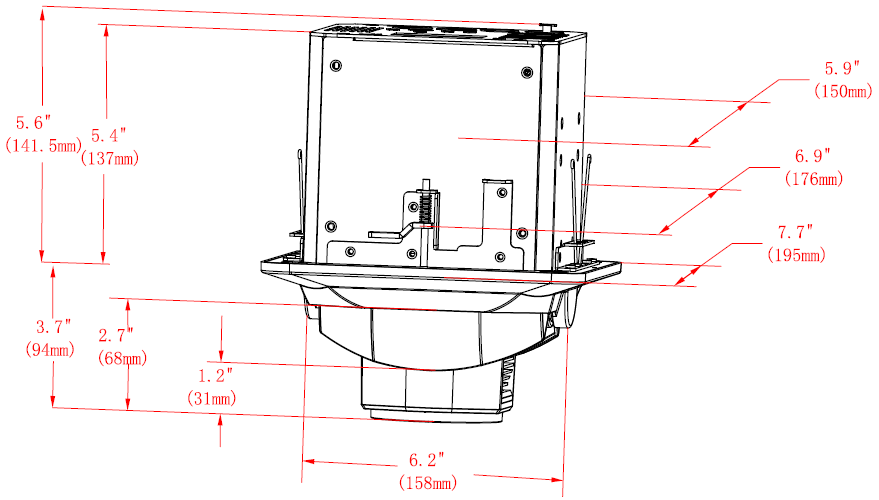

Fixture Dimension:
Width:195 mm (7.67″)
Depth:195 mm (7.67″)
Height: 236 mm (9.3″)
Weight: 3.5 kg (7.7 lbs)
Carton Dimension：
Width: 275 mm (10.8″)
Depth: 345 mm (13.6″)
Height: 305 mm (12″)
Weight: 4.3kg (9.5lbs) (one pack per carton)

Work environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C

Installation

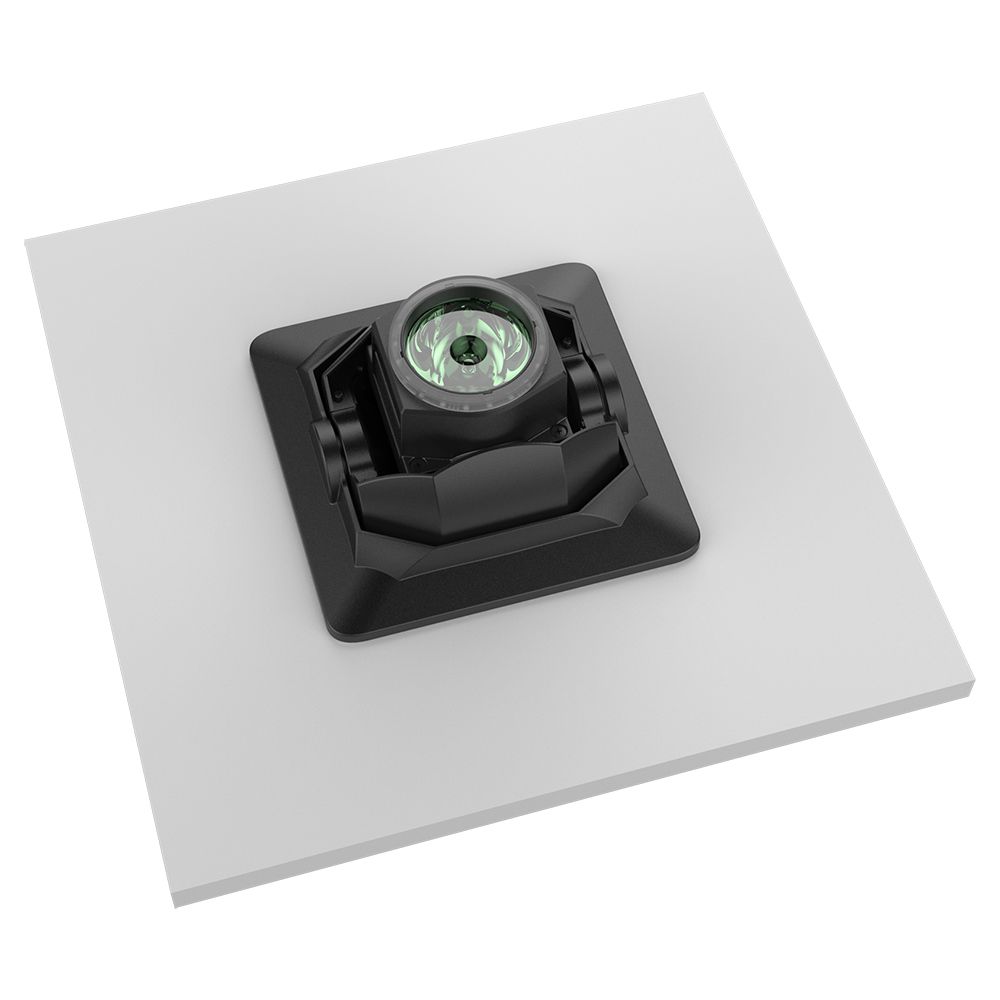

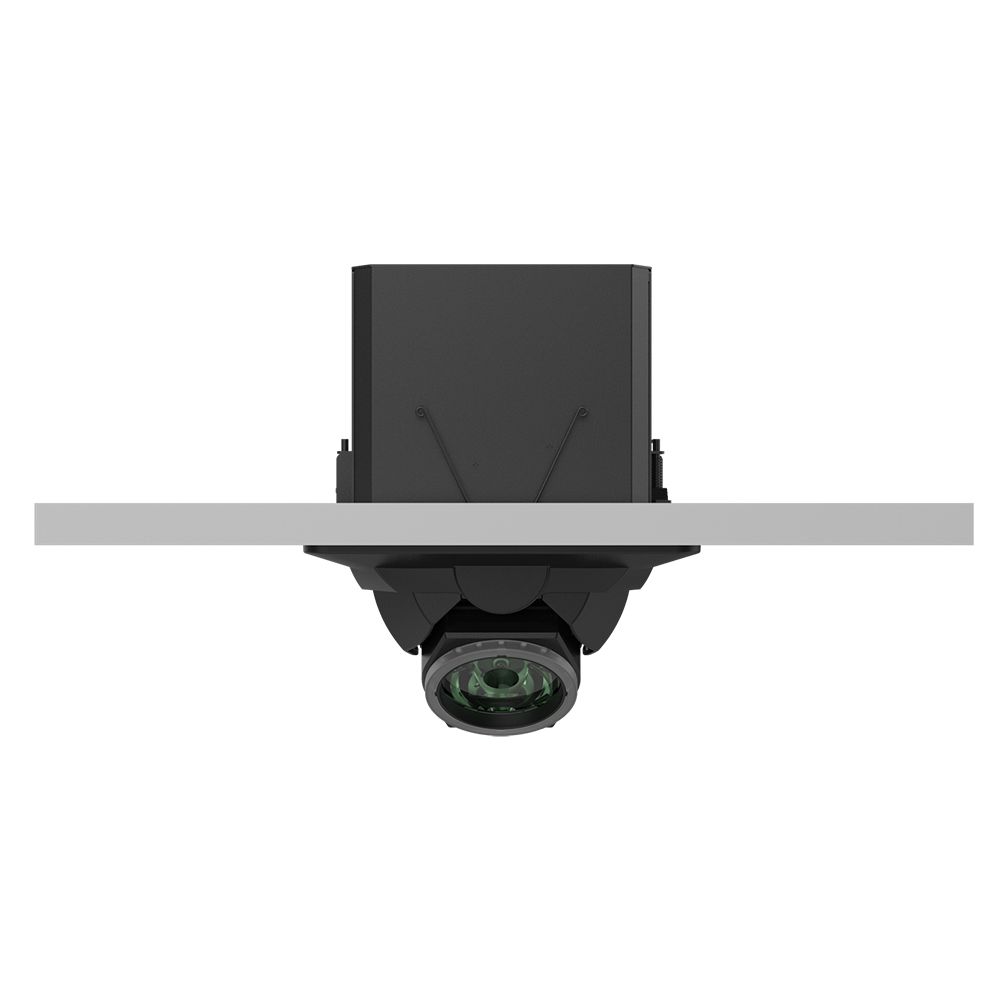

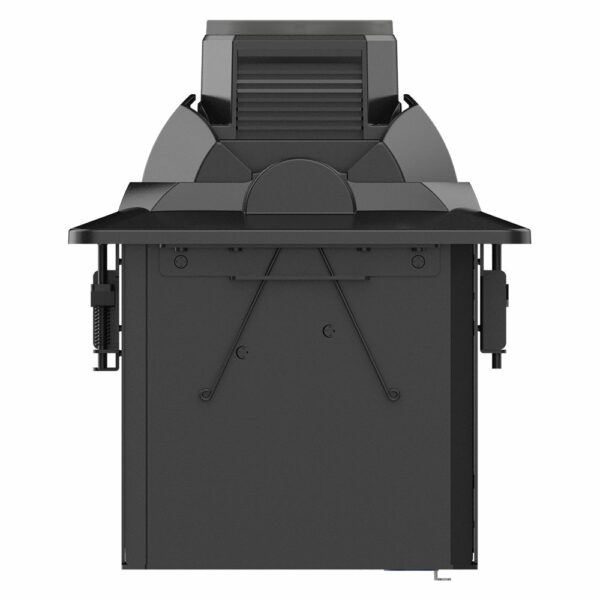

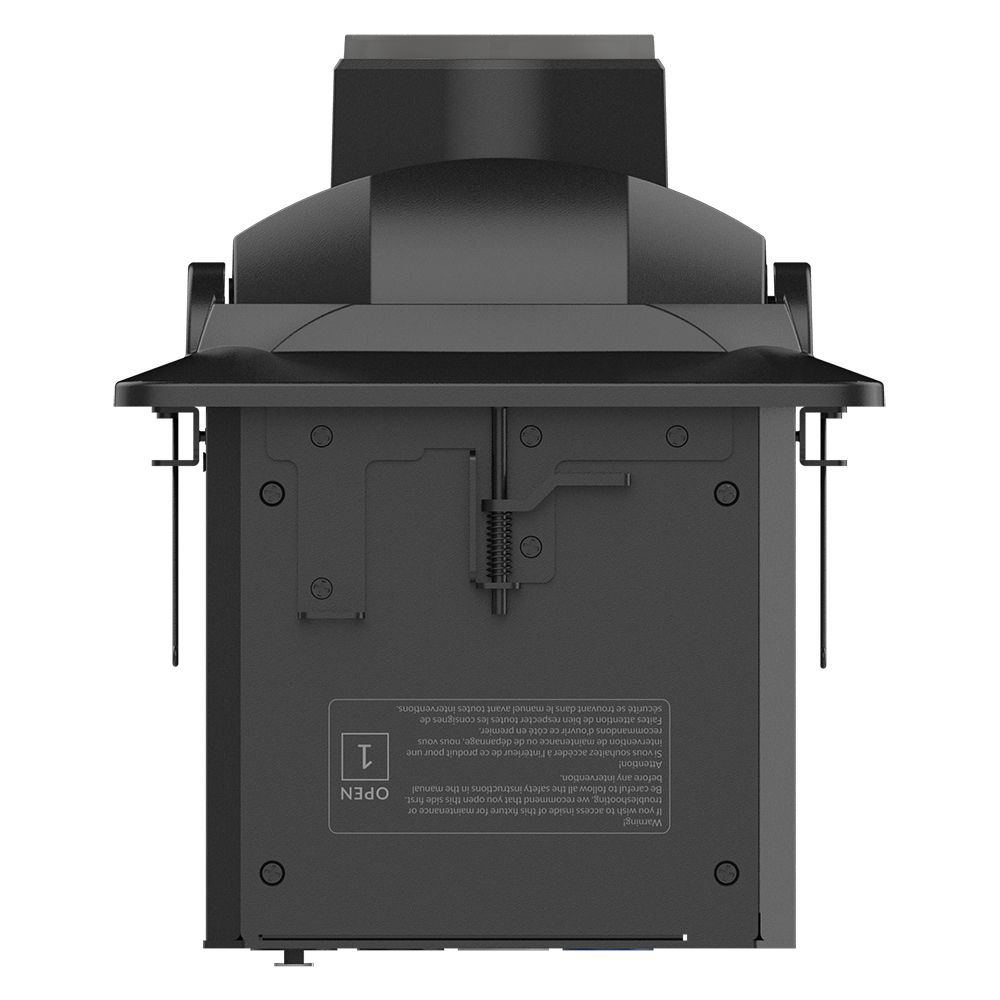

Built-in embedded ceiling fixed point installation
Operating position is universal

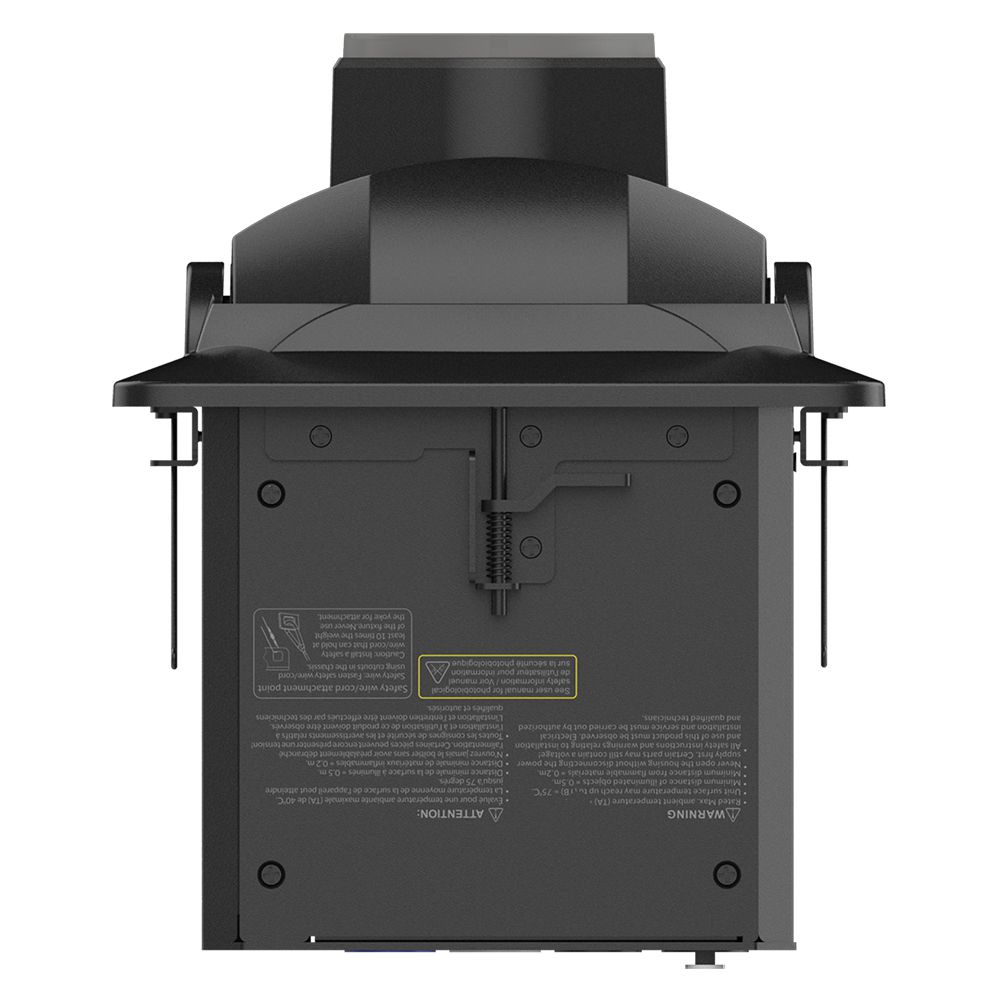

Safety cable attachment point
