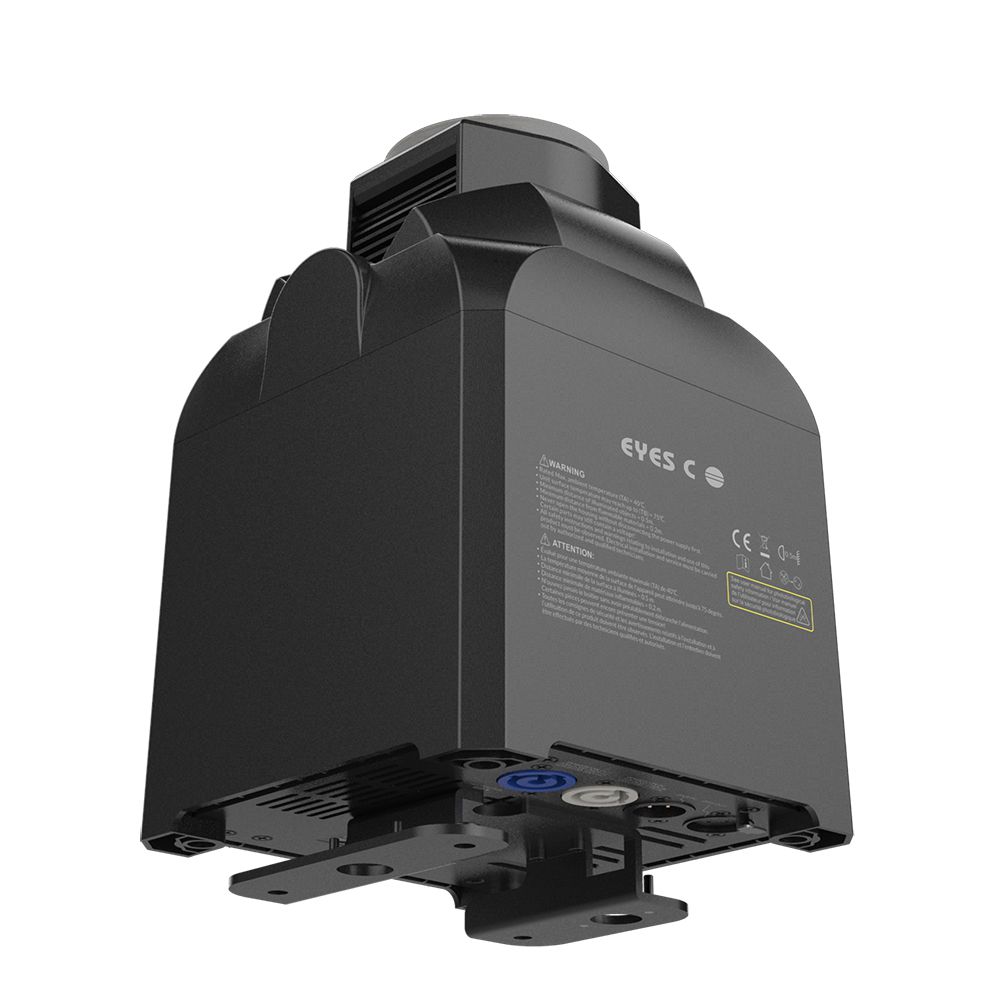

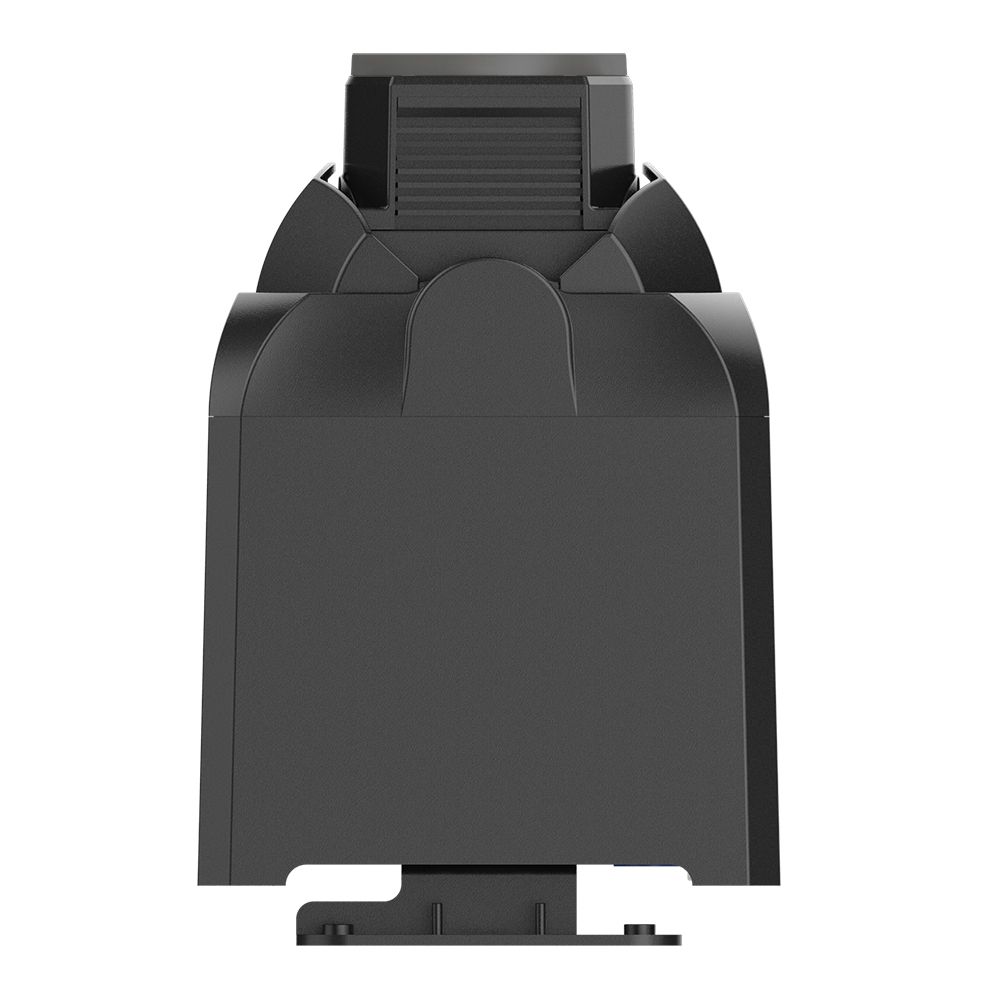

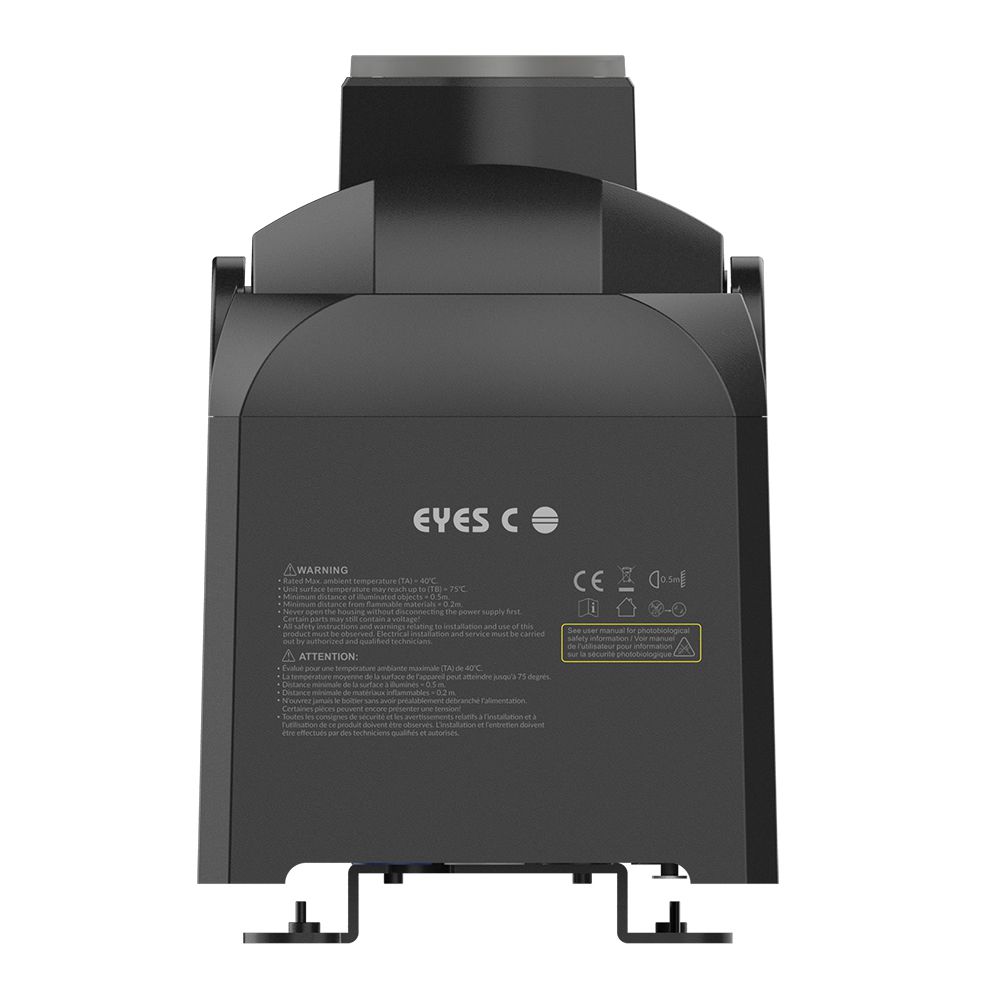

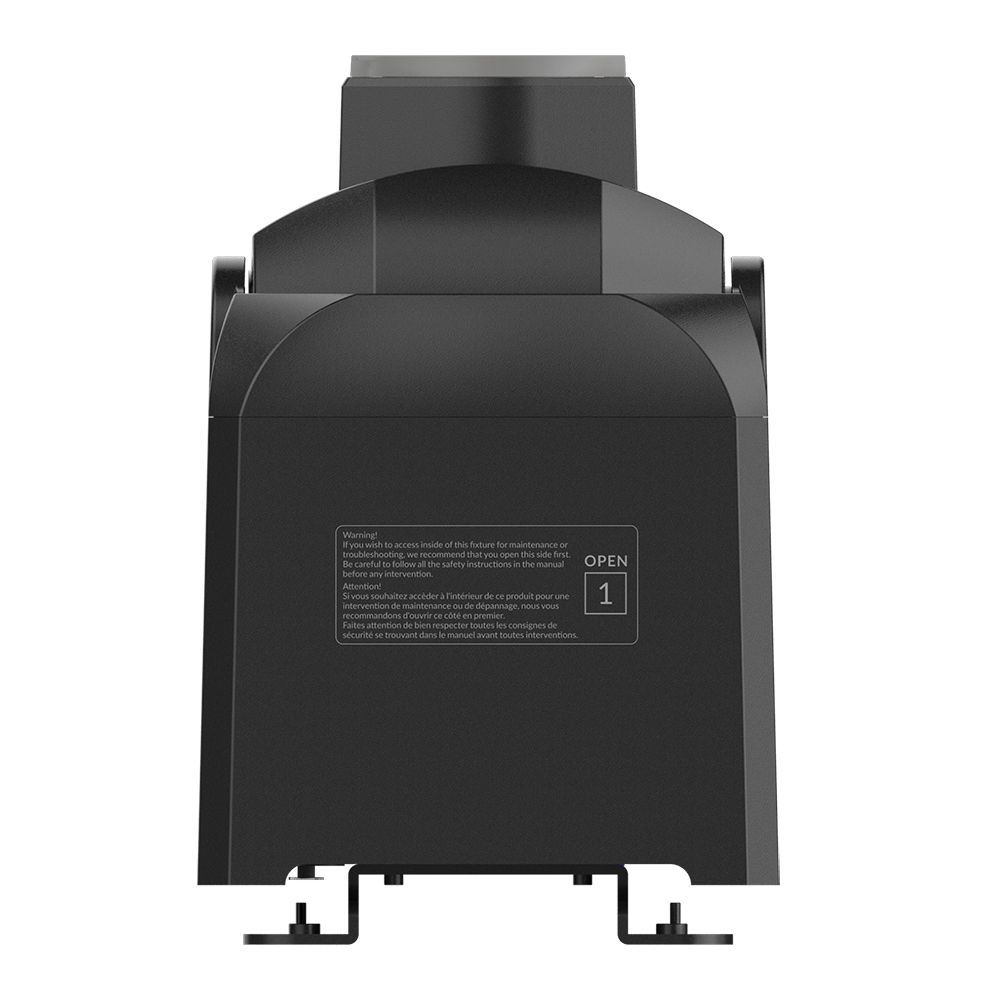

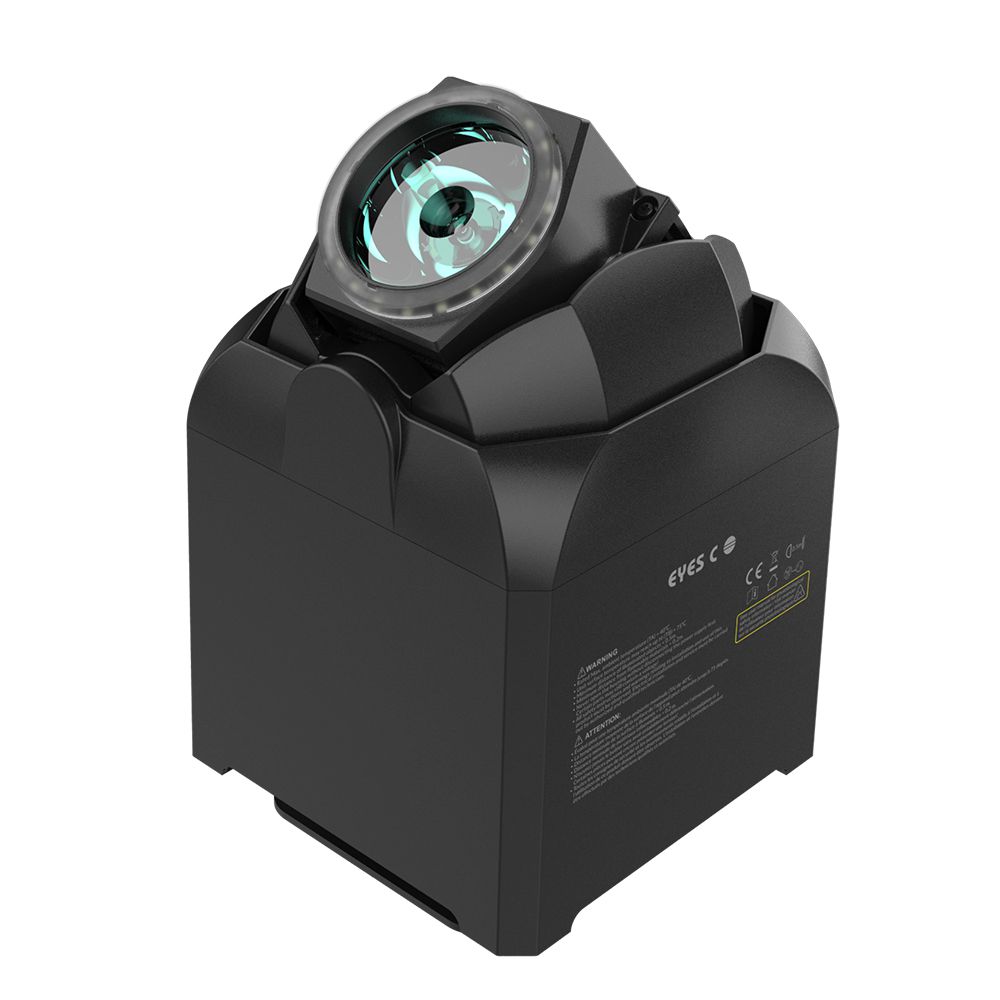

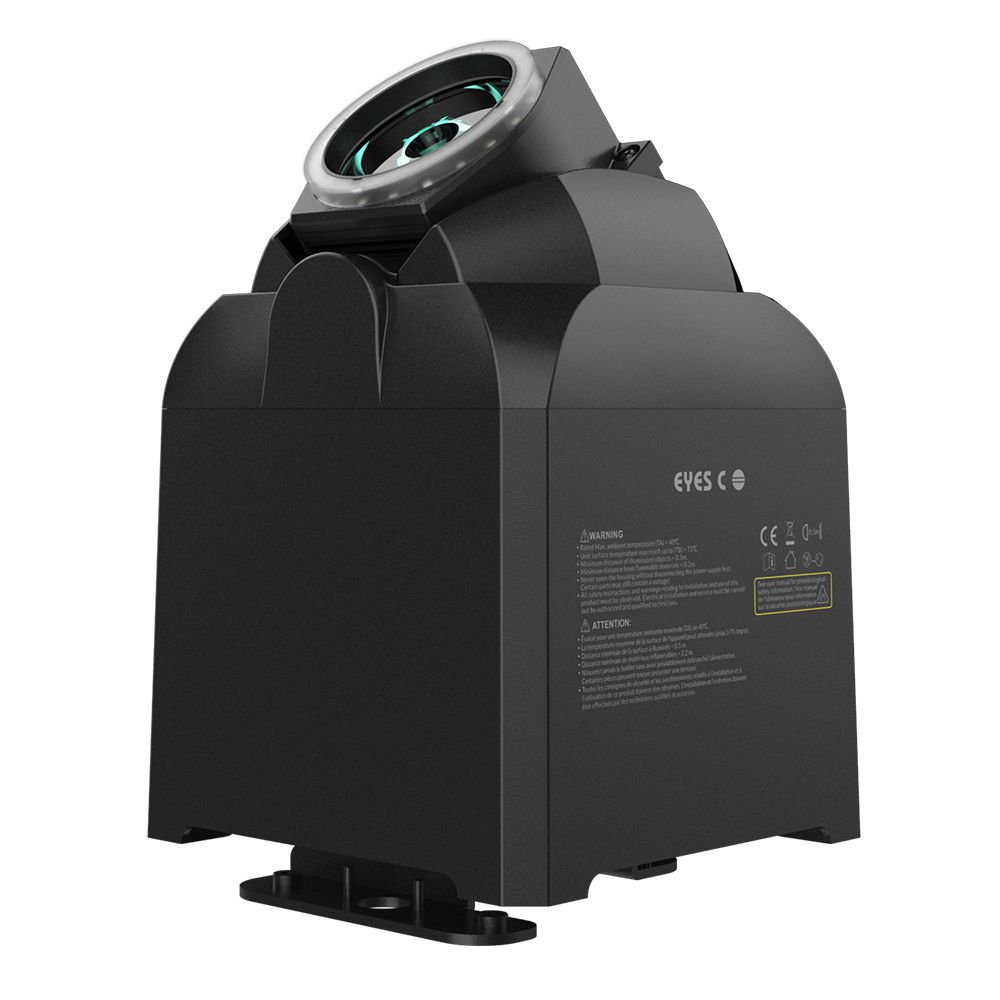

Acme – EYES C

EYE C is suitable for various entertainment venues such as bars, KTVs, hotels, banquet halls, etc.The luminaire design is compact and lightweight, can realize horizontal and vertical uniform and fast splicing, and the shape is flexible and changeable; with a circular LED light ring, which integrates point-by-point control, circle control, stroboscopic, dimming, surface light and other functions, and uniform RGBW color mixing System and rainbow effect. The drawing effect can be achieved through the rotation angle of the XY axis, the uniform RGBW color mixing system and the rainbow effect, providing unlimited creative fun to the lighting designer.

Light source:
1x 40W RGBW white LED

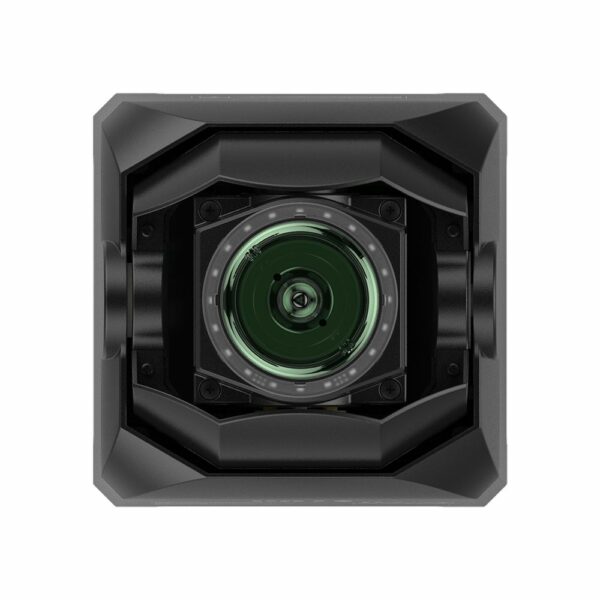

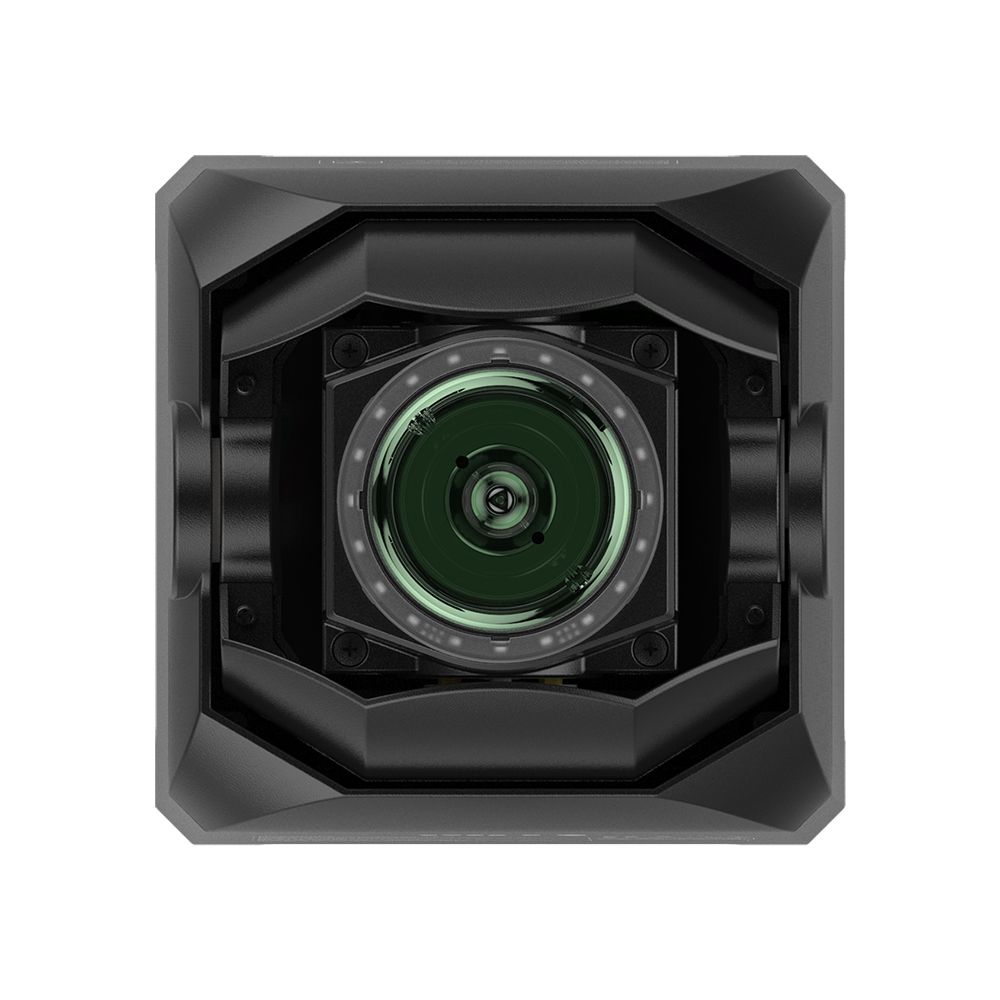

20 x 0.5W ring LED
Zoom range: 5°/23°
Effects: With ring led, it can pixel control, circle control, strobe, dimming, surface lighting and other functions
Uniform RGBW color mixing system and rainbow effect
Compact design, small size and light weight
Smooth dimming from 0~100%
Multi-speed strobe effect

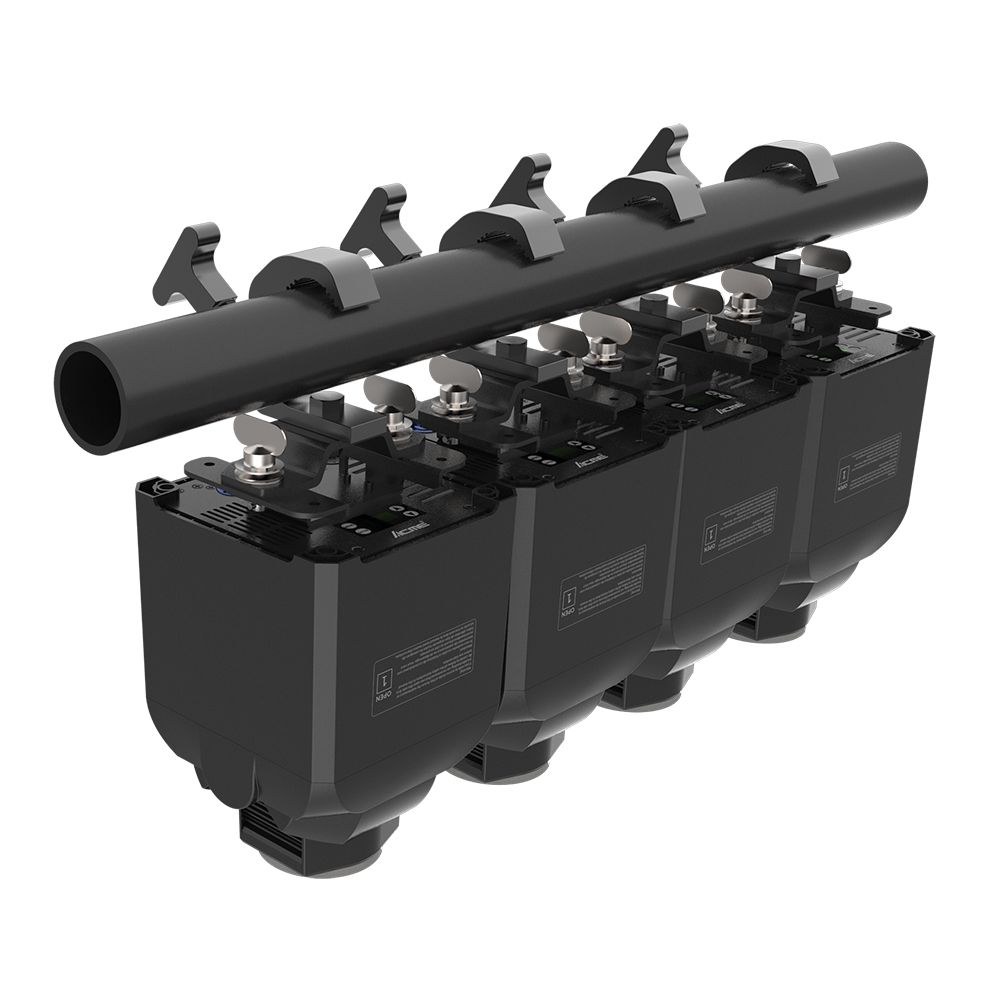

Can be quickly spliced horizontally and vertically

Technical & Specification
Model
BEAM 50 RGBW

Light source
Light source: 1x 40W RGBW white LED 20 x 0.5W ring LED
LED life expectancy: 20000 hours

Optical system
Advanced optical system to ensure image quality, clear and sharp
High – efficiency optical system
Beam Angle: 5°/23°

Control and Program

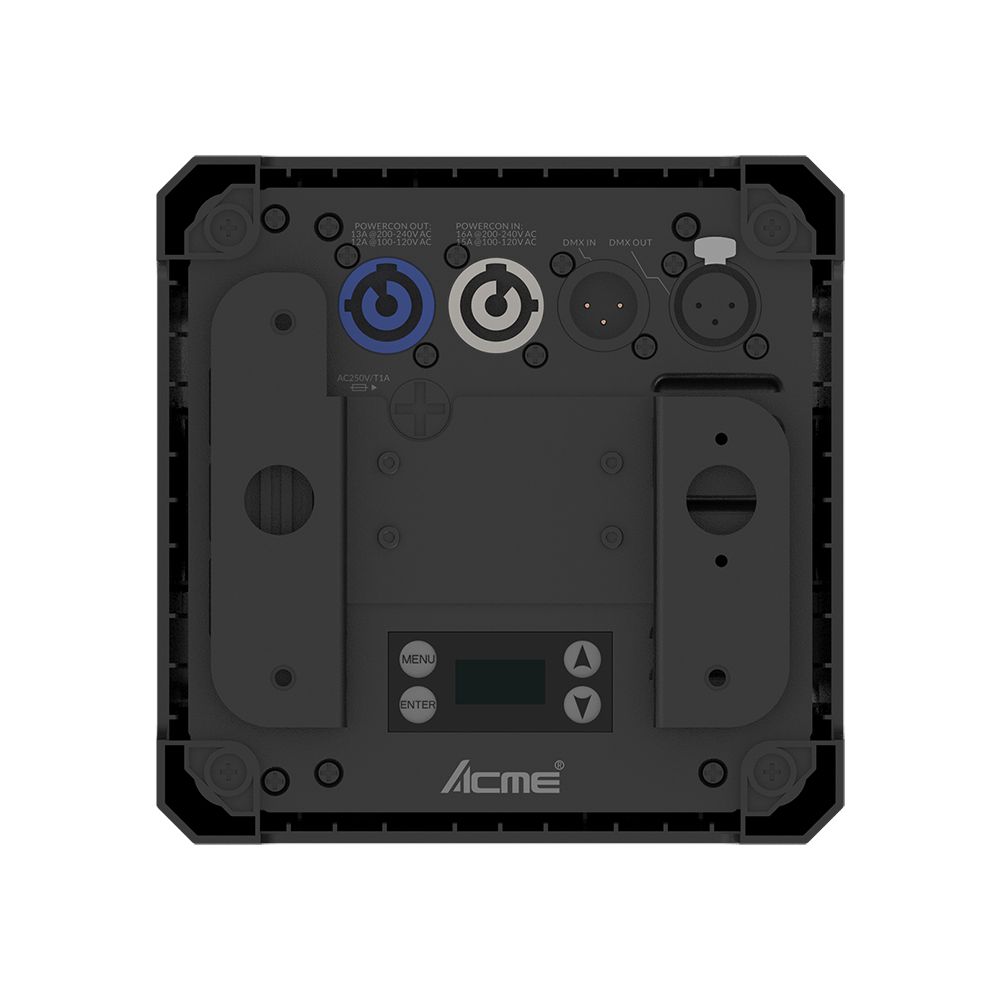

4-buttons touch panel
Display: OLED display with battery backup
Protocols: DMX512, RDM
DMX Protocol modes: 2
Control channels: 14 , 29
Firmware Upgrade: Upgrade via DMX link
Pan/Tilt Resolution: 16 bit

PAN & TILT
Pan movement: 77°
Tilt movement: 77°
Automatic Pan/Tilt position correction

Electrical and Connectors
Input voltage range: 100-240 V~50/60 Hz
Power consumption: 60 W
Power in/out: PowerCon input/output
Data in/out: 3-pin & 5-pin XLR

Fixture Specification
Fixture Dimension:
Width: 166 mm (6.5″)
Depth: 166 mm (6.5″)
Height: 254 mm (10″)
Weight: 4 kg (7.7 lbs)
Carton Dimension：
Width: 235 mm (9.3″)
Depth: 325 mm (12.8″)
Height: 275 mm (10.8″)
Weight: 4.7kg (10.4lbs) (one pack per carton)

Work environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C

Installation
Horizontally or vertically mounting are available
Operating position is universal

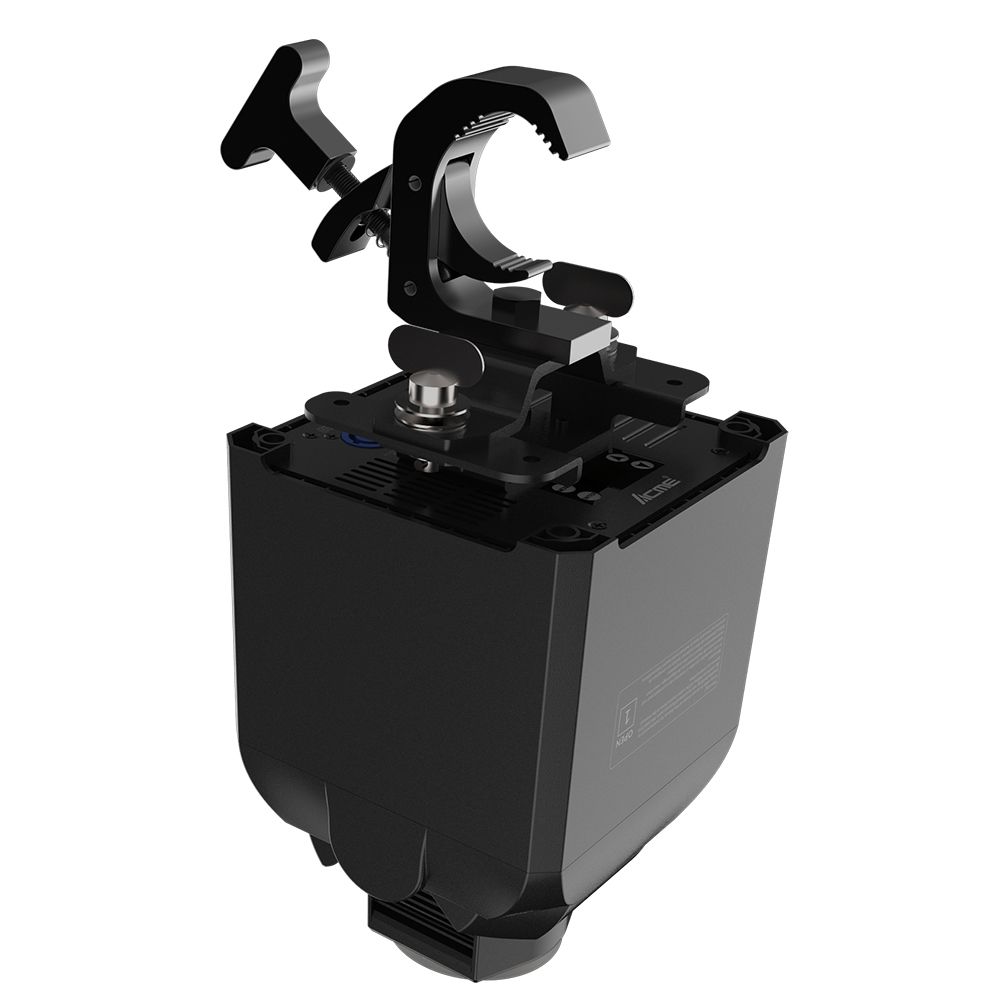

1 x clamp for 50 millimeter truss
Safety cable attachment point

Included items
Digital User Manual
Power Cable
