Functional Overview

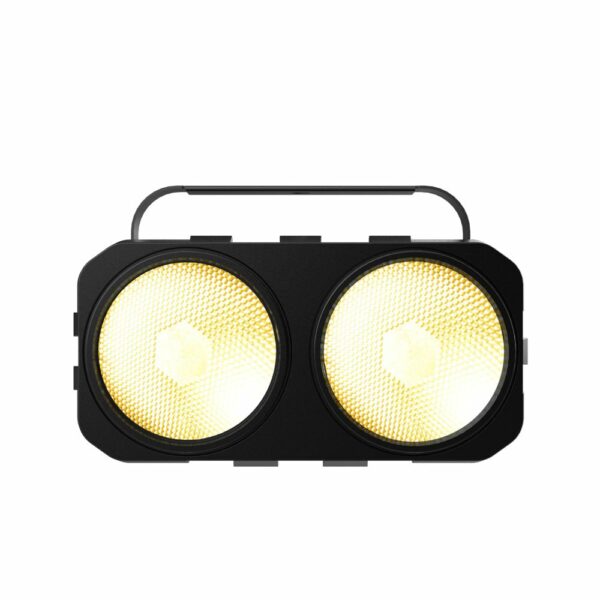

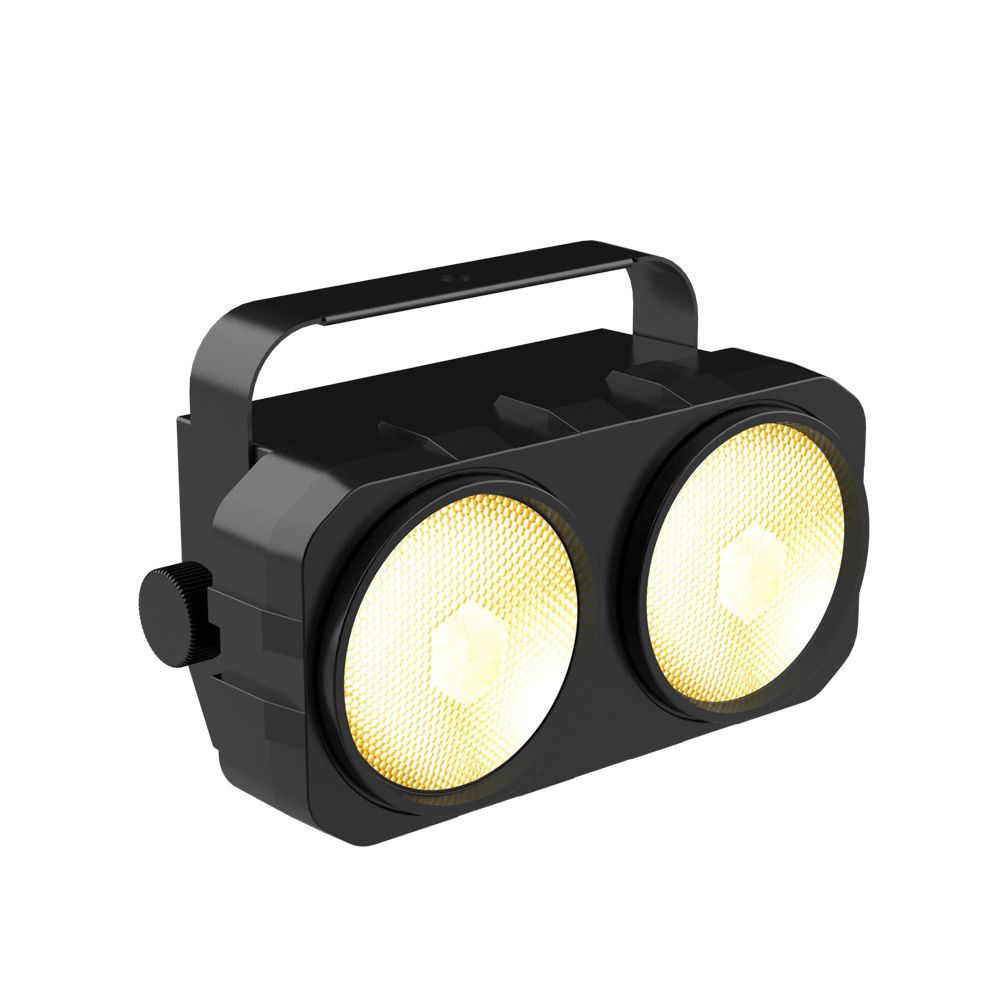

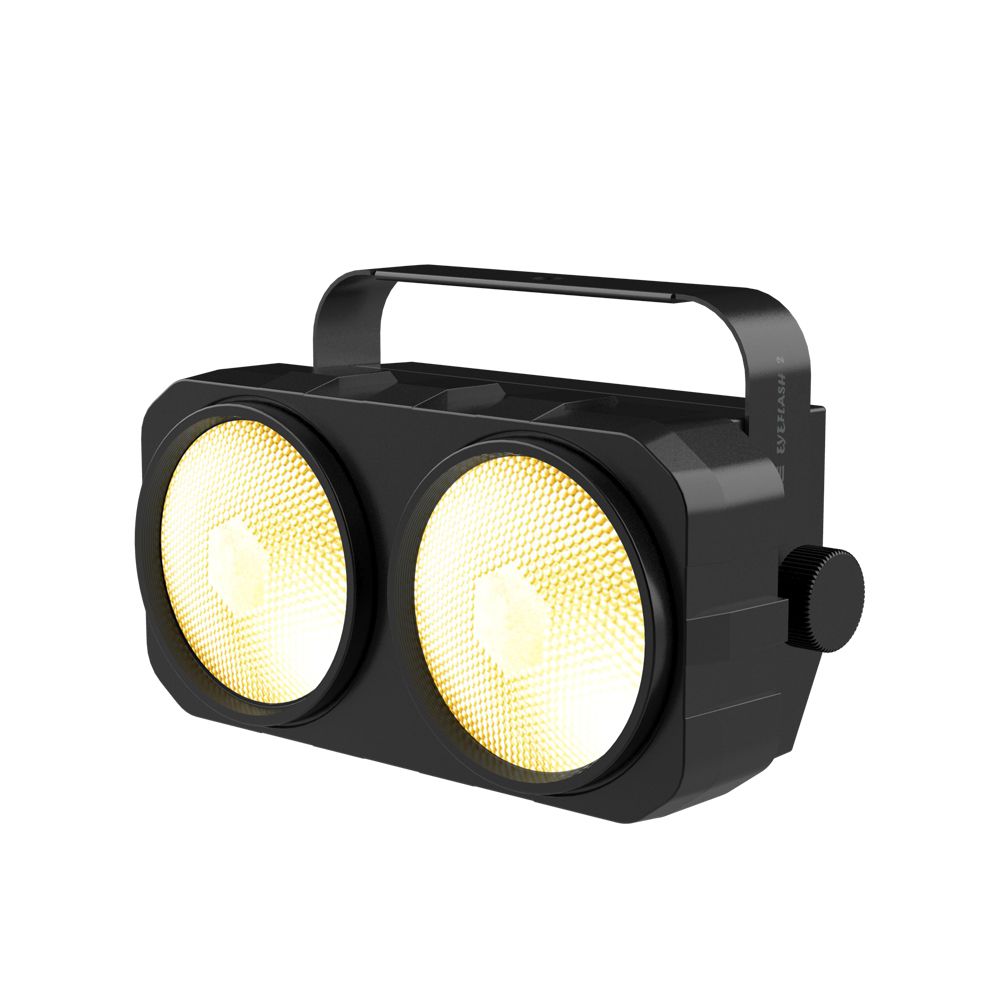

The EYEFLASH 2 WW features 2 pcs long-life 100W Warm White 3,000K COB LED and each COB module can be controlled individually. Equipped with a 39.5° beam angle and a 96° field angle, easily meet your demand for front light or blinder. This compact body is no more than 3 kgs but includes a unique tungsten effect, variable and selectable dimming curves, strobe effects, flicker-free operation for TV and Film, and OLED menu display with 4 button control panel.
Fast and easy installation can often save a lot of time and nerves. Especially when fixtures are very light. We even designed quick-positioning joints onto the shell and you can combine several units by locking the connecting board.
Features
Light Source : 2 x 100W WW COB
2 x leds can be controlled individually
Beam Angle: 39.5°
Field Angle：96°
2 x leds can be controlled individually
Outstanding strobe effect with variable speed
Unique tungsten effect
High resolution dimmer 0–100%

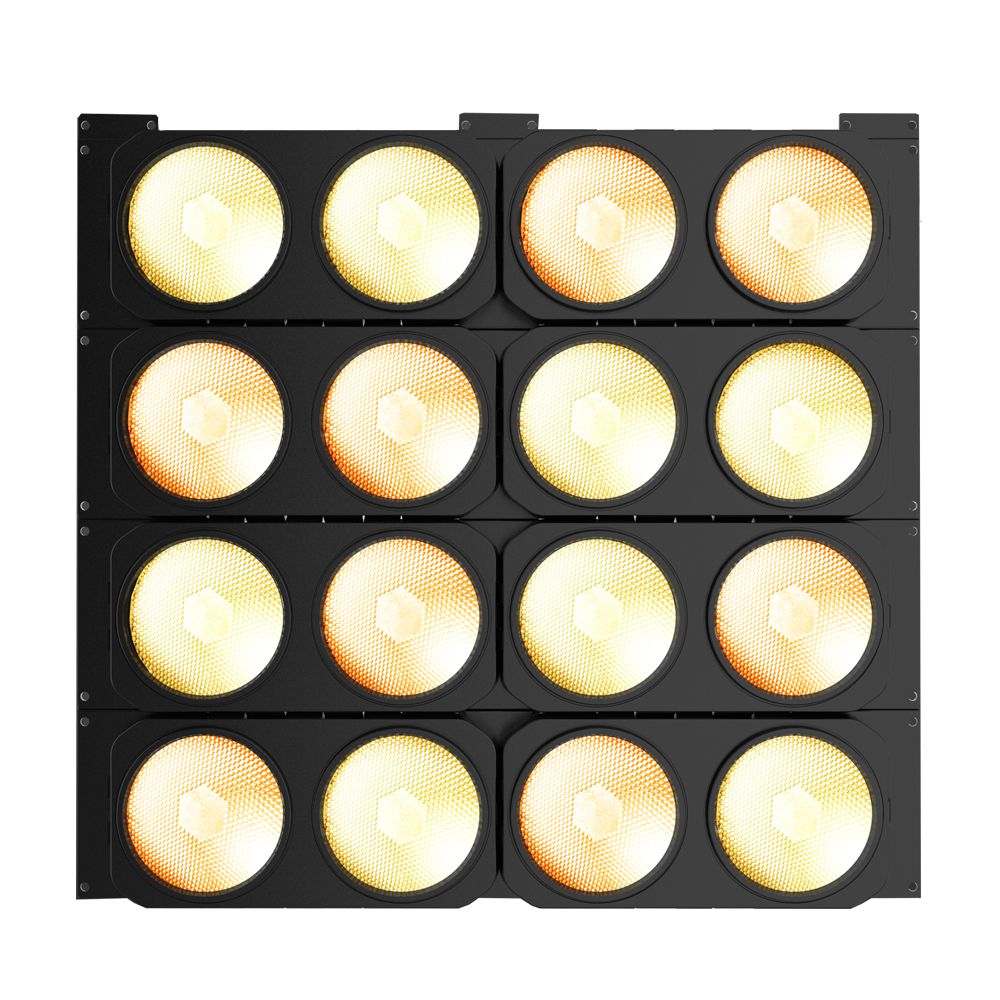

Multiple units can be split-jointed horizontally with connecting board
Flicker free management
Technical & Specification
Model
BLINDER 2 WW
Light source
Light Source: 2 x 100W WW COB
LED life expectancy: 20000 hours
Optical System & Effects

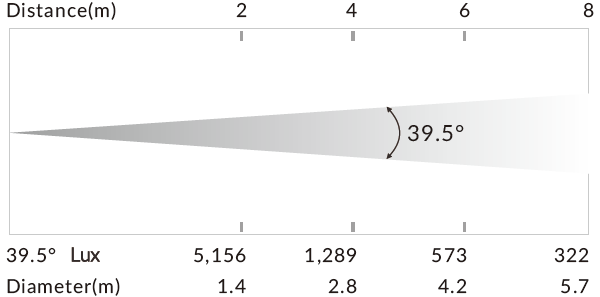

Beam Angle: 39.5°
Field Angle：96°
2 x leds can be controlled individually
Unique tungsten effect
Outstanding strobe effect with variable speed
High resolution dimmer 0–100%
Control and Program

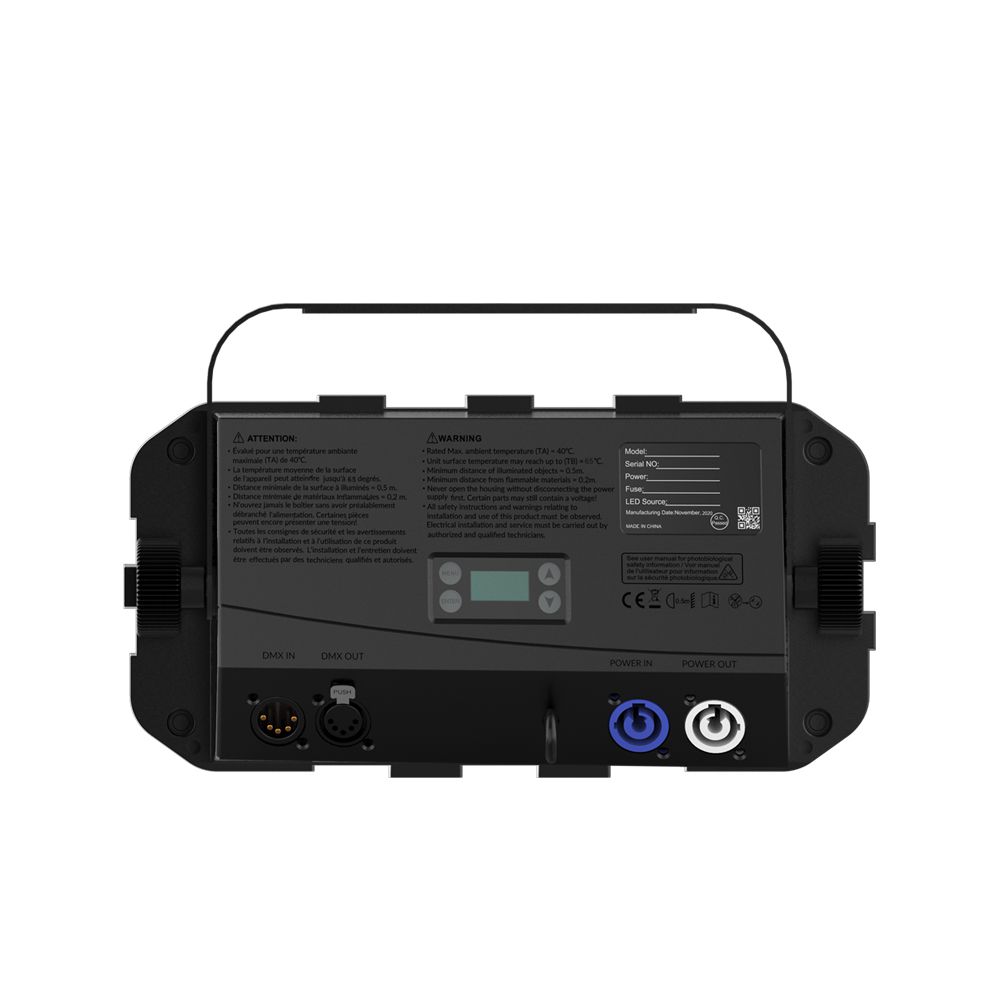

4-buttons touch panel
Display: OLED display
Control Mode: DMX512, RDM
DMX Protocol modes: 1,2,4,6
Upgrade the firmware via DMX link
Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240 V, 50/60 Hz
Power consumption: 200 W

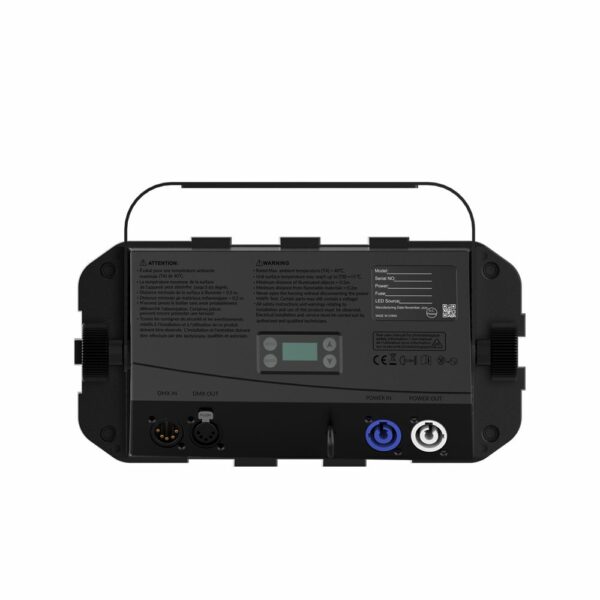

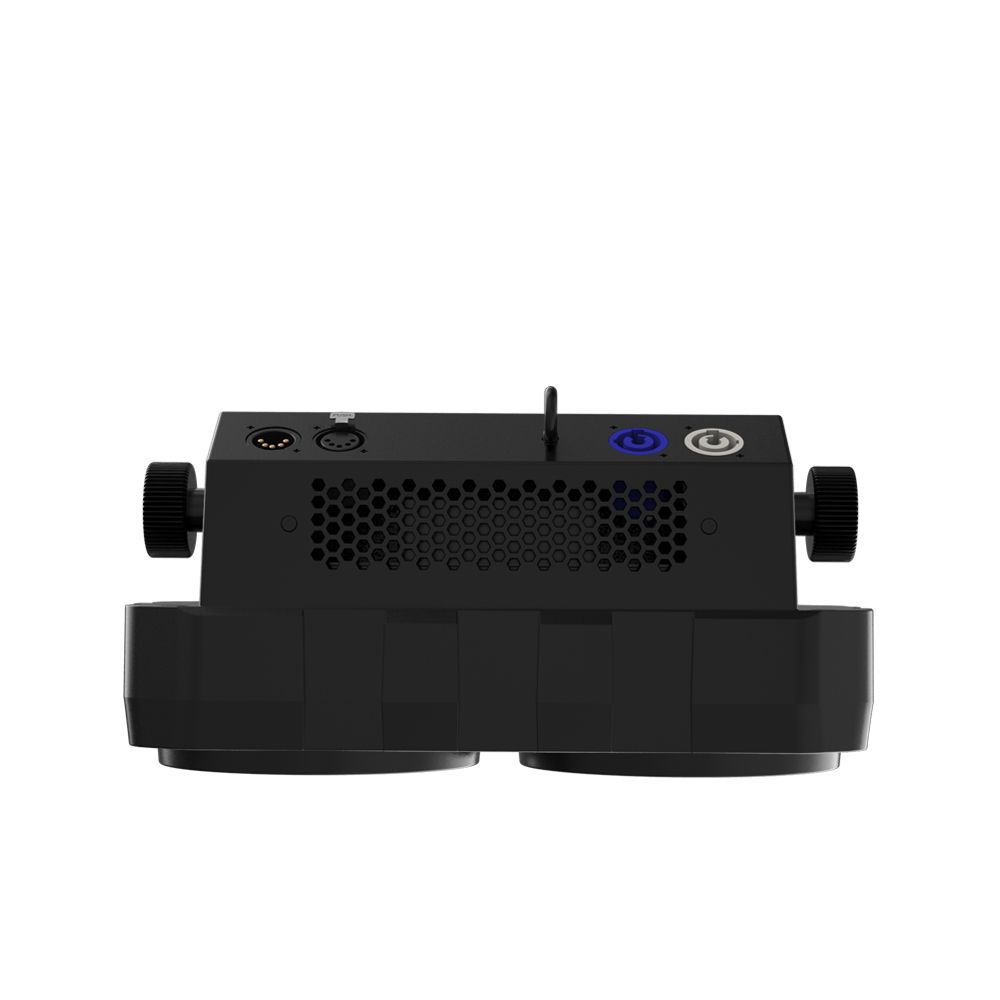

Power In/Out: Power Connector in/out
Data in/out: 3-pin or 5-pin XLR
Fixture Specification

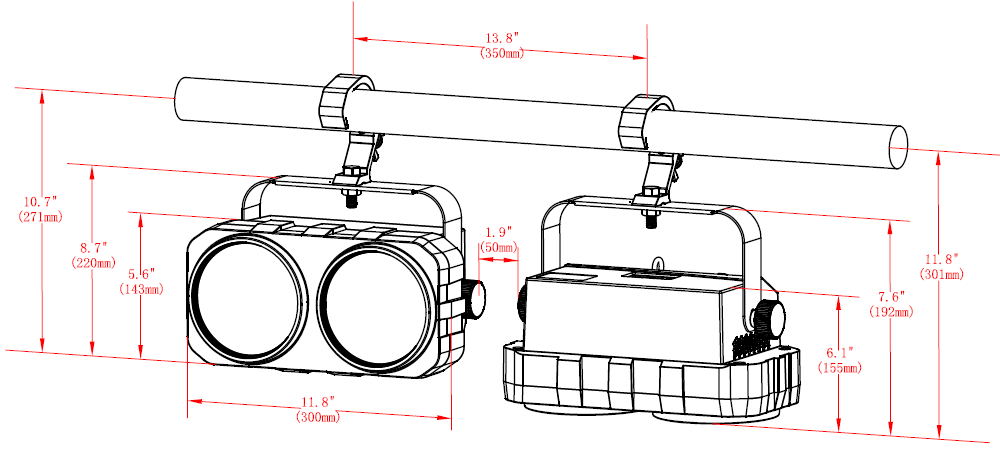

Fixture dimension:
Height: 192 mm (7.6″)
Width: 155 mm (6.1″)
Depth:305 mm (12″)
Weight of fixture: 2.6 kg (5.7lbs)
Carton dimension:
Height: 215 mm (8.5″)
Width: 250 mm (9.8″)
Depth: 395 mm (15.6″)
Weight of fixture: 3.2 kg (7.1lbs)（one pack per carton）
Work environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Installation
Available in horizontally or vertically mounting way

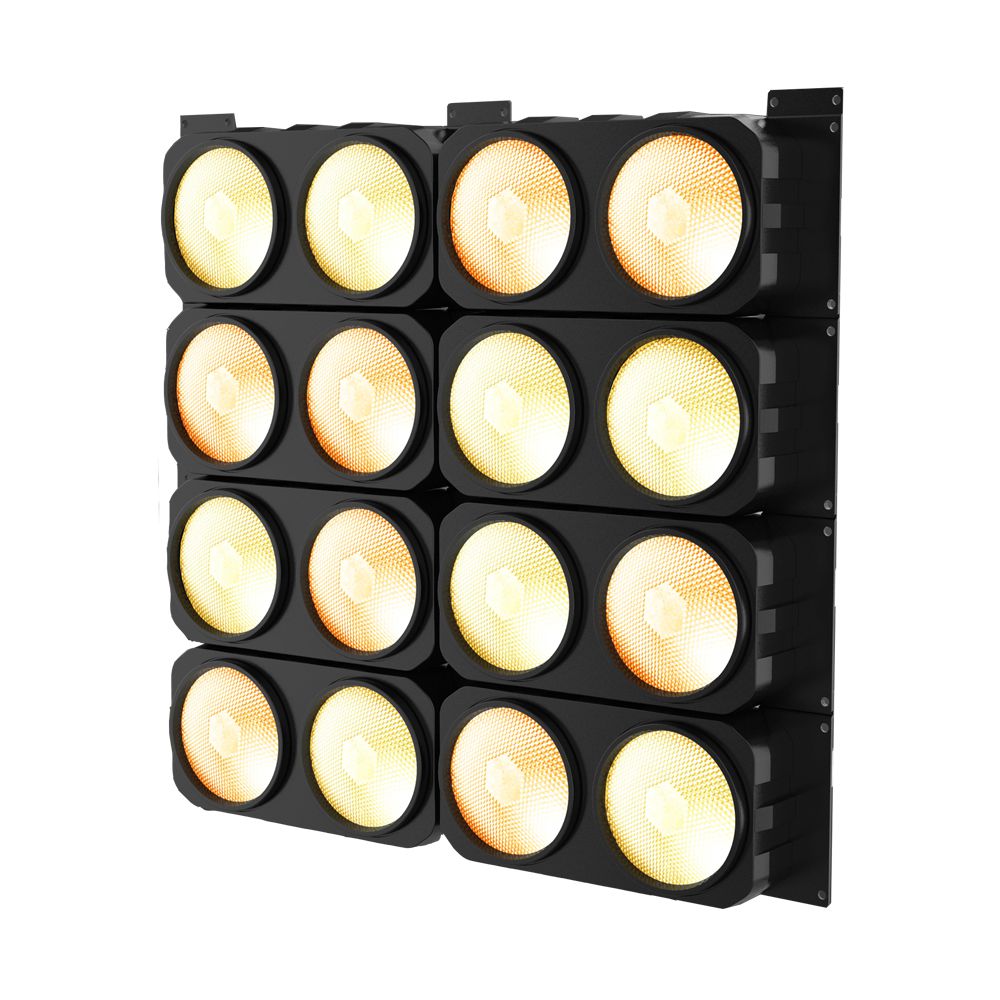

Multiple units can be split-jointed horizontally with connecting board
Multi projection angle operation

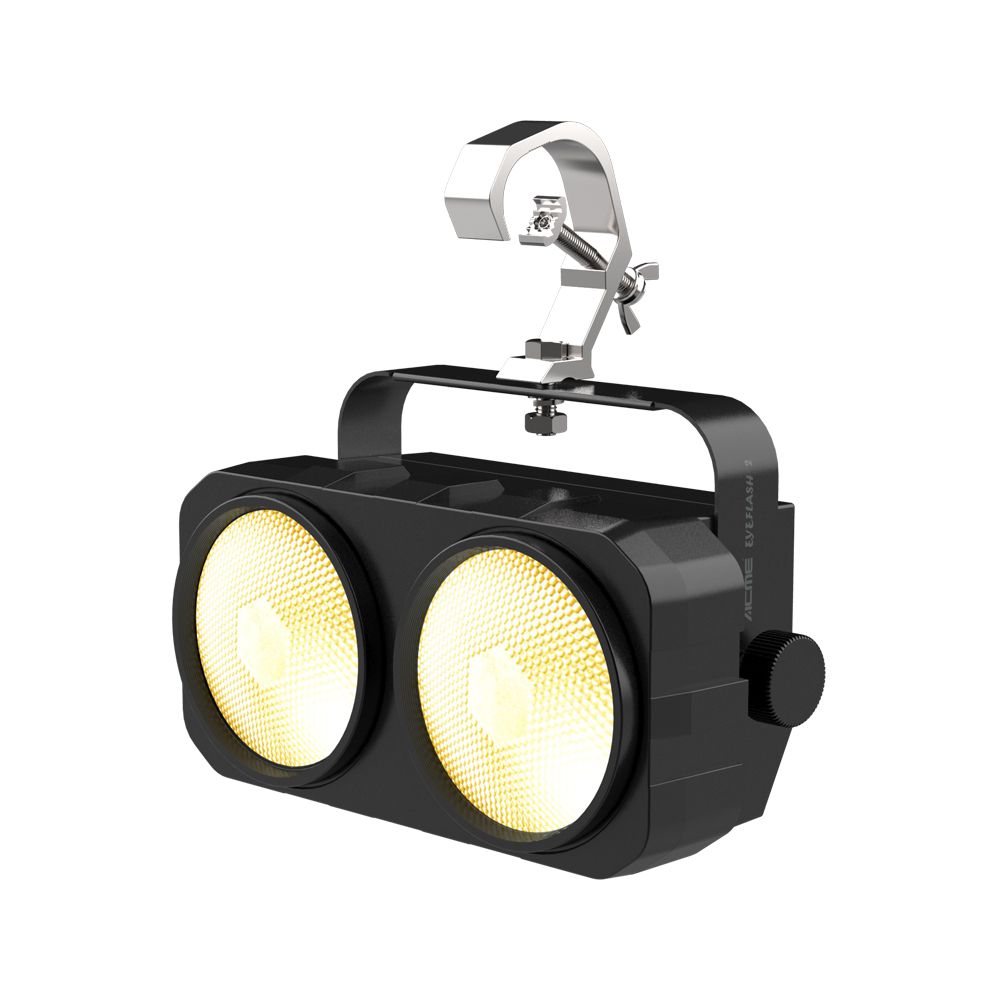

Bracket with one locking point for clamp’s installaiton
1 x clamp for 50 millimeter truss
Safety cable attachment point
Included items
User Manual
power cable
Carton： 3025169049
Optional Accessories (with item code)
Clamp：2060001635（C-100A）
Signal Line：3-pin signal line
