Functional Overview

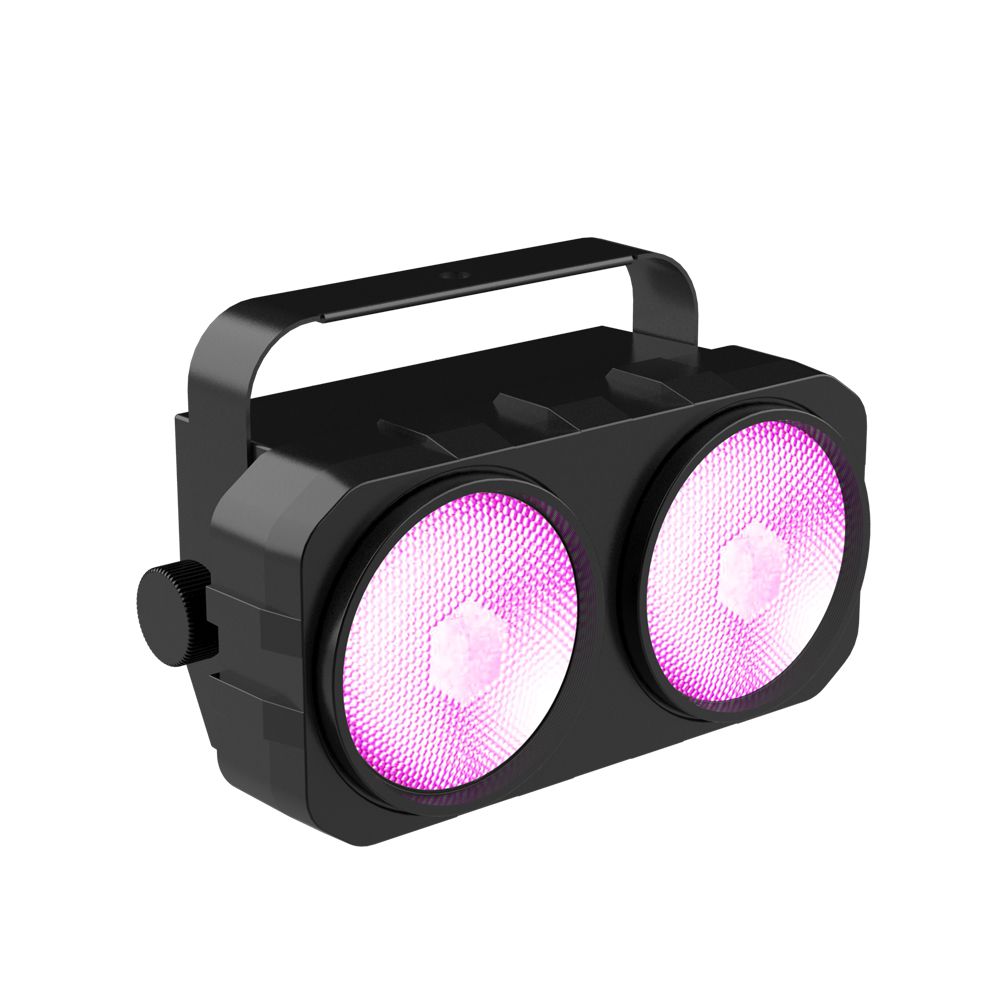

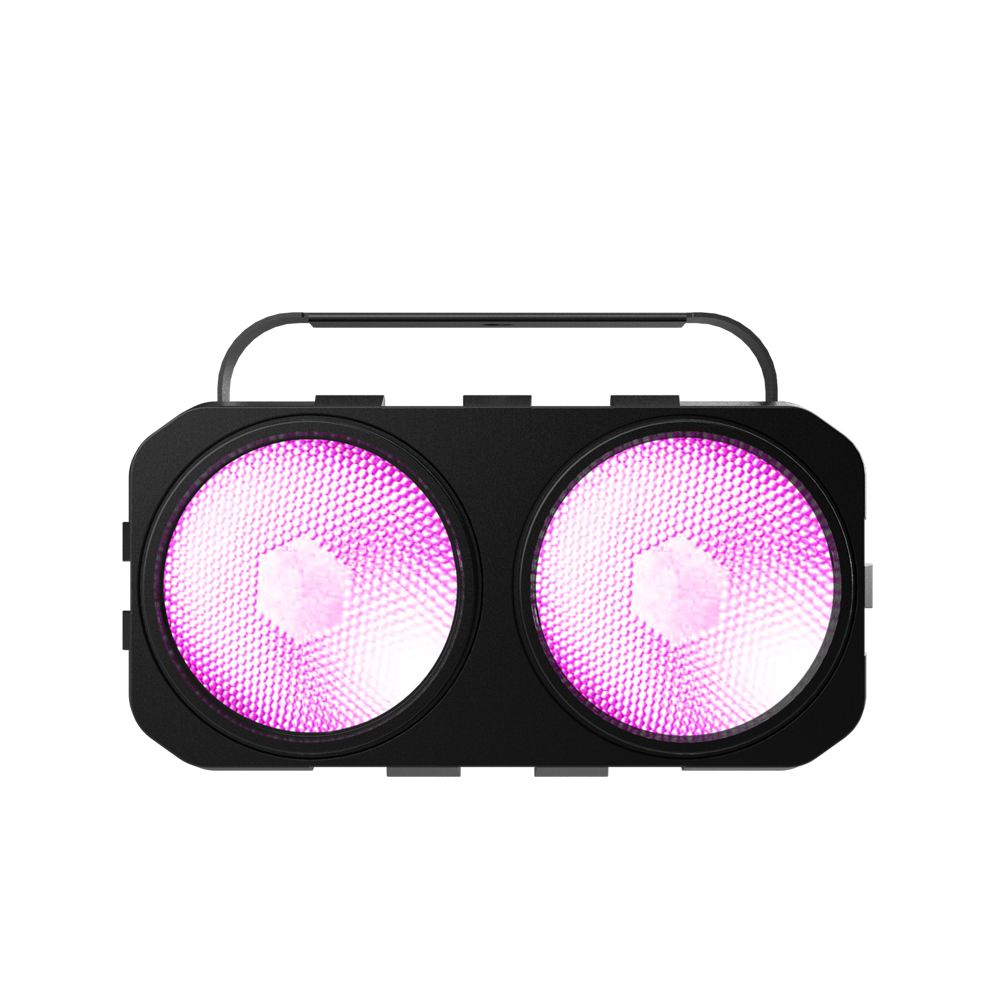

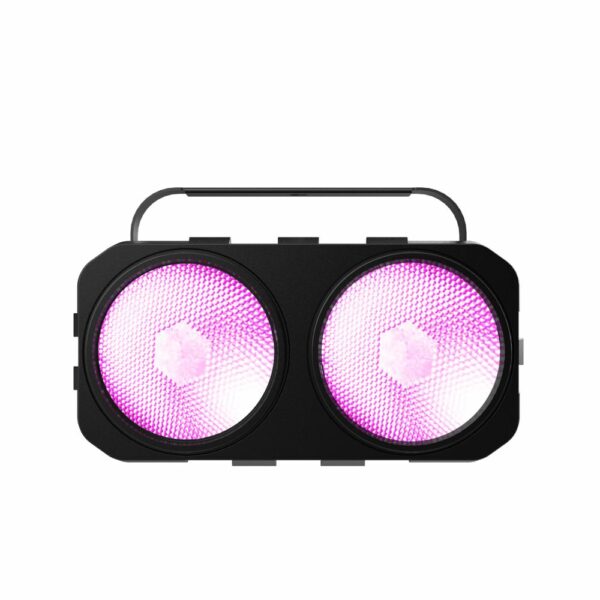

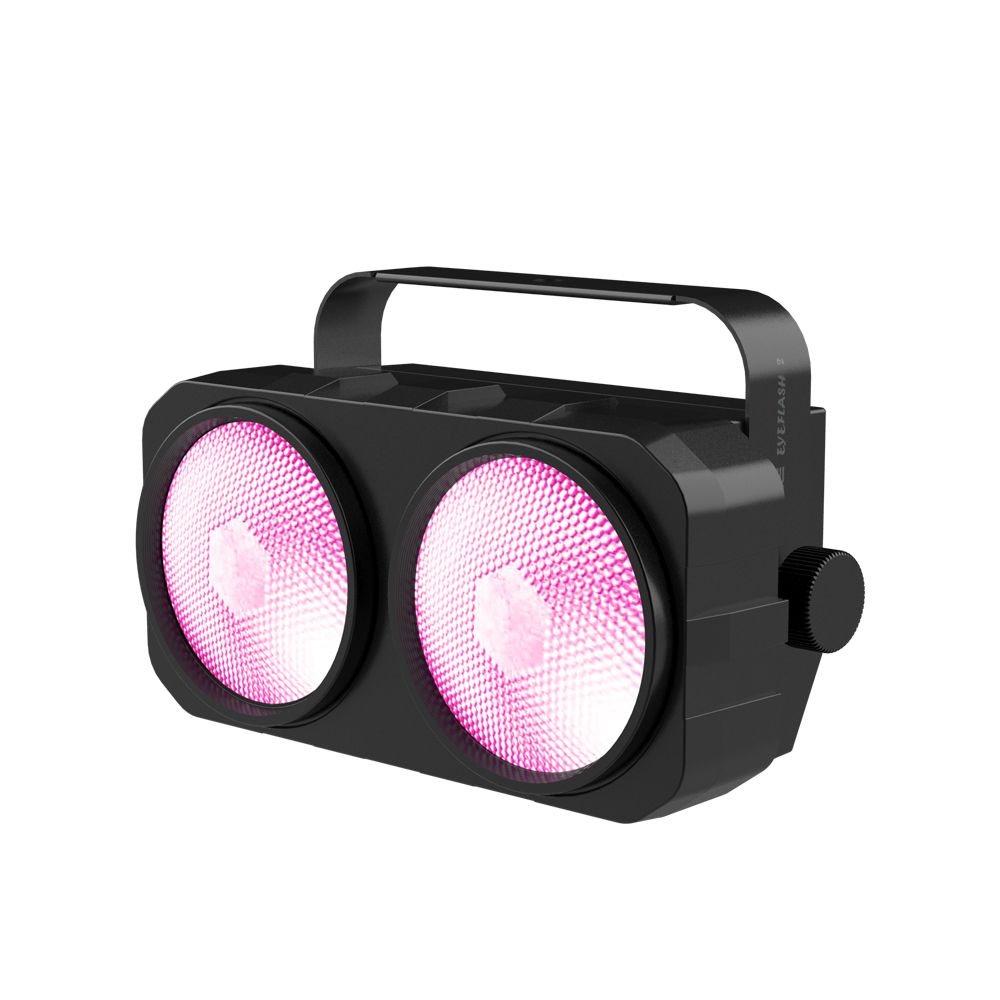

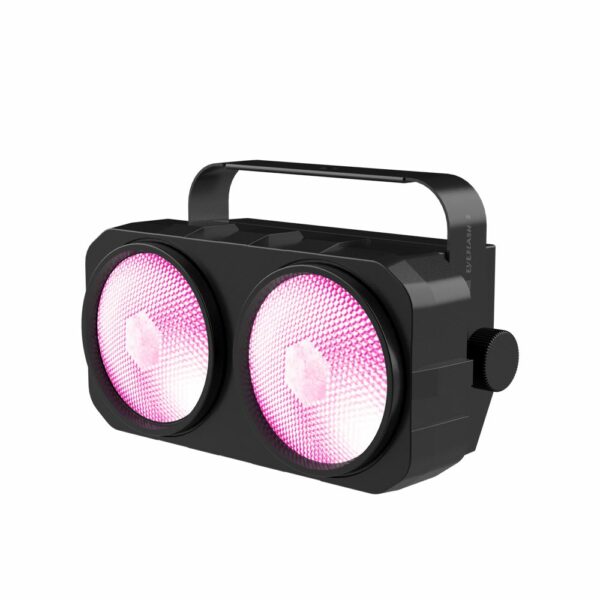

The EYEFLASH 2 RGB is an LED fixture with a classic Blinder appearance and featuring 2 pcs individual-controllable 100W RGB COB LED. Within its 2.6 kg body, benefits are not only its light, but also functional points that get your stage more dynamic: switchable CCT varied from 2,500K to 8,000K, variable speed strobe effects, numerous preset color macro effects, and beam angle of 39.5° plus field angle of 96°.
Fast and easy installation can often save a lot of time and nerves. Eyeflash 2 RGB can be combined with the EYEFLASH 2 series by the quick-positioning joint and connecting board, to offer multiple mounting options.
Features
Light Source: 2 x 100W RGB COB
2 x leds can be controlled individually
Beam Angle: 39.5°
Field Angle：96°
2 x leds can be controlled individually
Outstanding strobe effect with variable speed
Outstanding color mixing effect
High resolution dimmer 0–100%

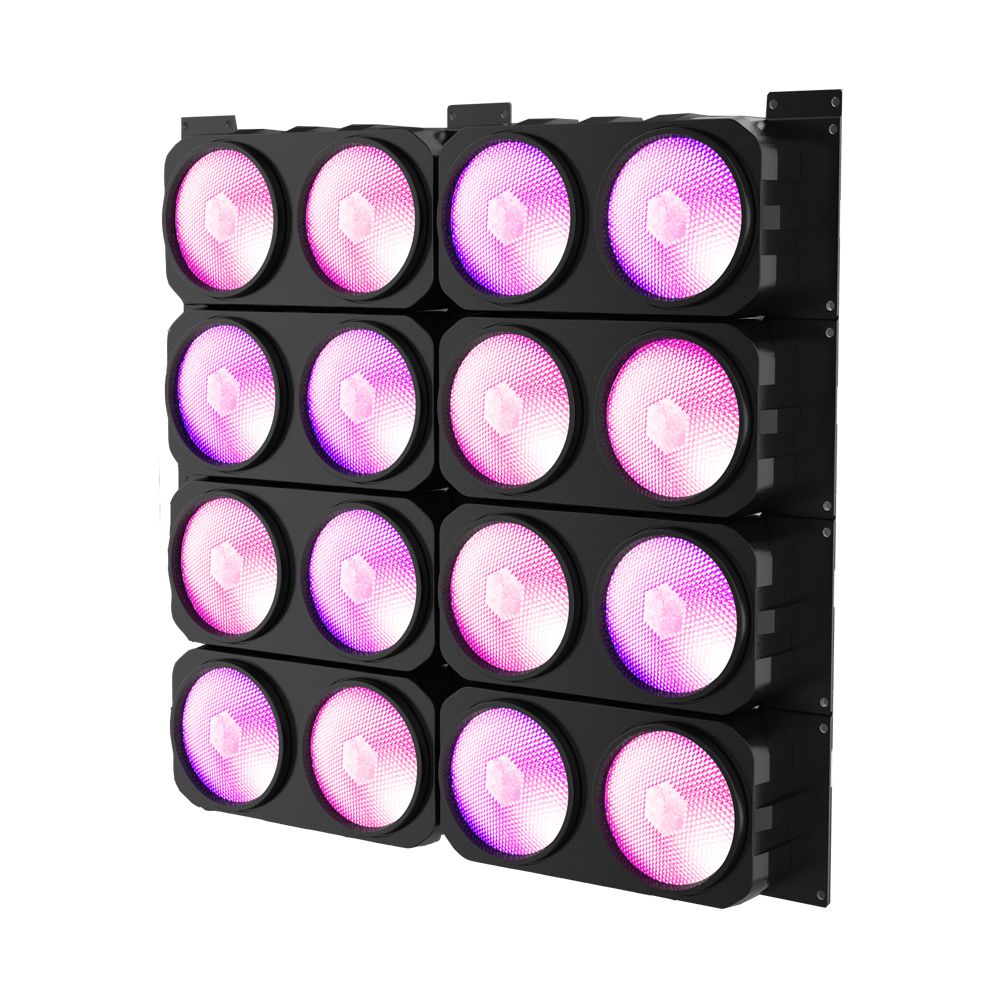

Multiple units can be split-jointed horizontally with connecting board
Flicker free management
Technical & Specification
Model
BLINDER 2 RGB
Light source
Light Source: 2 x 100W RGB COB
LED life expectancy: 20000 hours
Optical System & Effects
Beam Angle: 39.5°
Field Angle：96°
2 x leds can be controlled individually
Outstanding color mixing effect
Outstanding strobe effect with variable speed
High resolution dimmer 0–100%
Control and Program
4-buttons touch panel
Display: OLED display
Control Mode: DMX512, RDM
DMX Protocol modes: 5/7/9/HSIC
Upgrade the firmware via DMX link
Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240 V, 50/60 Hz
Power consumption: 200 W

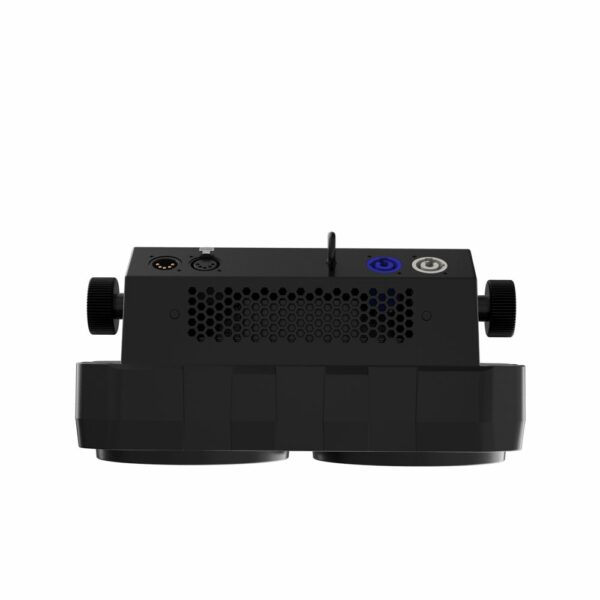

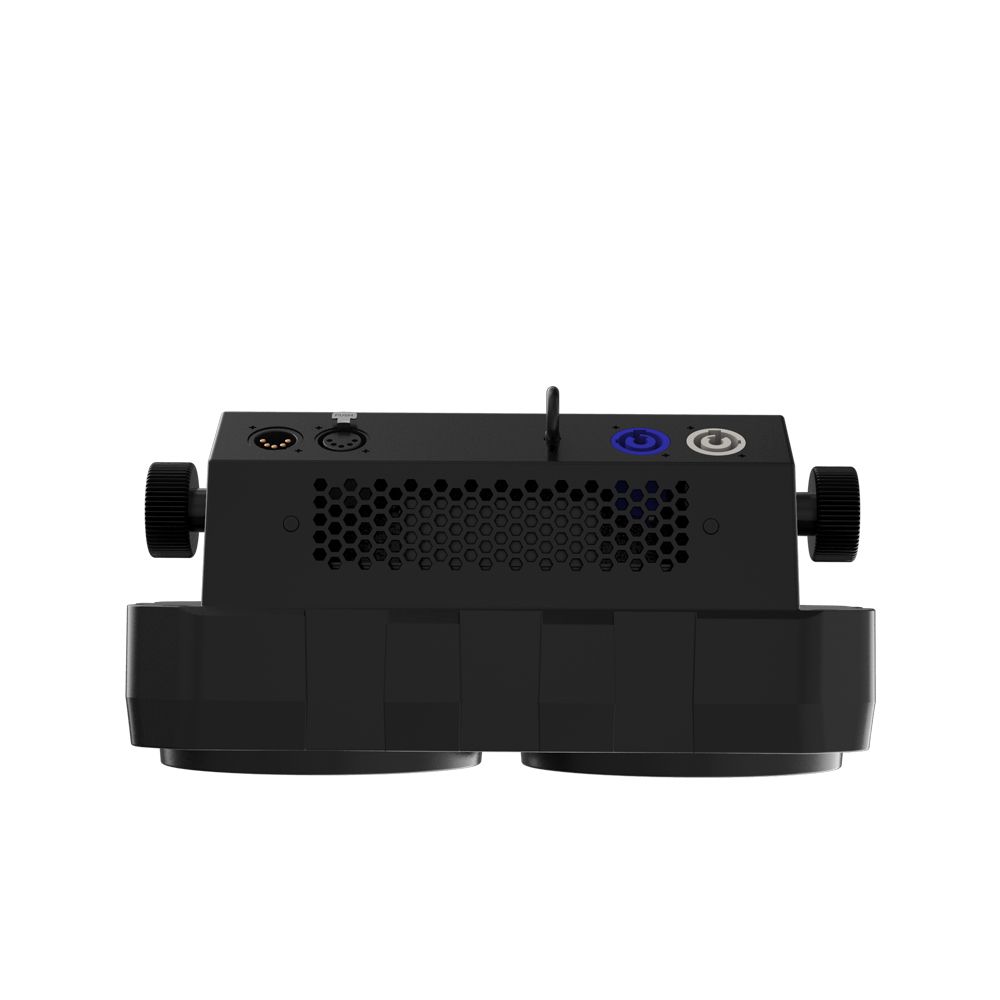

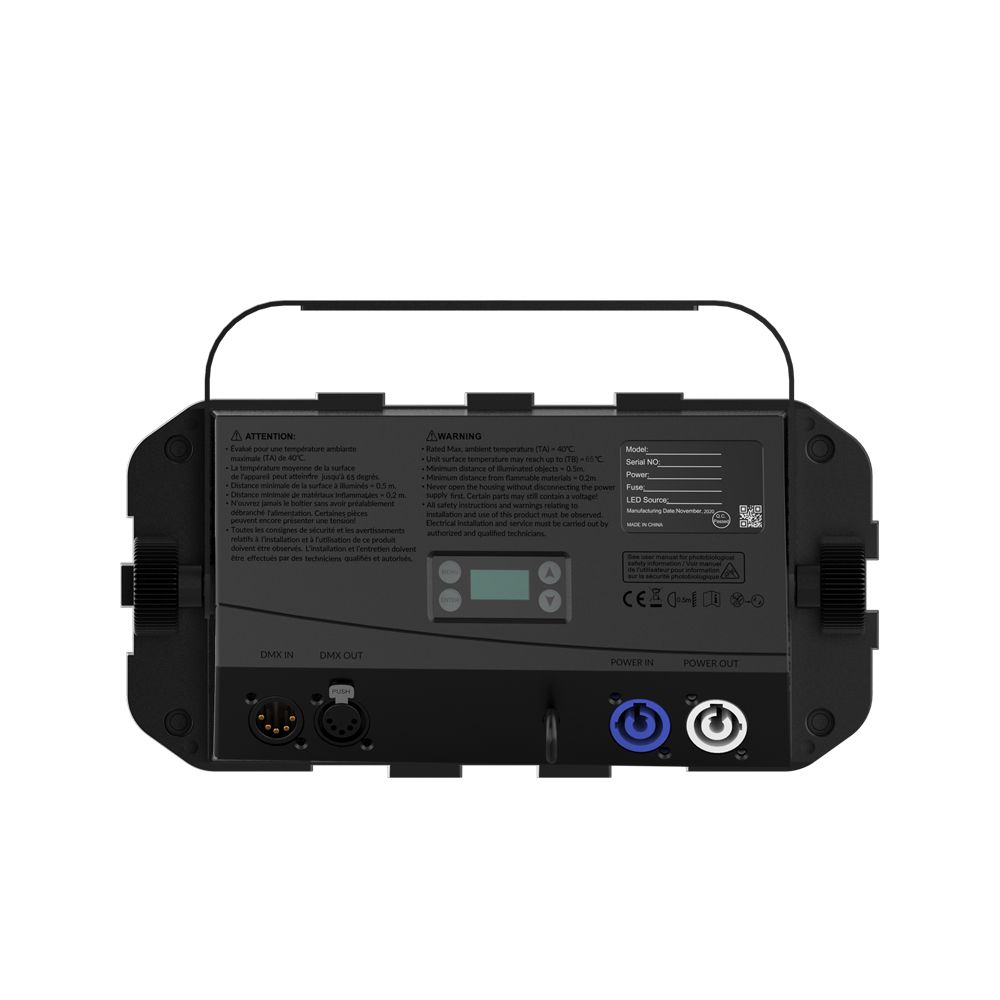

Power In/Out: Power Connector in/out
Data in/out: 3-pin or 5-pin XLR
Fixture Specification

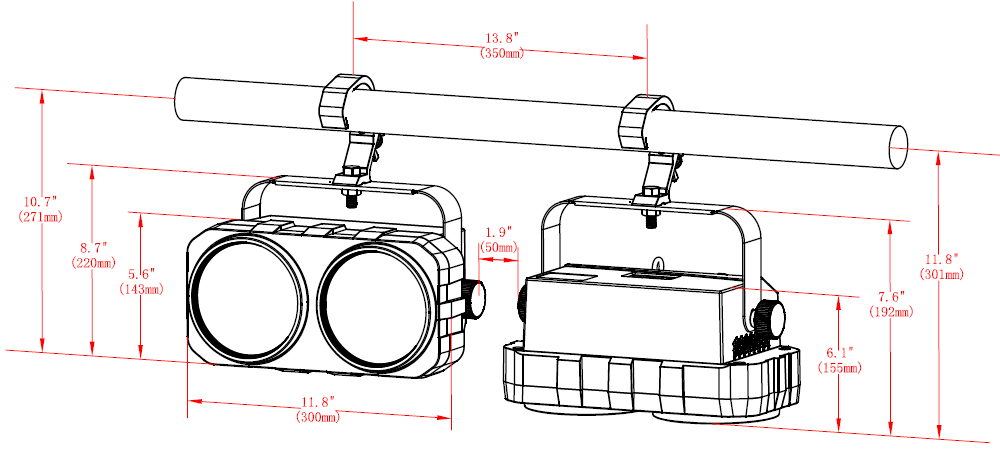

Fixture dimension:
Height: 192 mm (7.6″)
Width: 155 mm (6.1″)
Depth:305 mm (12″)
Weight of fixture: 2.6 kg (5.7lbs)
Carton dimension:
Height: 215 mm (8.5″)
Width: 250 mm (9.8″)
Depth: 395 mm (15.6″)
Weight of fixture: 3.2 kg (7.1lbs) (one pack per carton)
Work environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Installation
Available in horizontally or vertically mounting way
Multiple units can be split-jointed horizontally with connecting board
Multi projection angle operation
Bracket with one locking point for clamp’s installaiton

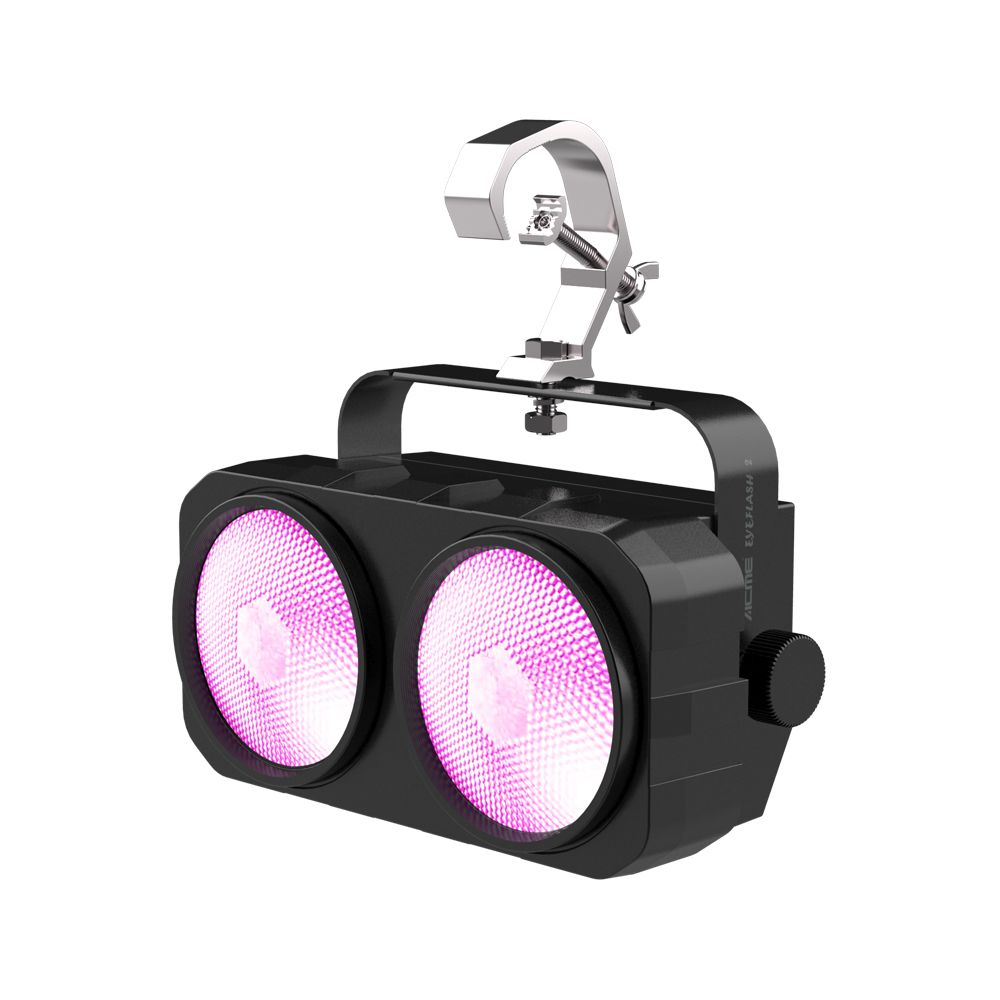

1 x clamp for 50 millimeter truss
Safety cable attachment point
Included items
User Manual
power cable
Carton： 3025169049
Optional Accessories (with item code)
Clamp：2060001635 (C-100A)
Signal Line：3-pin signal line
