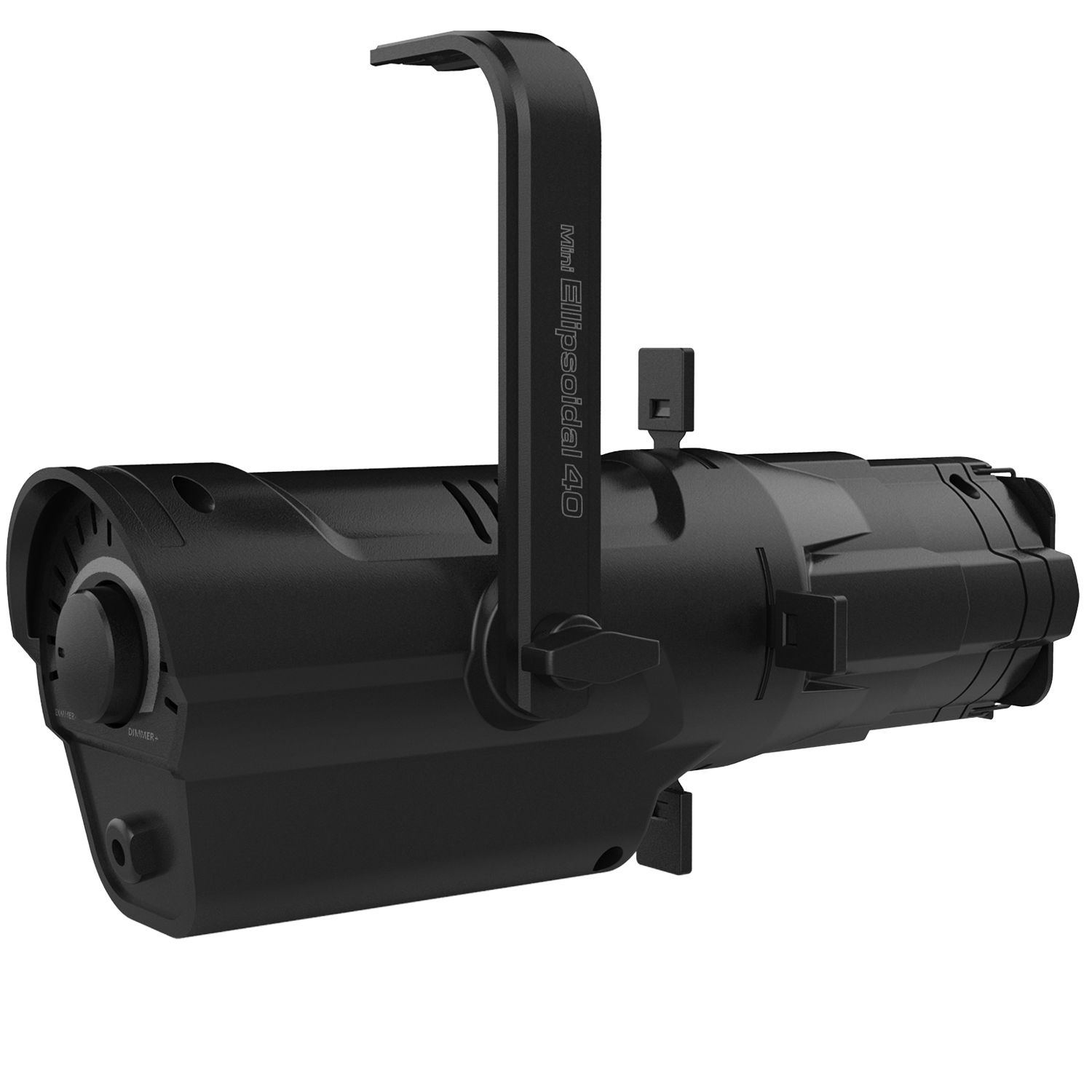

Acme ELLIPSOIDAL 40 WW

Functional Overview
ELLIPSOIDAL 40 series, with uniform light,sharp image edge,and self-locking focus lens.The product takes advantage of the heat pipe heat conduction and housing feature to dissipate heat without fan to prolong LED life.

Features
Light Source: 1×36W warm white LED
Color Temperature: 3200±150K

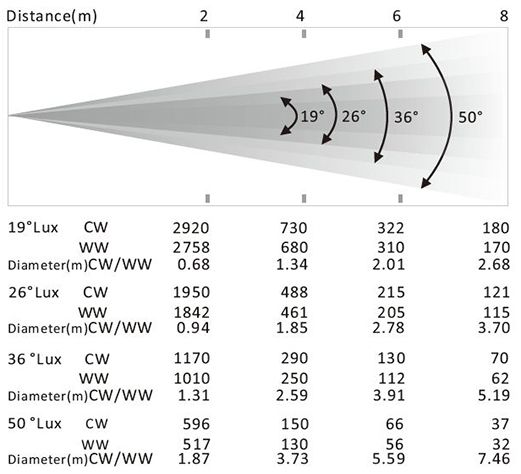

Beam Angle: 19°/26°/36°/50°
Flicker free management

Technical & Specification
Model
E-40 WW

Light Source
Light Source: 1×36W warm white LED
LED life expectancy: 20000 hours
Color Temperature: 3200±150K

optical Systemand effects
Advanced optical Systemto ensure image quality, clear and sharp
CRI：≥95
CQS：≥95
TLCI：≥95

Controland Program

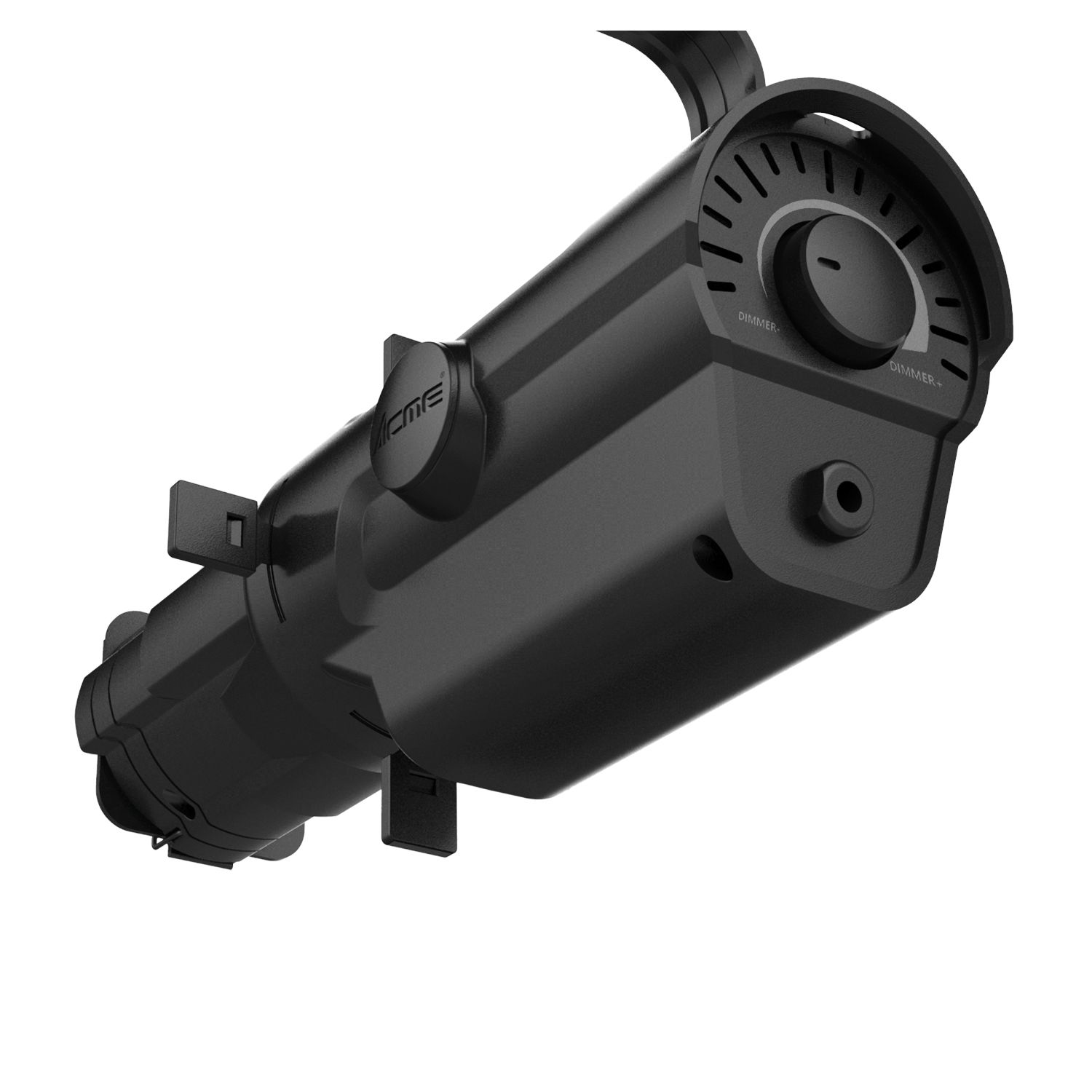

1-knob

Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 85~127V, 50/60Hz；AC 175~264V,50/60Hz
Power consumption: 24 W
Power in/out: Power wire

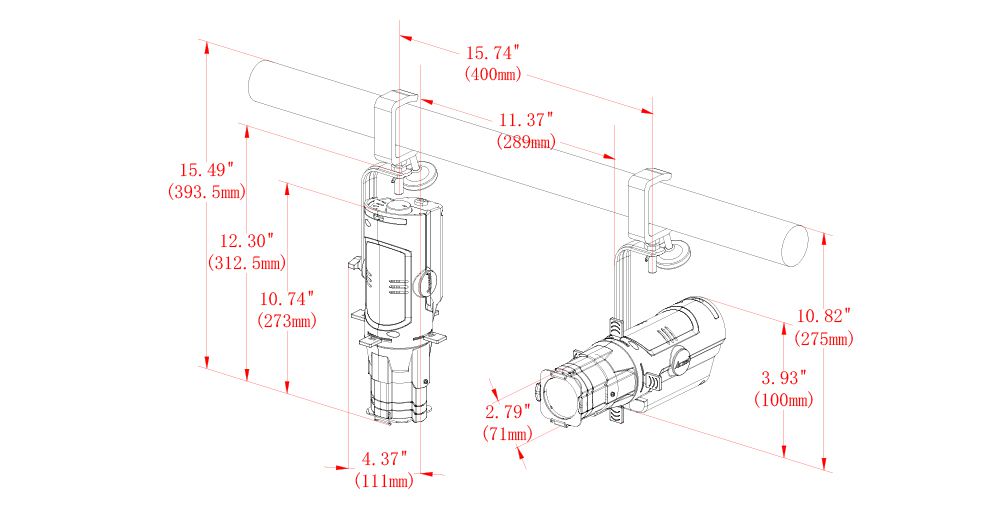

Fixture Specification
Height: 100 mm (3.9″)
Width: 128 mm (5.0″)
Depth: 273 mm (10.7″)
Weight: 1.3 kg (2.8 lbs)

Work Environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C

Approvals
CE Compliant

Installation
Horizontally or vertically mounting are available
Operating position is universal
The feet support with 1 locking points
Safety cable attachment point

Included Items
User Manual*1
Gel frame*1
Gobo Slot*1
Metal gobo*1
Safety cable*1

Optional Accessories (with item code)
Clamp：2060000300（C-01）
