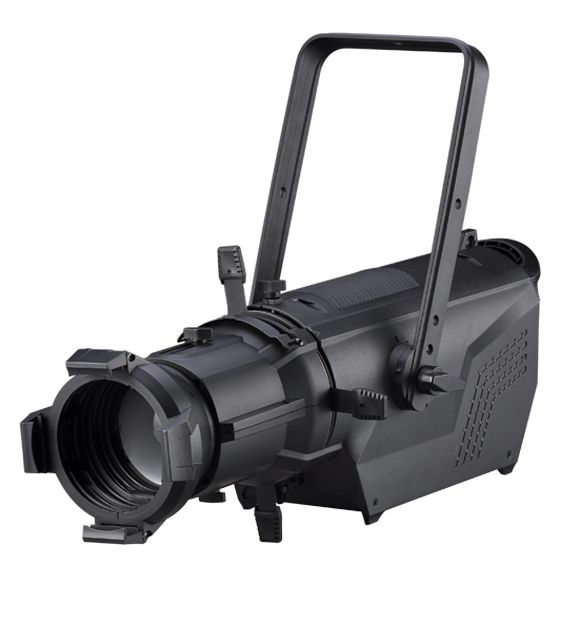

Acme ELLIPSOIDAL 300 CW

280W | LED | Profiel | Koud wit | 5600K | High CRI | diverse optieken beschikbaar

Beschrijving

Features
Excellent smooth light output
Standard beam shaping shutters & a gobo slot
Lens Options:5°/11°/14°/19°/26°/36°/50°/70°
Framing module 1: for beam angle 5°/11°/14°/19°/26°
Framing module 2: for beam angle 36°/ 50°/70°
0~100% linear dimming
With strobe effect and gradients effect
Excellent thermal design, long lifespan for LED
Low noise under 25dB @1m

Technical & Specification
Model
E-300 CW

Specifications
Light Sources: 1 x 280W cool white LED
Color Temperature: 5600±200K

Control
DMX Channel: 1/2 Channels
ControlModes: DMX,Art-Net,Master/slave,manual dimming
Firmware Upgrade: Update via DMX link

Construction
Display: LCD display
Data In/Out: 3-pin & 5-pin XLR
Power Socket: Power Connector in/out
Protection Rating: IP20

Optical
CRI≥85
CQS≥88
TLCI≥90

Electrical and Physical
Power Voltage: AC 100~240V, 50/60Hz
Power Consumption: 335W
Dimension: 712x276x245mm
Weight: 10Kg

Approvals
CE compliant

Extra informatie

IP-Rating

Indoor

Type lichtbron

LED

Vermogen Lichtbron

280

Kleurmenging

CW

Type Fixture

Profiel

Min zoom

5

Max zoom

70

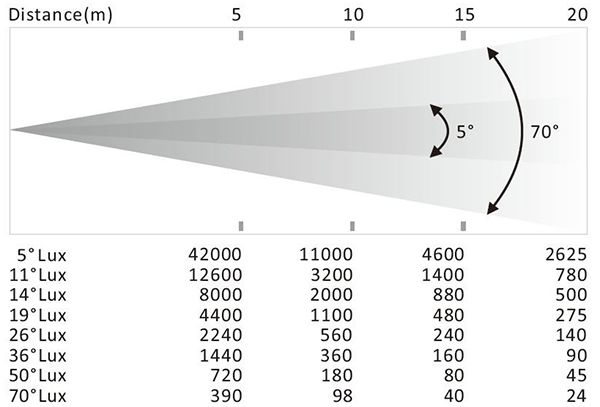

photometrics

photometrics
