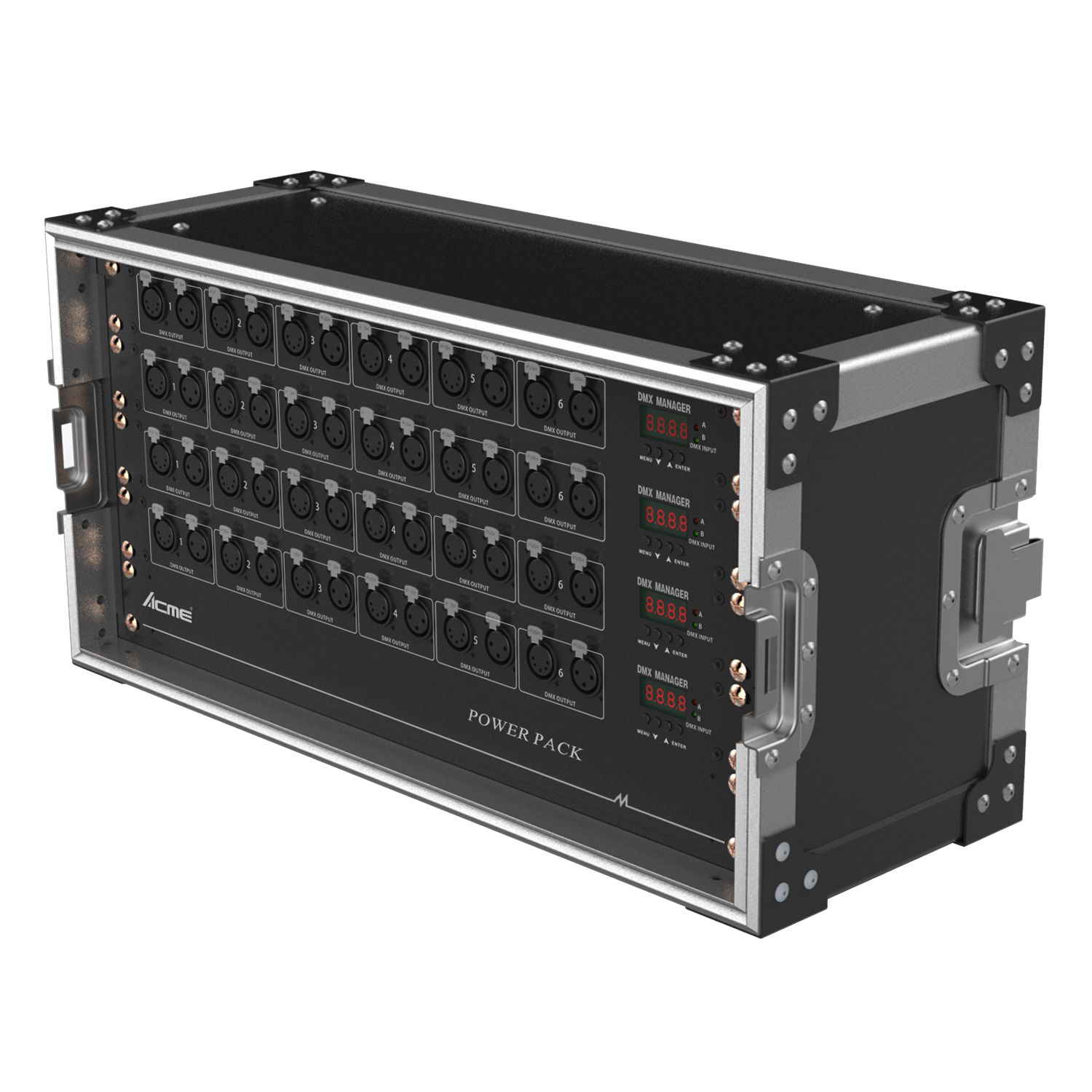

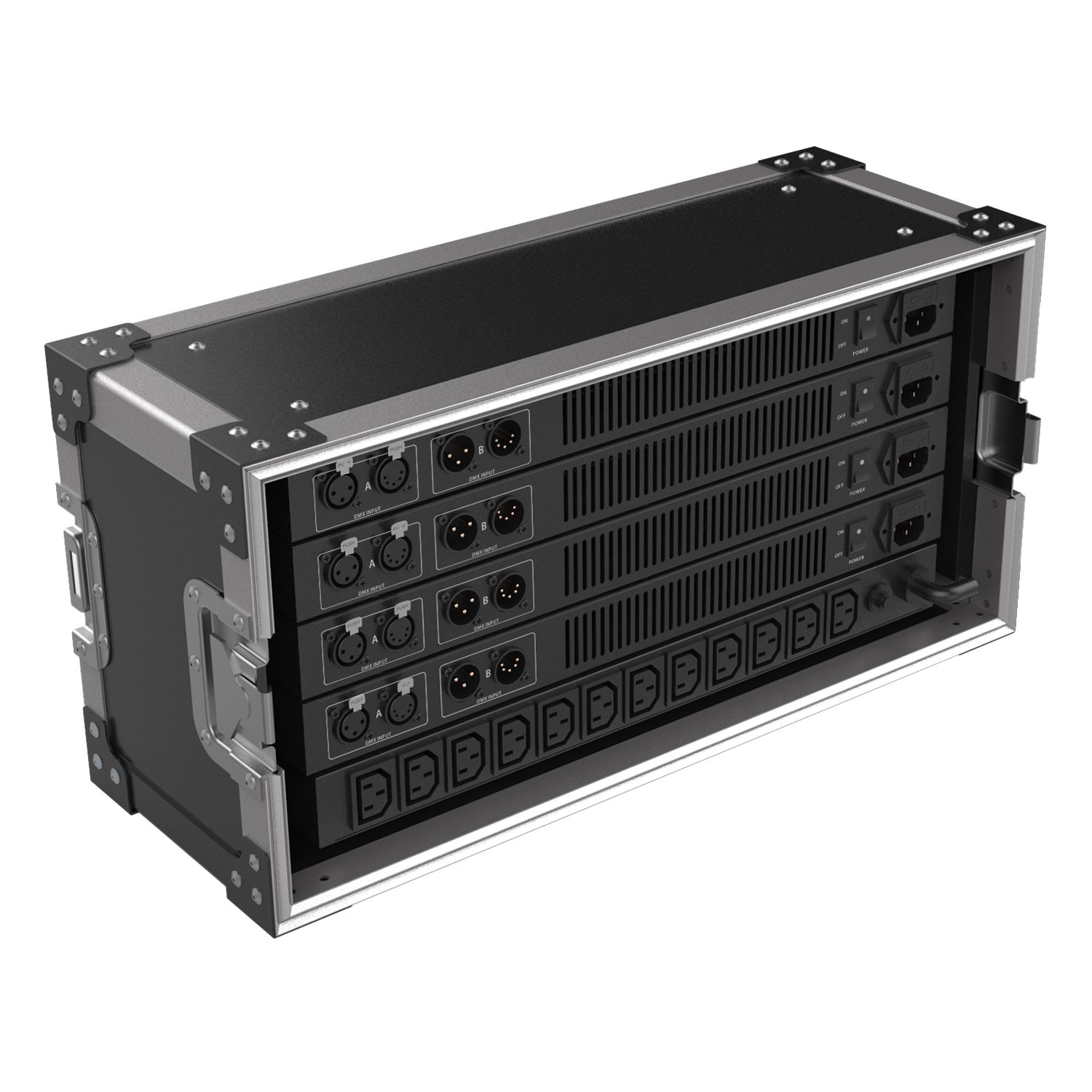

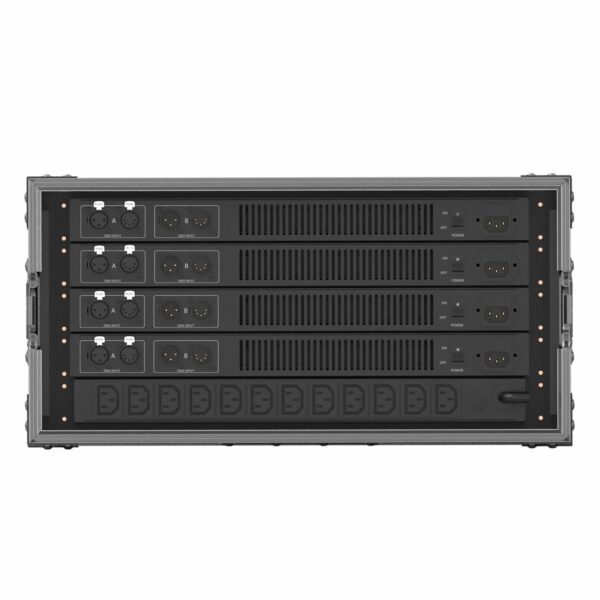

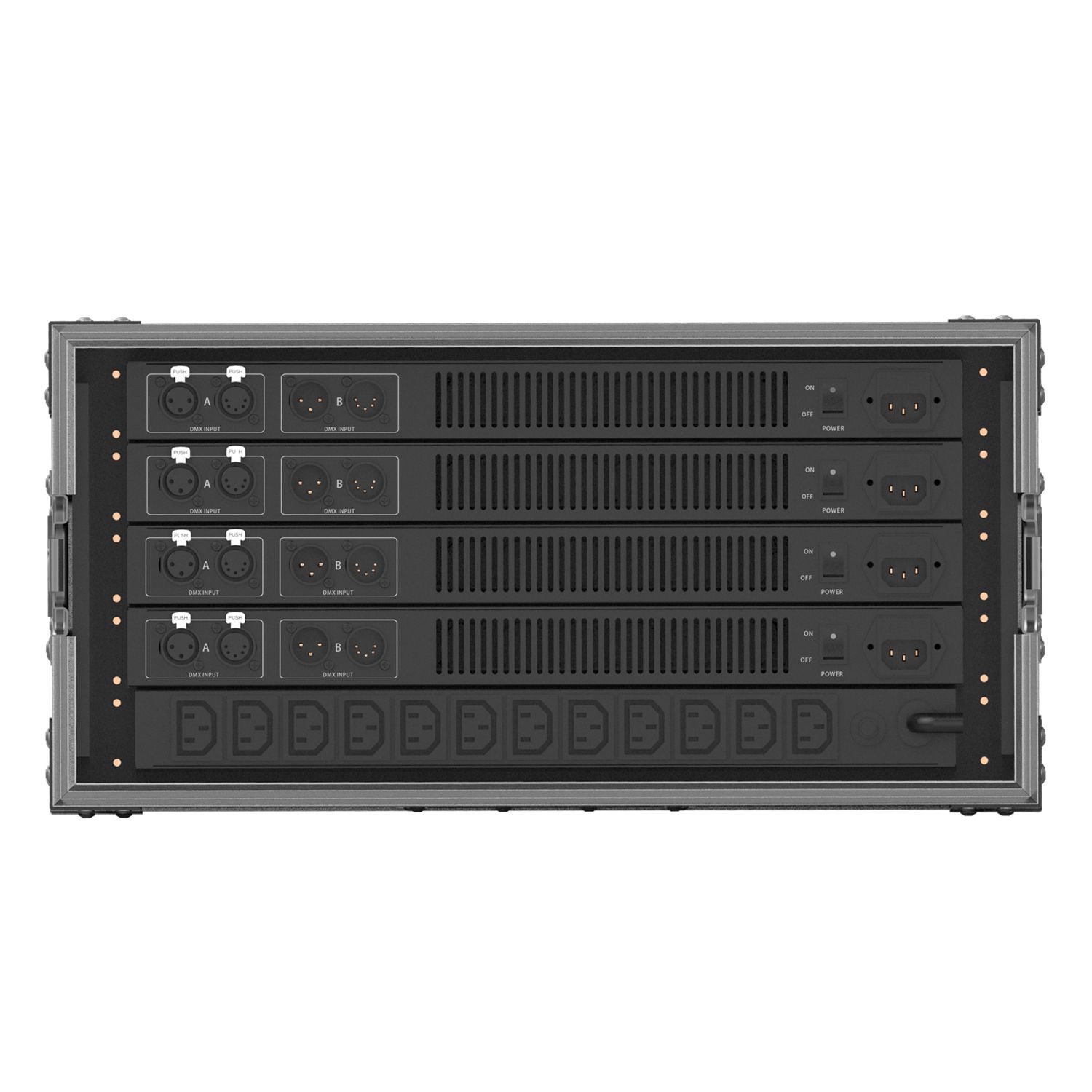

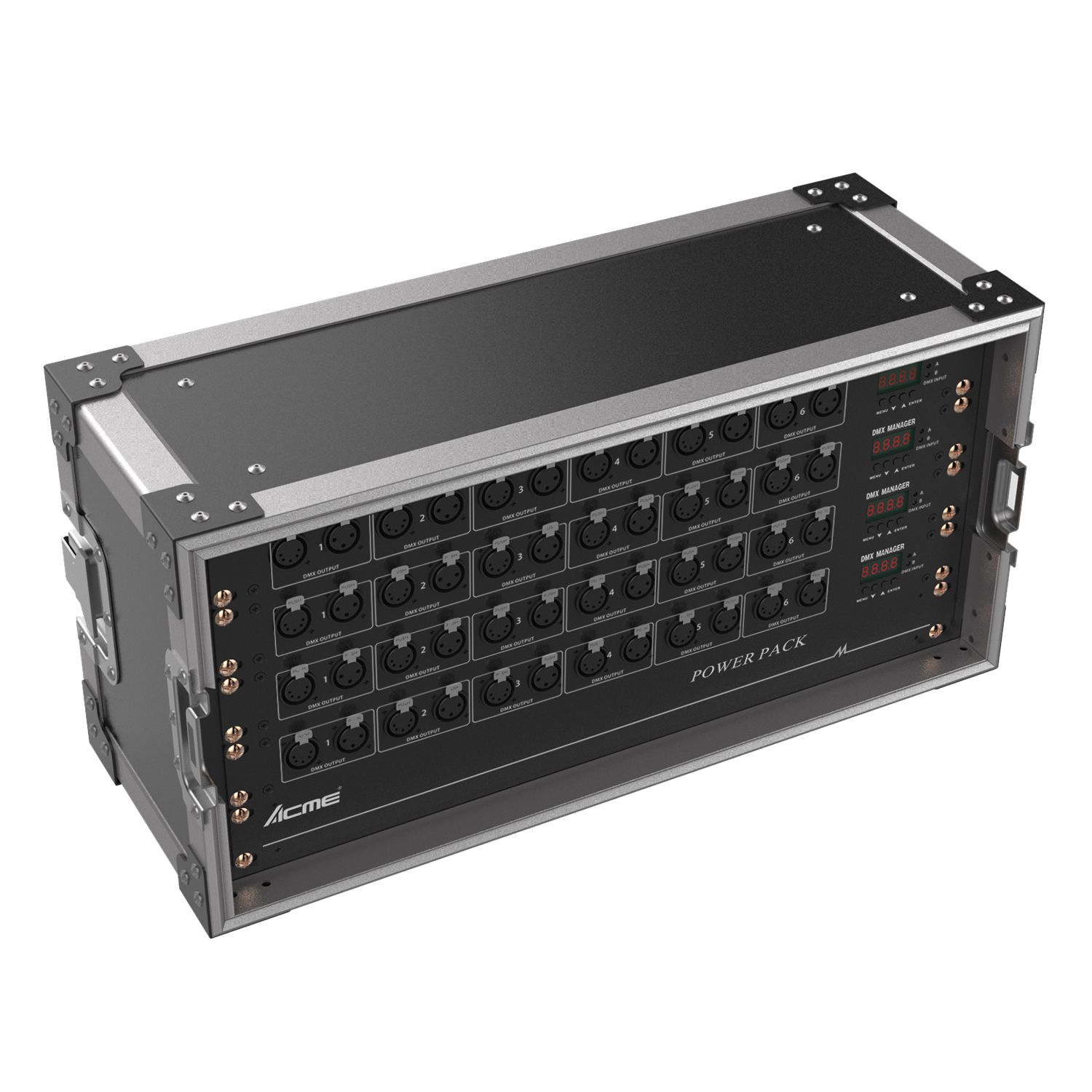

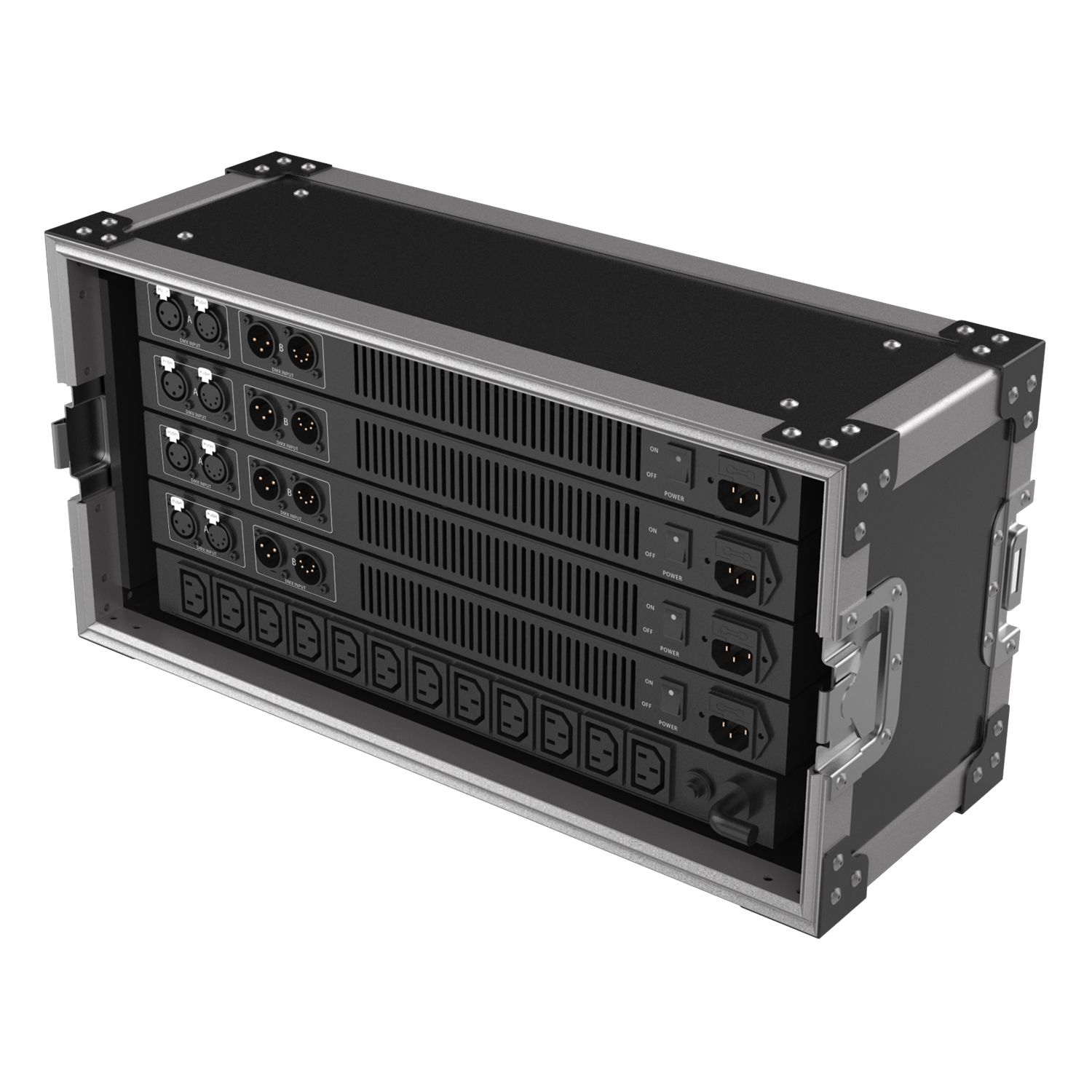

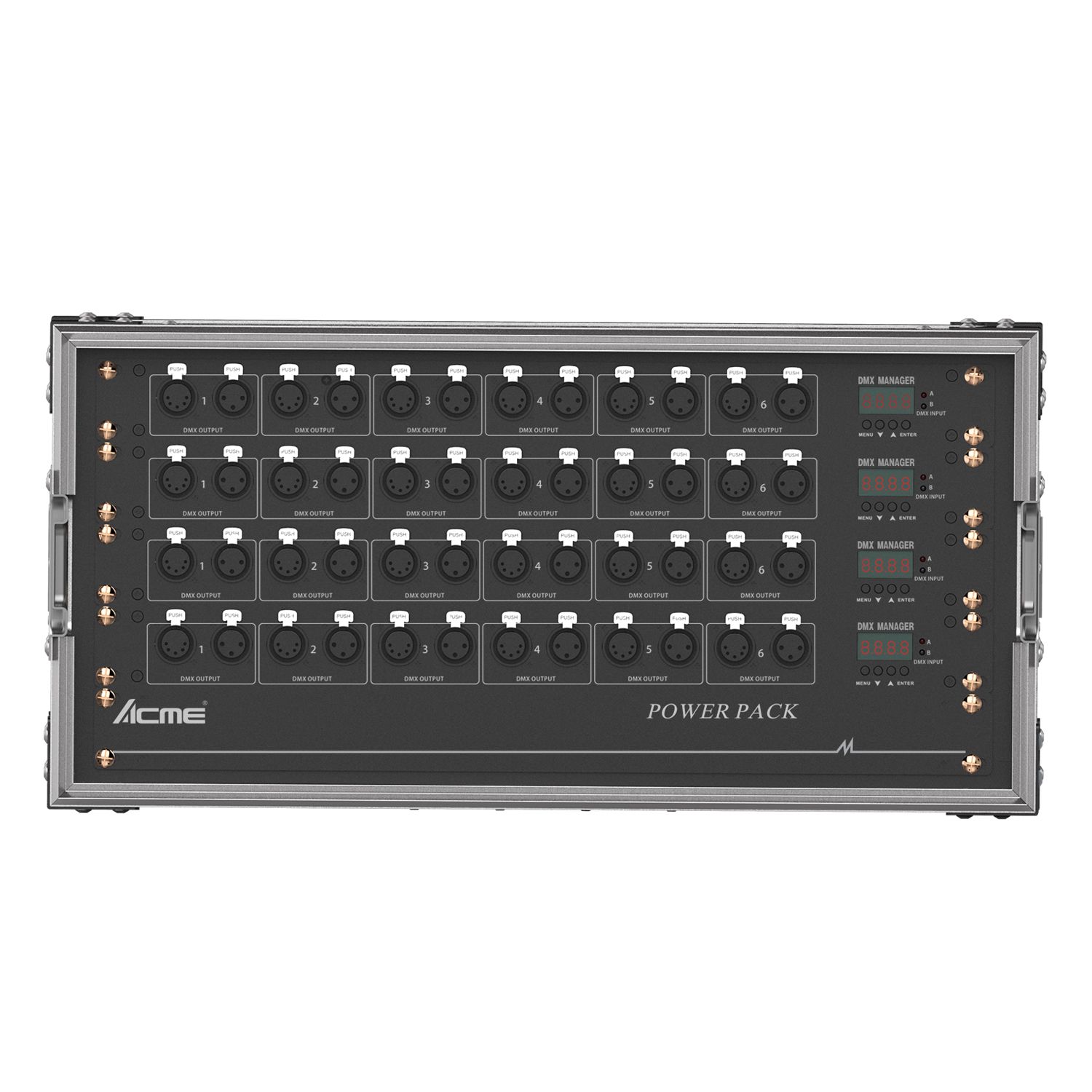

Acme DMX SPLITTER M264

Adviesprijs 1.092,37 excl.btw

DMX Splitter | 3 & 5 pin | Merger | Failsafe

Beschrijving

Functional Overview
The DMX SPLITTER M264 is a DMX signal merger and splitter with 2 DMX inputs and 6 DMX outputs. All inputs and outputs are opto-electronically isolated to protect the DMX console or other output fixtures in the event of a fault.

Features
3 input modes:
HTP mode: The higher DMX value form input A or B will take the order
Backup mode: When one input loses DMX signal, it will take the DMX signal from another input
Merge mode: Combine DMX signal inputs, e.g. when DMX-A has 24 channels input and DMX-B has 48 channels input, it will merge the 2 inputs together, and send out 72 channels
3 output modes if there is no DMX input:
Null (No DMX output)
Hold (Keep current DMX output)
CLR (DMX output is 0)

Technical & Specification
Model
CA-M264

Construction
Display: LED display
Data in/out: 3-pin and 5-pin XLR

Electrical and Physical
Power Voltage: AC 120V-230V, 50/60Hz
Dimension: 483 x 145 x 44mm (1U, 19”)
Weight: 3.0kg

Extra informatie

IP-Rating

Indoor

Type Fixture

DMX Splitter
