ACME – Cetus

IP beam moving head – 370W HRI – 2.5º beam – IP65

Log in of registreer om uw korting te zien.
Of vraag vrijblijvend een offerte aan.

Demo? Bezoek onze showroom of maak een afspraak voor een demo op locatie.

Wij zijn er voor de professional. Totaal leverancier stage & entertainment

Deskundig advies op maat. Wij denken graag met je mee.

Gespecialiseerd in projectie. Voor elke project een oplossing.

Functional Overview

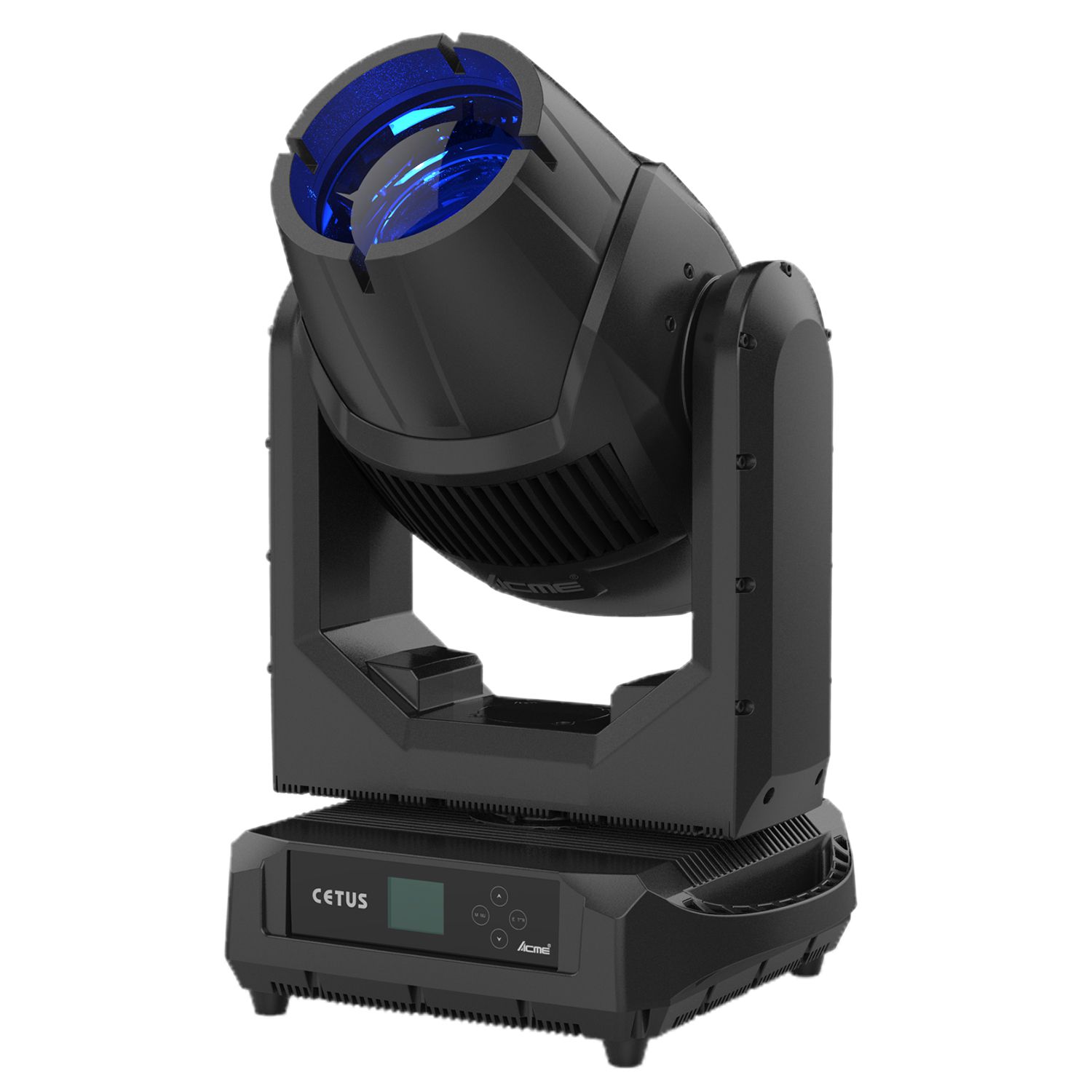

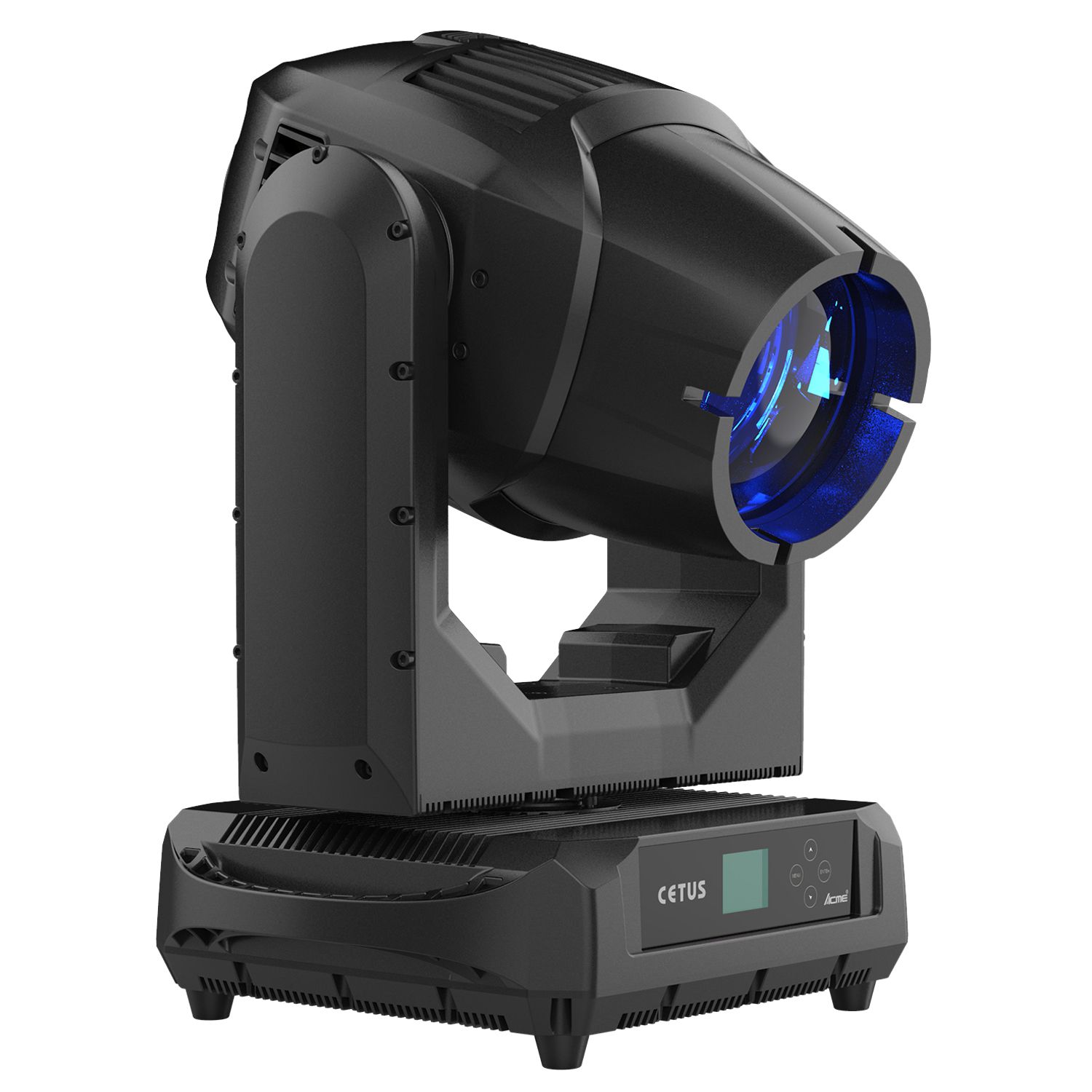

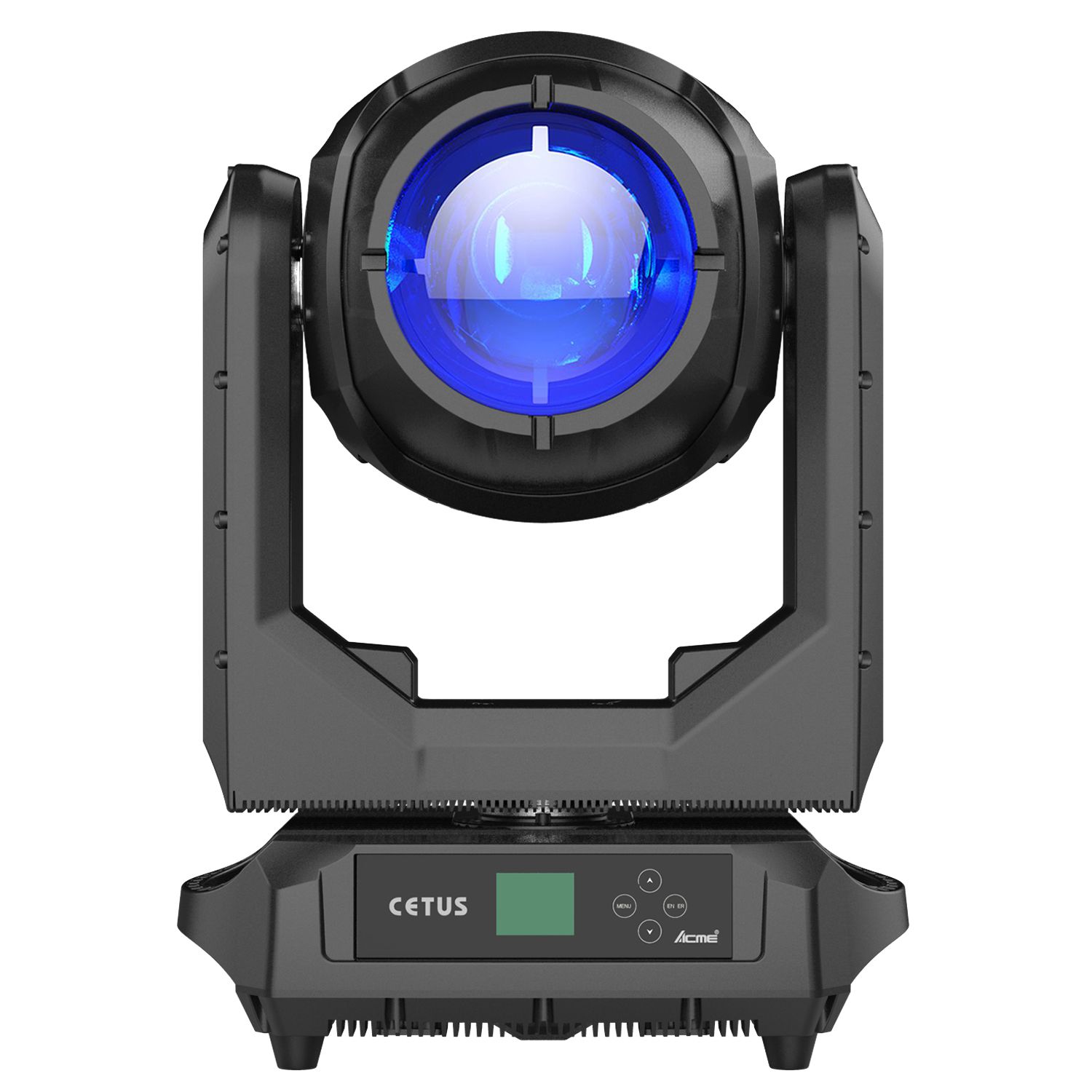

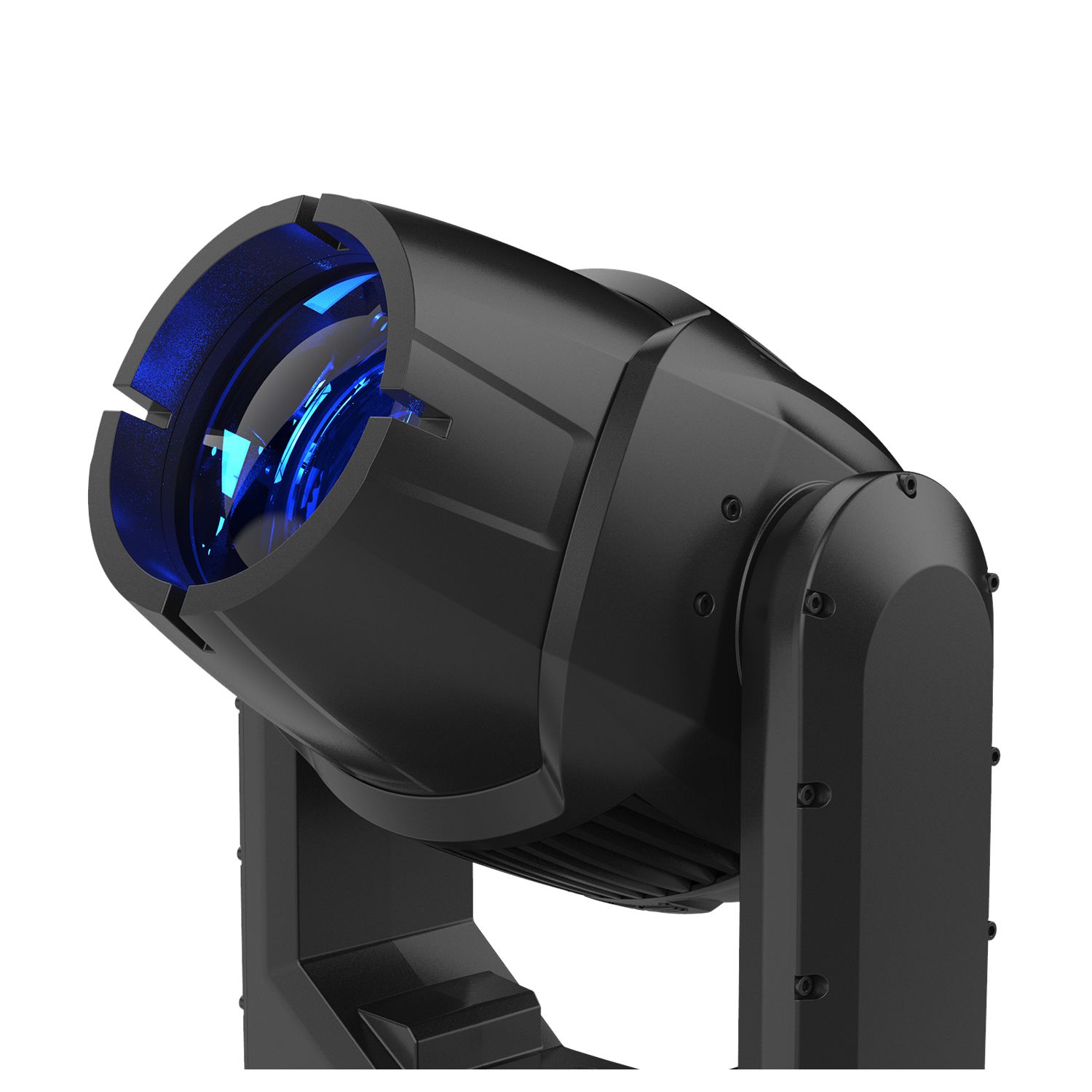

The ACME CETUS is an IP65-rated outdoor professional moving beam fixture with an Osram Sirius HRI 370W LL discharge lamp (up to 6,000-hour lifespan) that produces a razor-sharp 2.5˚ beam. With robust construction and IP65 protection, the CETUS is perfectly suited for either indoor or outdoor use. Its durable aluminum die-cast housing protects it from dust, sand, moisture, and liquids, making it ideal for use in all situations from dusty deserts to rainy fields. Perfect for festivals and outdoor events, as well as installation in open-air applications and other outside entertainment spaces, this ground-breaking fixture offers extended operational life and reduced need for maintenance, thanks to its sealed casing design.

The CETUS’s wealth of features includes linear motorized focus, 8-facet and16-facet circular prisms with overlay, rotatable and replaceable glass and metal gobos, a built-in color wheel with 14 colors, and an independent frost filter for wash effects. It is fitted with 3-pin (or optional 5-pin) DMX in/out and a power connector in/out to daisy chain power. All connections are IP65 rated with rubber protective covers.

Features

  • Diameter of lens: 149mm
  • Long-life design: 6,000-hour lamp life with sleep mode & instant wake-up
  • Macro effect and half-tone effect
  • Rainbow effect in both directions
  • Gobo shaking function for more dynamic visual effects
  • 1x rotating gobo wheelwith 10 gobos plus 2 open
  • 1x color Wheelwith 14 colors plus white
  • 2x prisms: dual 8- and 16-facet prisms, rotatable in both directions and overlayable
  • Beam angle: 2.5°
  • Frost: can be used independently
  • Motorized focus
  • Outstanding strobe effect with variable speed
  • Smooth dimming from 0-100%
  • Flicker-free management
  • Protection Rating: IP65

Model

  • XP-380 BEAM IP

Light Source

  • Light Source: OSRAM SIRIUS HRI 370W LL
  • Color temperature: 7800K
  • Life expectancy: 6000 hours

Optical System

  • Advanced optical system to ensure clear, sharp image quality
  • High-efficiency optical system

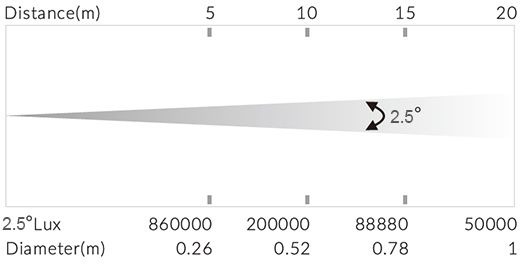

  • Beam angle: 2.5°

Control & Program

  • 4-button touch panel
  • Color LCD display
  • Protocols: DMX512, RDM, Wireless(optional)
  • DMX Protocol modes: 2
  • Control channels: 16, 18
  • Pan/Tilt Resolution: 16-bit
  • Firmware upgrade via DMX link

Pan & Tilt

  • Pan movement: 540°
  • Tilt movement: 270°
  • Automatic Pan/Tilt position correction

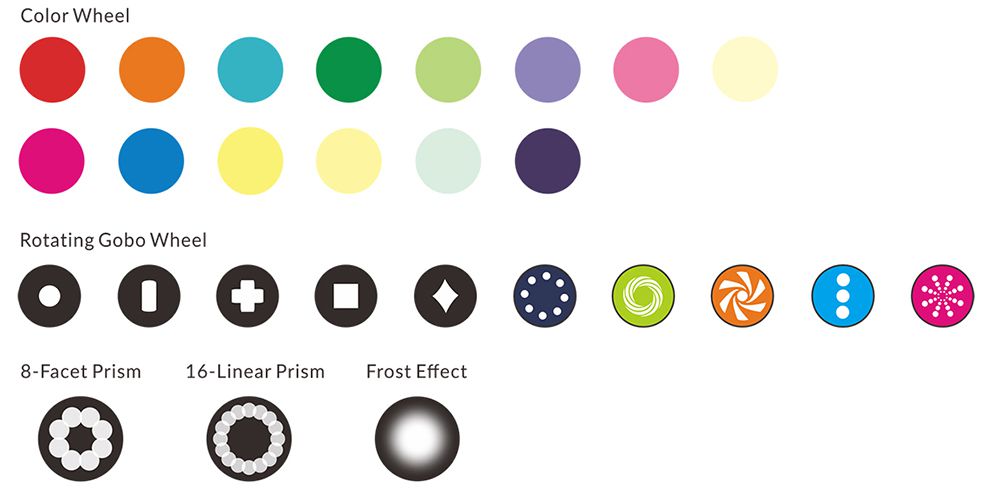

Rotating Gobos

  • 1x rotating gobo wheelwith 10 gobos plus 2 open
  • Image diameter: 6.5mm
  • Outside diameter: 9.8mm
  • Max. thickness: 1.1mm
  • Metal or glass gobos

Color Wheel

  • 1x color wheel with 14 colors plus white

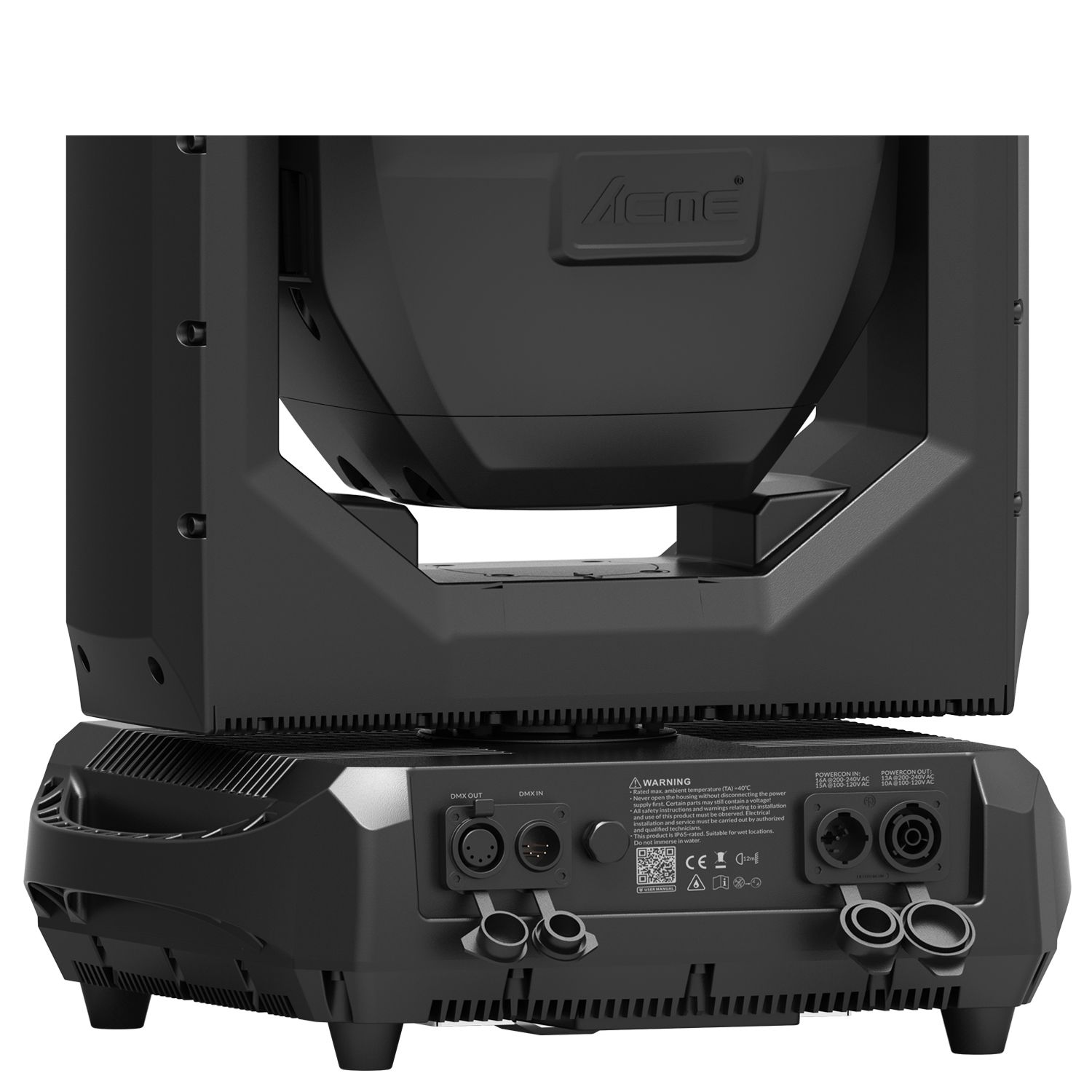

Electrical & Connectors

  • Power supply with electronic auto-ranging
  • Input voltage range: 100-240V~ 50/60Hz
  • Power consumption: 535W
  • IP65 waterproof power connector in/out
  • Data in/out: waterproof 3-pin or 5-pin XLR

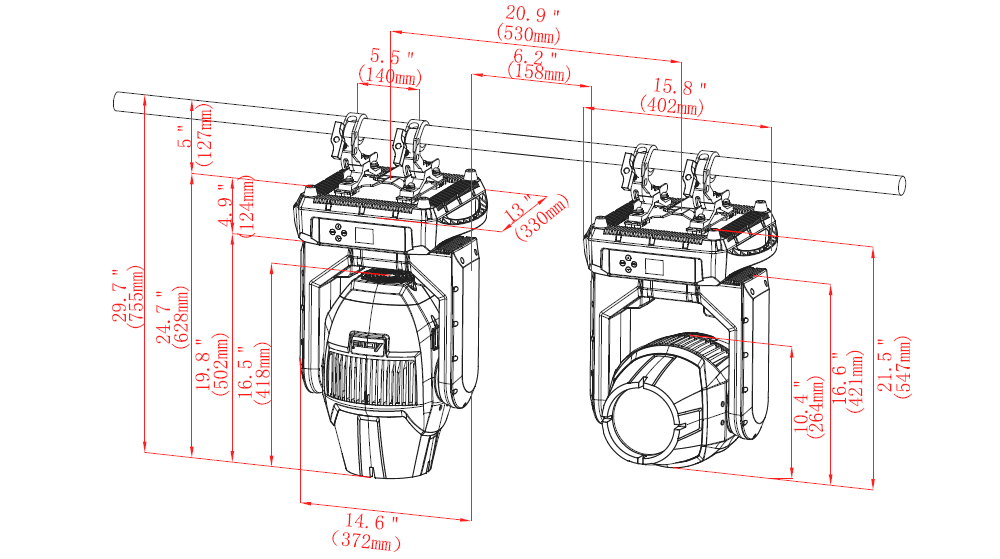

Fixture Specification

  • Height: 628mm (24.7”)
  • Width: 402mm (15.8”)
  • Depth: 330mm (13.0”)
  • Weight: 30kg (66.1lb)

Work environment

  • Maximum ambient temperature: 40°C
  • Minimum operating temperature: -10°C
  • Maximum surface temperature: 65°C

Approvals

  • CE compliant

Installation

  • Horizontal or vertical mounting
  • Operating position is universal

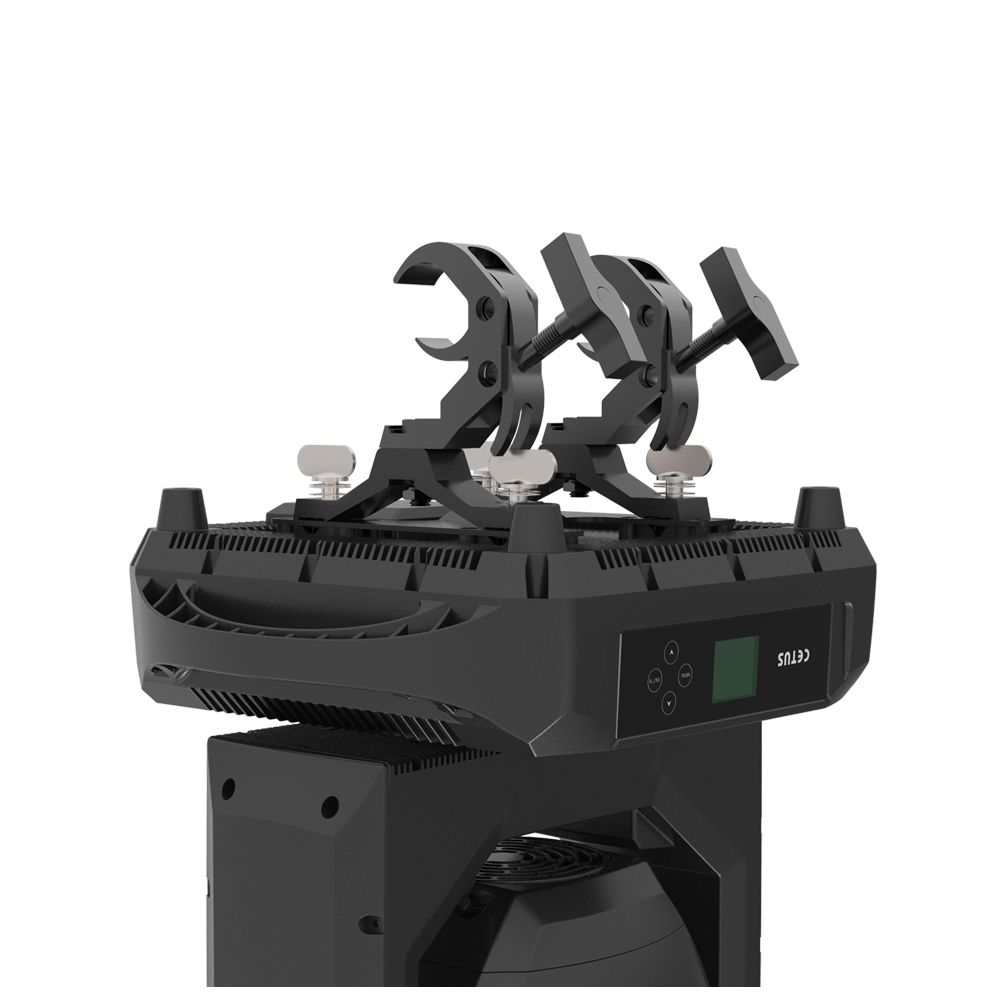

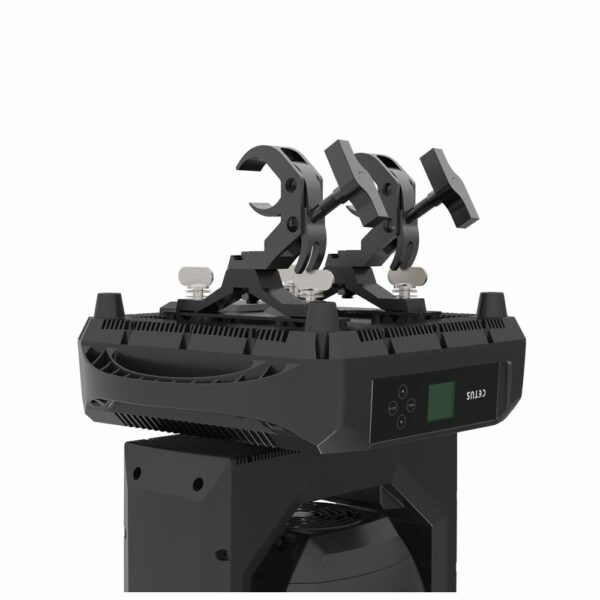

  • 2x fast-lock clamps with 1/4-turn for 50mm truss
  • Safety Rope Hole

Included items

  • Digital User Manual
  • Power Cable
  • 2x fast-lock clamps with 1/4-turn for 50mm truss

Optional Accessories (with item code)

  • Flight case: 2220000017 (2 in 1)
  • Safety cable: 2060001603-A (SW-05)
  • Clamp: 2060001632 (C-250B)
  • Grounding Metal Plate: 63582156
  • Signal line: 3-pin or 5-pin signal line
