Functional Overview

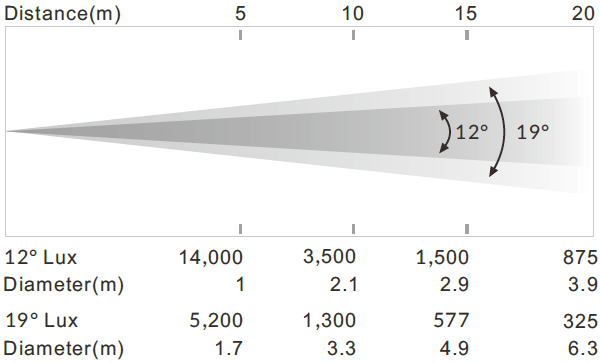

WILLOW 200, a 180W hybrid fixture matching the ultra-compact WILLOW series. With a satisfied brightness of 14,000lx@5m and feature-rich inside layers, Willow 200 is a cost-saving choice for small venues. The total weight of 9.7kg is fitting in any fast easy installation. What’s more, the variable beam/spot/wash angles will meet the compact lighting setup demanding. Willow 200 borrows the same proprietary optical system from its family line, which delivers an 8500K crisp white light that can project gobos perfectly in all conditions and at a filtered angle. Small Bars, weddings, ceremonies, and corporate events could be a good stage for Willow 200 to show up!
Features

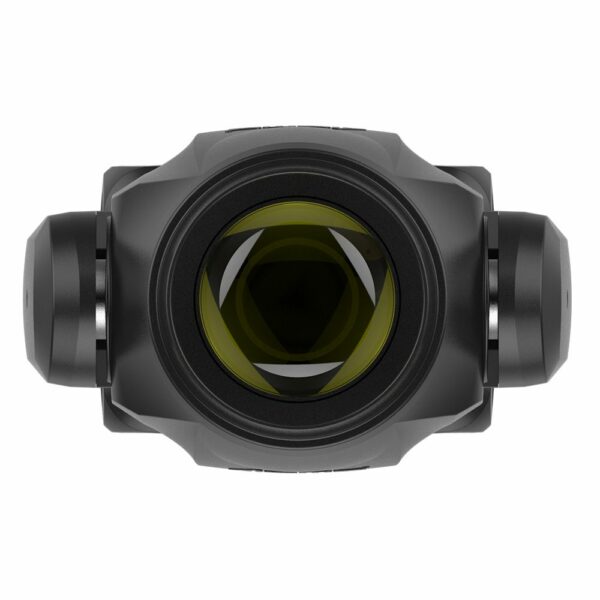

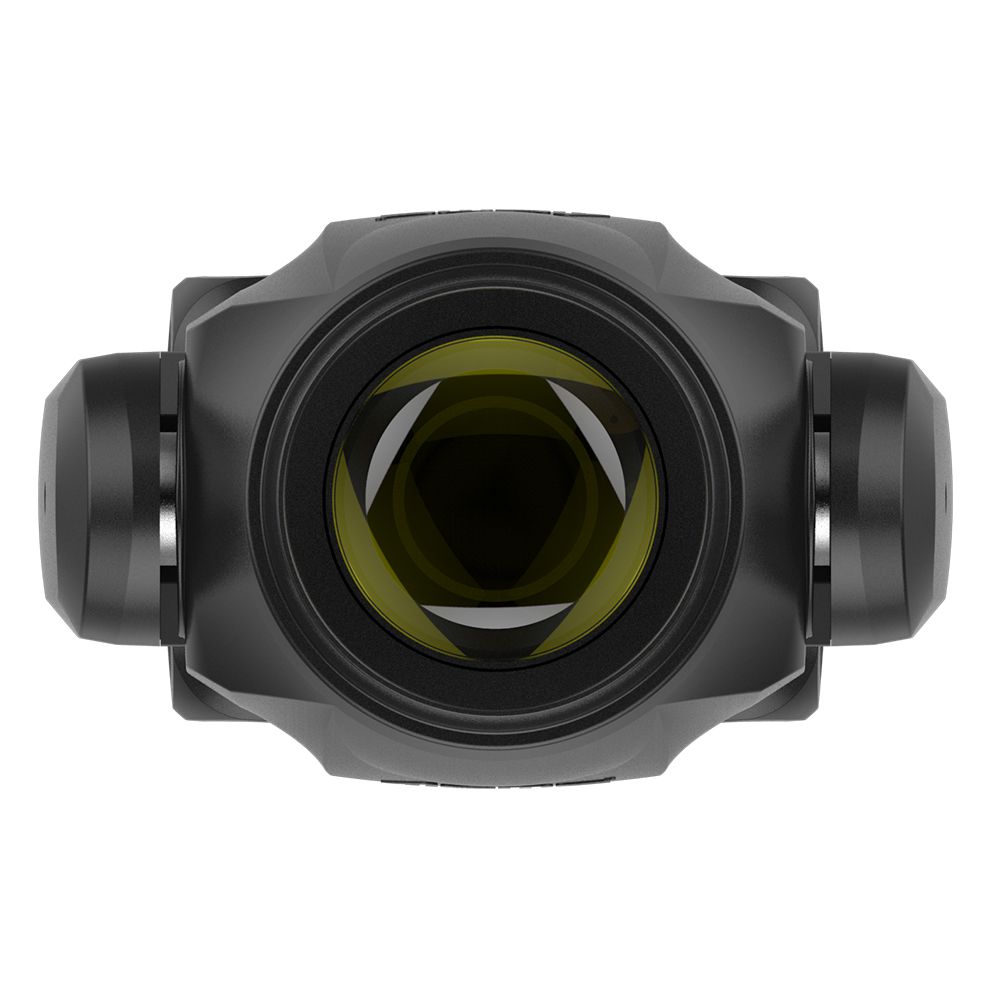

Diameter of front lens:102mm
Integrated three features: beam, spot, and wash
Color Temperature: 8500(±300K）
20000 hours long life light source
Outstanding color macro effect
Rainbow effect in both directions
Zoom range:
Beam: 2°/4°/6°/8°/10°/12°/19°
Spot: 10°/15°
Wash Mode : 15°~28°
Rotating gobo wheel: 1 rotating gobo wheel with 6 gobos plus white, convenient replacement
Static gobo Wheel: 1 static gobo wheel with 7 gobos plus white
Color Wheel: 1 static color wheel with 8 colors plus white,rainbow effect in both directions
Prisms: 1pc 3-facet prism rotatable in either direction
Smooth dimming from 0-100%
Independent frost effect
Outstanding strobe effect with variable speed
Dust-proof and oil-proof design
Technical & Specification
Model
BSW 200
Light source
Light source: 180W LED
Bulb life expectancy: 20000 hours
Optical system
Advanced optical system to ensure image quality, clear and sharp
High – efficiency zoom optical system
Control and Program
4-touch buttons
Display: Color display
Protocols: DMX512,RDM
DMX Protocol modes: 2
Control channels: 17/20
Upgrade the firmware via DMX link
Pan/Tilt Resolution: 16 bit
PAN & TILT
Pan movement: 540°
Tilt movement: 270°
Automatic Pan/Tilt position correction
Rotating Gobos
1 x rotating gobos wheel with 6 gobos plus white, convenient replacement
Image diameter: 17 mm
Outside diameter: 21 mm
Set with “SLOT & LOCK” system for gobos replacement
Static Gobos
1 x static gobos with 7 gobos plus open
Color Wheel
1 x color wheel with 8 colors plus open,rainbow effect in both directions
Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: 180-240 V, 50/60 Hz
Power consumption: 335 W
Data in/out: 3-pin and 5-pin XLR

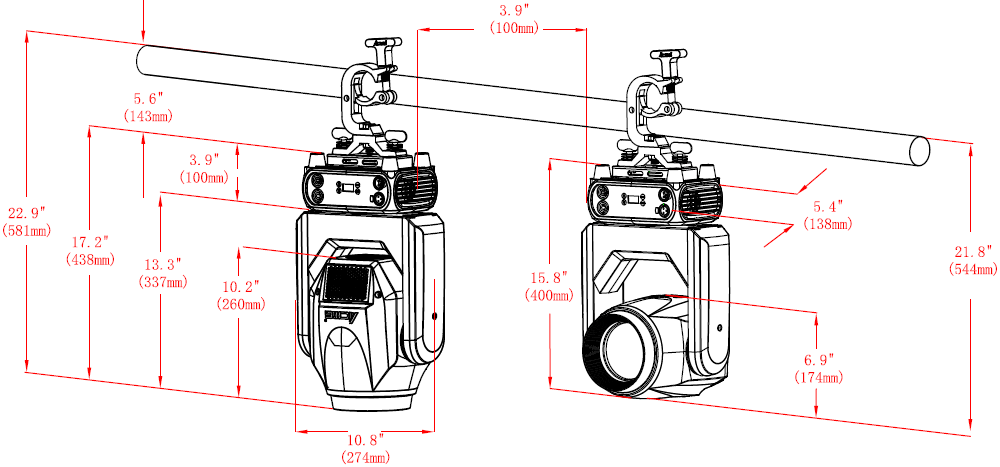

Fixture Specification
Height: 439 mm (17.3″)
Width: 174 mm (6.9″)
Depth: 275 mm (10.8″)
Weight: 9.7 kg (21.4 lbs)
Carton Dimensions：
Height: 510 mm (20.1″)
Width: 350 mm (13.8″)
Depth: 410 mm (16.1″)
Weight:15.5 kg (34.2 lbs)(one-pack in carton)
Work environment
Maximum ambient temperature: 45°C
Maximum surface temperature: 65°C
Minimum operating temperature: -5°C
Installation
Available in horizontally or vertically mounting way
Multi projection angle operation

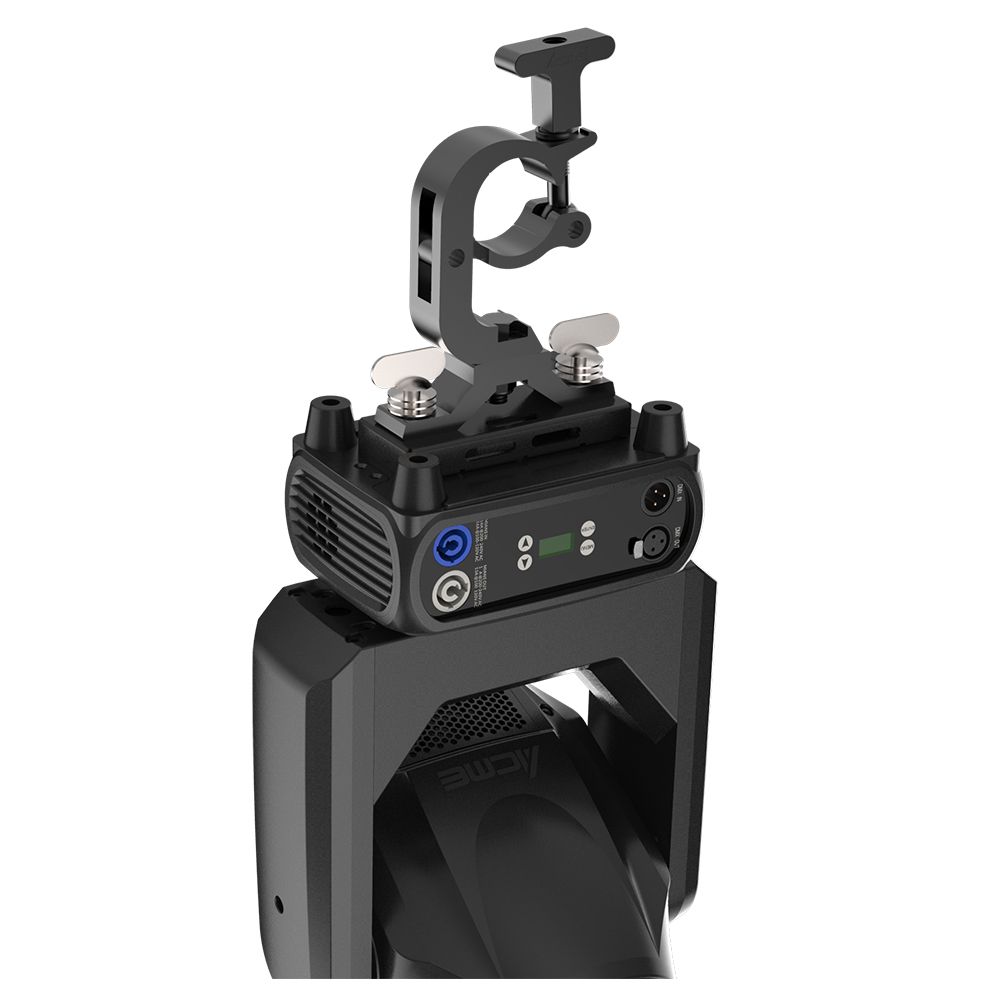

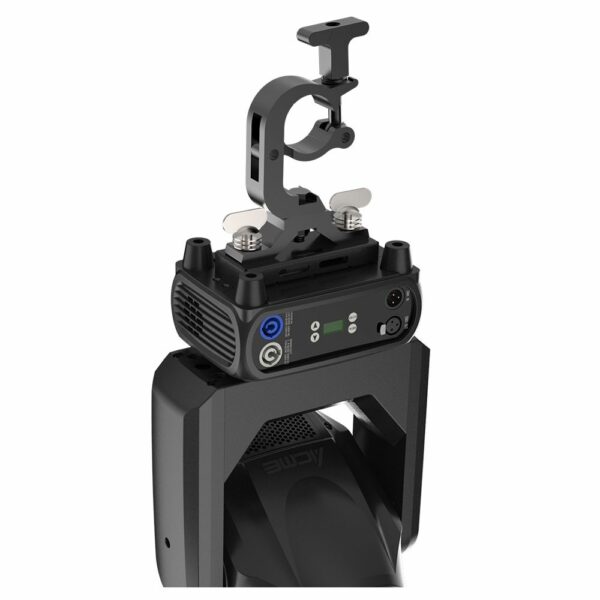

2 x clamps for 50 millimeter truss
Safety rope hanging
Included items
User Manual
Power Cable
Optional Accessories (with item code)
Clamp：2060001635（C-100A）
Signal Line：3-pin or 5-pin signal line
Safety cable : 2060000200（SW-02）
