Functional Overview

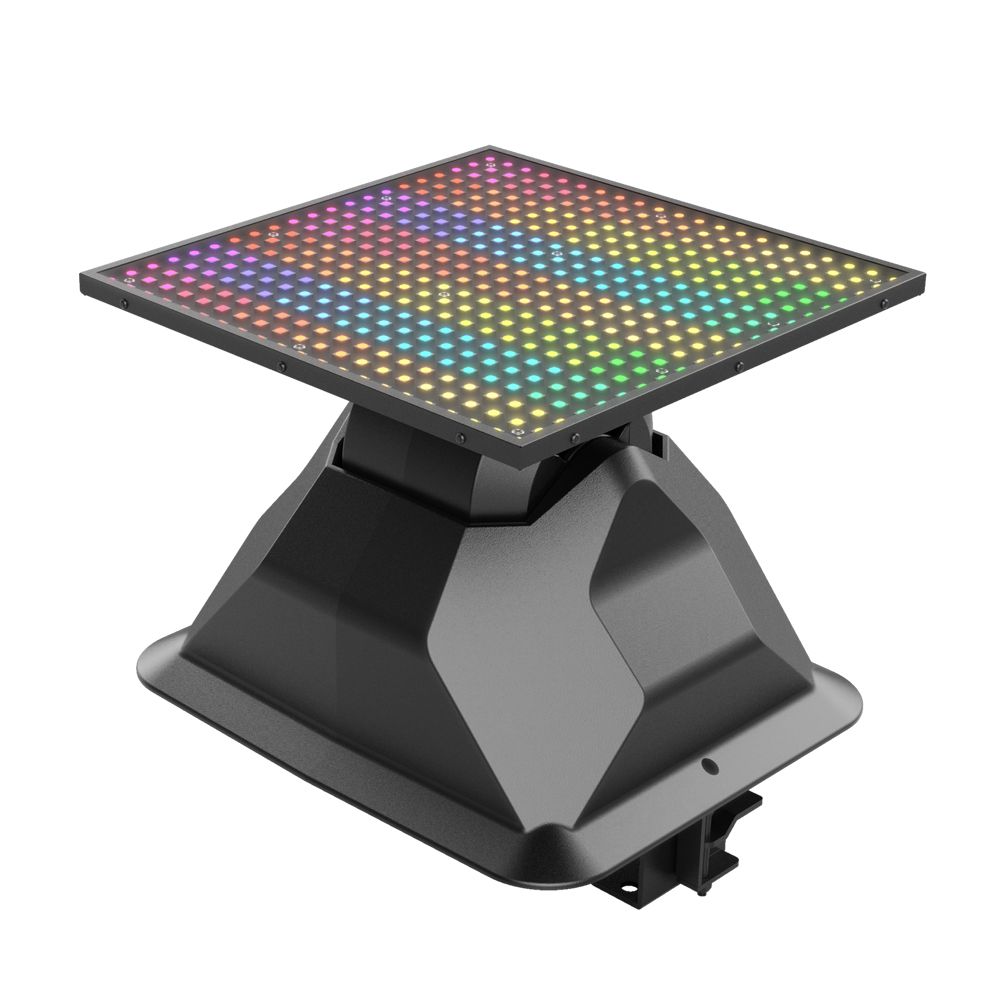

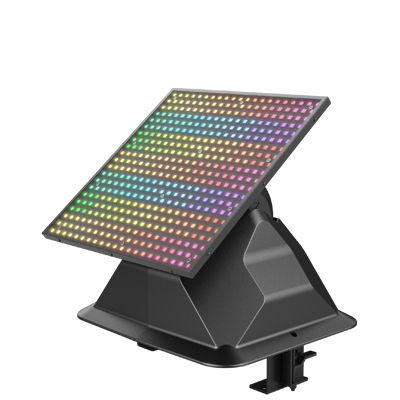

BIG BANG! An effect LED panel featured 441×0.3W RGB Hybrid LEDs, divided into 49 control sections with 9 LEDs in each block. The uniform color mixing performance and dynamic graphic effects utilized a variety of programmed effects, leaving a minimum amount of space between multiple luminaires will make it possible to create an eye-catching lighting art, an ideal tool for creating moveable virtual sets and complex light compositions with multiple panels. The unique base design allows the ceiling installation, side-wall hanging, and Pipe hanging. Apply to multiple applications such as Venue Event lighting, Entertainment center, Stage effects Party House, Club lighting, etc.
Features
- Light Source: 441X0.3W RGB LED
- Beam angle: 110°
- Field angle: 150°
- 49 led zones can be controlled individually
- Acailable in Ceiling installation, Side-Wall hanging or Pipe hanging with clamps
- Dynamic graphic effect
- Optional with Frost Filter
- Compact size light weight
- Outstanding color mixing effect
- 0~100% smooth dimming & PWM adjustable
Model
- PM 1
Light Source
- Light Source: 441X0.3W RGB LED
Optical System
- High – efficiency optical system

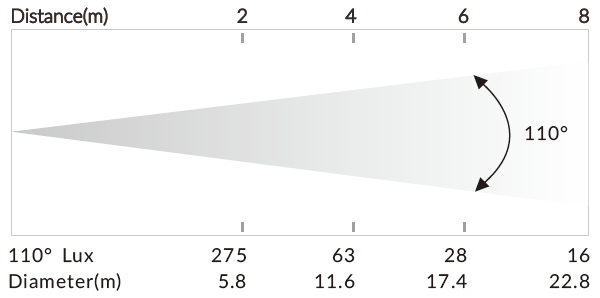

- Beam angle: 110°
- Field angle: 150°
Control and Program
- Protocols: DMX512, RDM
- DMX Protocol modes: 2
- Control channels: 16/156
- Firmware Upgrade: Upgrade via MDX link
- Pan/Tilt Resolution: 16-bit
PAN & TILT
- Pan Tilt movement: 76°/76°

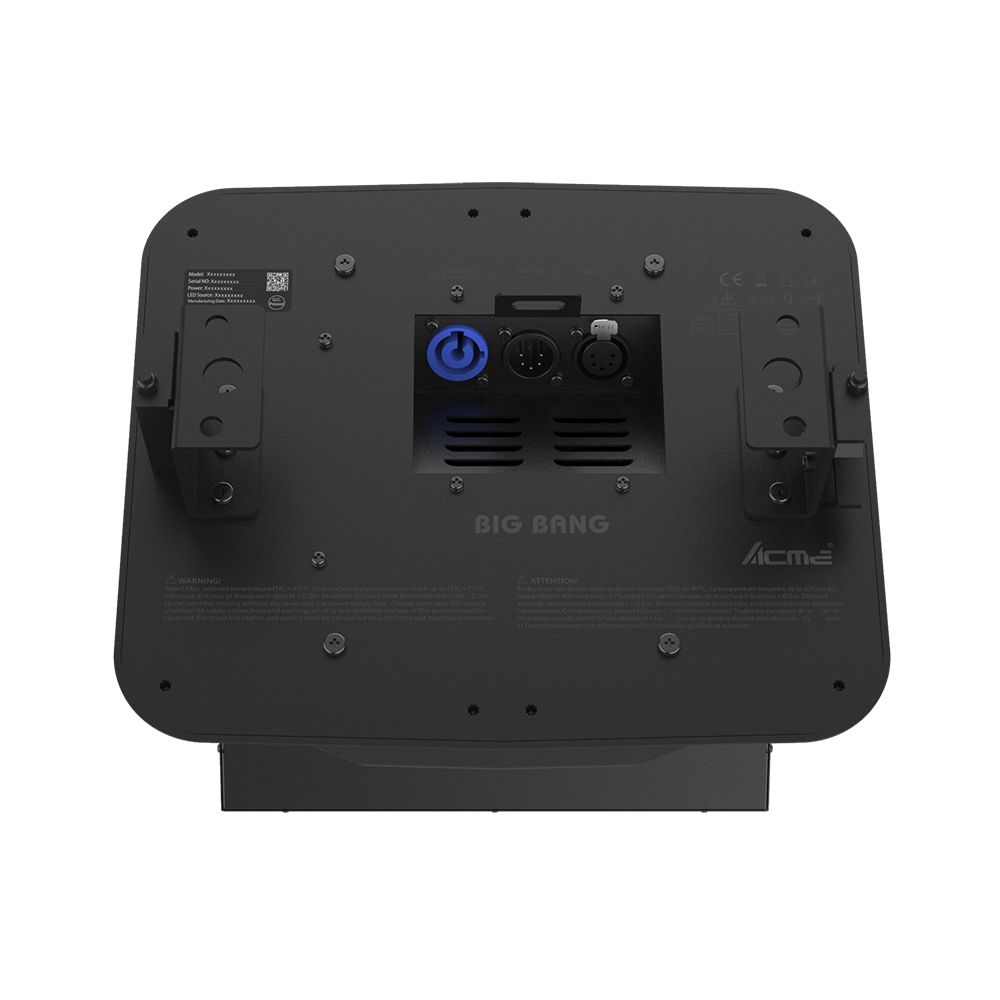

Electrical and Connectors
- Input Voltage Range: 100-240V~ 50/60Hz
- Power consumption: 120 W
- Power In/Out: Power Connector in
- Data In/Out: DMX IN/OUT
Fixture Specification

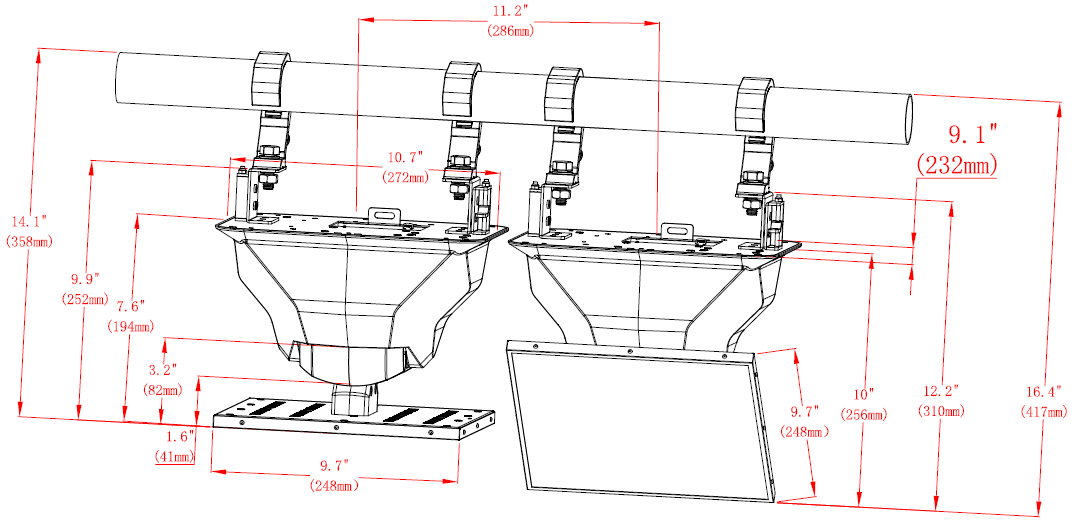

- Fixture size:
- Width: 272 mm (10.7″)
- Depth: 250 mm (9.8″)
- Height: 252 mm (9.9″)
- Weight: 5 kg (11 lbs)
- Carton size:
- Width: 375 mm (14.8″)
- Depth: 335 mm (13.2″)
- Height: 360 mm (14.2″)
- Weight: 6.2 kg (13.7 lbs) (include carton， one-pack per carton)
Work Environment
- Maximum ambient temperature: 40°C
- Minimum operating temperature: 0°C
- Maximum surface temperature: 65°C
- Protection rating: IP20
Approvals
- CE compliant

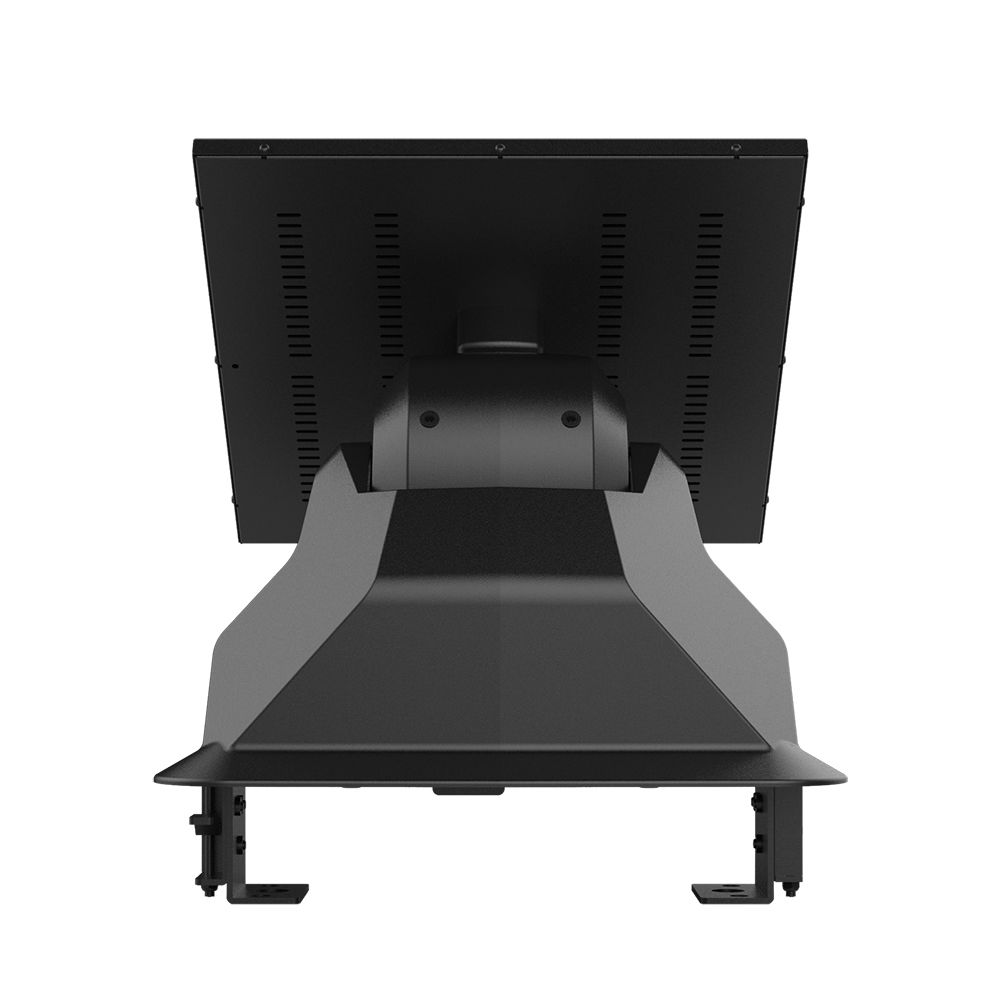

Installation
- Available in horizontal or vertical mounting

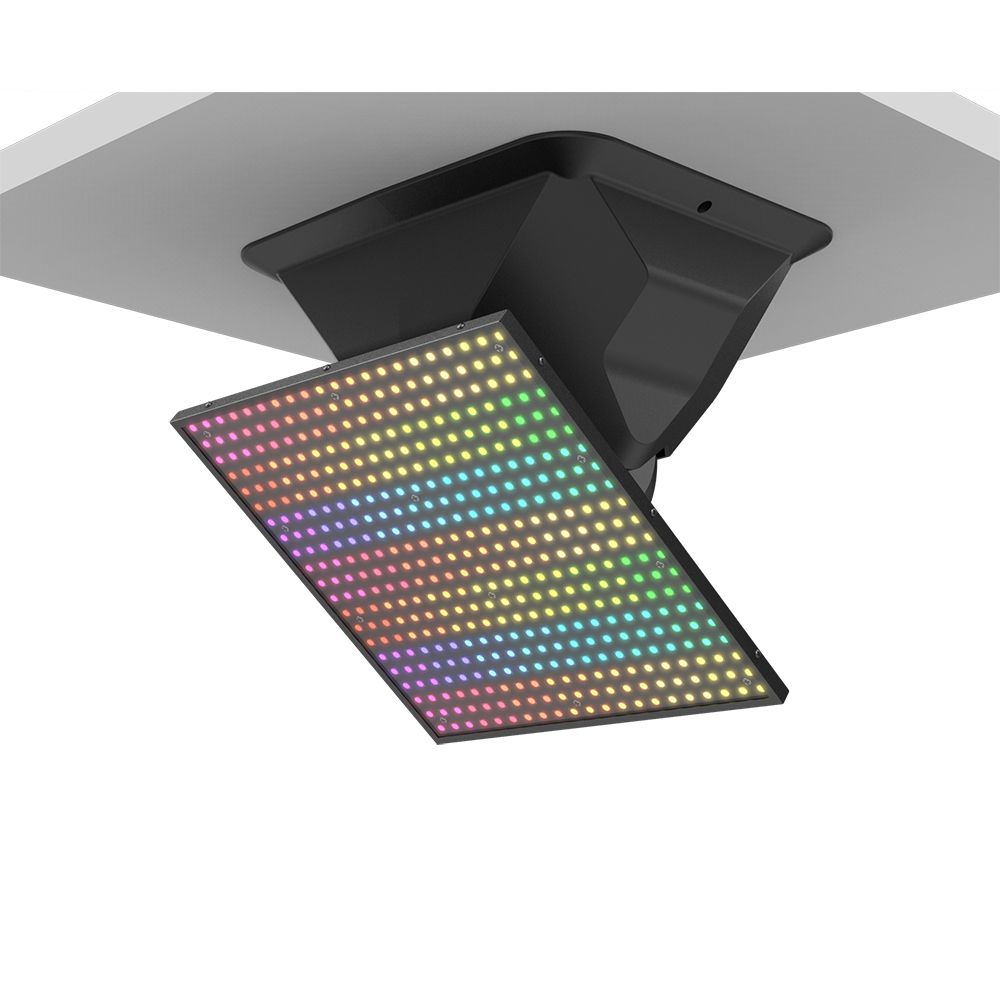

- Special clamp, which can assist installation on the ceiling of the room
- Universal operating position
- 2x Clamps for 50mm truss
- Safety cable attachment hole
Included Items
- Digital User Manual
- Power Cable
- Factory certificate and warranty card
Optional Accessories (with item code)
- Signal Line: DMX line
- Clamp: 2060001635(C-100A)
- Safety cable: 2060000200(SW-02)
