Functional Overview
The ARTDMX A28 (CA-EN28) is designed for DMX-512 Controlsignal amplification. It’s especially designed for connections of DMX receivers (moving heads, color changers, dimmers etc.) in a daisy-chain configuration, and is suitable for applications in which the DMX-512 signal is weakened over long-distance transmission. ARTDMX A28 will efficiently buffer and magnify the DMX signal, ensuring the DMX data transmission is accurate and reliable.
Features
2x RJ45 Ethernet (LAN) interface
Gigabit network, 10/100/1000M adaptive
Supports TCP/IP protocol
Can save up to 16 scenes
Can route fixture software upgrades, as well as own software, via network
Supports Art-Net/DMX/RDM signal bidirectional conversion
Each DMX output port can be set to one of five modes: single, zero, HTP, LTP, RDM
Each DMX input can be set to normal mode or backup mode
Can be used as DMX splitter/amplifier
IP address can be set manually
5x user pre-sets
LCD display shows the status of each DMX port
LED light indicates the status of the network port
Supports online software upgrades

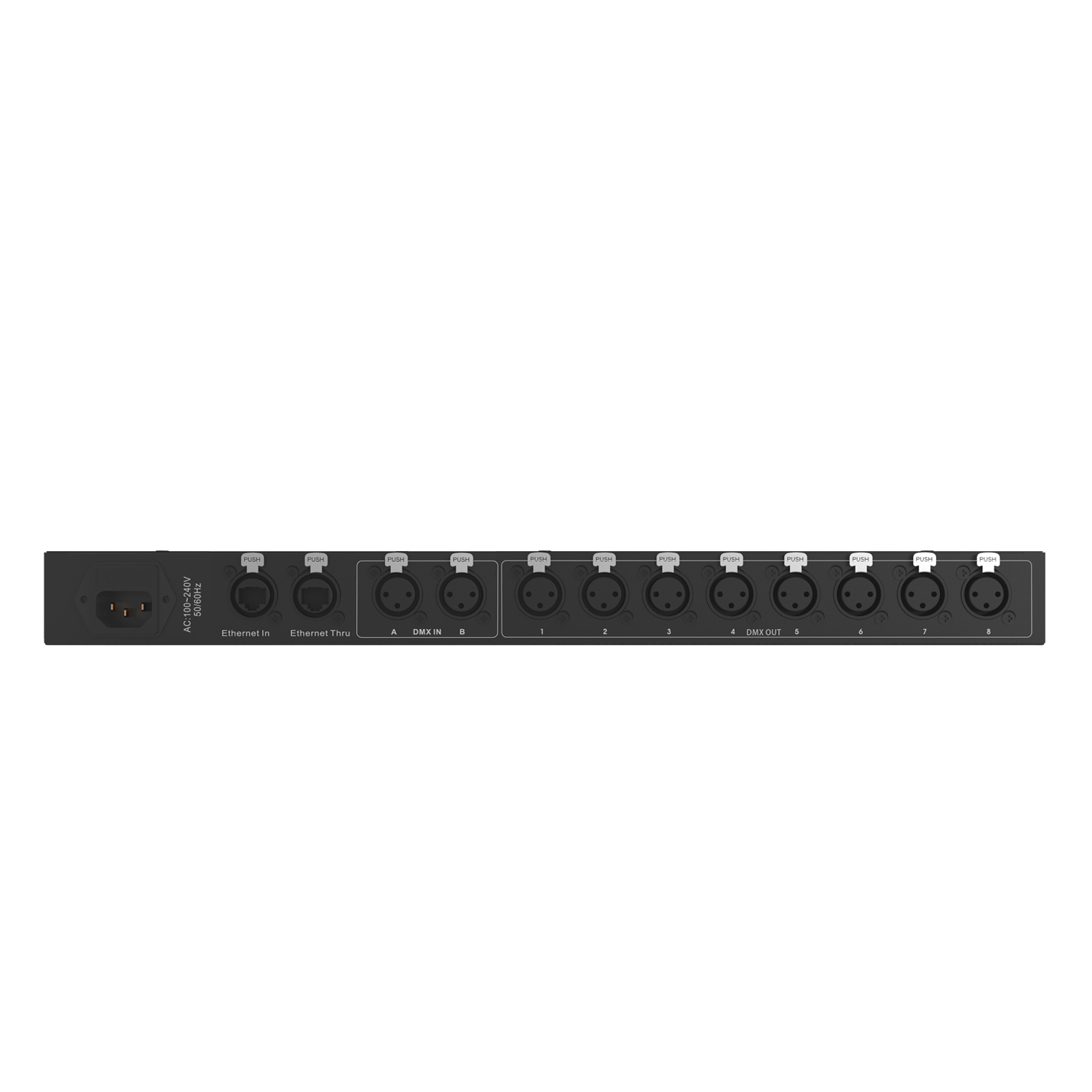

2x DMX inputs / 8x DMX outputs
All inputs/outputs optically isolated
Technical & Specification
Model
CA-EN28
Controland Program
Display: OLED display
Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100V-240V, 50/60Hz
Power consumption: 11W
Data in/out: 3-pin XLR

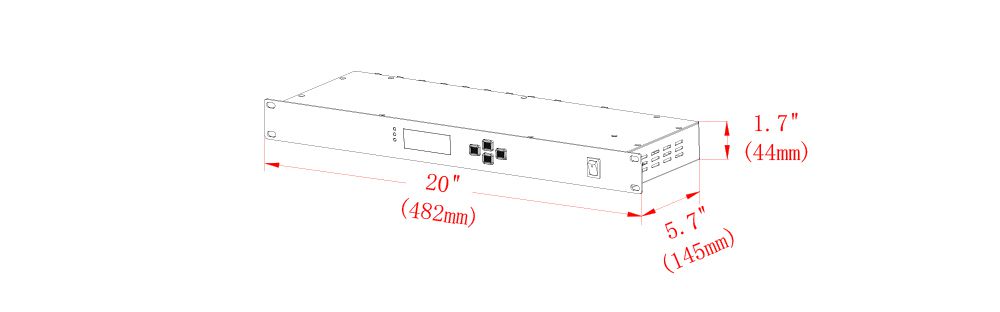

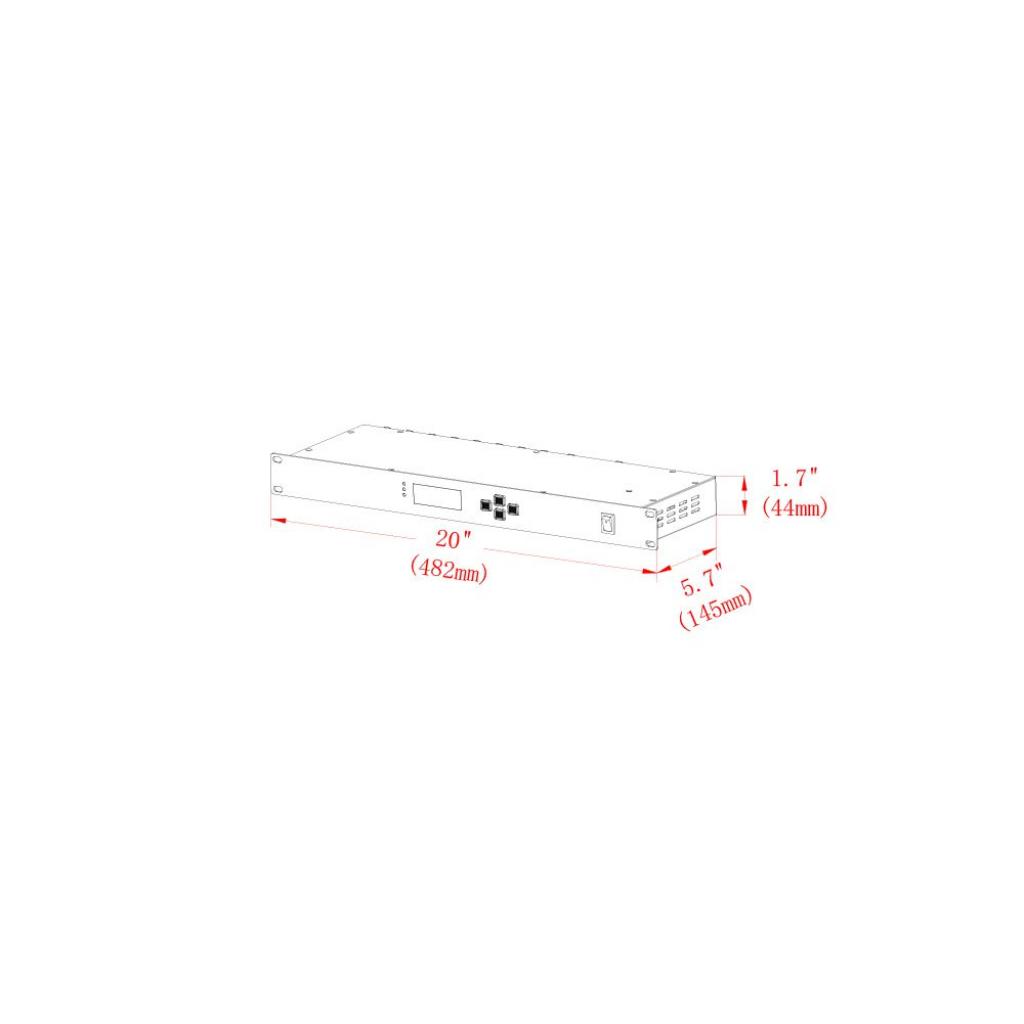

Fixture Specification
Height: 145mm (5.7”)
Width: 44mm (1.7”)
Depth: 483mm (19.0”)
Weight: 2.0kg (4.4lb)
Work Environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Approvals
CE compliant
Installation
Suitable for standard cabinet, 1U, 19″
Safety cable attachment point
Included Items
User Manual
Power Cable
Optional Accessories (with item code)
Signal Line: 3-pin signal line
