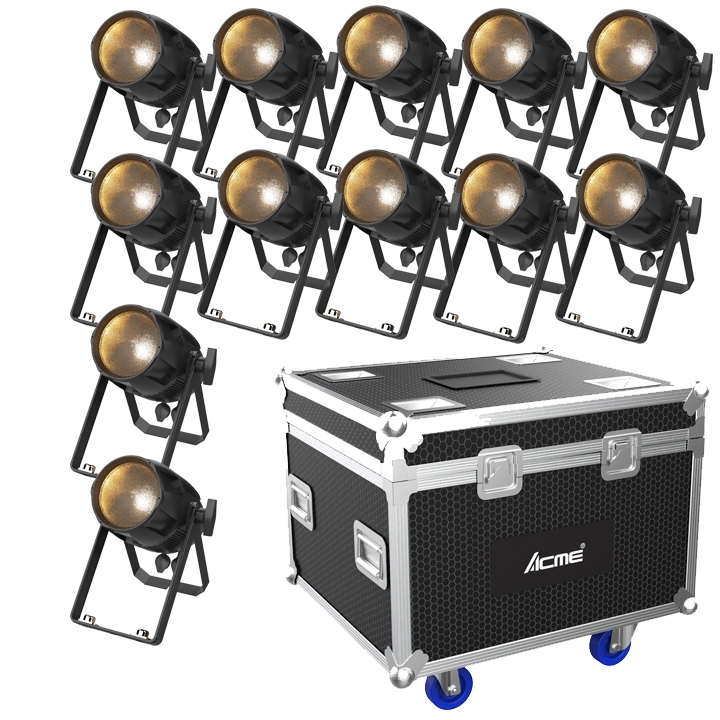

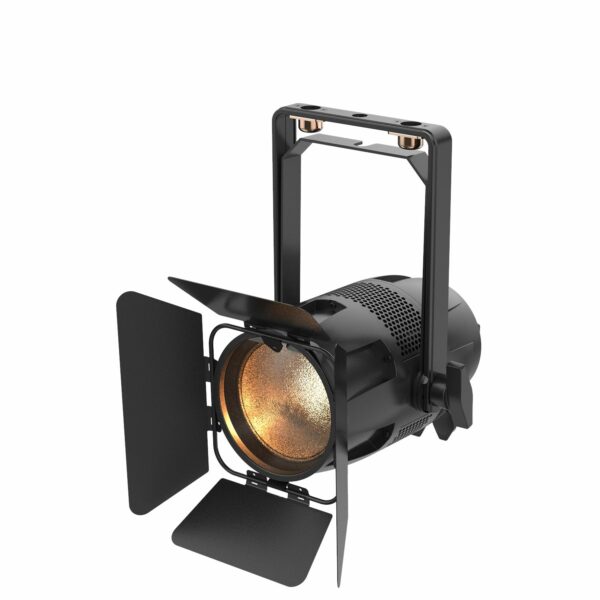

Acme 12x STAGE PAR CCT D15 + flightcase

Adviesprijs 7.442,96 excl.btw

Log in of registreer om uw korting te zien.
Of vraag vrijblijvend een offerte aan.

Demo? Bezoek onze showroom of maak een afspraak voor een demo op locatie.

Wij zijn er voor de professional. Totaal leverancier stage & entertainment

Deskundig advies op maat. Wij denken graag met je mee.

Gespecialiseerd in projectie. Voor elke project een oplossing.

Functional Overview
STAGE PAR CCT D15, with high efficiency, low energy consumption, good heat dissipation, ensure the fixture can works under a low noise for a long time. Small size with compact design, equipped with double hangers, makes it suitable for mid-air or floor, provide multiple Installationoptions to lighting designer. STAGE PAR CCT adoptes the fast-locked mounting, can install & disassemble the fixture more quickly, recude the Installationtime, improve the work efficiency. Low noise under 38dB@1m & IP66 protection rating, can be used for conference centers, exhibition halls, outdoor performances, clubs, parties and other places. Meanwhile, the beam angle is 15 degrees, which can also meet the lighting requirements of architecture.

Light Source: 1 x 90W LED module
Variable CTO: 2700K – 5600K
High efficiency, low energy consumption, good heat dissipation, long lifetime
Compact design, small size,only 3.5kg, technology leading peer similar products
Low noise under 38dB@1m, can be used for conference centers, exhibition halls and other places

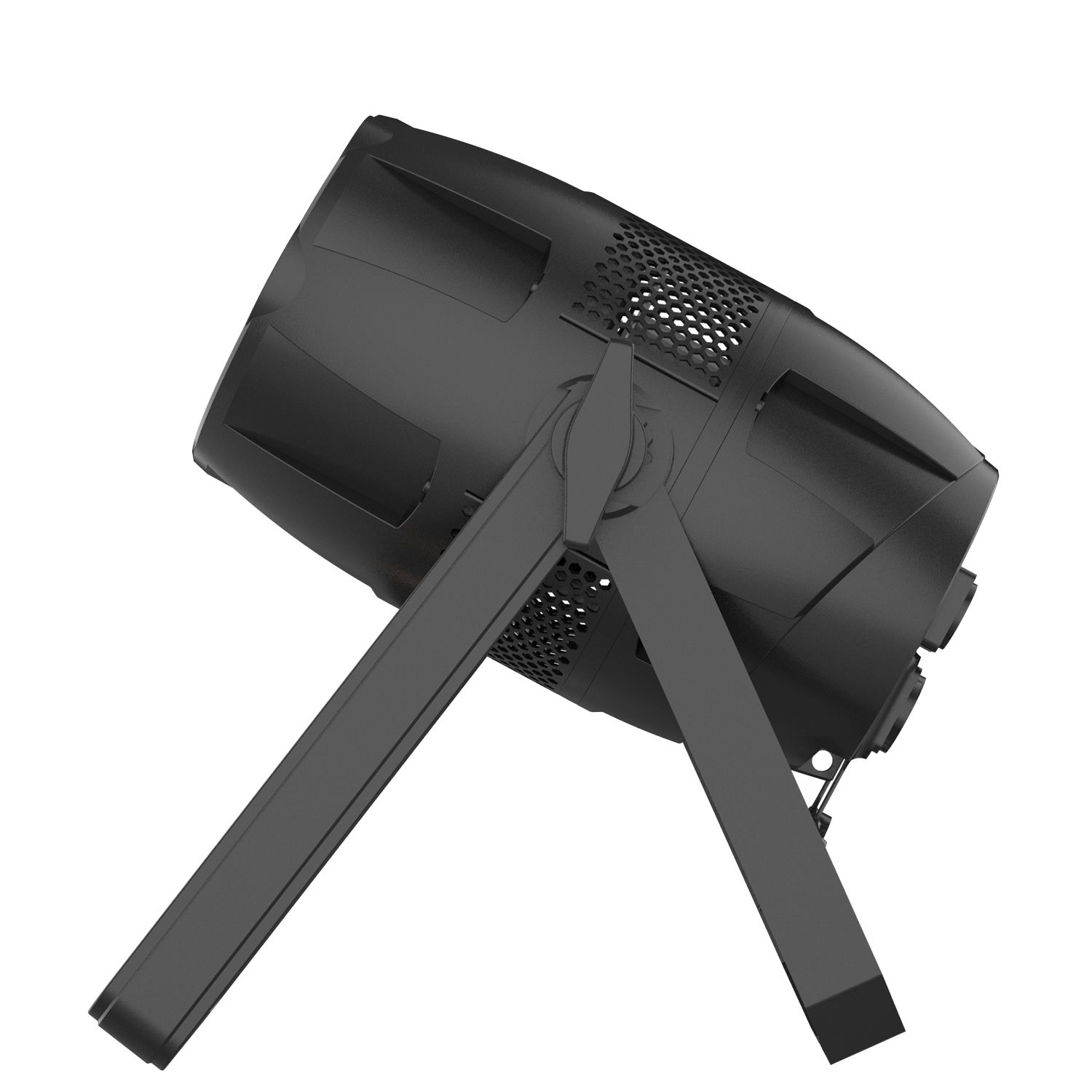

Double hanger design, multiple Installationoptions
Outstanding strobe effect with variable speed
0~100% smooth dimming
Flicker free management
Dust-proof and oil-proof design
It can be used outdoors all year round by IP66
Maximum QTY of connnection:
230V 50Hz: 25 sets
120V,60Hz: 14 sets

Technical & Specification
BL-100 VW D15

Light Source
Light Source: 1 x 90W LED module
LED life expectancy: 10000 hours

Optical System
Advanced Optical System

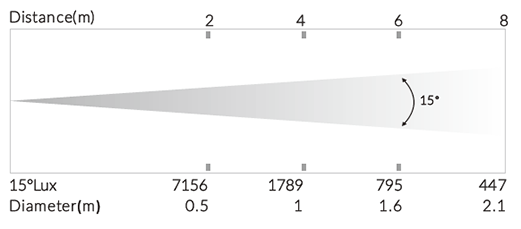

Beam Angle: 15°

Controland Program
4-buttons touch panel
Display: OLED display
Protocols: DMX512,RDM
DMX Protocol modes: 3
Controlchannels: 2,4,5
Upgrade the firmware via DMX link

Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240 V, 50/60 Hz
Power consumption: 90W

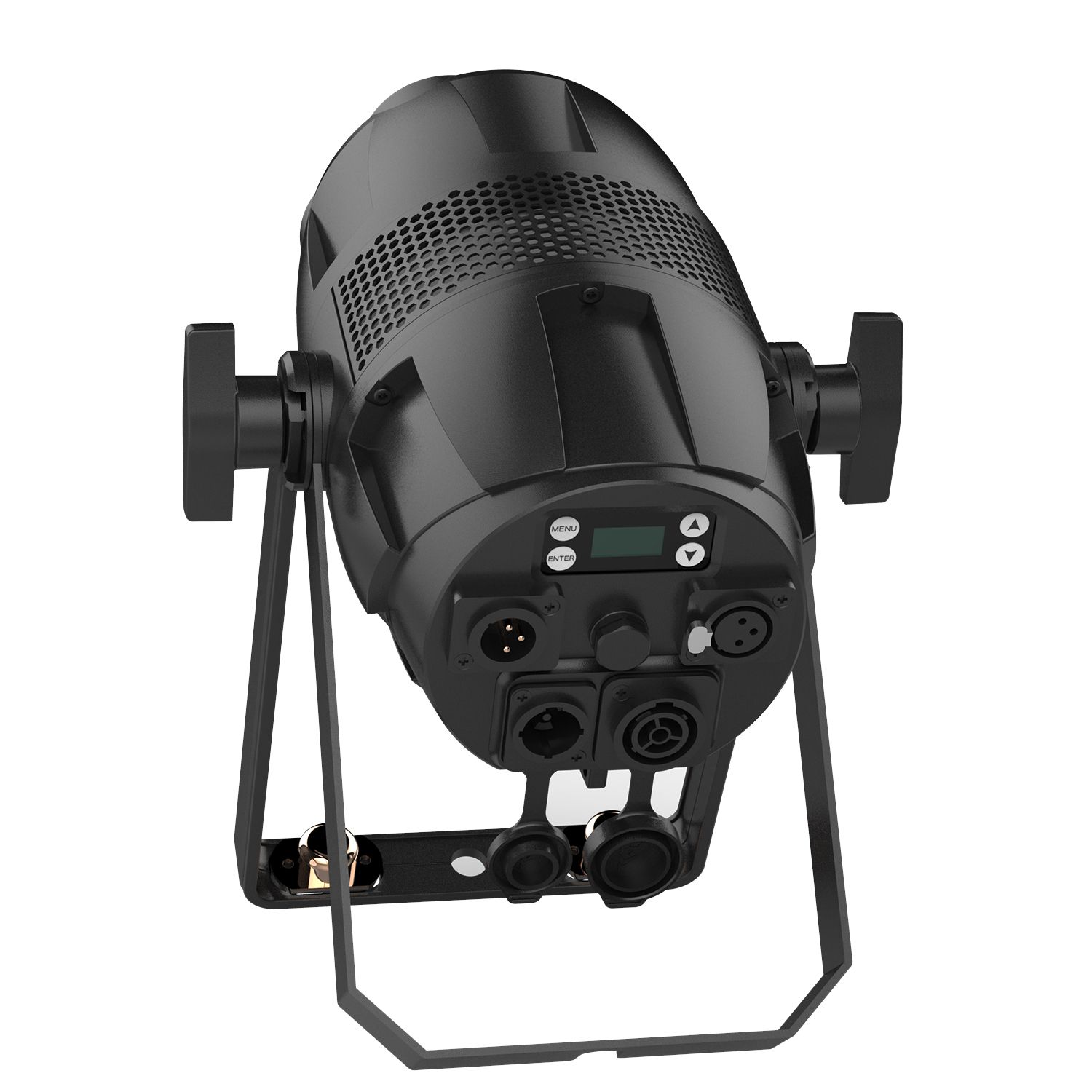

Waterproof Power Connector input/output
Data in/out: 3-pin or 5-pin IP XLR

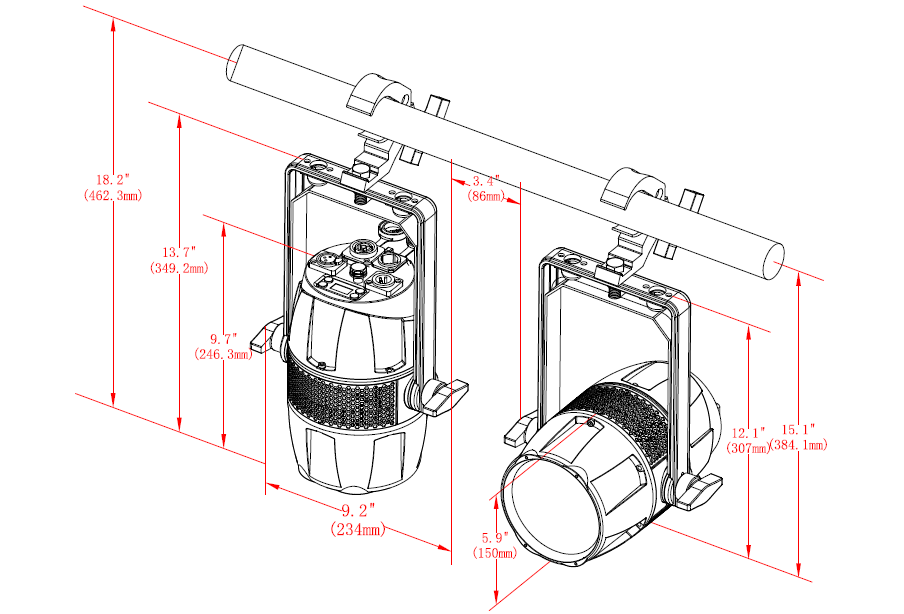

Fixture Specification
Height: 307 mm (12″)
Width: 234 mm (9.2″)
Depth: 247 mm (9.7″)
Weight: 3.5 kg (7.7 lbs)

Work Environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Protection Rating: IP66

CE Compliant

Horizontally or vertically mounting are available
Operating position is universal

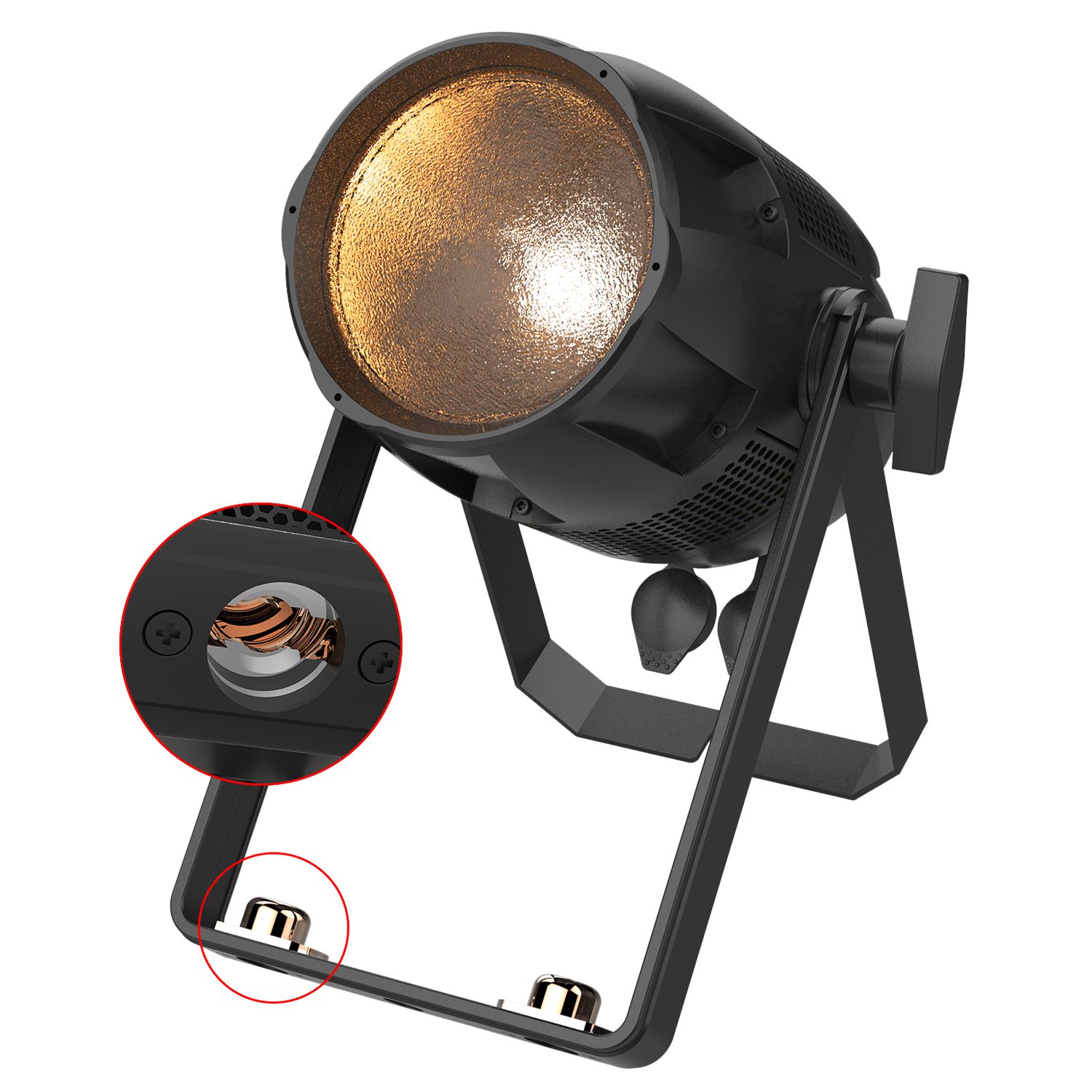

Bracket can be fast-locked and with one locking point for clamp’s installaiton
Safety cable attachment point

Included Items
User Manual
Power Cable

Optional Accessories (with item code)
Flight Case:
3205001216(12 in 1)
3205001223(10 in 1)
Safety cable: 2060001603-A (SW-05)
Signal Line:3-pin or 5-pin IP signal line
