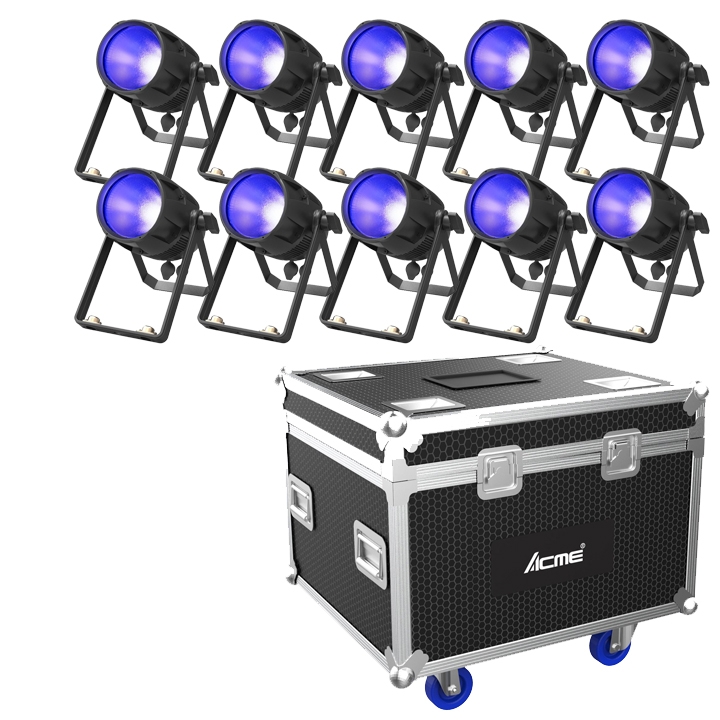

Acme 10x STAGE PAR UV + flightcase

Adviesprijs 7.468,00 excl.btw

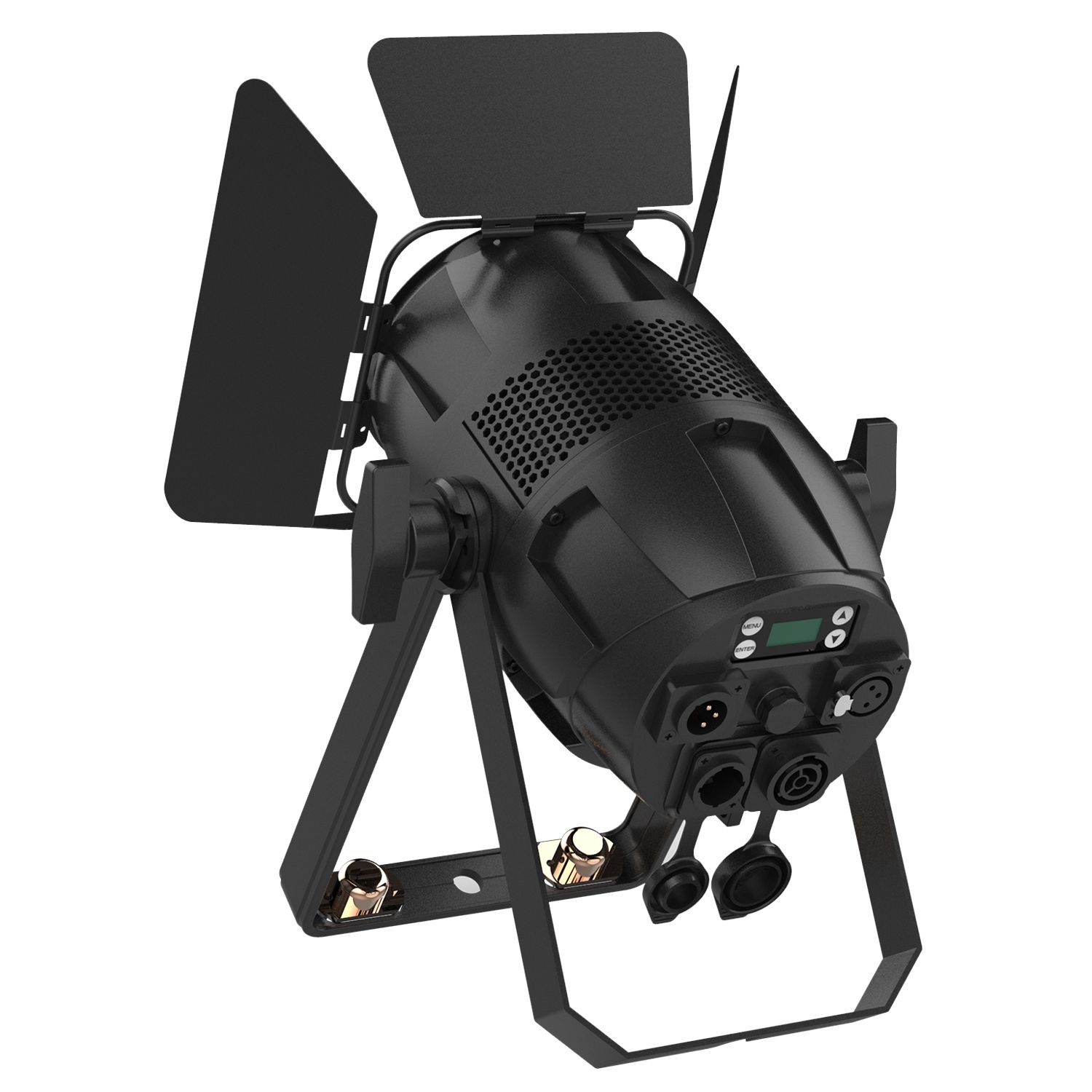

Barndoors* Optioneel

Selectie wissen
Product basisprijs:
Add-Ons Optie Totaal:
Optie(s) totaal:

De knop Toevoegen aan winkelwagen is uitgeschakeld omdat het volgende onderdeel niet is geselecteerd:


Functional Overview
STAGE PAR UV, the unique fluorescent effectt, plus high efficiency, low energy consumption, good heat dissipation, ensure the fixture can works under a low noise for a long time. Small size with compact design, equipped with double hangers, makes it suitable for mid-air or floor, provide multiple Installationoptions to lighting designer. STAGE PAR CCT adoptes the fast-locked mounting, can install & disassemble the fixture more quickly, recude the Installationtime, improve the work efficiency. Low noise under 38dB@1m & IP66 protection rating, can be used for conference centers, exhibition halls, outdoor performances, clubs, parties and other places.

Light Source: 50x365nm UV LED
Unique fluorescent effect
High efficiency, low energy consumption, good heat dissipation, long lifetime
Compact design, small size,only 3.5kg, technology leading peer similar products
Low noise under 38dB@1m, can be used for conference centers, exhibition halls and other places

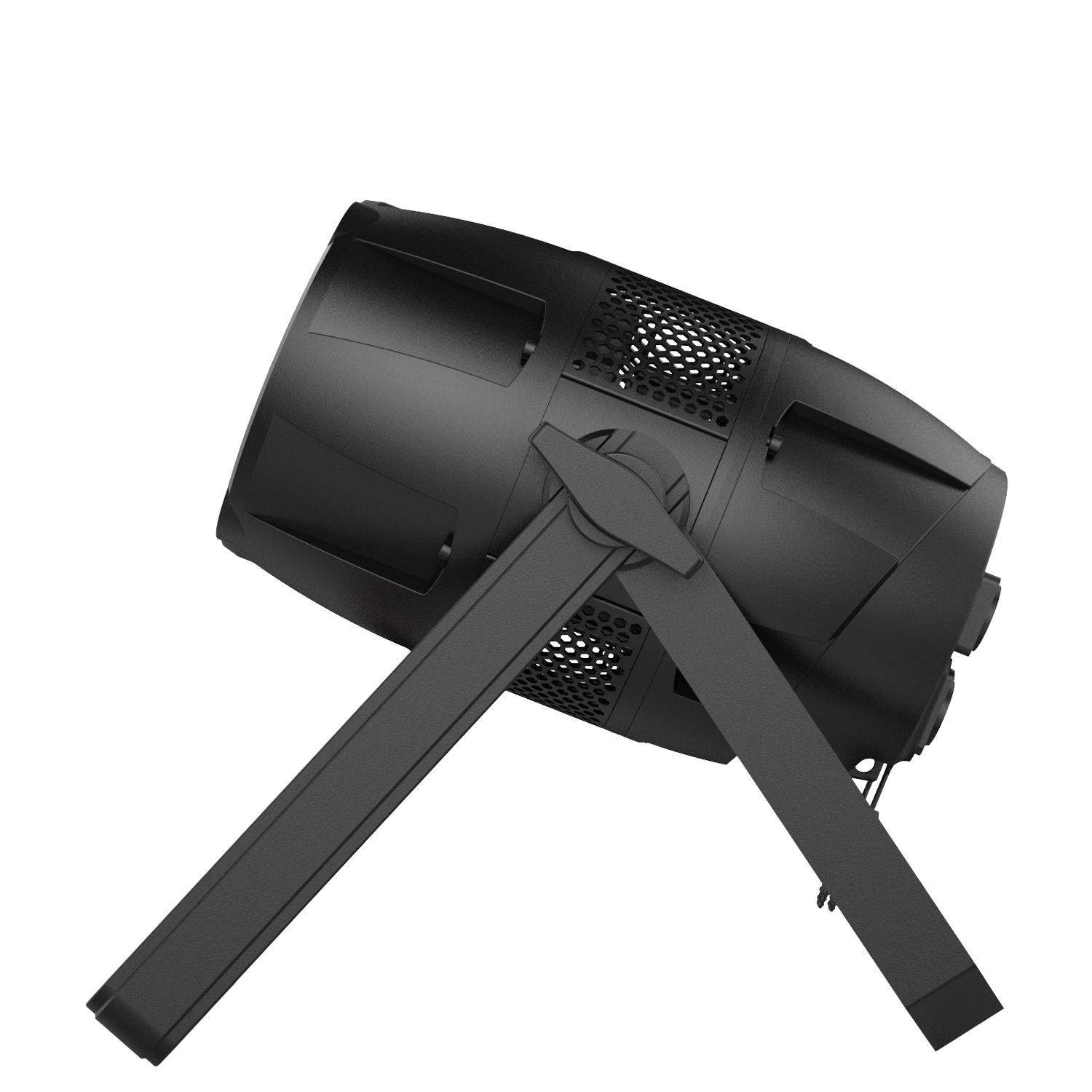

Double hanger design, multiple Installationoptions
Outstanding strobe effect with variable speed
0~100% smooth dimming
Flicker free management
Dust-proof and oil-proof design
Maximum QTY of connnection:
230V 50Hz: 41 sets
120V,60Hz: 24 sets

Technical & Specification
BL-100 UV

Light Source
Light Source: 50x365nm UV LED
LED life expectancy: 10000 hours

Optical System
Advanced optical Systemto ensure clear and large-range wash effect

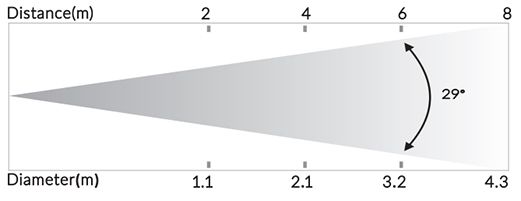

Beam Angle: 29°

Controland Program

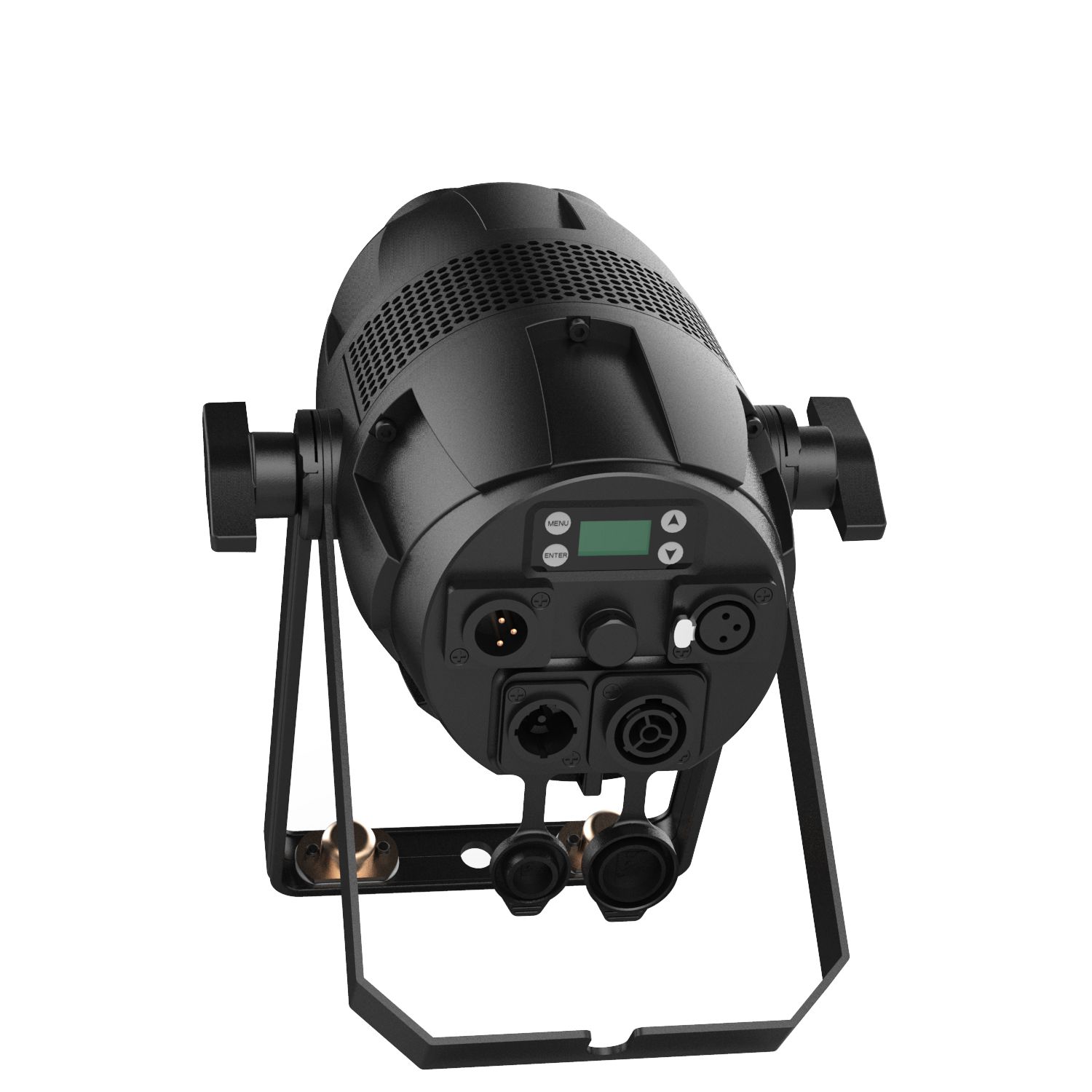

4 buttons
Display: OLED display
Protocols: DMX512,RDM
DMX Protocol modes: 2
Controlchannels: 1,2
Upgrade the firmware via DMX link

Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240 V, 50/60 Hz
Power consumption: 65 W

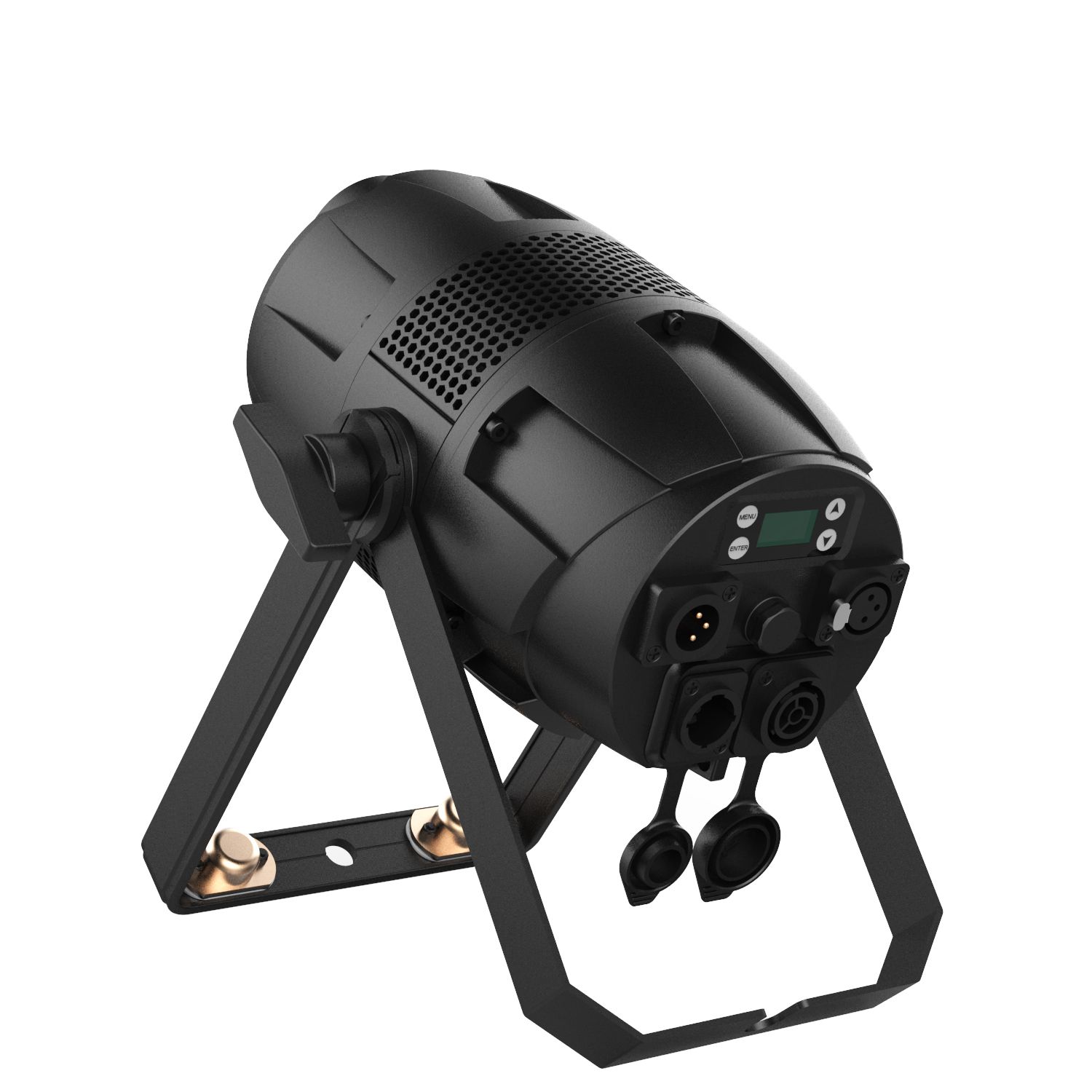

Waterproof Power Connector input/output
Data in/out: 3-pin or 5-pin IP XLR

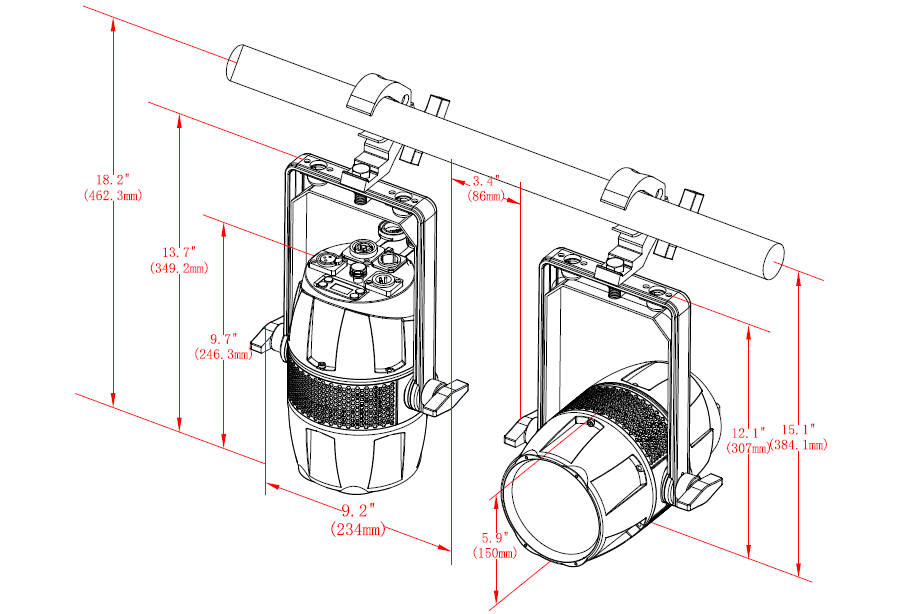

Fixture Specification
Height: 307 mm (12″)
Width: 234 mm (9.2″)
Depth: 247 mm (9.7″)
Weight: 3.5 kg (7.7 lbs)

Work Environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C

CE Compliant

Horizontally or vertically mounting are available
Operating position is universal

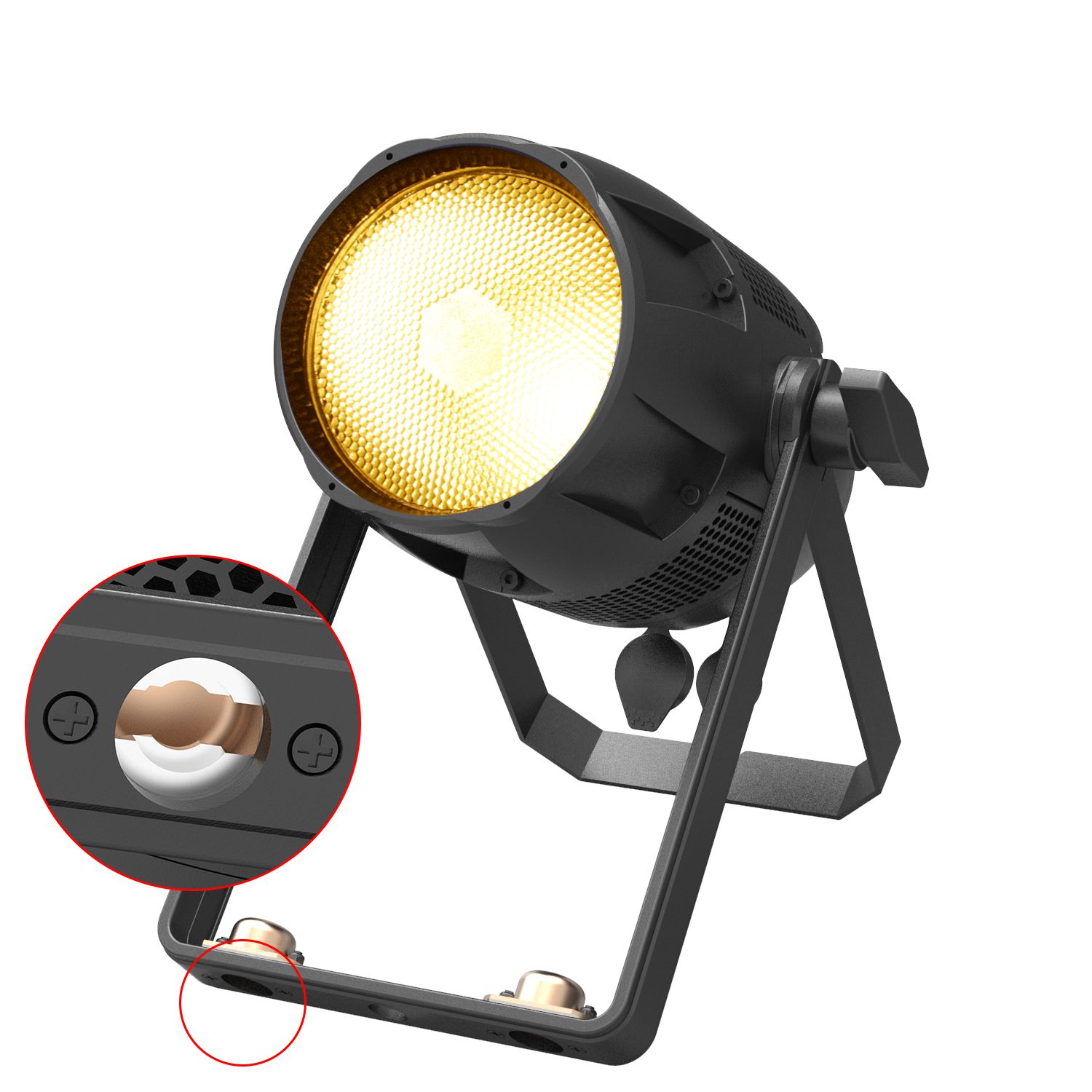

Bracket can be fast-locked and with one locking point for clamp’s installaiton
Safety cable attachment point

Included Items
User Manual
Power Cable

Optional Accessories (with item code)
Flight Case:3205001256(4 in 1)

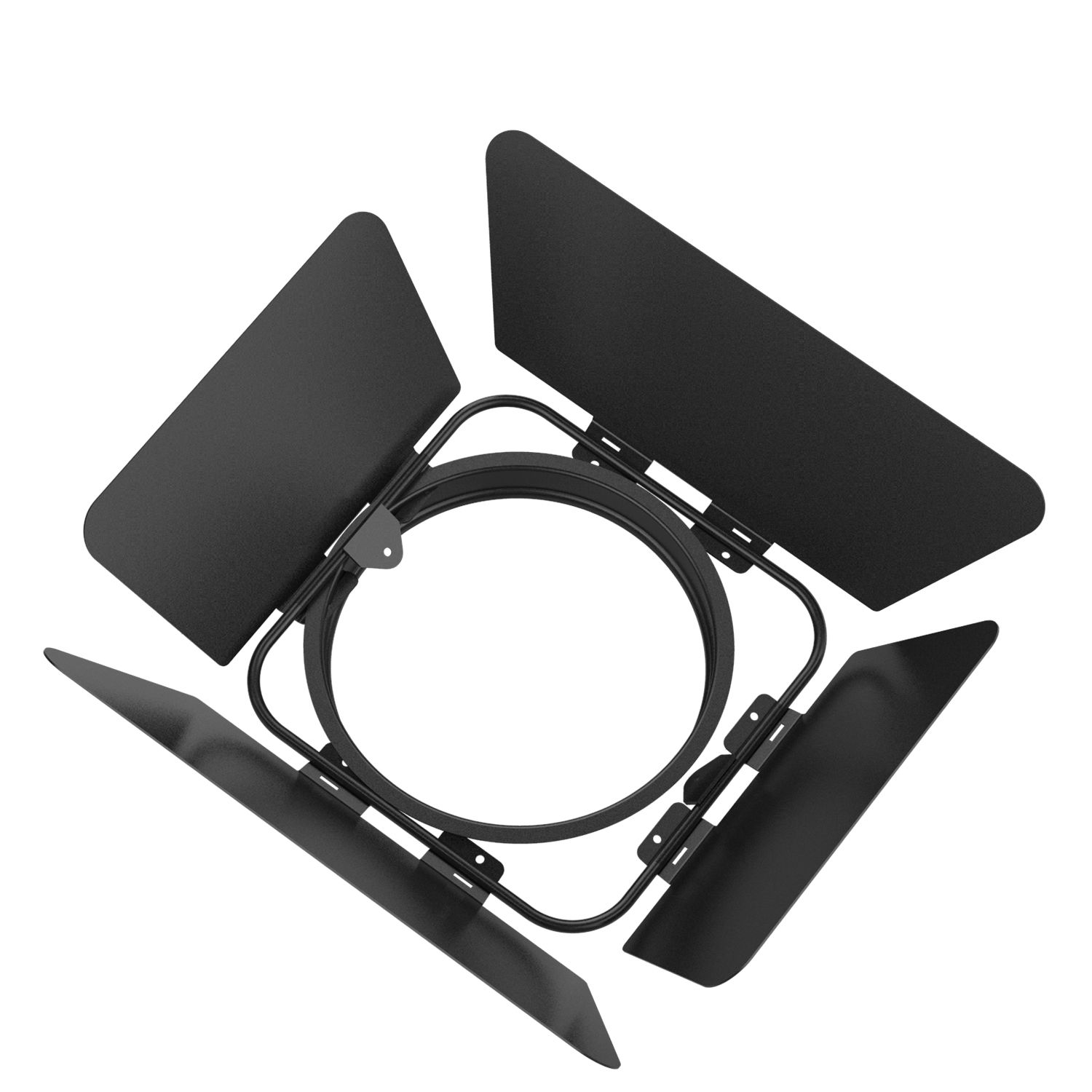

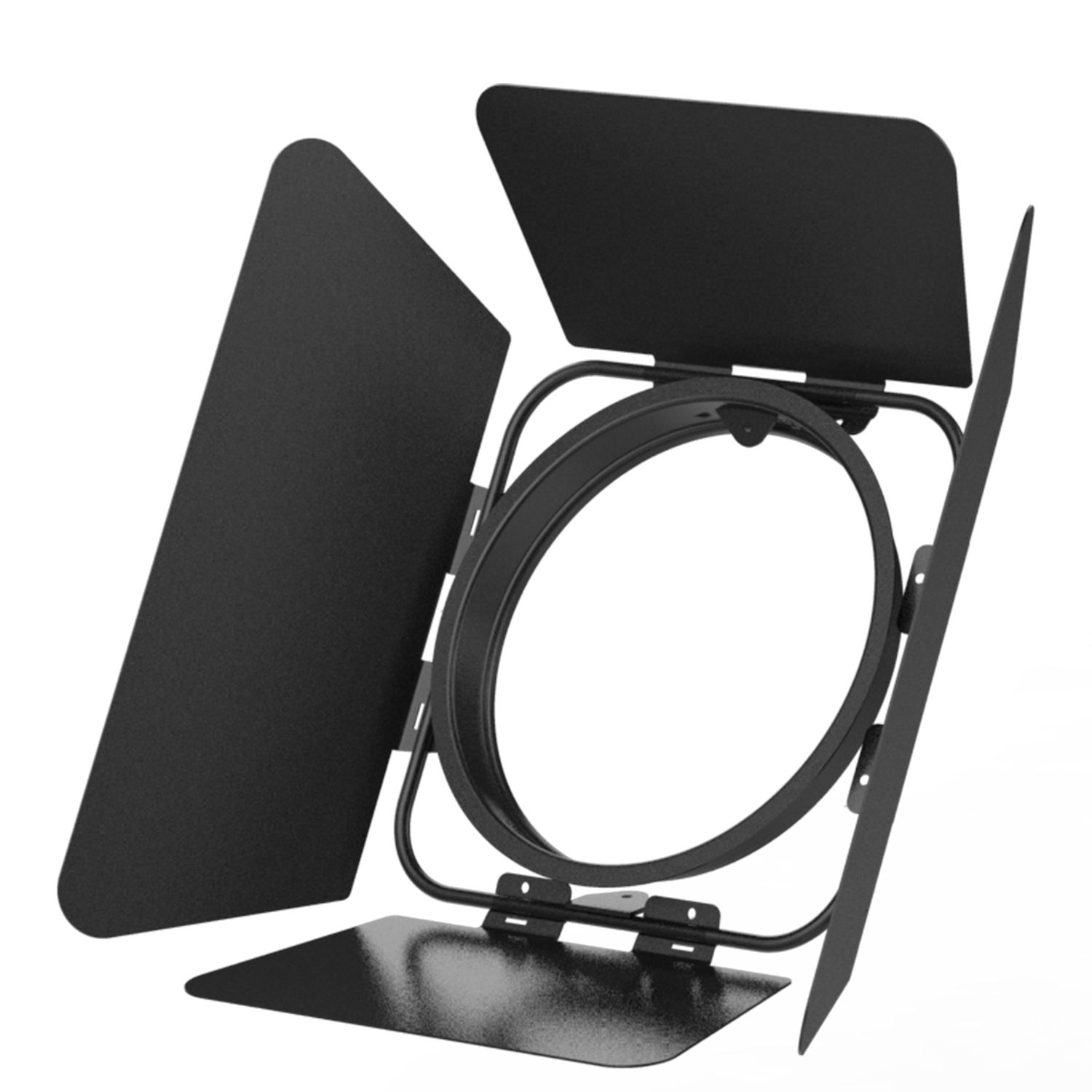

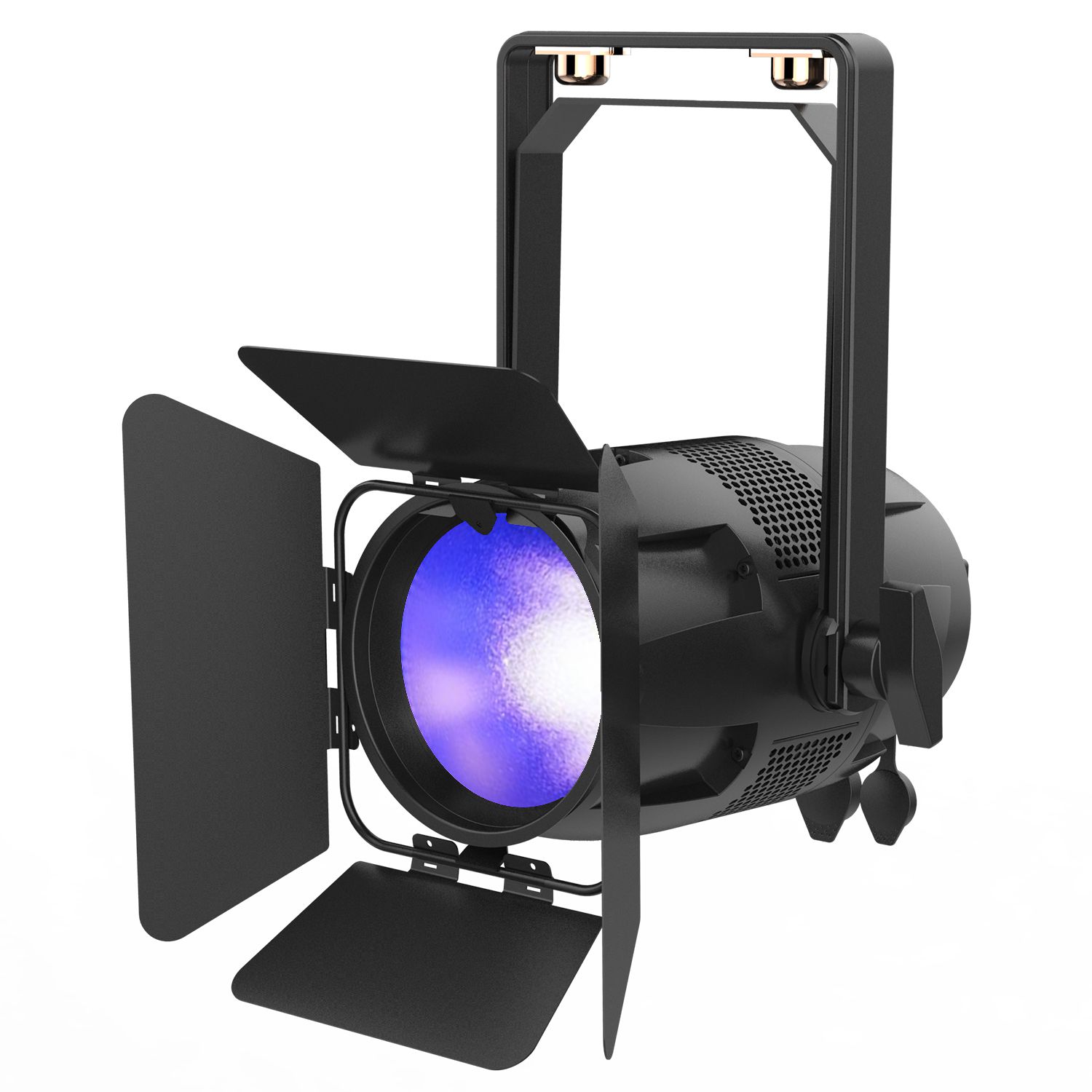

Barn door:63581327
Signal Line:3-pin or 5-pin IP signal line
Safety cable: 2060000200(SW-02)
