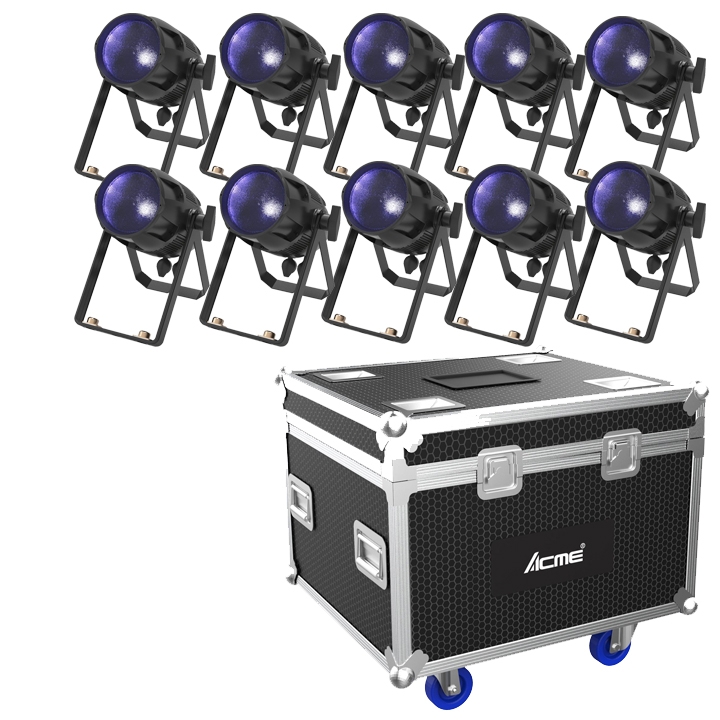

Acme 10x STAGE PAR COLOUR D15 + flightcase

Adviesprijs 6.704,19 excl.btw

Laden....

Barndoors* Optioneel

Selectie wissen
Subtotaal:
Product basisprijs:
6.704,19
Add-Ons Optie Totaal:
Optie(s) totaal:
Totaal:

De knop Toevoegen aan winkelwagen is uitgeschakeld omdat het volgende onderdeel niet is geselecteerd:

Productprijs
Aanvullende opties totaal:
Bestelling totaal:
Bekijk winkelwagen

Beschrijving

Functional Overview
STAGE PAR COLOUR D15, the unique CTO and tungsten effect, plus high efficiency, low energy consumption, good heat dissipation, ensure the fixture can works under a low noise for a long time. Small size with compact design, equipped with double hangers, makes it suitable for mid-air or floor, provide multiple Installationoptions to lighting designer. STAGE PAR CCT adoptes the fast-locked mounting, can install & disassemble the fixture more quickly, recude the Installationtime, improve the work efficiency. Low noise under 38dB@1m & IP66 protection rating, can be used for conference centers, exhibition halls, outdoor performances, clubs, parties and other places. Meanwhile, the beam angle is 15 degrees, which can also meet the lighting requirements of architecture.

Features
1 x 150W RGBW LED module
Unique HSIC mode
Outstanding color mixing effect
Variable CTO: 2000K – 10000K
High efficiency, low energy consumption, good heat dissipation, long lifetime
Compact design, small size,only 3.5kg, technology leading peer similar products
Low noise under 38dB@1m, can be used for conference centers, exhibition halls and other places
Double hanger design, multiple Installationoptions
Outstanding strobe effect with variable speed
0~100% smooth dimming
Flicker free management
Dust-proof and oil-proof design
It can be used outdoors all year round by IP66
Maximum QTY of connnection:
230V 50Hz: 23 sets
120V,60Hz: 13 sets

Technical & Specification
Model
BL-100 RGBW D15

Light Source
1 x 150W RGBW LED module
LED life expectancy: 10000 hours

Optical System
Advanced Optical System
Beam Angle: 15°

Controland Program
4-buttons touch panel
Display: OLED display
Protocols: DMX512,RDM
DMX Protocol modes: 3
Controlchannels:6/7/HSIC channels
Upgrade the firmware via DMX link

Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240 V, 50/60 Hz
Power consumption: 125 W
Waterproof Power Connector input/output
Data in/out: 3-pin or 5-pin IP XLR

Fixture Specification
Height: 307 mm (12″)
Width: 234 mm (9.2″)
Depth: 247 mm (9.7″)
Weight: 3.5 kg (7.7 lbs)

Work Environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Protection Rating: IP66

Approvals
CE Compliant

Installation
Horizontally or vertically mounting are available
Operating position is universal
Bracket can be fast-locked and with one locking point for clamp’s installaiton
Safety cable attachment point

Included Items
User Manual
Power Cable

Optional Accessories (with item code)
Flight Case:
3205001216(12 in 1)
3205001223(10 in 1)
Clamp:2060001614(C-250)
Signal Line:3-pin or 5-pin IP signal line
Safety cable: 2060001603-A (SW-05)

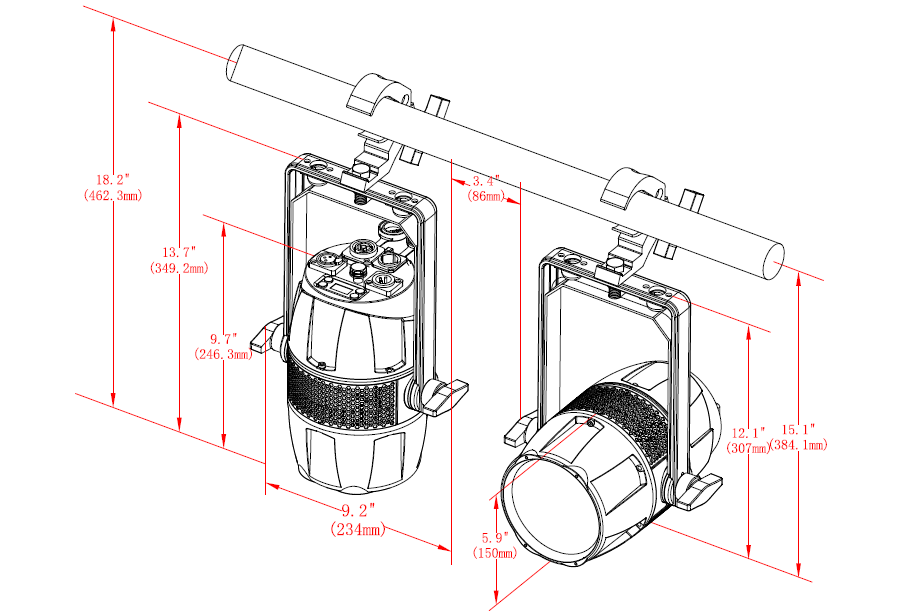

Afmetingen

afmetingen

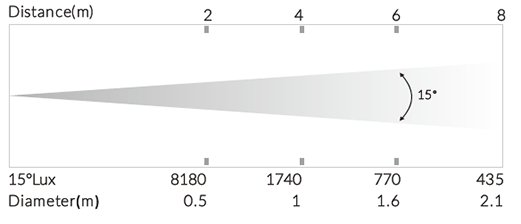

photometrics

photometrics
