Technical data
- Power consumption: 30W
- Power supply voltage: 100 – 240V
- Voltage frequency: 50/60Hz
- Diode type: COB 4in1
- Diode power: 30W
- Display: No display (Auto-DMX)
- Number of diodes:1
Utility data
- Color: RGBW
- Luminous flux: 1 060lm
- ZOOM: No
- Beam angle (min): 50°
- Beam angle (max): 50°
- Dimming: Linear: 0 – 100%
- Flash frequency (min): 1Hz
- Flash frequency (max): 20Hz
- Number of DMX channels: 6
- DMX standard: DMX 512
- Control interface: Auto-DMX / control via DMX
- Operating modes: DMX512
- Features: DMX-auto-assign; DMX signal regeneration, Electronic protection against overheating
- Additional information: FastLOCK system, Optional wireless DMX interface

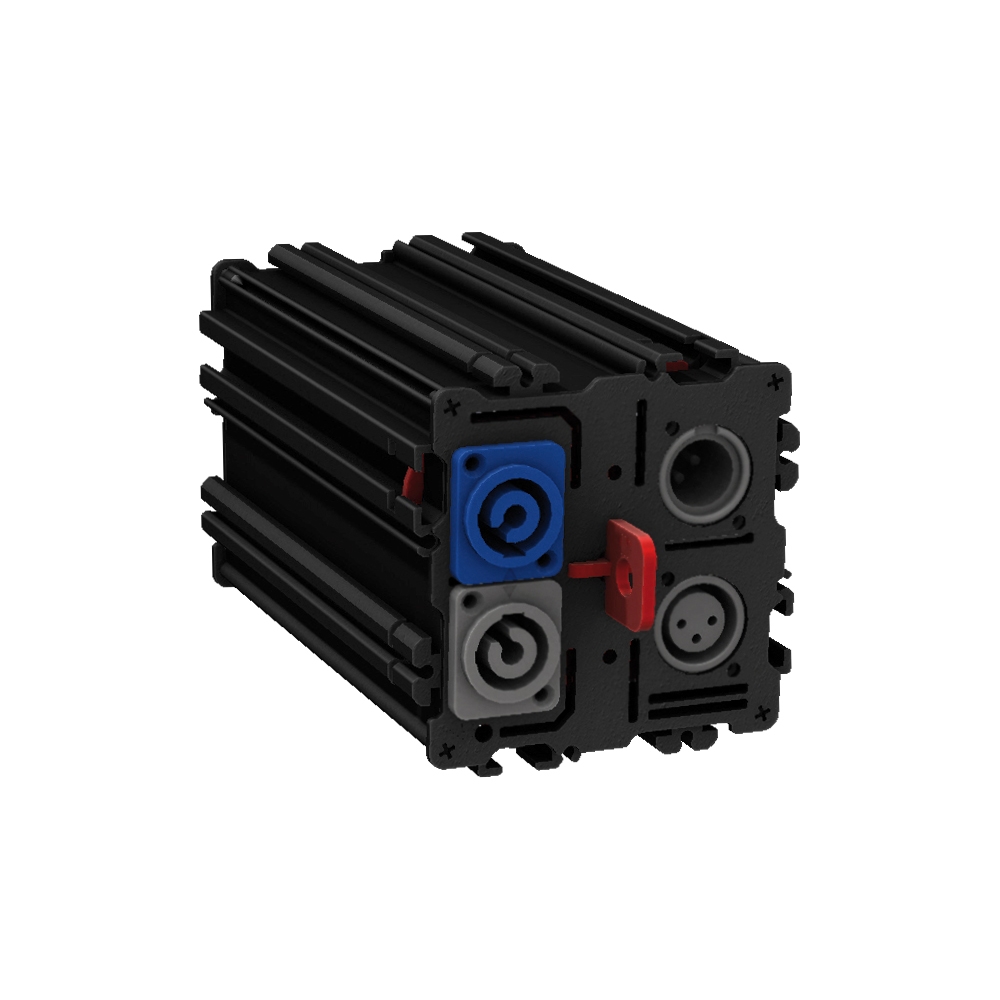

Interfaces
- AC IN: powerCON
- AC OUT: powerCON
- DMX IN: XLR – 3 pin
- DMX OUT: XLR – 3 pin
Physical characteristics
- IP Rating: IP20
- Housing made: Aluminum
- Cooling: Active
- Height [cm]: 10
- Width [cm]: 10
- Depth [cm]: 18
- Weight [kg]: 1
- Weight with packaging [kg]: 1,8
- Type of packaging: Carton Box
