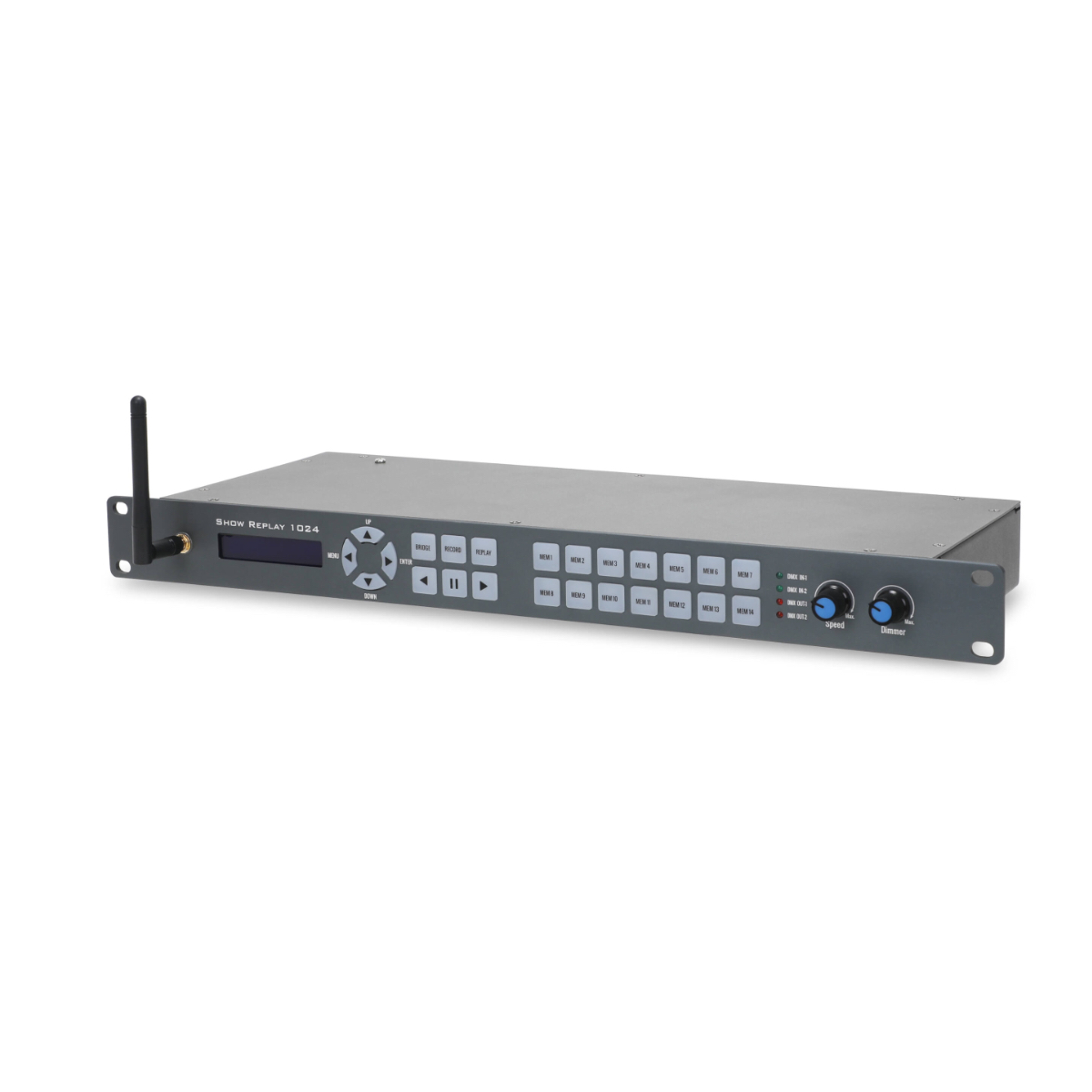

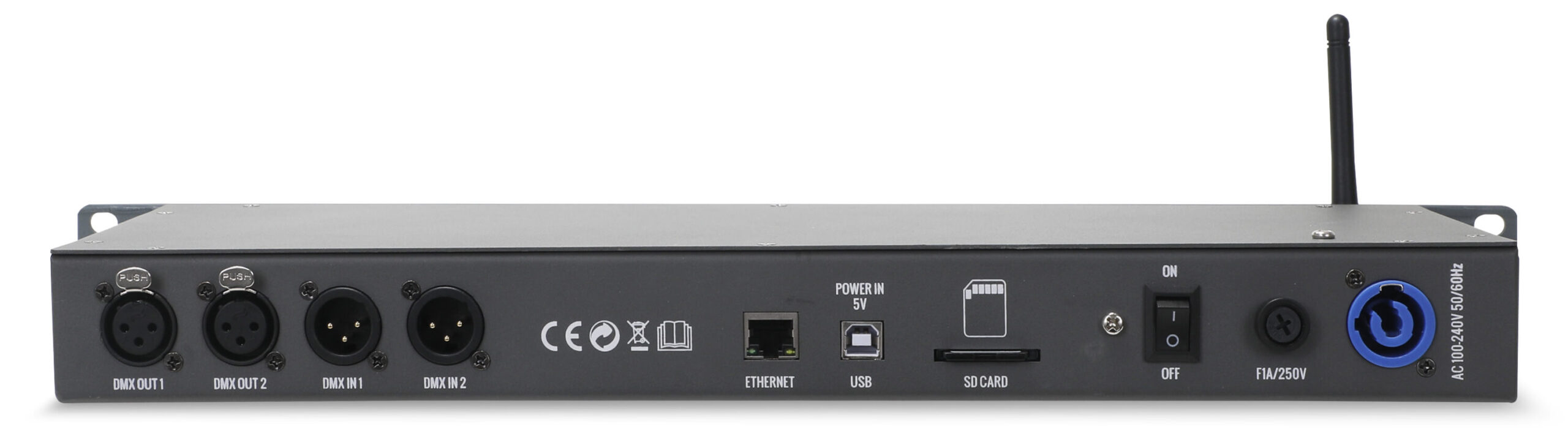

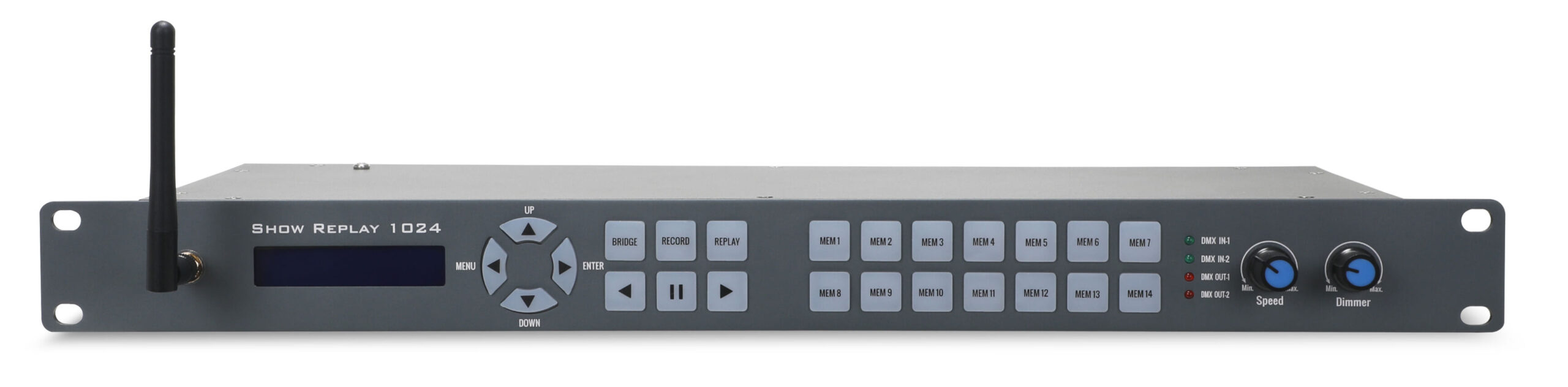

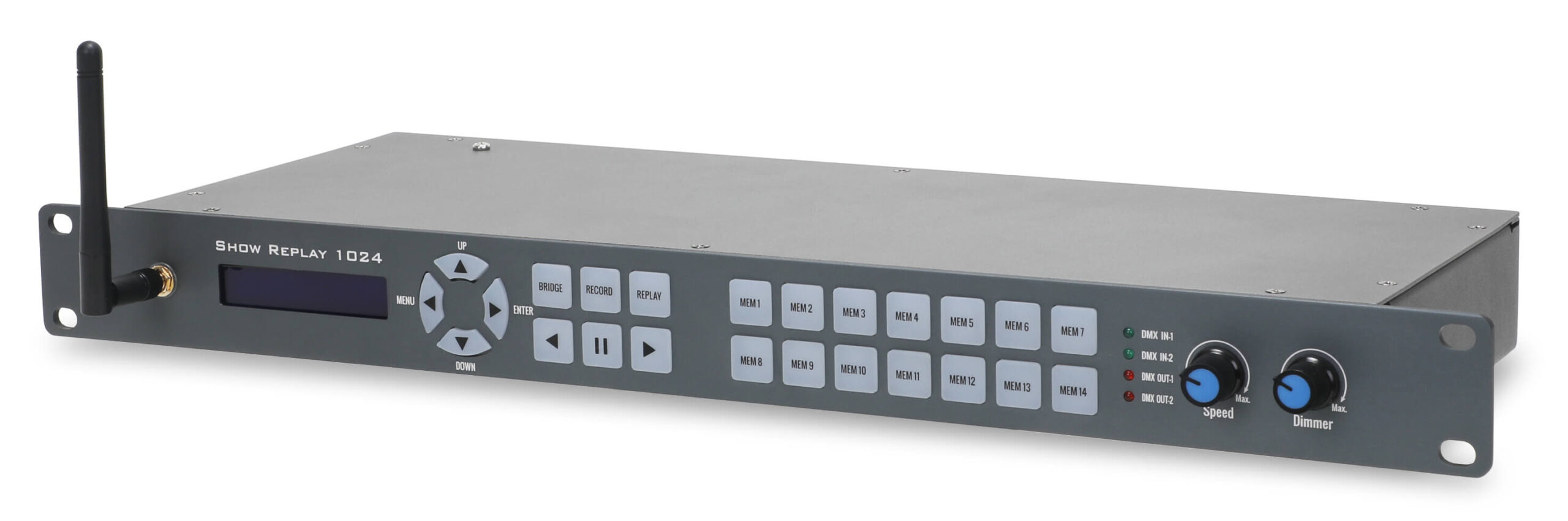

The SPIDEREC1025 is a versatile DMX recorder and controller. It offers real-time recording and playback of DMX and ArtNet signals.

With its flexible capabilities, it functions as a DMX recorder, ArtNet node, 2in1 DMX merge, 1in2 DMX splitter, and a 24-channel simple console. The 14 direct access memory buttons provide convenient recording, with each memory capable of storing up to 20 hours of data.

Choose between Time or Step recording modes. Dimmer and speed adjustments can be easily made using the potentiometer. Plus, enjoy seamless operation via Wi-Fi access points using Android and iOS applications like TouchOSC.



  • Supports ArtNet and DMX
  • 1024 channels DMX in & out
  • Real-time or step-by-step recording from DMX or ArtNet
  • 14 Memories and each up to 20 hours can be stored in SD card
  • Replay can run in solo or loop mode
  • Replay can run on iPad/iPhone via TouchOSC
  • DMX signal booster
  • DMX input to Arnent output via wifi or Lan cable
  • Artnet input to Artnet output via wifi
  • Artnet input via wifi to Artnet output via Lan cable
  • Artnet input via Lan cable to 2 DMX outputs
  • Artnet input via wifi to 2 DMX outputs
  • DMX Merger
  • 32G SD card included
  • Power consumption: 6w max.
  • Power In: AC 100-240V 50-60Hz
  • Dimensions: 482 x 180 x 44 mm (1U rack mount)
  • Weight: 2.1 kg
