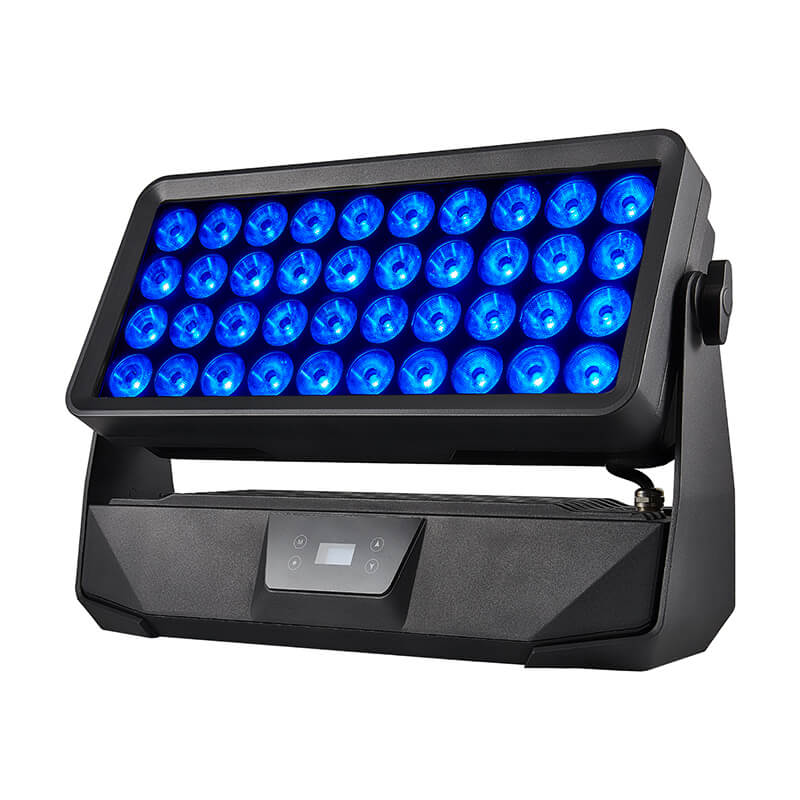

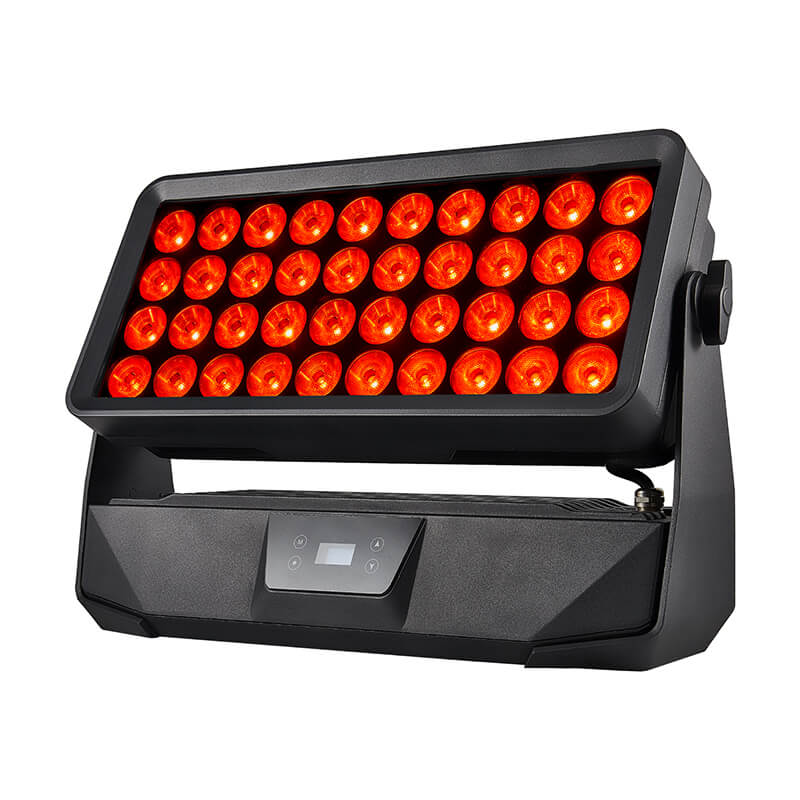

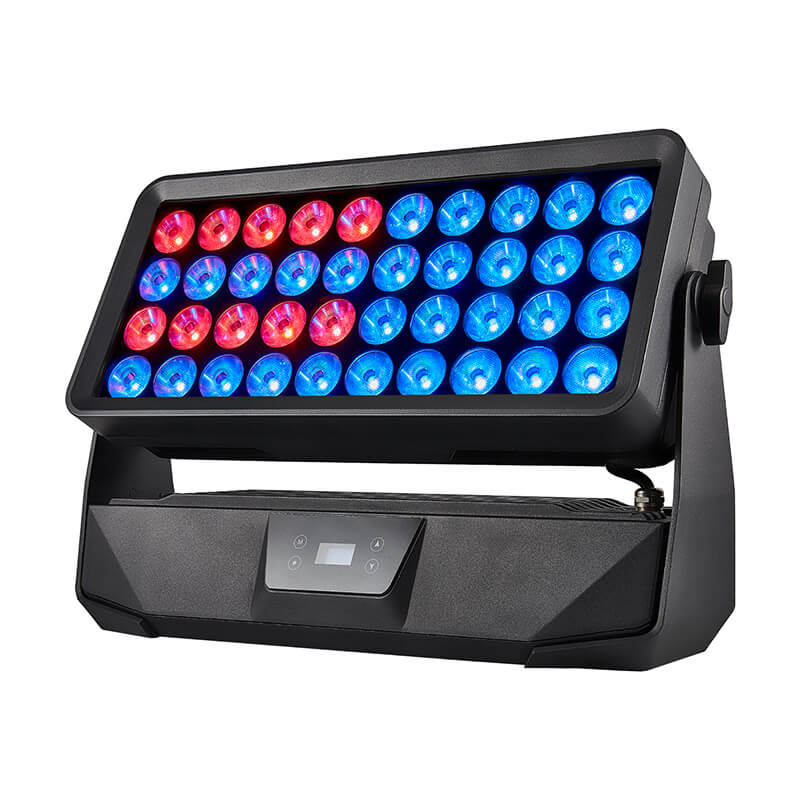

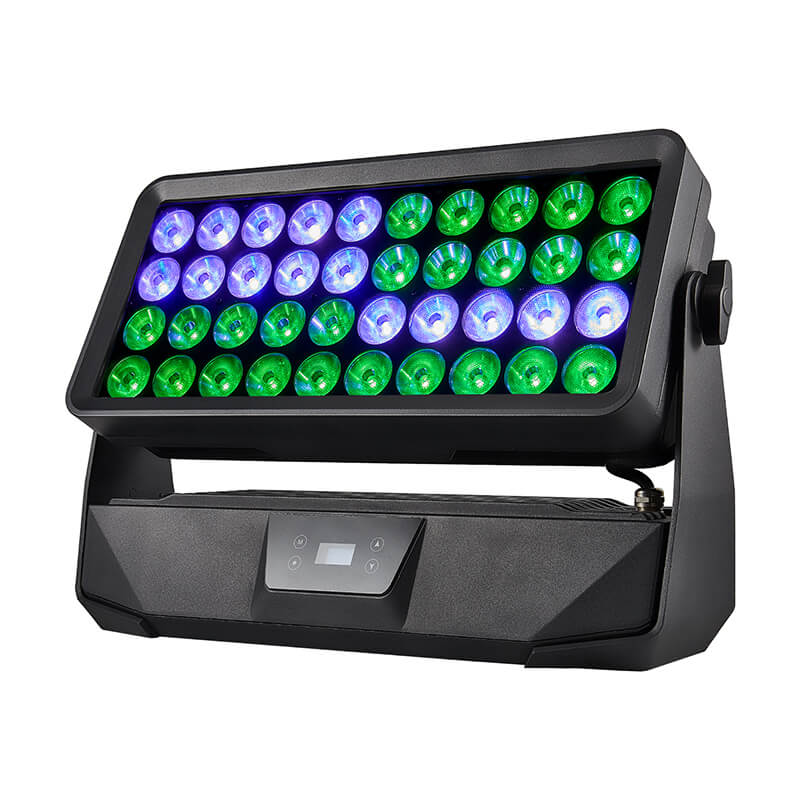

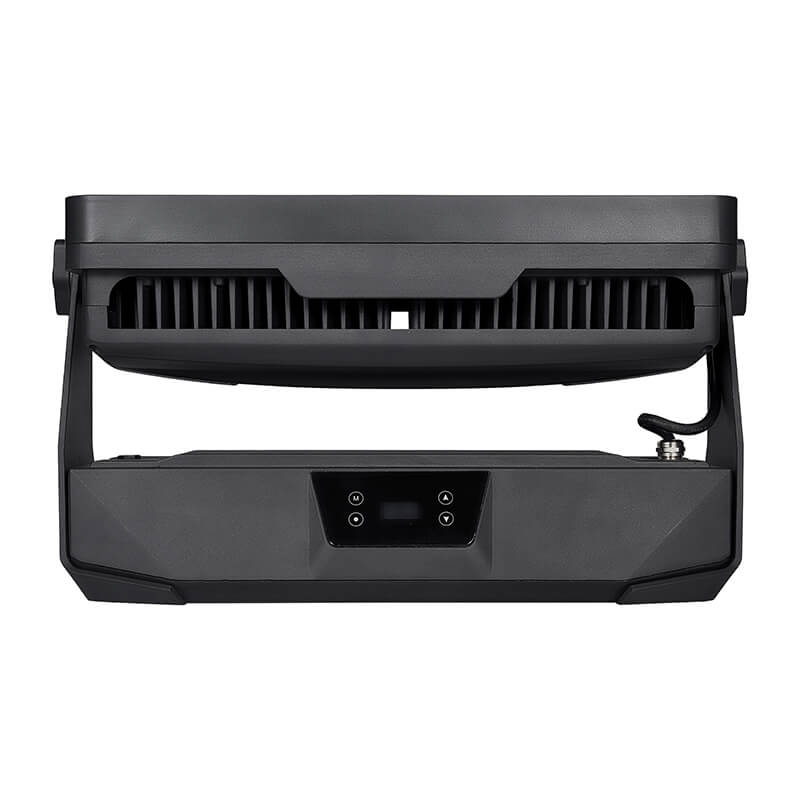

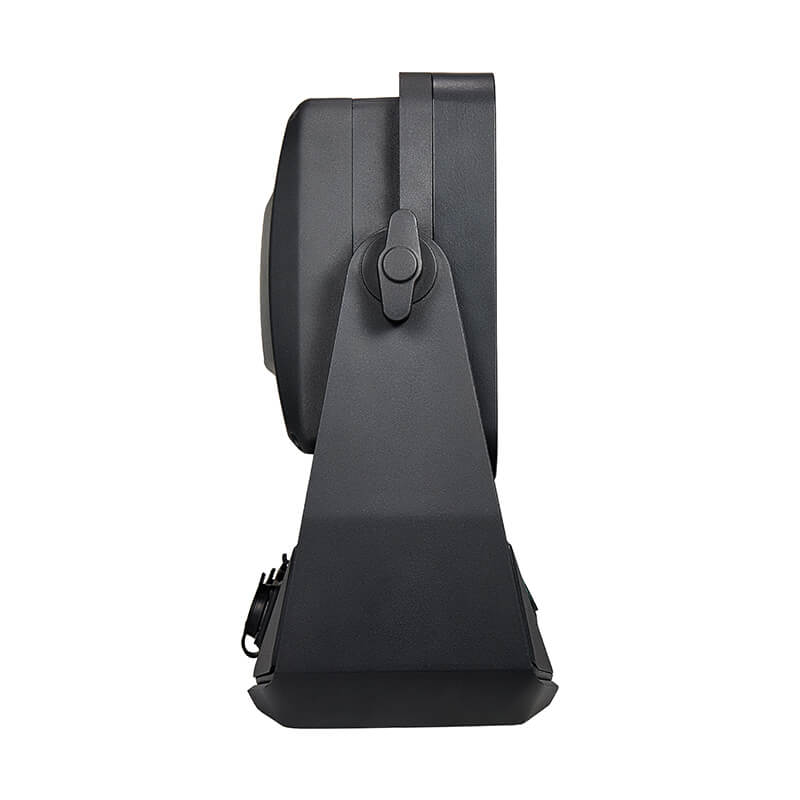

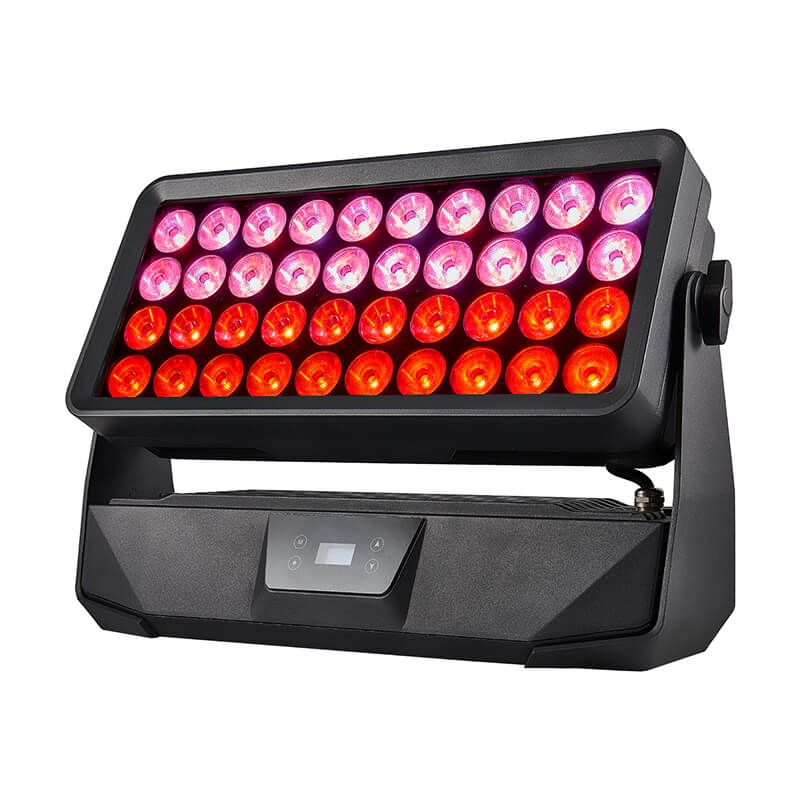

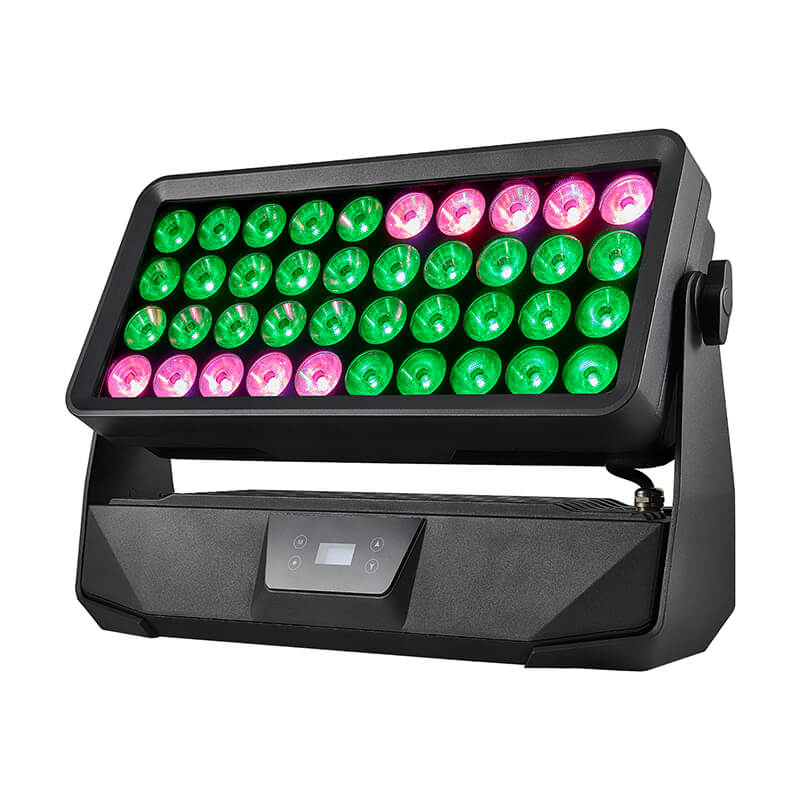

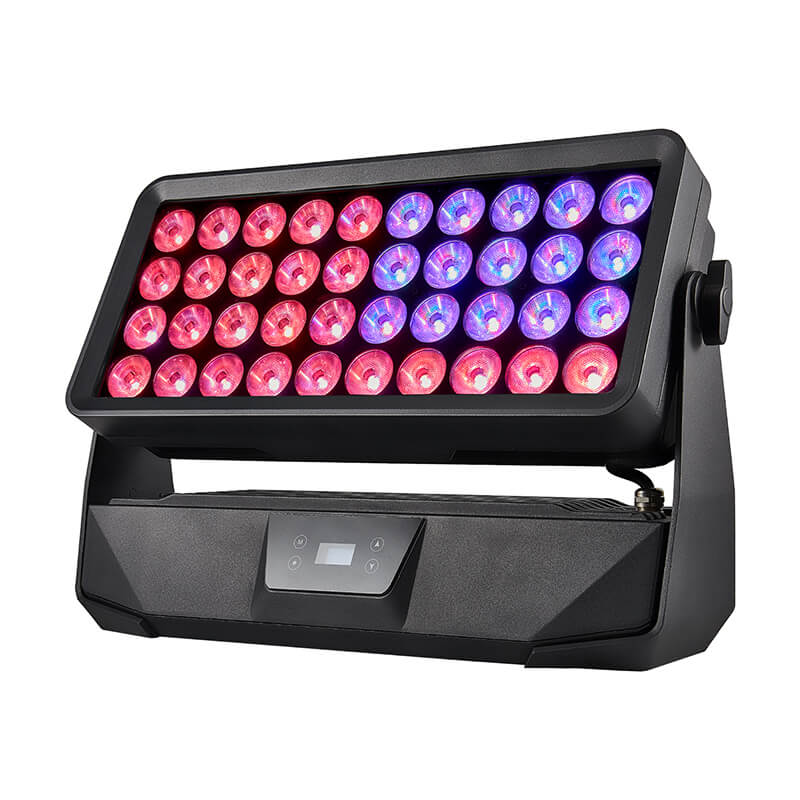

The LEDWALL4025IP is a unique and extremely powerful four-in-one LED luminaire ideal for stadiums, convention centers, high-rise office or hotel buildings, bridges, large format stage shows, sports or any event requiring an ultra-bright, super-long throw luminaire.
It offers the functionalities of a wash light, strobe light, flood light, pixel light and direct view blinder with continuous non-fading output, making it the perfect multi-purpose LED luminaire. It features a narrow native beam angle that can be modified by various optional accessory solutions, such as diffuser filters and barndoors.
Specifications
- Light Source: 40 x 25W RGBW 4in1 Leds
- Average LED lifetime: 50,000 hrs.
- Beam Angle: 25°
- DMX Mode: 4/9/37 channel
- Control Modes: DMX-512, RDM, Master-slave, Stand Alone, (W-DMX is optional)
- DMX Functions: Auto programs, Color macro, Dimmer, RGBW, Strobe
- Control: 4 buttons with LCD display
- Tilt: 0 – 170° adjustable
- Operating Voltage: AC 110V – 240V, 50 – 60 Hz
- Power Consumption: 800W

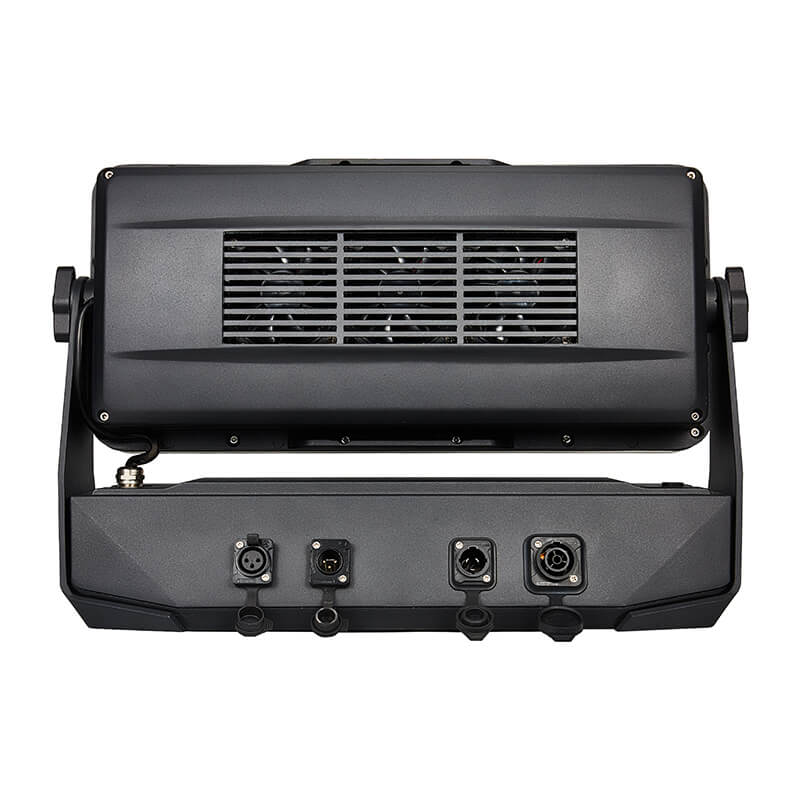

- Connections: IP65 Seetronic DMX data in/out, TURE1 PowerCON Power in/out
- Housing Material: Aluminium
- Cabinet Color: Black
- Protection Class IP: IP65
- Cooling: IP65 temperature-controlled fans
- Operating Temperature: -15 – 45 °C
- Installation: 2 x 2 quarter-turn locking points for one or two Omega brackets
