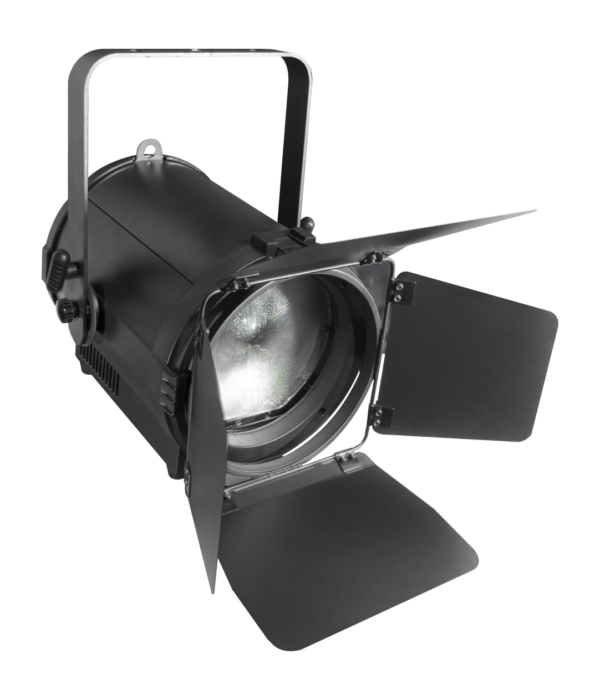

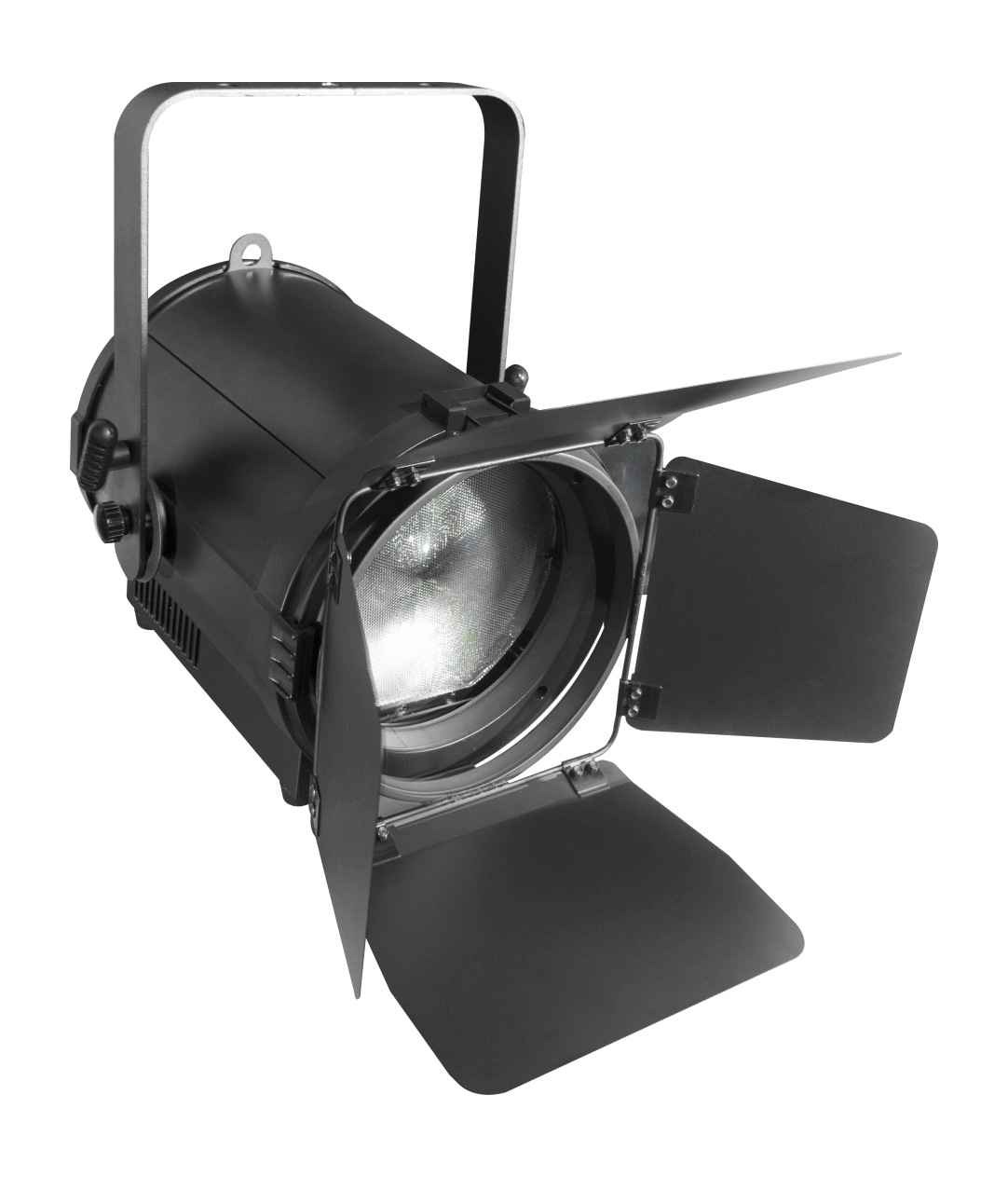

The FRES2175TW is a tunable white LED fresnel with zoom function. The zoom range from 25~65°. It features low power draw but high output, Silent operation idea for theater and studio use, DMX/RDM control, powerCon in&out, wide zoom range.
Specifications
Optical
- Light source: 200W WW + 200W COB LED
- Color temperature: 2800K – 6500K
- Zoom range: 8° – 60°motorized zoom
- LED lifetime: 50,000 hours
Electrical
- AC power: 100-240 V nominal, 50/60 Hz
- Power consumption: 200 Watt
- Power consumption figures are typical, not maximum. Allow for +/- 10% variation.
Control and programming
- Control protocol: DMX, RDM
- DMX channels: 3/6CH
- DMX compliance: USITT DMX512-A
- RDM compliance: ANSI/ESTA E1.20

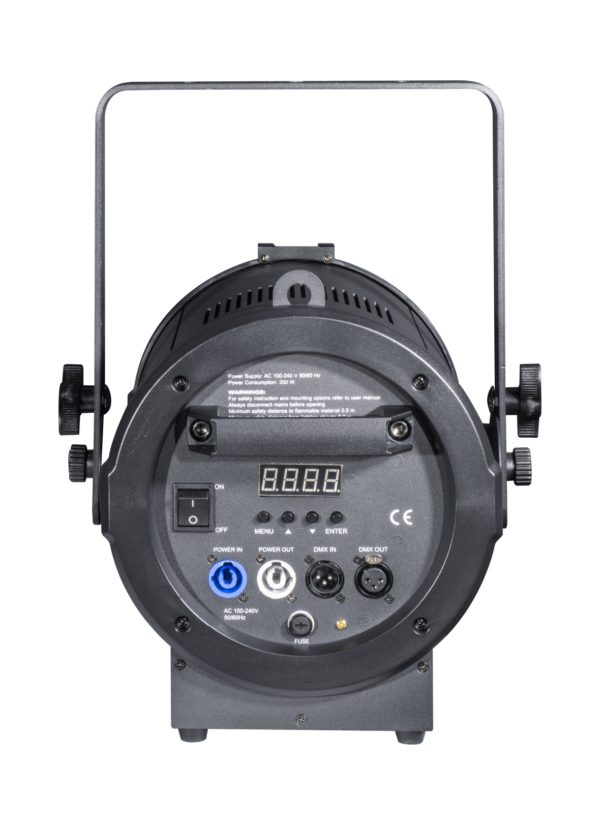

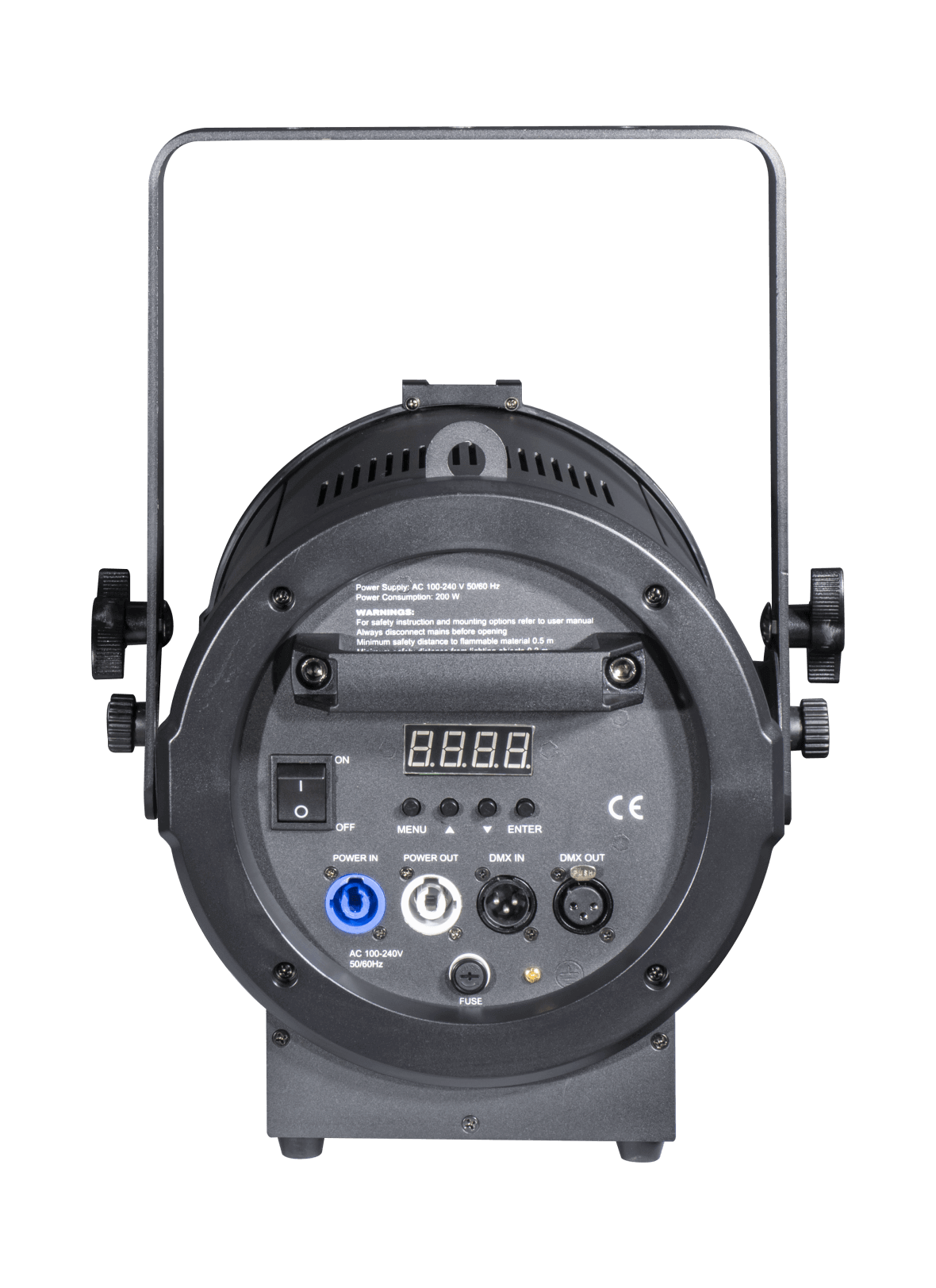

Connections
- AC power in, thru: PowerCon in & thru
- DMX and RDM data in/out: 3-pin locking XLR
Construction
- Housing: Aluminum
- Color: Black
- Protection rating: IP20
Thermal
- Cooling: Heat sink, intelligent fan
- Maximum ambient temperature (Ta max.): 45° C
- Minimum ambient temperature (Ta min.): -5° C
Accessories(included):

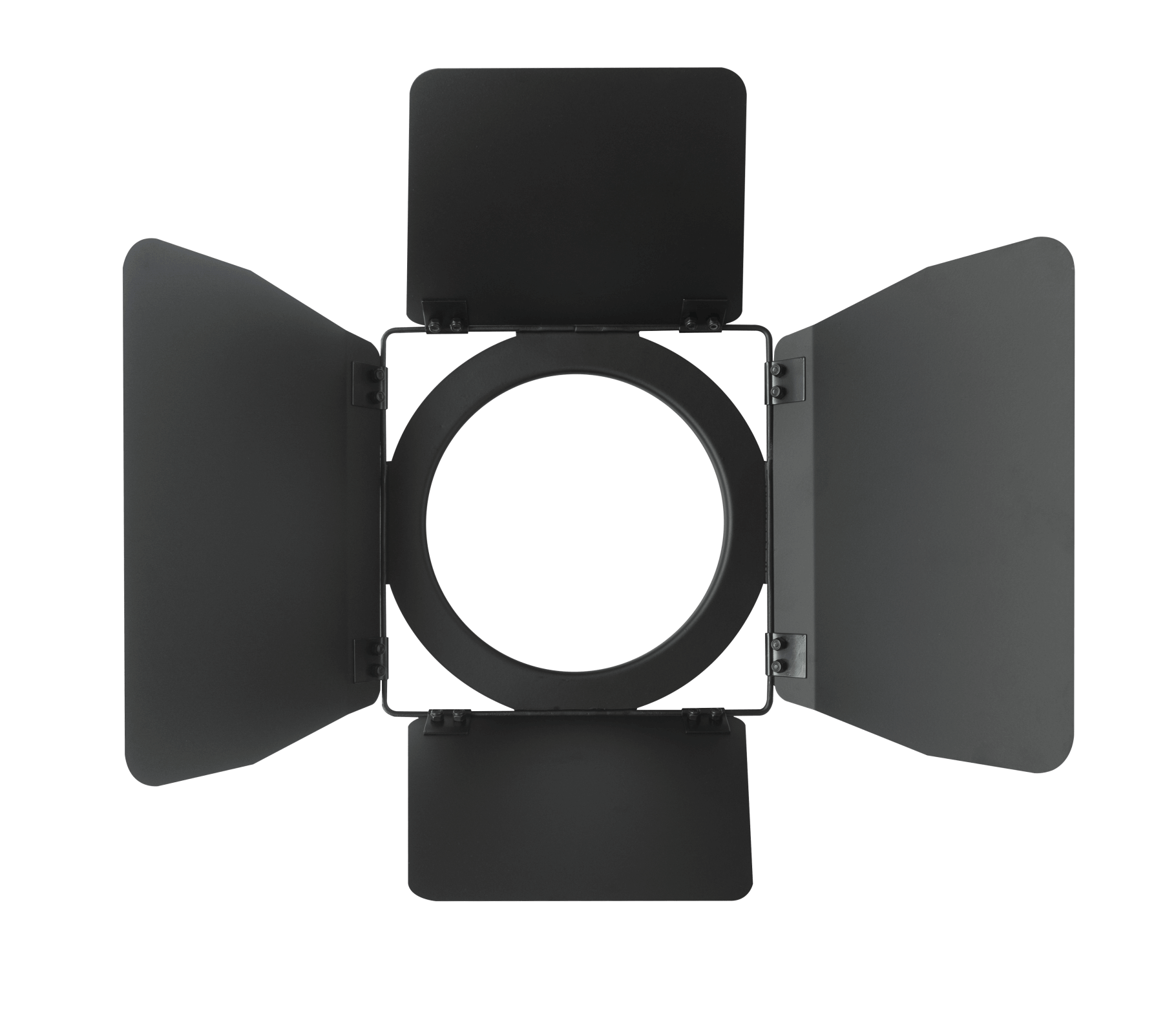

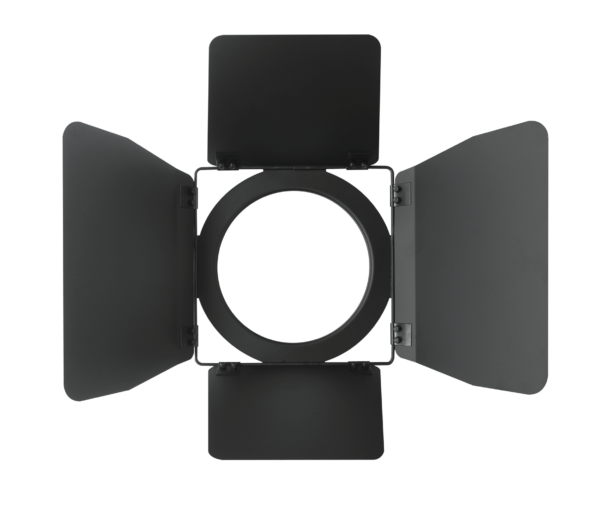

- 4 leaf rotating barndoor
- Color frame
Accessories(optional):
- Clamp
- Safety ring
Approvals: CE
