The FRES2100TW zoom is a 100Watt WW + 100Watt CW powered LED fresnel with zoom function.
The RDM-DMX compliant, 25 – 65 degree manual zoom along with it’s superior 95 CRI make this fixture a good replacement for the traditional fresnels.
Specifications
Optical
- Light source: 100W COB LED
- Color temperature: 3200K ~ 5600K
- LED lifetime: 50,000 hours
- Zoom range: 25~65° motorized
Electrical
- 100~240V AC, 50/60 Hz Auto ranging power unit
- Power consumption: 103W
- Maximum power linking – 8 units.
Control and programming
- Control channels: 2/3/4/5
- DMX512 in and thru via 3-pin XLR connectors(5-pin optional)
- RDM function available for addressing and settings
- RDM, DMX, Master-slave control mode
- Smooth dimming
- ID address setting as DMX address extension
- Flicker free operation

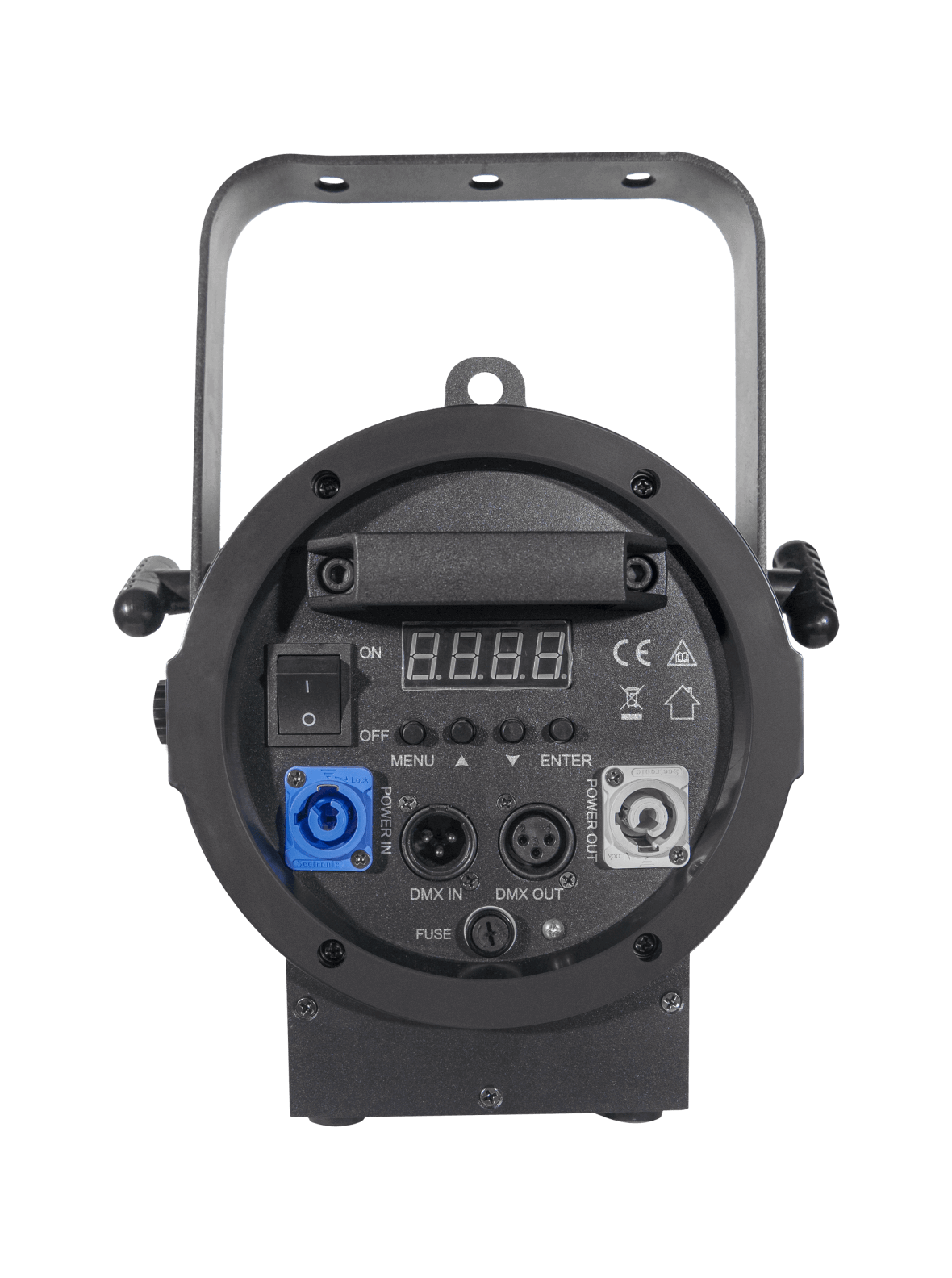

Connections
- Powercon in & out power connection
- 3-Pin XLR in & out DMX and RDM data connection(5-pin optional)
- Construction
- Color: Black
- Housing: stretching aluminum, engineering grade
- flame-retardant plastic
- Enviroment: IP20 indoor use
Thermal
- Convection and silent fan cooling
- Ambient temperature: -10° to 45°C(-14° to 107.6°f)
Accessories(included):

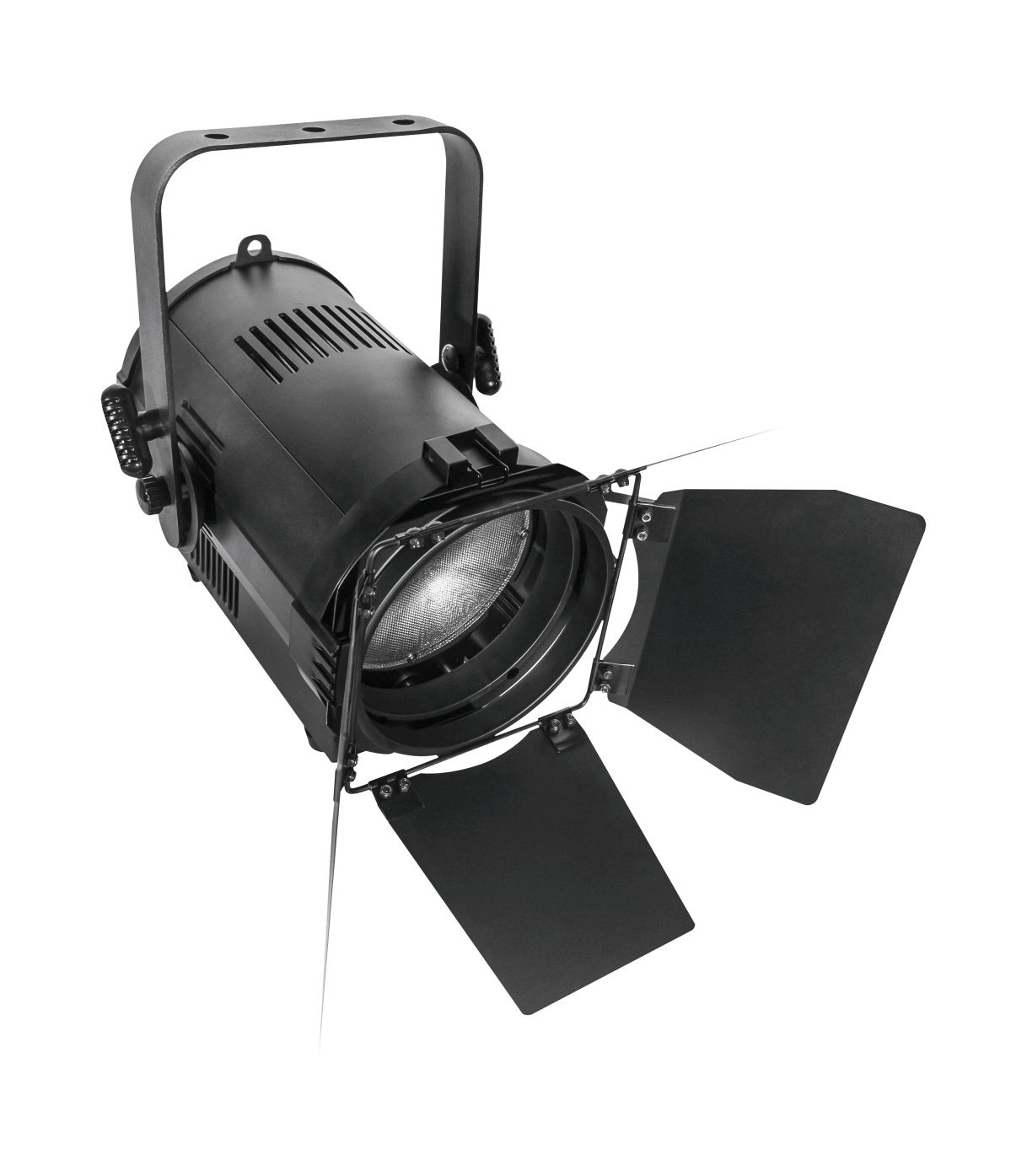

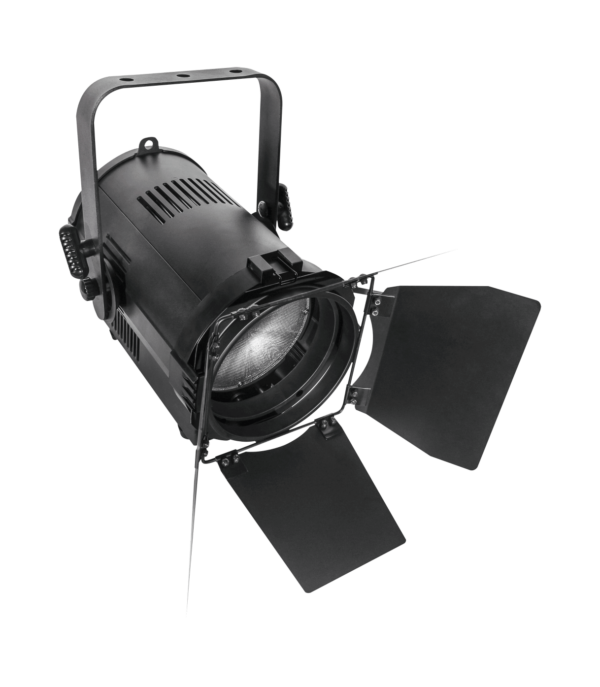

- 4 leaf barndoor
- Color frame
Accessories(optional):
- Clamp
- Safety ring
Approvals
- CE
