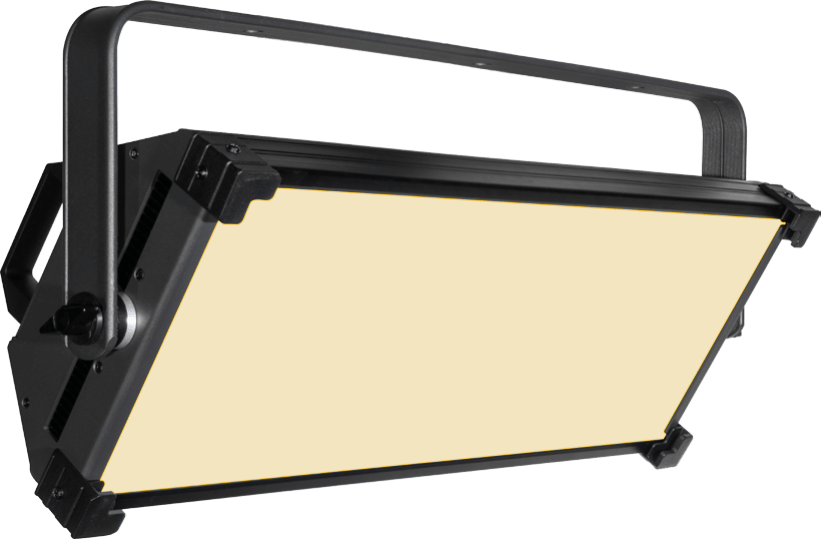

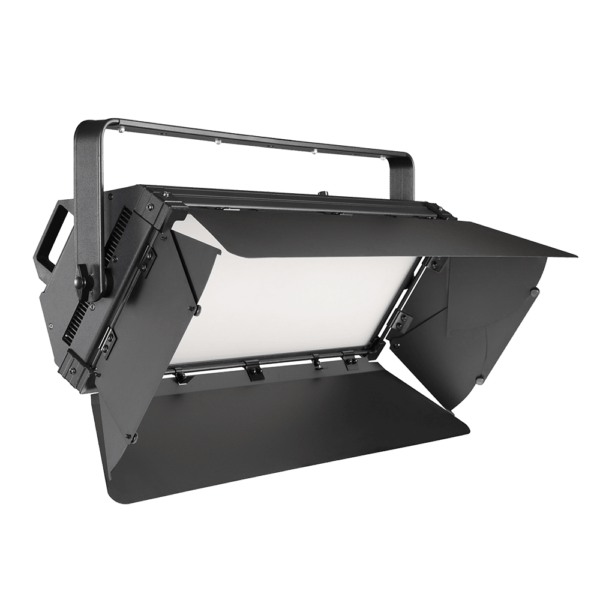

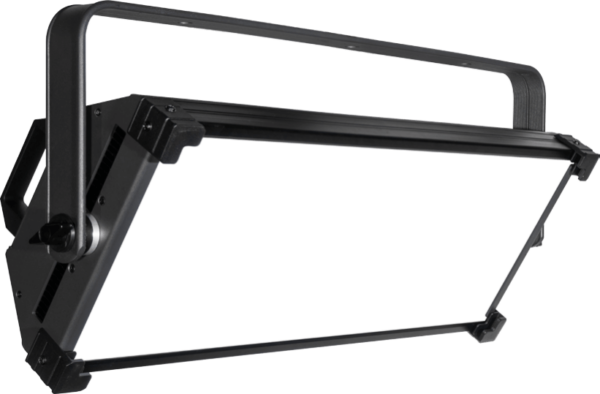

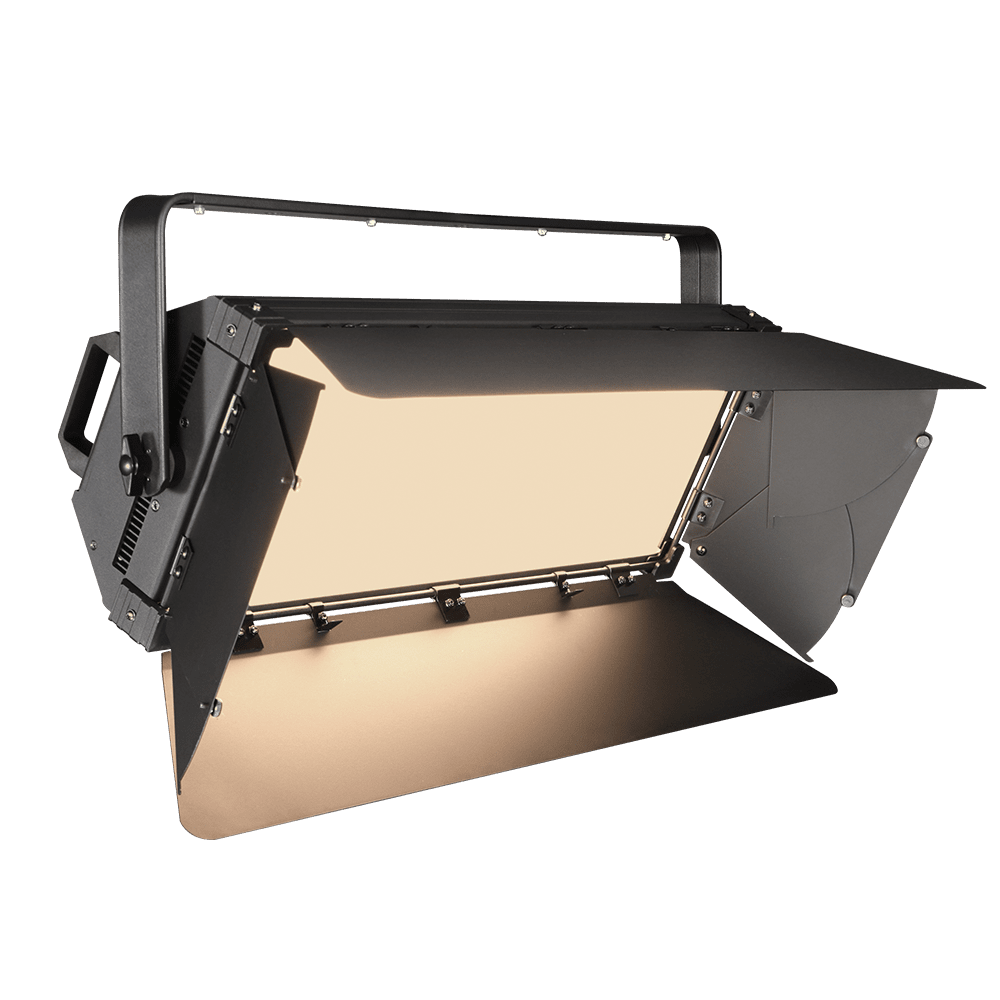

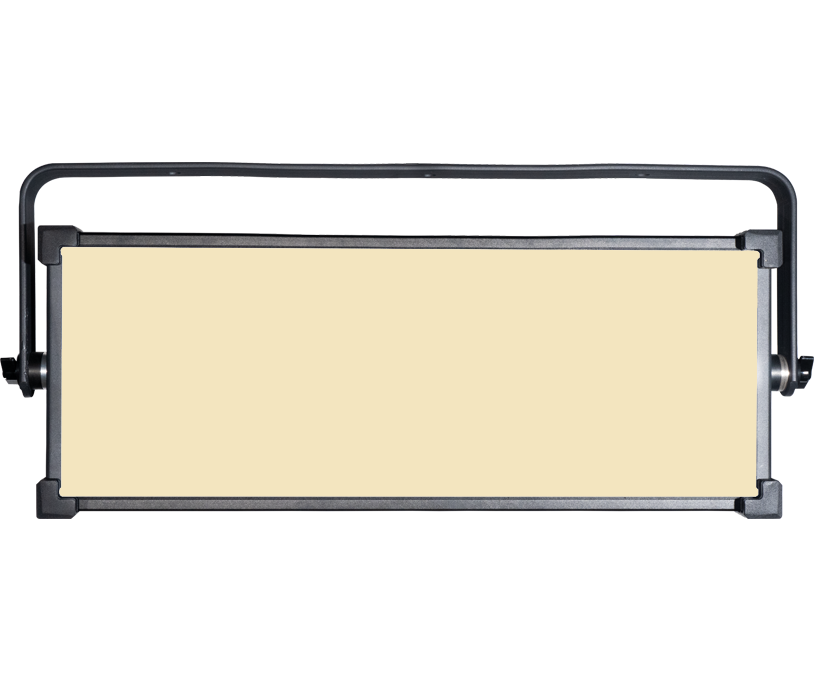

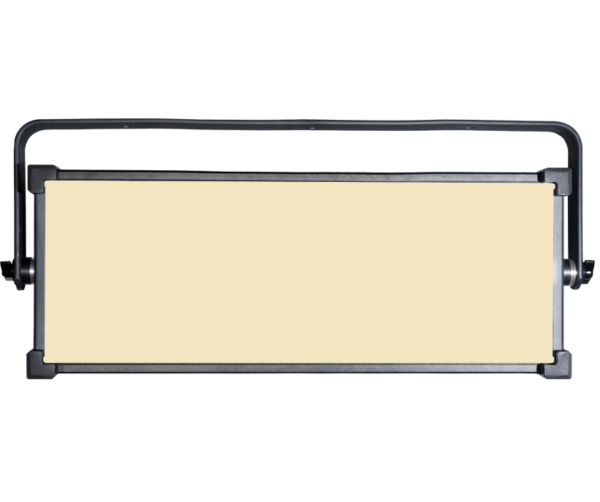

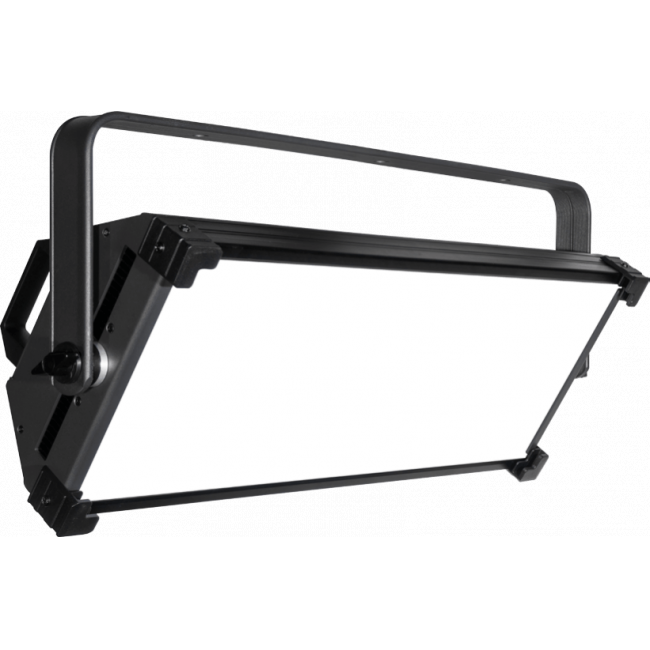

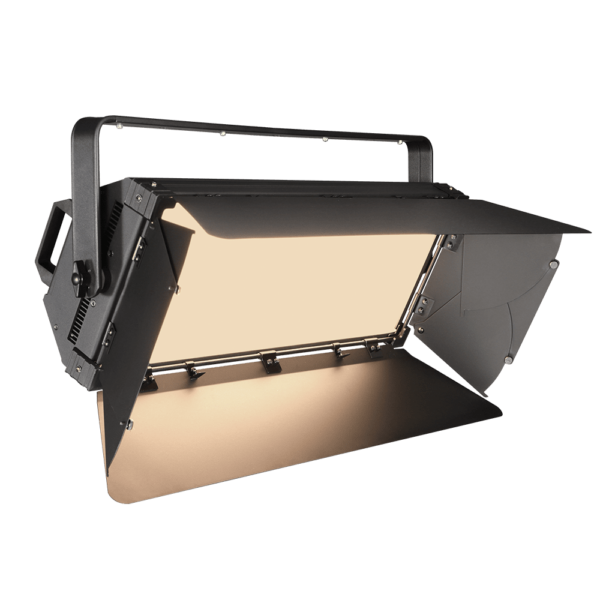

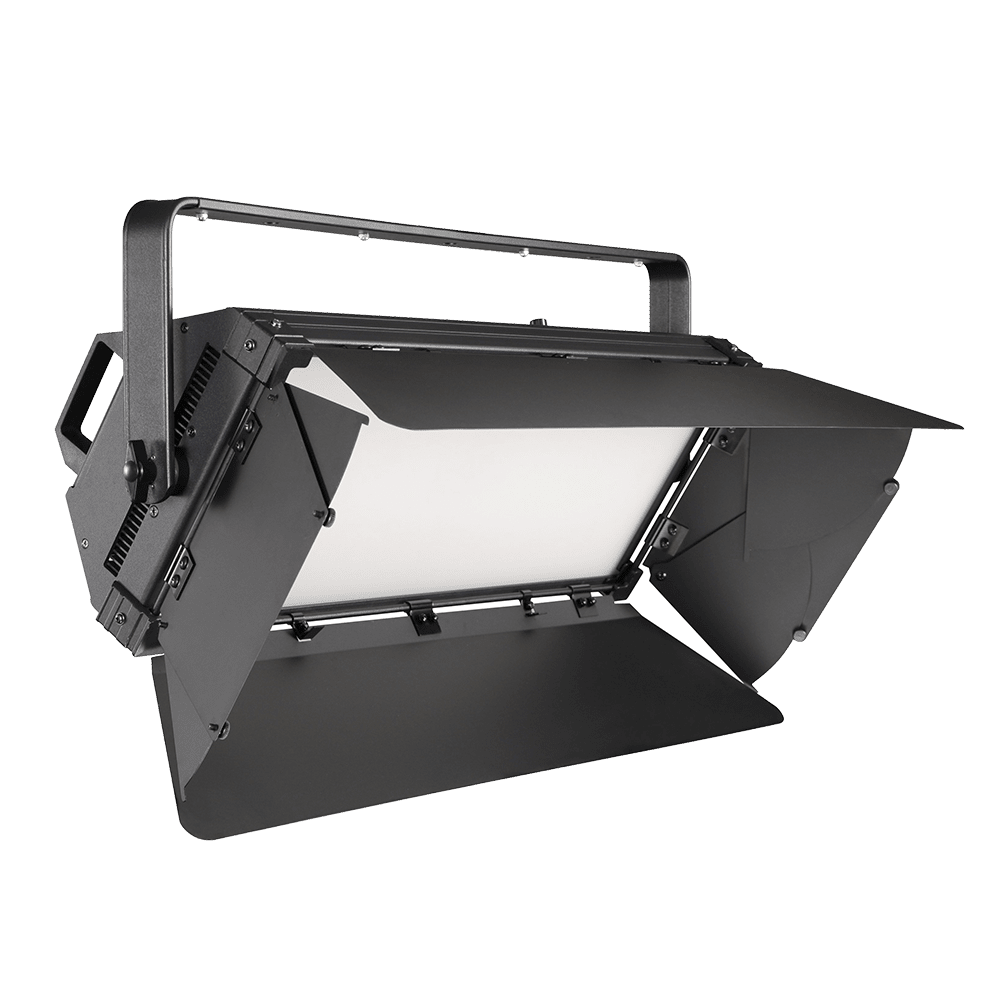

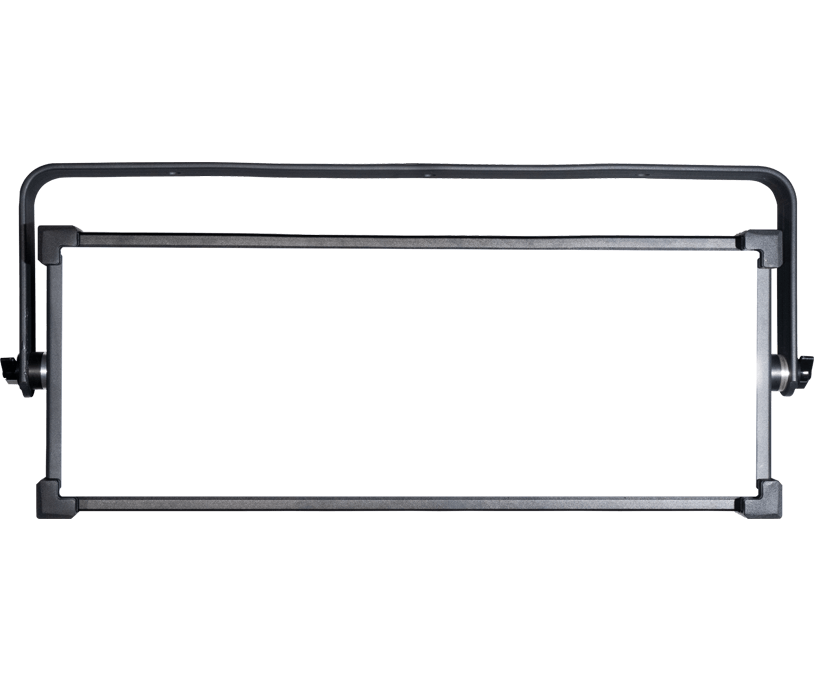

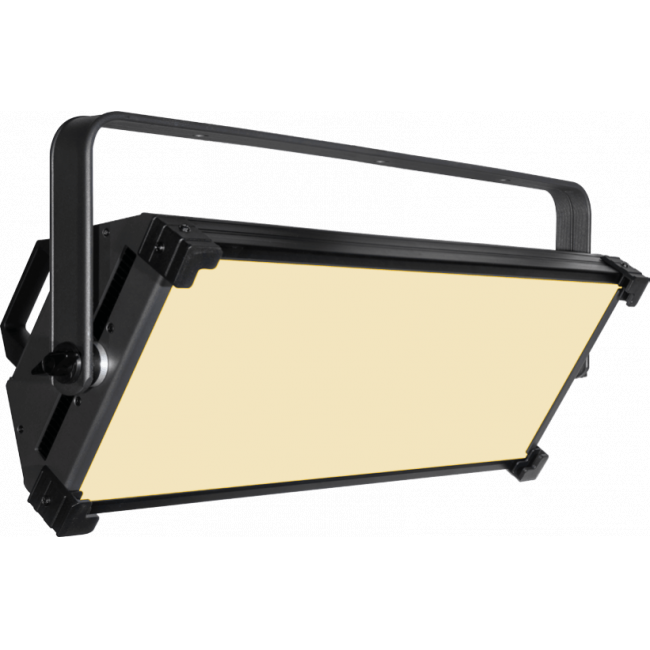

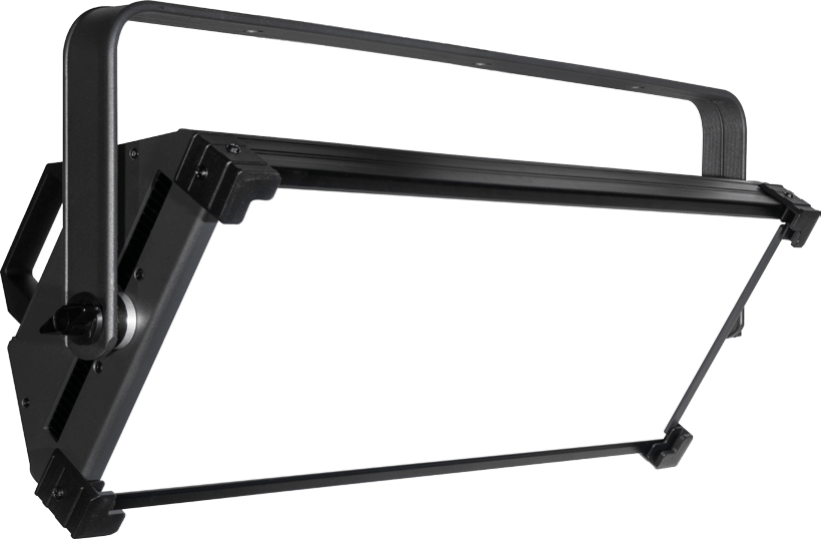

PANEL300TW is a 600Watt LED studio panel light. It comes with even and wide wash effect, perfect control lighting area through eight leaf barndoor. Moreover, equiped with high output LEDs, CRI 95, 98 TLCI brings perfect light quality.
It is specially designed for TV studios, video shootings. 300Watt variable white LED, 3200K up to 5600K CT, Super bright, uniform coverage and even lighting, Super silent operation for all circumstances, High CRI 95, TLCI 98, Support DMX and RDM protocols, Dimmer curves selectable, Smooth dimming, flicker free operation, LCD display, Dimmer frequency 1.2 – 20.0 KHz, 8 – leaf barn door.
Specifications
- Light source: 300Watt ww+ 300Watt cw Tunable White LED
- Power supply: AC100 – 240V, 50/60Hz
- Beam angle: 120°
- Color temperature: 3200K-5600K
- Color Rendition: CRI 95, TLCI 98

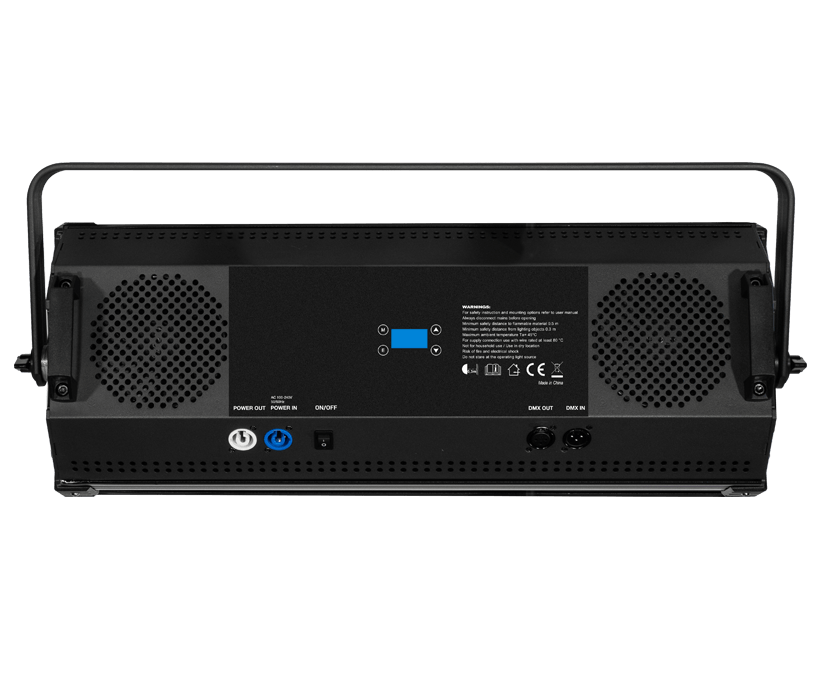

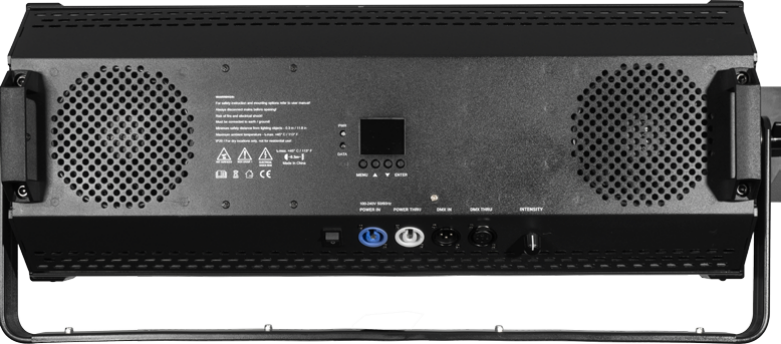

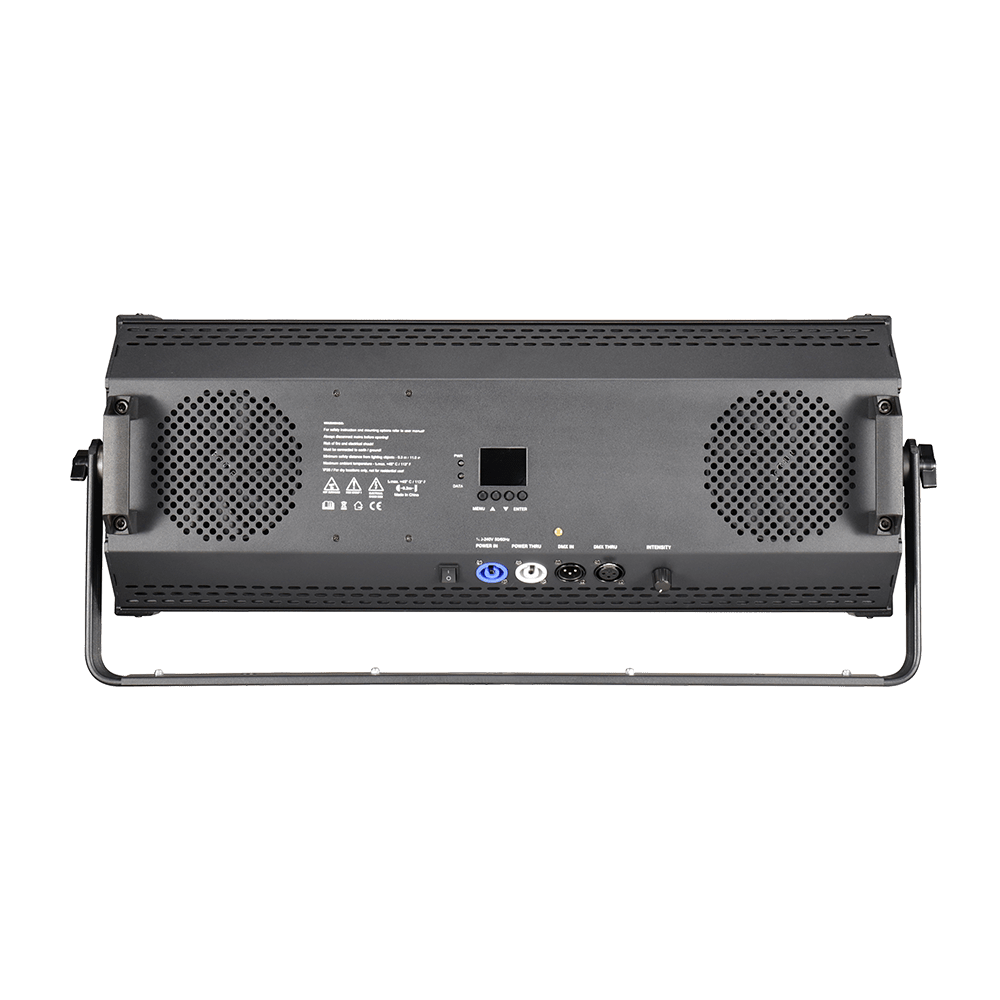

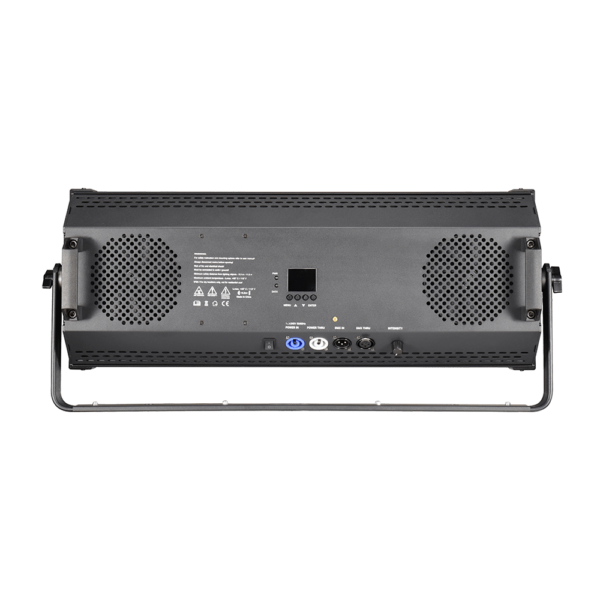

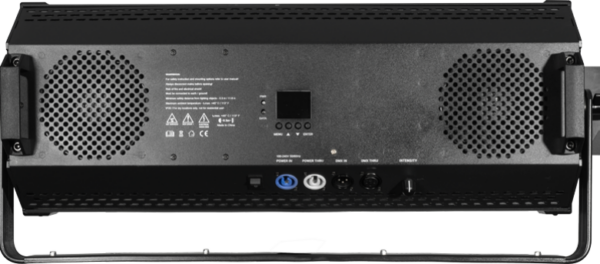

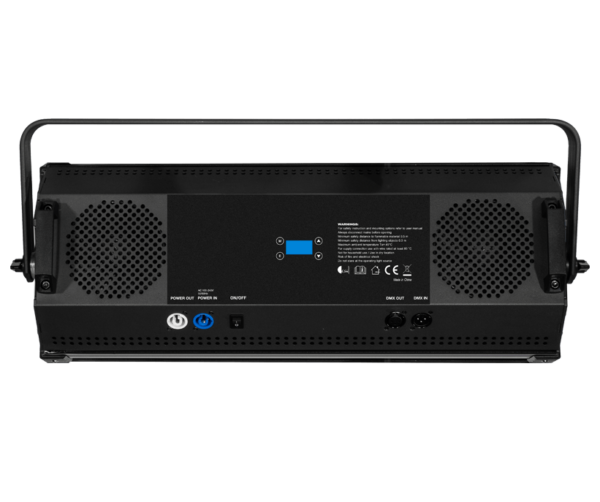

- Power connection: PowerCON in & out
- Signal connection: 3-pin XLR in & out(5-pin opt.)
- Control channels: 1
- Control mode: DMX, RDM
- Dimmer curves. Standard / Stage / TV / Archi / Theatre
- Frequency: 1.2 KHz, 1.6 KHz, 2.4 KHz, 4 KHz, 6 KHz, 20 KHz
- Housing: Colour black, Aluminum
- Size: 651 x 150 x 299mm
- Weight: 9.2 kg(barndoor incl.)
- Accessories(incl.): Power cable, Safety cable
- Accessories(opt.): Beehive diffuser, Barn door, Clamp
- Environment: IP20
