Acme – SUPERNOVA

1400W LED hybride IP66 moving head – outdoor – 5º tot 50º zoom – High CRI

Beschrijving

Functional Overview
SUPERNOVA uses an powerful 1400W LED engine. With the high-precision optical elements, diameter of lens is 200mm, not only prolongs the working life of the light source, but also brings the bright light output to the SUPERNOVA. Its light beam is flat and smooth.
Based on the perfect combination of light source and optical technology, under the high CRI mode, the luminous flux is up to 56,000lm. At the minimum angle of 5 ° and 10 meters distance, the illumination is 30,500lux and 142,400lux respectively.
Linear CMY color mixing system provides rich color saturation and clear seamless color transition. The flow speed can be changed by adjusting the speed of the animation wheel, to create outstanding water and flame effect. All gobo wheels are made of high-definition color separation glass, they complement each other and create various graphics together with animation wheel. 2700k to 6500k adjustable linear CTO color temperature.
Zoom range 5 °-50 ° and the spot of Iris can be zoomed from 5% to 100%. A 4-facets prism and a 4-facets linear prism can rotate in either direction. 2 different frost filters to create and improve the wash effect, they can be used independently and overlayed. Fast and smooth framing shutters can rotate at ±60 degrees. Various patterns options provide a high flexibility for the lighting designers.
ACME SUPERNOVA, the all-weather fixture, really a great partner for outdoor performances, theme parks, stadiums, landscape lighting and other venues, creating colorful beam effects for the dark sky!

Features
Fits a powerful 1400W LED engine and its front lens is 200mm diameter
Color Temperature: 6,700K
Total lumen output up to 56,000 lm
Switch to high CRI mode with high CRI filter
High CRI mode Ra≥90
Linear CMY color mixing
Excellent color macro effect
Variable CTO: 2700K-6500K
Static gobo wheel: 1 static gobo wheel with 9 gobos
Rotating gobo wheel: 1 rotating gobo wheel with 7 gobos, convenient replacment
Color Wheel 1: 5 colors plus open
Color Wheel 2: 5 colors plus open
Animation wheel: 1 animation wheel with outstanding water and flame effect, the effect disk can rotate and be replaced.
Prisms: 1pc 4-facet prism & 1pc 4-facets linear prism, both can rotate in either direction
Beam Angle: 5°-50°
Frost: 2 different frost filters to create and improve the wash effect. They can be used independently and overlayed.
Linear gradient dyeing effect
Motorized linear Iris
4 x fast and smooth framing shutters; The position and the angle of each shutter blade can be controlled individually; Each shutter blade can block out light completely; The framing module can rotate at ±60 degrees.
IP66 protection rotating
Flicker free management
Dust-proof and oil-proof design

Technical & Specification
Model
XA 2000 BSWF IP

Light source
Light Sources: Powerful 1400W LED engine
LED life expectancy: 20000 hours

Optical system
Advanced optical system to ensure image quality, clear and sharp
High – efficiency optical system, diameter of lens is 200 mm.
Beam Angle: 5°-50°

Control and Program
4-buttons touch panel
Display: LCD display
Battery backup for user setup without mains connection
Protocols: DMX512, RDM
DMX Protocol modes: 4
Control channels: 36,27,30,21
Firmware Upgrade: Upgrade via DMX link
Pan/Tilt Resolution: 16 bit

PAN & TILT
Pan movement: 540°
Tilt movement: 270°
Automatic Pan/Tilt position correction
Fixation: Pan/Tilt lock

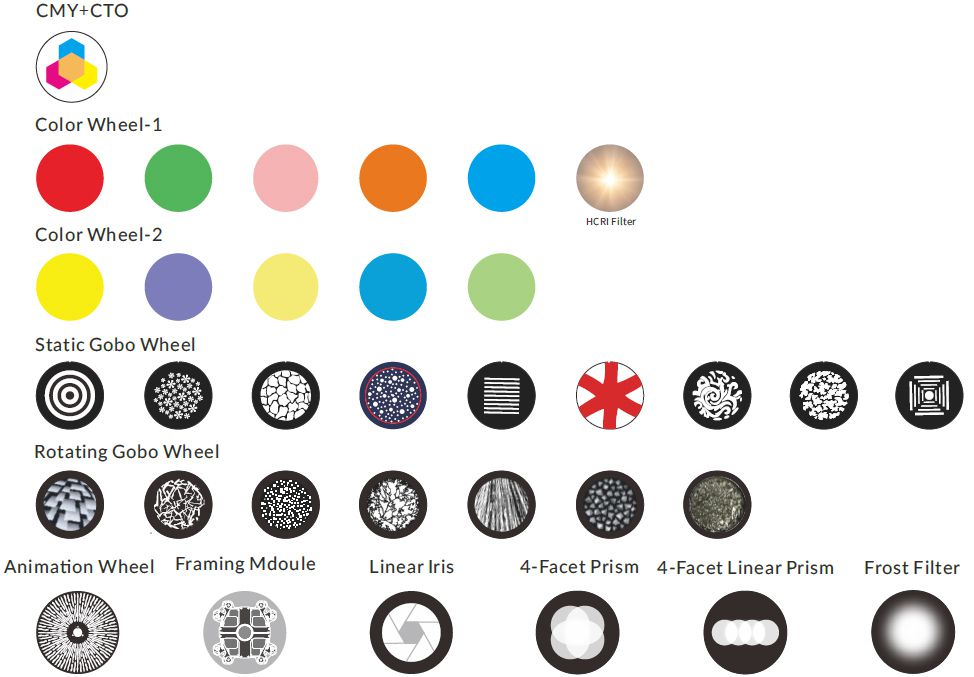

Rotating Gobos
1 x rotating gobos, with 7 gobos plus open, convenient replacement
Image diameter: 23 mm
Outside diameter: 28 mm
Thickness: 1.1 mm
Max. thickness: 4mm
borofloat or better glass materials
Set with “SLOT&LOCK” system for gobos replacement

Static Gobos
1 x static gobos with 9 gobos

Color Wheel
Color Wheel 1: 5 colors plus open
Color Wheel 2: 5 colors plus open

Animation wheel
1 x animation wheel with outstanding water and flame effect, the effect disk can rotate and be replaced.

Framing System
Blade: 4 fast and smooth framing shutters, each shutter blade position and angle can be controlled individually
Movement is fast & smooth, with adjustable speed
Framing shutters can be precise motion with smooth movement
Each shutter blade can block out light completely, the framing module can be rotated at ±60°

Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240 V, 50/60 Hz
Power consumption: 1800 W
Power In/Out:Power Connector in/out
Date In/Out: 5-pin XLR, RJ45 connector

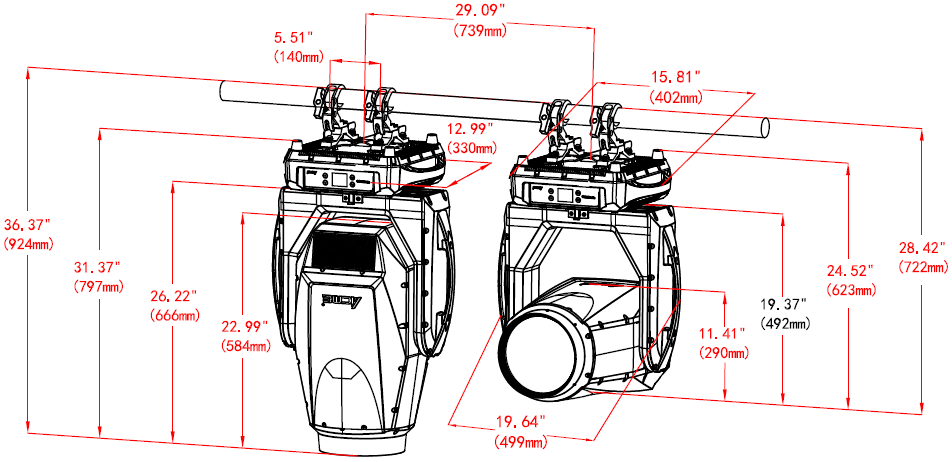

Fixture Specification
Fixture dimensions:
Height: 798 mm (31.4″)
Width: 326 mm (12.8″)
Depth: 499 mm (19.6″)
Weight: 48.5kg (106.9lbs)
F/C dimensions:
Height: 905 mm (35.6″)
Width: 595 mm (23.4″)
Depth: 715 mm (28.1″)
Weight: 94.5kg (208.3 lbs) (Single Loader Case )

Work environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Protcectin rating:IP66

Installation
Available in horizontally or vertically mounting way
Multi projection angle operation
2 pairs of locking points under the base
2x fast-lock clamps for 50mm truss
Safety rope hanging

Factory configuration
User Manual
Power Cable
2x fast-lock clamps for 50mm truss

Optional Accessories
Clamp:2060001619(C-250)
Signal Line:5-pin signal line
Safety cable: 2060001603-A (SW-05)

Extra informatie

IP-Rating

Outdoor

Type lichtbron

LED

Vermogen Lichtbron

1400

Kleurmenging

2x Kleurenwiel, CMY+CTO

Type Fixture

Hybrid

Functies

Animatiewiel, Frost, Iris

Min zoom

5

Max zoom

50

Afmetingen

afmetingen
