Functional Overview

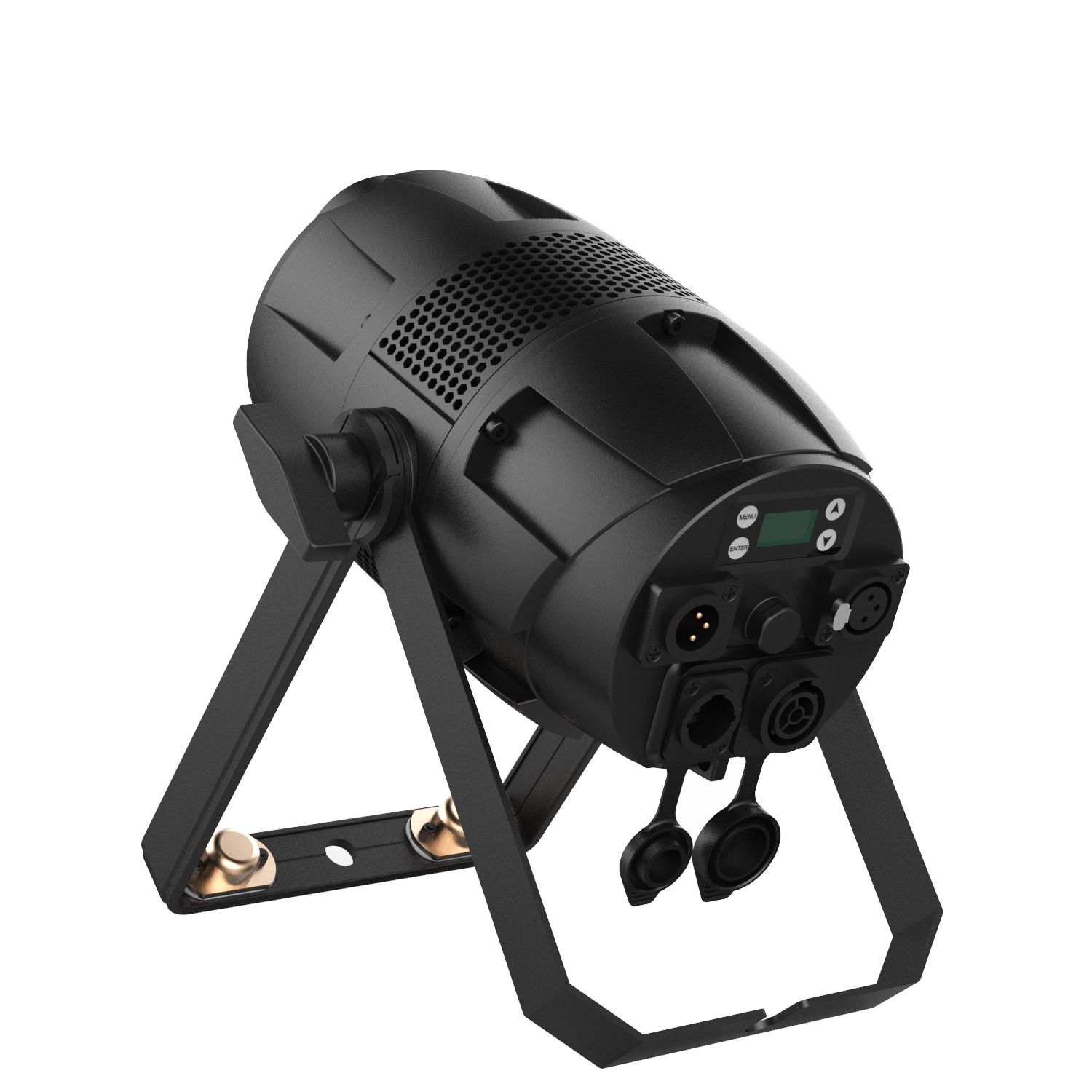

STAGE PAR UV, the unique fluorescent effectt, plus high efficiency, low energy consumption, good heat dissipation, ensure the fixture can works under a low noise for a long time. Small size with compact design, equipped with double hangers, makes it suitable for mid-air or floor, provide multiple Installationoptions to lighting designer. STAGE PAR CCT adoptes the fast-locked mounting, can install & disassemble the fixture more quickly, recude the Installationtime, improve the work efficiency. Low noise under 38dB@1m & IP66 protection rating, can be used for conference centers, exhibition halls, outdoor performances, clubs, parties and other places.

Features
Light Source: 50x365nm UV LED
Unique fluorescent effect
High efficiency, low energy consumption, good heat dissipation, long lifetime
Compact design, small size,only 3.5kg, technology leading peer similar products
Low noise under 38dB@1m, can be used for conference centers, exhibition halls and other places
Double hanger design, multiple Installationoptions
Outstanding strobe effect with variable speed
0~100% smooth dimming
Flicker free management
Dust-proof and oil-proof design
Maximum QTY of connnection:
230V 50Hz: 41 sets
120V，60Hz: 24 sets

Technical & Specification
Model
BL-100 UV

Light Source
Light Source: 50x365nm UV LED
LED life expectancy: 10000 hours

Optical System
Advanced optical Systemto ensure clear and large-range wash effect

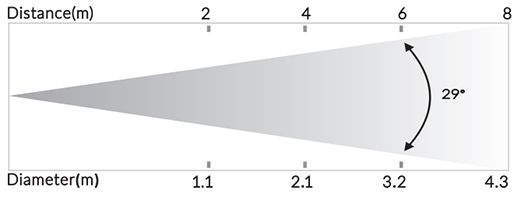

Beam Angle: 29°

Controland Program

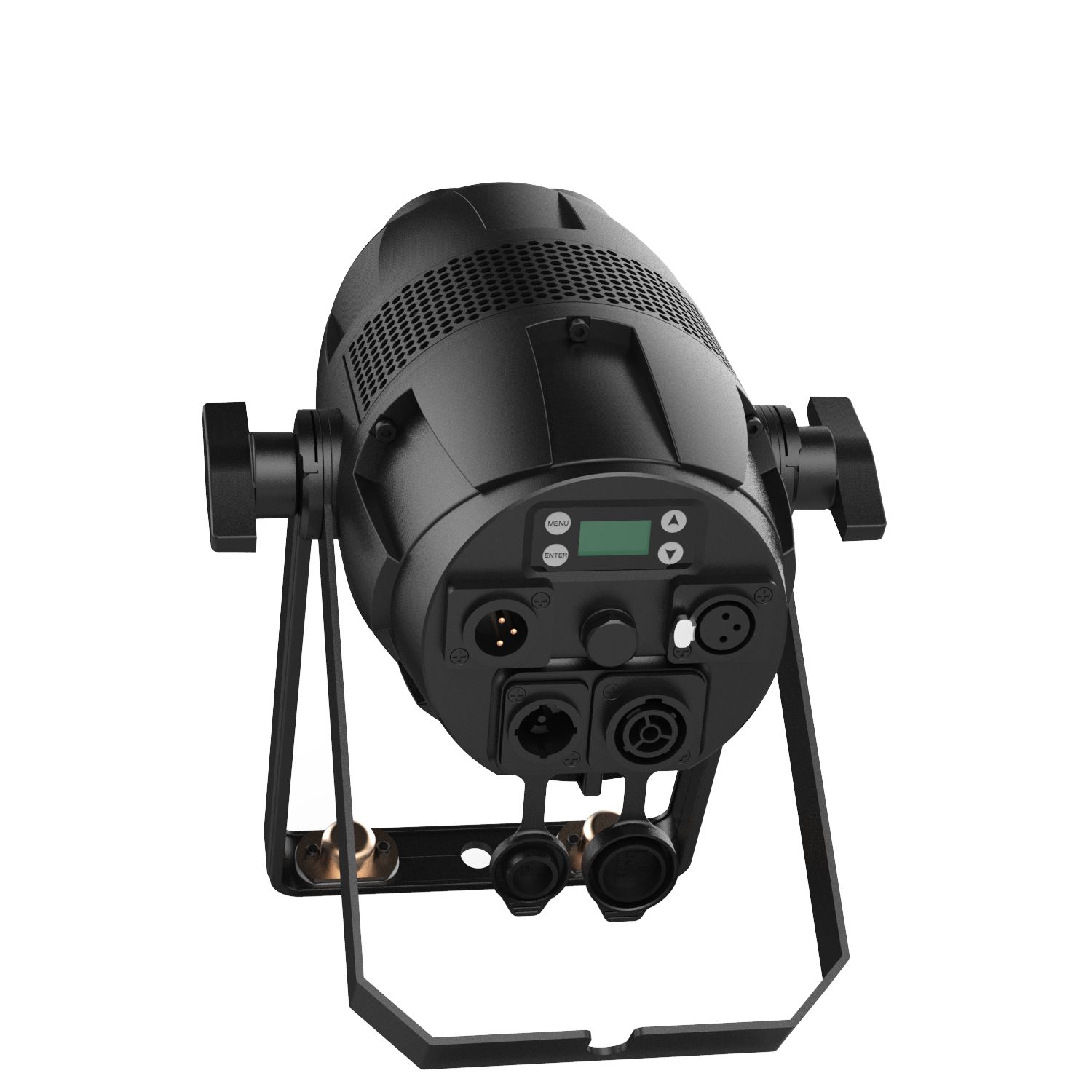

4 buttons
Display: OLED display
Protocols: DMX512,RDM
DMX Protocol modes: 2
Controlchannels: 1,2
Upgrade the firmware via DMX link

Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240 V, 50/60 Hz
Power consumption: 65 W
Waterproof Power Connector input/output
Data in/out: 3-pin or 5-pin IP XLR

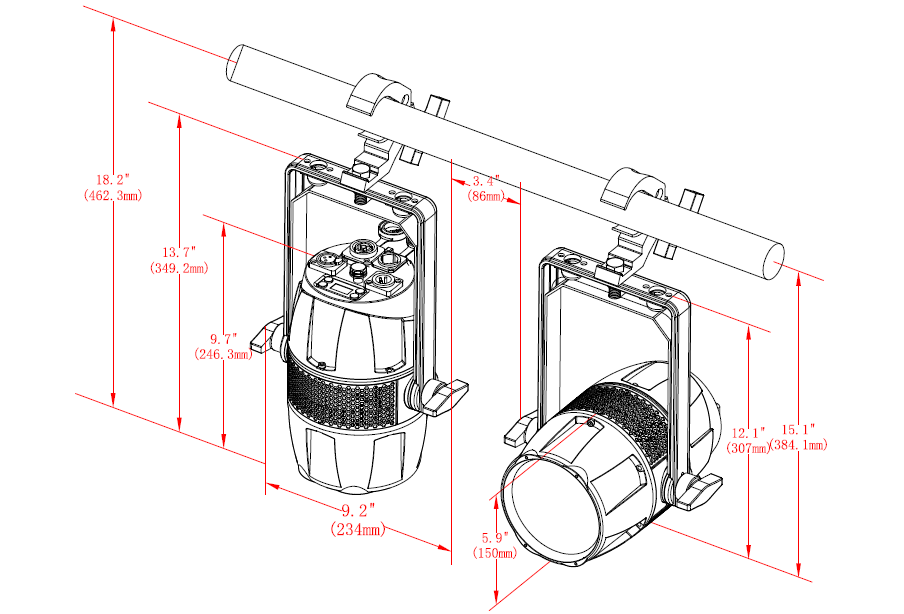

Fixture Specification
Height: 307 mm (12″)
Width: 234 mm (9.2″)
Depth: 247 mm (9.7″)
Weight: 3.5 kg (7.7 lbs)

Work Environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C

Approvals
CE Compliant

Installation
Horizontally or vertically mounting are available
Operating position is universal

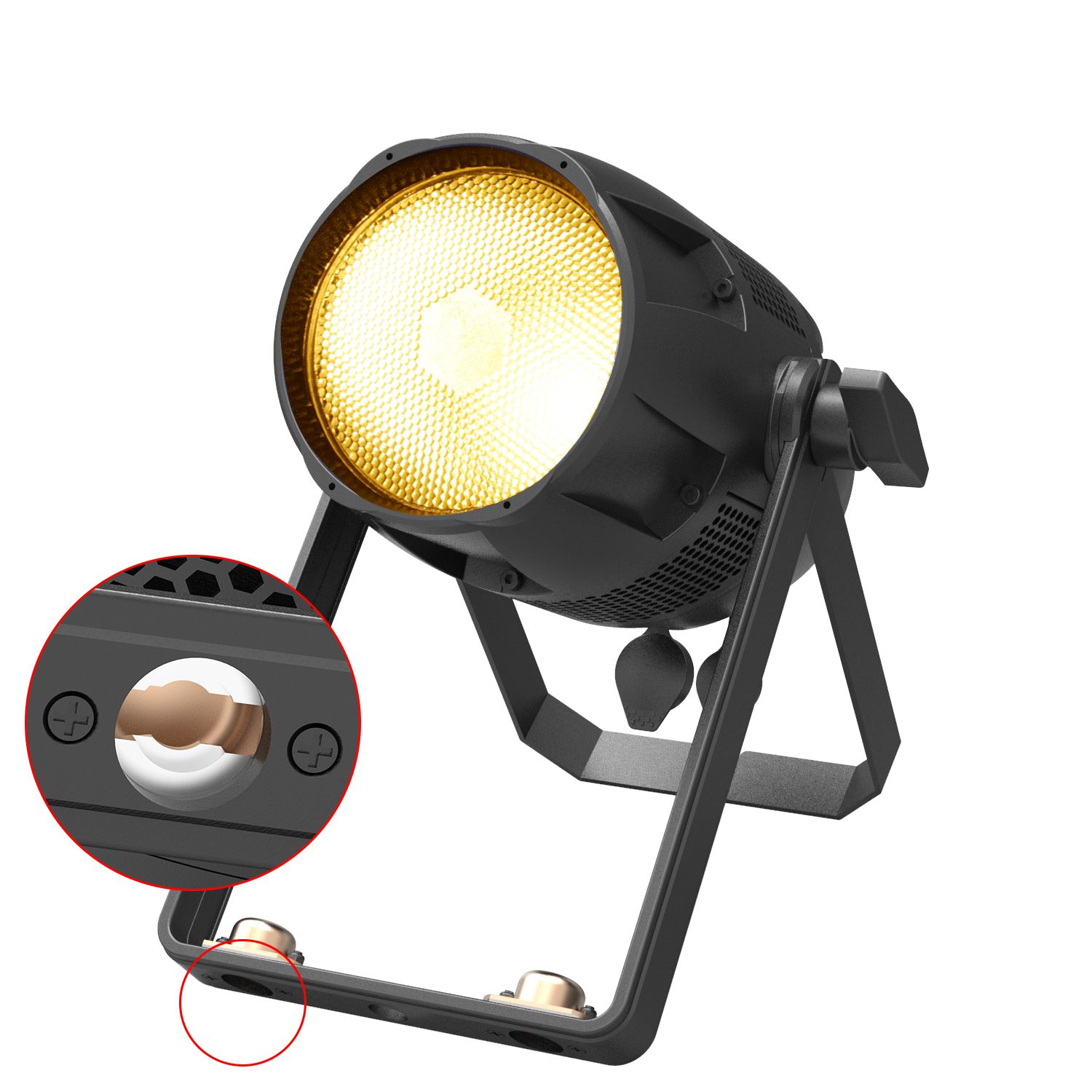

Bracket can be fast-locked and with one locking point for clamp’s installaiton
Safety cable attachment point

Included Items
User Manual
Power Cable

Optional Accessories (with item code)
Flight Case：3205001256（4 in 1）

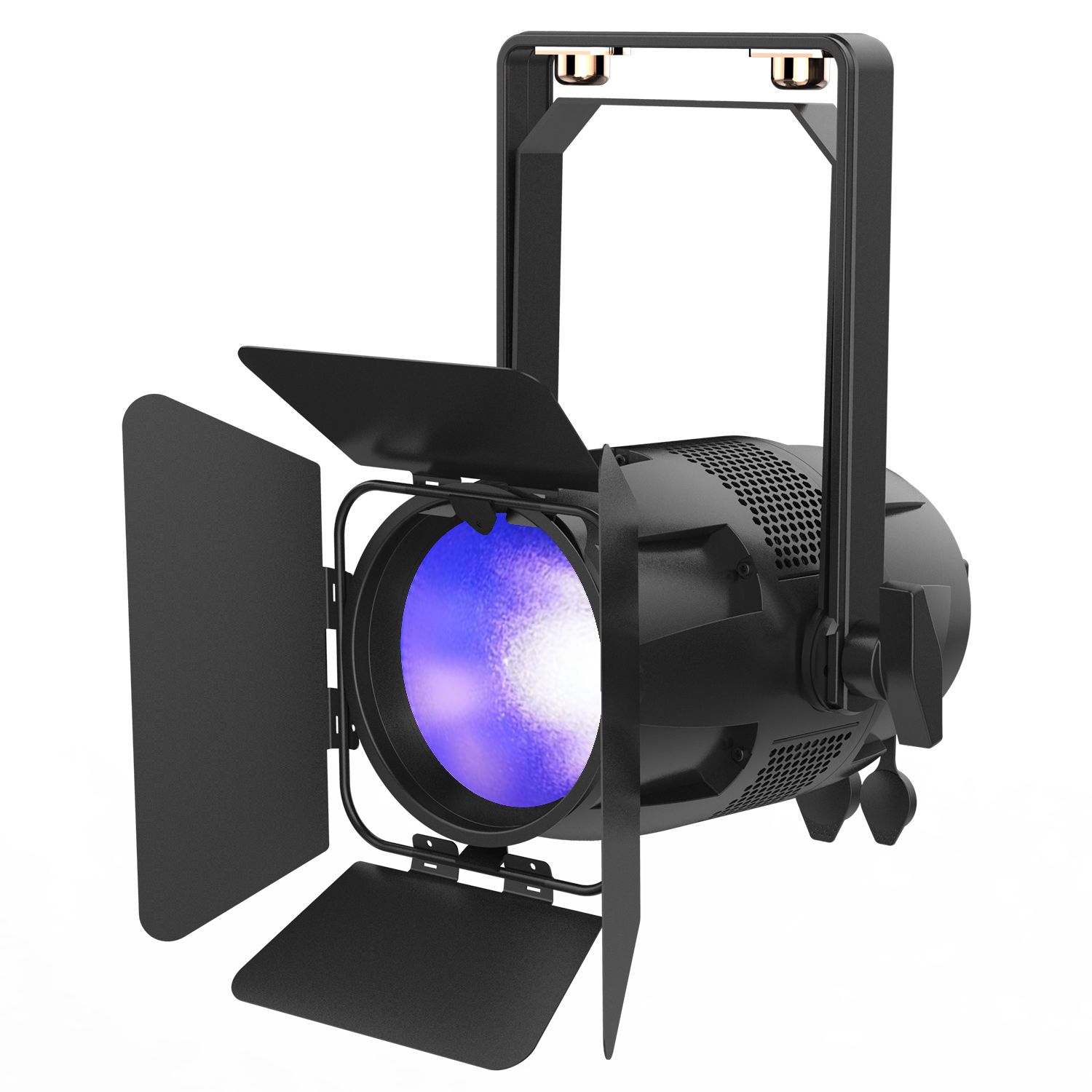

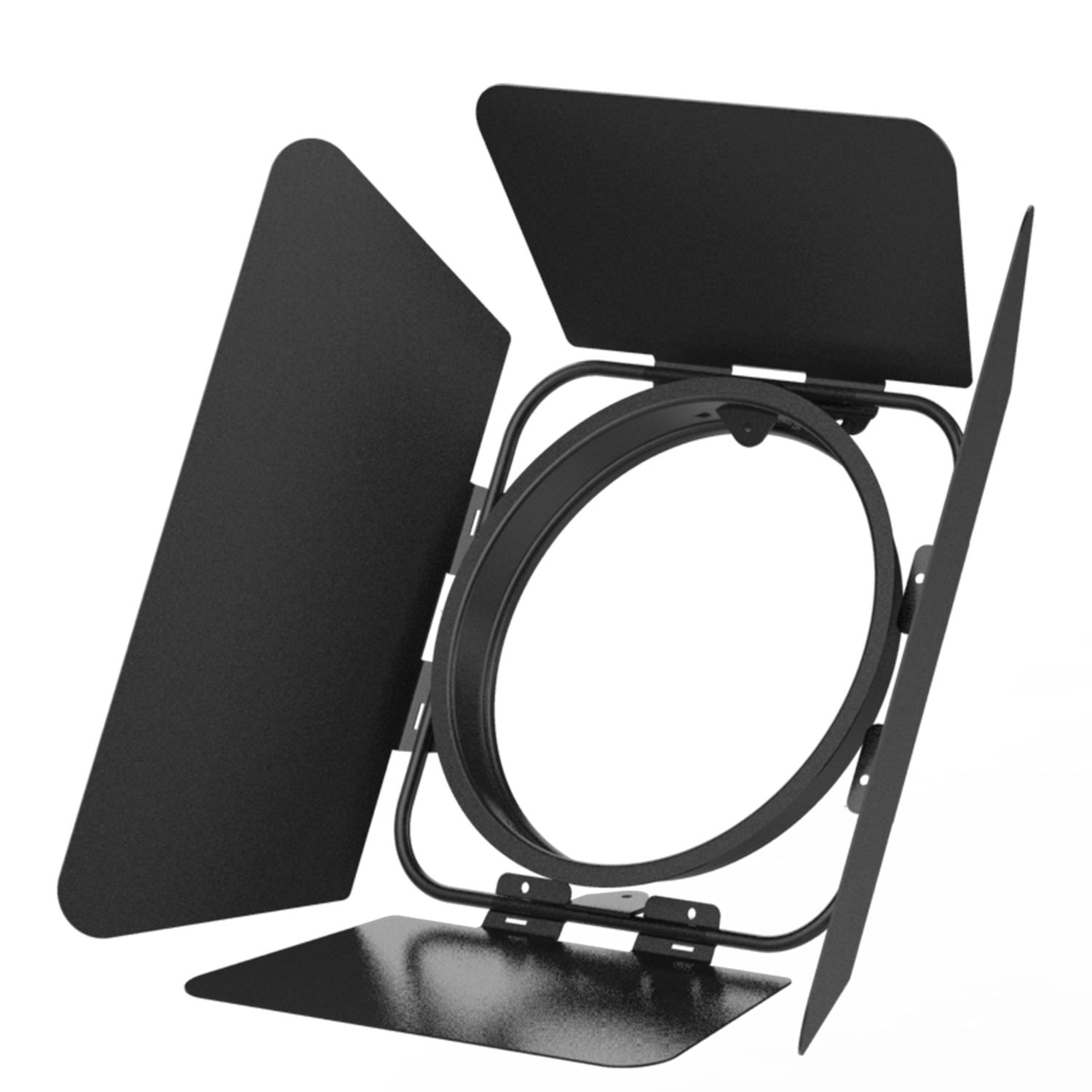

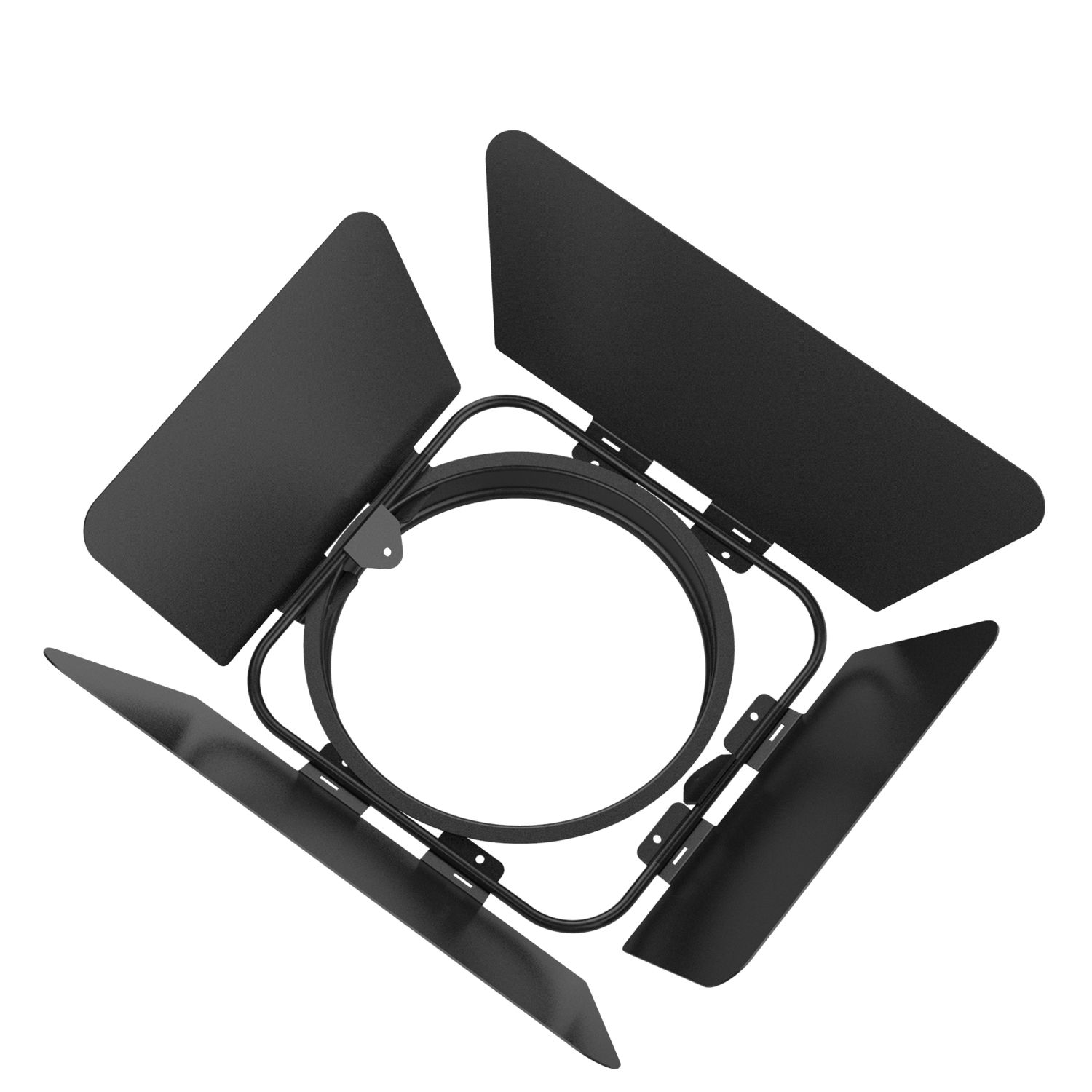

Barn door：63581327
Clamp：2060001614（C-250）
Signal Line：3-pin or 5-pin IP signal line
Safety cable: 2060000200（SW-02）
