Acme SOLAR IMPULSE

1000W | LED | Movinghead | Profile | CMY + CTO | High CRI

Log in of registreer om uw korting te zien.
Of vraag vrijblijvend een offerte aan.

Demo? Bezoek onze showroom of maak een afspraak voor een demo op locatie.

Wij zijn er voor de professional. Totaal leverancier stage & entertainment

Deskundig advies op maat. Wij denken graag met je mee.

Gespecialiseerd in projectie. Voor elke project een oplossing.

Functional Overview

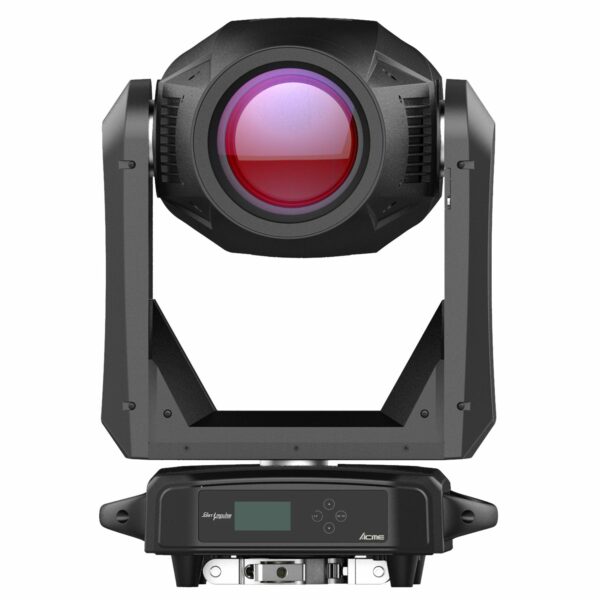

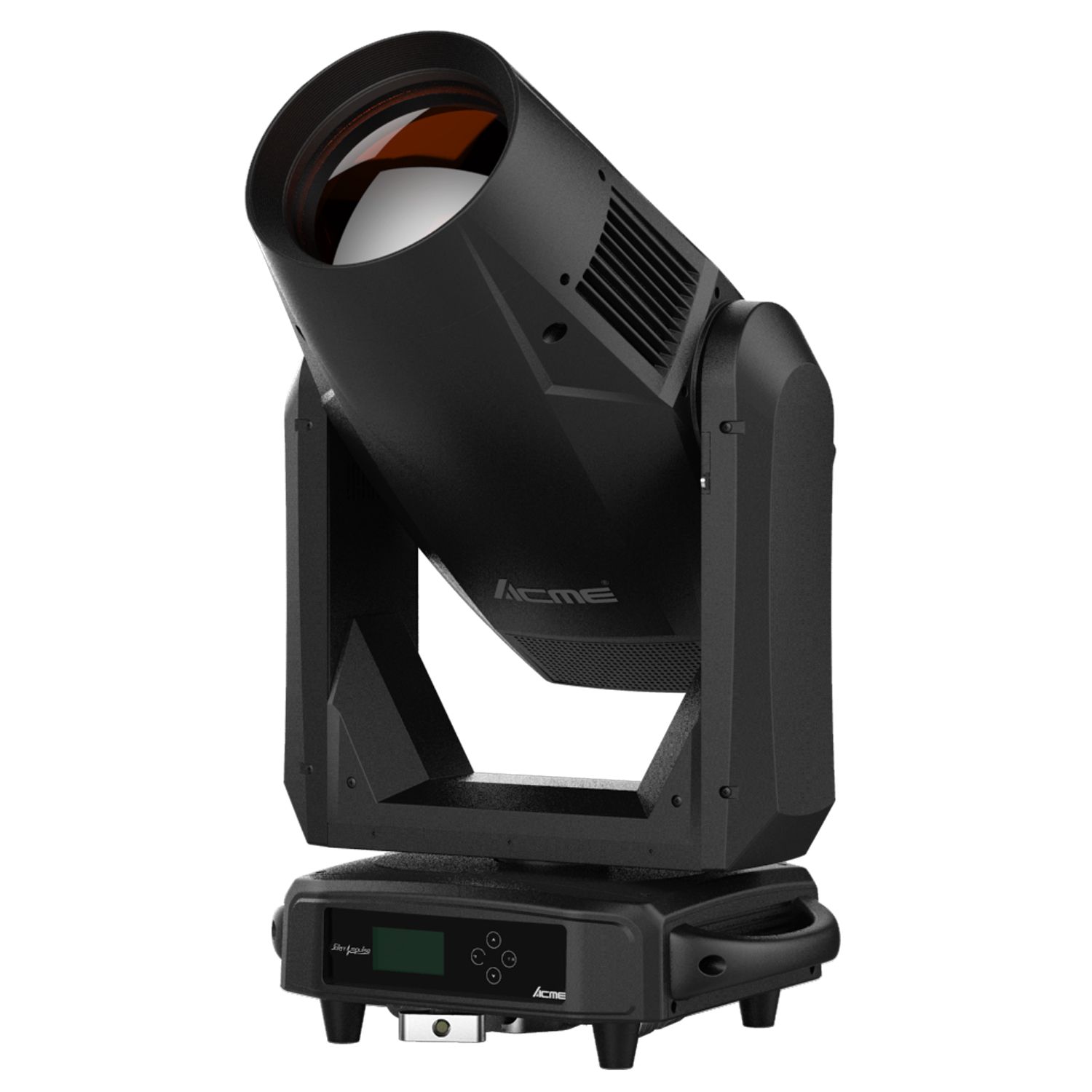

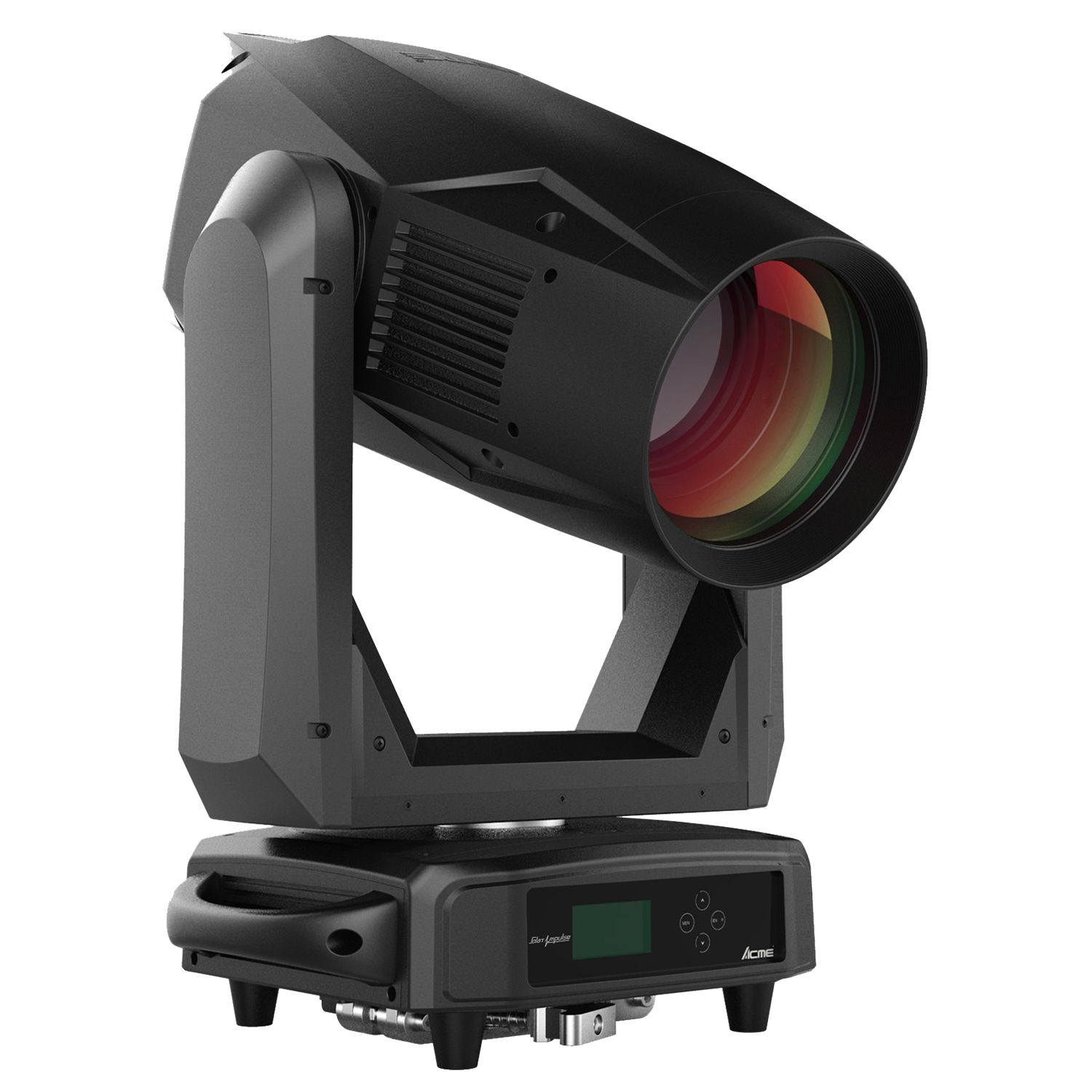

ACME’s milestone product, the SOLAR IMPULSE, with its break-through 1000W white LED technology,produces an output of over 35,000lumens, and is the perfect replacement for all max-strength spotlight fixtures with discharge lamps up to 1400W.
The SOLAR IMPULSE masterfully combines Beam,Spot andWash capability with a 4-blade framing shutter – making four functions in one solidly-build unit. The 5-50˚(1:10 ratio) zoom is smooth and consistent throughout the entire range, with no hitches or pauses. With its CRI 90/70 switch and choice of light or heavy frost filters, it is an attractive option for various applications including video shoots, fashion showsand more.

Features
Diameter of lens: 187mm

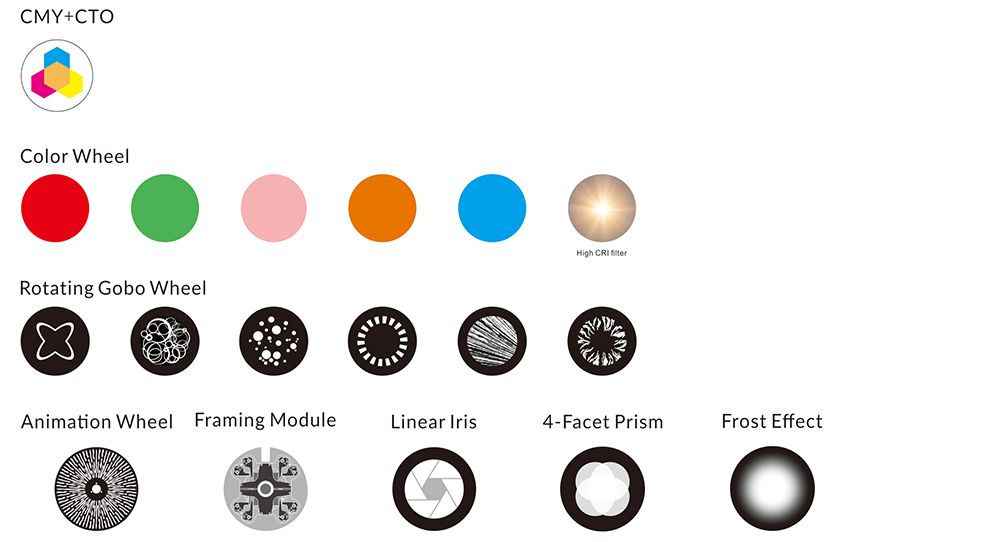

Colour mixing: linear CMY color mixing
Variable CTO: 2700K – 6500K
Color Temperature: 6500K
Switch to high CRI mode with high CRI filter
Framing shutters: 4x framing shutters, each individually controllable; Each shutter blade can block out light completely; framing module can be rotated at ±45°
1x rotating gobo wheel with 6 gobos plus open, convenient replacement
1x Color Wheel with 5 colors plus white
1x animation wheel with water, wave and flame effects; rotatable and replaceable
Prism: 1x 4-facet prism rotatable in either direction
Iris: Motorized, linear
2x new material frost filters(light & medium), can be used independently and overlayed
Motorized zoom and focus
Outstanding strobe effect with variable speed
Random strobe & pulse effects
New heat management which effectively dissipates heat and reduces noise
Dual mode: standard & power saving mode
Flicker-free management
Dust-proof and oil-proof design

Technical & Specification
Model
XA-1200 BSWF

Light Source
Light Source: 1000W LED Engine
LED life expectancy: 20000 hours
CRI:
High output mode Ra>70
High CRI mode Ra>90

Optical System
Advanced optical Systemto ensure clear, sharp image quality
High-efficiency zoom optical System(ratio 1:10)

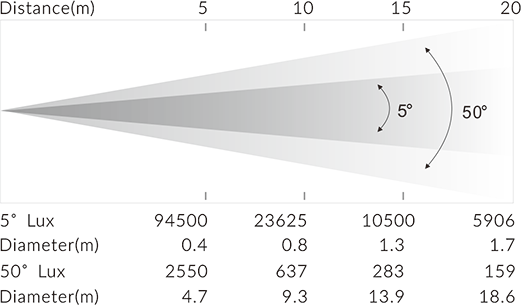

Zoom range: 5-50°
Total lumen output: up to 35,000 lumens

Control& Program
4-button touch panel
Display: LCD display
Battery backup for user setup without mains connection
Protocols: DMX512,Art-Net,RDM,sACN
Wireless is optional
DMX Protocol modes: 2
Controlchannels: 29, 34
Pan/TiltResolution: 16-bit
CMY colour mixing system
Variable CTO
Dimmer: 8-bit or 16-bit
Firmware upgrade via DMX link & USB

PAN & TILT
Pan movement: 540°
Tilt movement: 270°

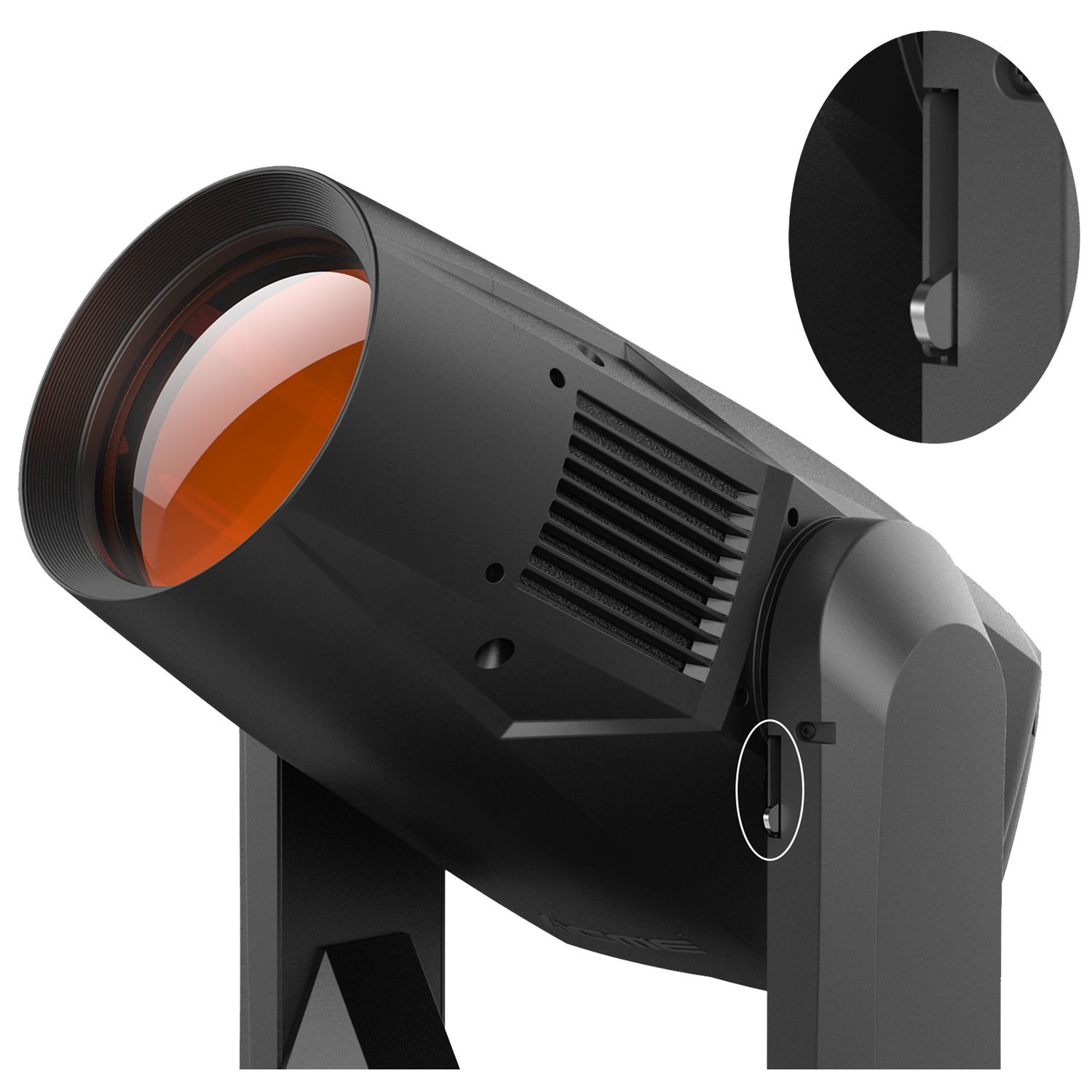

Pan/Tiltlock
Automatic position correction

Rotating Gobos
1x rotating gobo wheel with 6 gobos plus open; easy to replace
Image diameter: 25mm
Outside diameter: 37.3mm
Thickness: 1.1mm
Max. thickness: 4mm
Borofloat (or better) glass materials
‘Slot & Lock’ system for gobo replacement

Static Gobos
1x animation wheel with water, wave and flame effects; rotatable and replaceable

Color Wheel
1x Color Wheel with 5 colors plus white

Framing System
Framing shutters: 4x framing shutters, each individually controllable
Each shutter blade can block out light completely
Framing module can be rotated at ±45°
Movement is fast, smooth and precise, with adjustable speed

Electrical & Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240V, 50/60Hz
Power consumption: 1370W

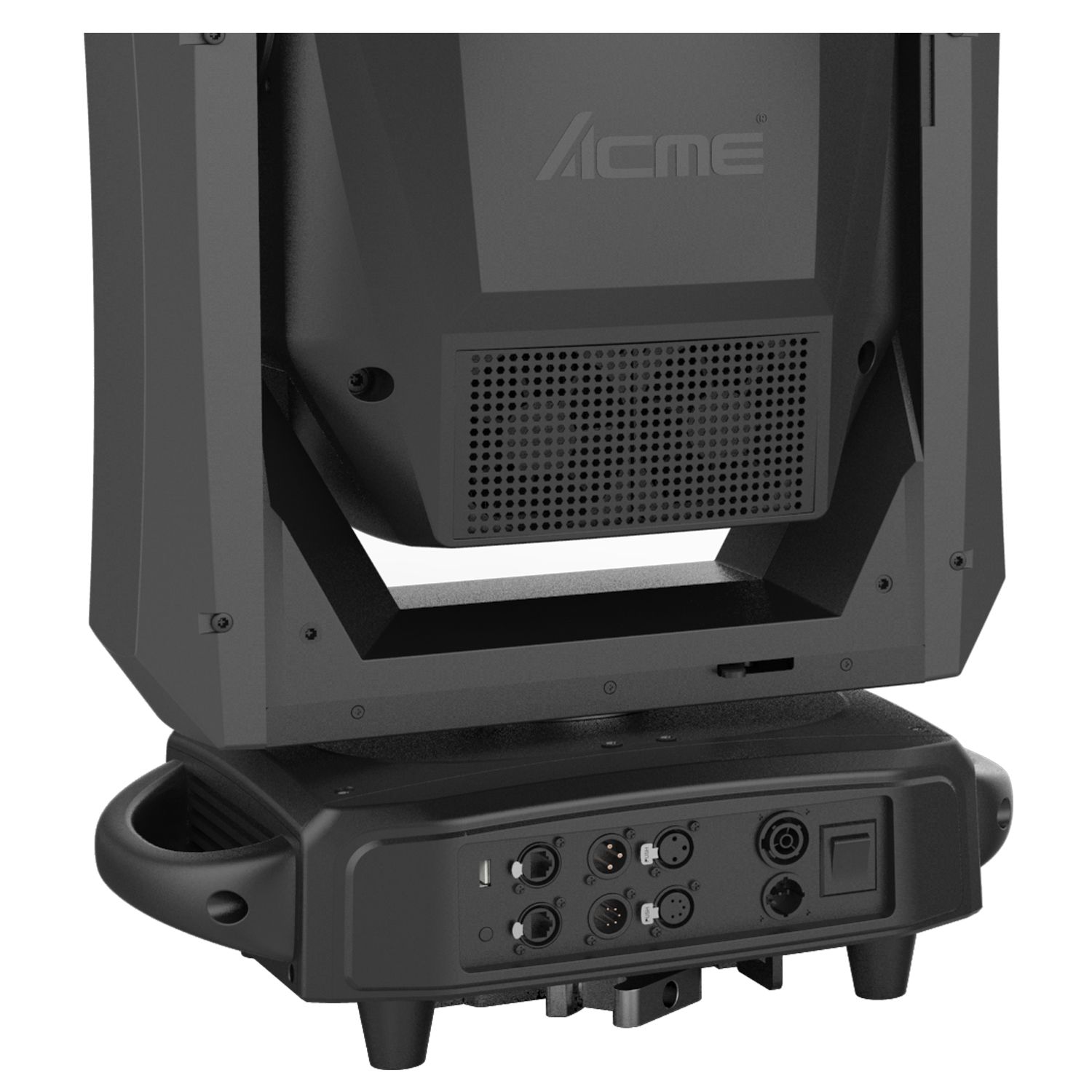

Power Connector in/out
Data in/out: 3-pin and 5-pin XLR

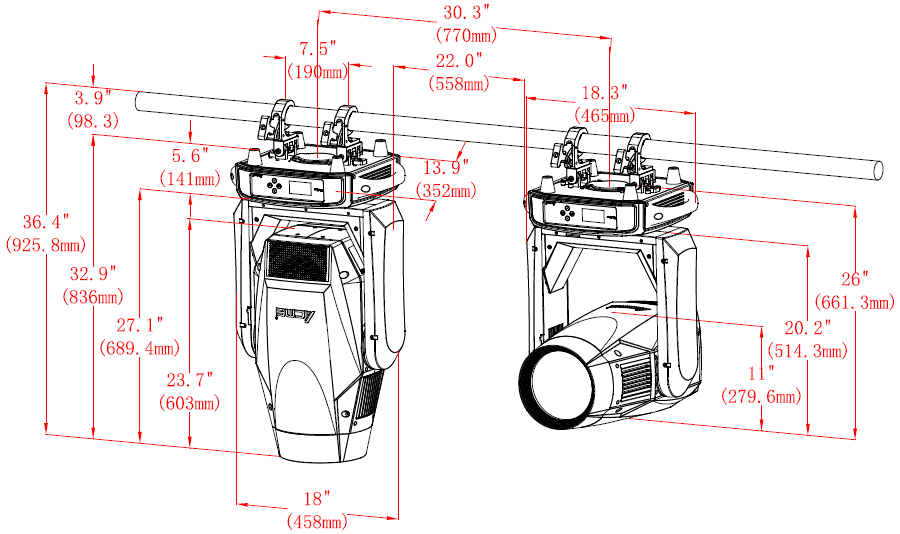

Fixture Specification
Height: 836mm (32.9”)
Width: 465mm (18.3”)
Depth: 352mm (13.8”)
Weight: 44.9kg (98.9lb)

Work Environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C

Approvals
CE compliant
cETLus compliant

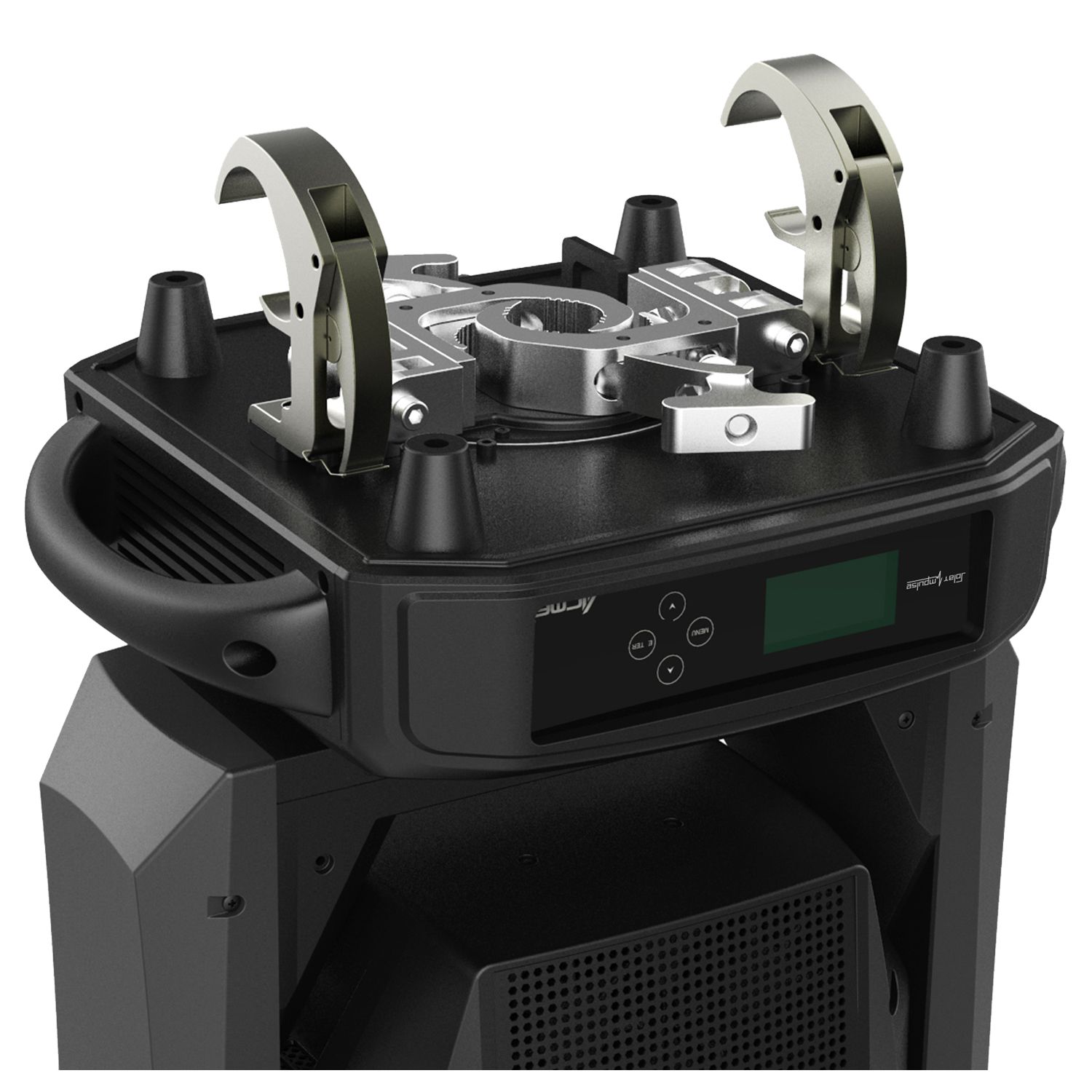

Installation
Horizontal or vertical mounting
Operating position is universal
2 pairs of 1/4-turn locking points under the base

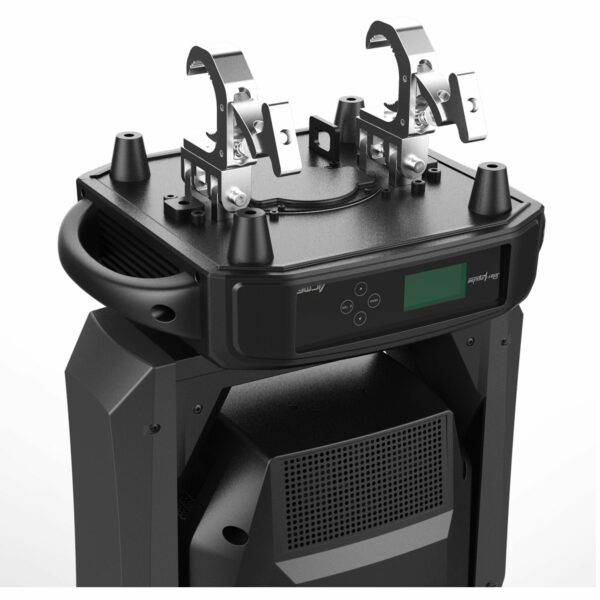

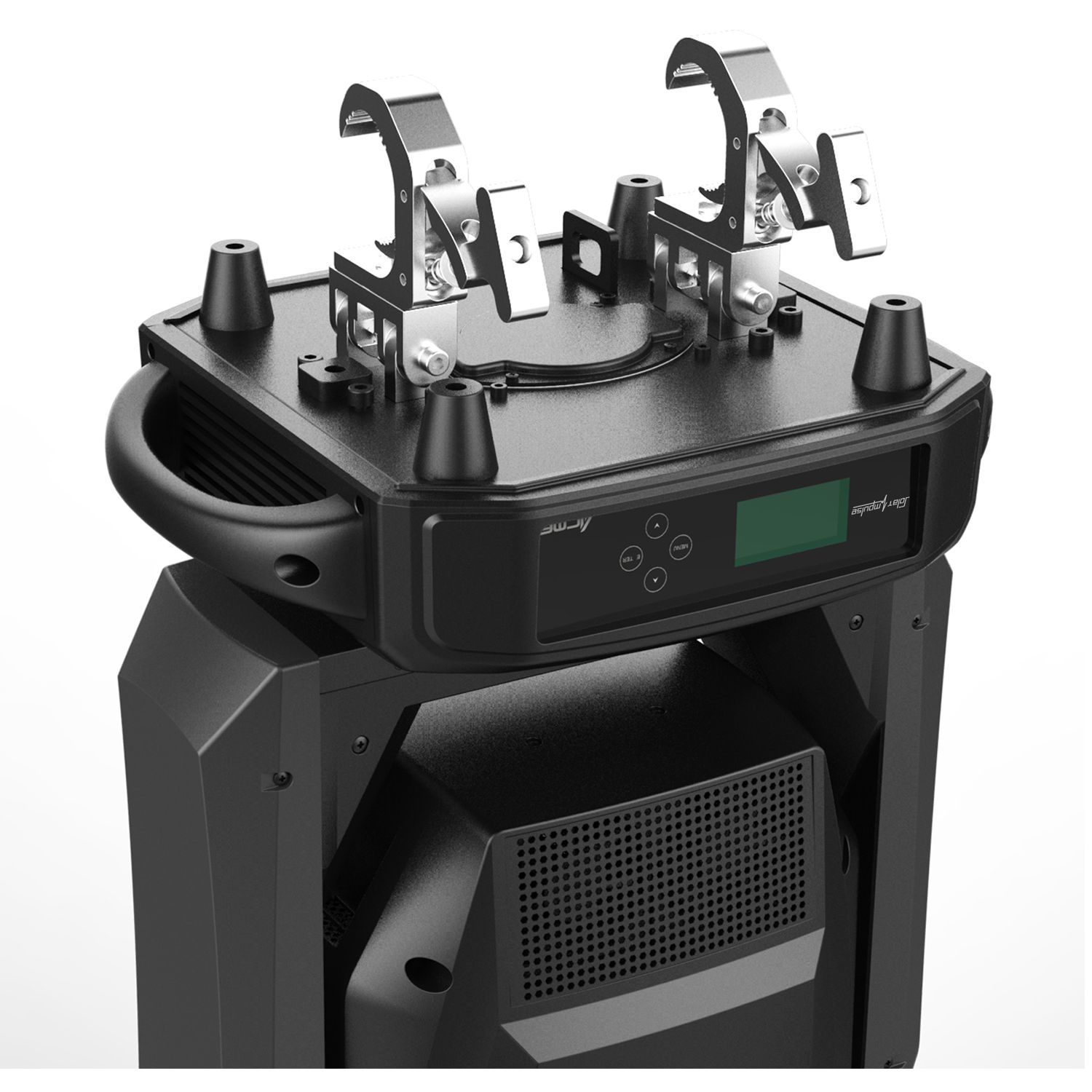

2x fixed clamps with 1/4-turn locks for 50mm truss
2 pairs of M12 1/4-turn locking points for removable clamps for 70mm truss
Safety cable attachment point
Pan/Tiltlock

Included Items
User Manual
Power Cable
2x fixed clamps with 1/4-turn locks for 50mm truss

Optional Accessories (with item code)
Raincover: 3033001750
Flight case: 3205001248 (1 in 1)
Safety cable: 2060001603-A (SW-05)

Vermogen

IP-Rating

Indoor

Type lichtbron

LED

Eigenschappen

, , , ,

Vermogen Lichtbron

1000

Kleurmenging

CMY, CMY+CTO

Type Fixture

Profile

Functies

Animatiewiel, Framing, Frost, Iris

Min zoom

5

Max zoom

50
