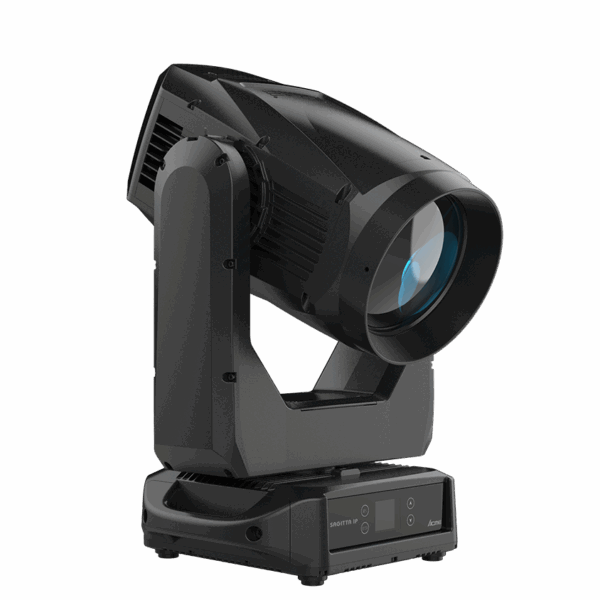

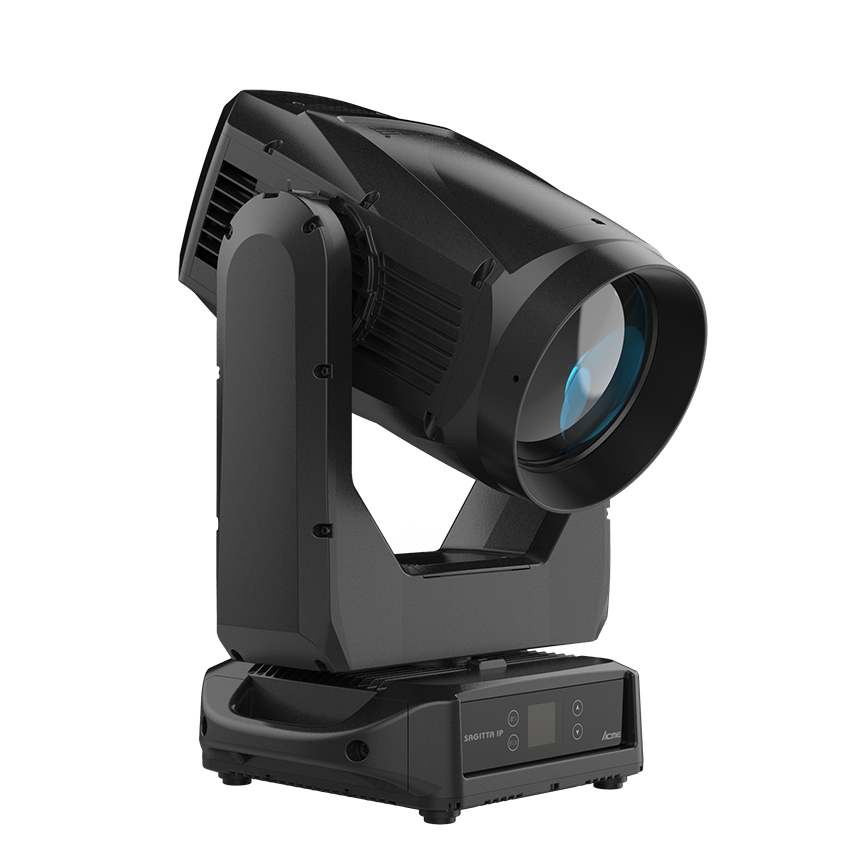

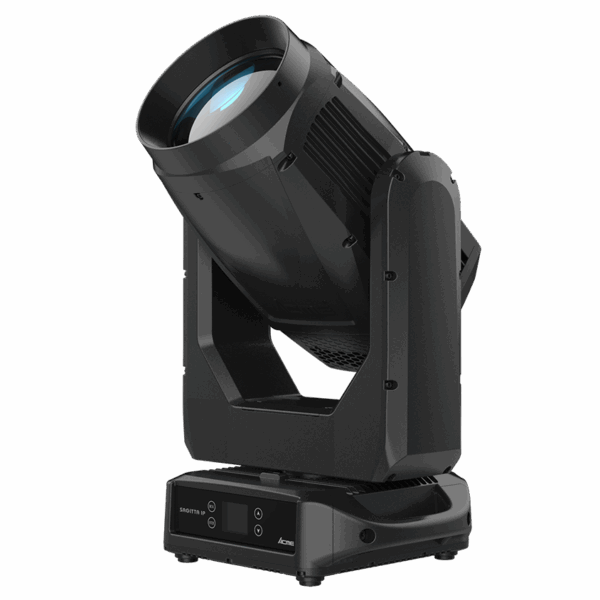

The ACME SAGITTA IP utilizes a PHILIPS MSD Platinum 18R LL discharge lamp (up to 6,000-hour long life expectancy), which produces brilliant 9,900 lumens of output at a color temperature of 7,800K.
As a high-performance fixture, the SAGITTA IP features a sharp 2° beam angle distributed from a large 170 mm frontal lens, creating precise and intense beam effects. Its fast 540° pan and 270° tilt add dynamism to any show.
The fixture has 14 colors, 10 static gobos, 3 effect gobos, 2 combinable rotating and indexable prisms, and 2 diffuser filters, providing unparalleled flexibility for lighting designers.
Combining beam, spot, color and frost effect in one compact luminaire, the SAGITTA IP is perfect for small to medium-sized events such as stages and fashion shows, making it a standout choice for lighting designers!
Technical & Specification
Model
- Model Name: SAGITTA IP
- Model Code: XP 400 BEAM IP
Light Source
- Light Source : PHILIPS MSD Platinum 18R LL
- Total Lumen Output of Fixture: 9,900 lumens
- Color Temperature Output of Fixture: 7,800K
- Life Expectancy: 6,000 hours*
*Source manufacturer specification

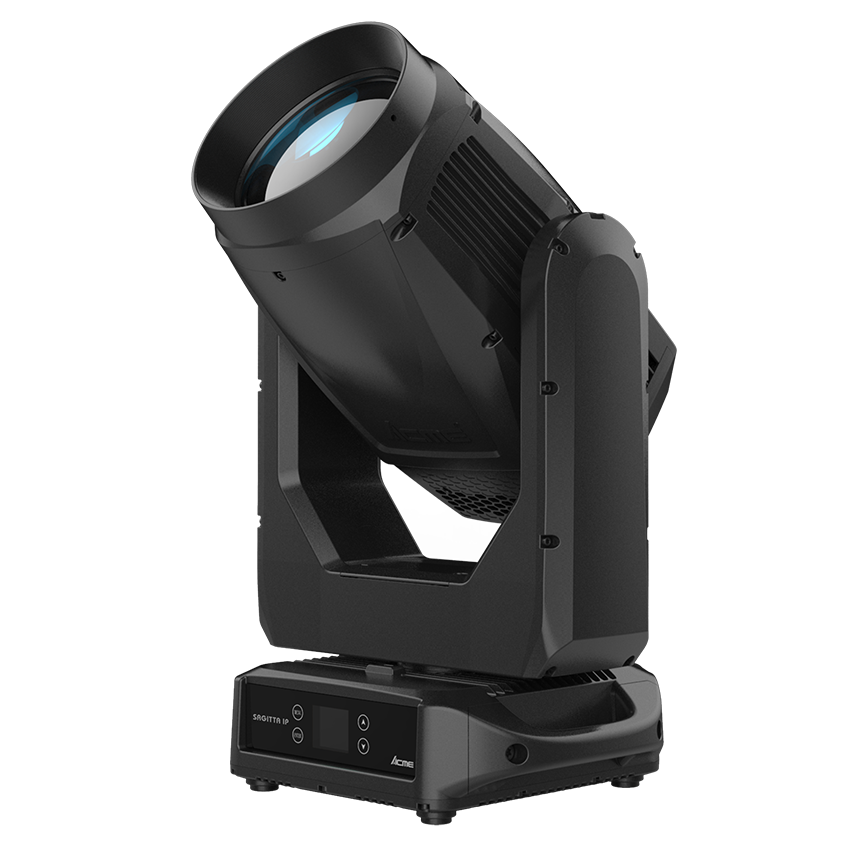

Optical System

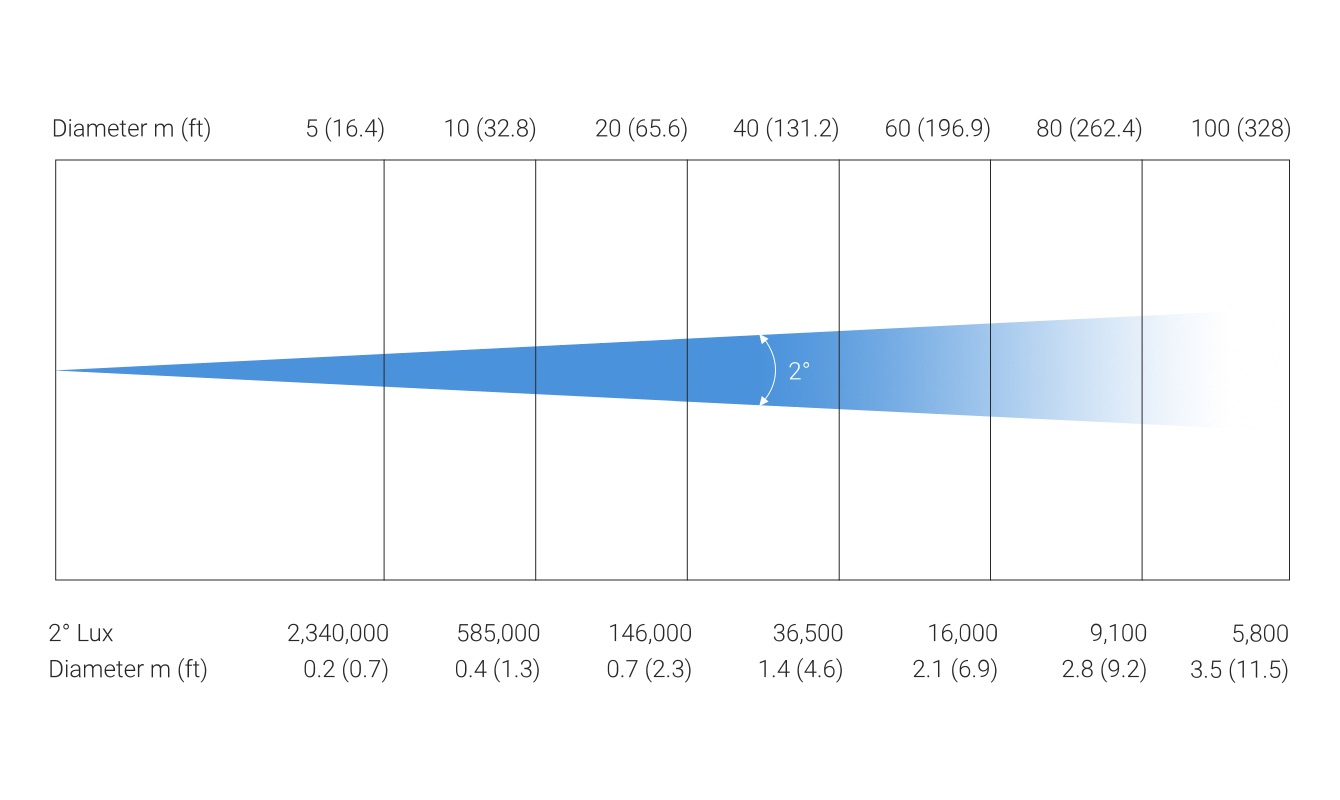

- Beam Angle : 2°
- Diameter of Frontal Lens: 170 mm

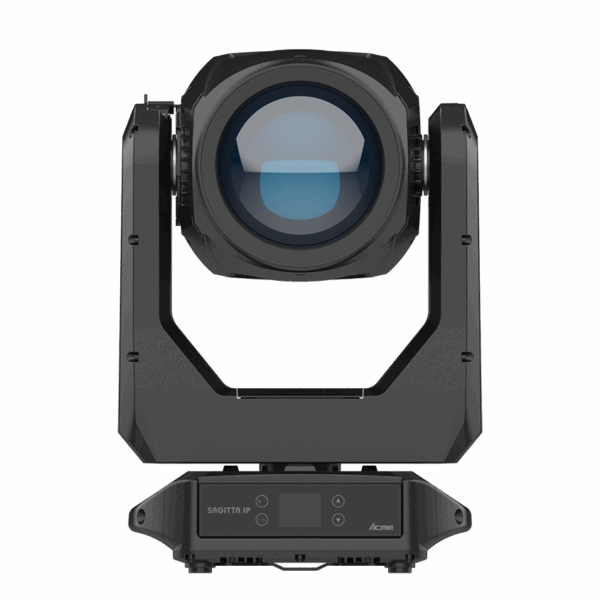

Control
- 4 touch button control panel
- Display: LCD display
- Protocols: DMX512,RDM,Art-Net,sACN
- DMX Protocol Modes: 2
- Control Channels: 19/20
- Firmware Upgrade: Upgrade via DMX link or USB stick
Pan & Tilt
- Pan Movement: 540°
- Tilt Movement: 270°
- Automatic Pan/Tilt position correction
- Resolution: 16 bit
Colors
- Linear CTO Color Correction: 2,800K-7,000K
- 1 Color Wheel: 14 colors, plus open
Static Gobos
- 1 Static Gobo Wheel:
-
- 10 gobos and 3 effect gobos, plus open
- Gobo: Ф110 mm
FX Wheel
- 1 FX Wheel:
-
- 3 effect gobos, plus open, overlapping with static gobo wheel
- Provide two softening effects
- Gobo: Ф110 mm
Prism
- 2 Combinable Rotating and Indexable Prisms: 1 x 8-facet circular prism, 1 x 24-facet linear prism, rotatable in both directions
Frost Filter
- 1 frost filter
Diffuser Filter
- 2 diffuser filters
Other Effects
- Outstanding strobe effect with variable speed
- Smooth dimming 0-100% (4 user selectable dimming curves)
- Motorized focus system

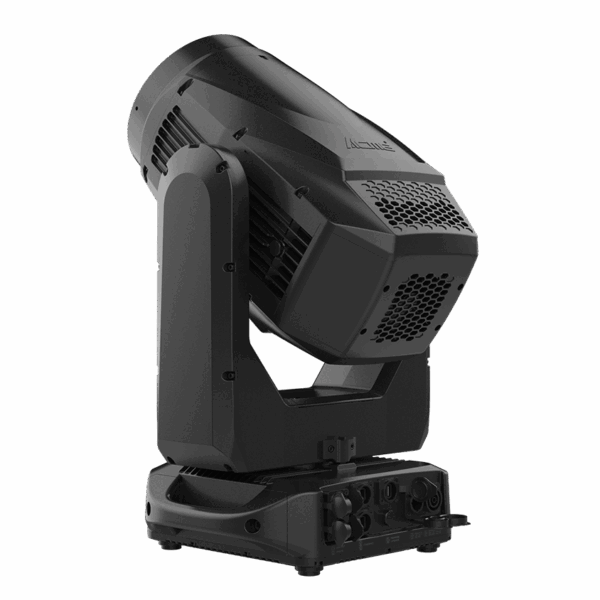

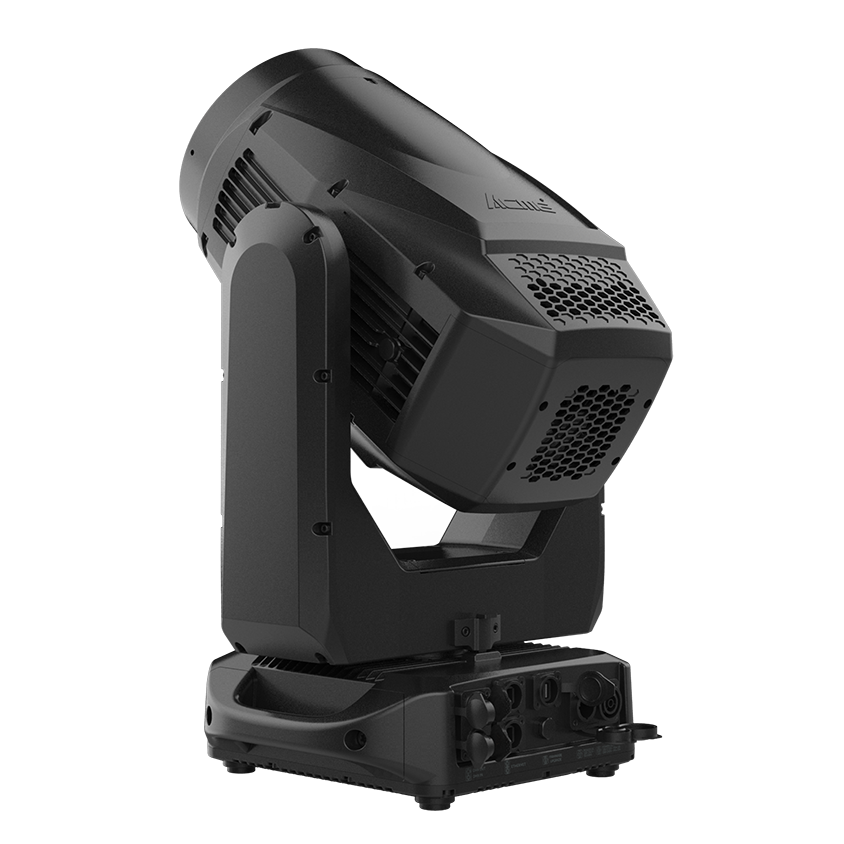

Electrical and Connectors
- Input Voltage Range: 100-240Vac; 50/60Hz
- Power Consumption: 570W
- Power In/Out: Waterproof power connector in/out
- Data In/Out: 3-pin or 5-pin waterproof XLR,RJ45 connector

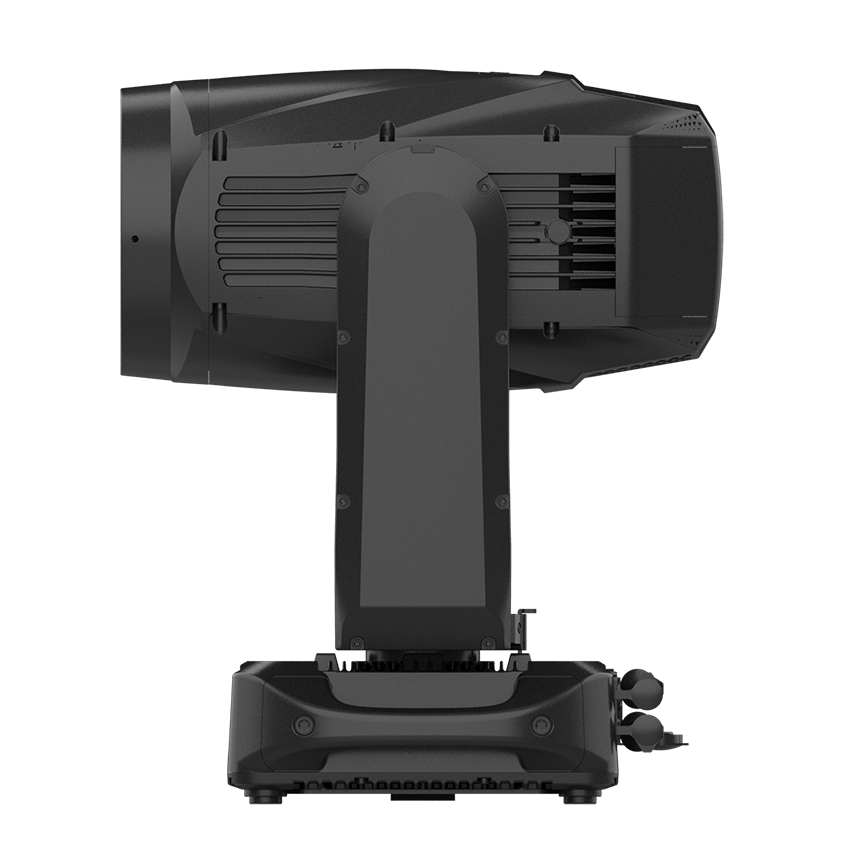

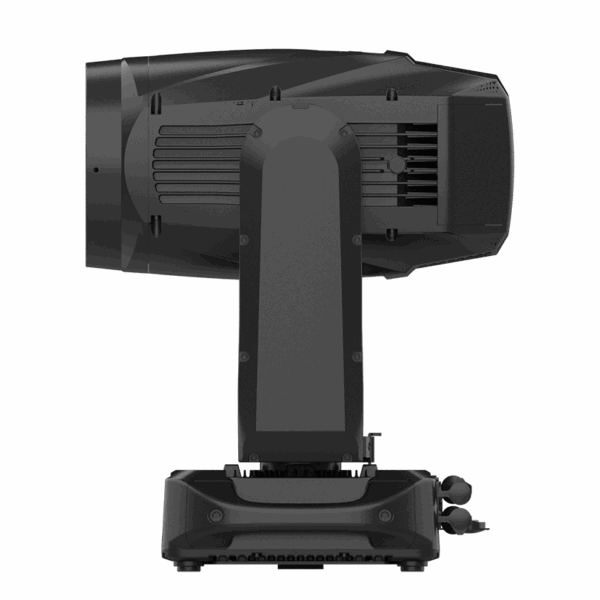

Physical Information

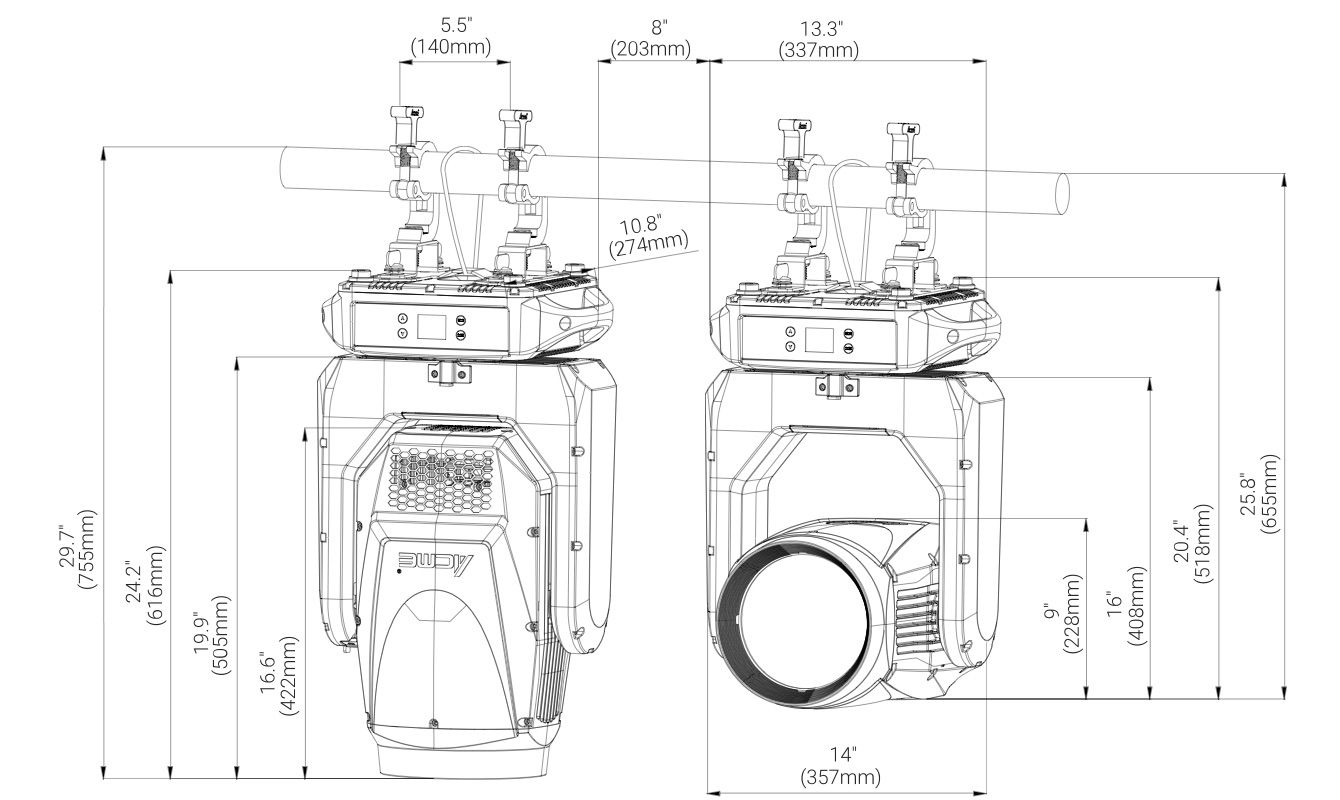

- Fixture Dimensions:
-
- Width: 357 mm (14.1″)
- Depth: 274 mm (10.8″)
- Height: 616 mm (24.3″)
- Weight: 23.5 kg (51.8 lbs)
Packing Information
- Flight Case Dimensions:
-
- Width : 930 mm (36.6″)
- Depth : 580 mm (22.8″)
- Height : 875 mm (34.5″)
- Weight :
-
- Standard: G.W.: 105 kg (231.5 lbs) (two-pack loader case)
- Carton Dimensions:
-
- Width : 550 mm (21.7″)
- Depth : 475 mm (18.7″)
- Height : 645 mm (25.4″)
- Weight :
G.W.: 30 kg (66.1 lbs) (one-pack loader carton)
Work Environment
- Maximum Ambient Temperature: 40°C
- Minimum Operating Temperature: -10°C
- Maximum Surface Temperature: 85°C
- Protection Rating: IP66
Approvals
- CE compliant
- UKCA compliant
Installation
- Horizontal or vertical mounting
- Universal working position

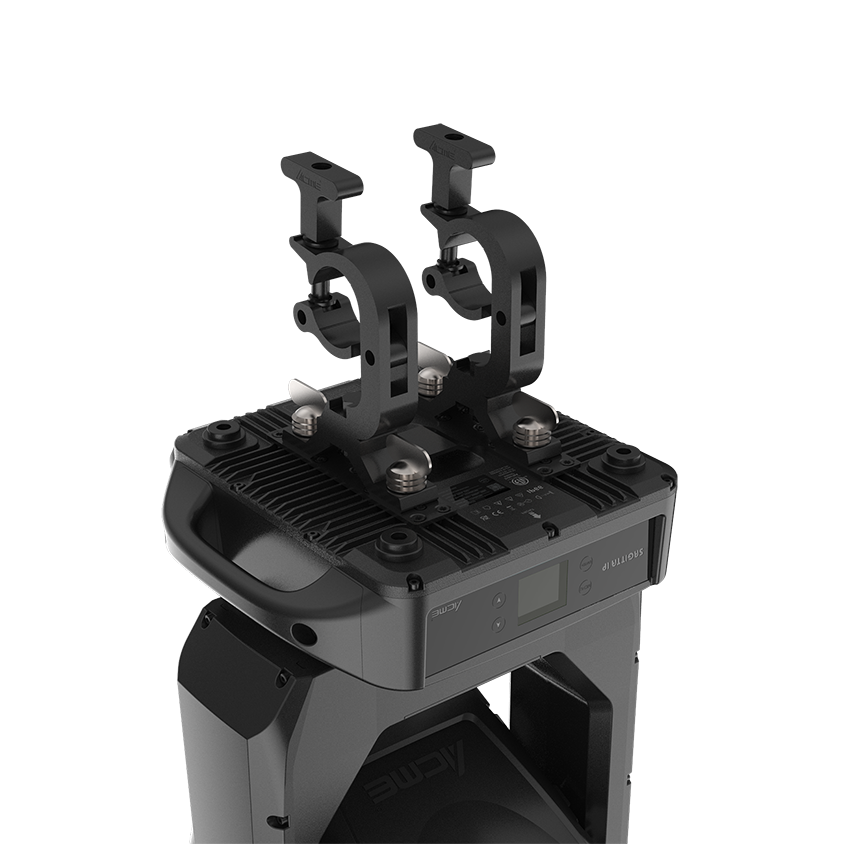

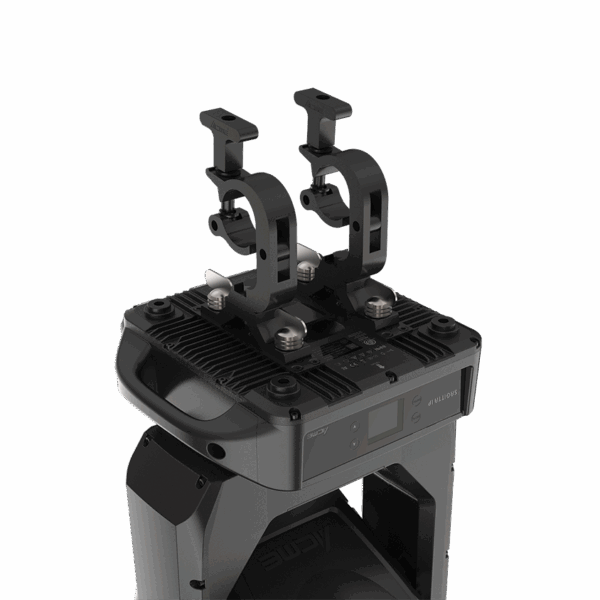

- 2 omega brackets
- Safety cable attachment point
Included Items
- Digital user manual
- Power cable
- 2 omega brackets (3002003003)
Optional Accessories (With Order Code)
- Flight Case:
-
- Standard : Two-pack loader case (63583707)
- Clamp : C-250B (2060001632-B)
- Safety Cable: SW-02 (2060000200-B)
- Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)
