Functional Overview

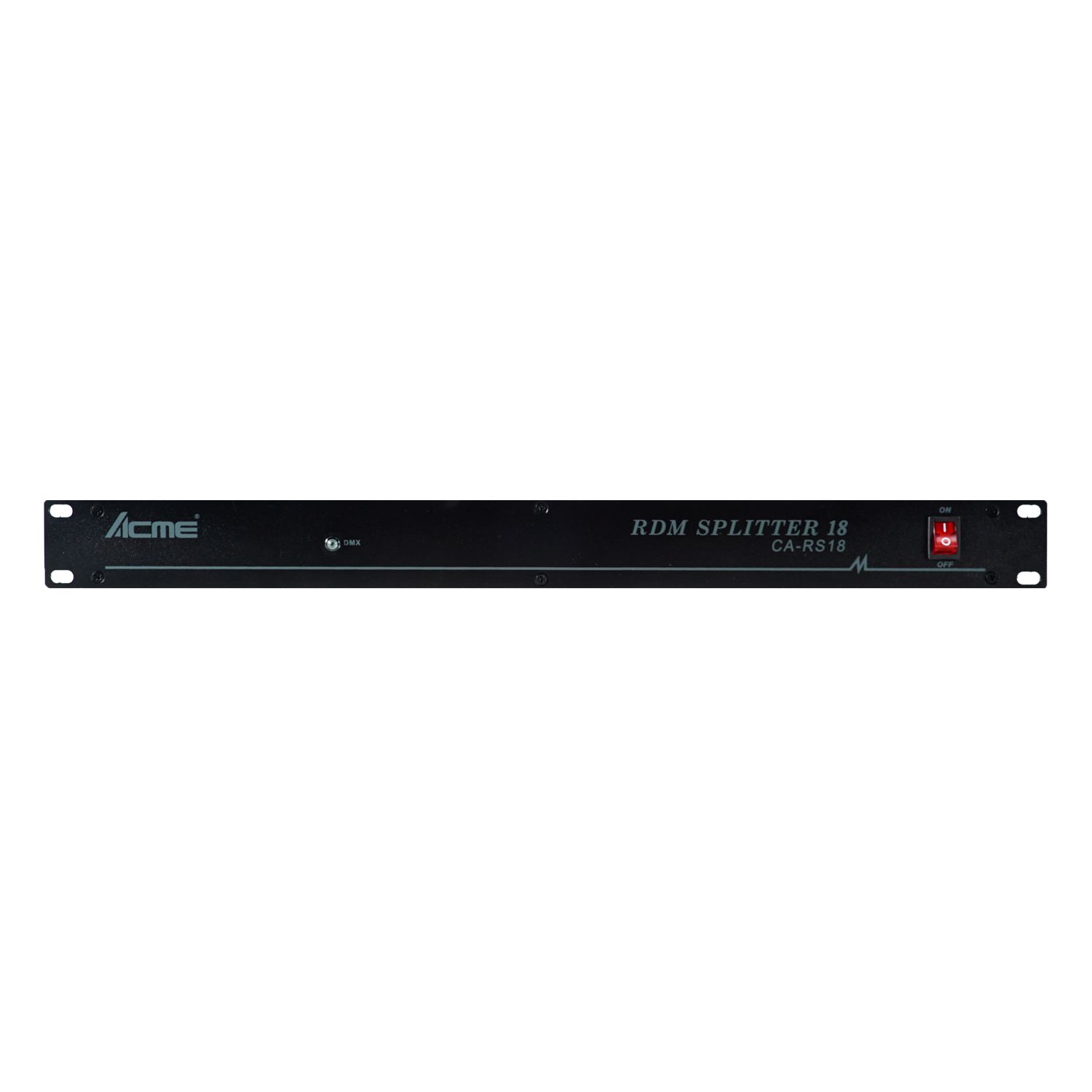

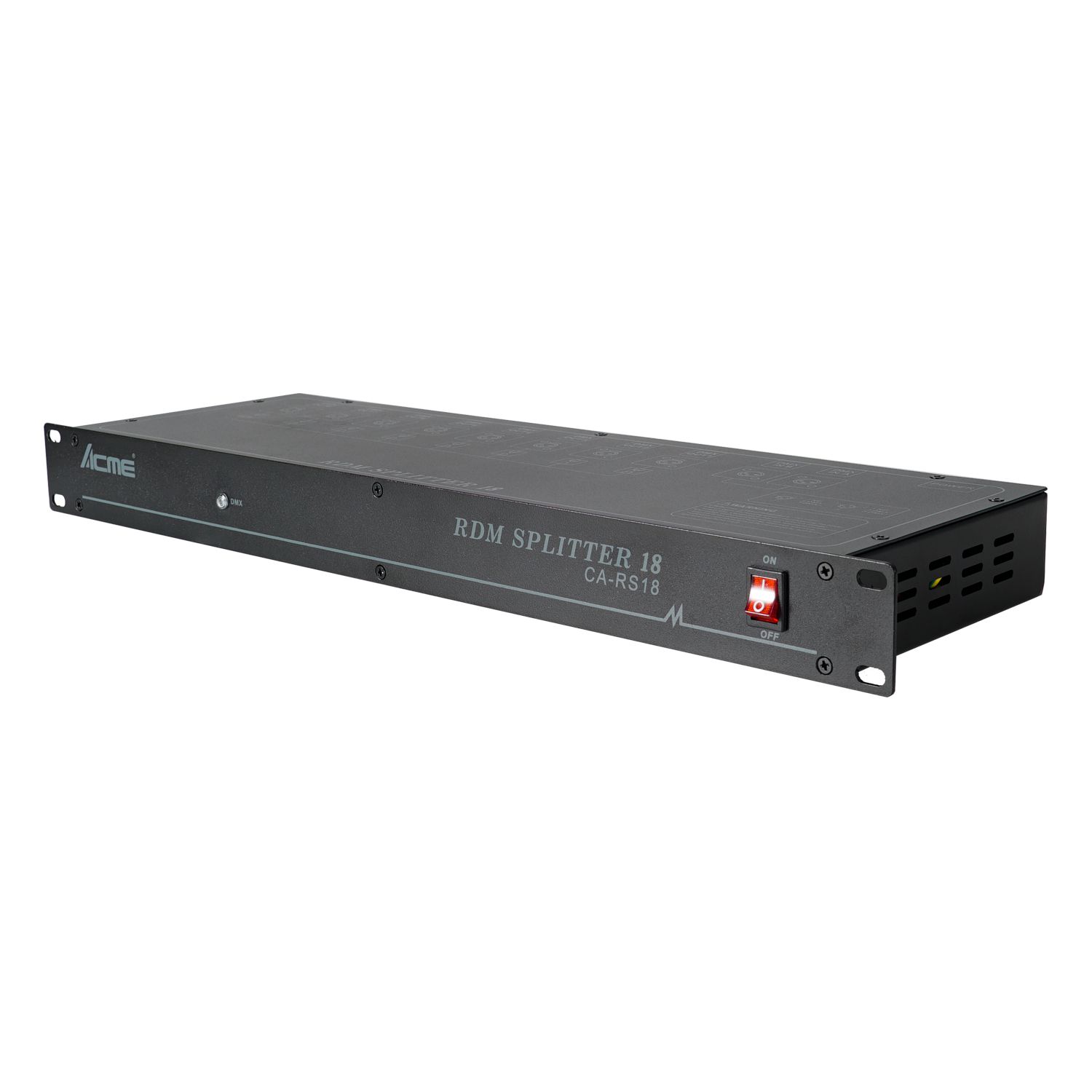

The RDM SPLITTER 18 from ACME is an RDM/DMX splitter/booster dedicated to RDM/DMX signal amplification. It has one input and 8 outputs, all electronically isolated. It receives standard DMX512/RDM Controlsignals and will efficiently buffer/boost/split the signal.
Features

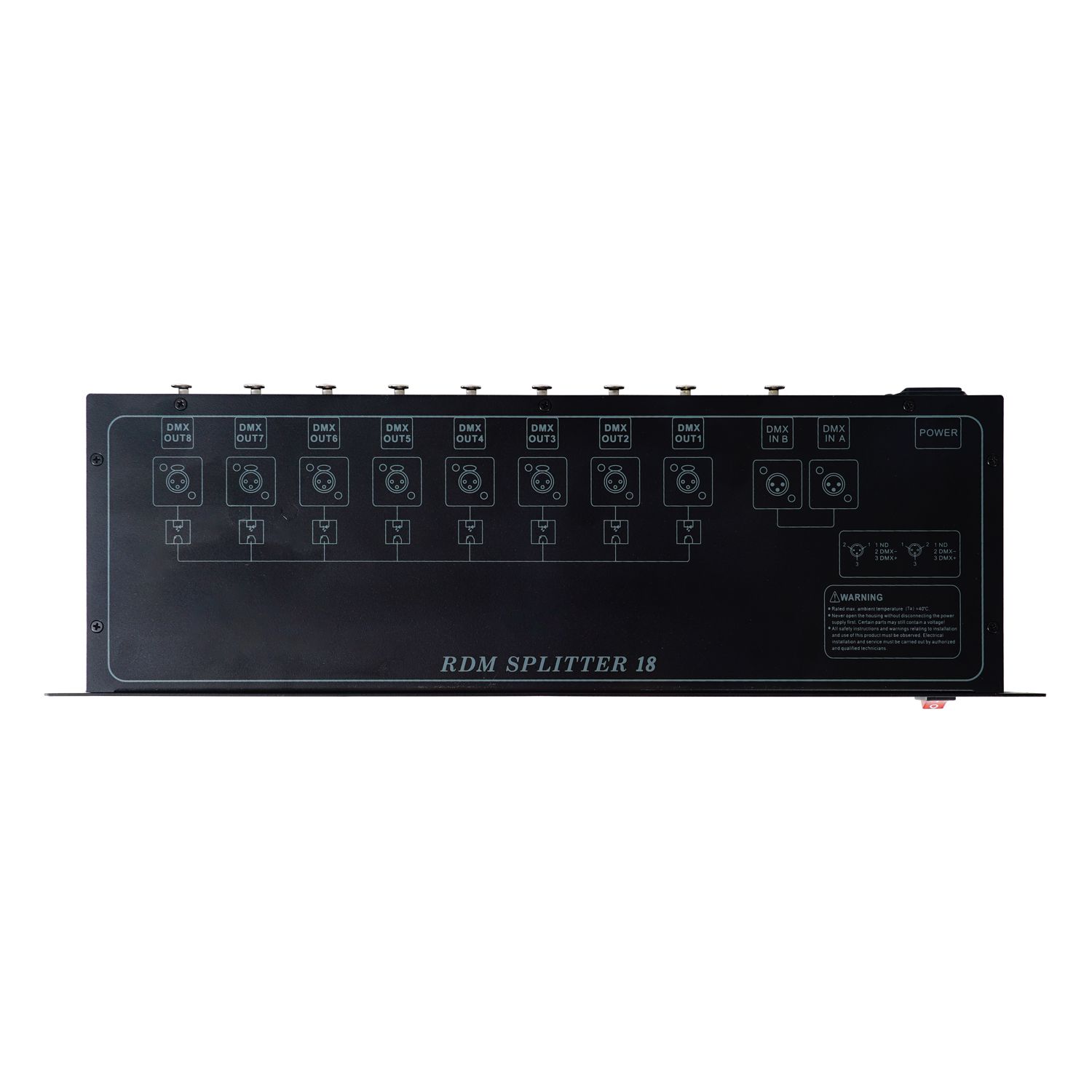

1x signal input, 1x signal output, 8 x signal distribution output with independent electrical isolation

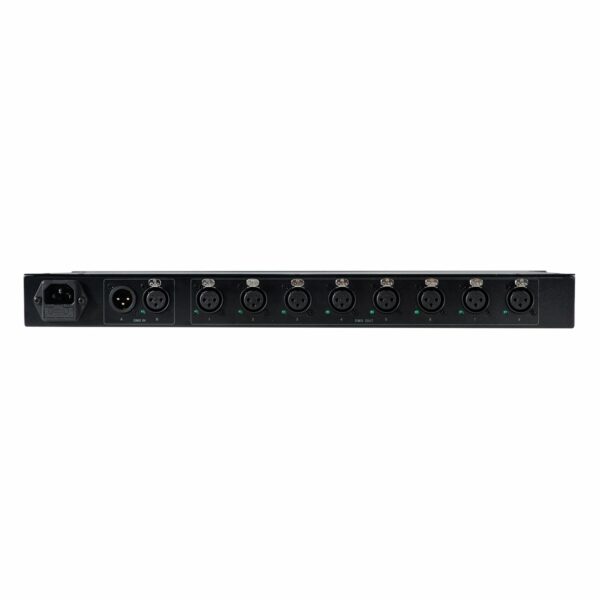

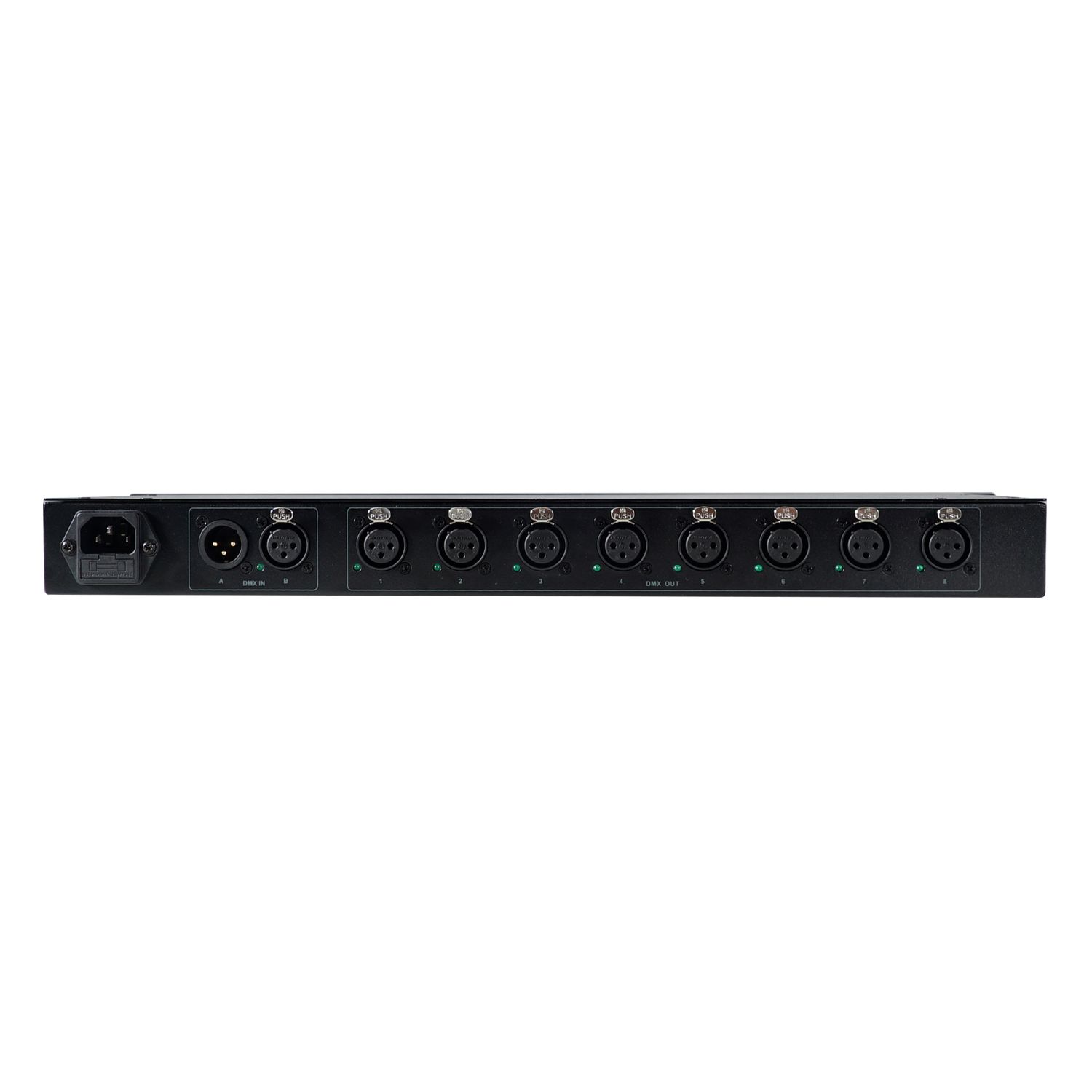

3-pin or 5-pin XLR input and passive loop-through
Outputs isolated over 2000V
Technical & Specification
Model
CA-RS18
Electrical and Physical
Power Voltage: AC 100-240V, 50/60Hz
Power consumption: 5W
Dimension: 482 x 155 x 44mm (19:x6.1”x1.7”)
Weight: 2.2kg (4.9lbs)
