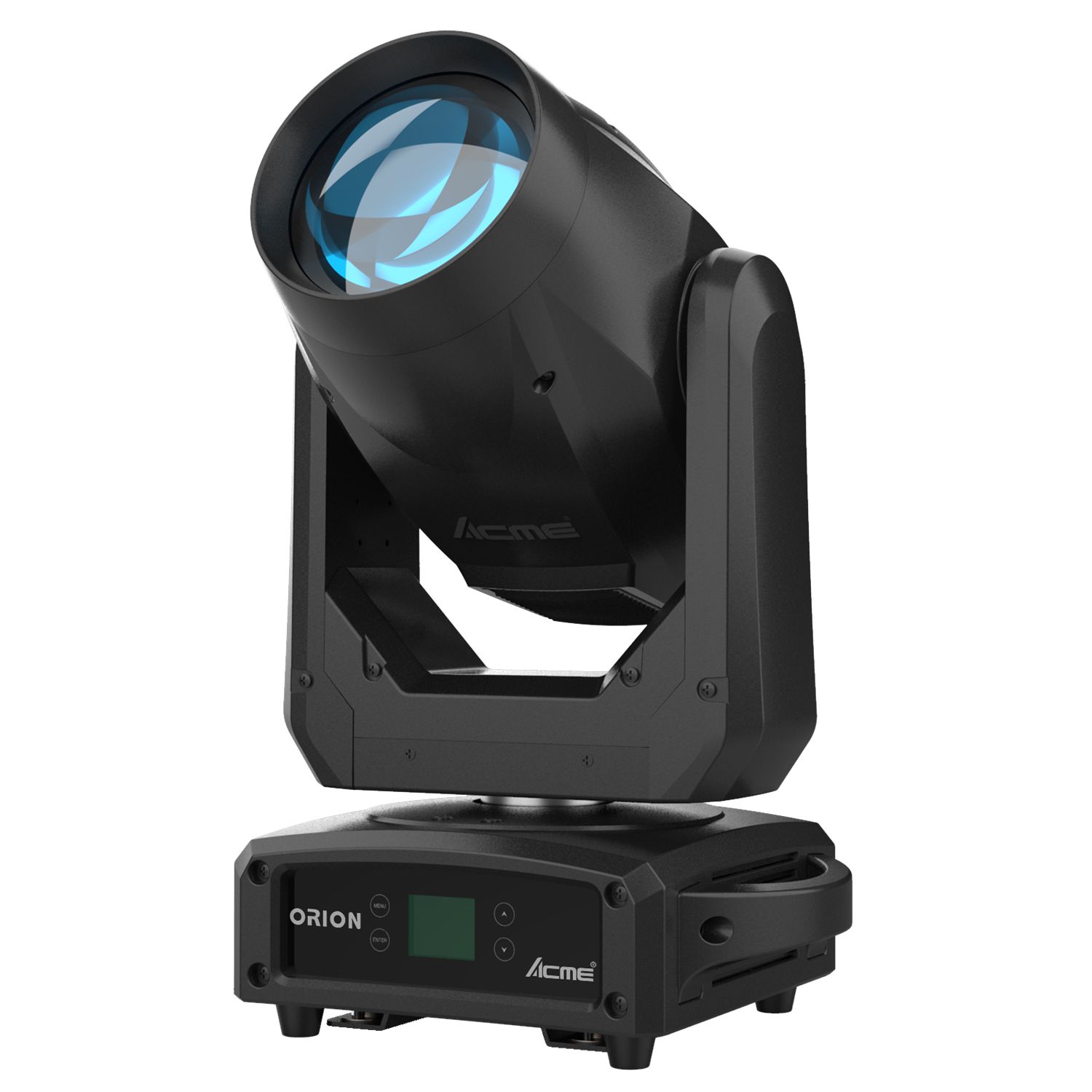

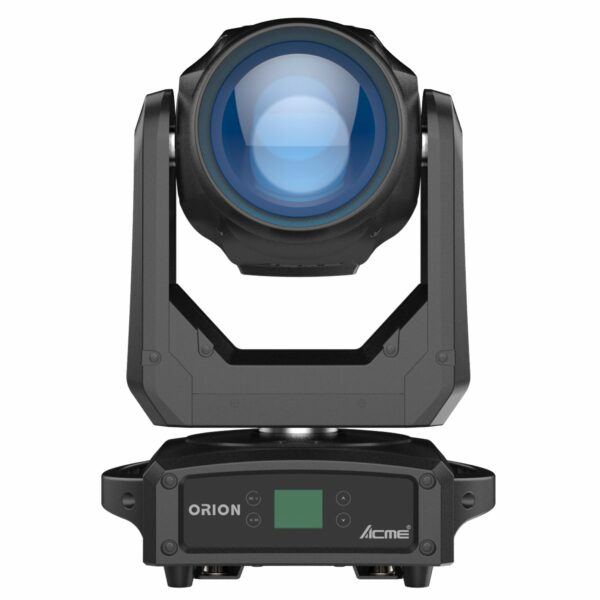

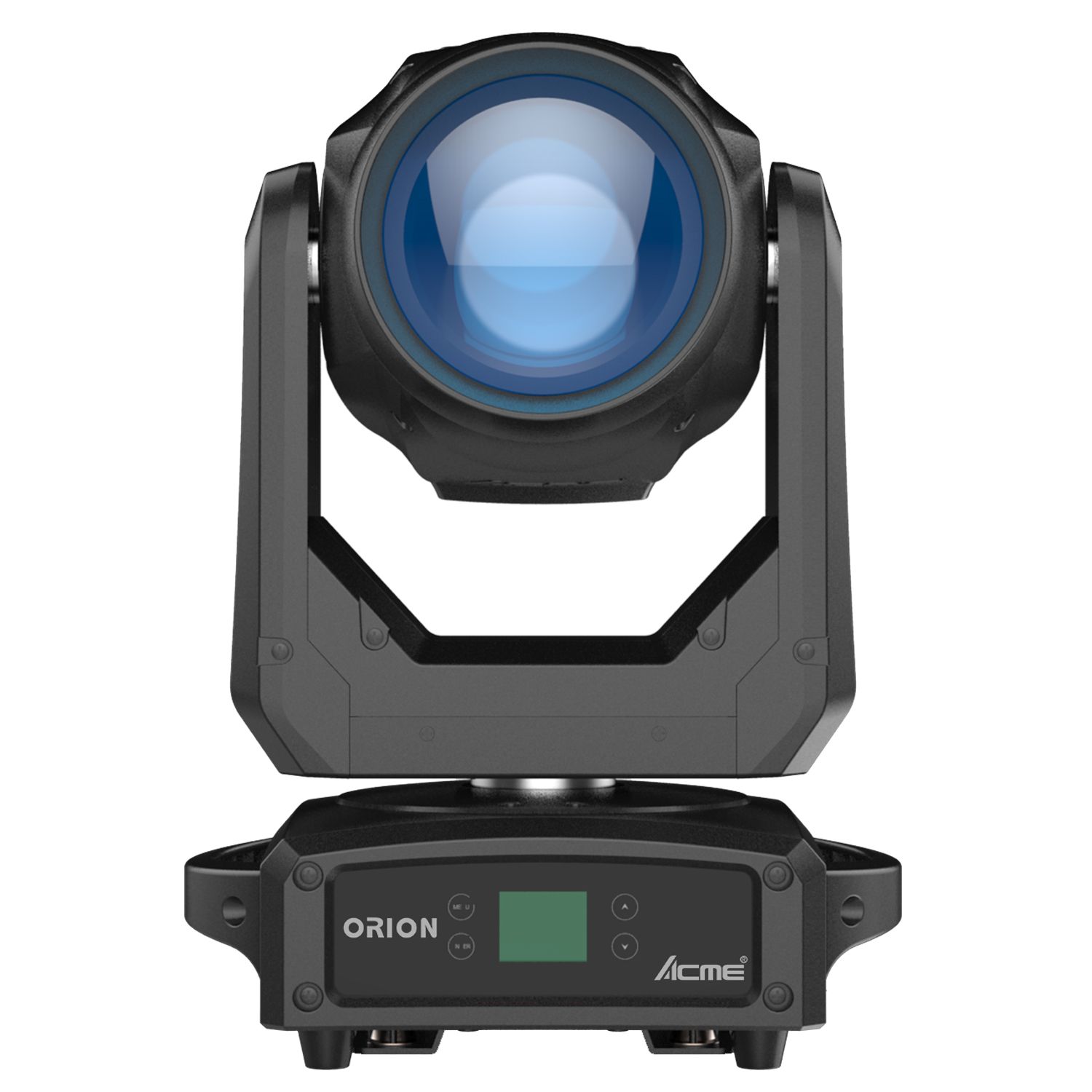

Acme ORION

260W | Gasontlading | Movinghead | Beam

Log in of registreer om uw korting te zien.
Of vraag vrijblijvend een offerte aan.

Demo? Bezoek onze showroom of maak een afspraak voor een demo op locatie.

Wij zijn er voor de professional. Totaal leverancier stage & entertainment

Deskundig advies op maat. Wij denken graag met je mee.

Gespecialiseerd in projectie. Voor elke project een oplossing.

Functional Overview

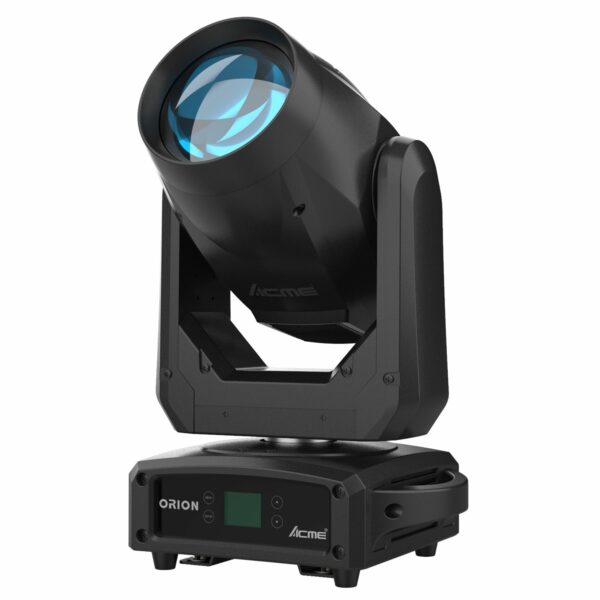

ACME is fully committed to long-life lamp technology. The latest break-through long-life solution from Philips (the MSD PLATINUM 12R LL 260W discharge lamp) enables the newest member of ACME’s Long-Life product family.
ORION, with extended 6,000-hour life span, produces a straight, sharp 2˚ beam in any application, making it a cost-saving investment.

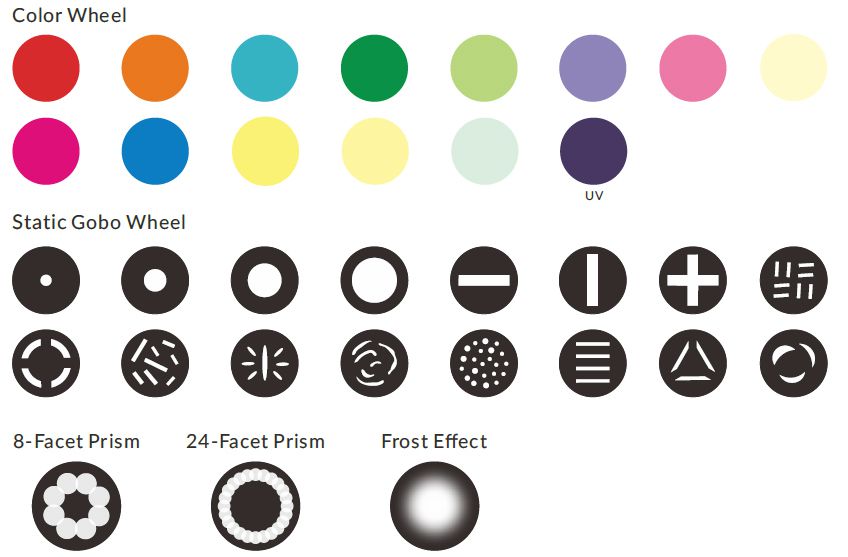

Digital position correction technology offers fast and smooth movement. A wide range of mid-air effects is achievable via static gobo wheel (16 gobos) and Color Wheel (14 colors) in conjunction with two rotating 8- or 24-facet prisms.
The fixture’s compact housing makes it suitable for multiple applications, including events, Installations, TV shows and rental.

Features

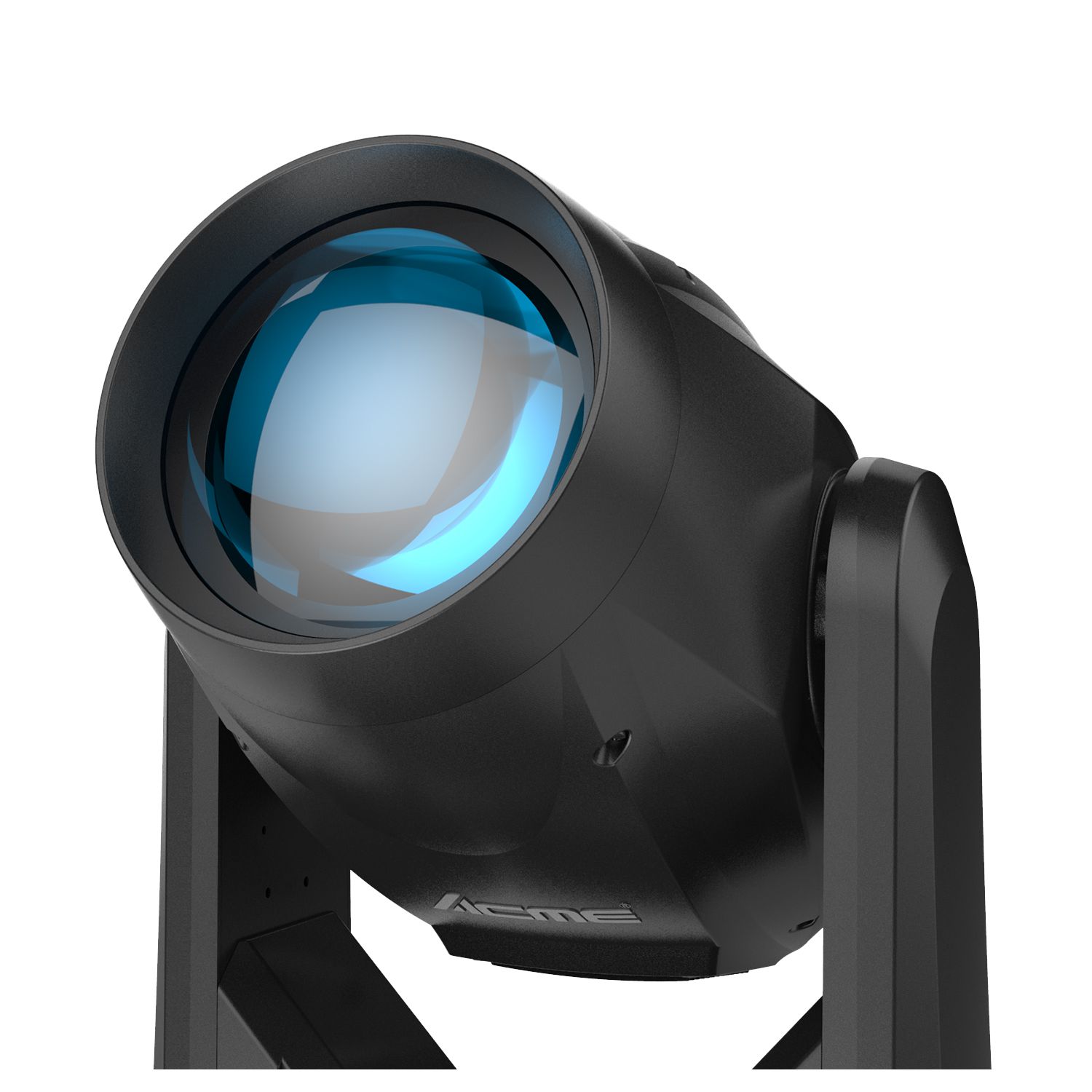

Diameter of lens: 143mm
Long-lifedesign: 6,000 hour lamp life, withsleep mode&instant wake-up
Color temperature: 8000K
Macro effect and half-tone effect
Rainbow effect in both directions
1x static gobo wheelwith 16 gobos plus open
1x Color Wheel with 14 colors plus open
2x prisms: dual 8- and 24-facet prisms, rotatable in both directions and overlayable
Beam angle: 2°
Frost: can be used independently
Motorized focus
Outstanding strobe effect with variable speed
Smooth dimming from 0-100%
Flicker-free management
Dust-proof and oil-proof design

Technical & Specification
Model
XP-260 BEAM

Light Source
Light Source: Philips MSD Platinum 12R LL (Long-Life)
Life expectancy: 6,000 hours

Optical System
Advanced optical Systemensuresclear, sharp image quality
High-efficiency Optical System

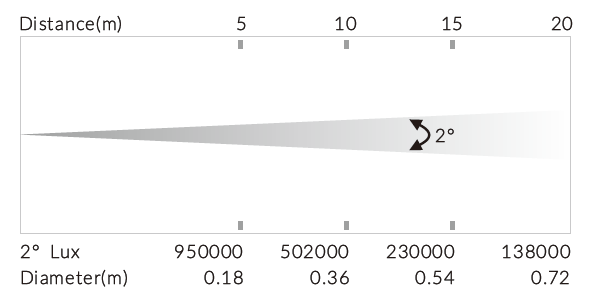

Beam angle: 2°

Control& Program
4-button touch panel
Display: Color display
Protocols: DMX512,Master/Slave
DMX modes: 2
Controlchannels: 13, 16
Pan/Tiltresolution: 16-bit
Electronic ballast
Firmware Upgrade via DMX link & USB

PAN & TILT
Pan movement: 540°
Tilt movement: 270°
AutomaticPan/Tiltposition correction
Digital waveform correction technology, ensures accurate positioning of Pan and Tilt, avoidingvariation after high speed movementand reset.

Static Gobos
1x static gobo wheelwith 16 gobos plus open

Color Wheel
1x Color Wheel with 14 colors plus white

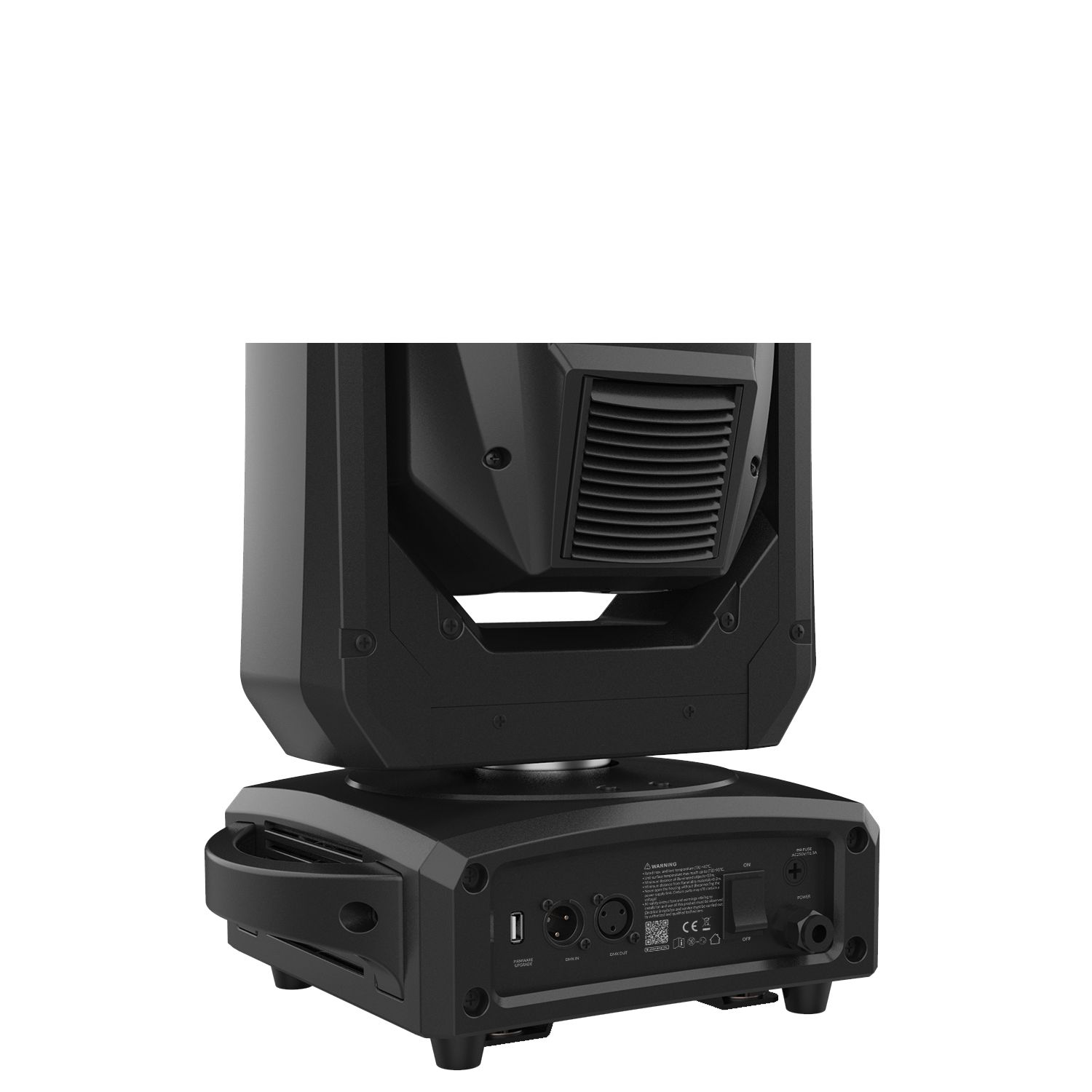

Electrical & Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240V, 50/60Hz
Power consumption: 375W
Power cord out
Data in/out: 3-pin XLR

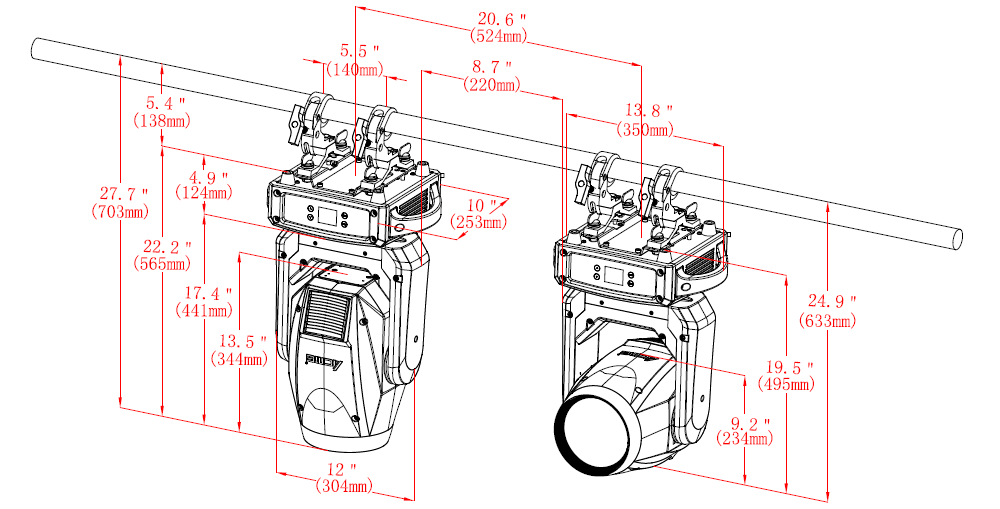

Fixture Specification
Height: 565mm (22.2”)
Width: 350mm (13.8”)
Depth: 253mm (10.0”)
Weight: 18kg (39.7lb)

Work Environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C

Approvals
CE compliant

Installation
Horizontal or vertical mounting
Operating position is universal
2 pairs of 1/4-turn locking points under base

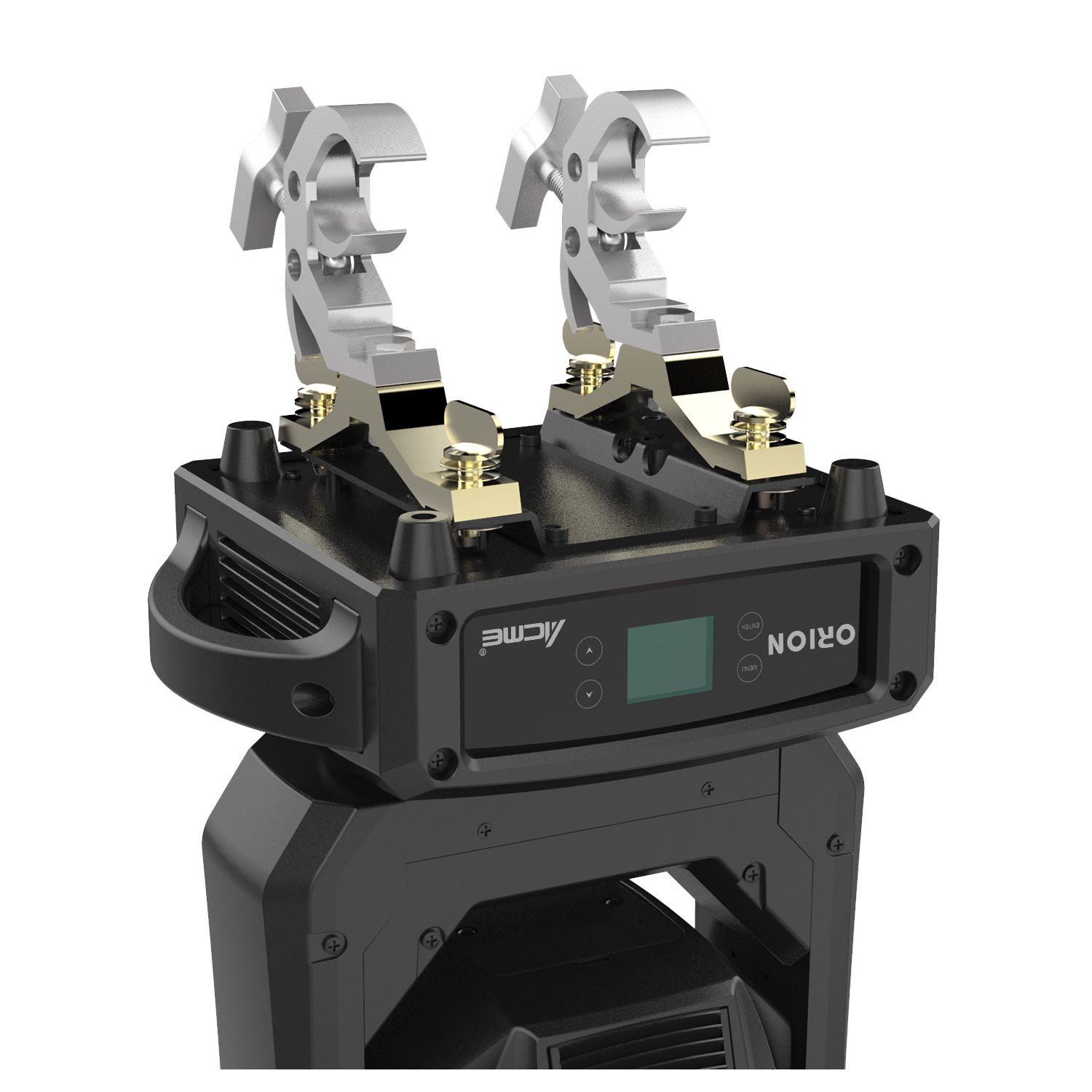

2x fast-lock clamps with 1/4-turn locks for 50mm truss
Safety cable attachment point

Included Items
User Manual
Power Cable
2x fast-lock clamps with 1/4-turn locks for 50mm truss

Optional Accessories (with item code)
Raincover: 3033001749
Clamp: 2060001614 (C-250)
Safety cable: 2060000200 (SW-02)
Signal line: 3-pin signal line

Vermogen

IP-Rating

Indoor

Type lichtbron

Gasontlading

Eigenschappen

Vermogen Lichtbron

260

Kleurmenging

Kleurenwiel

Type Fixture

Beam

Functies

Frost

Min zoom

2

Max zoom

2
