Functional Overview
ACME OCELLARIS with compact design, small size, which is stability, high light efficiency & low energy consumption, greatly reduces the light attenuation and ensures the LED’s working life. Adopts 300W RGBW LED module, light output is 8600lm. Zoom range from 7° to 25°, provide the large and uniform wash effect. Protection rating is IP66, makes the BELUGA can be used in outdoor all year round. With double hanger design, give you multiple Installationoptions, ideal for stages, theaters, churches, ballroom, concert, etc.
Features
Light Source: 300W RGBW LED module
Luminaire output: 4120lm
High light output
Zoom range 7°-25°
Uniform RGBW color mixing
Variable CTO: 2500K – 8000K
Provide the large and uniform wash effect, ideal for stages, theaters, churches, ballroom, concert, etc.
Compact design, small size
Double hanger design, multiple Installationoptions
Smooth dimming from 0-100%
Outstanding strobe effect with variable speed
Flicker free management
Dust-proof and oil-proof design
IP66 protection rating, can be used in outdoor all year round
Technical & Specification
Model
MP-500Z IP RGBW
Light Source
Light Source: 300W RGBW LED module
LED life expectancy: 20000 hours
Optical System
Advanced optical Systemto ensure clear and excellent static effect
High – efficiency zoom Optical System, ratio 1:4.1
Luminaire output: 4120lm
Field Angle: 12.4°-48°
Beam Angle: 7°-25°
Controland Program

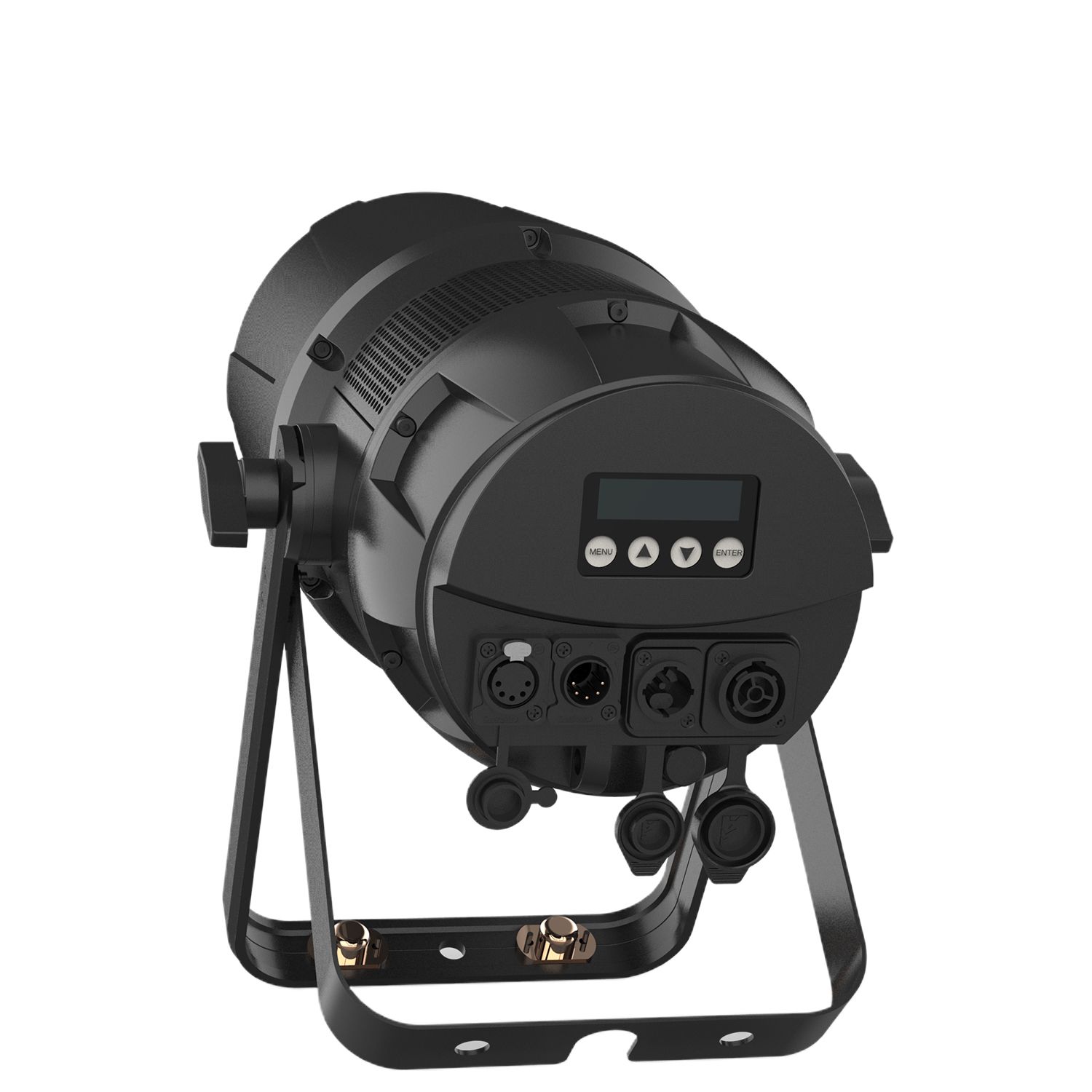

4-button touch panel
Display: OLED display
Protocols: DMX512,RDM
DMX Protocol modes: 2
Controlchannels: 12, 13
Firmware Upgrade via DMX link
Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240 V, 50/60 Hz
Power consumption: 295 W
Power In/Out: Waterproof Power Connector in/out
Data in/out: 3-pin or 5-pin IP XLR
Fixture Specification

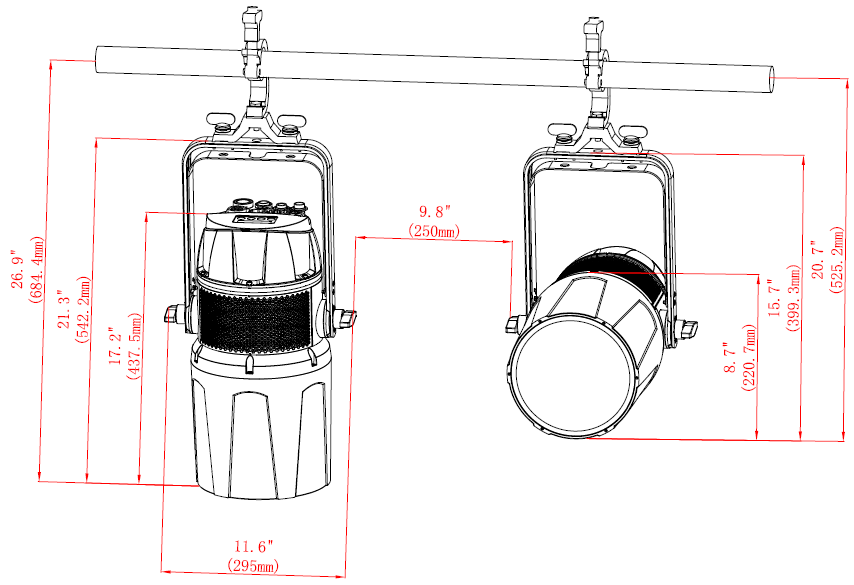

Fixture dimensions:
Height: 221mm (8.7″)
Width: 295mm (11.6″)
Depth: 438mm (17.2″)
Fixture Net Weight: 10.5 kg (23.1 lbs)
With carton net weight (in): 11.8kg (26 lbs)
Carton dimensions:
Height: 285mm (11.2″)
Width: 375mm (14.8″)
Depth: 660mm (26″)
Work Environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Protection rating: IP66
Installation
Horizontally or vertically mounting are available
Operating position is universal
The feet support with 3 locking points
Safety cable attachment point
Included Items
User Manual
Power Cable
Clamp：3002000238
Safety cable : SW-02
Optional Accessories (with item code)
Carton：3204128041（1 in 1）
