Overview

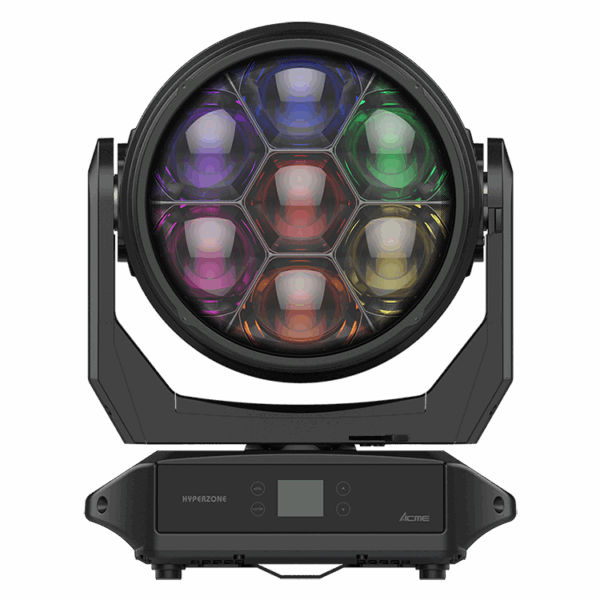

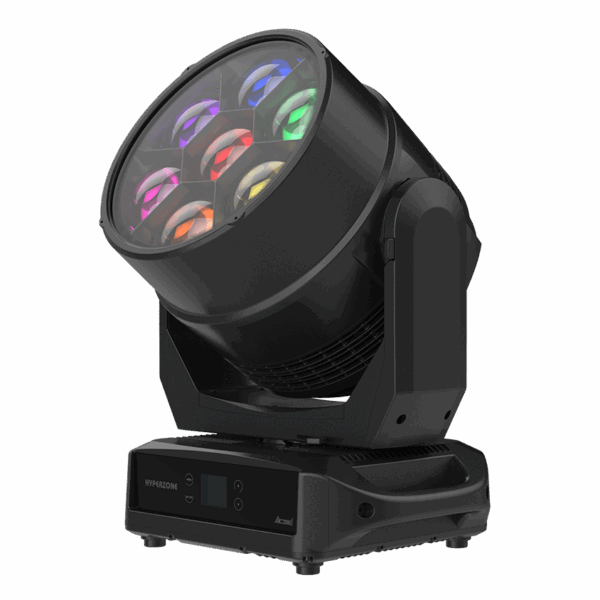

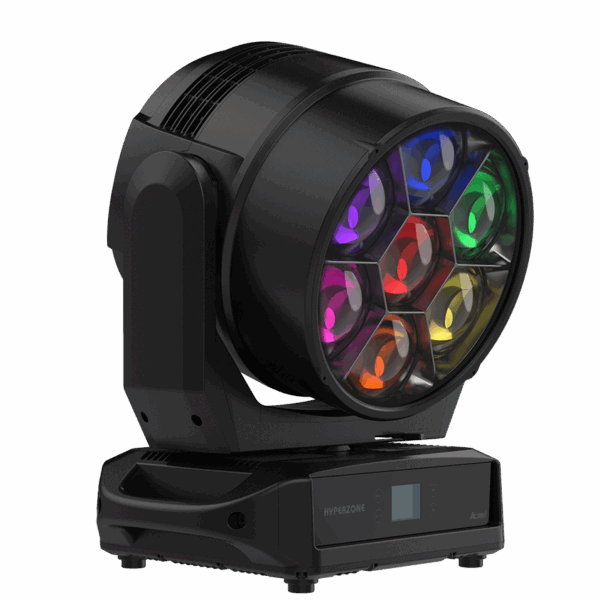

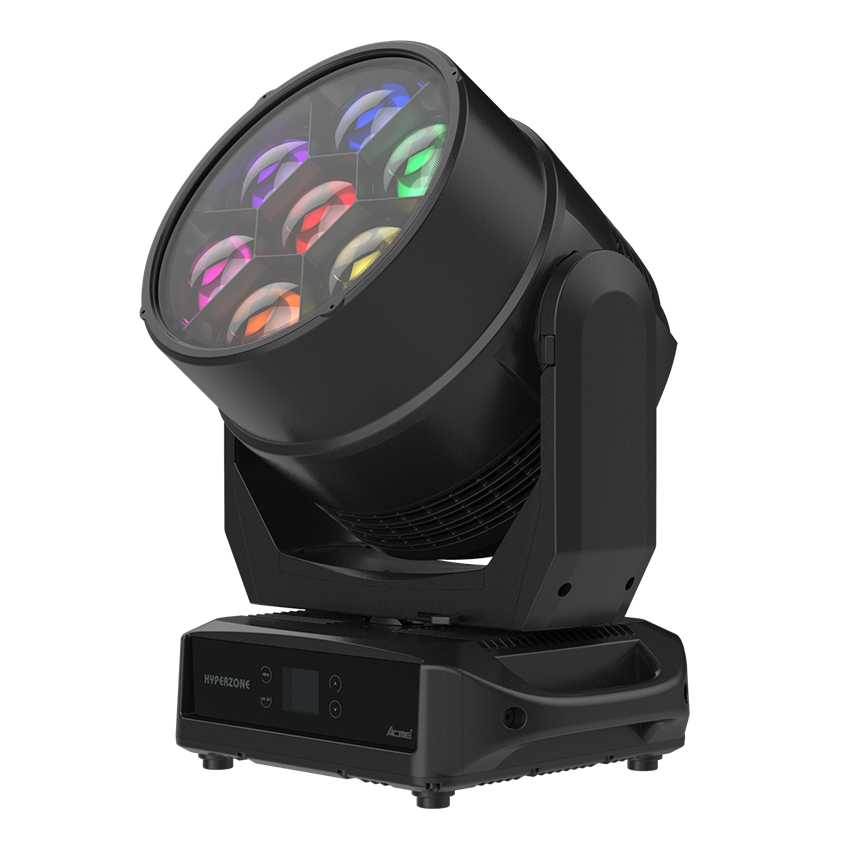

The ACME HYPERZONE is a next-generation moving LED wash light, driven by 7 x 150W RGBL LEDs, delivering vibrant, saturated colors that stand out on any stage.
With individual pixel control and built-in color macros, you can craft additional layers of creativity with ease. Designed for ultimate flexibility, the HYPERZONE features a variable beam angle of 3° to 32° and a field angle of 4.8° to 45°, offering both tight, punchy beams and wide, soft washes.
A variable CTO enables seamless transitions from cool to warm temperatures for natural color rendering. Fast and precise pan/tilt movement adds dynamic energy to your show. While its IP66 rating ensures reliable performance in all weather conditions with minimal maintenance.
Redefining what a wash light can be, the ACME HYPERZONE delivers high performance and vibrant visuals—wherever your vision takes you.
Model
- Model Name: HYPERZONE
- Model Code: CM 7 IP
Light Source

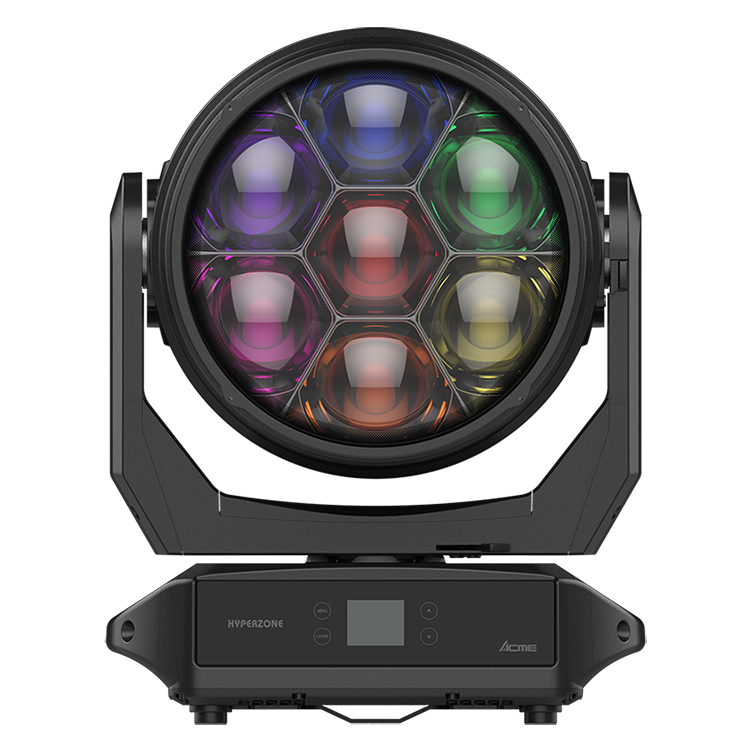

- Light Source: 7 x 150W RGBL LEDs
- Total Lumen Output of Fixture: 19,500 lumens
- Color Temperature Output of Fixture: 8,000K
- Life Expectancy: 20,000 hours*
*Source manufacturer specification
Optical System
- Beam Angle : 3°-32°

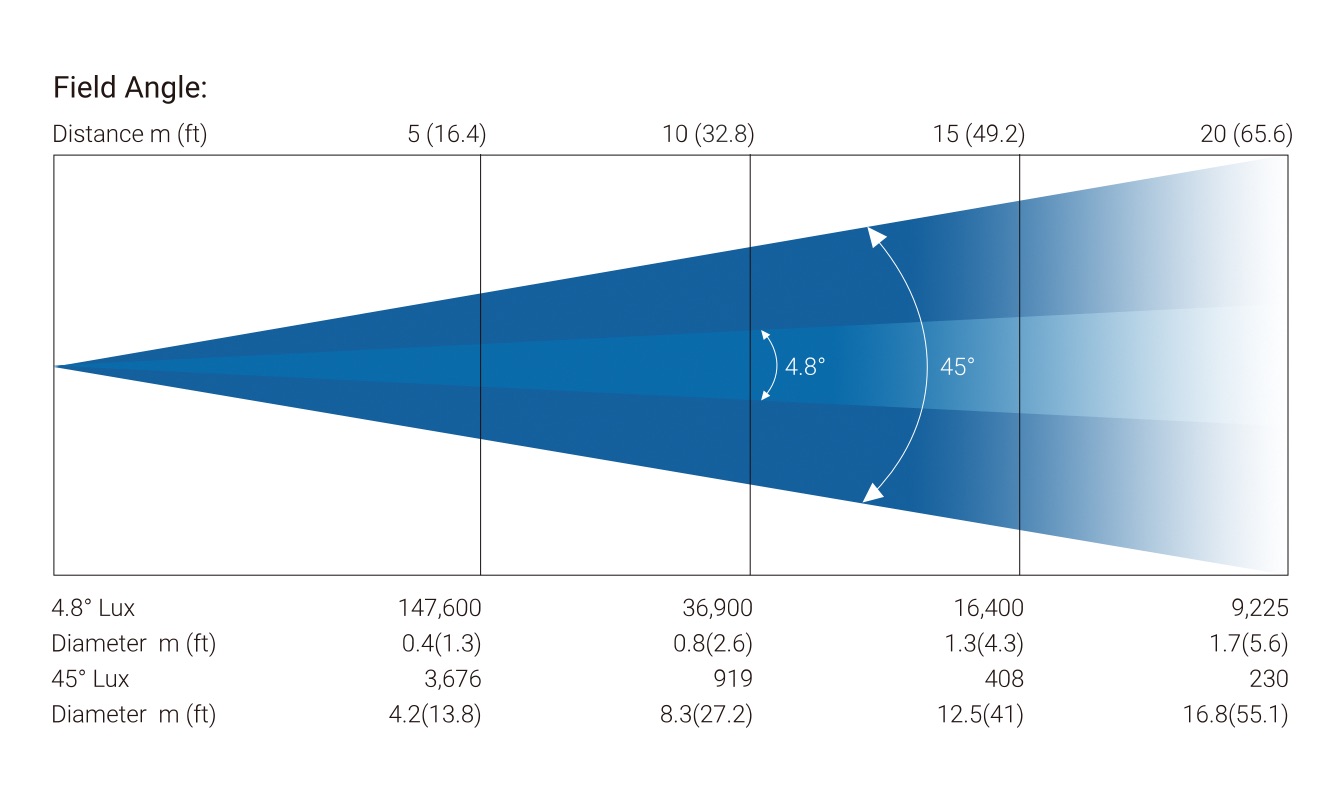

- Field Angle : 4.8°-45°
- Color Rendering: Ra≥85
Control
- 4 touch button control panel
- Display: LCD display
- Protocols: DMX512,RDM,Art-Net,sACN
- DMX Protocol Modes: 2
- Control Channels: 19/41
- Firmware Upgrade: Upgrade via DMX link or USB stick
Pan & Tilt
- Pan Movement: 540°
- Tilt Movement: 210°
- Automatic Pan/Tilt position correction
- Resolution: 16 bit
- Fixation: Pan/Tilt lock
Colors
- Linear CTO Color Correction: 2,500K-8,000K
Other Effects
- Outstanding strobe effect with variable speed
- Smooth dimming 0-100% (4 user selectable dimming curves)
- Outstanding color macro effects
- Outstanding color mixing
- Individual pixel control
- Sharp and saturated beam effects
- Dimming frequency from 900Hz to 25,0Hz
- Motorized zoom
Electrical and Connectors
- Input Voltage Range: 100-240Vac; 50/60Hz
- Power Consumption: 1,370W

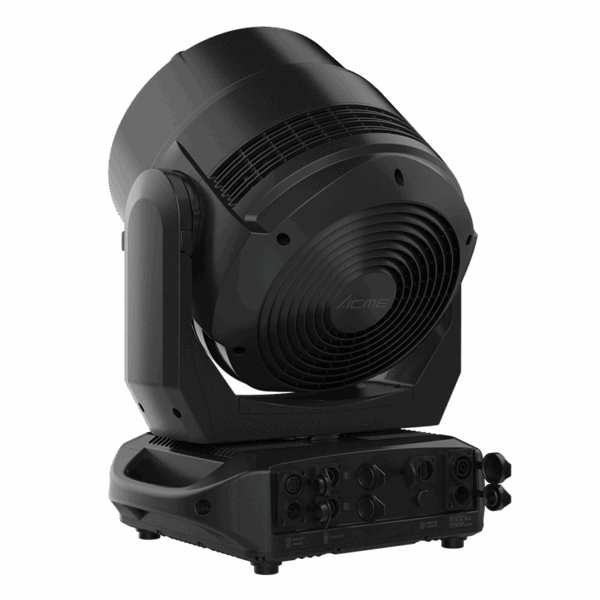

- Power In/Out: Waterproof power connector in/out
- Data In/Out: 3-pin or 5-pin waterproof XLR,waterproof RJ45 connector
Physical Information

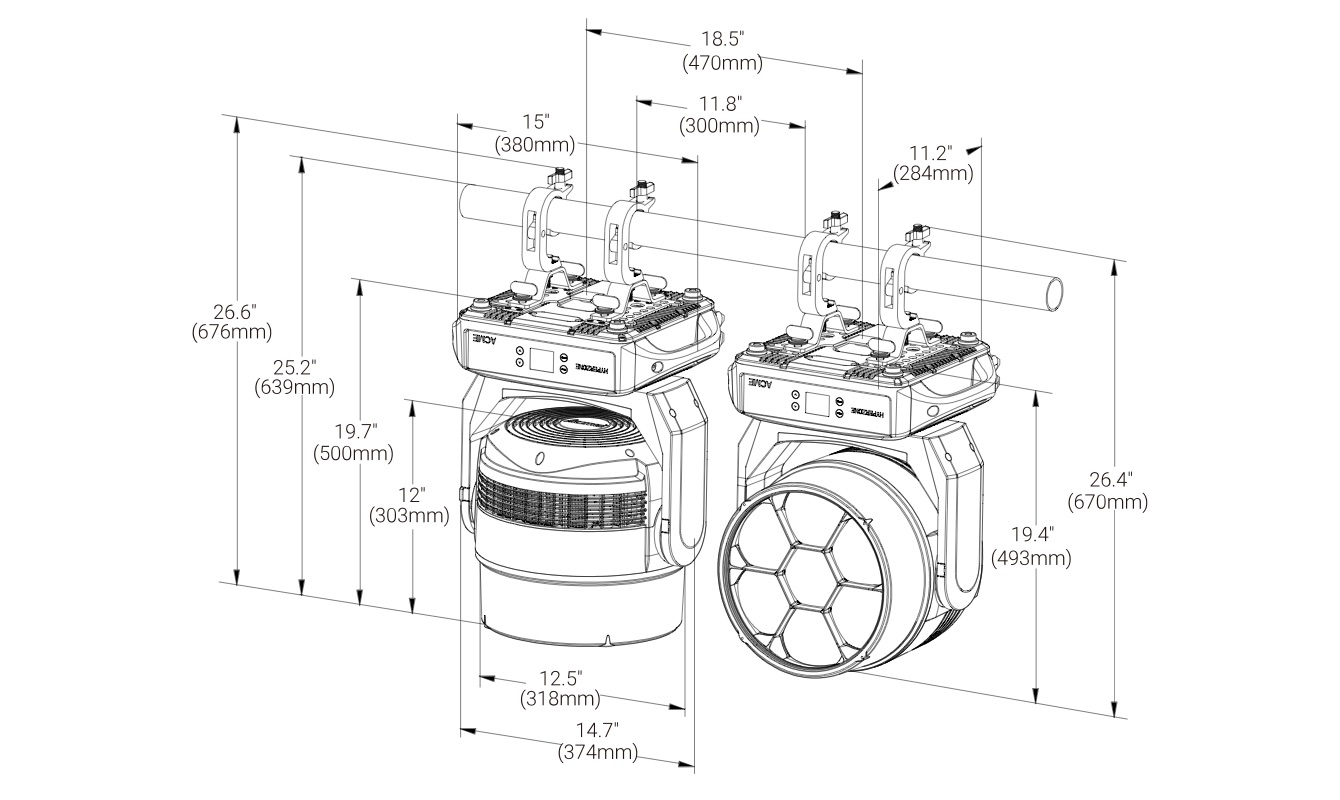

- Fixture Dimensions:
-
- Width: 380 mm (15.0″)
- Depth: 318 mm (12.5″)
- Height: 500 mm (19.7″)
- Weight: 26.4 kg (58.2 lbs)
Packing Information
- Flight Case Dimensions:
-
- Width : 980 mm (38.6″)
- Depth : 580 mm (22.6″)
- Height : 825 mm (32.5″)
- Weight :
-
- Standard: G.W.: 104 kg (229.3 lbs) (two-pack loader case)
- Carton Dimensions:
-
- Width : 490 mm (19.3″)
- Depth : 450 mm (17.7″)
- Height : 675 mm (26.6″)
- Weight :
G.W.: 32 kg (70.6 lbs) (one-pack loader carton)
Work Environment
- Maximum Ambient Temperature: 40°C
- Minimum Operating Temperature: -10°C
- Maximum Surface Temperature: 75°C
- Protection Rating: IP66
Approvals
- CE compliant
- UKCA compliant
- cETLus compliant
Installation
- Horizontal or vertical mounting
- Universal working position

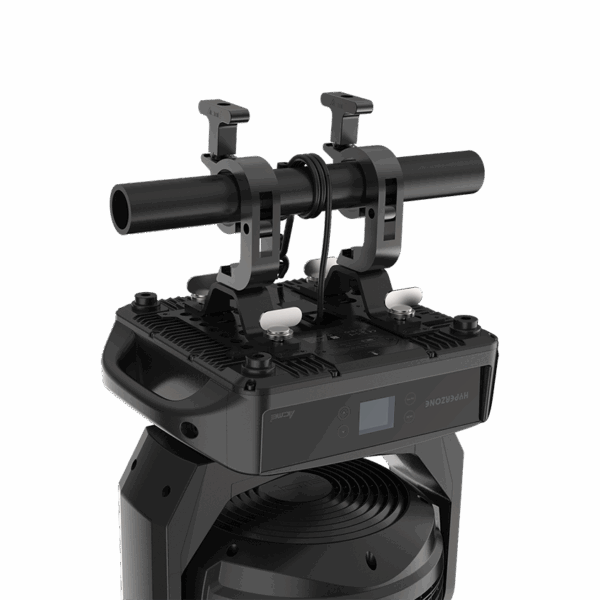

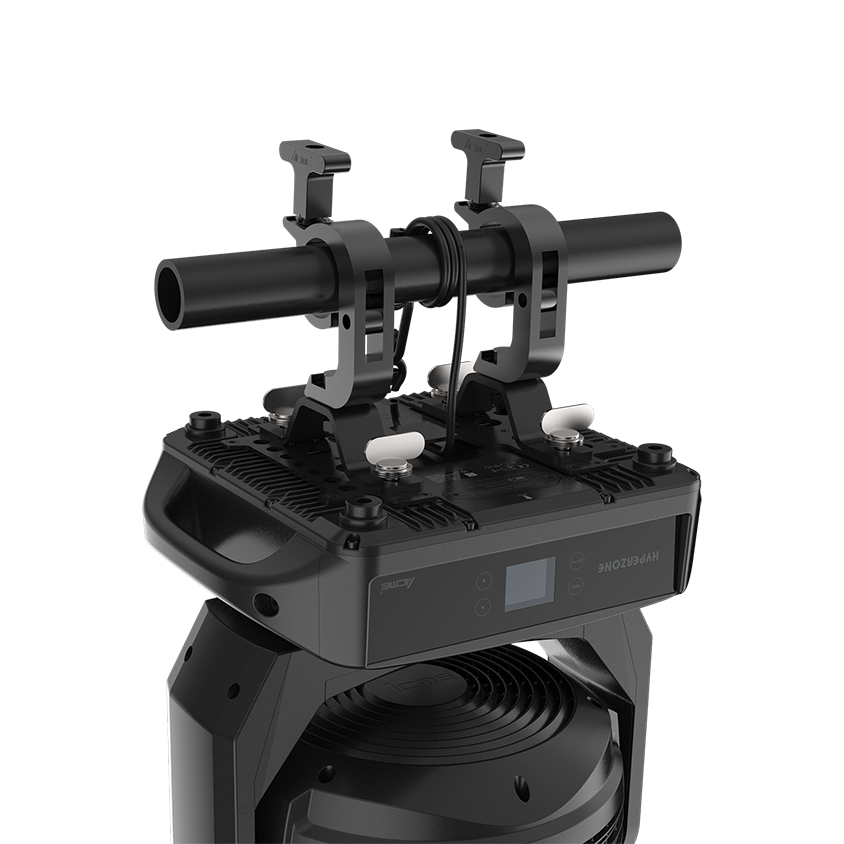

- 2 omega brackets
- Safety cable attachment point
Included Items
- Digital user manual
- Power cable
- 2 omega brackets (3002003003)
Optional Accessories (With Order Code)
- Flight Case:
-
- Standard : Two-pack loader case (63584070)
- Clamp : C-250B (2060001632-B)
- Safety Cable: SW-05 (2060001603-E)
- Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)
