Functional Overview

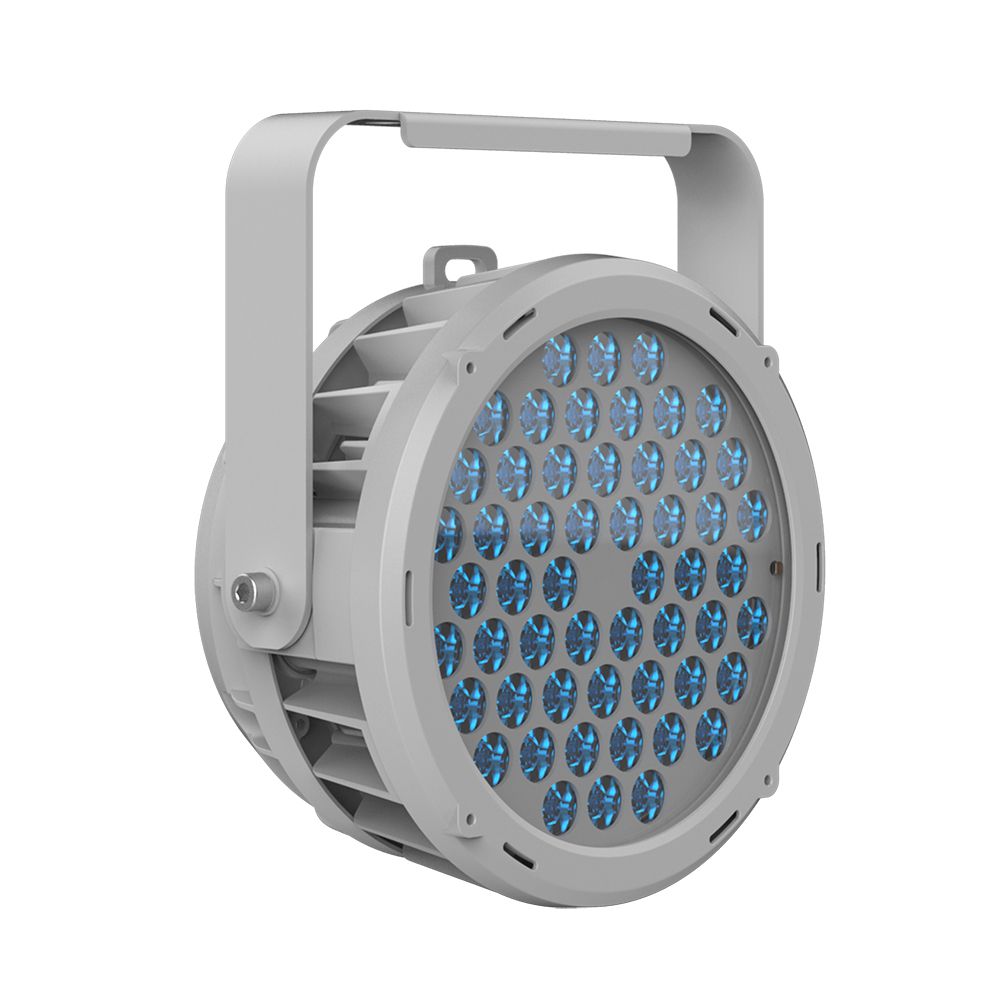

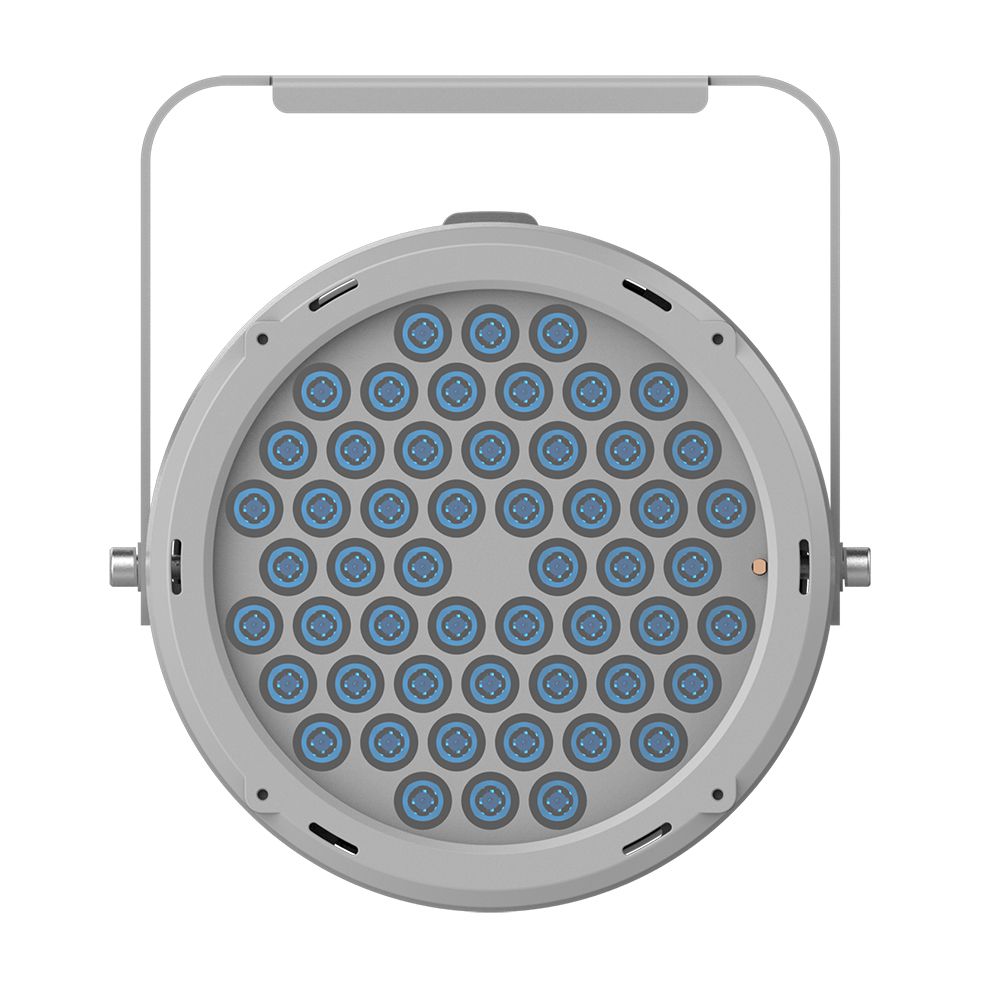

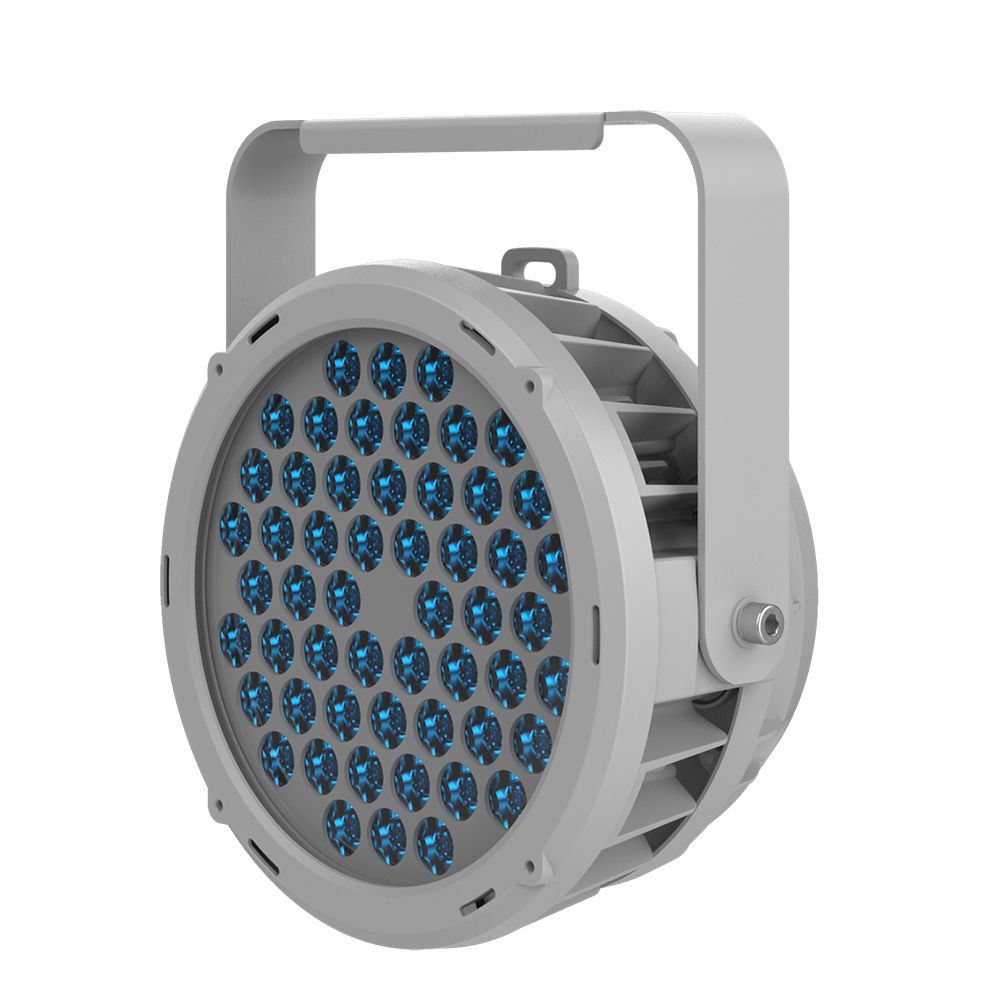

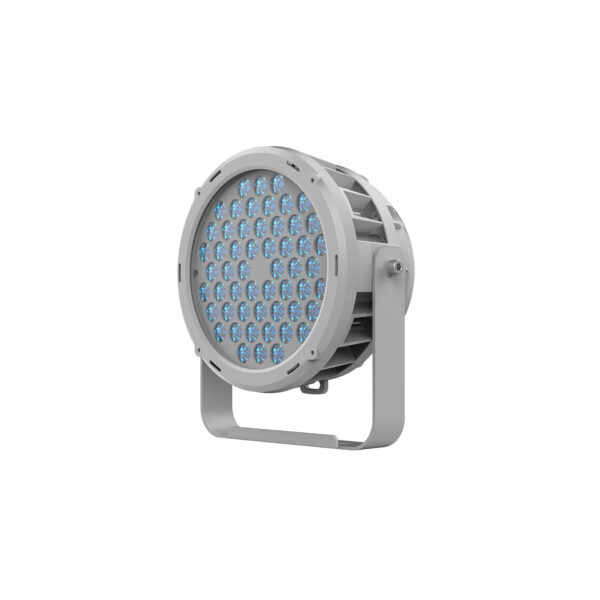

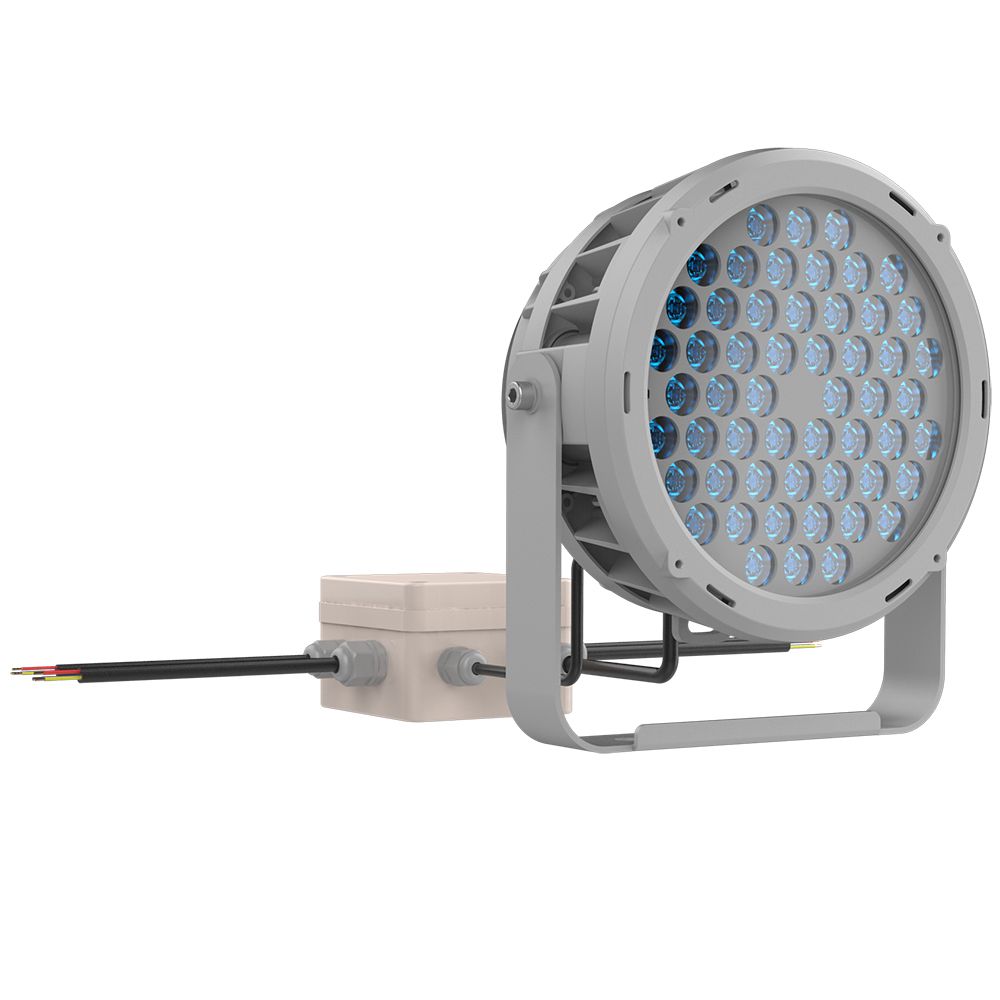

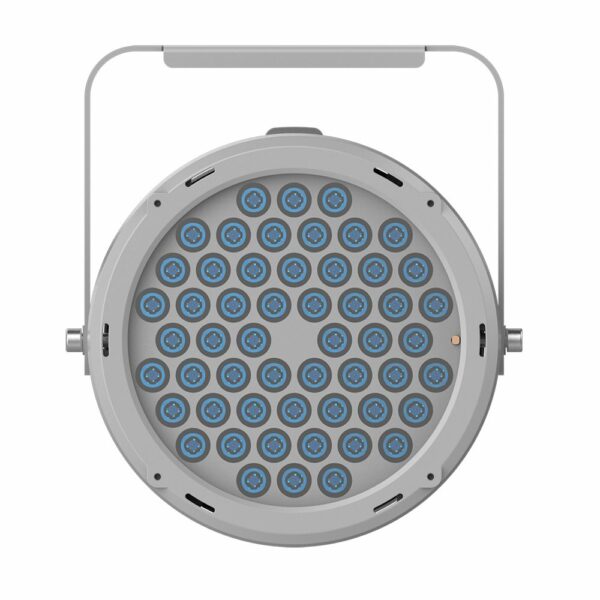

COOLIE 546, an excellent outdoor par can unit with 54pcs 6w RGBW LEDs that deliver big power from a rugged flat and compact metal IP66 housing.The optional lens angle gives you ample control over the flexible color mixing reaching from warm, rich to solid, and pastel washing colors. Available in silver or black power coating and suitable for project installation.
Features
Light Source: 54 x 6W RGBW LED
Compact size, light weight, high light efficiency, low energy consumption
Variable CTO: 2,500K-8,000k
Intelligent light detection can automatically activate the lighting mode and adjust the duration of the light according to the environment
Outstanding strobe effect with variable speed
0~100% smooth dimming
Protection Rating: IP66, can be used outdoors all year round

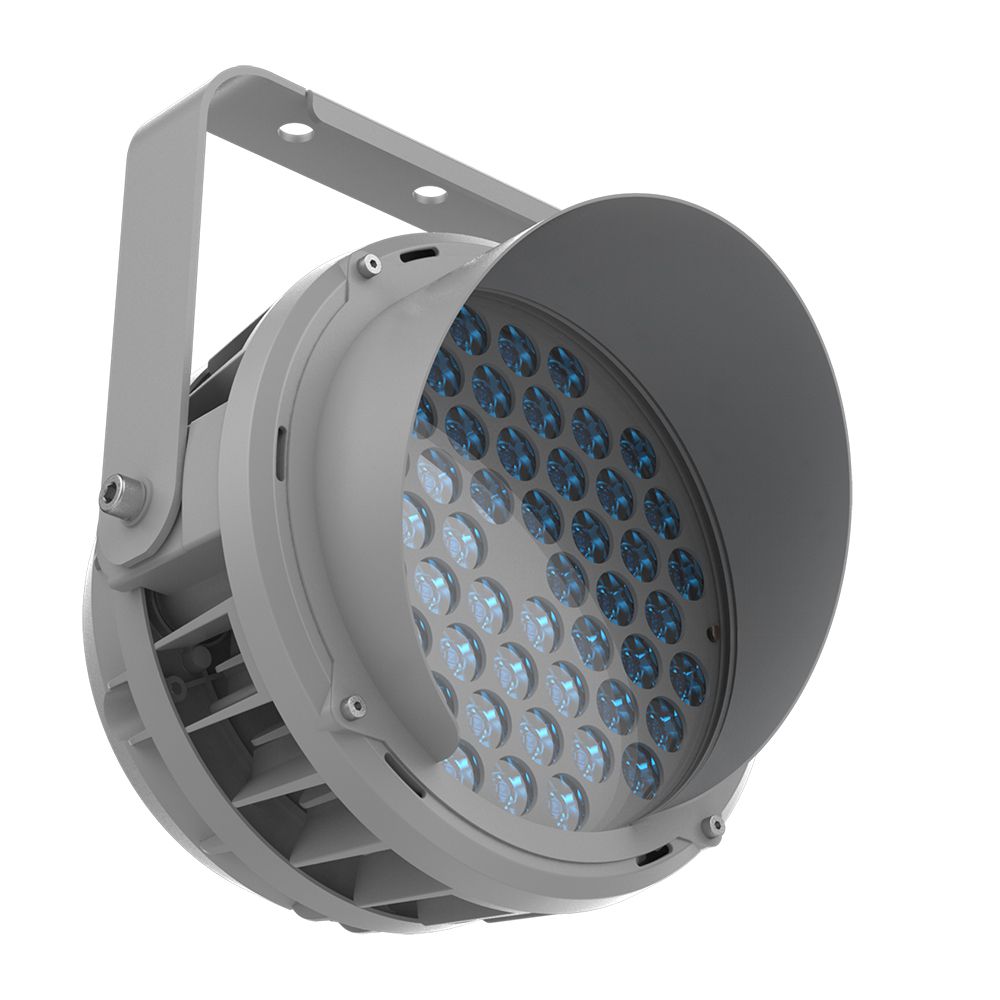

Optional Half or Full size anti-glare shield
Technical & Specification
Model
BW 546
Light source
Light Source: 54 x 6W RGBW LED
LED life expectancy: 20000 hours
Optical system
Advanced optical system
Optional Beam Angle:15°, 25°(Standard),30°, 45°, 60°
Luminous Flux:10000lm (25°)
Control and Program

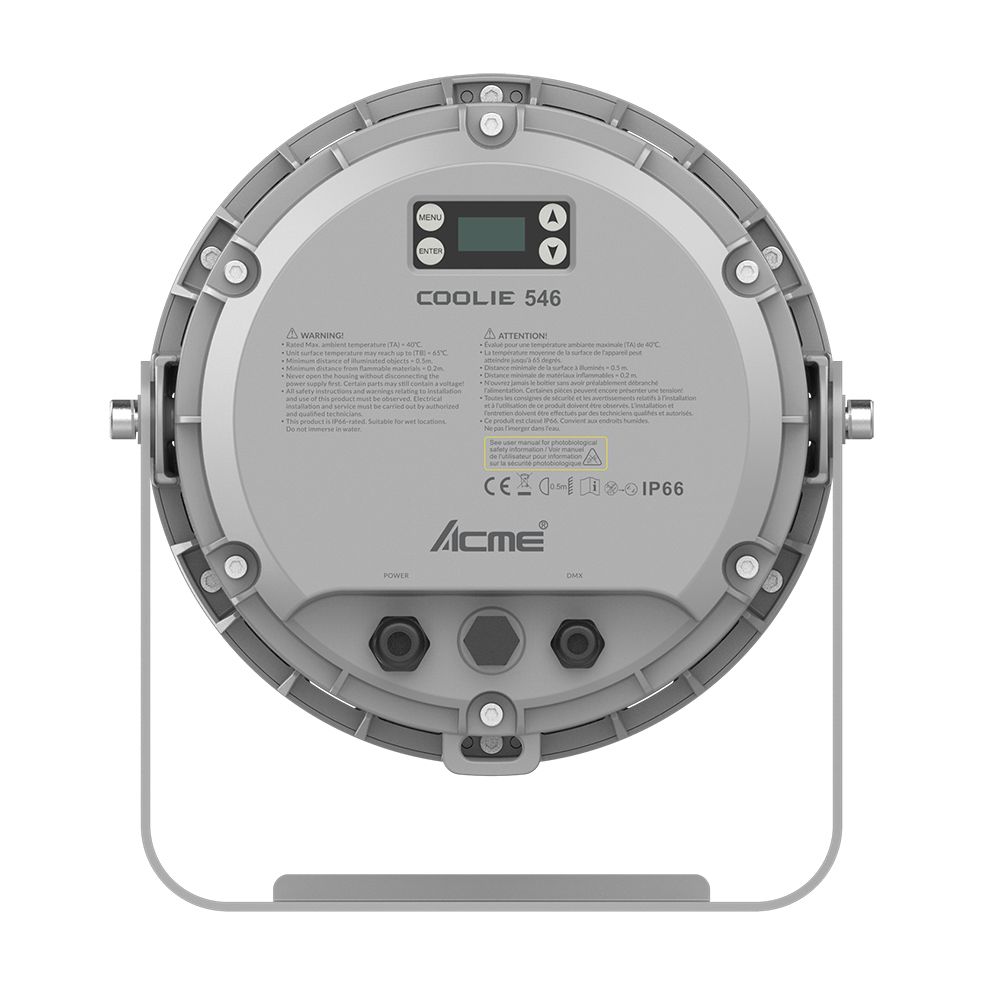

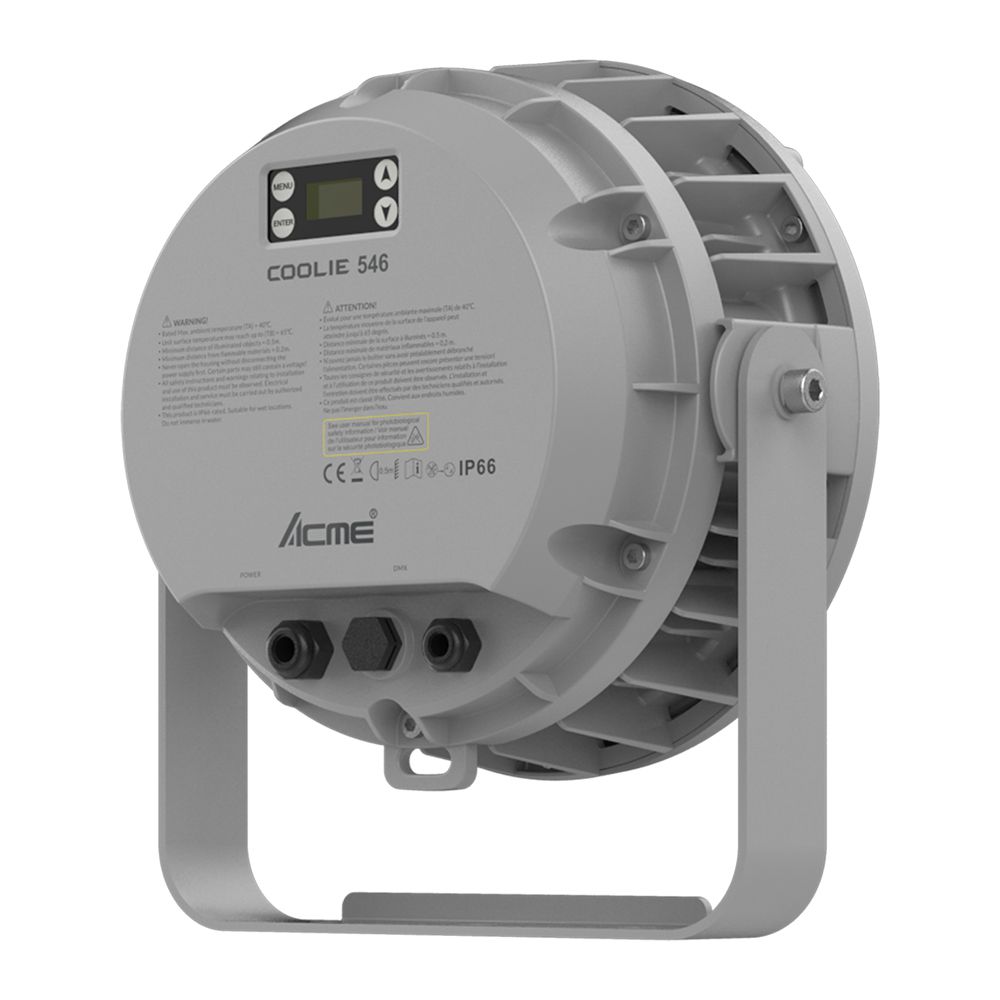

4-buttons touch panel
Display: OLED display
Upgrade the firmware via DMX link
Protocols: DMX512, RDM
DMX Protocol modes:4
Channel Modes: 10,8,5,4
Dimmer resolution: 16 bit
Electrical and Connectors
Input voltage range: AC 100-240 V, 50/60 Hz
Power consumption: 235W

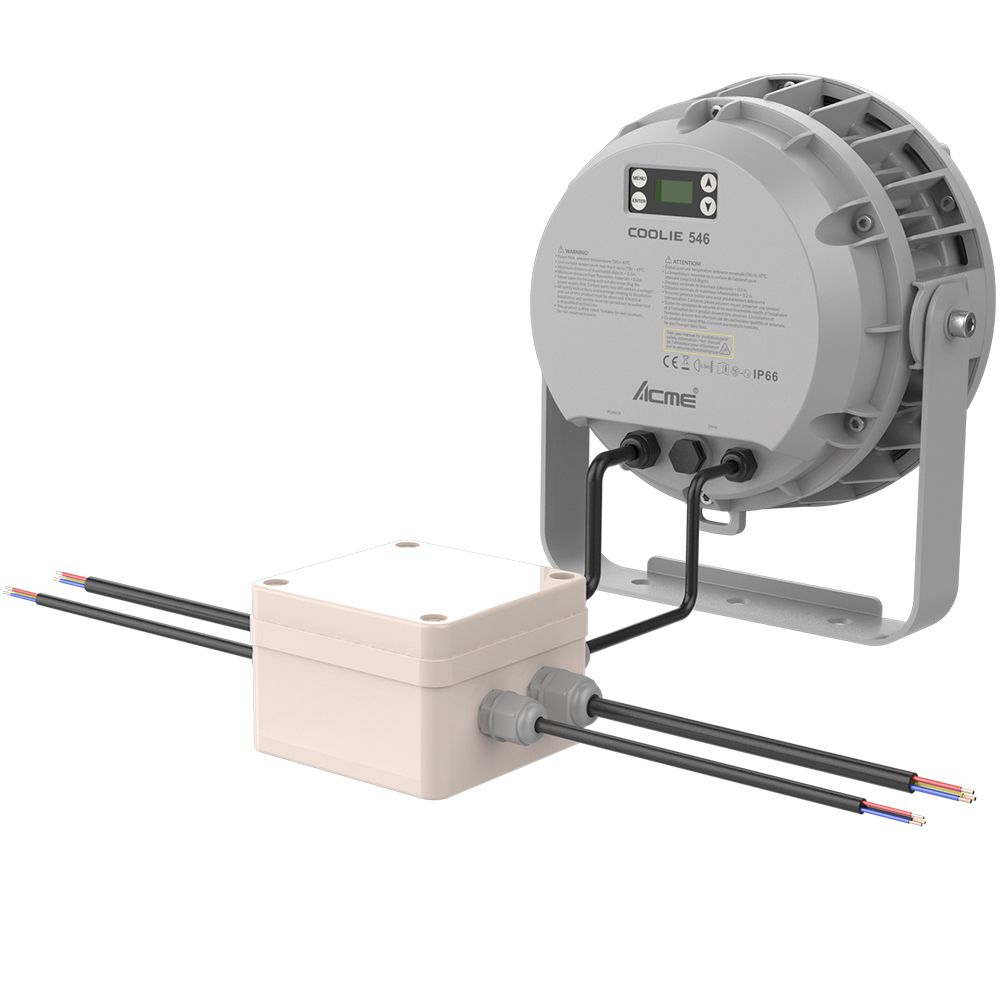

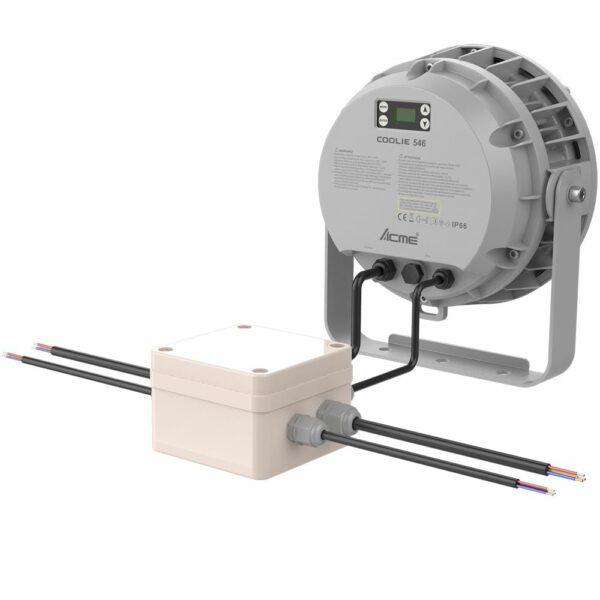

Power In/Out:Waterproof Power Connector In
Data in/out: 3-pin or 5-pin waterproof XLR In

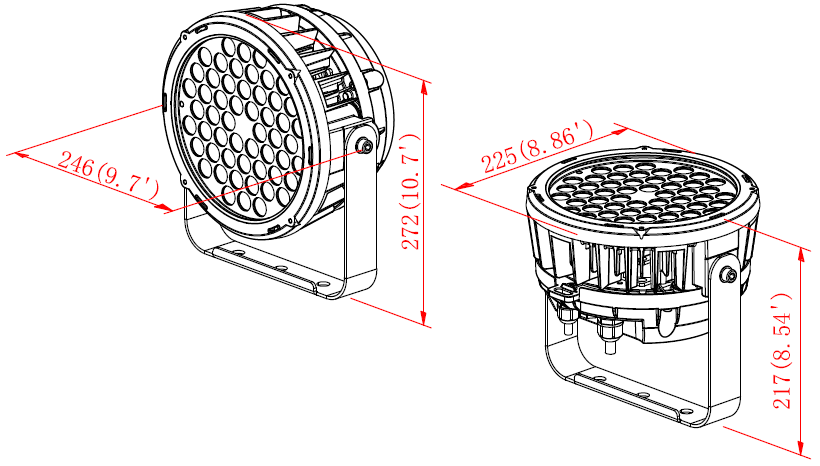

Fixture Specification
Height: 273mmmm (10.7″)
Width: 128 mm (5″)
Depth: 246 mm (10.7″)
Weight: 4.6kg (10.1lbs)
Carton Dimension:
Height: 335mmmm (13.2″)
Width: 315 mm (12.4″)
Depth: 220 mm (8.7″)
Weight: 5.4kg (11.9lbs)(with carton, 1 in 1 standard)
Work environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: -40°C
Installation
Available in horizontally or vertically mounting way
Multi projection angle operation
Equip with three lockholes with bracket
Safety rope hanging
Included items
User Manual
Power Cable
Signal Line:3-pin or 5-pin waterproof signal line
The feet support with 3 locking points
Carton: 3204128093(1 in 1 standard)
Safety cable: 2060000200(SW-02)
Optional Accessories (with item code)

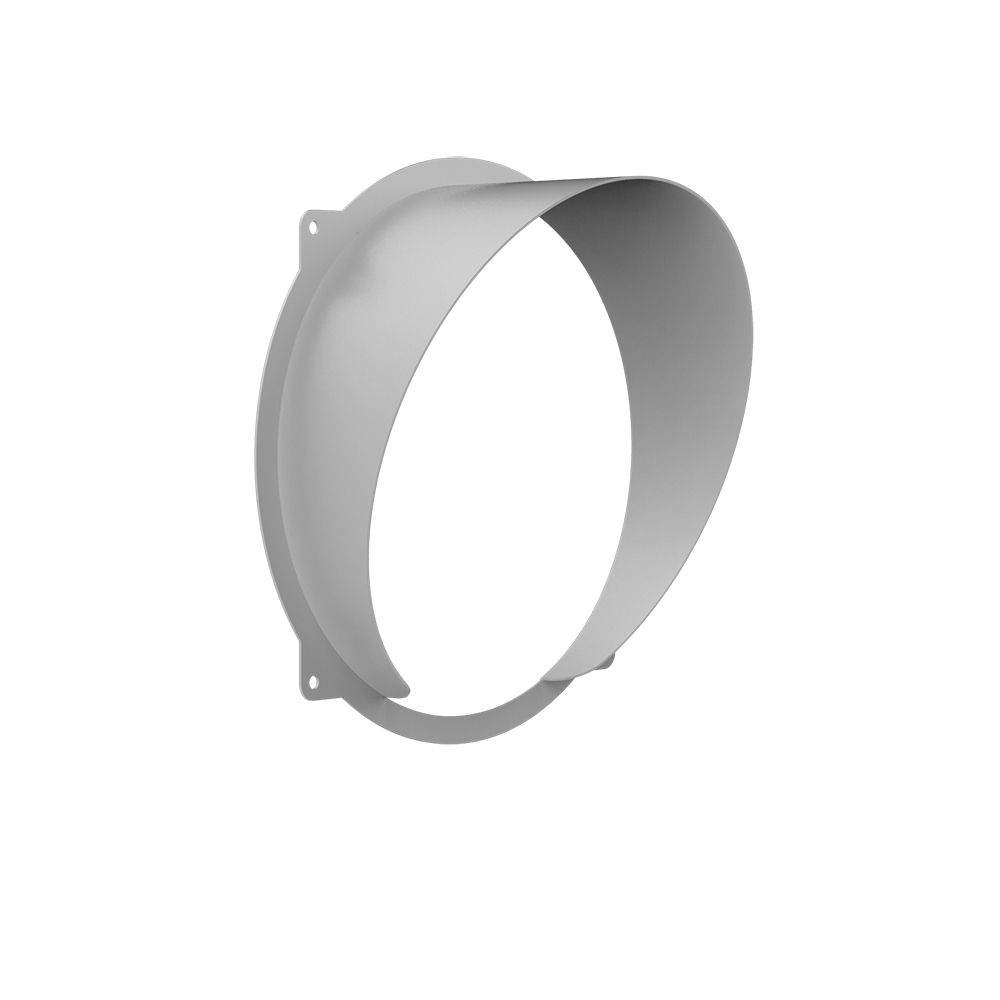

Anti-glare shield:
Half anti-glare shield

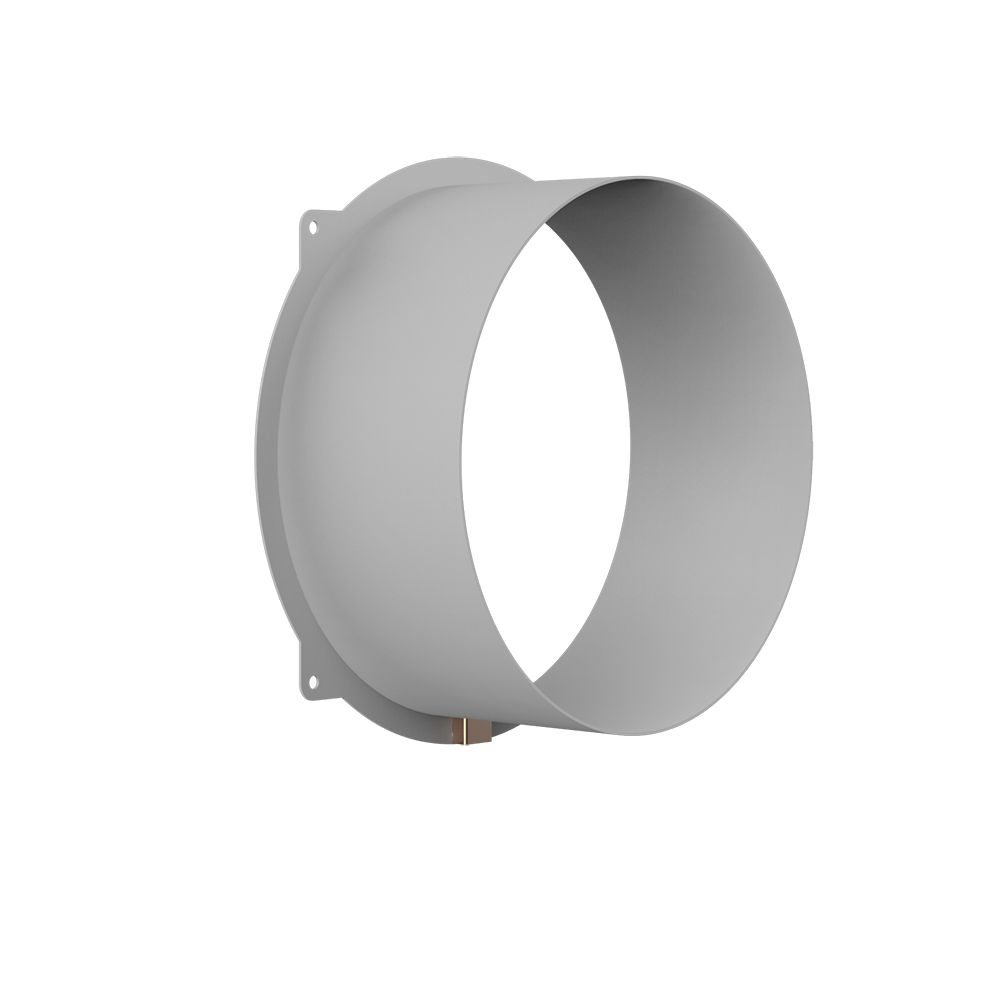

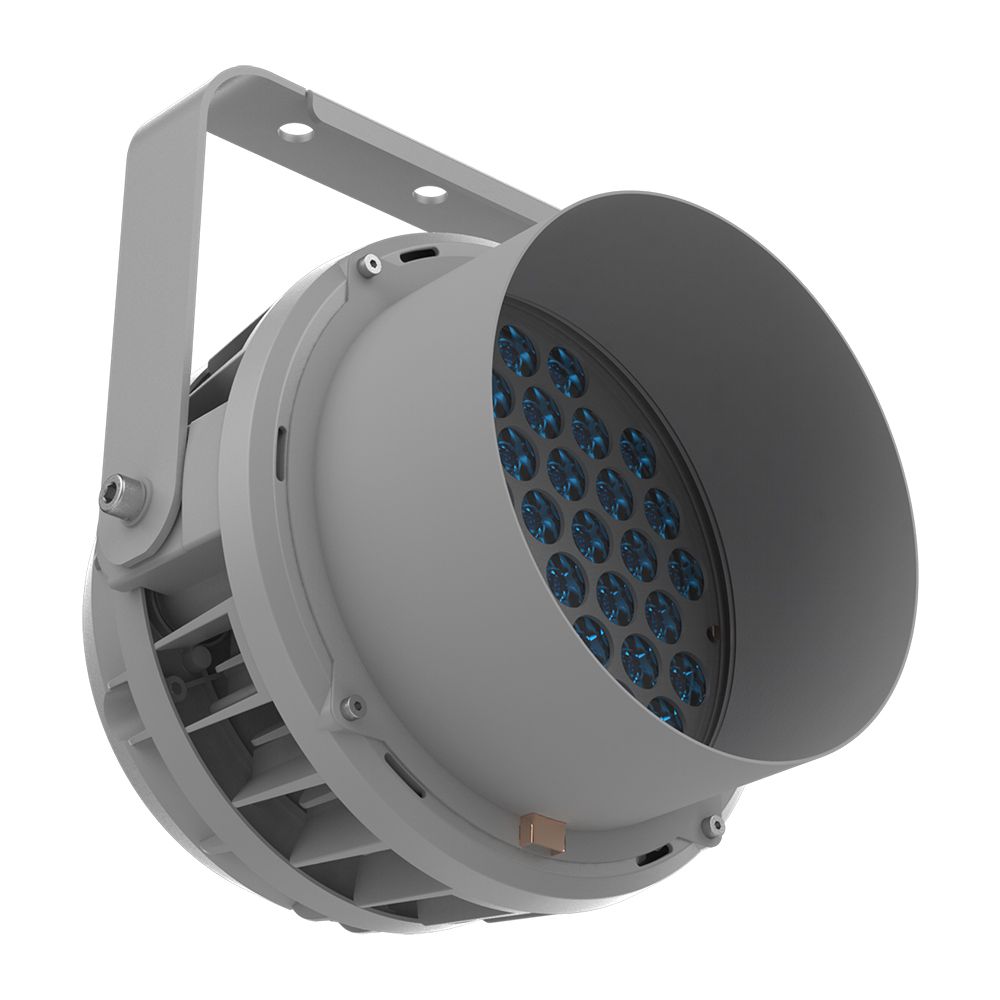

Full size anti-glare shield
