Functional Overview

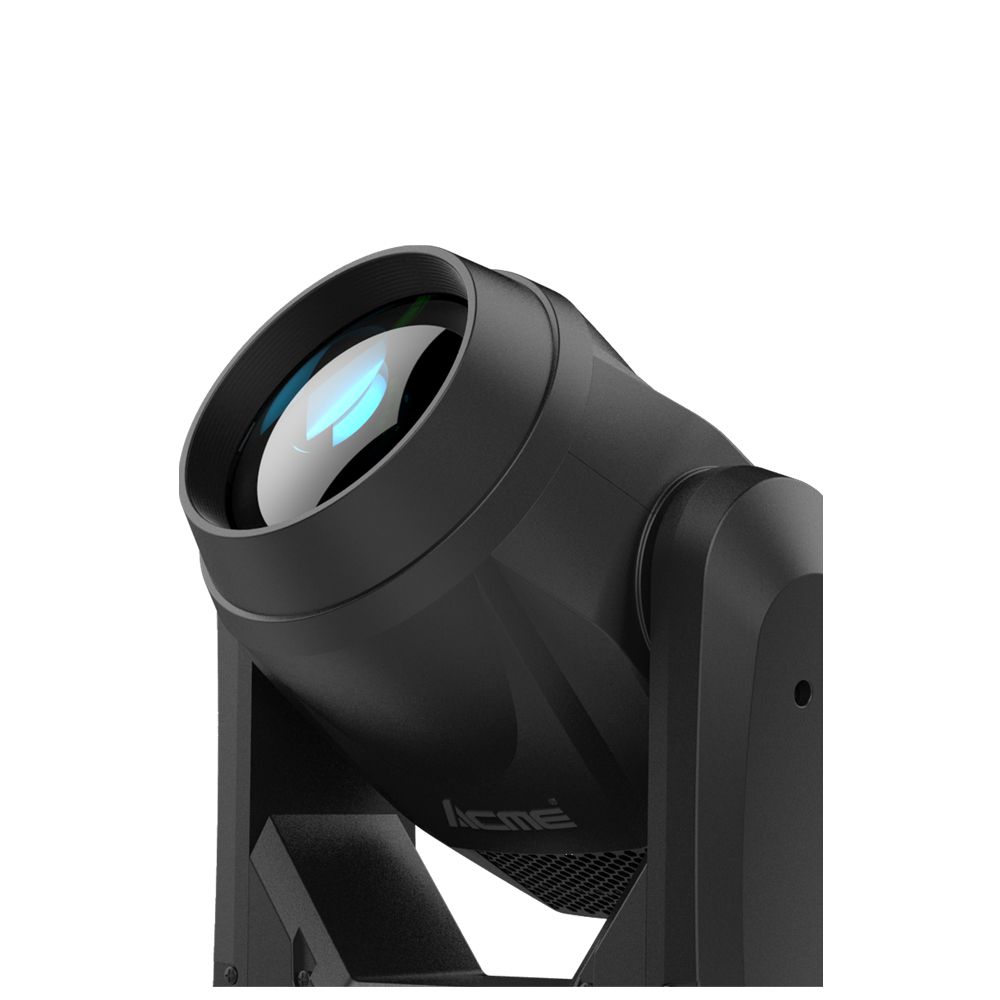

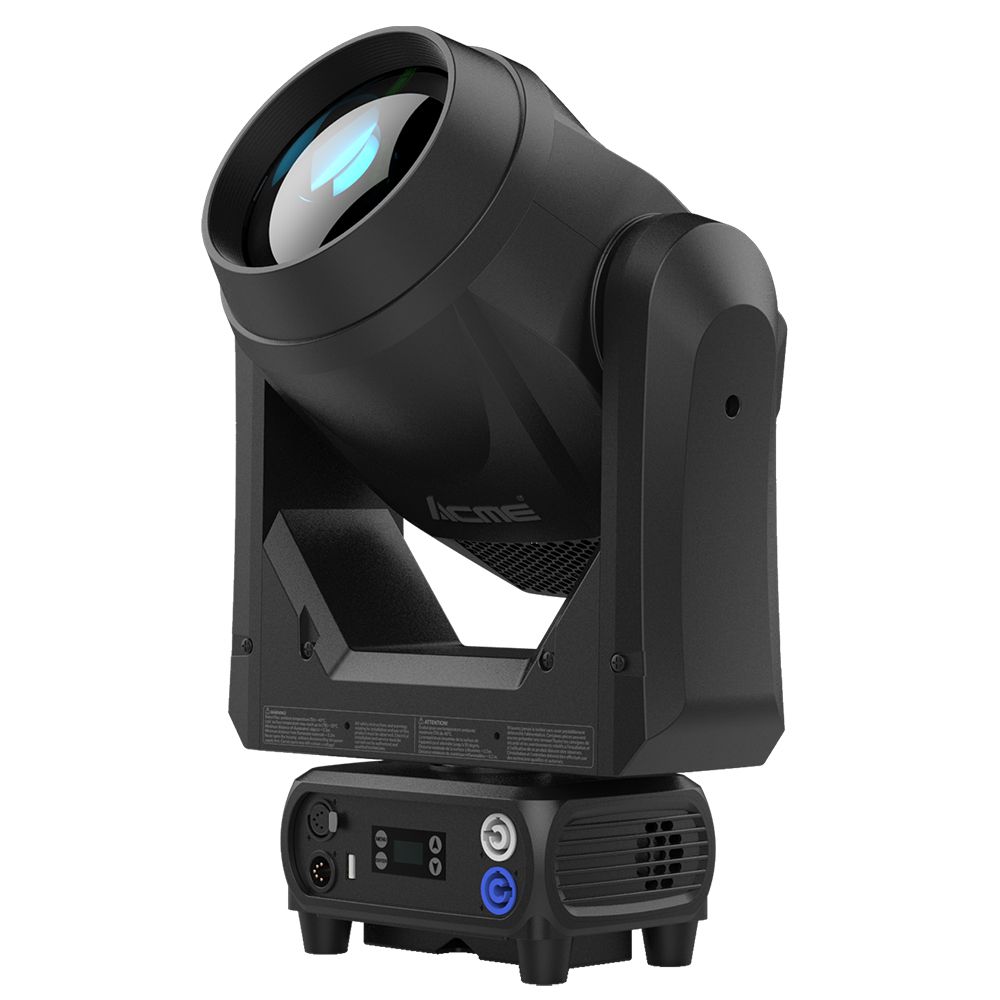

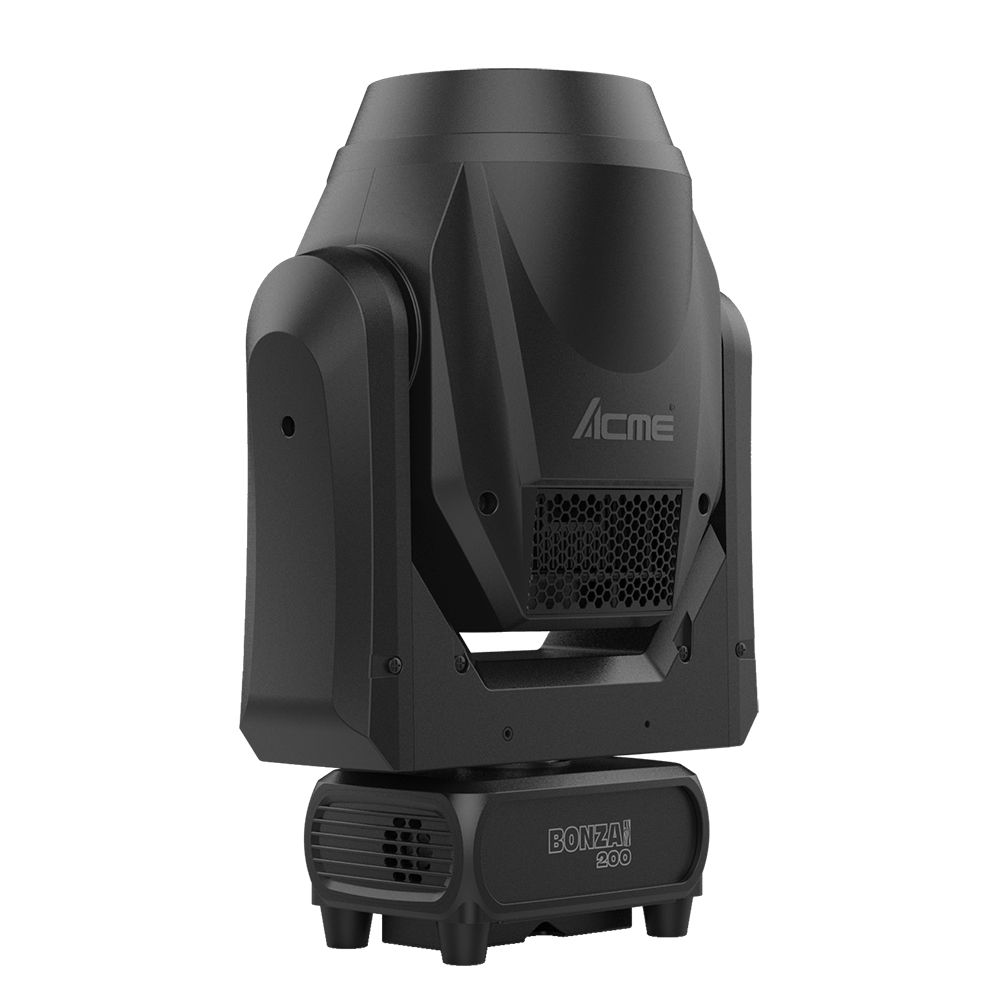

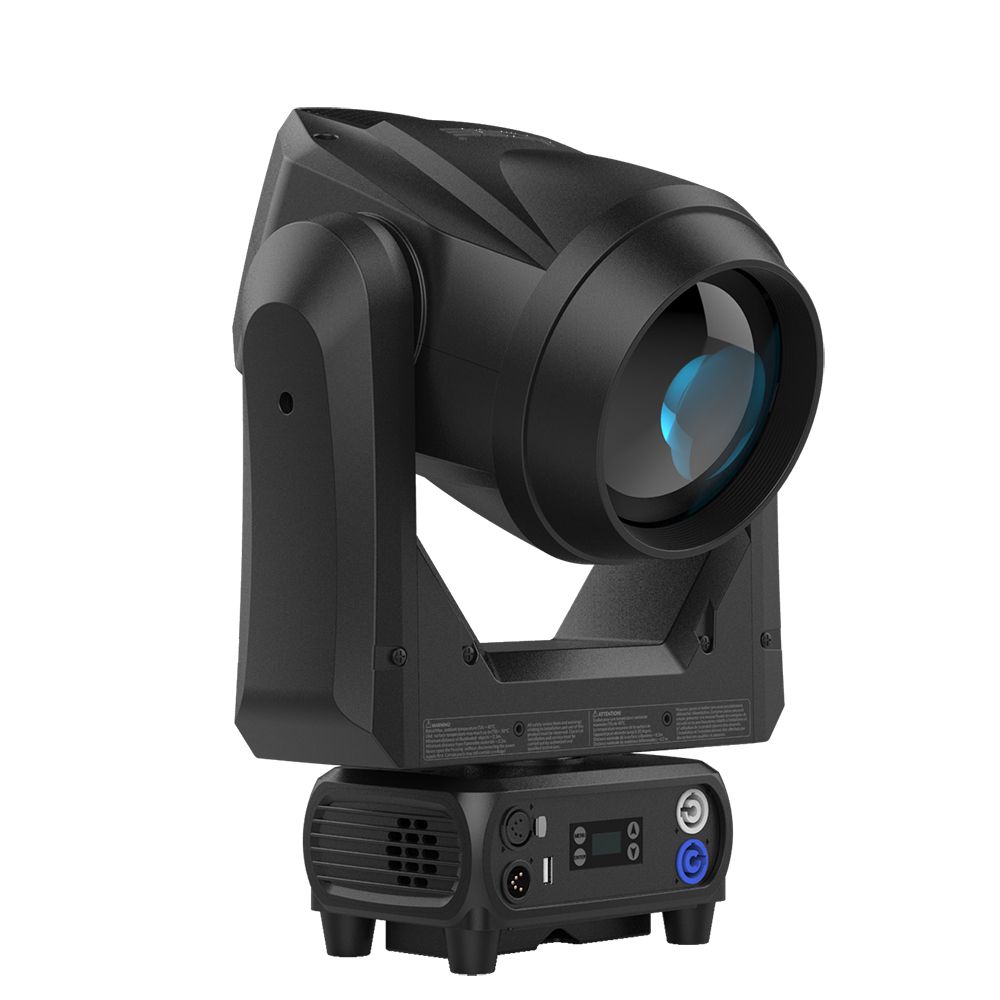

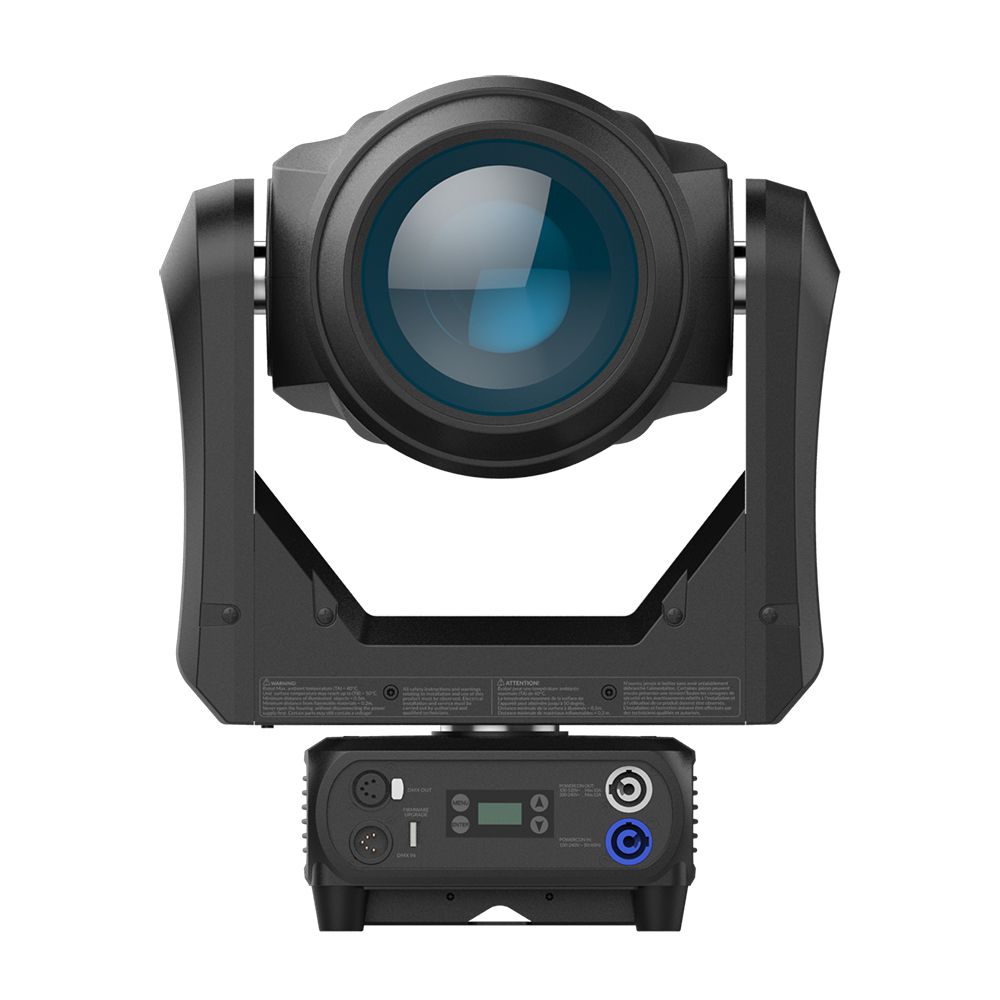

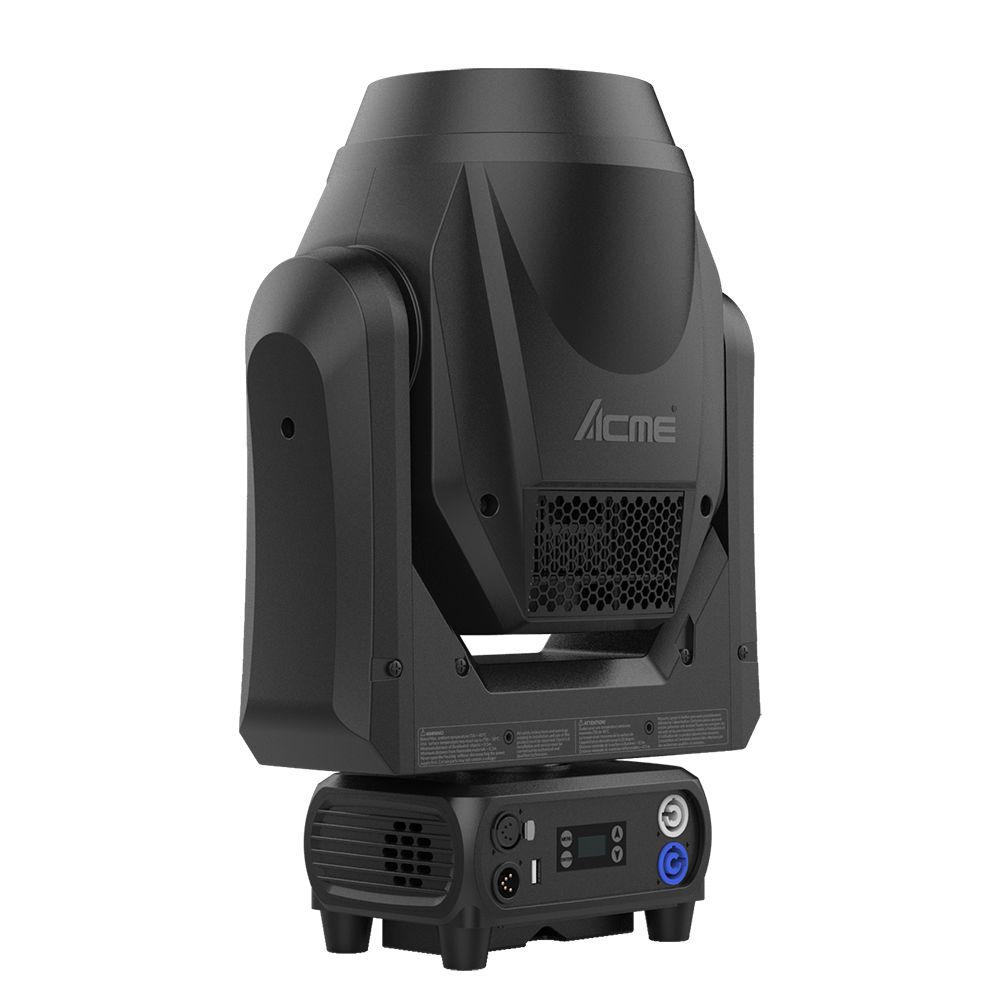

ACME BONZAI 200, cutie than ever. With a robust body weighed only 14kg and a sturdy 90W LED heart, this fast moving beam produces a crisp 8000K light of 172,000lux @5m at a tiny beam angle of 1.7°. Equipped with a fast-locked clamp, a cute base, and economically convenient power chains, BONZAI 200 suits any corner that has strict demand in budget and space.

Utilizing high-qualified optics to ensure the comprehensive effect precisely: which contains 14 popular colors, 16 high-precision gobos, 2 combinable and indexable prisms, and one advanced frost filter, transforming one beam into a ray of several narrow beams and creating splendid mid-air effects, BONZAI 200 enables a new world of expression in events, small shows, ballrooms, and entertainment installation applications.

Features

• Diameter of front lens: 145mm
• Color Temperature: 8000K
• Standard mode：Ra＞70

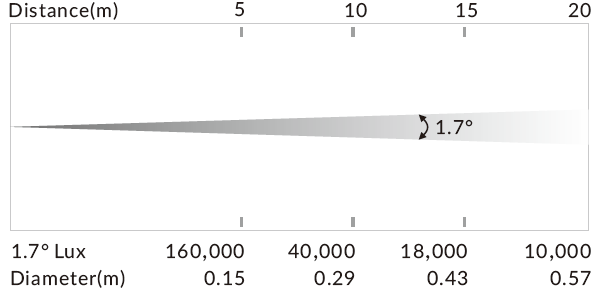

• Output performance at 172,000lux in 5m
• Excellent color macro effect
• Rainbow effect rotating in both directions
• Static gobo wheel: 1 static gobo wheel with 16 high-precision gobos, plus open Color wheel: 1 color wheel with 14 colors plus white, rainbow effect
• Prisms: 8-facet prism and 24-facet prism, can rotate in both directions and overlay uses
• Beam angle: 1.7°
• Independent frost effect
• Motorized focus
• Outstanding strobe effect with variable speed
• 0-100% smooth dimming
• Flicker free management

Model

• BEAM 200

Light Source

• Light Source: 90W LED
• Life expectancy: 20000 hours

Optical System

• Advanced optical system to ensure image quality, clear and sharp
• High – efficiency optical system
• Beam angle: 1.7°

Control and Program

• 4-buttons touch panel
• Display: OLED display
• Protocols: DMX512, RDM
• DMX Protocol modes: 1
• Control channels:18 CH
• Firmware Upgrade: Upgrade via DMX link

PAN & TILT

• Pan movement: 540°
• Tilt movement: 270°
• Automatic Pan/Tilt position correction

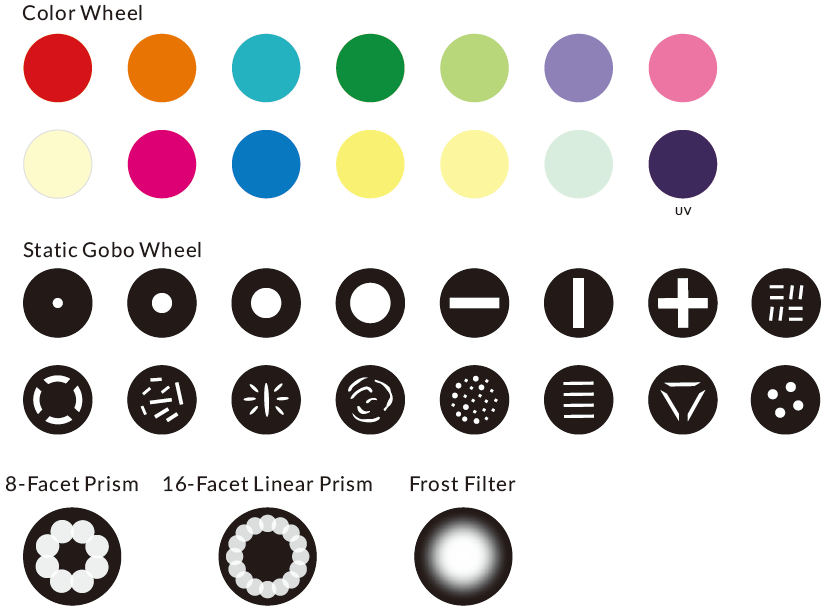

Static Gobos

• 1 static gobo wheel with 16 high-precision gobos, plus open

Color Wheel

• 1 x color wheel with 14 colors plus white，rainbow effect

Electrical and Connectors

• Input voltage range: 100-240V~ 50/60Hz
• Power consumption: 185W
• Power In/Out：Power Connector in/out
• Data In/Out：Optional 3or5-pin XLR

Fixture Specification

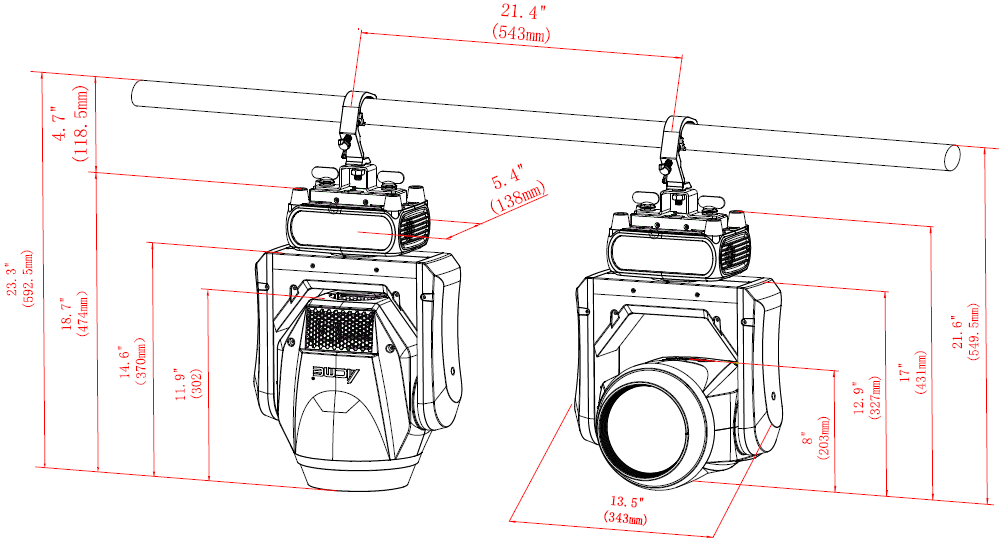

• Fixture Dimensions:
  • Width: 203 mm (8″)
  • Depth: 343 mm (13.5″)
  • Height: 474 mm (18.7″)
  • Weight: 13.5kg (29.5 lbs)
• Carton Dimensions:
  • Width: 460 mm (18.1″)
  • Depth: 400 mm（15.7″)
  • Height: 545 mm (21.5″)
  • Weight: 18.5 kg(40.5 lbs)(one-pack per carton)

Work Environment

• Maximum ambient temperature: 45°C
• Maximum surface temperature: 65°C
• Minimum operating temperature: -10°C

Approvals

• CE compliant

Installation

• Available in horizontal or vertical mounting
• Universal operating position
• 1 x 1/4-turn locking points under the base

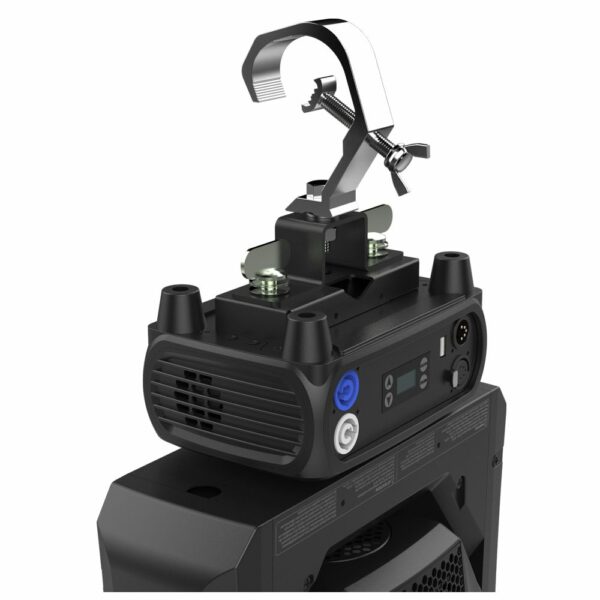

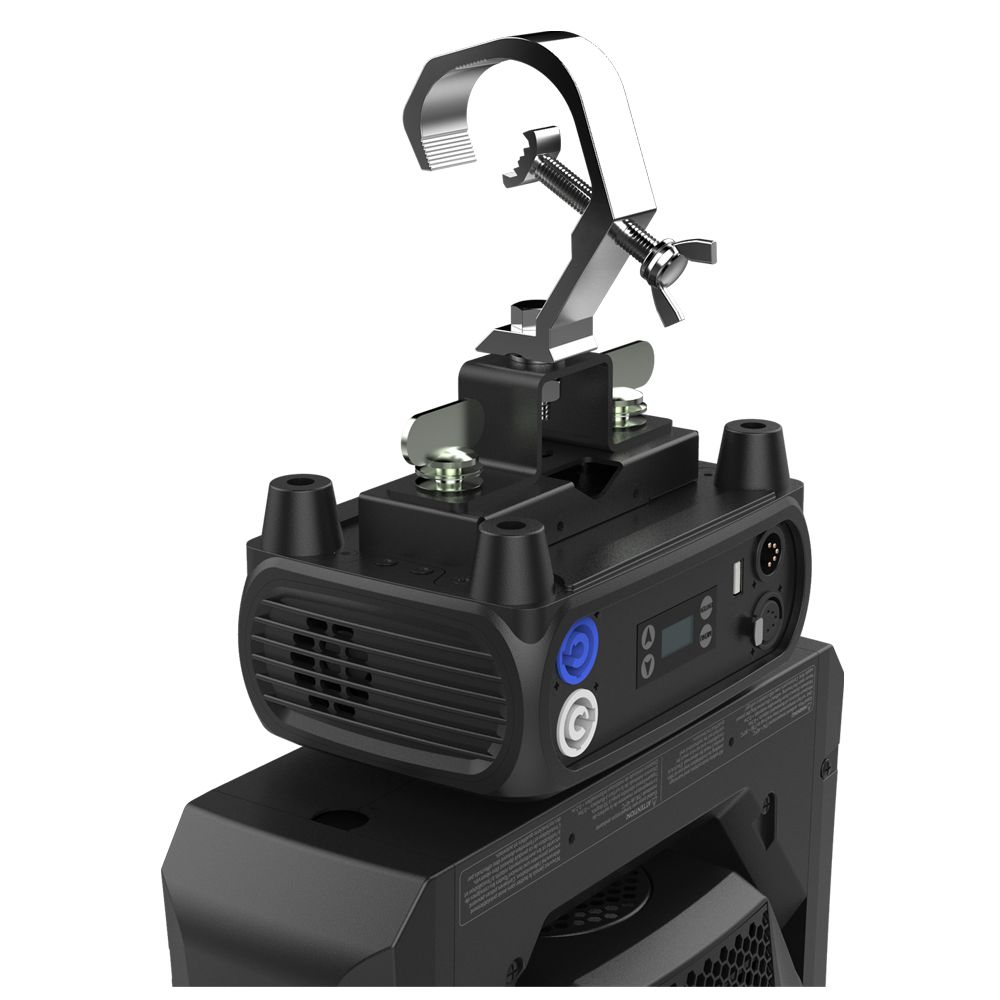

• 1x Fast-locked clamps
• Safety Rope Hole

Included Items

• Digital User Manual
• Power Cable
• Factory certificate and warranty card
• 1 x Fast-locked clamps

Optional Accessories (with item code)

• Clamp：2060001635 (C-100A)
• Signal Line：3-pin or 5-pin XLR signal line
• Safety cable : 2060000200（SW-02）
