Acme BELUGA

280W COB | LED | Par | Warm wit | Zoom | IP65

Log in of registreer om uw korting te zien.
Of vraag vrijblijvend een offerte aan.

Demo? Bezoek onze showroom of maak een afspraak voor een demo op locatie.

Wij zijn er voor de professional. Totaal leverancier stage & entertainment

Deskundig advies op maat. Wij denken graag met je mee.

Gespecialiseerd in projectie. Voor elke project een oplossing.

Functional Overview
ACME BELUGA with compact design, small size, which is stability, high light efficiency & low energy consumption, greatly reduces the light attenuation and ensures the LED’s working life. Adopts 280W WW LED module, high CRI mode Ra≥95, color Temperature 3000K, it can reach 8600lm light output. Zoom range from 6.9° to 22°, provide the large and uniform wash effect. Protection rating is IP66, makes the BELUGA can be used in outdoor all year round. With double hanger design, give you multiple Installationoptions, ideal for stages, theaters, churches, ballroom, concert, etc.
Features
Light Source: 280W WW LED module
Color Temperature: 3000K
Luminaire output: 8600lm
High CRI mode Ra≥95
High light output
Zoom range 6.9°-22°
Provide the large and uniform wash effect, ideal for stages, theaters, churches, ballroom, concert, etc.
Compact design, small size
Double hanger design, multiple Installationoptions
Smooth dimming from 0-100%
Outstanding strobe effect with variable speed
Flicker free management
Dust-proof and oil-proof design
IP66 protection rating, can be used in outdoor all year round

Technical & Specification
Model
MP-500Z IP WW

Light Source
Light Source: 280W WW LED module
LED life expectancy: 20000 hours

Optical System
Advanced optical Systemto ensure clear and excellent static effect
High – efficiency zoom Optical System, ratio 1:4.1
High CRI mode Ra≥95
Color Temperature: 3000K
Luminaire output: 8600lm

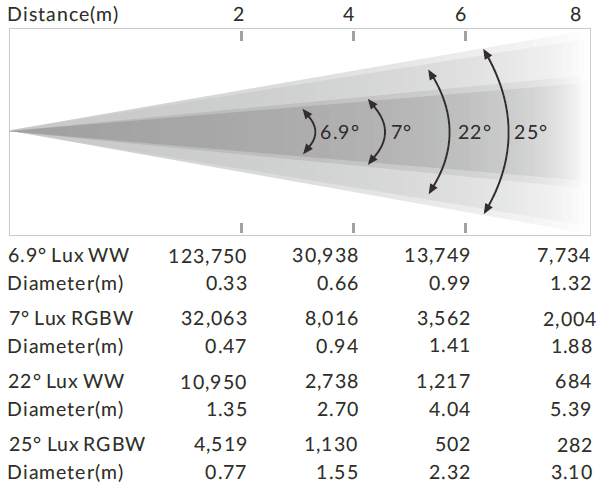

Field Angle: 10°-34°
Beam Angle: 6.9°-22°

Controland Program
4-button touch panel
Display: OLED display
Protocols: DMX512,RDM
DMX Protocol modes: 2
Controlchannels: 6,7
Firmware Upgrade via DMX link

Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240 V, 50/60 Hz
Power consumption: 310 W
Power In/Out: Waterproof Power Connector in/out
Data in/out: 3-pin or 5-pin IP XLR

Fixture Specification

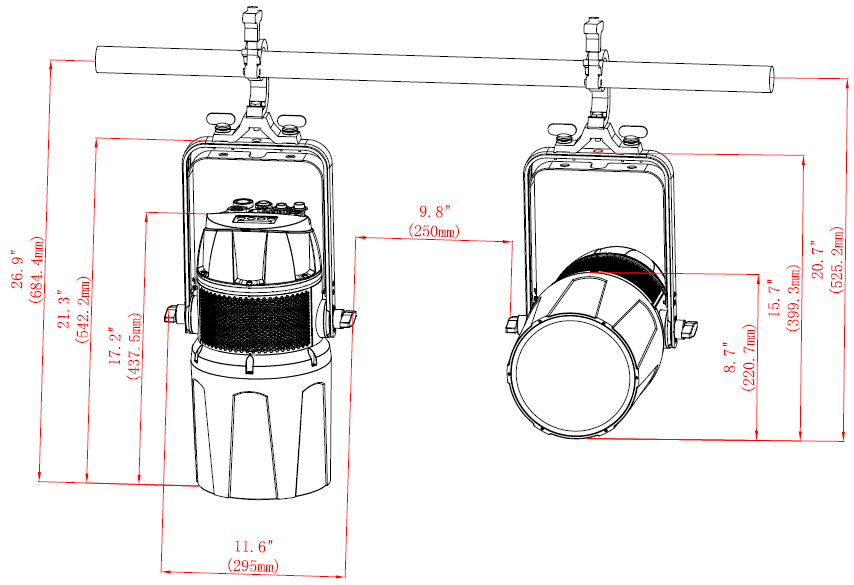

Fixture dimensions:
Height: 221mm (8.7″)
Width: 295mm (11.6″)
Depth: 438mm (17.2″)
Fixture Net Weight: 10.5 kg (23.1 lbs)
With carton net weight (in): 11.8kg (26 lbs)
Carton dimensions:
Height: 285mm (11.2″)
Width: 375mm (14.8″)
Depth: 660mm (26″)

Work Environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Protection rating: IP66

Installation
Horizontally or vertically mounting are available
Operating position is universal
The feet support with 3 locking points
Safety cable attachment point

Included Items
User Manual
Safety cable : SW-02

Optional Accessories (with item code)
Carton:3204128041(1 in 1)
Clamp:2060001614(C-250)

IP-Rating

Outdoor

Type lichtbron

LED

Vermogen

Vermogen Lichtbron

280

Eigenschappen

, ,

Kleurmenging

WW

Type Fixture

Par

Min zoom

6, 9

Max zoom

22

Type

Kleur

Zoom
