Functional Overview

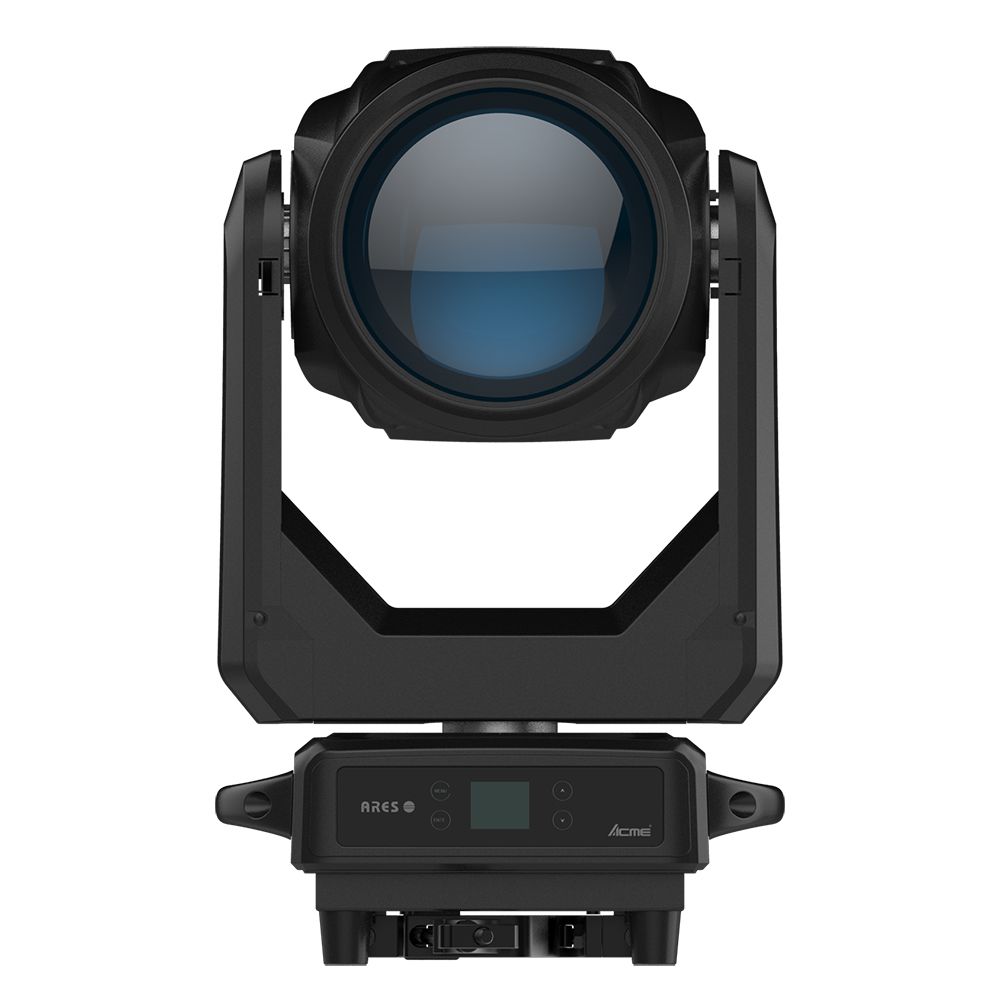

ACME professional solutions and innovative products ARES Moving Beam are tailor-made for stage design and rental companies. The extremely effective Philips MSD Platinum 19R 4,000 Hours Long Lifespan(*Test lab conditions) discharge lamp with a great intensity of 882,000 lux at 10 meters offers extremely high output and fascinating prism/gobo combination effects.
The high-quality optics with a 200mm front lens and a remarkable beam angle at 1.3° offer almost inexhaustible possibilities. By ingeniously merging the independent frost wheel and two soft filters blending with an additional colour wheel offering 12 complementary colours plus a Minus-Green filter & High CRI option, it is possible to spark genuine emotions. Designer appreciates the powerful output and the wide range of dynamic effects that allow them to develop their creativity to the full. Fascinating lighting effects are created with the several animation gobos with indexable metal gobos on the wheel. A total of 4 prisms at two levels open up unheard-of possibilities in terms of creating diverse mid-air effects. The linear 3,200-6,500K CTO wheel and hotspot soft filters are enhanced by the high CRI filter for increased colour rendition and adaptation to TV and filming applications.
The attractive design of the compact housing with foldable clamps (Optional for Omega Bracket Base) for better handling in everyday use. 16-bit resolution enables smooth, uniform dimming and fast-moving pan/tilt speed. Designed to fulfill all scale stage applications, the new ACME ARES is a perfect beam light for all functional purposes.
Features
- Light source: Fitted with a powerful Philips MSD Platinum 19R LL engine

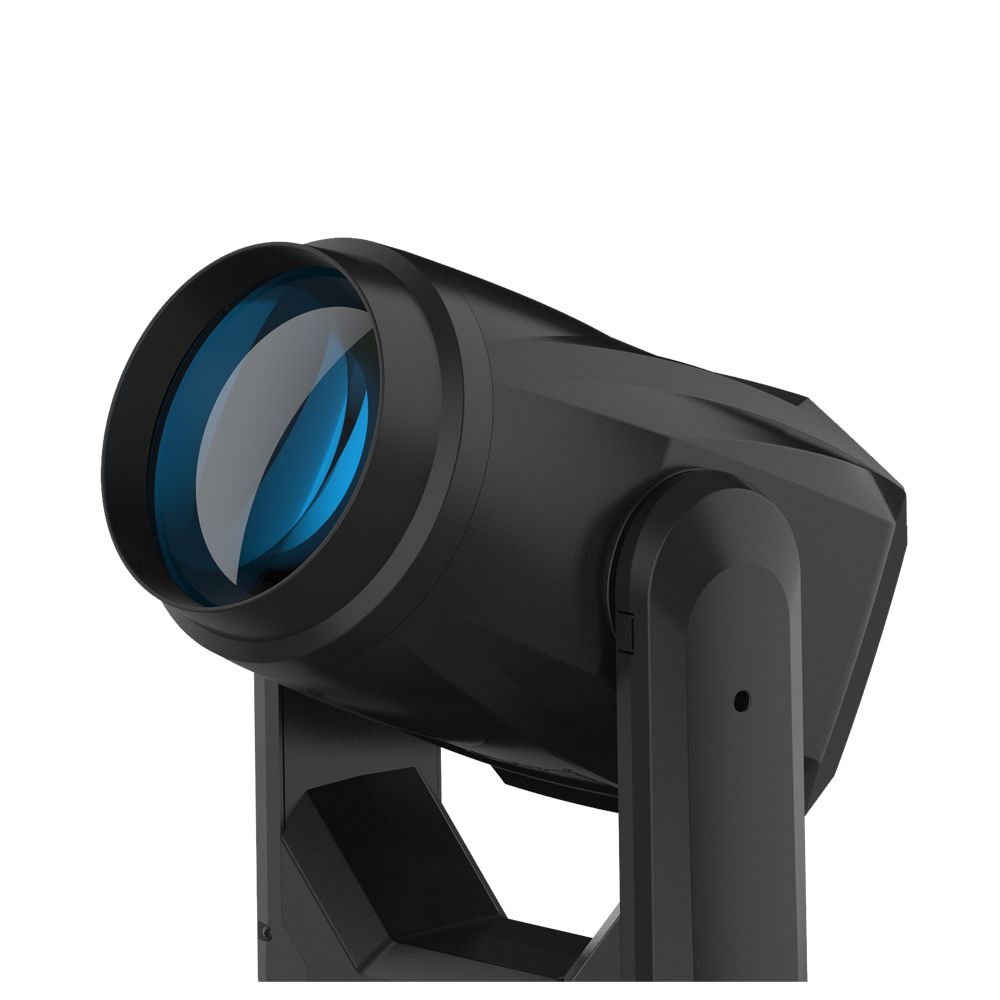

- A large 200mm frontal lens
- Color Temperature: 6,700K
- Motorized focus
- 1x Color wheels: 12 colors + CRI filter + green-minus filter, rainbow effect
- Static gobo wheel: 10 HD gobos, including 3 effect gobos, plus open Color
- 1 x CTO, Linear Variable from 2,800 kelvin to 6700 kelvin
- 3 effect gobos,can overlayable with gobos
- Prisms: 1 x 8-facet prism,1X24-facet prism, 1 x 48-facet prism,1 x 6-facet linear prism, 8 types of combinations
- 0-100% smooth dimming
- Frost Filter: soften beam edge in-air effects
- provide two type of soft and light beam
- Outstanding strobe effect with variable speed
Model
- XP 500 BEAM
Light Source
- Light Source: Philips MSD Platinum 19R LL engine
- Life expectancy: 4,000 hours
Optical System

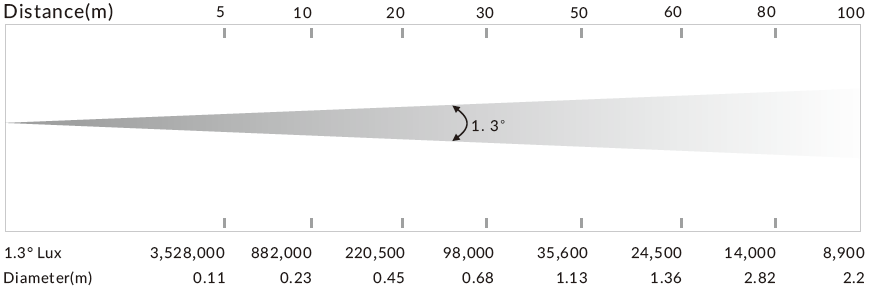

- Beam Range: 1.3°
Control and Program

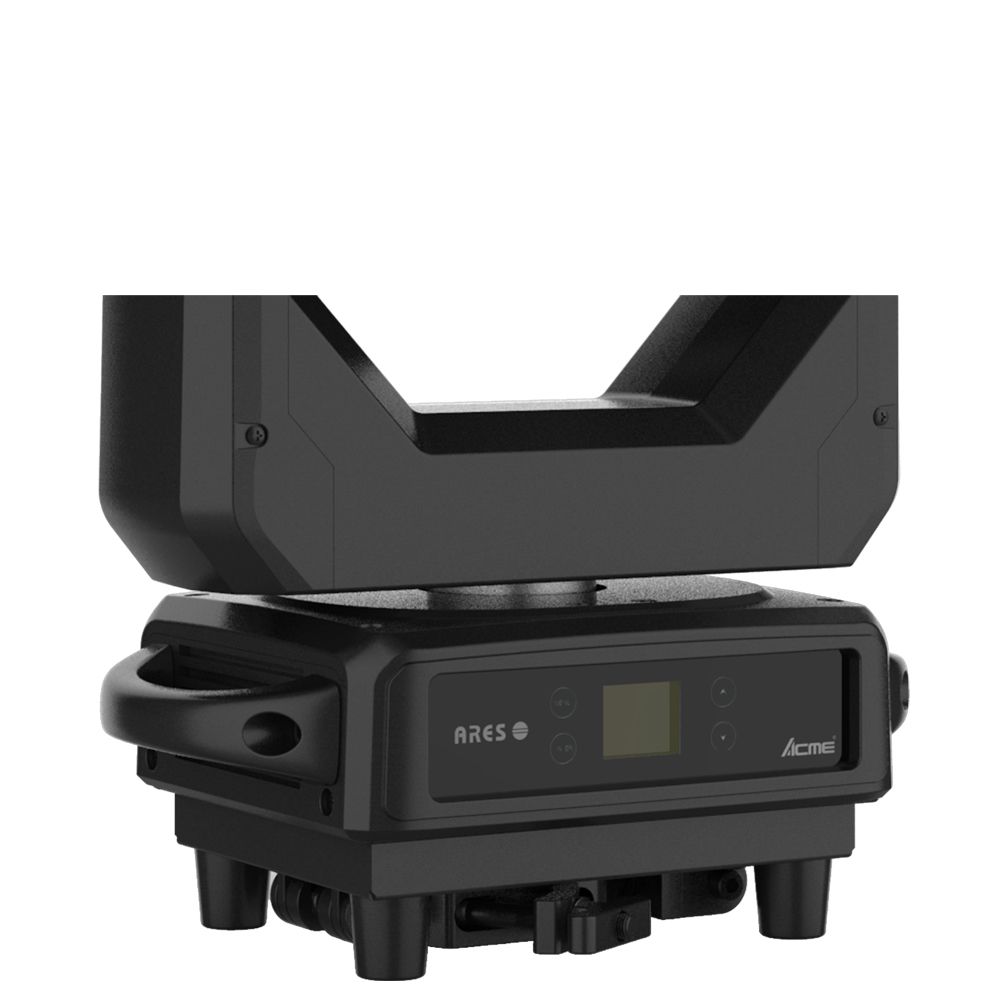

- 4-Button touch panel
- Display: LCD Display
- Protocols: DMX512,RDM
- DMX Protocol modes: 2
- Control channels: 21/17
- Firmware Upgrade: Upgrade via DMX link or USB disk
- Pan/Tilt Resolution: 16 bit
PAN & TILT
- Pan movement: 540°
- Tilt movement: 270°
- Automatic Pan/Tilt position correction
- Fixation: Pan/Tilt lock

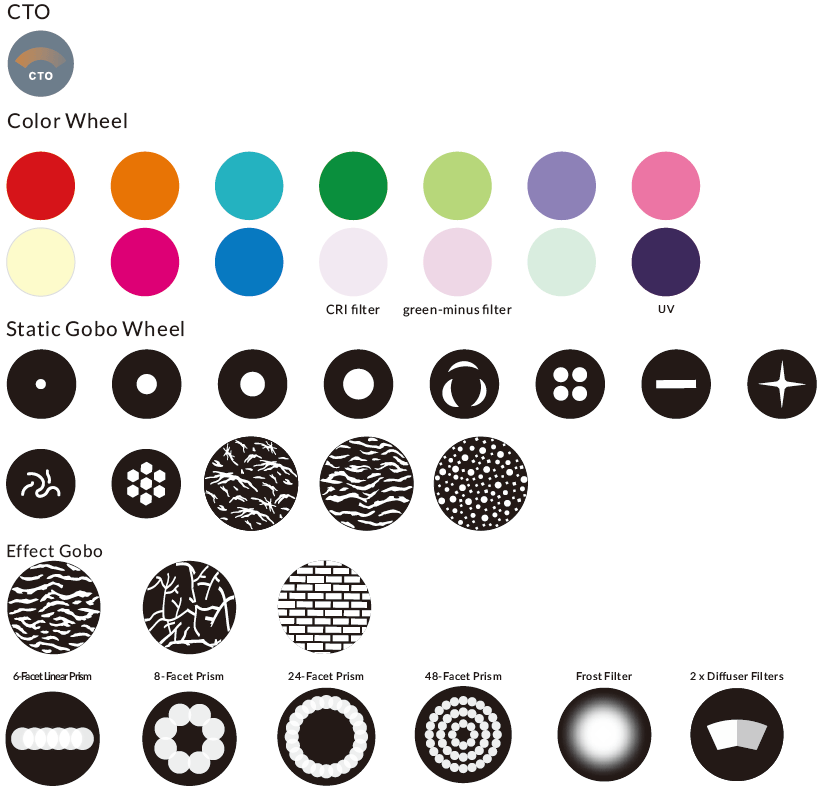

Color Wheel
- 1 x Color wheels: 12 colors + CRI filter + green-minus filter, rainbow effect
Static Gobos
- Static gobo wheel: 13 HD gobos, including 3 water effect gobos, plus open Color
Prism
- one 8-facet prism, one 24-facet prism, one 48-facet prism, one 6-facet linear prism, 8 kinds of combinations
Frost Filters
- Advanced Frost Filter: soften beam edge in-air effects
Diffuser Filters
- Diffuser Filters: provide double homogenization effect light-heavy

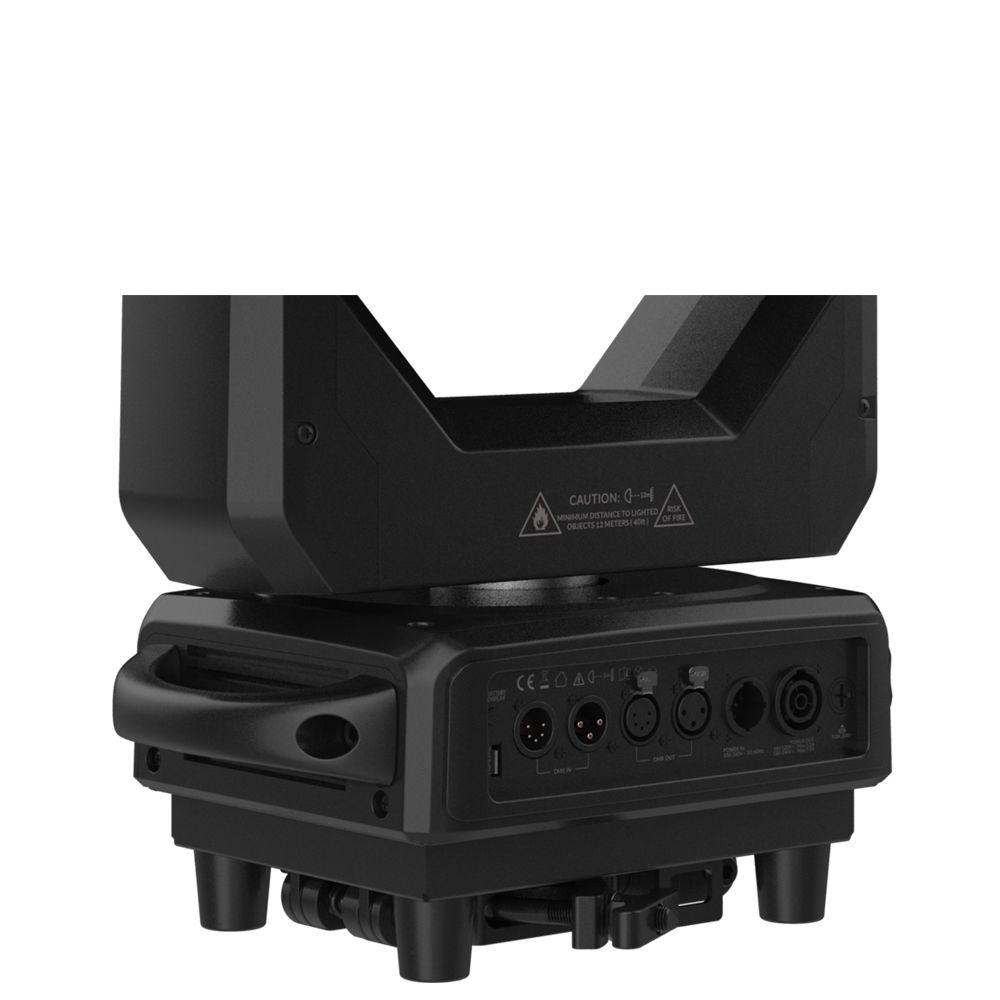

Electrical and Connectors
- Input Voltage Range: 100-240V~ 50/60Hz
- Power consumption: 570 W
- Power In/Out: Power Connector in/out
- Data in/out: 3-pin and 5-pin XLR
Fixture Specification
- Fixture Dimensions:
- Width: 350 mm (13.8″)
- Depth: 223 mm (8.8″)
- Height: 668 mm (26.3″)
- Weight: 28 kg (62 lbs)
- Flight Case Dimensions:
- Width: 915 mm (36″)
- Depth: 580 mm (22.8″)
- Height: 910 mm (35.8″)
- Weight: 108 kg (397 lbs)(include flight case, dual loader case)
Work Environment
- Maximum ambient temperature: 40°C
- Minimum operating temperature: 0°C
- Maximum surface temperature: 90°C
- Protection rating: IP20
Installation
- Available in horizontal or vertical mounting
- Universal operating position

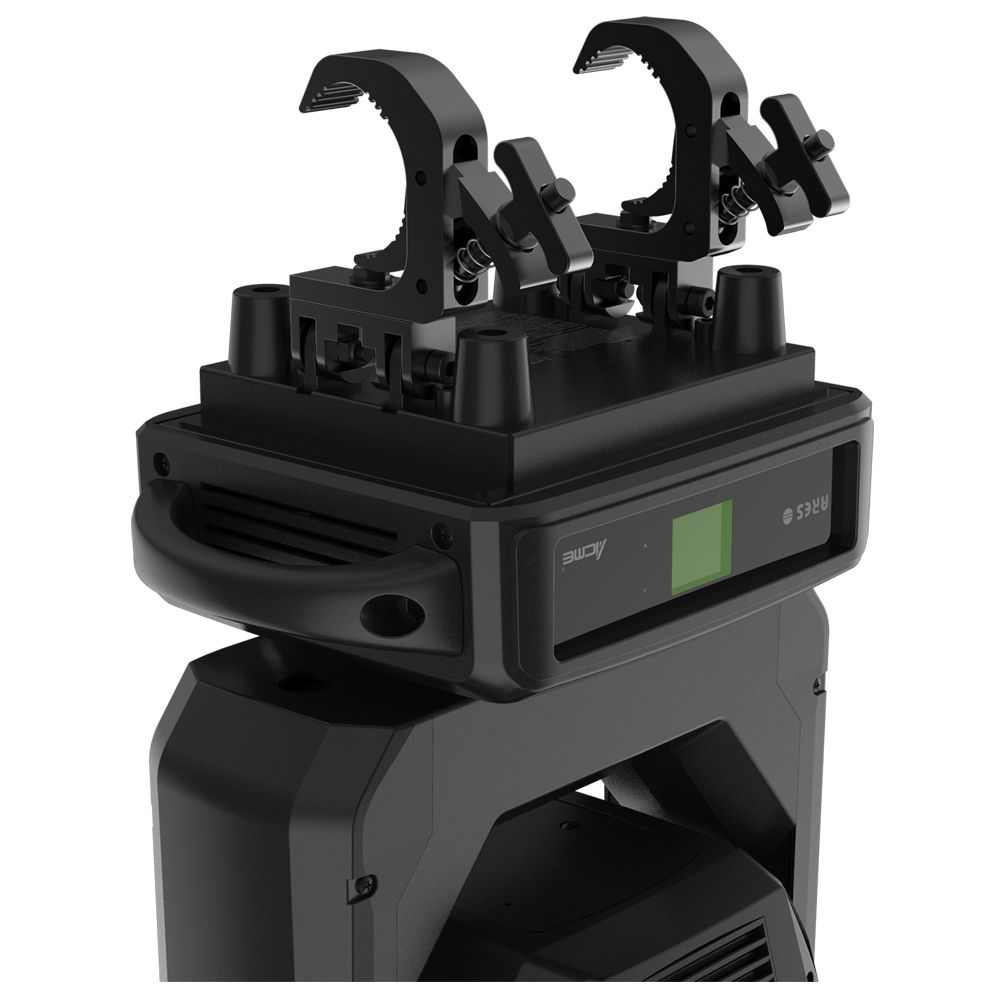

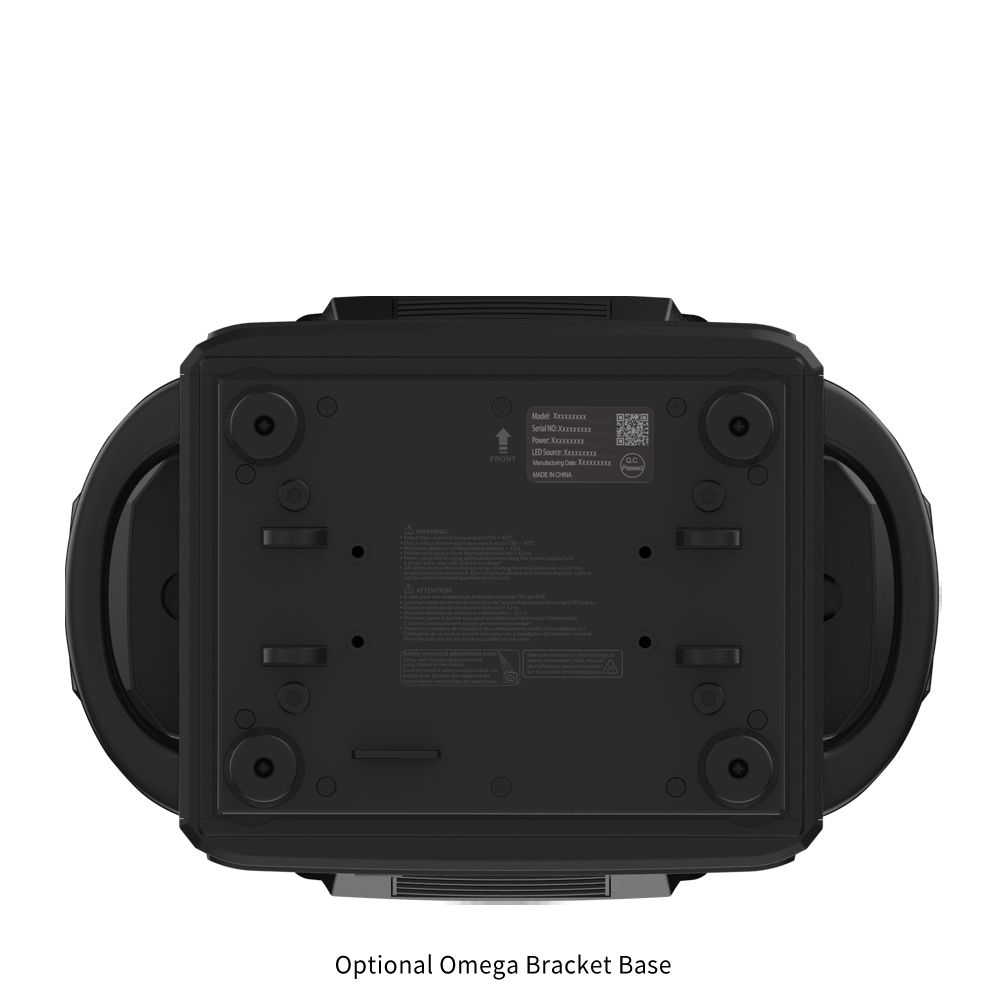

- 2 x Fixed foldable clamps for 50mm truss (Optional Omega Bracket Base)
- Safety cable attachment hole
Factory Configuration
- Digital User Manual
- Power Cable
- Factory certificate and warranty card
- 2 x Fixed foldable clamps for 50mm truss (Optional Omega Bracket Base)
Optional Accessories (with item code)
- Flight Case: 3205001318
- Raincover: 3033001749
- Safety Rope: 2060001603-A (SW-05)
- Signal Line: 3-pin and 5-pin XLR signal line
