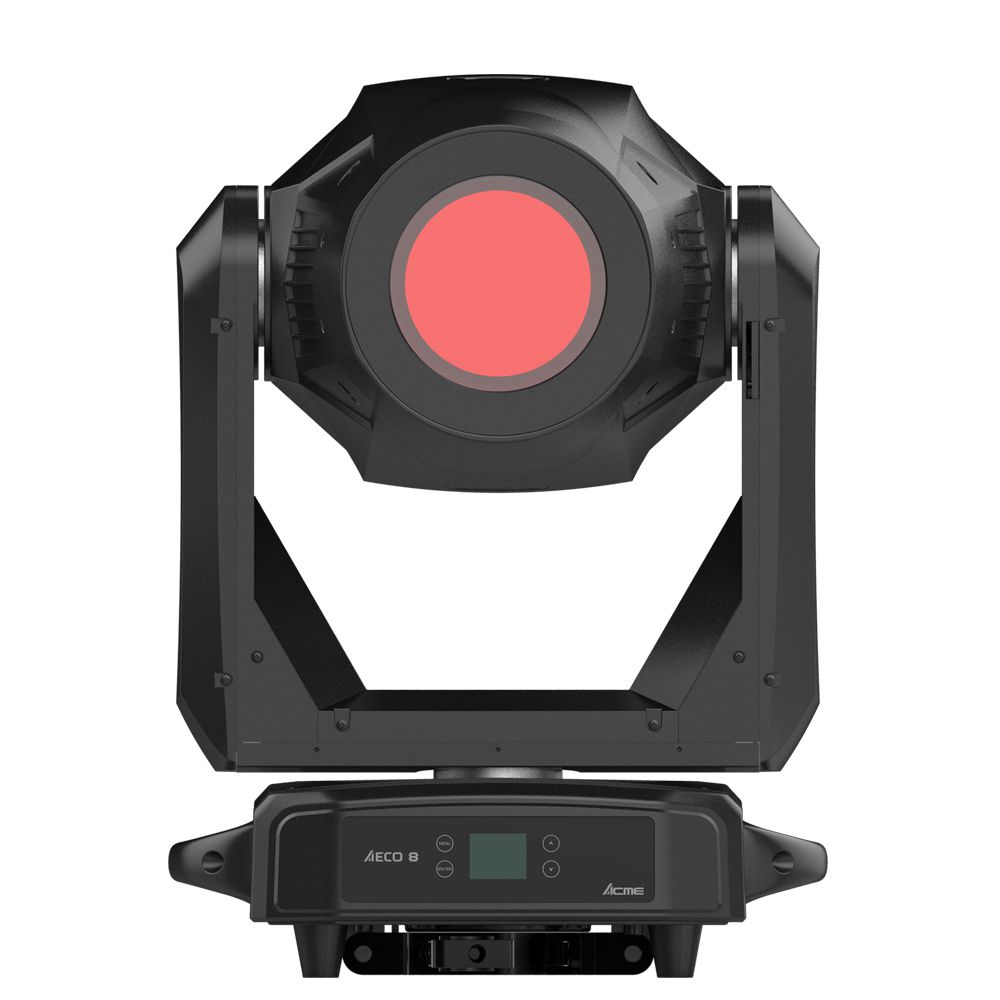

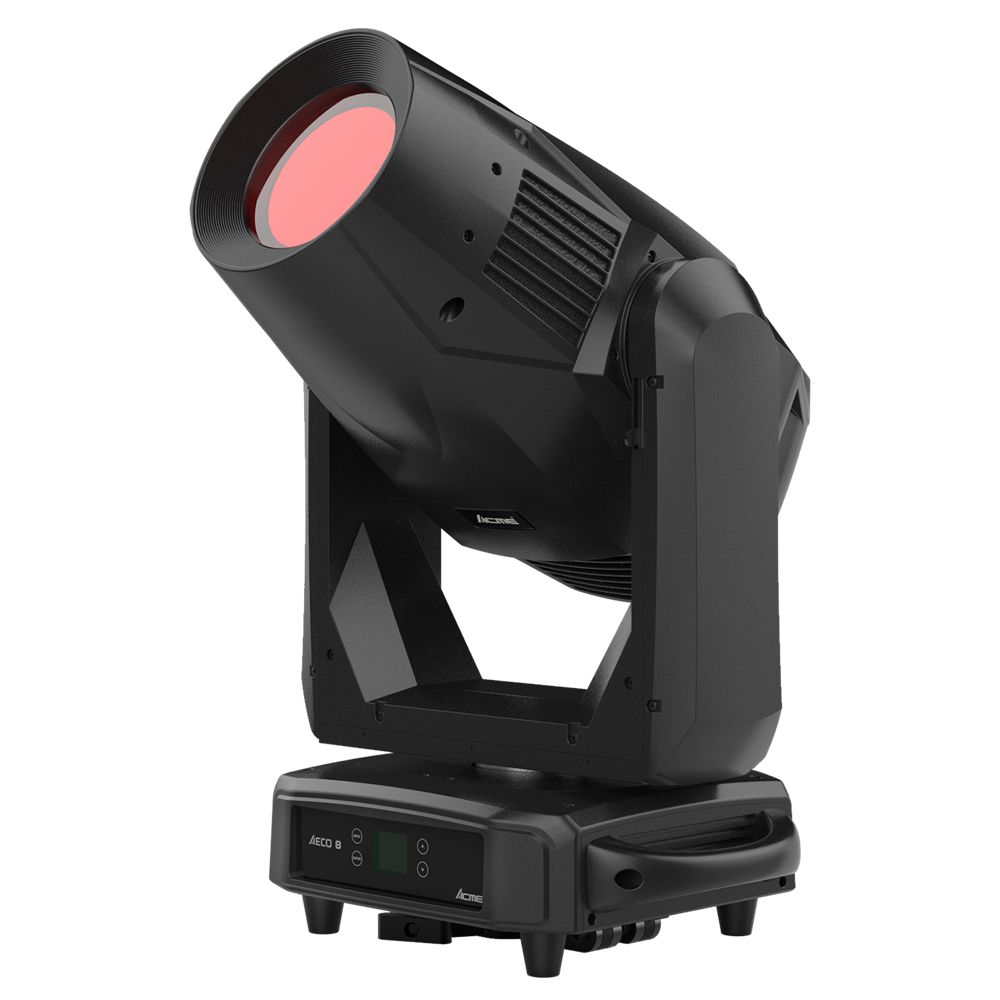

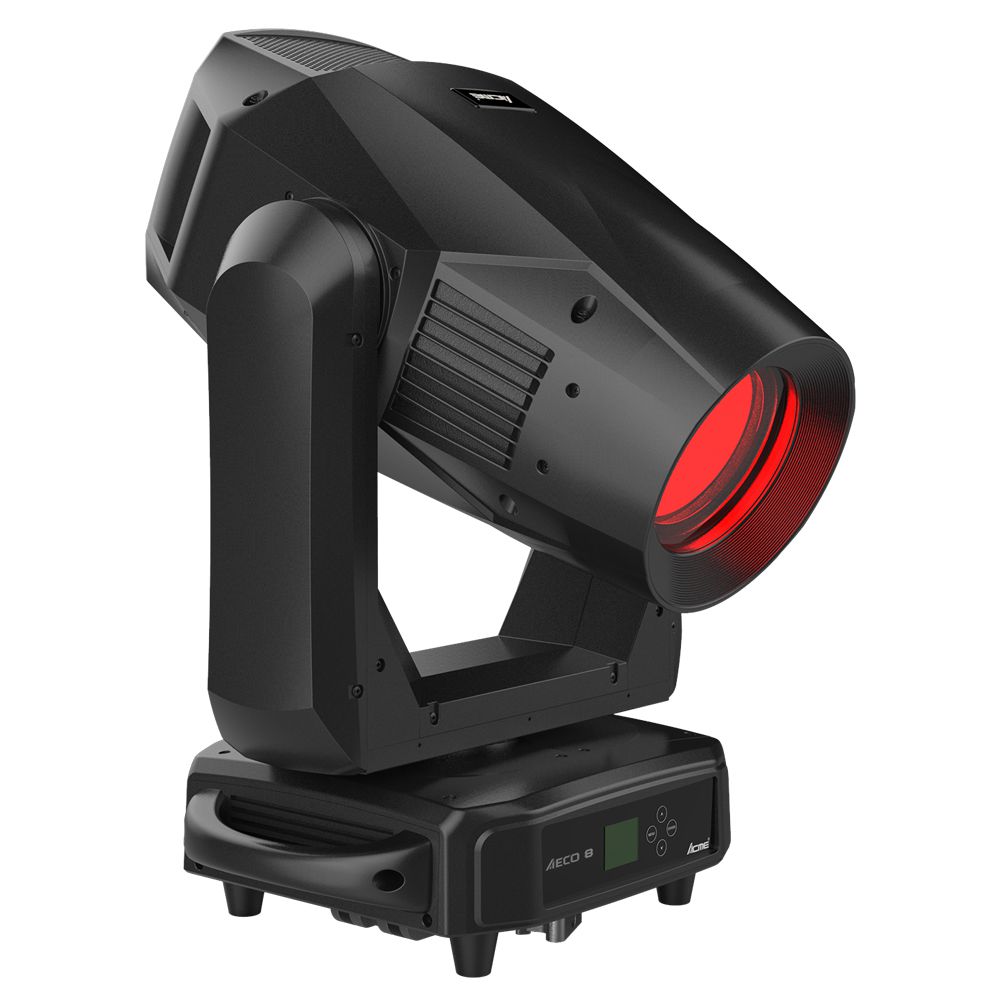

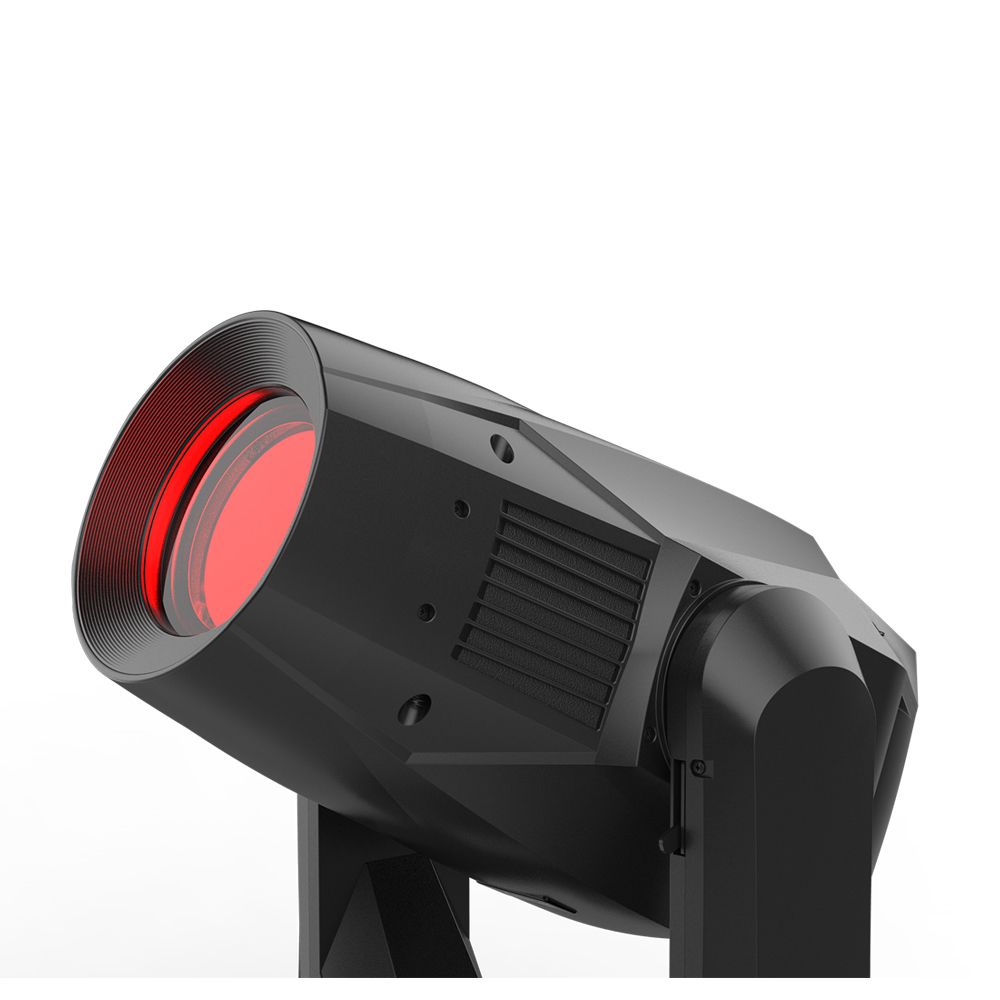

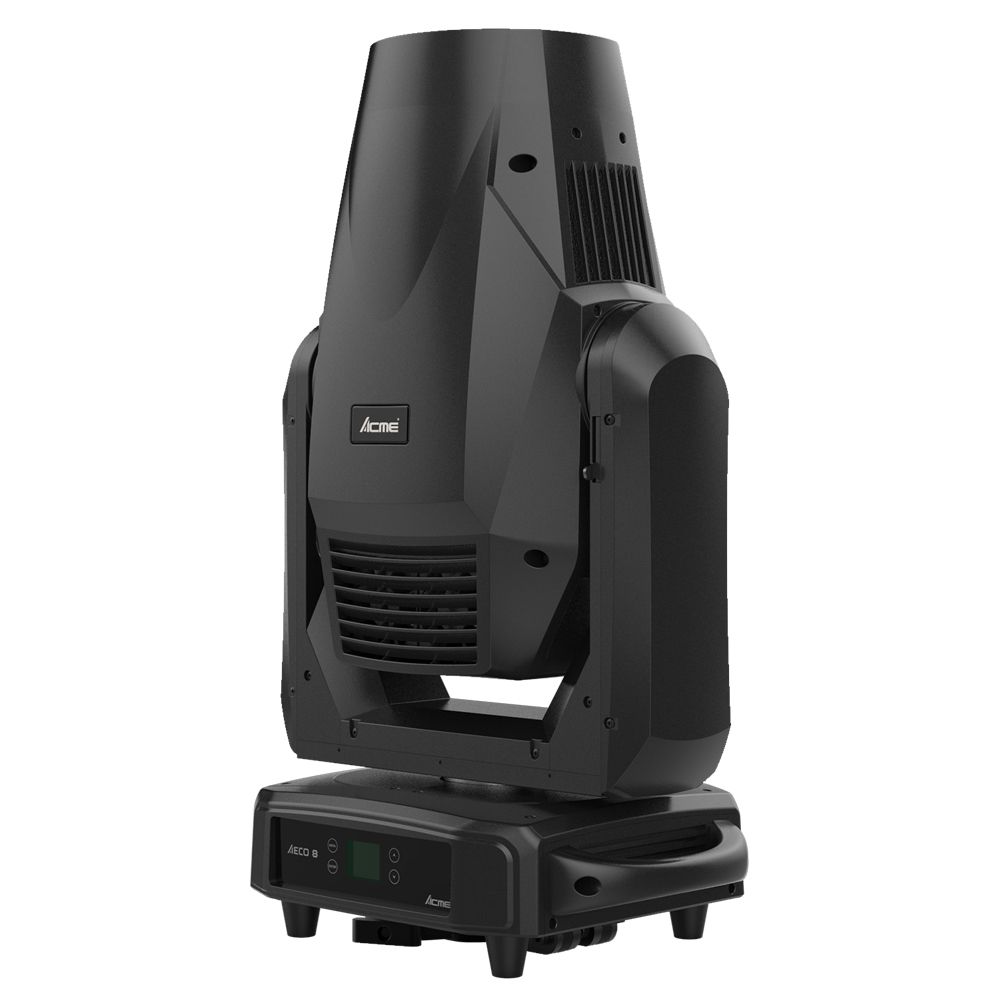

Acme – AECO 8

750W | LED | Movinghead | Profile | CMY + CTO | High CRI

Log in of registreer om uw korting te zien.
Of vraag vrijblijvend een offerte aan.

Demo? Bezoek onze showroom of maak een afspraak voor een demo op locatie.

Wij zijn er voor de professional. Totaal leverancier stage & entertainment

Deskundig advies op maat. Wij denken graag met je mee.

Gespecialiseerd in projectie. Voor elke project een oplossing.

Functional Overview
Our AECO 8, certainly lives up to its name. This ACME tailor-made, eco-environment and maintaining light quality fixture, emphasizes the color rendering to the top one. Equipped with the High Color Rendering 750W LED Engine, the natural white light@6000K is ready to light up your next show through its 165mm frontal lens. We make up our mind to revolutionize the color of the AECO series, so you will see the perfect Red(630nm±3nm), Green(535nm±3nm), and Blue(450nm±3nm) after mixing the innovative CMY flags. Not only delivers excellent macro colors, but also features the color rendering of RA≥95 & R9≥90 with no compromise–AECO 8, is destined to be your universal choice: front light and also major light.
Additional benefits include variable CTO from 6000K to 2700K, a color wheel, a rotating gobo wheel, an animation wheel, a 4-facet prism, 2 different frost filters, and 4 smooth shutter blades. With a total lumen output of 23,000lm, the AECO 8 is an energy-saving framing profile light, which ideal for stages, theatres, dance halls, broadcasting, fashion shows, etc.

Features
Fits a 750W LED engine and its front lens is 165mm diameter
Color Temperature: 6,000K
Total lumen output up to 23,000 lm
High CRI mode Ra≥95,R9≥90
Motorized focus
Linear CMY color mixing
Excellent color macro effect
Variable CTO: 2700K-6000K
Rotating gobo wheel: 1 rotating gobo wheel with 6 gobos, convenient replacment
Image diameter: 25mm
Outside diameter: 37.3 mm
Color wheel: 1 color wheel with 6 colors
Animation wheel: 1 animation wheel with outstanding water and flame effect, the effect disk can rotate and be replaced
Prisms: 1pc 4-facet prism rotatable in either direction

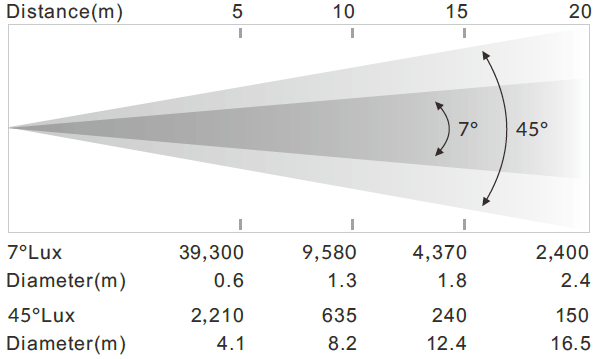

Beam Angle: 7°-45°
Frost: 2 different frost filters to create and improve the wash effect. They can be used independently and overlayed
Motorized linear Iris
Smooth dimming from 0-100%
Outstanding strobe effect with various speeds
4 x fast and smooth framing shutters; The position and the angle of each shutter blade can be controlled individually; Each shutter blade can block out light completely; The framing module can rotate at ±60 degrees

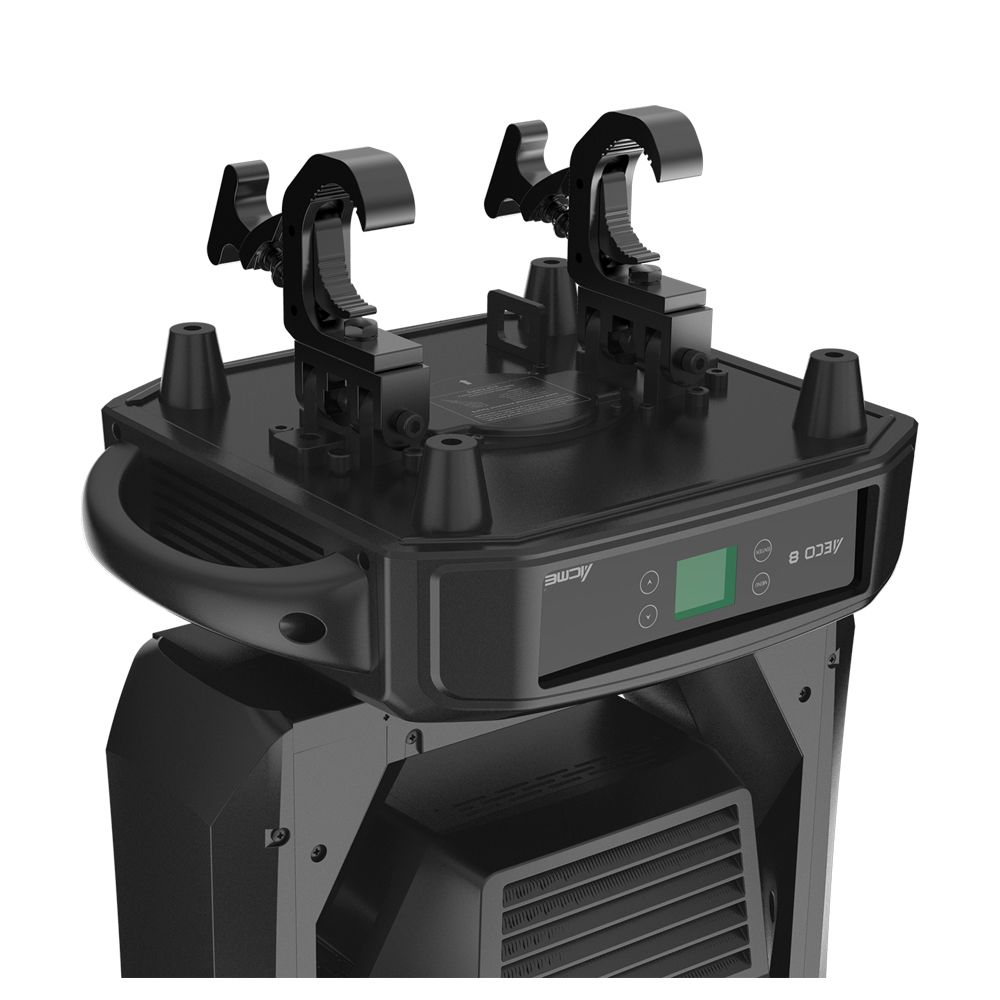

2 x fixed clamps for 50mm truss
Flicker free management
Dust-proof and oil-proof design

Technical & Specification
Model
AECO 8

Light source
Light Sources: 750W LED engine
LED life expectancy: 20000 hours

Optical System
Advanced optical system to ensure image quality, clear and sharp
High – efficiency optical system, zoom ratio 1:6.4
Diameter of front lens is 165 mm
Beam Angle: 7°-45°

Control & Program
4-buttons touch panel
Display: LCD display
Protocols: DMX512, RDM, Art-Net, sACN
DMX Protocol modes: 2
Control channels: 33,28
Pan/Tilt Resolution: 16 bit
Firmware Upgrade: Upgrade via DMX link or USB disk

PAN & TILT
Pan movement: 540°
Tilt movement: 270°
Fixation: Pan/Tilt lock
Automatic Pan/Tilt position correction

Rotating Gobos
1 x rotating gobos, with 6 gobos plus open, convenient replacement
Image diameter: 25mm
Outside diameter: 37.3 mm
Thickness: 1.1 mm
Max. thickness: 2.5mm
borofloat or better glass materials
Set with “SLOT & LOCK” system for gobos replacement

Color Wheel
1 x color wheel with 6 colors

Framing System
Blade: 4 fast and smooth framing shutters, each shutter blade position and angle can be controlled individually;
Movement is fast & smooth, with adjustable speed
Framing shutters can be precise motion with smooth movement
Each shutter blade can block out light completely, the framing module can be rotated at ±60°

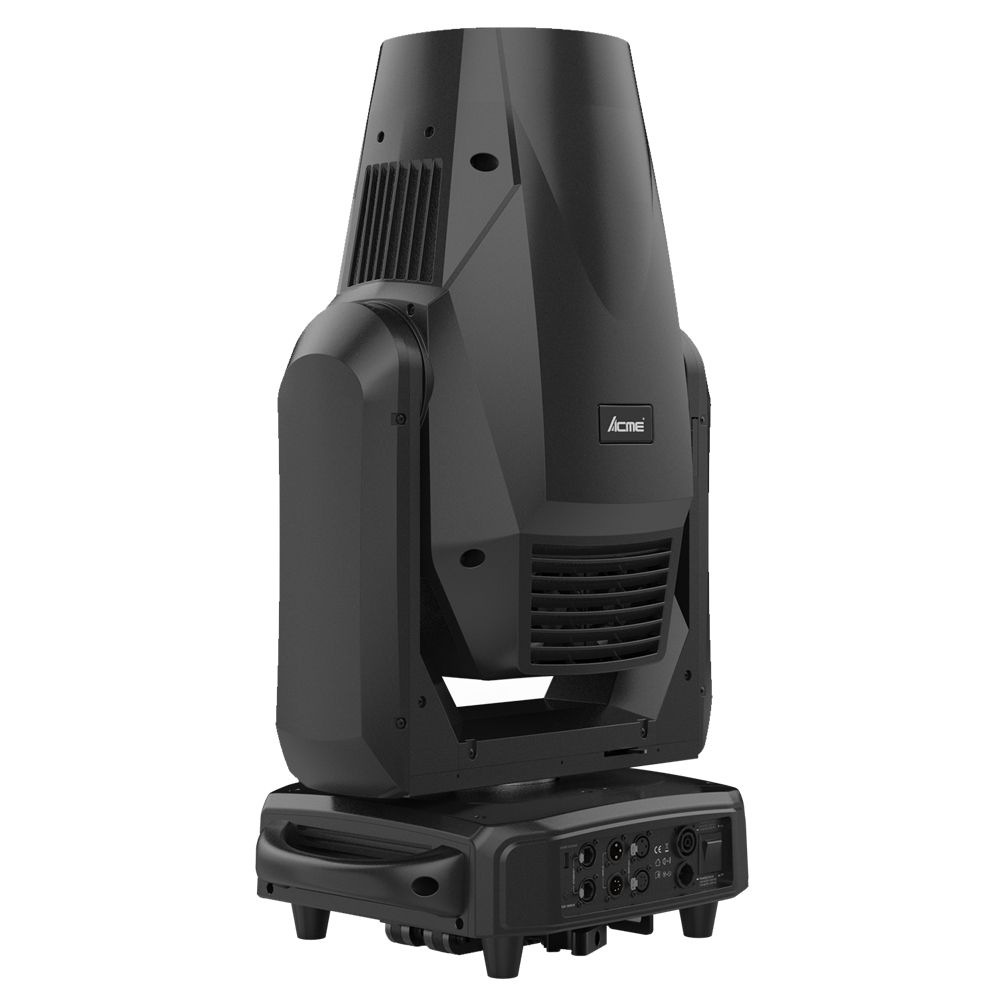

Electrical & Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240 V, 50/60 Hz
Power consumption: 1205 W
Power In/Out:Power Connector in/out or Power Cord Out
Date In/Out:3-pin or 5-pin XLR,RJ45

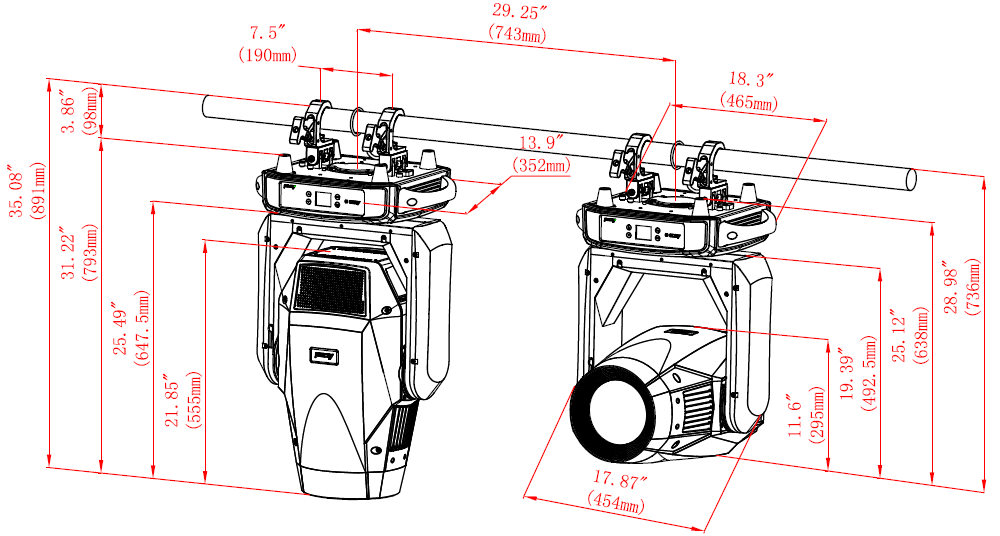

Fixture Specification
Height: 793 mm (31.2″)
Width: 352 mm (13.9″)
Depth: 465 mm (18.3″)
Weight: 42 kg (92.6 lbs)
F/C dimensions:
Height: 905 mm (31.2″)
Width: 595 mm (13.9″)
Depth: 715 mm (18.3″)
Weight: 88.3 kg (194.7) lbs (with F/C, 2 in 1 standard )

Work environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C

Installation
Horizontally or vertically mounting are available
Operating position is universal
2 x fixed clamps for 50 millimeter truss
Safety cable attachment hole

Included items
User Manual
Power Cable
2 x fixed clamps for 50 millimeter truss

Optional Accessories (with item code)
Raincover:3033001750
Safety cable : 2060000200(SW-02)
Signal Line:3-pin & 5-pin signal line

IP-Rating

Indoor

Type lichtbron

LED

Vermogen

Vermogen Lichtbron

750

Eigenschappen

, , , ,

Kleurmenging

CMY, CMY+CTO, Kleurenfilters

Type Fixture

Hybrid, Profile

Min zoom

7

Max zoom

45

Functies

4f prisma, Animatiewiel, Framing, Frost, Iris
