Beschrijving

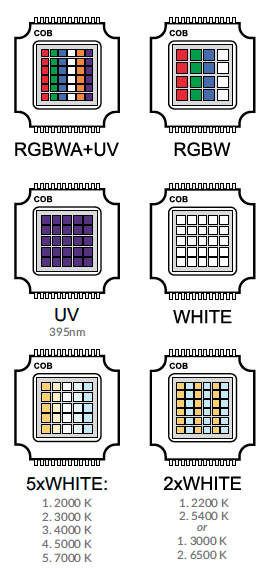

Verschillende uitvoeringen beschikbaar!
Ook verkrijgbaar met Infrarood afstandsbediening of Wireless DMX
Technical data

• Power supply voltage: 100 – 245V
• Voltage frequency: 50/60Hz
• Diode type: COB
• Display: Color LCD
• Number of diodes: 1

Utility data

• Beam angle (min): 37°
• Beam angle (max): 37°
• Dimming: Linear: 0 – 100%
• Flash frequency (min): 1Hz
• Flash frequency (max): 20Hz
• Number of DMX channels: Check User manual
• DMX standard: DMX 512
• Control interface: 4 buttons
• Operating modes: DMX512, Auto, Sound-controlled, Master / Slave
• Features: 16-bit dimming, various dimming curves, bulb simulation, DMX Signal regeneration,
• Electronic protection against overheating

Interfaces

• AC IN: powerCON
• AC OUT: powerCON
• DMX IN: XLR – 3 pin
• DMX OUT: XLR – 3 pin

Physical characteristics

• IP Rating: IP20
• Housing made: ABS
• Cooling: Active
• Height [cm]: 30
• Width [cm]: 27
• Depth [cm]: 13
• Weight [kg]: 3,8
• Weight with packaging [kg]: 5,4
• Type of packaging:Carton Box

Extra informatie
