Technical data
- Power consumption: 35W
- Power supply voltage: 100 – 240V
- Voltage frequency: 50/60Hz
- Diode type: COB 4in1
- Diode power: 30W
- Display: Color LCD
- Number of diodes:1
Utility data
- Color: RGBW
- Luminous flux: 1 060lm
- ZOOM: No
- Beam angle (min): 50°
- Beam angle (max): 50°
- Dimming: Linear: 0 – 100%
- Flash frequency (min): 1Hz
- Flash frequency (max): 20Hz
- Number of DMX channels: 9 channel modes (3-8 channels)
- DMX standard: DMX 512
- Control interface: DMX512, Auto, master/slave
- Operating modes: DMX512
- Features: Variable dimming curves; DMX signal regeneration, Electronic protection against overheating

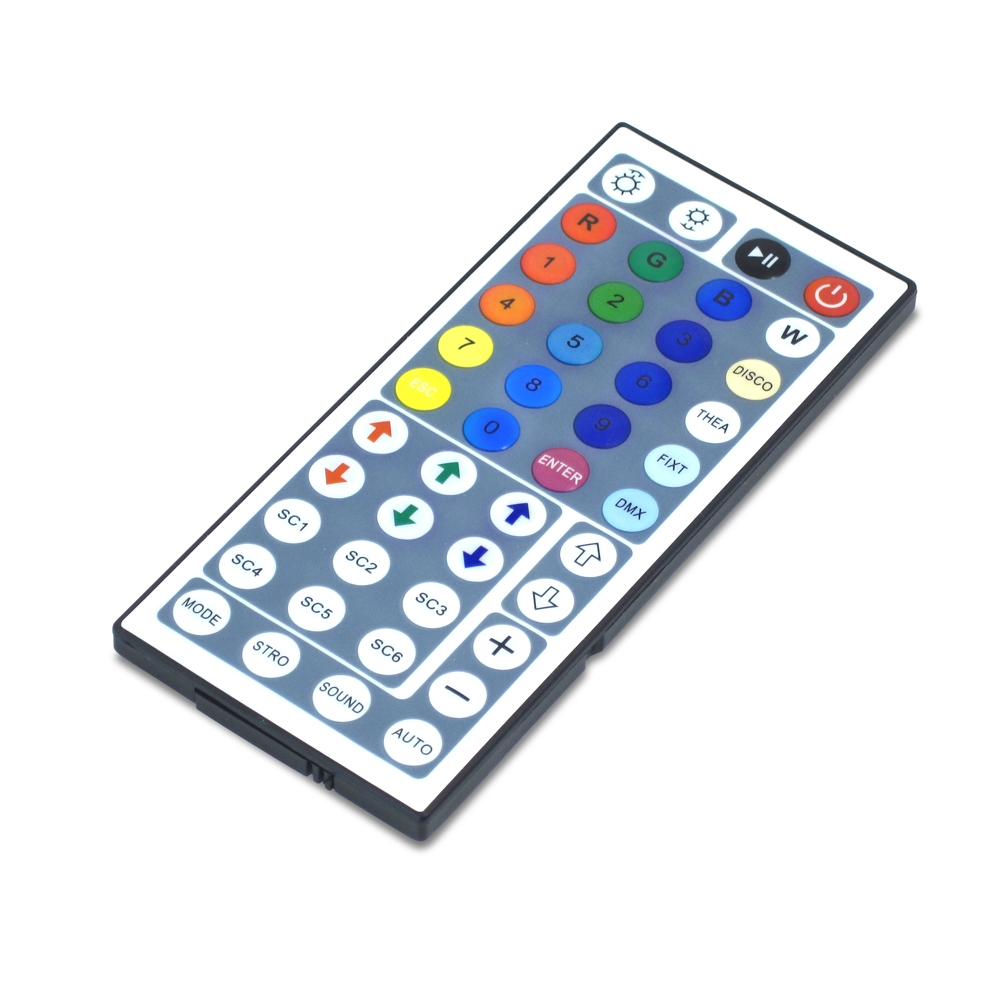

- Additional information: IR Remote control
Interfaces
- AC IN: Integrated power cord
- DMX IN: XLR – 3 pin
- DMX OUT: XLR – 3 pin
Physical characteristics
- IP Rating: IP20
- Housing made: Aluminum
- Cooling: Active
- Height [cm]: 16
- Width [cm]: 12
- Depth [cm]: 19
- Weight [kg]: 1,2
- Weight with packaging [kg]: 1,8
- Type of packaging: Carton Box
