Functional Overview
The FLASHDOT strobe bar contains 672pcs 0.3w RGB LEDs divided into 50 individually controlled segments, each segment contains 15 RGB LEDs in one zone. Plus the amazing 112 pcs 3w Cold White divided into 50 controllable segments in the center. Featuring a wide 116°viewing beam angle with outstanding strobe output. Onboard features include 0-100% smooth dimming, pre-set color mixing, dynamic strobing wash, and auto chasing programs. Applicable to the nightclub,ballroom, or any other entertaining lighting application.

Features
Light source:
672pcs 0.3W RGB LED
112pcs 3W CW LED
32 x RGB led zones can be controlled individually
16 x CW led zones can be controlled individually
Beam Angle: 116°
Outstanding strobe effect with variable speed
Small size, light weight
High resolution dimmer 0–100%
Flicker free management

Technical & Specification
Model
STORBE 3

Light source
Light source:
672pcs 0.3W RGB LED
112pcs 3W CW LED
LED life expectancy: 20000 hours

Optical system
Beam Angle: 116°
RGB colour mixing
32 x RGB led zones can be controlled individually
16 x CW led zones can be controlled individually
High brightness, outstanding washing effect
Outstanding strobe effect with variable speed
High resolution dimmer 0–100%

Control and Program
4-buttons touch panel
Display: OLED display
Control Mode: DMX512, RDM
DMX Protocol modes: 6CH/13CH/18CH/112CH
Upgrade the firmware via DMX link

Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240 V, 50/60 Hz
Power consumption: 275 W
Power In/Out: Power Connector in/out
Data in/out: 3-pin or 5-pin XLR

Fixture Specification
Height: 100 mm (3.9″)
Width: 85 mm (3.3″)
Depth: 1000 mm (39.4″)
Weight : 4kg (8.8lbs)
Carton Dimension:
Height:340mm (13.4″)
Width:280mm(11.0″)
Depth:1090mm(42.9″)

Work environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C

Installation
Horizontally or vertically mounting are available
Operating position is universal
Safety cable attachment point

Included items
User Manual
power cable

Optional Accessories (with item code)
Clamp:2060001635 (C-100A)
Signal Line:3-pin or 5-pin signal line
Safety cable : 2060000200(SW-02)

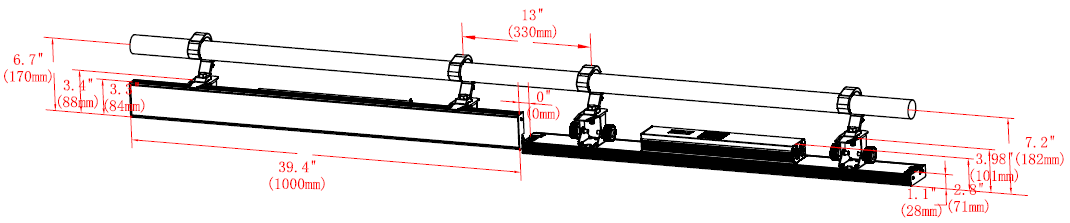

Afmetingen

afmetingen

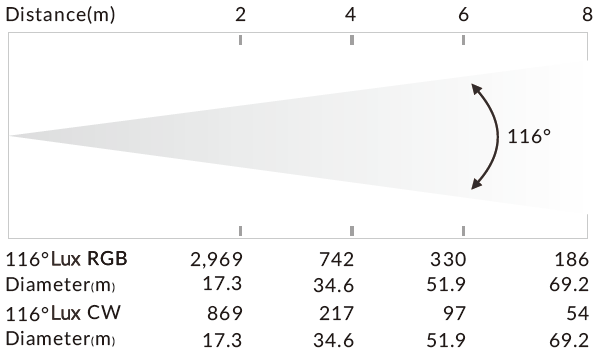

photometrics

photometrics
