Functional Overview
The GINAMP strobe light contains 800pcs 0.3w 5050RGB LEDs divided into 40 individually controlled segments, each segment contains 20 RGB LEDs in one zone. Plus the amazing 48pcs 5w Cold White divide into 6 controllable segments in the center. Featuring a wide 121° viewing beam angle from the color zones and a 89°beam angle out of the white tube to create outstanding color washing and dynamic strobing. Onboard features include 0-100% smooth dimming, pre-set color mixing, dynamic strobing wash, and auto chasing programs. Applicable to the nightclub, ballroom, or any other entertaining lighting application.

Features
Light source:
800pcs 0.3W 5050RGB LED
48pcs 5W LED
40pcs zones LED plates can be controlled individually,6 x led can be controlled in stroboscopic zone
RGB Beam Angle: 121°
CW Stroboscopic Angle:89°
Outstanding strobe effect with variable speed
Small size, light weight
High resolution dimmer 0–100%
Flicker free management

Technical & Specification
Model
STROBE 2

Light source
Light source:
800pcs 0.3W 5050RGB LED
48pcs 5W LED
LED life expectancy: 20000 hours

Optical system
RGB Beam Angle: 121°
CW Stroboscopic Angle:89°
RGB colour mixing
40 x led zones can be controlled individually, 6 x led can be controlled in stroboscopic zone
High brightness, outstanding washing effect
Outstanding strobe effect with variable speed
High resolution dimmer 0–100%

Control and Program
4-buttons touch panel
Display: OLED display
Control Mode: DMX512, RDM
DMX Protocol modes: 6CH/13CH/18CH/36CH/126CH
Upgrade the firmware via DMX link

Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240 V, 50/60 Hz
Power consumption: 325 W
Power In/Out: Power Connector in/out
Data in/out: 3-pin or 5-pin XLR

Fixture Specification
Height: 120 mm (4.7″)
Width: 210 mm (8.3″)
Depth: 410 mm (16.1″)
Weight:5.3kg(11.3lbs)
Carton Dimension:
Height: 505 mm (19.9″)
Width: 285 mm (11.2″)
Depth: 210 mm (8.3″)
Weight : 6.2kg (13.7lbs)(with carton,1 in 1 standard)

Work environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C

Installation
Horizontally or vertically mounting are available
Operating position is universal
1 x locked points in the handle
1 x clamp for 50 millimeter truss
Safety cable attachment point

Included items
User Manual
power cable
Head with handle

Optional Accessories (with item code)
Clamp:2060001635 (C-100A)
Signal Line:3-pin signal line
Safety cable : 2060000200(SW-02)

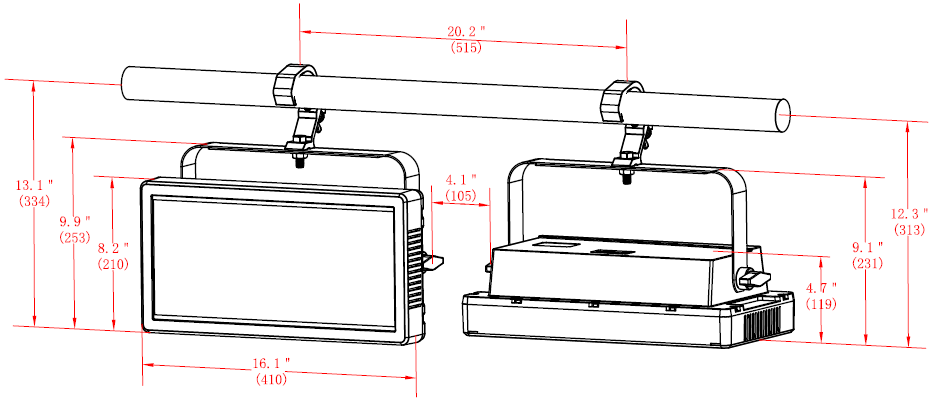

Afmetingen

afmetingen

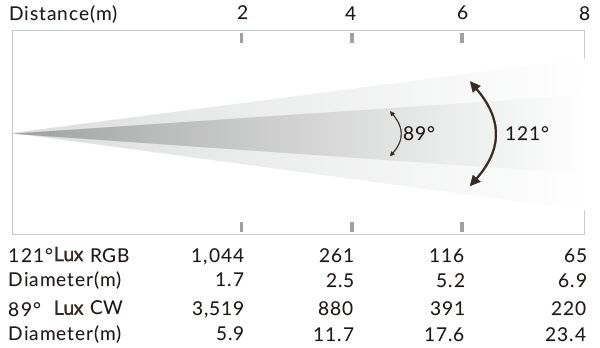

photometrics

photometrics
