Functional Overview

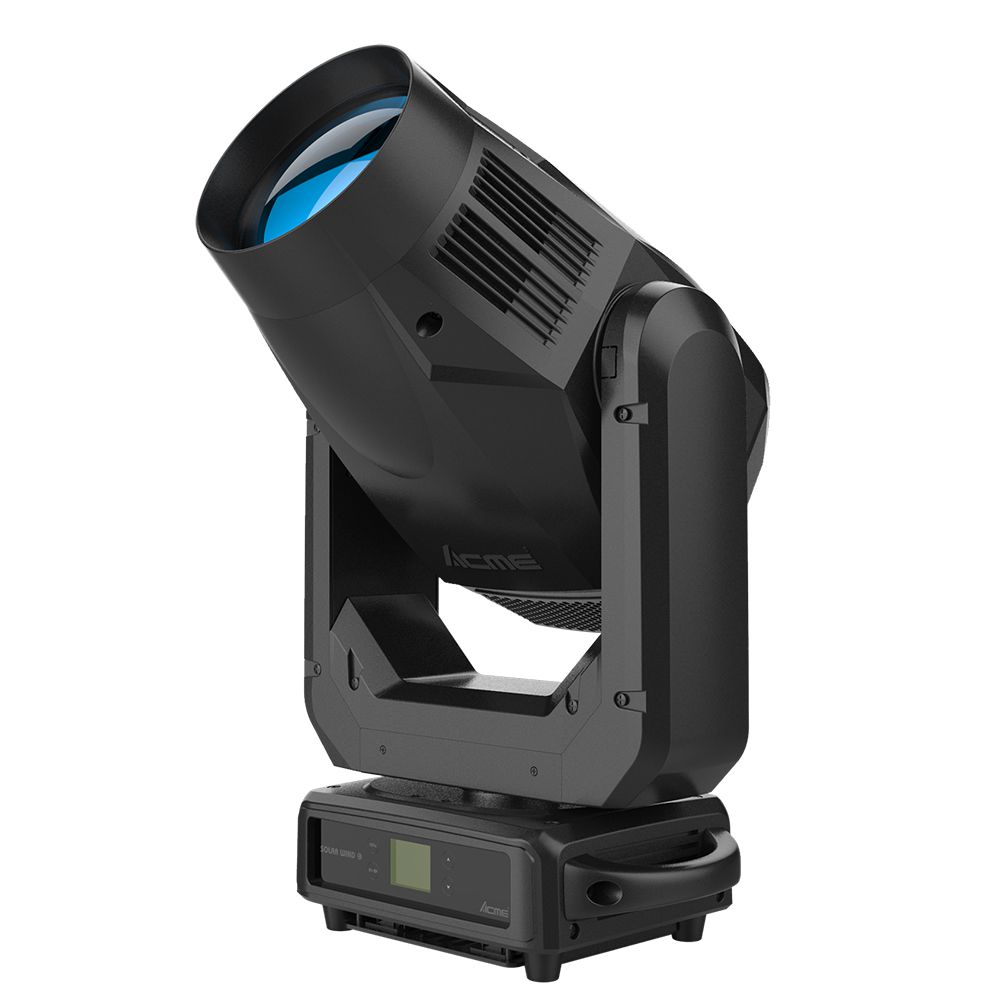

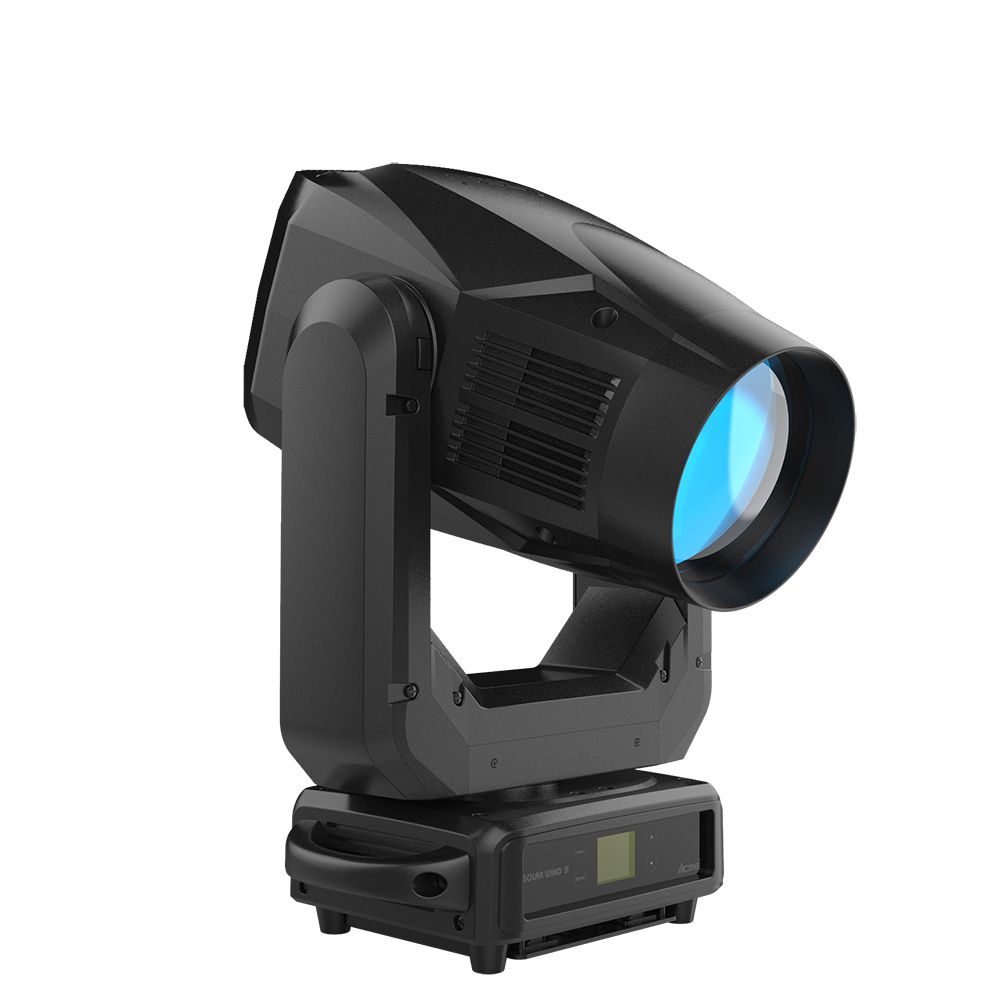

SOLAR WIND releases a new milestone product of ACME, feature-packed, remarkable footprint lets you brush in the finest detail or boldest statement with ACME quality. It aims to break through the limit and become a hybrid 3-in 1(Beam/Wash/Spot) fixture to present an inspiring and comprehensive experience for you. A 165mm high-precision lens produces even, bright and shape beam. Achieve rich colors and seamless coverage of your stage with this outstanding that offers a standard >70 CRI and a high >90 CRI, as well as a variable 2,700K-7,000K CTO. A package of 1 color wheel, 1 fixed gobo wheel, 1 rotating gobo wheel and a continuous rotating effect wheel contributes to a diversified and outstanding visual masterpiece. What’s more, two pieces of high brightness atomizer made with new materials can be injected or used together with other functions to create a misty, blurring effect within a large area. An ideal choice for quality solution for multiple applications like theatrical, television, installation, live or corporate settings to create your show!

Features

• 500W 7,000K White LED Engine with 165 mm frontal lens for dramatic performance
• Beam Angle: 3°-50°
• Dual output modes:
  • Standard Mode: Ra>70, 16,000 lm
  • HCRI Mode: Ra>90, 11,500 lm

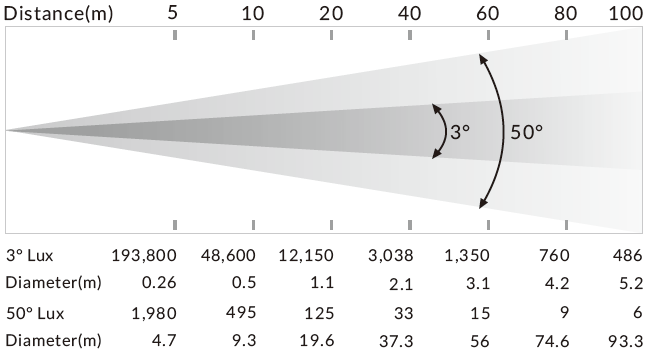

• Brightness: 193,800 lx @5m
• Variable CTO Flags(2,700-7,000K) and CMY Filters easily switching

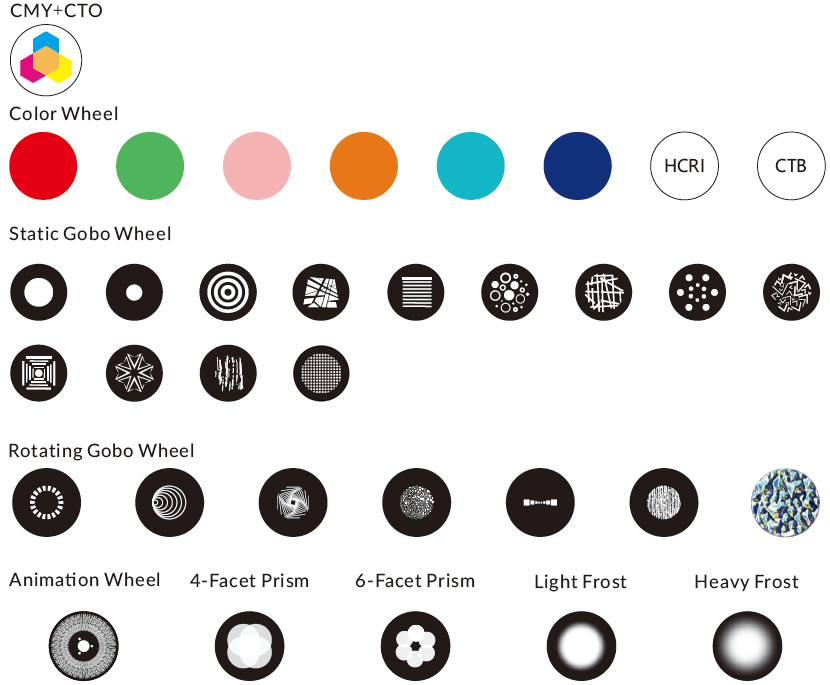

• Color Wheel: 6 colors, 1 HCRI Filter, 1 CTB Filter, plus open
• Static Gobo Wheel: 13 gobos plus open
• Rotating Gobo Wheel: 7 indexable and interchangeable gobos
• Animation Wheel: 1 graphic animation wheel rotating in both directions at variable speed and can be changed into other wheels
• Dual Prisms and Dual Frost Filters for more dynamic effects
• Flicker Free Management from 900 Hz to 25,000 Hz

Model

• XA 500 BSW

Light Source

• Light Source: 500W 8,000K LED Engine
• Color Temperature Output: 7,000K
• Total Lumen Output(Ra>70): 16,000lm
• HCRI Mode Output(Ra>90): 11,500lm
• Rated Source Life: up to 20,000 hours*

Optical System

• Advanced optical design to ensure precise gobos and colors
• High – efficiency zoom optical system
• Beam Angle: 3°-50°

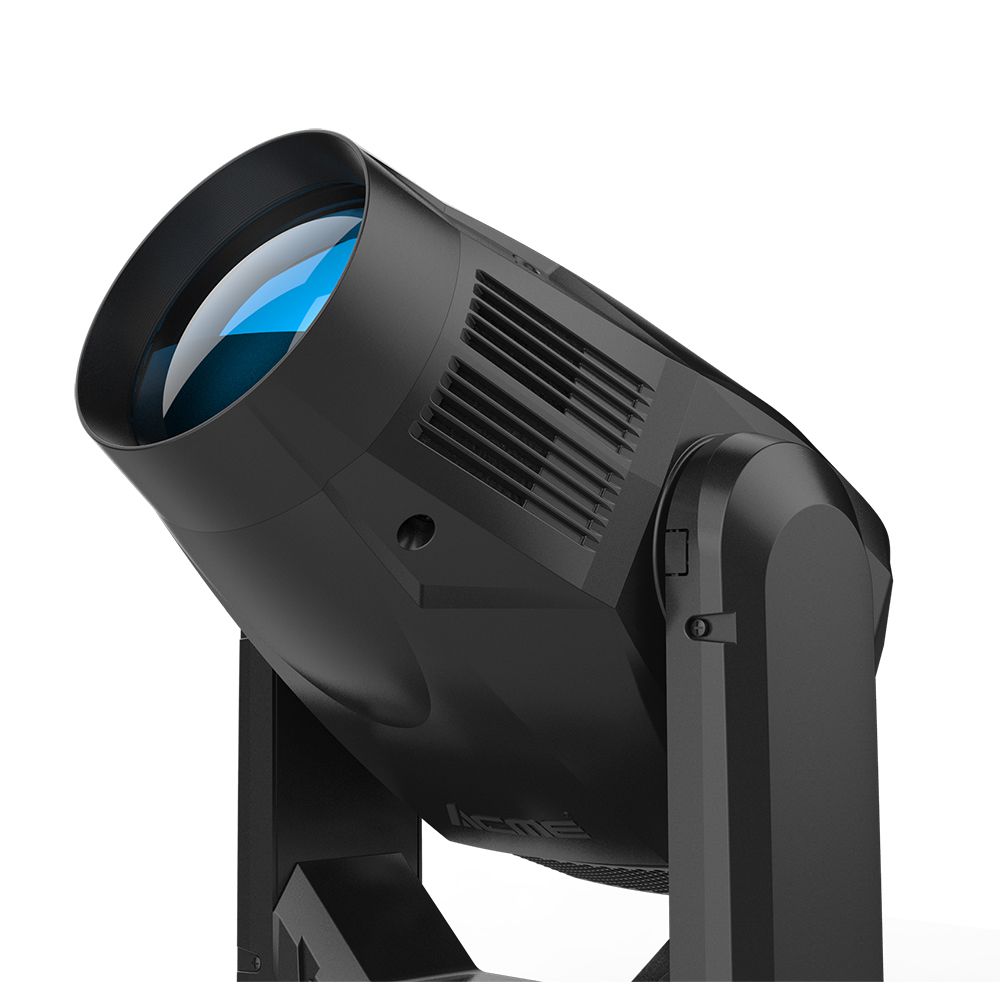

• Diameter of Front Lens: 165mm

Control and Program

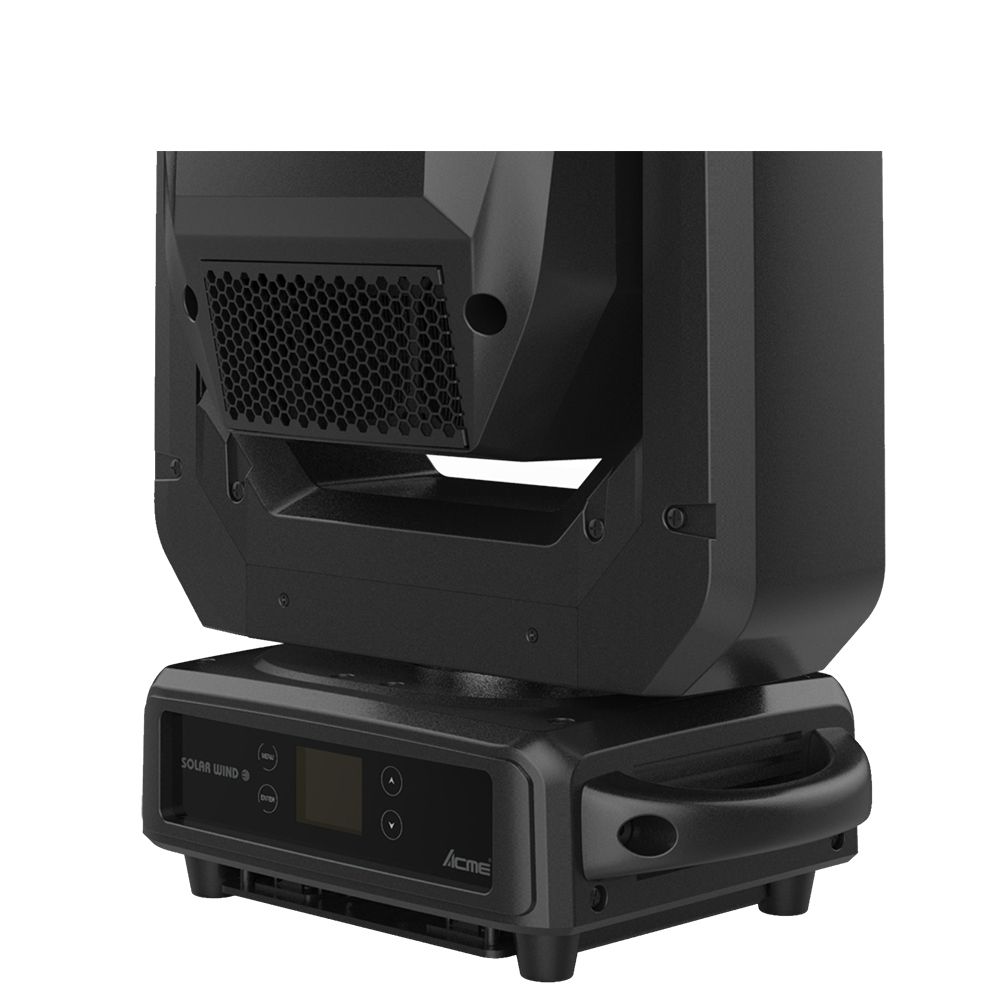

• 4-Button touch panel
• Display: LCD display
• Protocols: DMX512, RDM, Art-Net, sACN
• DMX Protocol modes: 2
• Control channels: 30/24
• Firmware Upgrade: Upgrade via DMX link or USB disk

Movement

• Pan movement: 540°
• Tilt movement: 270°
• Automatic Pan/Tilt position correction
• Moving-head operated with either 16-bit resolution
• Fixation: Pan/ Tilt lock

Color

• Smooth CMY Color Mixing
• Linear CTO Color Correction: 2,700K-7,000K
• 1 x Color Wheel: 6 complementary colors, 1 CRI Optimizer Filter, 1 CTB Filter, plus open

Gobo

• 1 x Static Gobo Wheel: 13 high-precision glass gobos, plus open
• 1 x Rotating & Interchangable Gobo Wheel: 7 high-precision glass gobos, plus open
  • Gobo Diameter: 22.5mm
  • Image Diameter: 11mm
  • Gobo Thickness: 1.1mm
• Adjustable-speed rotating gobo in both directions

Animation Wheel

• A graphic animation wheel with continuous rotation in both directions, used alone or in combination with gobos to create the splendid water wave & flame effect, and can be changed into other wheels

Prism

• 2 x Combinable Rotating and Indexable Prisms: one 4-facet prism, one 6-facet prism

Frost Filter

• 2 x Combinable Frost Filters: Light and Medium to create the even and soft effect within a large area

Other Effects

• Outstanding strobe effect with variable speed
• Motorized Zoom and Focus
• 4 Dimming Curves: Variable light adjustment from 0 to 100%

Electrical and Connectors

• Input voltage range: 100-240V~ 50/60Hz
• Power consumption: 665 W
• Power In/Out: Power Connector in/out

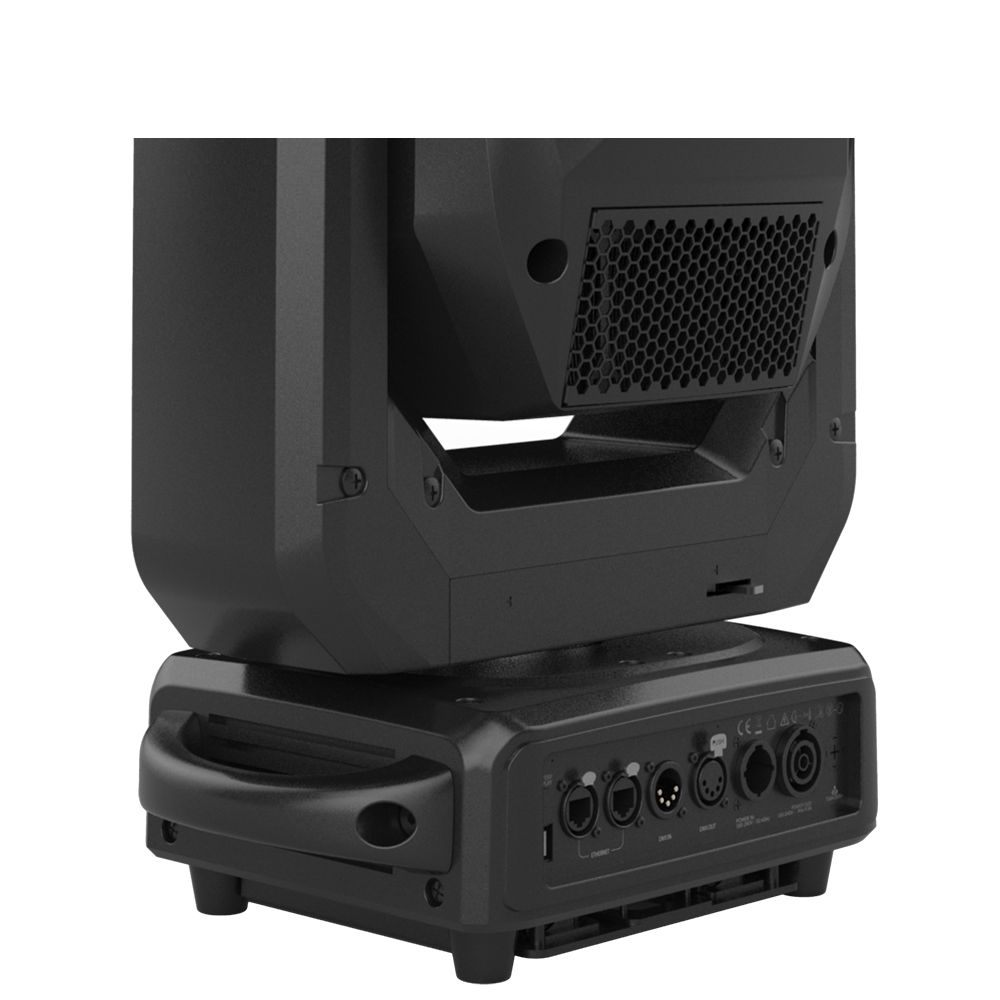

• Data In/Out: 3-pin or 5-pin XLR, RJ45 connector, USB connector

Fixture Specification

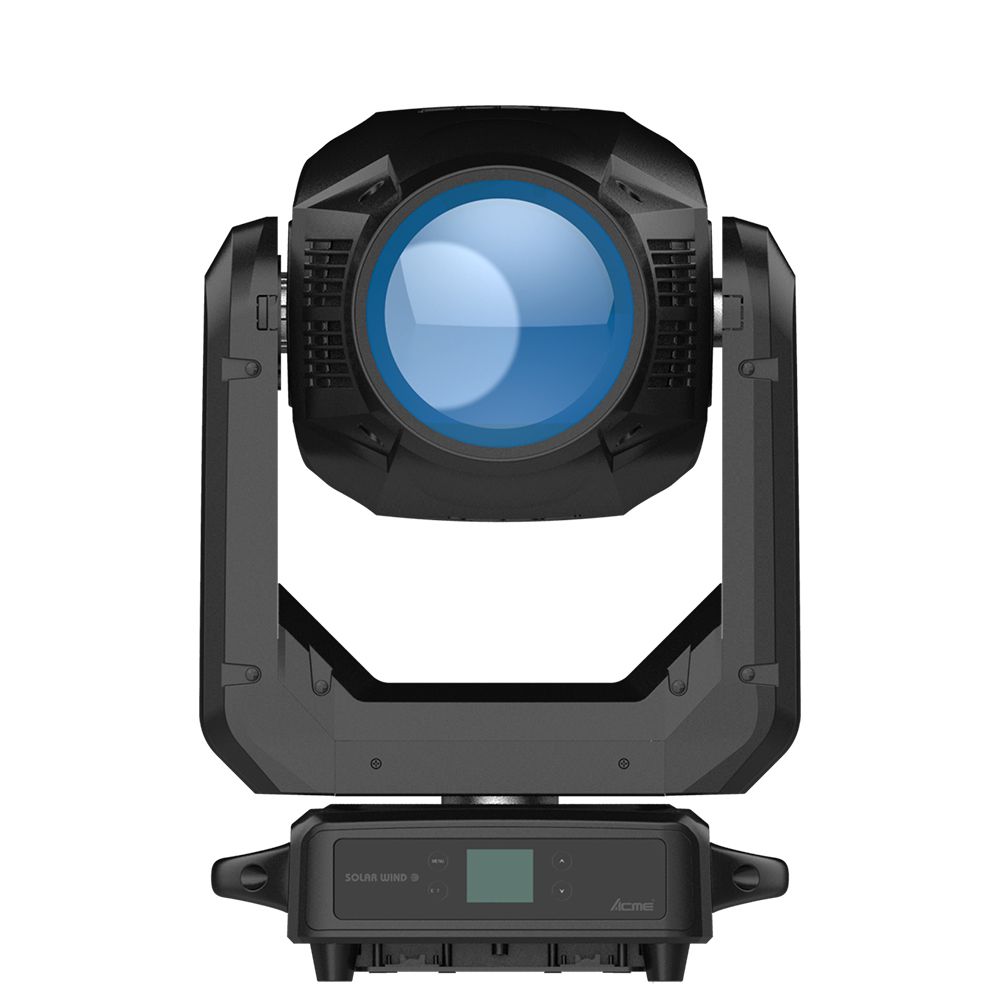

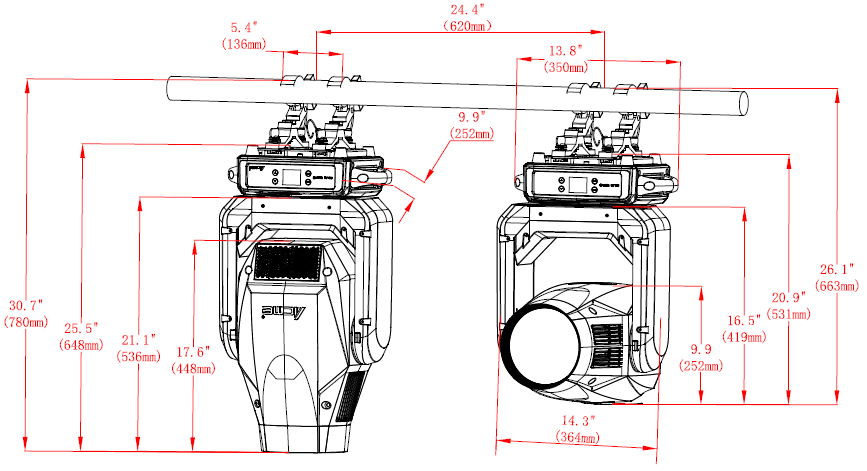

• Fixture Dimensions:
  • Width: 364 mm (14.3″)
  • Depth: 252 mm (9.9″)
  • Height: 648 mm (25.5″)
  • Weight: 25.5 kg (56.2 lbs)
• Carton Dimensions:
  • Width: 550 mm (21.7″)
  • Depth: 480 mm (18.9″)
  • Height: 655 mm (25.8″)
  • Weight: 31 kg (68.3 lbs)(include carton，one-pack per carton)

Work Environment

• Maximum ambient temperature: 40°C
• Minimum operating temperature: 0°C
• Maximum surface temperature: 65°C
• Protection rating: IP20

Installation

• Horizontally or vertically mounting are available
• Operating position is universal
• 2 pairs of 1/4-turn locking points under the base

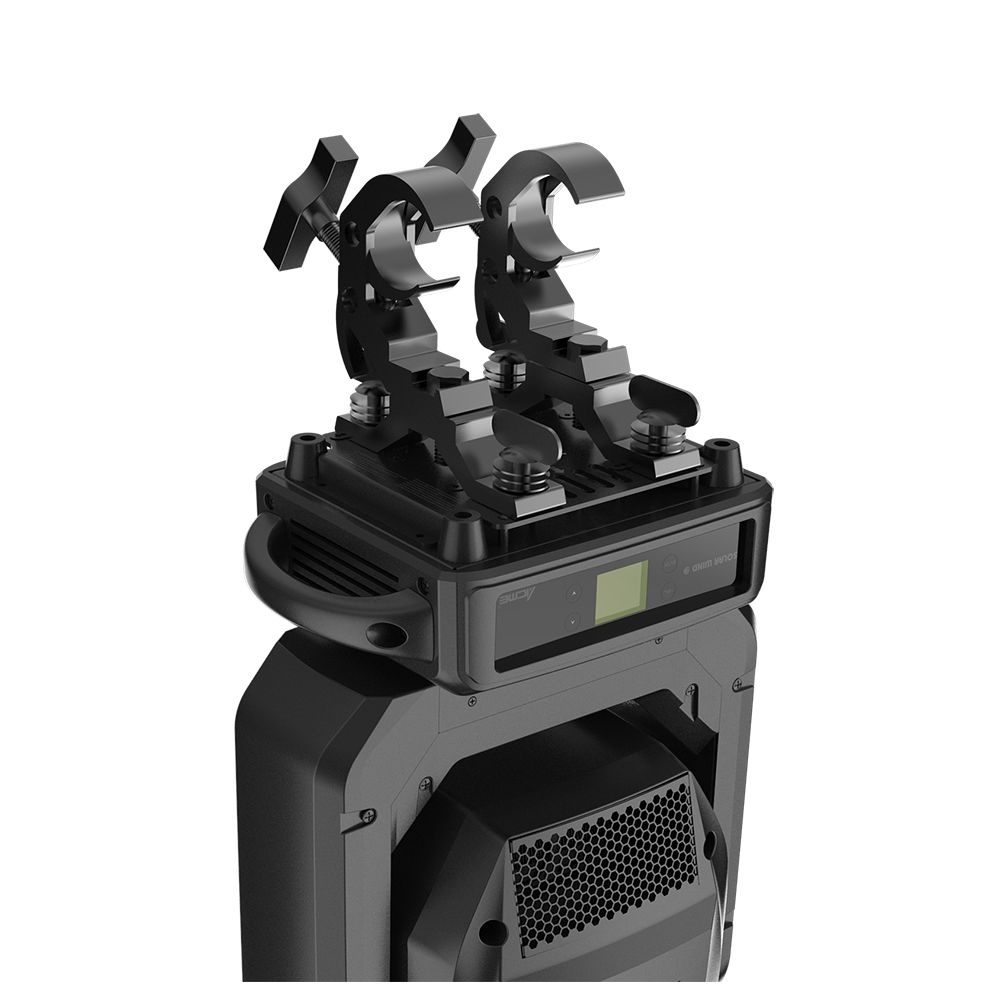

• 2x Fast-locked clamps
• Safety cable attachment hole

Factory Configuration

• Digital User Manual
• Power Cable
• 2x Fast-locked clamps

Optional Accessories(with item code)

• Raincover: 3033001749
• Signal Line: 3-pin or 5-pin signal line
• Safety cable: 2060001603-A(SW-05)
