Functional Overview

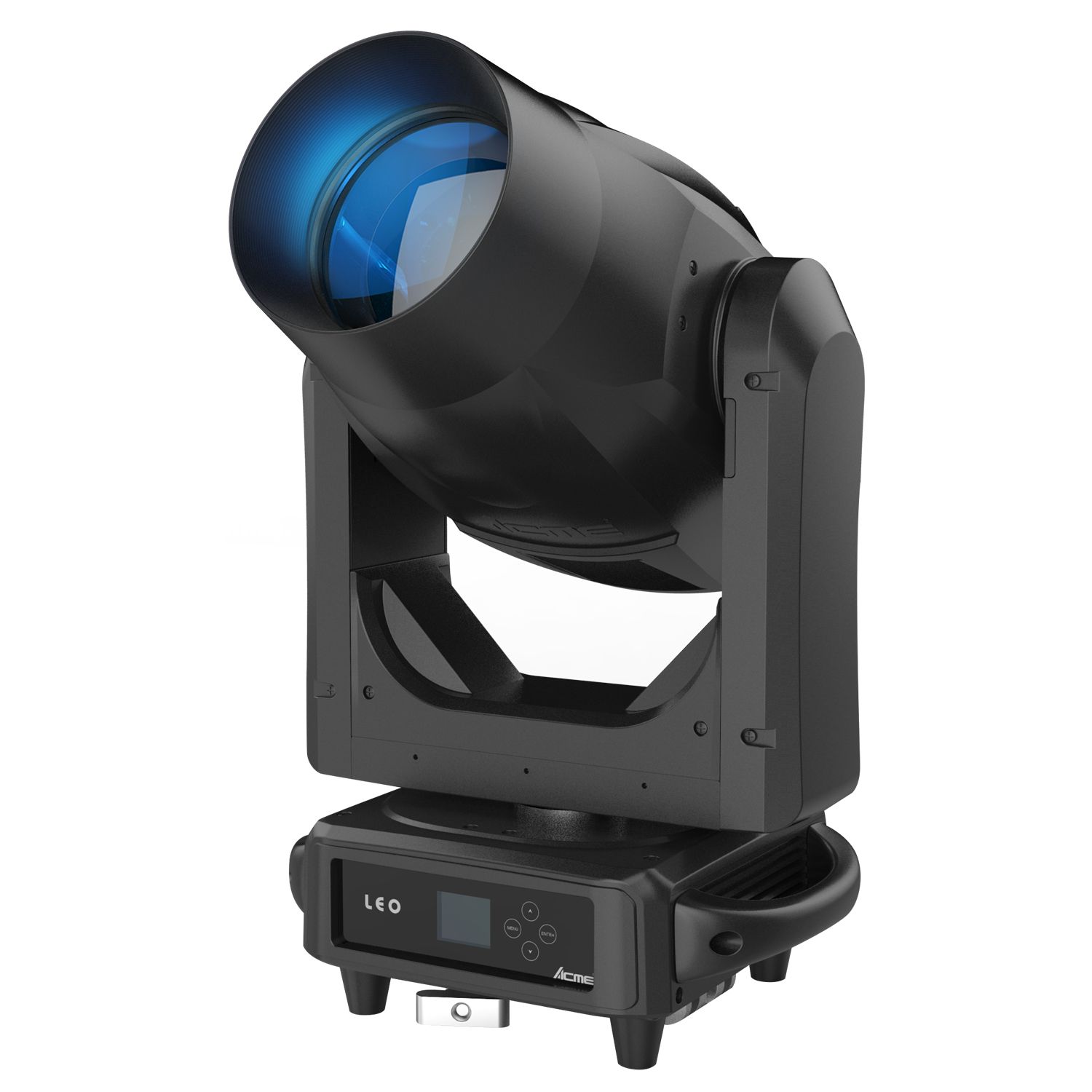

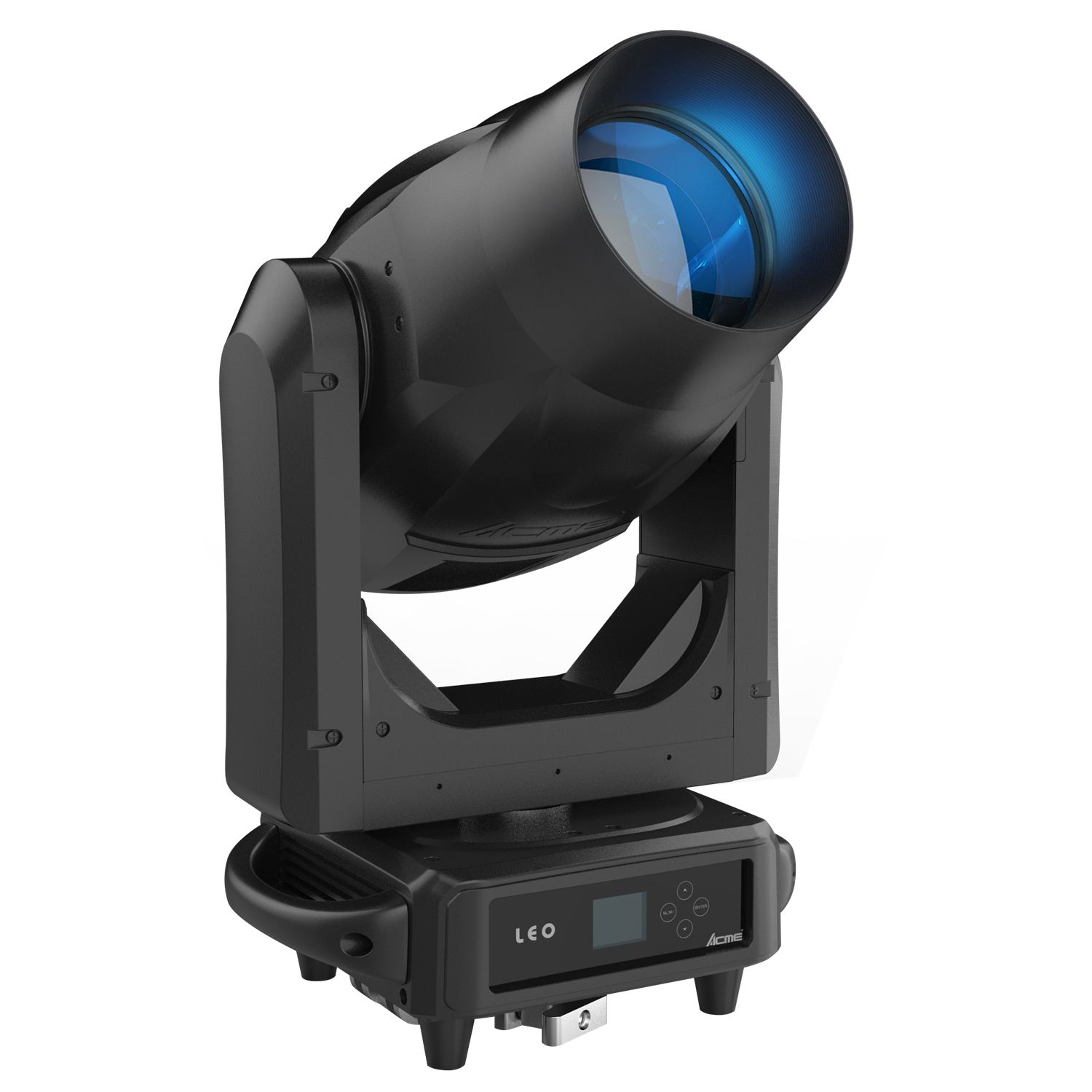

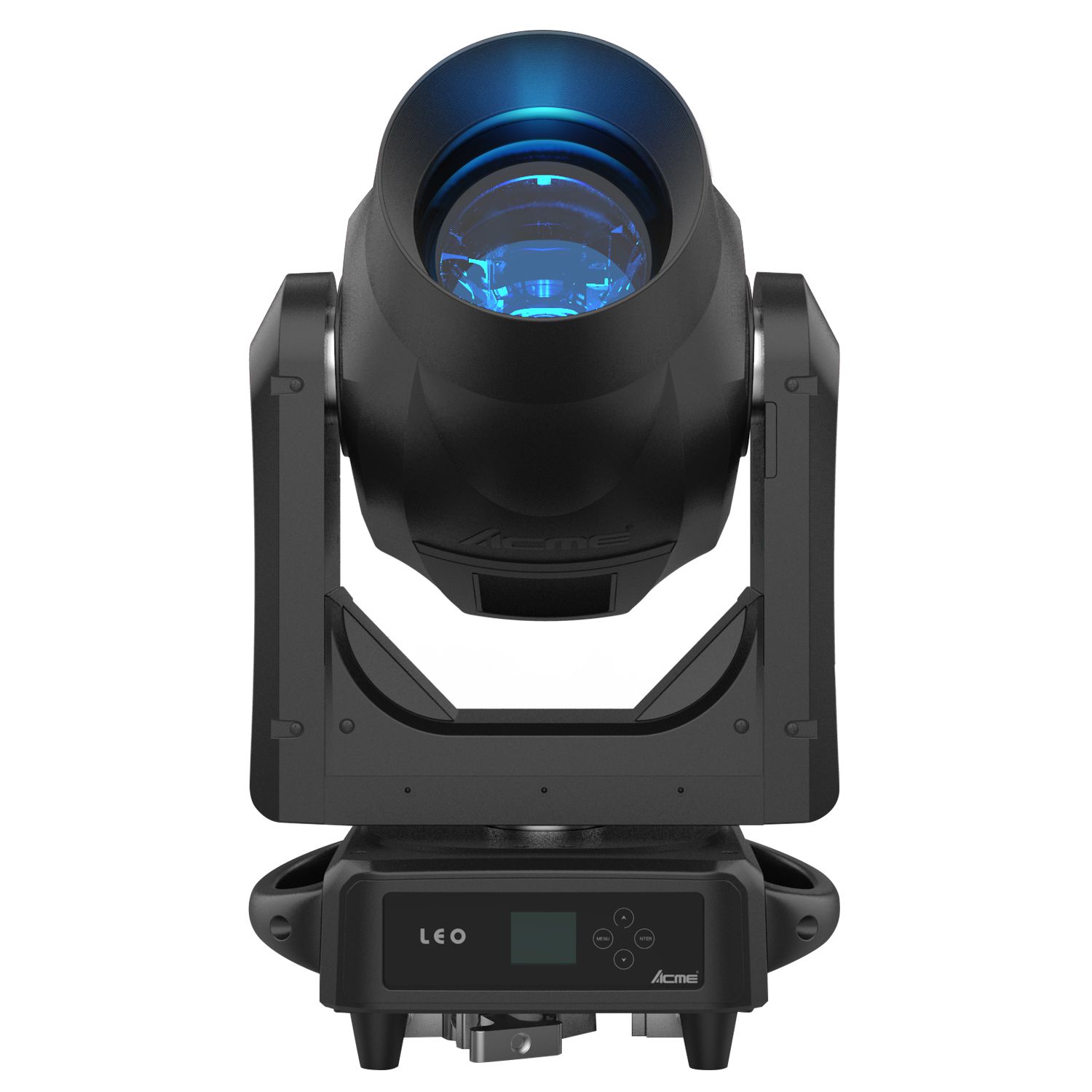

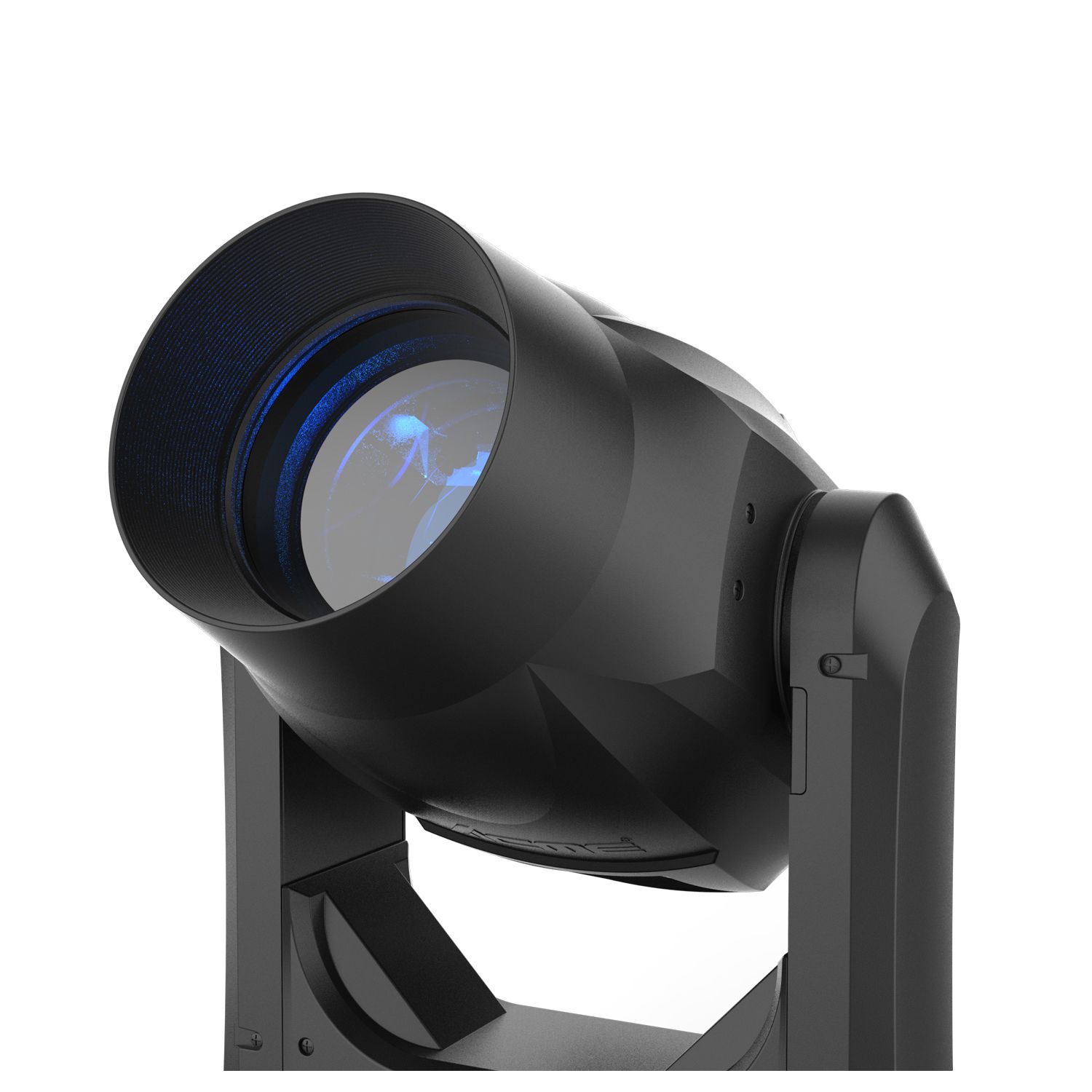

ACME all-new LEO elevates the common hybrid moving head to a new level which featuring a Philips MSD Platinum 25R 550W lamp. If you have ever witnessed the brightness of Spartan Hybrid, the Leo will leave you more than amazing. The compact and solid body is giving you a powerful super-bright sharp beam (Over 2,000,000 lux@5m) in the beam angle of 2 degrees. This guy also provides you a smooth CMY color mixing, a variable CTO from 2700k to 7800k with linear-gradient, a Color Wheel, a static & rotating gobo wheel, and 2 prisms. With the specially designed continuous rotatable animation wheel with outstanding water and flame effect, Leo can supercharge the show and handle all your imaginations. Combined beam/spot/wash, Leo, the solution to all your professional lighting needs!
Features
Diameter of lens: 154mm
Colour mixing: Linear CMY color mixing
CTO color temperature from 2700 kelvin to 7800 kelvin with linear-gradient
Rainbow effect

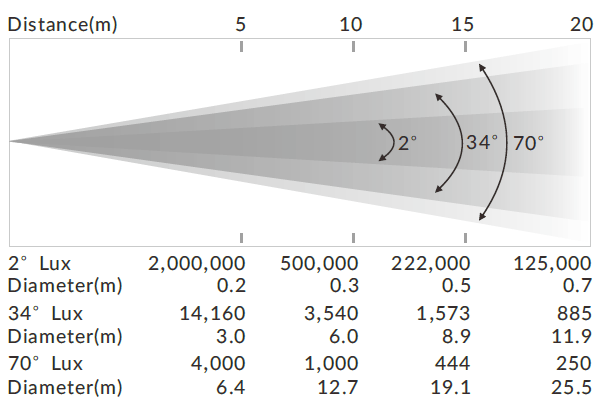

Zoom range:
Beam Mode : 2°~7°
Spot Mode : 5°~34°
Wash Mode : 8°~70°
Technical & Specification
Model
XP-550 BSW
Light Source
Light Source: 550W Philips MSD Platinum 25R
Bulb life expectancy: 4000 hours
Optical System
Advanced optical Systemto ensure image quality, clear and sharp
High – efficiency zoom Optical System, ratio 1:16
Control& Program

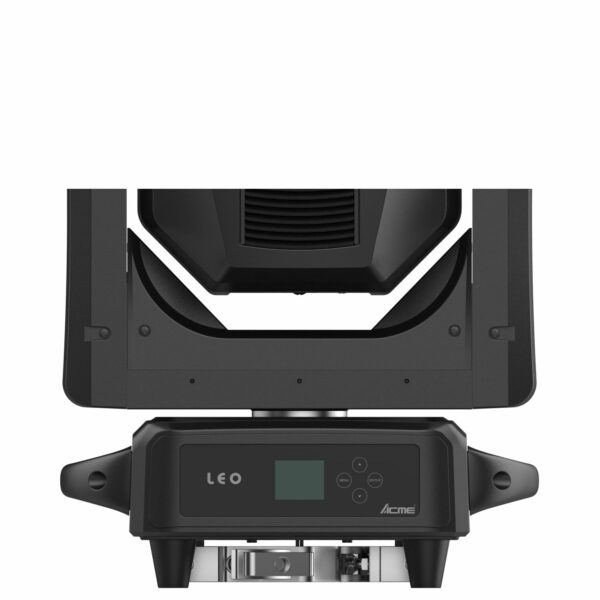

4-buttons touch panel
Display: LCD display with battery backup
Protocols: DMX512,RDM,Art-Net
DMX Protocol modes: 2
Controlchannels: 25,18
Pan/TiltResolution: 16 bit
Linear CMY color mixing
Electronic ballast
Dimmer: 8 bit or 16 bit
Upgrade the firmware via DMX link or USB Disks
PAN & TILT
Pan movement: 540°
Tilt movement: 270°
Fixation: Tilt lock
AutomaticPan/Tiltposition correction

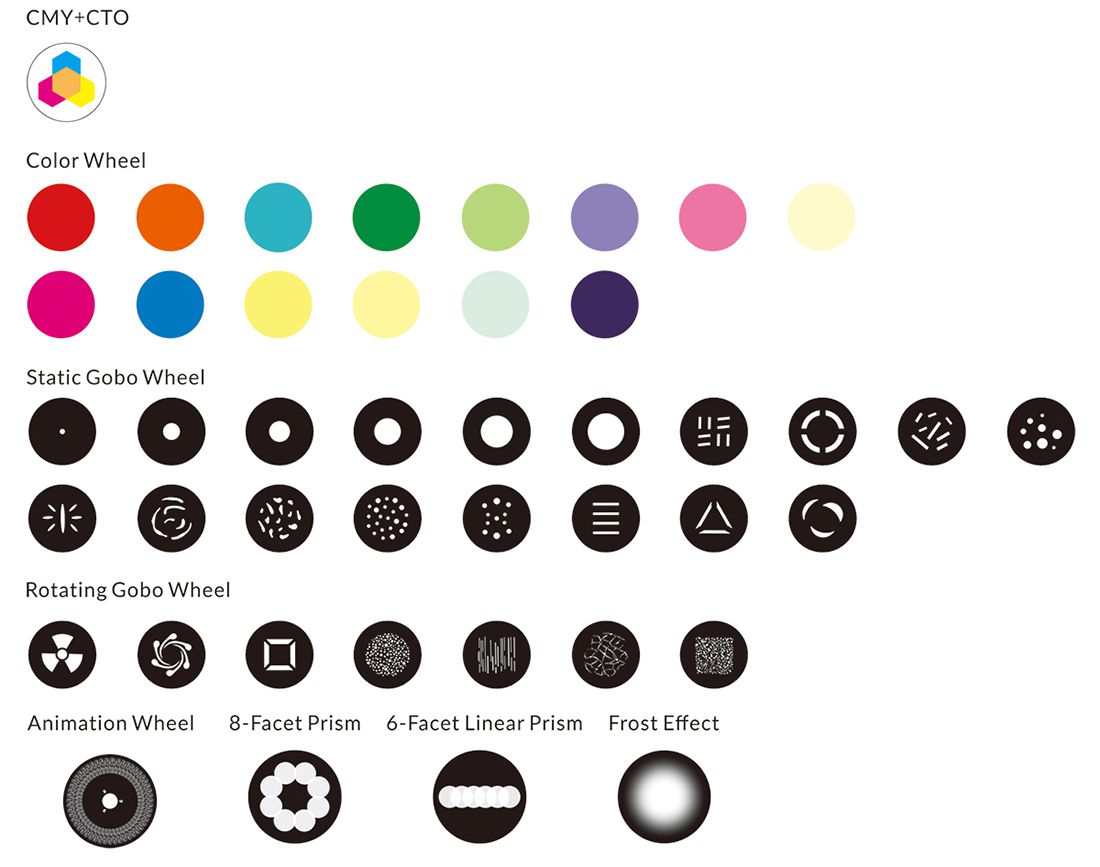

Rotating Gobos
1 x Rotating Gobos wheel with 7 gobos plus open, convenient replacement
Image diameter: 12 mm
Outside diameter: 22.5 mm
Thickness: 1.1 mm
Borofloat or better glass materials
Set with “SLOT&LOCK” system for gobos replacement
1 x static gobos with 18 gobos plus open
Color Wheel
1 x Color Wheel with 14 colors plus white
Animation Wheel
1 x animation wheel, rotatable and replaceable, with outstanding water and flame effect
Electrical & Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240 V, 50/60 Hz
Power consumption: 765 W

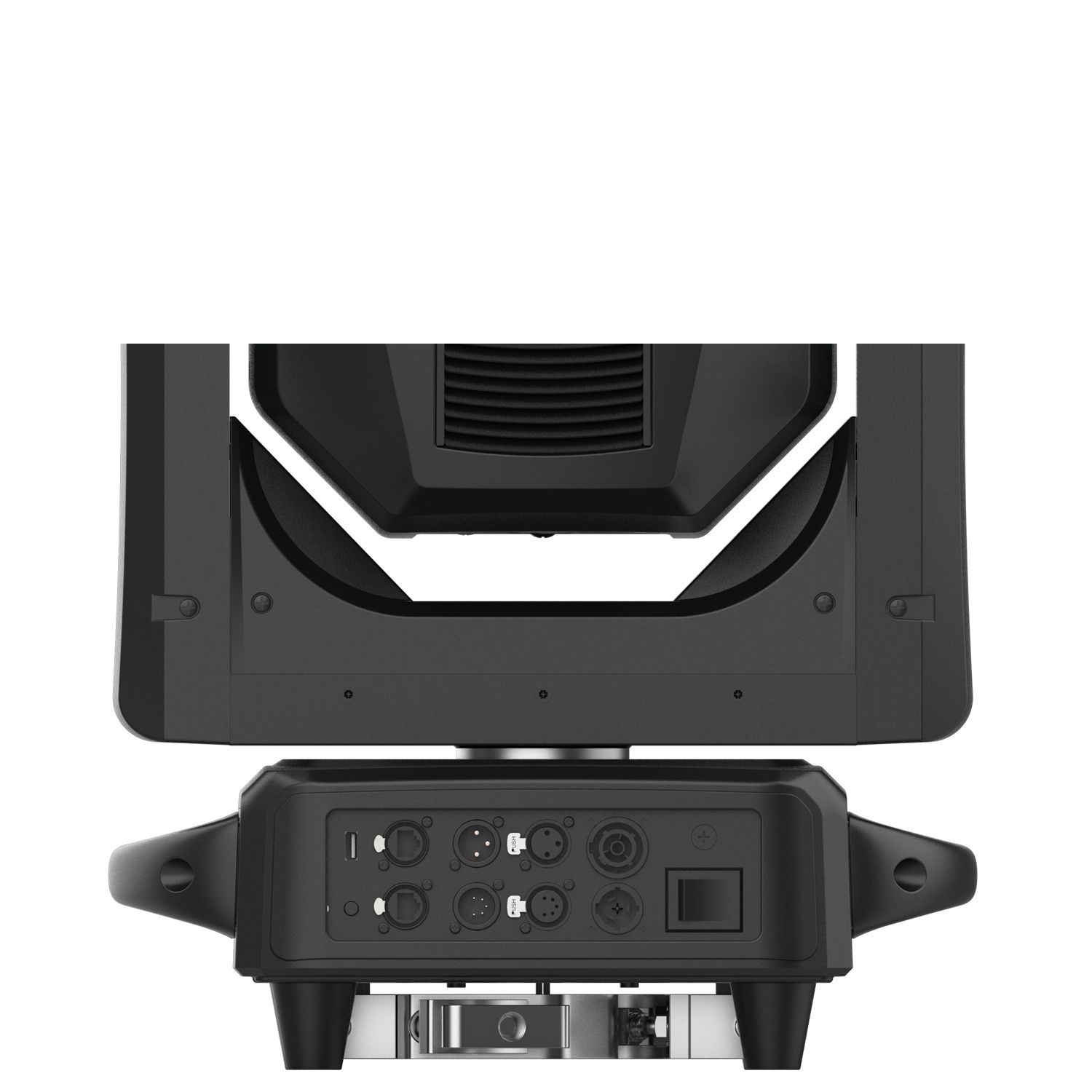

Power In/Out: Power Connector in/out
Data in/out: 3-pin and 5-pin XLR, RJ45

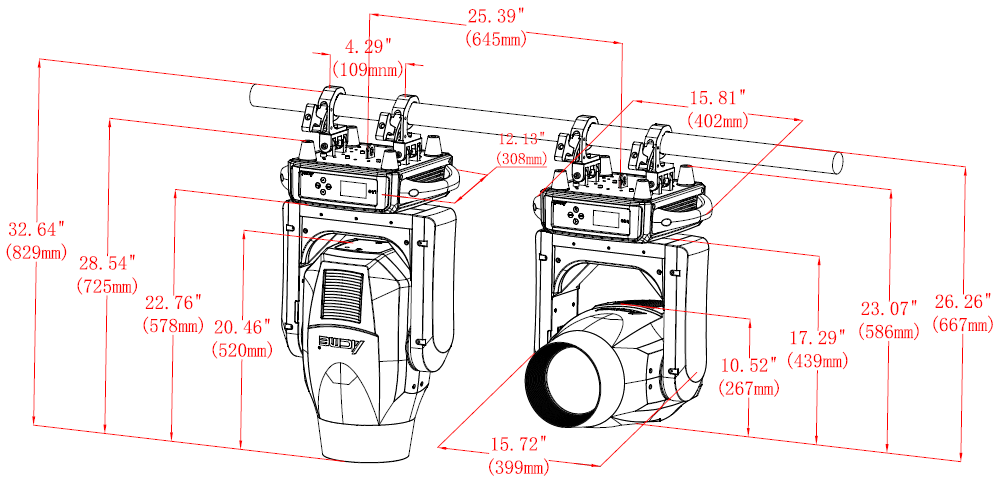

Fixture Specification
Height: 725 mm (28.5″)
Width: 308 mm (12.1″)
Depth: 402 mm (15.8″)
Weight: 30.5 kg (67.2 lbs)
Work Environment
Maximum ambient temperature: 45°C
Maximum surface temperature: 50°C
Minimum operating temperature: 0°C
Installation
Horizontal or vertical mounting
Operating position is universal

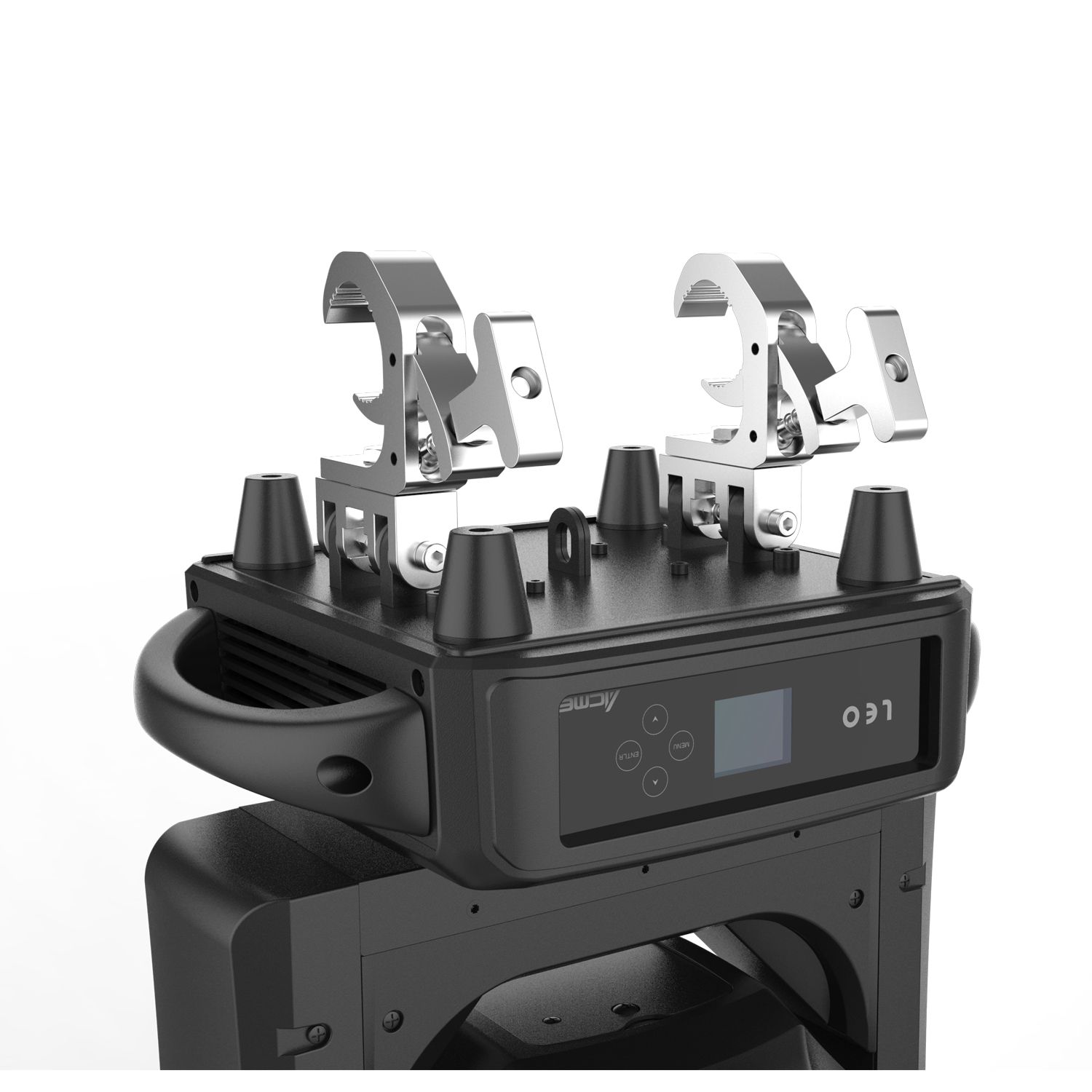

2 x integrated clamps for 50 millimeter truss
Safety cable attachment point
Fixation: Tilt lock
Included Items
User Manual
Power Cable
2 x integrated clamps for 50 millimeter truss
Optional Accessories (with item code)
Raincover：3033001750
Flight Case：3205001284 (2 in 1)
Clamp：2060001614（C-250）
Safety cable : 2060001603-A (SW-05)
