Functional Overview
The ACME GLAMOUR 700Z is a higher upgrade on its own PAGENT 600Z II series. With the outstanding mechanical cooling structure and advanced finned heating dissipation technology. It offers a much powerful washing effect from a 700W stable output. The GLAMOUR is equipped with 19pcs 30W multicolor RGBW 4in1 LEDs that produce a vivid colors as well as excellent color mixing effect. It is also equipped with a motorized 1:10 zoom ratio from 5°-50° degree. Each ring of LED circle color can becontrolled independently, this unique ring Controlnot only allows you to create an endless ring chasing effect, but also to use each circle of LEDs ring as a graphic images that change dynamically in a circle. The 0-100% smooth dimming, flicker free management system and a recorded powerful output at 9,734 lm should be confident in most of stage application. What’s more, an optional 30W RGB-Y 4in1 LED version is available on GLAMOURE 700Z for TV or filming in excellent white color application rendering.

Features
Light Source: 19 x 30W RGBW LED
With powerful beam and wash effects
Individual Controlof each LED rings
Outstanding color macro effect
Variable CTO: 2500K – 8000K
Electronic linear zoom system
Zoom range: 5°~50°
Outstanding strobe effect with variable speed
0~100% smooth dimming
Flicker free management
Dust-proof and oil-proof design
Maximum connected quantity:
2 sets (100V, 60Hz)
5 sets (240V, 50Hz)

Technical & Specification
Model
CM-700Z

Light Source
Light Source: 19 x 30W RGBW LED
LED life expectancy: 20000 hours

Optical System
Advanced optical Systemto ensure clear and large-range beam & wash effect
High – efficiency zoom Optical System, ratio 1:10

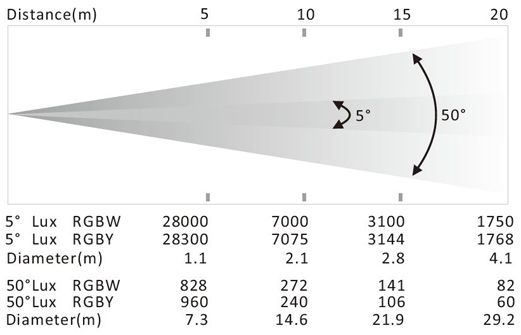

Zoom range: 5° – 50°
Fixture total lumen output: up to 7136 lm

Controland Program
4-buttons touch panel
Display: LCD display
Protocols: DMX512,RDM
DMX Protocol modes: 3
Controlchannels: 15,17,27
Pan/TiltResolution: 16 bit
Dimmer: 16 bit
Upgrade the firmware via DMX link

PAN & TILT
Pan movement: 540°
Tilt movement: 270°
Fixation: Tilt lock
AutomaticPan/Tiltposition correction

Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240 V, 50/60 Hz
Power consumption: 700 W
Power Connector in
Data in/out: 3-pin and 5-pin XLR

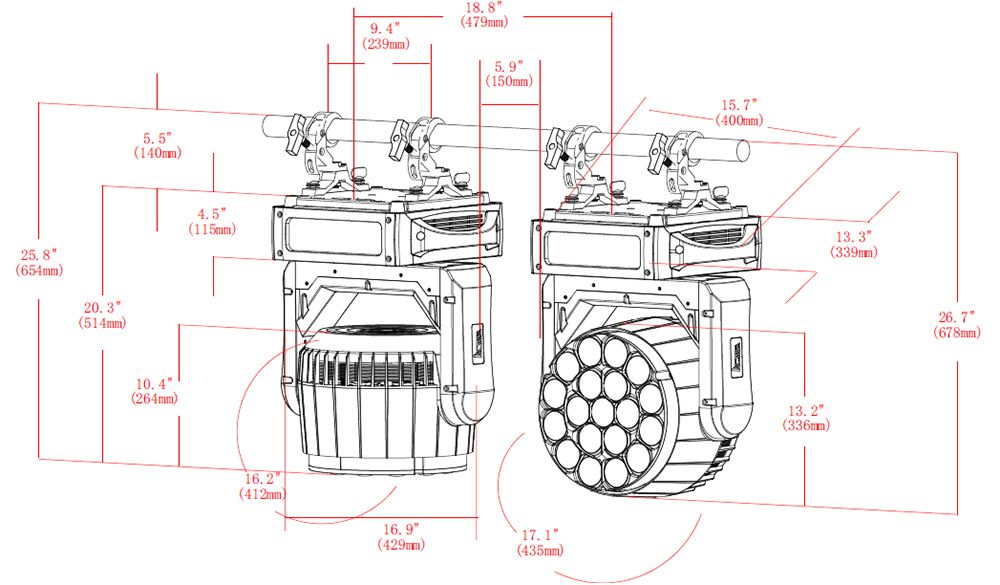

Fixture Specification
Height: 541 mm (21.2″)
Width: 430 mm (16.9″)
Depth: 335 mm (13.1″)
Weight: 22 kg (48.5 lbs)

Work Environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C

Approvals
CE Compliant

Installation
Horizontally or vertically mounting are available
Operating position is universal
2 pairs of 1/4-turn locking points under the base
2 x fast-locked clamps with 1/4-turn locks for 50 millimeter truss
Safety cable attachment point

Included Items
User Manual
2 pairs of 1/4-turn locking points under the base

Optional Accessories (with item code)
Raincover：3033001749
Flight Case：3205001196（2 in 1）
Clamps：2060001614（C-250）
Safety cable: 2060001603-A (SW-05)
