Acme GLAMOUR 350Z III

Adviesprijs 1.327,04 excl.btw

7x40W | LED | Movinghead | Wash | RGBW

Productprijs
Aanvullende opties totaal:
Bestelling totaal:
Winkelmand bekijken

Beschrijving

Functional Overview
The ACME GLAMOUR 350Z III is the latest version base on GLAMOUR 350 series. With the compact structure design and advanced ANC (Active Noisecontrol) technology. It offers a powerful washing beam effect at 10,500Lux(5°/5m). The GLAMOUR 350Z III is equipped with 7pcs 40W multicolor RGBW 4in1 LEDs that produce a vivid colors as well as excellent color mixing effect. It is also equipped with a motorized 1:10 zoom ratio from 5°-50° degree. The brightness & CTC 0-100% smooth dimming, flicker free management system and preset multitudinous color should be confident in most small to medium stage application. Moreover, four different dimmer cure setting and a wider starting zoom angel from 10°-50° is an option selection in menu.

Features
Light Source: 7 x 40W RGBW LED
With powerful beam and wash effects
Outstanding color macro effect
Variable CTO: 2500K – 8000K
Motorized liner zoom system
Zoom range: 5°~ 50°
Outstanding strobe effect with variable speed
0~100% smooth dimming
Fast and mute operating
Flicker free management
Dust-proof and oil-proof design
Maximum connected quantity:
5 sets (120V, 60Hz)
10 sets (230V, 50Hz)

Technical & Specification
Model
CM-350Z III

Light Source
Light Source: 7 x 40W RGBW LED
LED life expectancy: 20000 hours

Optical System
Advanced optical Systemto ensure clear and large-range beam & wash effect
High – efficiency zoom Optical System, ratio 1:10
Zoom range: 5°~ 50°
Fixture total lumen output: up to 2740 lm

Controland Program
4-buttons
Display: LCD display
Protocols: DMX512, wireless Control(Optional)
DMX Protocol modes: 3
Controlchannels: 11,14,15
Pan/TiltResolution: 16 bit
Dimmer: 16 bit
Upgrade the firmware via DMX link

PAN & TILT
Pan movement: 540°
Tilt movement: 225°
AutomaticPan/Tiltposition correction

Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240 V, 50/60 Hz
Power consumption: 320 W
Power Connector input/output
Data in/out: 3-pin and 5-pin XLR

Fixture Specification
Height: 412 mm (16.2″)
Width: 183 mm (7.2″)
Depth: 310 mm (12.2″)
Weight: 11 kg (24.2 lbs)

Work Environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C

Approvals
CE Compliant

Installation
Horizontally or vertically mounting are available
Operating position is universal
2 pairs of 1/4-turn locking points under the base
2 x fast-locked clamps with 1/4-turn locks for 50 millimeter truss
Safety cable attachment point

Included Items
User Manual
Power Cable
2 pairs of 1/4-turn locking points under the base

Optional Accessories (with item code)
Raincover:3033001749
Flight Case:
3205001173(6 in 1)
3205001160(4 in 1)
Clamp:2060001614(C-250)
Signal Line:3-pin or 5-pin signal line
Safety cable : 2060001603-A(SW-05)

Extra informatie

IP-Rating

Indoor

Type lichtbron

LED

Vermogen Lichtbron

280

Kleurmenging

RGBW

Type Fixture

Wash

Min zoom

5

Max zoom

50

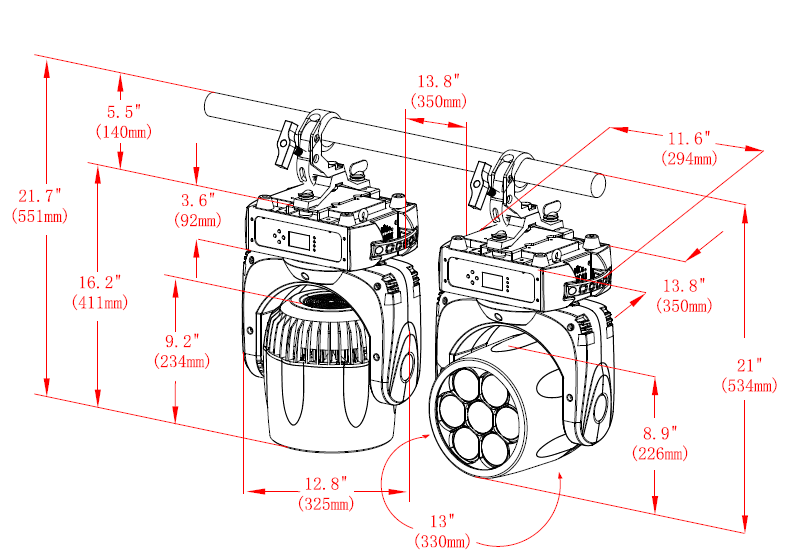

Afmetingen

afmetingen

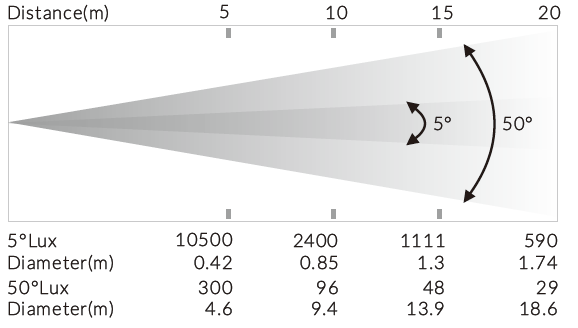

photometrics

photometrics
