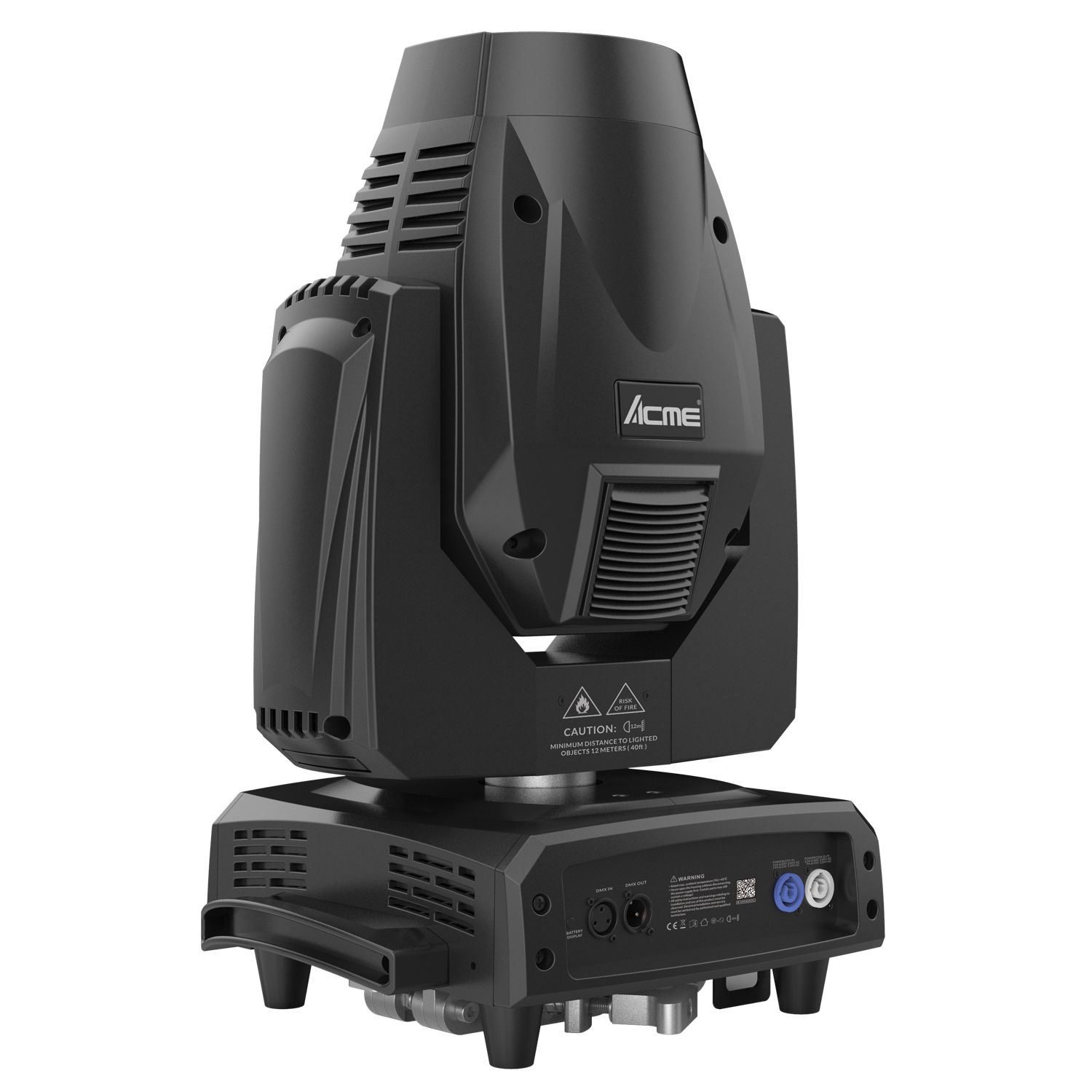

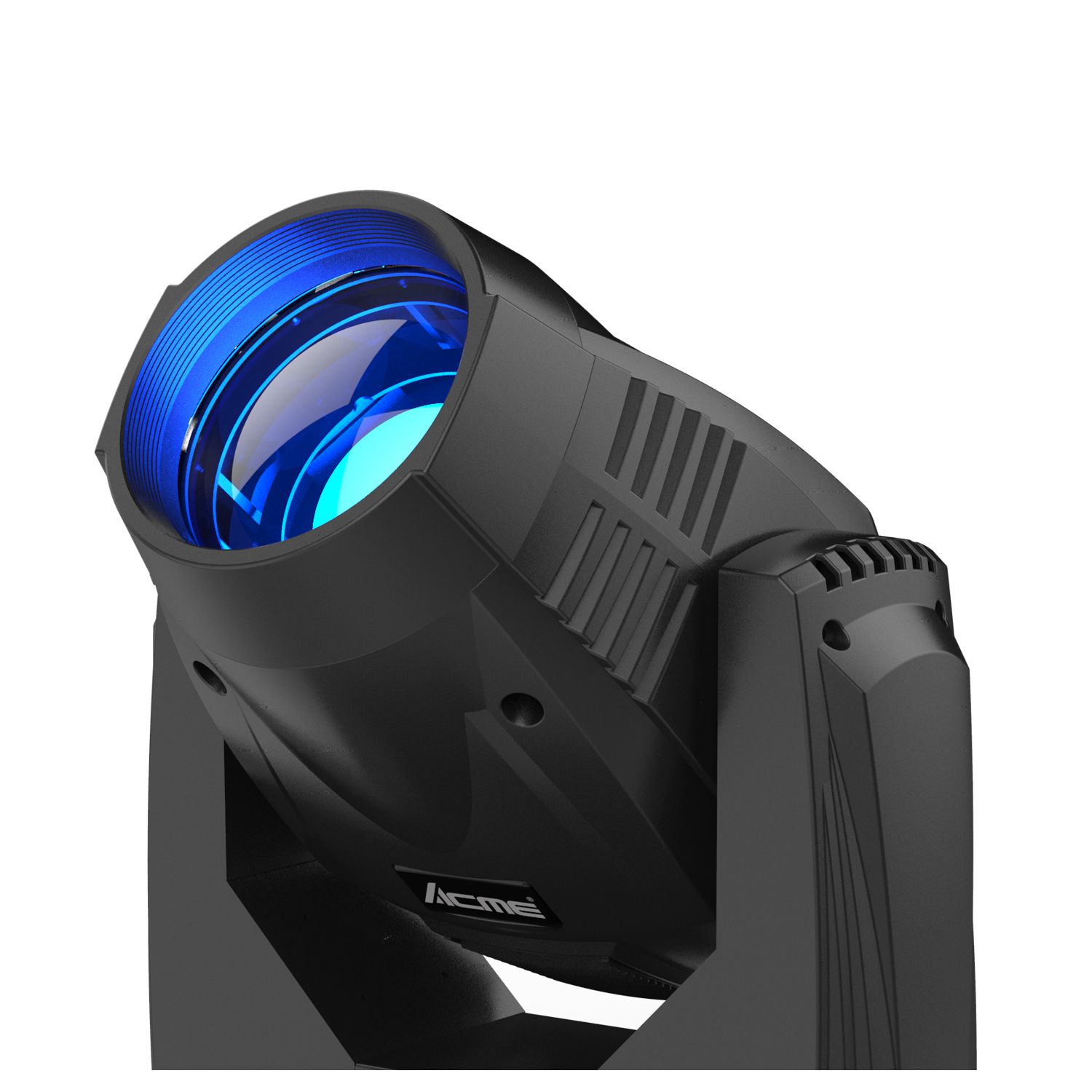

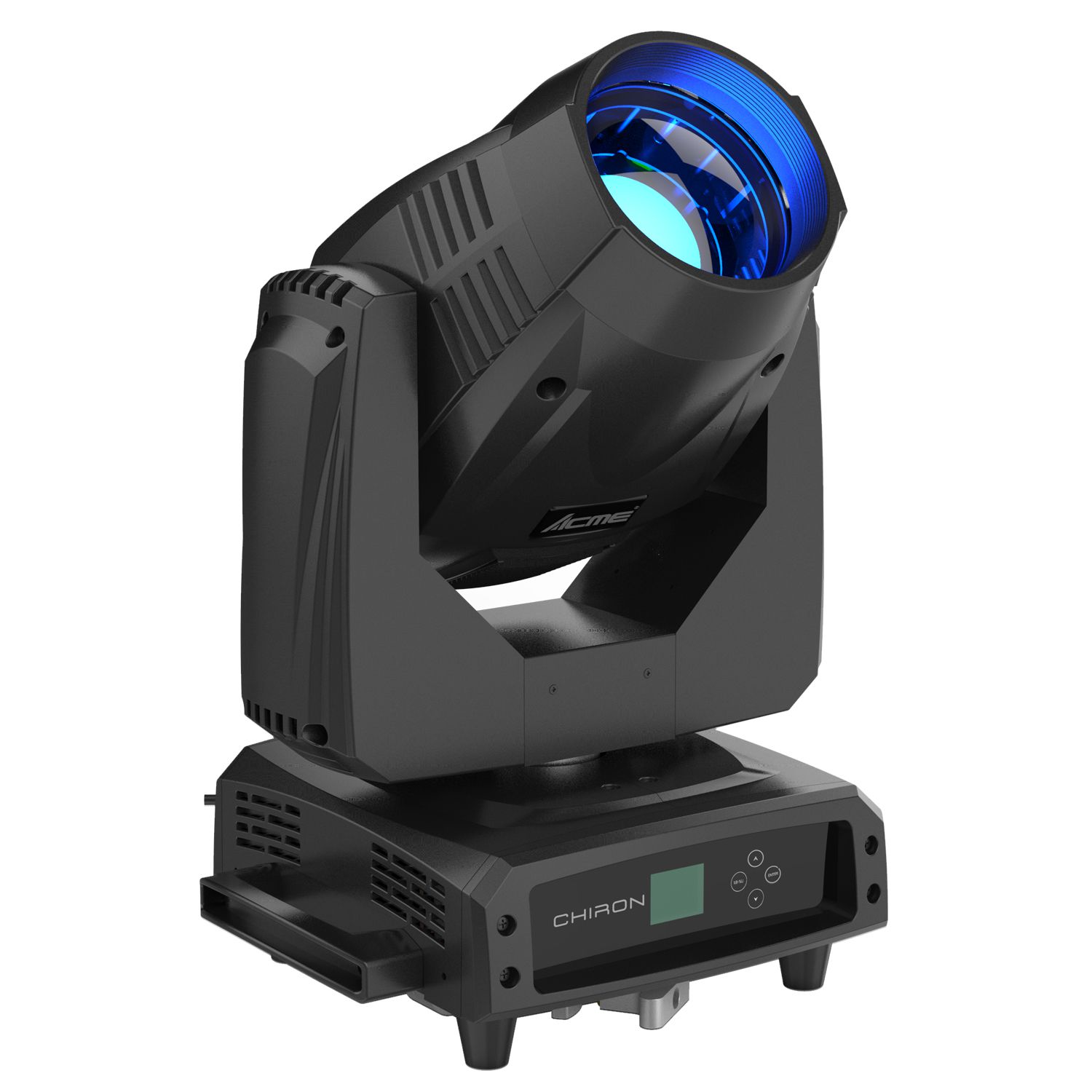

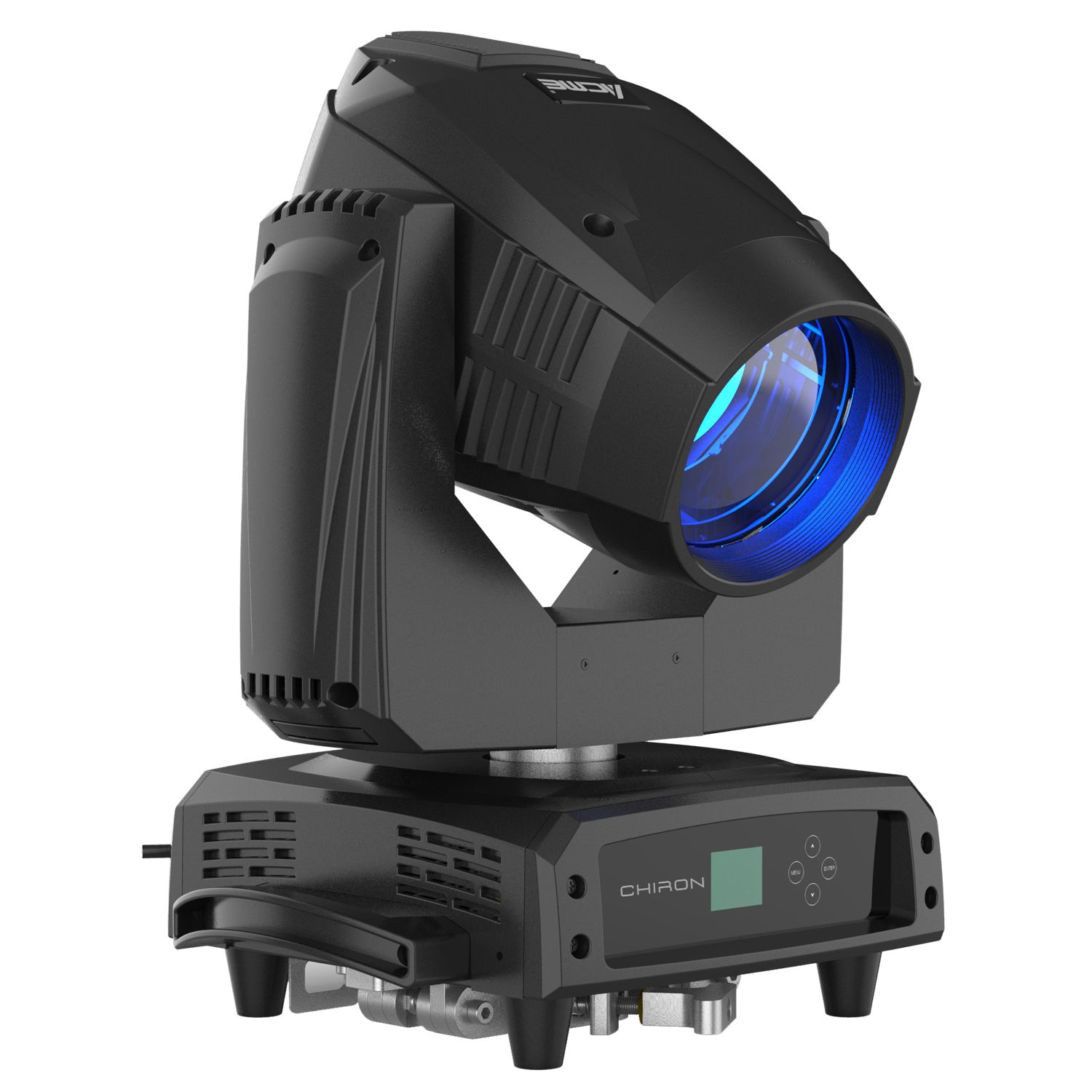

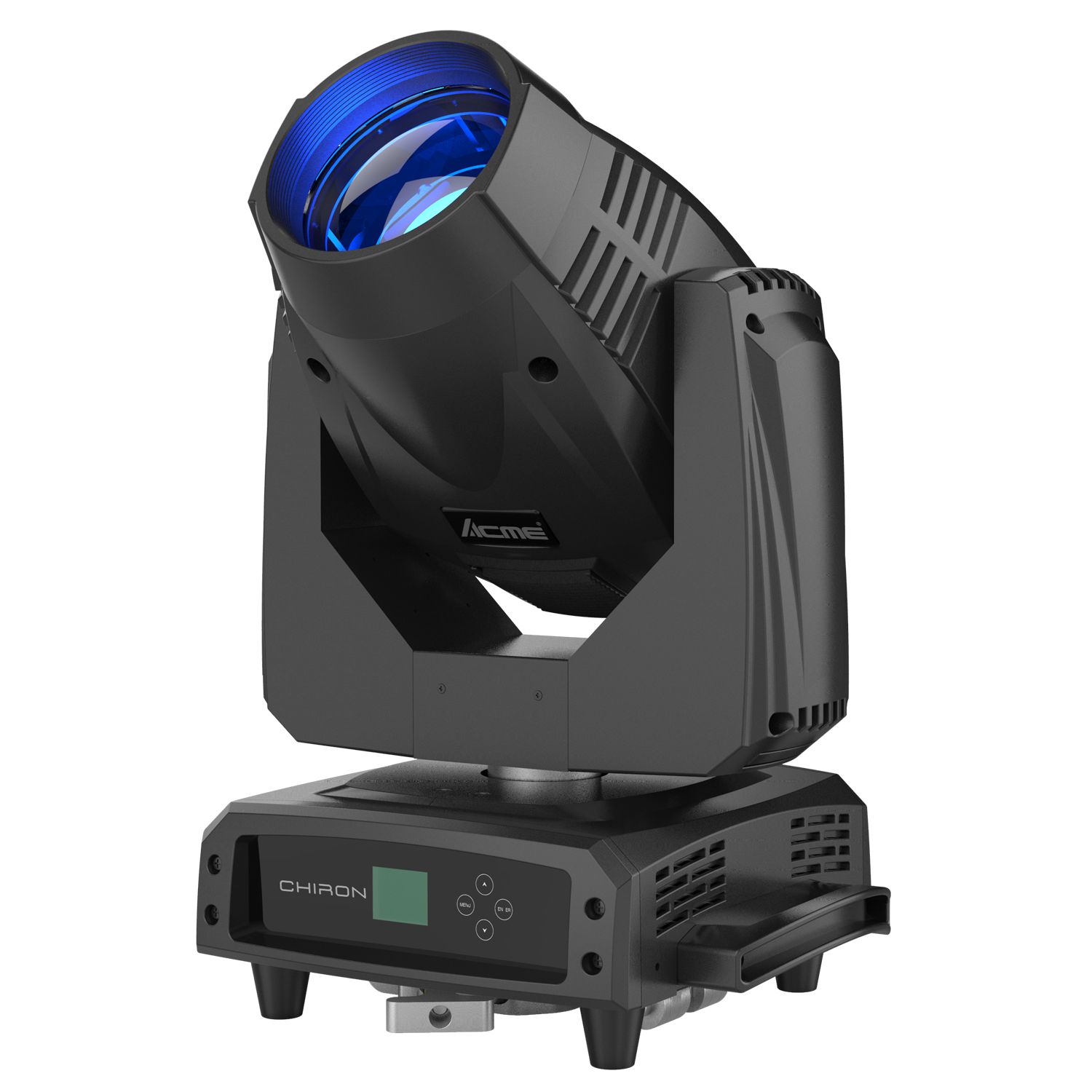

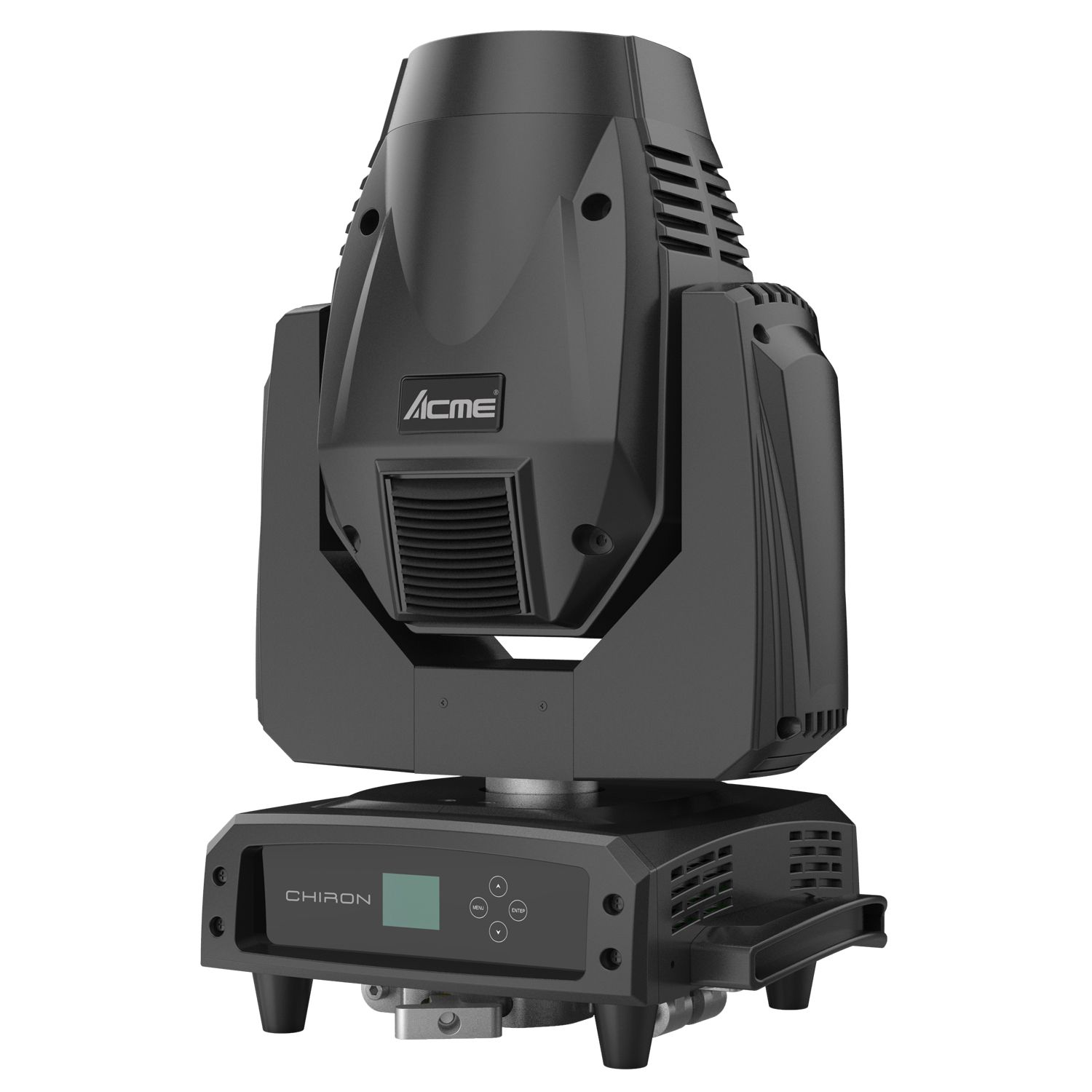

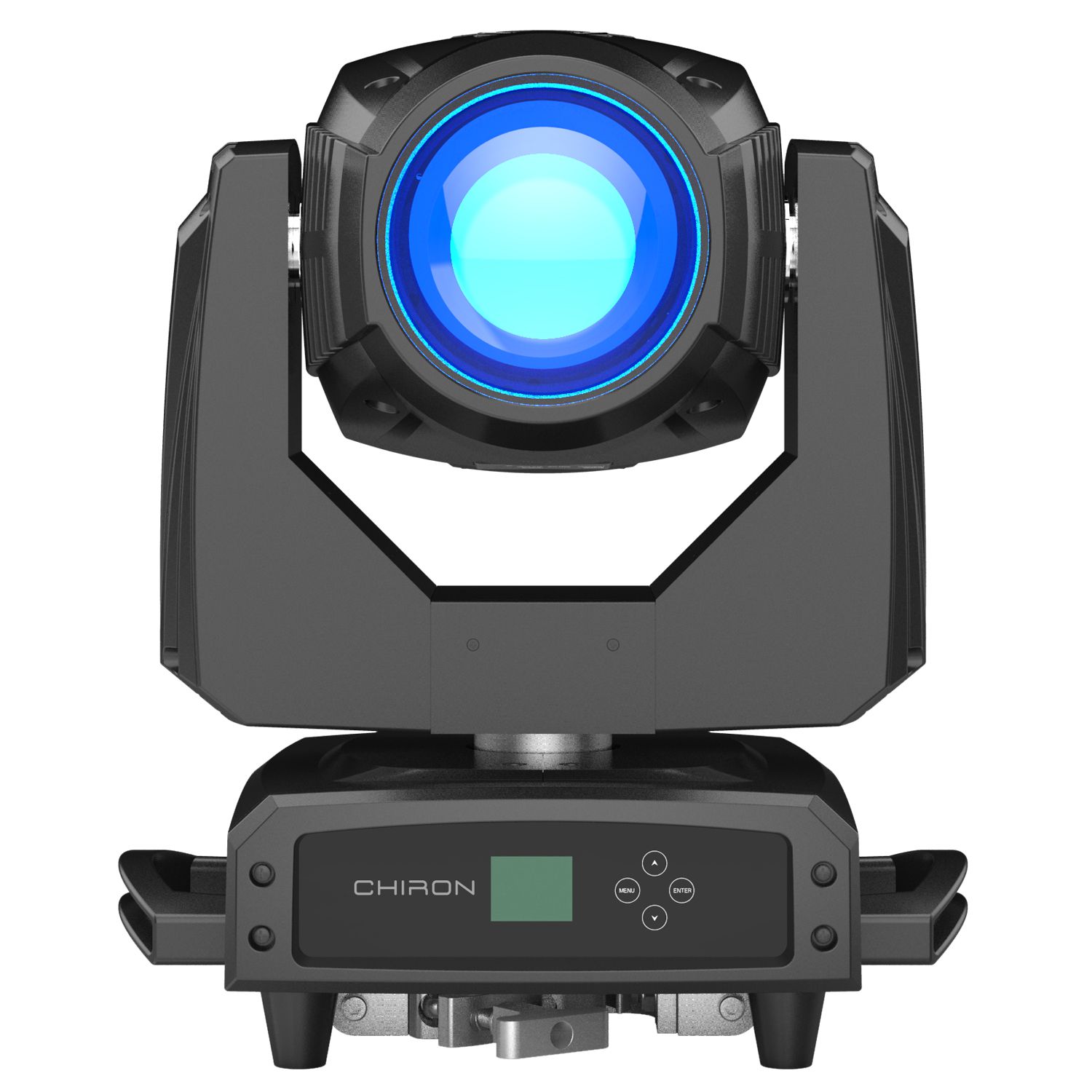

Acme CHIRON

Adviesprijs 2.189,62 excl.btw

370W | Gasontlading | Movinghead | Beam

Log in of registreer om uw korting te zien.
Of vraag vrijblijvend een offerte aan.

Demo? Bezoek onze showroom of maak een afspraak voor een demo op locatie.

Wij zijn er voor de professional. Totaal leverancier stage & entertainment

Deskundig advies op maat. Wij denken graag met je mee.

Gespecialiseerd in projectie. Voor elke project een oplossing.

Functional Overview
The break-through long-life lamp solution from Osram, the SIRIUS HRI 371WLL (or PhilipsMSD PLATINUM 18 R LL) discharge lamp enables the new ACME CHIRON’s class-leading 6,000-hour lifespan. Its straight, sharp 2˚ beam makes it a cost-saving investment for a wide range of applications.

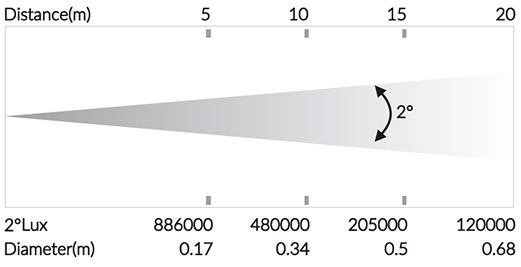

Digital position correction technology offers fast and smooth movement. A wide range of mid-air effects is achievable via static gobo wheel(16 gobos) and Color Wheel (14 colors) in conjunction with two rotating 8- or 24-facet prisms. The impressive 886,000 lux@5m output helps the unit to deliver the utmost in terms of light quality and number of effects.

Features
Diameter of lens: 146mm
Long-life design: 6,000-hour lamp life with sleep mode & instant wake-up
Color temperature: 7650K
Macro effect and half-tone effect
Rainbow effect in both directions
Gobo shaking function for more dynamic visual effects
1x static gobo wheelwith 16 gobos plus open
1x Color Wheelwith 14 colors plus open
2x prisms: dual 8- and 24-facet prisms, rotatable in both directions and overlayable
Beam angle: 2°
Frost: can be used independently
Motorized focus
Outstanding strobe effect with variable speed
Smooth dimming from 0-100%
Flicker-free management
Dust-proof and oil-proof design

Technical & Specification
Model
XP-380 BEAM II

Light Source
Light Sources:
PHILIPS MSD PLATINUM 18 R LL
OSRAM SIRIUS HRI 370W LL
Life expectancy: 6,000 hours

Optical System
Advanced optical Systemensures clear, sharp image quality
High-efficiency Optical System
Beam angle: 2°

Control& Program
4-button touch panel
Display: LCD display
Protocols: DMX512,Master/Slave,RDM
DMX modes: 2
Controlchannels: 14, 17
Pan/Tiltresolution: 16-bit
Firmware Upgrade via DMX link

PAN & TILT
Pan movement: 540°
Tilt movement: 270°
Fixation:Pan/Tiltlock
AutomaticPan/Tiltposition correction
Digital waveform correction technology, ensures accurate positioning of Pan and Tilt, avoidingvariation after high speed movement and reset.

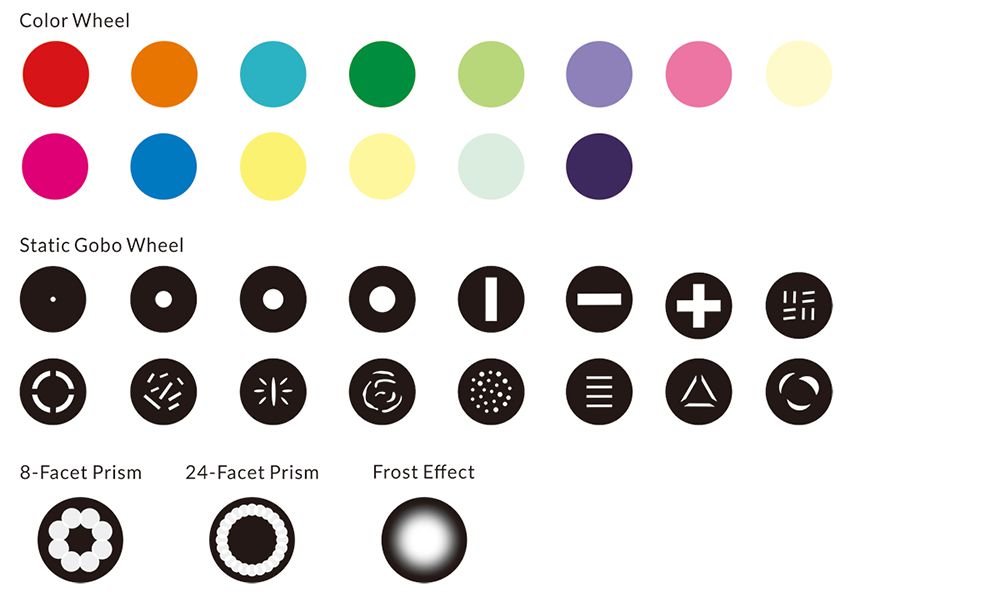

Static Gobos
1x static gobo wheel with 16 gobos plus open

Color Wheel
1x Color Wheel with 14 colors plus white

Electrical & Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240V, 50/60Hz
Power consumption: 570W
Power Connector input/output
Data in/out: 3-pin XLR

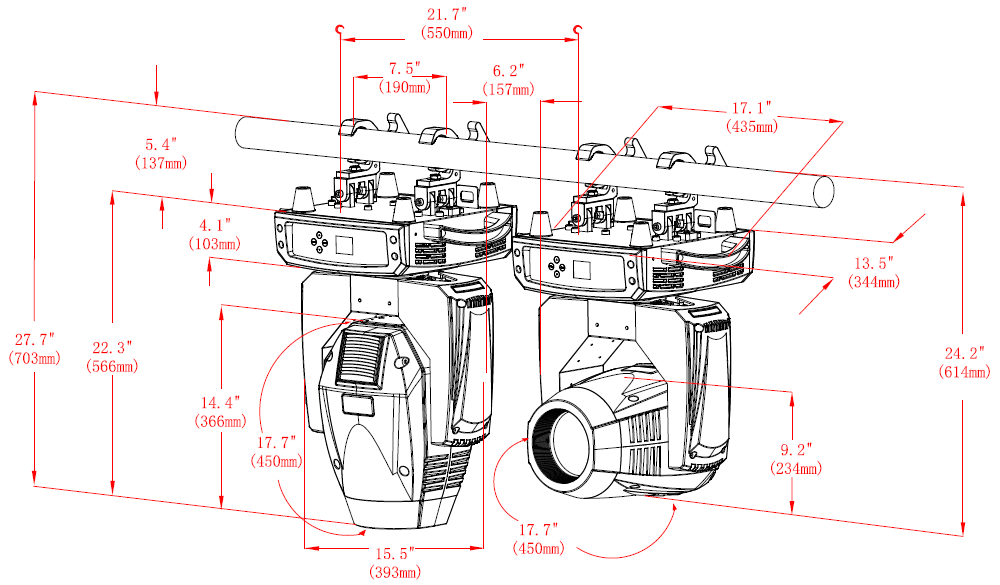

Fixture Specification
Height: 606mm (23.9”)
Width: 434mm (17”)
Depth: 344mm (13.5”)
Weight: 21.2kg (46.7lb)

Work Environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C

Approvals
CE compliant

Installation
Horizontal or vertical mounting
Operating position is universal
2 pairs of 1/4-turn locking points under base

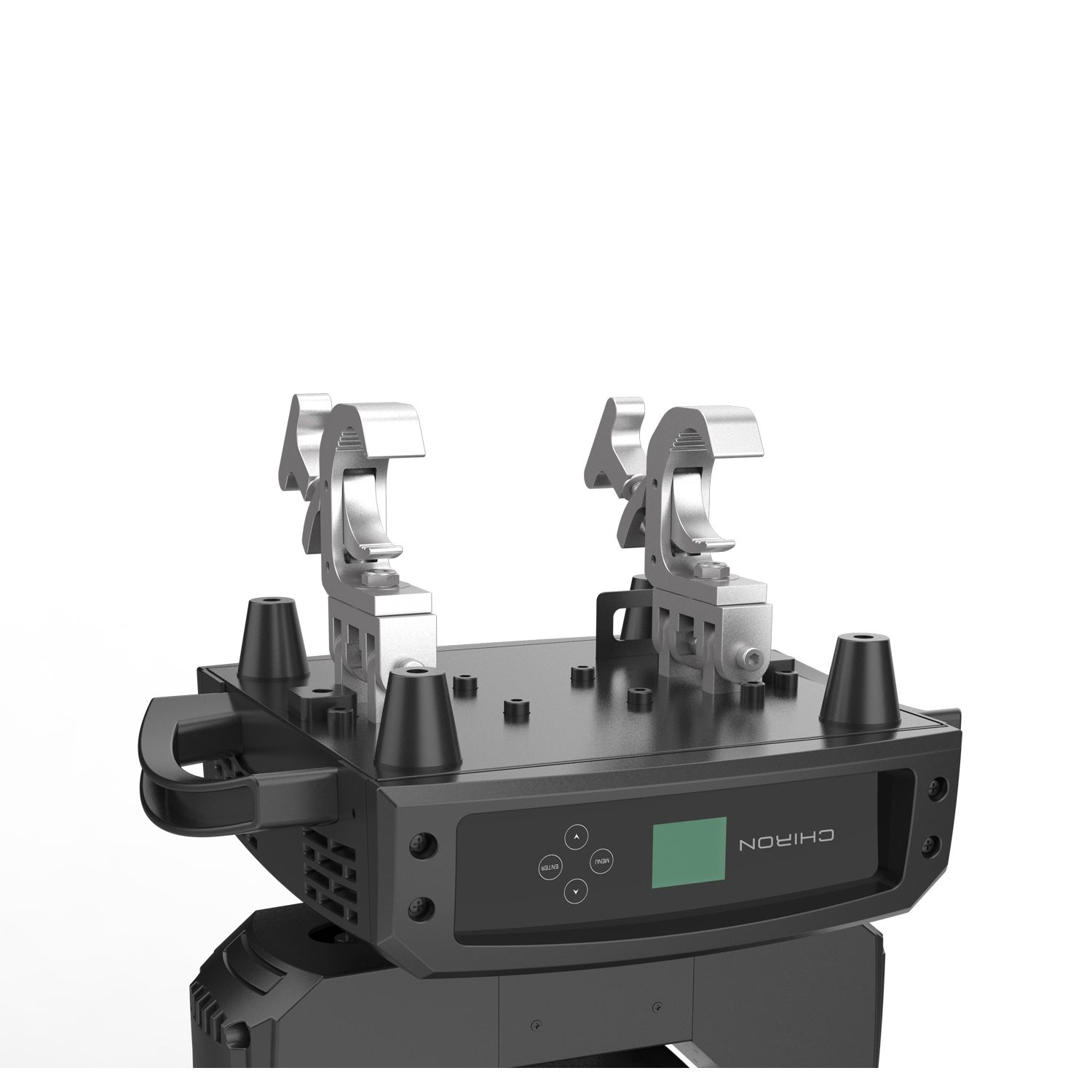

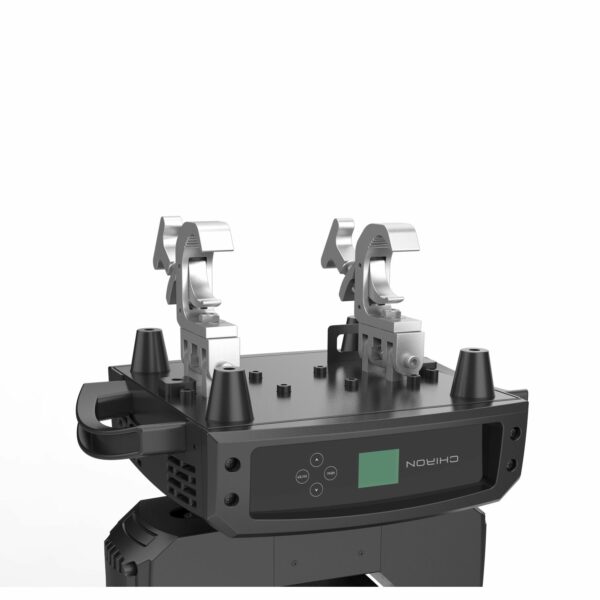

2x fixed clamps with 1/4-turn locks for 50mm truss

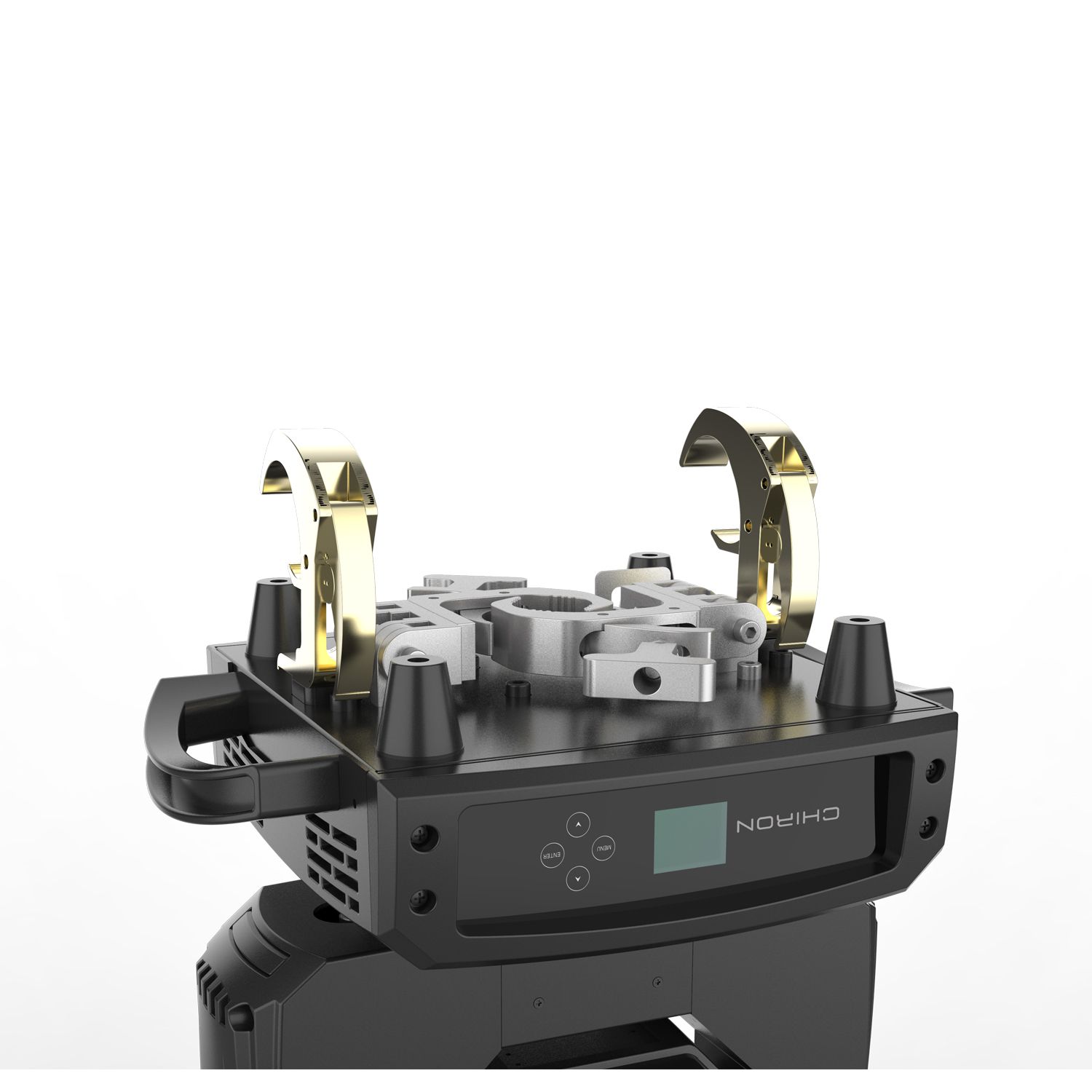

2x pairs of M12 1/4-turn locking points of removable clamp for 70mm truss
Safety cable attachment point

Included Items
User Manual
Power Cable
2x fixed clamps with 1/4-turn locks for 50mm truss

Optional Accessories (with item code)
Raincover: 3033001749
Flight case: 3205001255 (2 in 1)
Safety cable:2060001603-A (SW-05)
Signal line: 3-pin signal line

Vermogen

IP-Rating

Indoor

Type lichtbron

Gasontlading

Eigenschappen

Vermogen Lichtbron

370

Kleurmenging

Kleurenwiel

Type Fixture

Beam

Functies

Frost

Min zoom

2

Max zoom

2
