Functional Overview
ACME’s creative Dotline360 is a high-power performance fixture equipped with 12x 30WRGBW LEDs, packed tightly to give a full linear light from a 1 meter bar. Its quality optical design offers excellent color mixing and smooth output across the two independent zoom zones ,one of the remarkable functions of Dotline. What’s more, it offers full pixel mapping capabilities. With a 1:11 zoom ratio from 3.5-38˚, it ranges from a very narrow-angle light curtain effect to a wide-angle wash bar. The unique fast-lock system and turnable clamp enables rapid setup in any trussing, saving production time.
Features
Light Source: 12x30W RGBW LED
Zoom range: 3.5-38°
Effects:The zoom angle of the right and left modules can be individuallycontrolled for outstanding color mixing effects and adjustable strobe speeds
Efficient cooling: 4x silent fans are evenly distributed beneath the fixture, while both sides and the bottom plate are vented to improve convection cooling, quickly removing the heat generated by the LEDs and greatly improving their efficiency
Connected quantity:
Maximum QTY of DMX connecting mode: 32 sets
Maximum QTY of Power supply connecting mode:120V – 4 sets / 230V – 7 sets
Technical & Specification
Model
TB-1230 QW
Light Source
Light Source: 12x30W RGBW LED
LED life expectancy: 30,000 hours
optical System& Effects

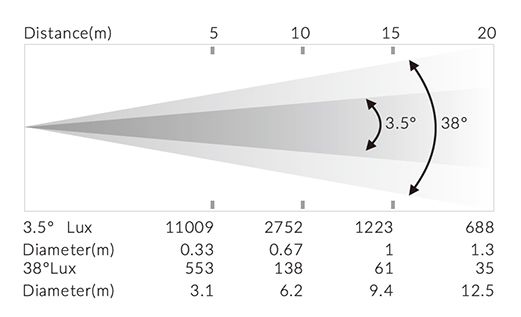

Zoom range: 3.5-38°
RGBW color mixing
Individual Controlof zoom angles of left and right modules
Outstanding color mixing effect with variable speed
High resolution dimmer 0–100%
Electromechanical Effects
Linear motorized zoom
Tilt movement range: 220°
Control& Program
4-button touch panel
Display: OLED display
Battery backup for user setup without mains connection
Protocols: DMX512, RDM, Art-Net
DMX Protocol modes: 2
Controlchannels: 14, 57
Firmware upgrade via DMX link
Electrical & Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240V, 50/60Hz
Power consumption: 450W
Power in/out: Power Connector in/out
Data in/out: 3-pin & 5-pin XLR

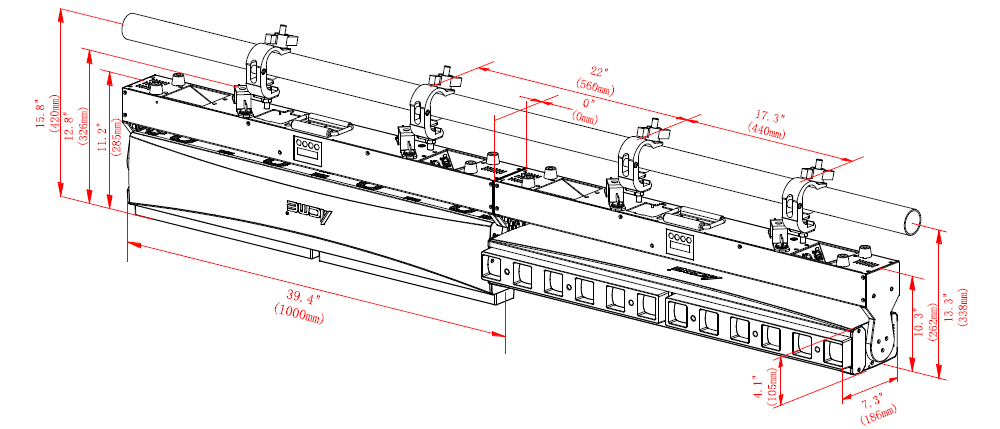

Fixture Specification
Height: 113mm (4.4”)
Width: 278mm (10.9”)
Depth: 1000mm (39.3”)
Weight: 17kg (37.4lb)
Work Environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Approvals
CE compliant
Installation
Horizontal or vertical mounting
Operating position is universal
2x fast-lock clamps for 50mm truss
Safety cable attachment point
Included Items
User Manual
Power Cable
Carry handles (minimum load 60kg)
Safety rope device
2x fast-lock clamps for 50mm truss
Optional Accessories (with item code)
Vertical raincover: 3033002024
Invert raincover: 3033002025

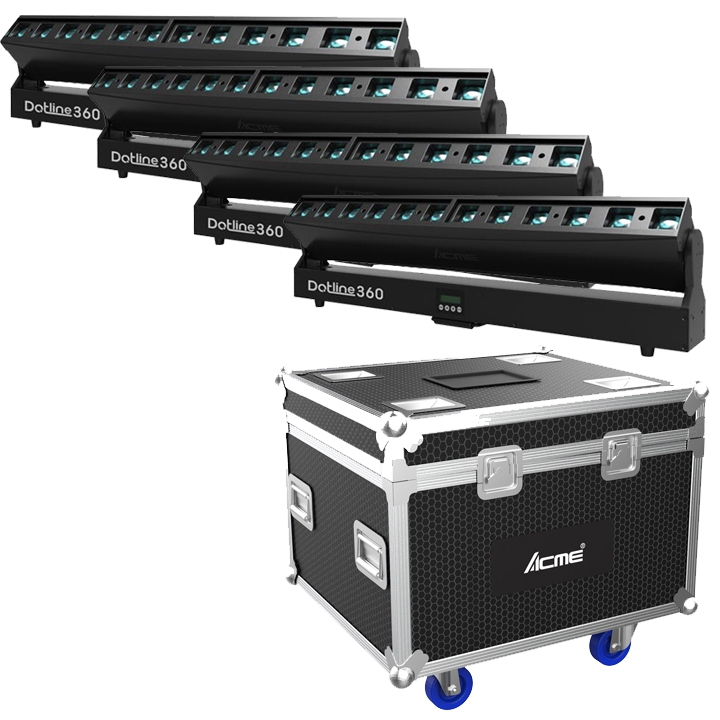

Flight case: 3205001222 (4 in 1)
Clamp: 2060001614 (C-250)
Safety cable: 2060000200 (SW-02)
