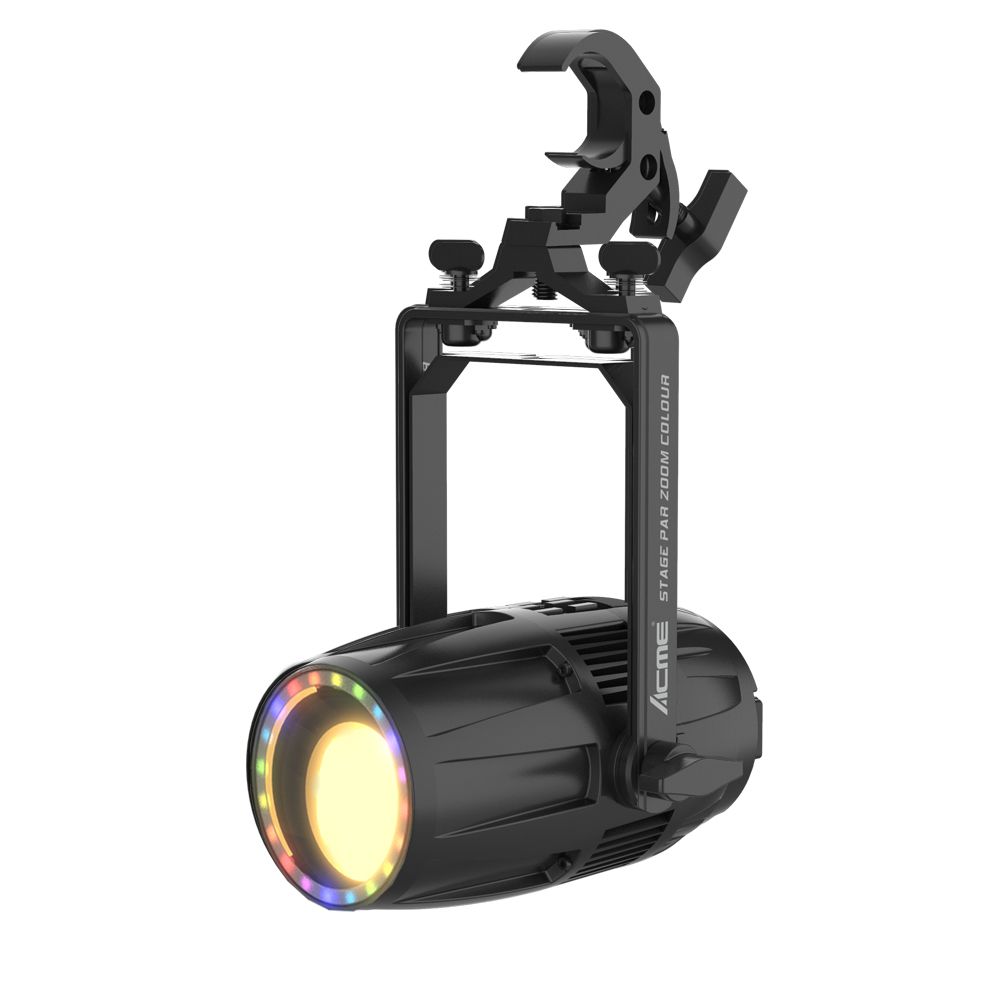

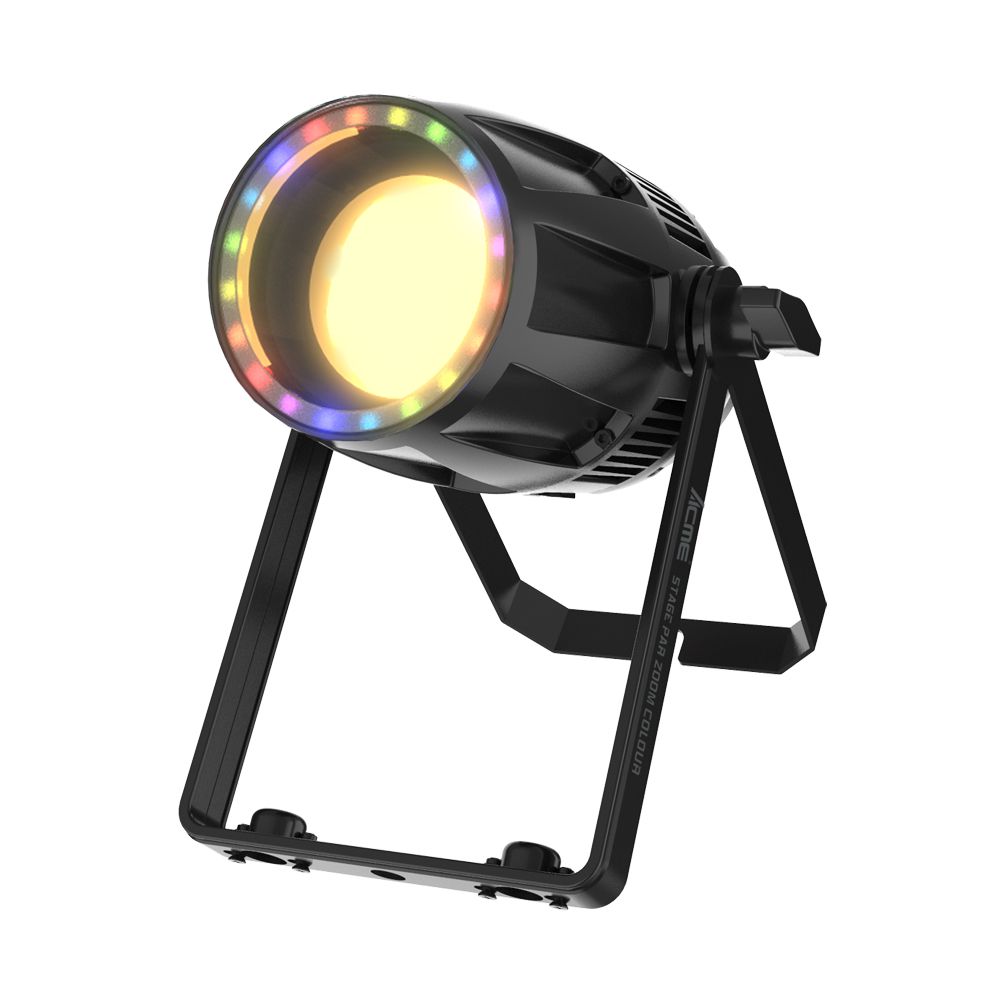

Functional Overview

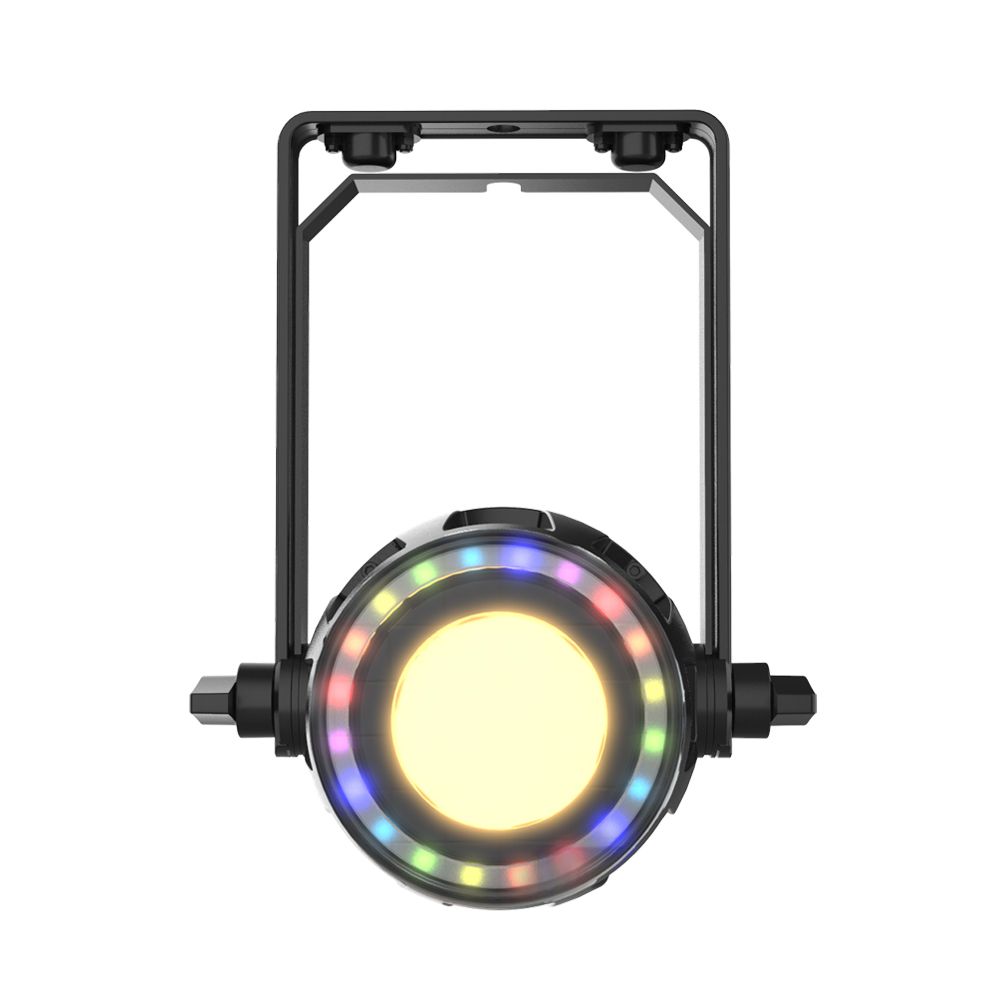

STAGE PAR ZOOM COLOR，When you ask more from a PAR, there is only one solution, revolution it. STAGE PAR ZOOM COLOR put a step forward and combine a smart zoom, able to track in the sky with its sharp beam, with a stunning, hypnotising and multicolour framing effect. Washing colors perfectly blend in its compact housing. Suitable for all conditions, in extreme silence, with high IP grade. But STAGE PAR ZOOM COLOR, it's not only this. Sophisticated effects make programming life easy. Multiple macro, color and CTO palettes, or our famous Tungsten effect. All together enhance the capabilities for any console, saving time for your programming, Under control anytime, anywhere, with RDM For a long, bright and power saving life.
Light source:
1 x 60W RGBL LED module
24X0.5W RGBW LED
Color Temperature: 2500K-8000K
Beam Angle: 2.4°- 15.3°
Field Angle：3.9°- 25.9°
High efficiency, low energy consumption, good heat dissipation, long life
Compact design, only 3.5kg, technology leading peer similar products
Double hanger design, multiple installation options
Outstanding strobe effect with variable speed
0~100% smooth dimming
Flicker-free management
Dust proof and oil proof design
IP66
Technical & Specification
Model
BL-100Z RGBL
light-source
Light source:
1 x 60W LED module
5050 RGBW LED
LED Life Expectancy: 20000 HORS
optical systems
Advanced optical system

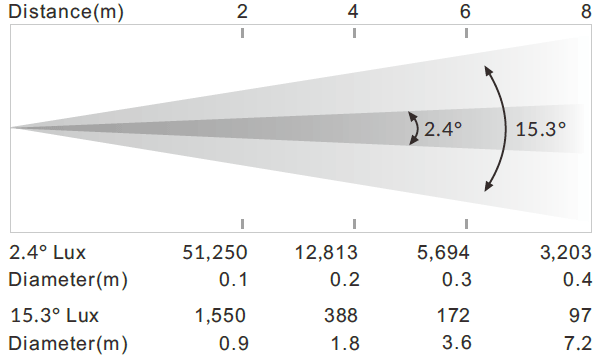

Beam Angle: 2.4°- 15.3°
Field Angle：3.9°- 25.9°
Control and Programme
4 button touch panel
Display: OLED display
Protocols: DMX512,RDM
Upgrade the firmware via DMX link
DMX Protocolmodes:1
Control channels: 19
Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240 V, 50/60 Hz
Power consumption: 80W

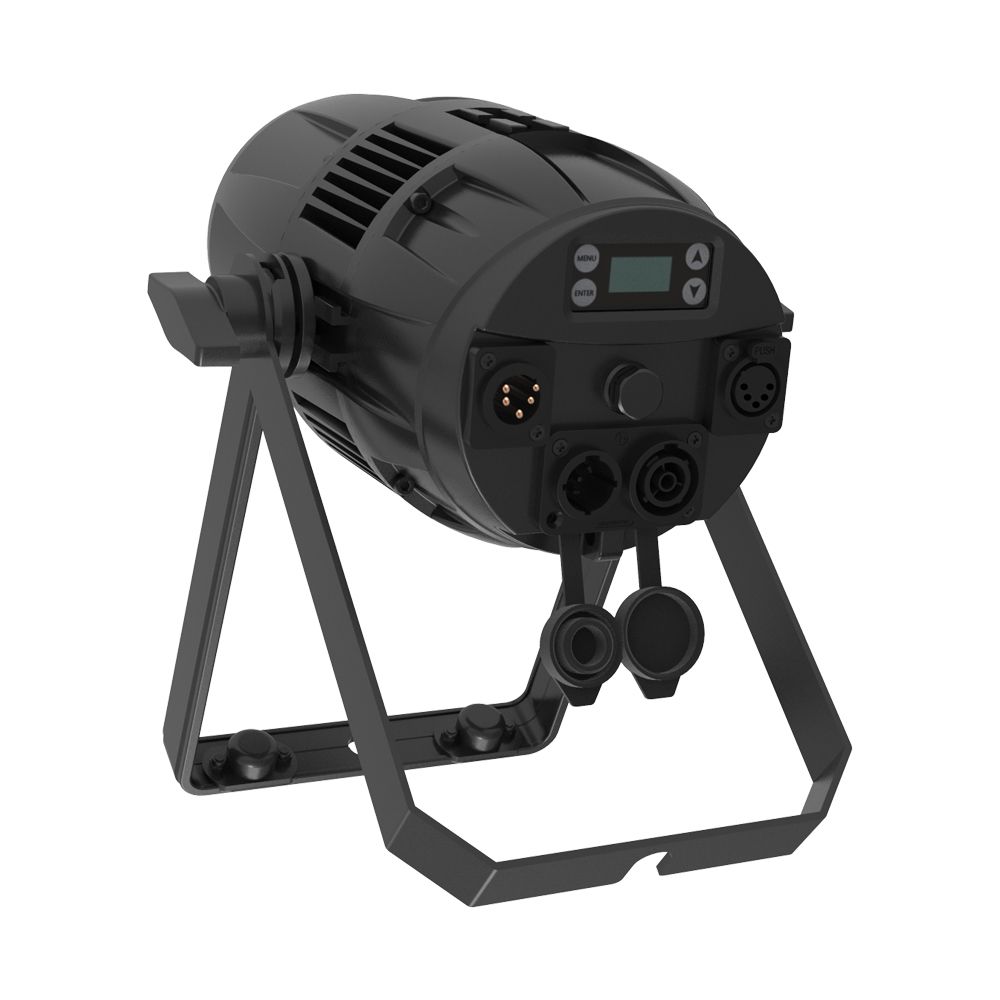

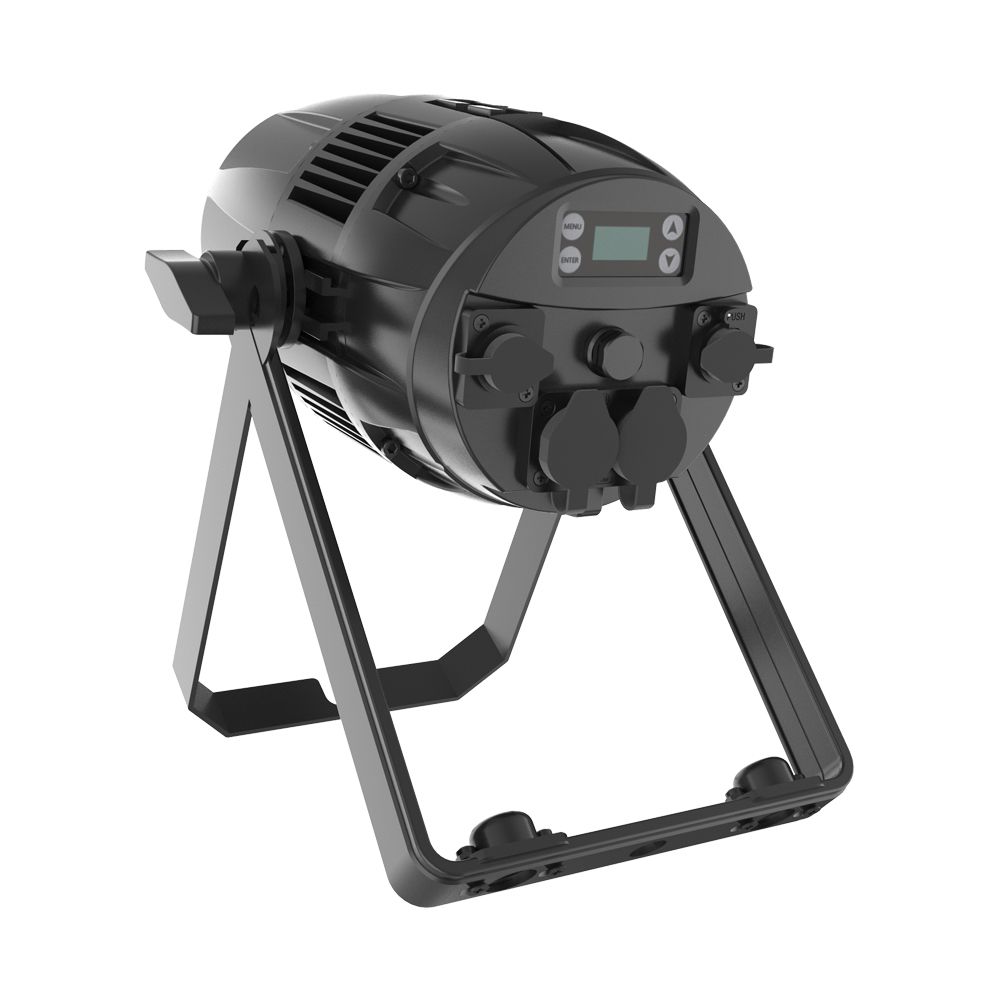

Power In/Out：Waterproof Power Connector input/output
Data in/out: 3-pin or 5-pin IP XLR
Fixture Specification
Height: 307mm (12″)
Width: 238mm (9.4″)
Depth: 267mm (10.5″)
Weight: 3.9 kg (8.6 lbs)
Carton Dimension：
Height: 575mm (22.6")
Width: 450mm (17.7”)
Depth: 475mm (18.7")
Weight: 5kg (11.0lbs)(Four packed per Carton)
work environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Protection Rating: IP66
Installation

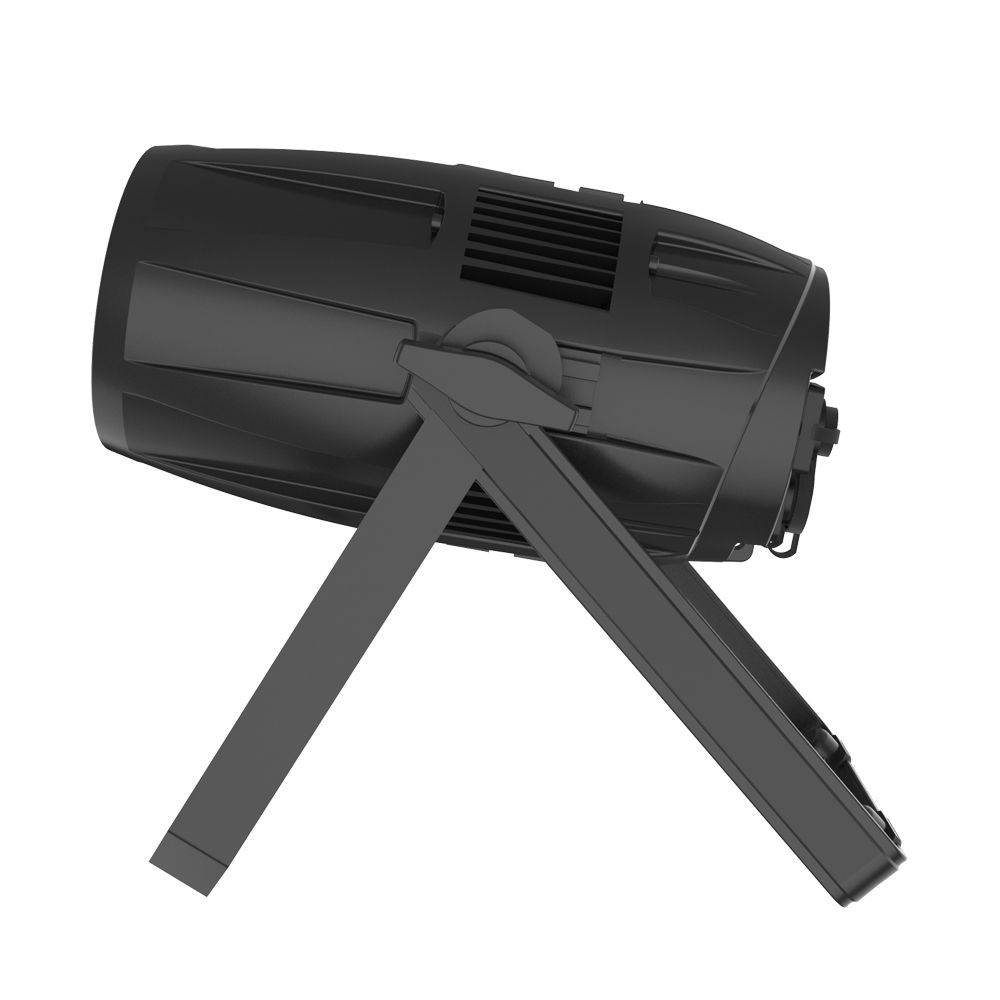

Available in horizontally or vertically mounting way
Multi-projection angle operation
Bracket can be fast-locked and with one locking point for clamp's installaiton
1x Fast-locked clamps for 50 millimeter truss
Safety rope hanging
included items
user Manual
Power Cable
1x Fast-locked clamps for 50 millimeter truss
Cardboard
Optional Accessories (with item code)
Clamp：2060001614（C-250）
Signal Line：3-pin or 5-pin IP signal line
Safety cable : 2060001603-A（SW-05）

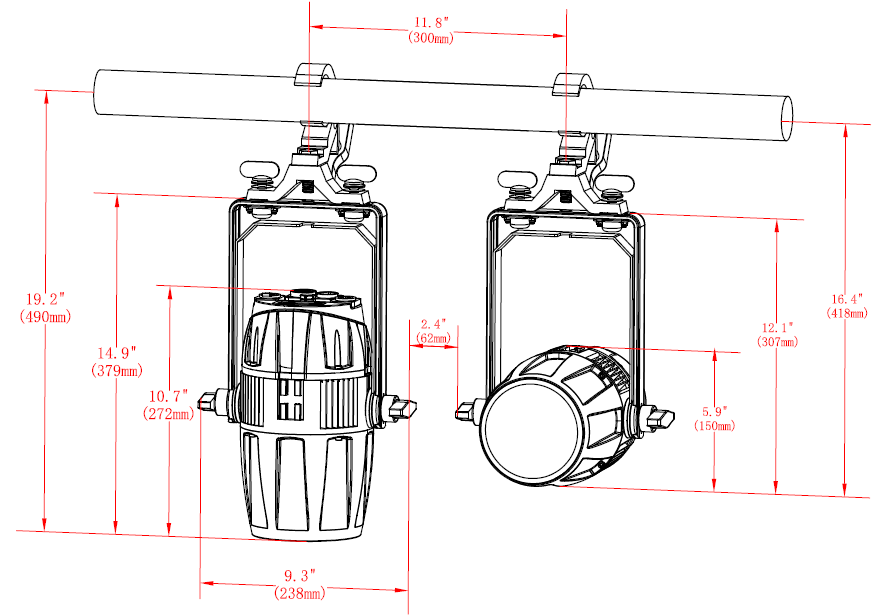

Dimensions DWG (0 KB)
